Testing and Debugging Web Services: A Comprehensive Overview

hyatt-burt avatar
12 diapositives · 263 Views · Oct 31, 2014

In this lesson, you will learn to effectively test and debug web services. By the end, you'll be able to identify the programming structures utilized by web service client programs and document your application setup. You'll also assess the deployment of WSM and WSDL files on JSE/Web Server, test the connection from a web services client to your OpenEdge application, and debug any issues that arise with the connection. This lesson is crucial for ensuring your systems function seamlessly and can handle user tasks efficiently.

Testing and Debugging Web Services: A Comprehensive Overview - slide 1
01 / 12Testing and Debugging Web Services: A Comprehensive Overview
1 / 17

Télécharger la présentation

Testing and Debugging Web Services: A Comprehensive Overview
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation
  1. Lesson 8Testing and Debugging the Web Service

  2. Overview When you complete this lesson you should be able to: • Identify programming structures used by Web Services client programs • Document your application setup • Check the deployment of the WSM and WSDL files on the JSE/Web Server • Test the connection from a Web Services client to your OpenEdge application • Debug any problems with the connection

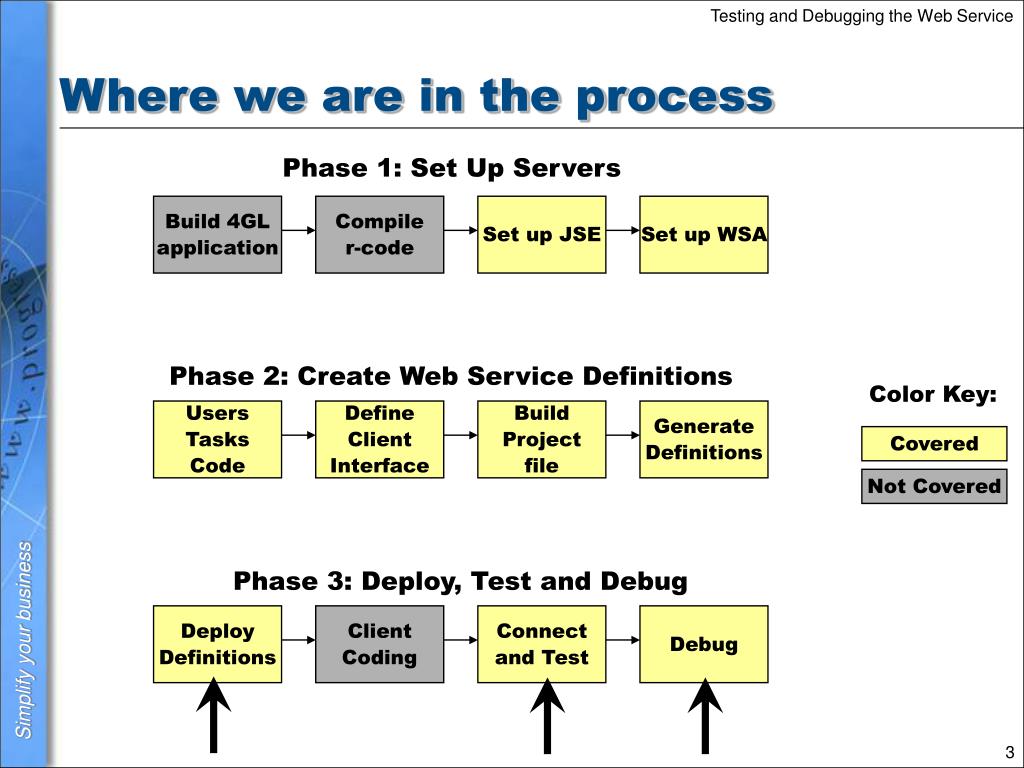

  3. Where we are in the process Phase 1: Set Up Servers Build 4GL application Compile r-code Set up JSE Set up WSA Phase 2: Create Web Service Definitions Color Key: Users Tasks Code Define Client Interface Build Project file Generate Definitions Covered Not Covered Phase 3: Deploy, Test and Debug Deploy Definitions Client Coding Connect and Test Debug

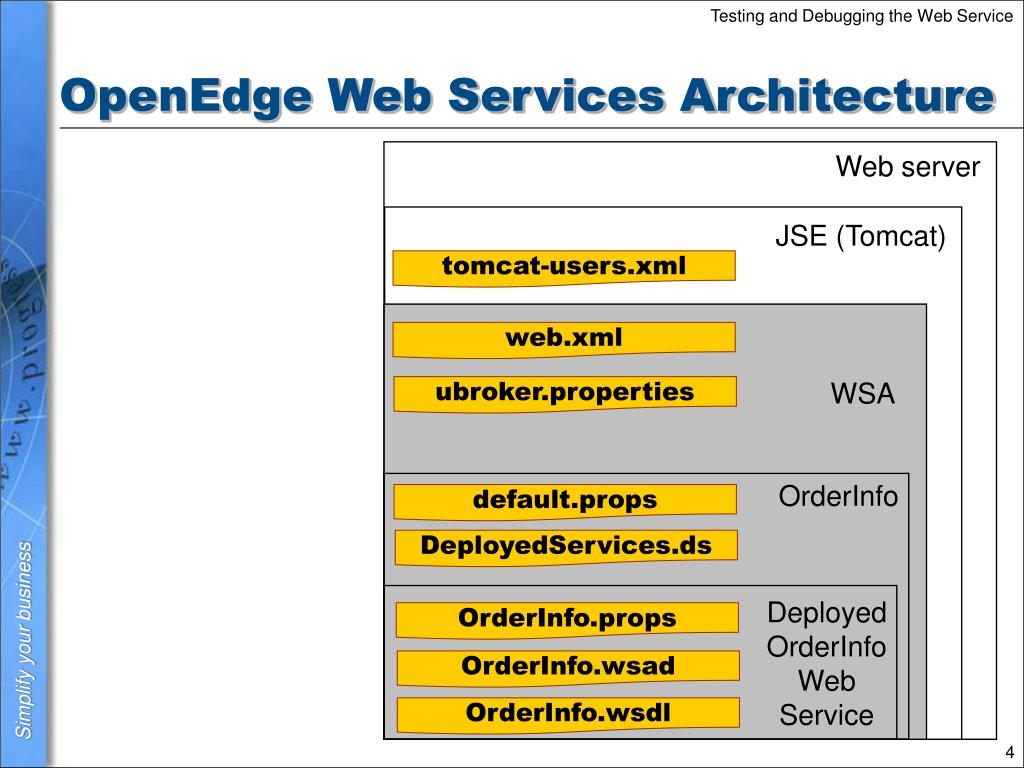

  4. OpenEdge Web Services Architecture Web server JSE (Tomcat) tomcat-users.xml web.xml WSA ubroker.properties OrderInfo default.props DeployedServices.ds Deployed OrderInfo Web Service OrderInfo.props OrderInfo.wsad OrderInfo.wsdl

  5. WSDL for OrderInfo

  6. Lab 8-1:Documenting your system

  7. OrderInfo running via Web Services

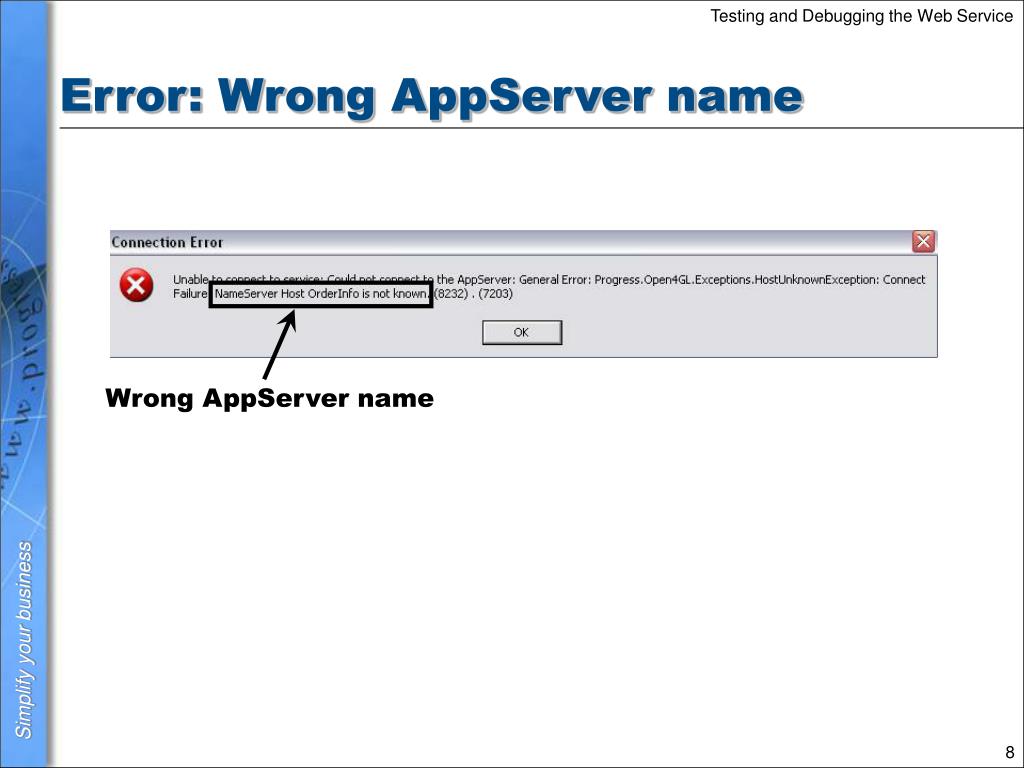

  8. Error: Wrong AppServer name Wrong AppServer name

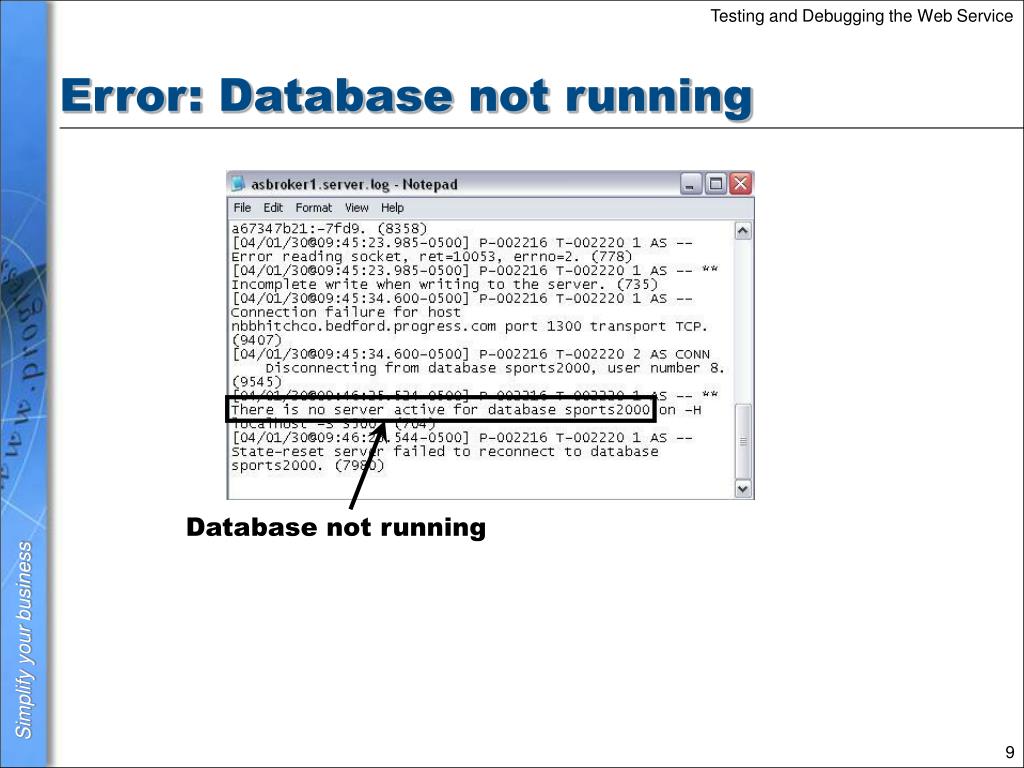

  9. Error: Database not running Database not running

  10. Demonstration 8-1:Testing and Debugging OrderInfo

  11. Lab 8-2:Testing and debugging the Web Service

  12. Review
