Behavioral Animation: Controlling Object Motion with Virtual Actors

1. Behavioral animation CSE 3541 Matt Boggus

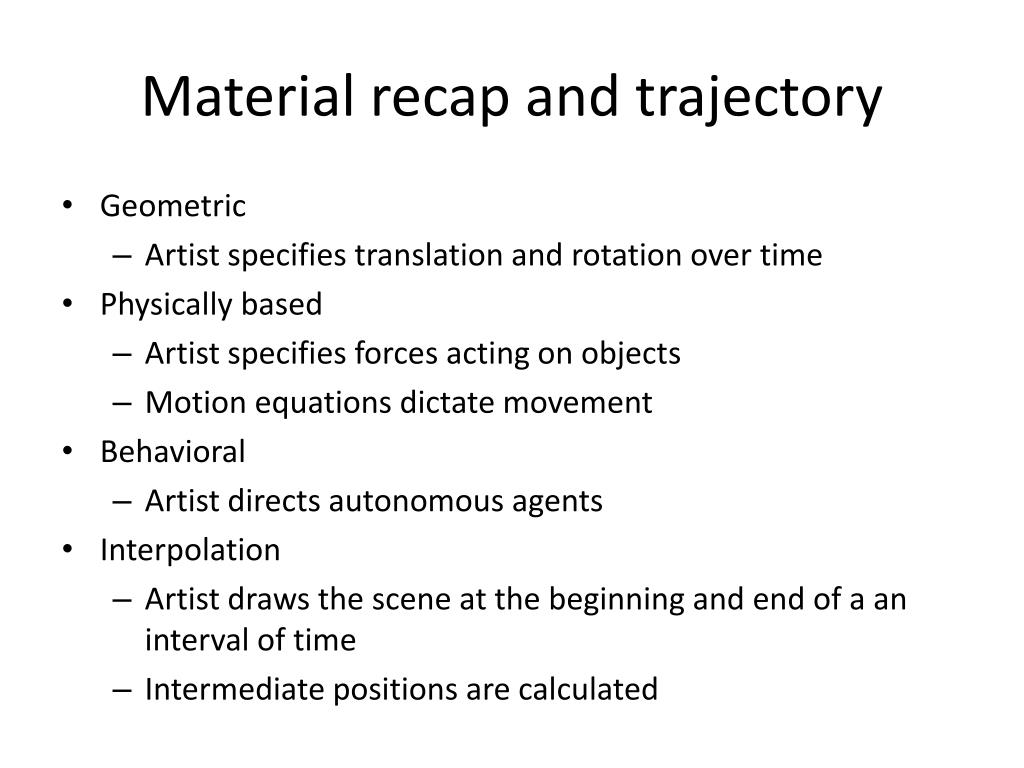

2. Material recap and trajectory • Geometric • Artist specifies translation and rotation over time • Physically based • Artist specifies forces acting on objects • Motion equations dictate movement • Behavioral • Artist directs autonomous agents • Interpolation • Artist draws the scene at the beginning and end of a an interval of time • Intermediate positions are calculated

3. Behavioral Animation • Control the motion of one or more objects using virtual actors • Goal: realistic or believable motion so that the object appears to be autonomous • Matt Lewis’ page on BA http://accad.osu.edu/~mlewis/Class/behavior.html

4. Behavioral animation • Character or object motion based on: • Knowledge of the environment • Aggregate behavior • Primitive behavior • Intelligent behavior • Crowd management

5. Actor properties (position only) Goal (xg, yg) V = Goal - Position Next Position = Position + V * dt Position (x, y)

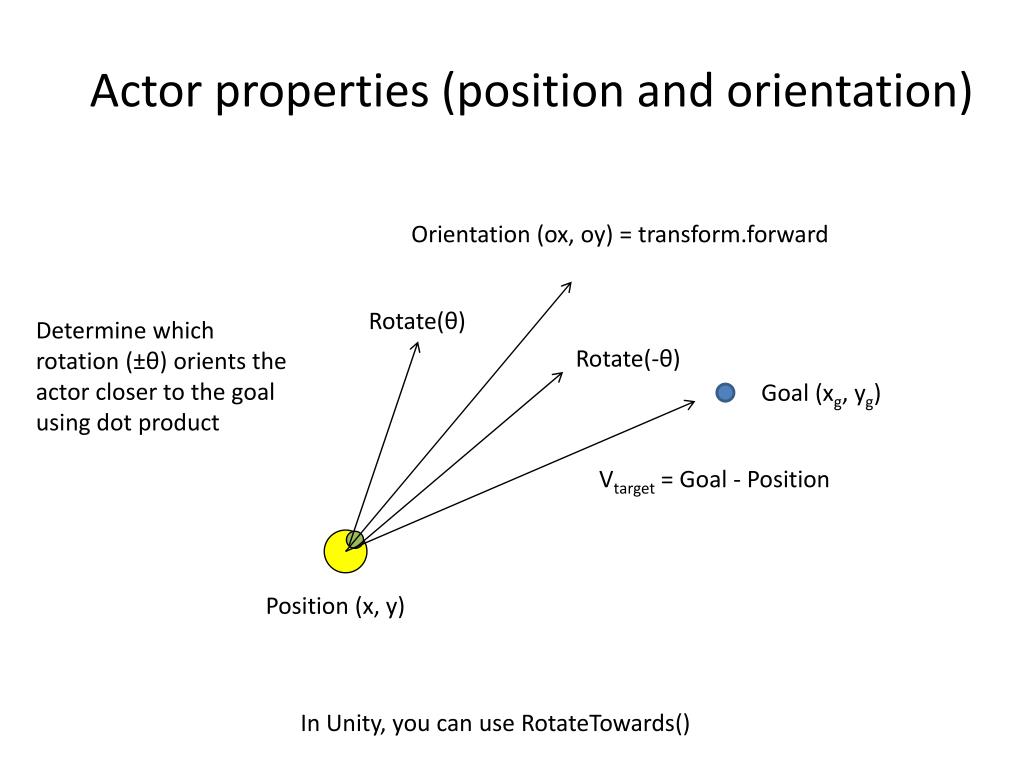

6. Actor properties (position and orientation) Orientation (ox, oy) = transform.forward Rotate(θ) Determine which rotation (±θ) orients the actor closer to the goal using dot product Rotate(-θ) Goal (xg, yg) Vtarget = Goal - Position Position (x, y) In Unity, you can use RotateTowards()

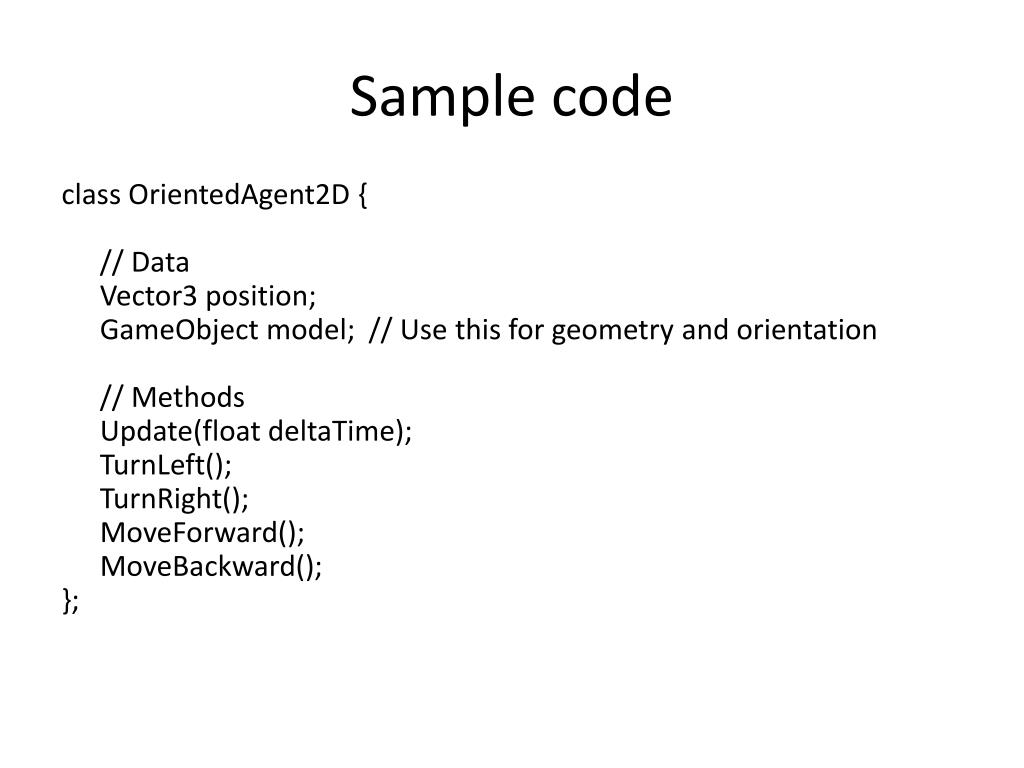

7. Sample code class OrientedAgent2D { // Data Vector3 position; GameObjectmodel; // Use this for geometry and orientation // Methods Update(float deltaTime); TurnLeft(); TurnRight(); MoveForward(); MoveBackward(); };

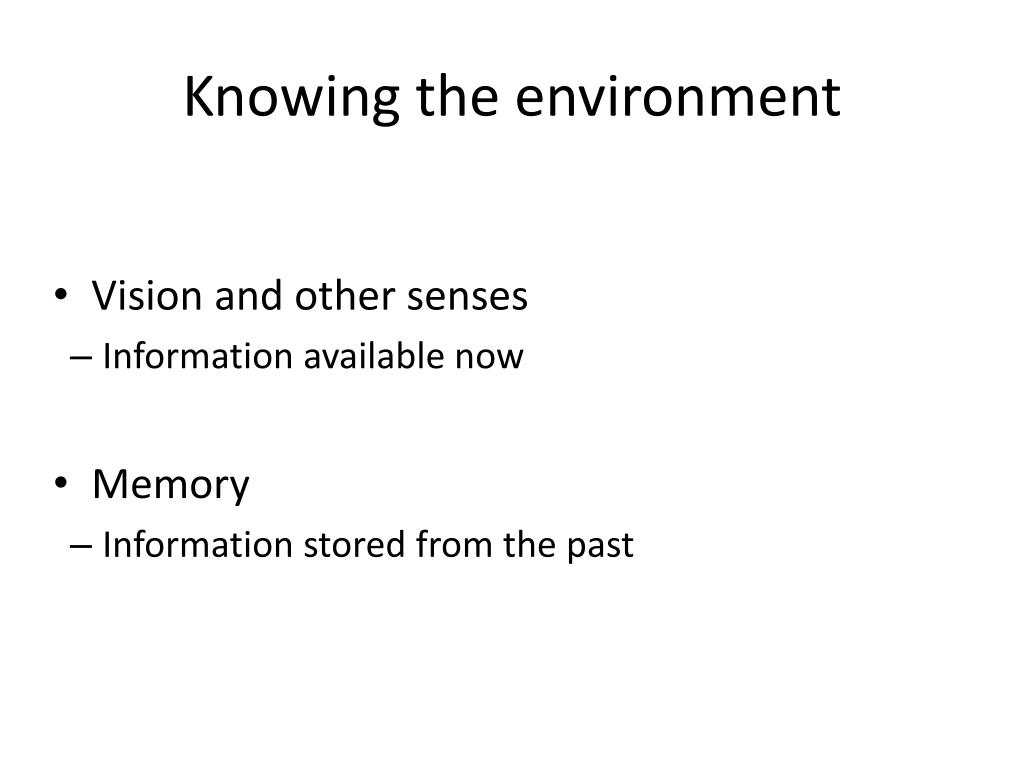

8. Knowing the environment • Vision and other senses • Information available now • Memory • Information stored from the past

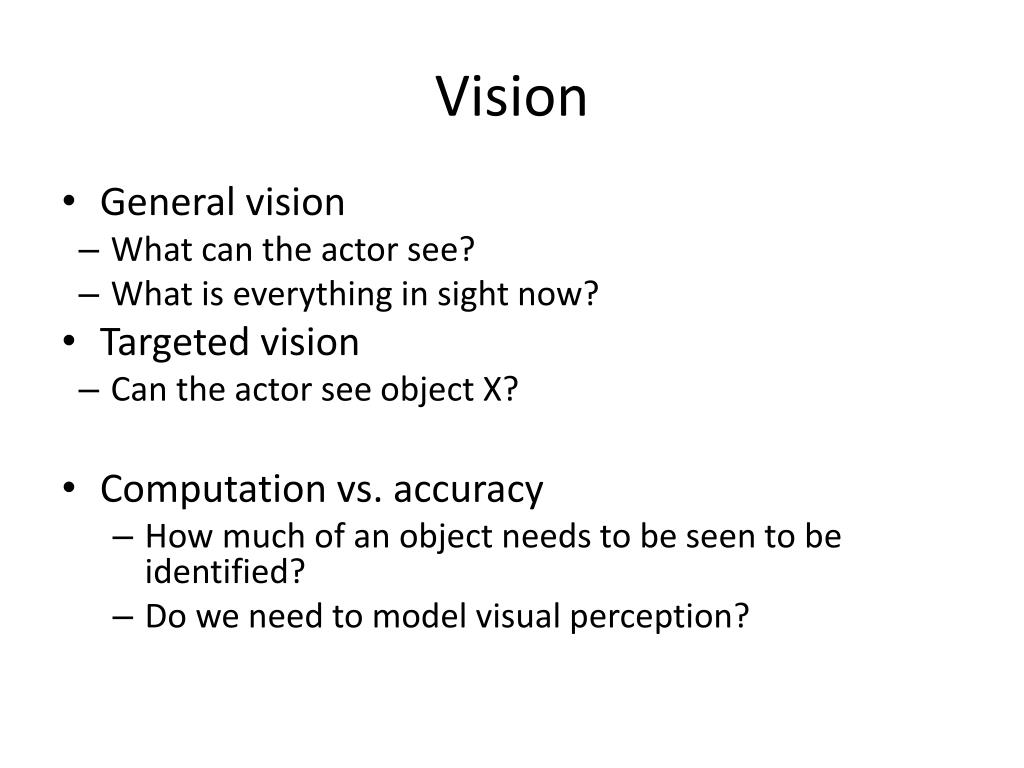

9. Vision • General vision • What can the actor see? • What is everything in sight now? • Targeted vision • Can the actor see object X? • Computation vs. accuracy • How much of an object needs to be seen to be identified? • Do we need to model visual perception?

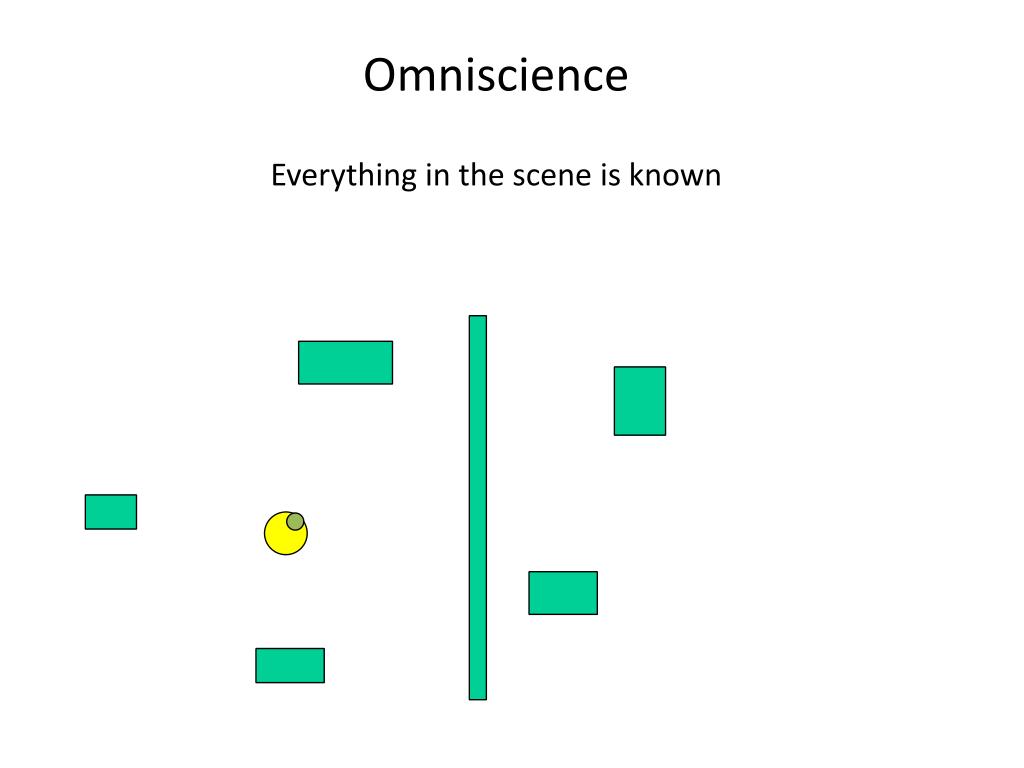

10. Omniscience Everything in the scene is known

11. Field of view

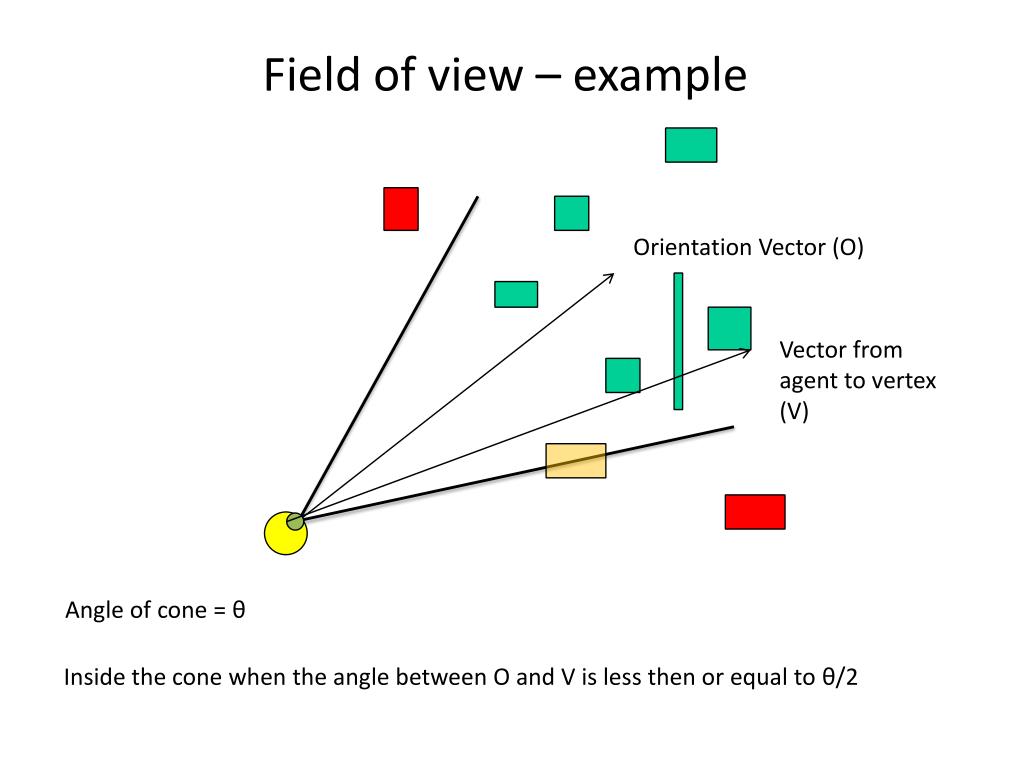

12. Field of view – example Orientation Vector (O) Vector from agent to vertex (V) Angle of cone = θ Inside the cone when the angle between O and V is less then or equal to θ/2

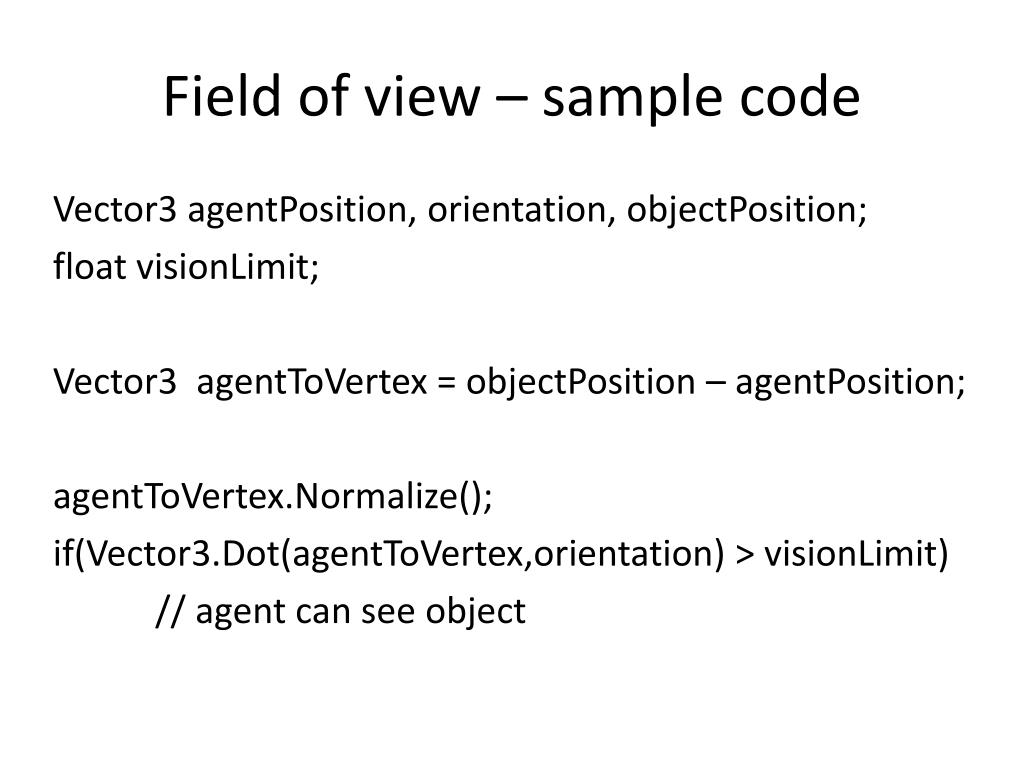

13. Field of view – sample code Vector3 agentPosition, orientation, objectPosition; float visionLimit; Vector3 agentToVertex = objectPosition – agentPosition; agentToVertex.Normalize(); if(Vector3.Dot(agentToVertex,orientation) > visionLimit) // agent can see object

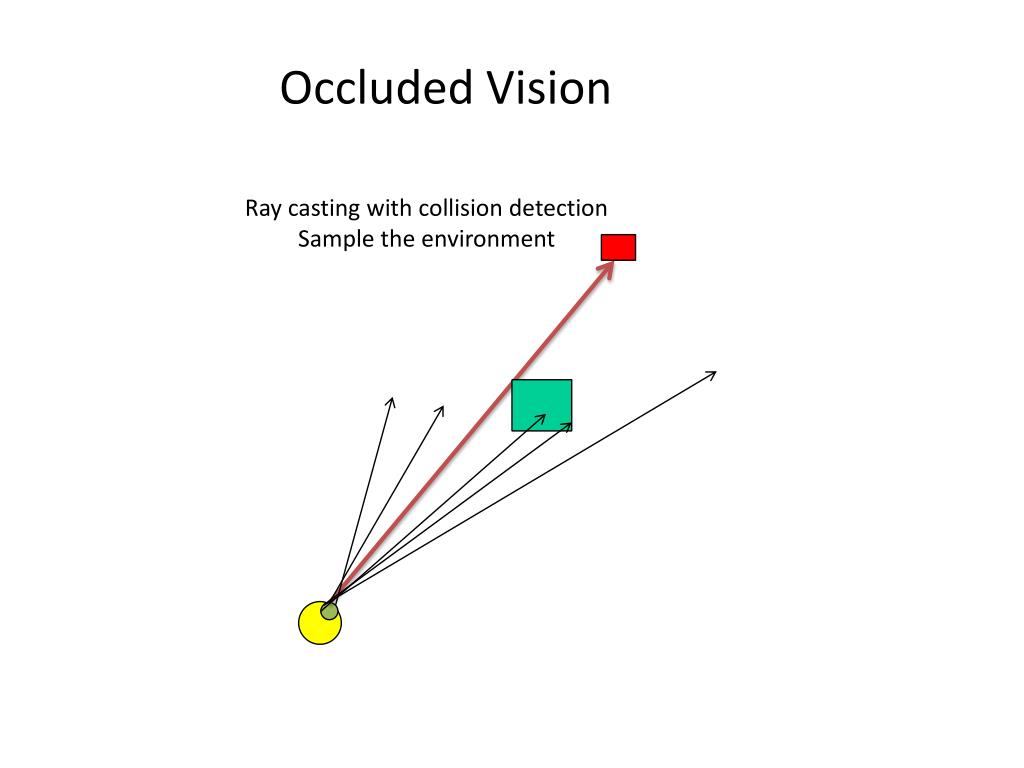

14. Occluded Vision Ray casting with collision detection Sample the environment

15. Target-testing vision (per object) How well can the actor see X? Use multiple rays Can the actor see X? Cast a ray

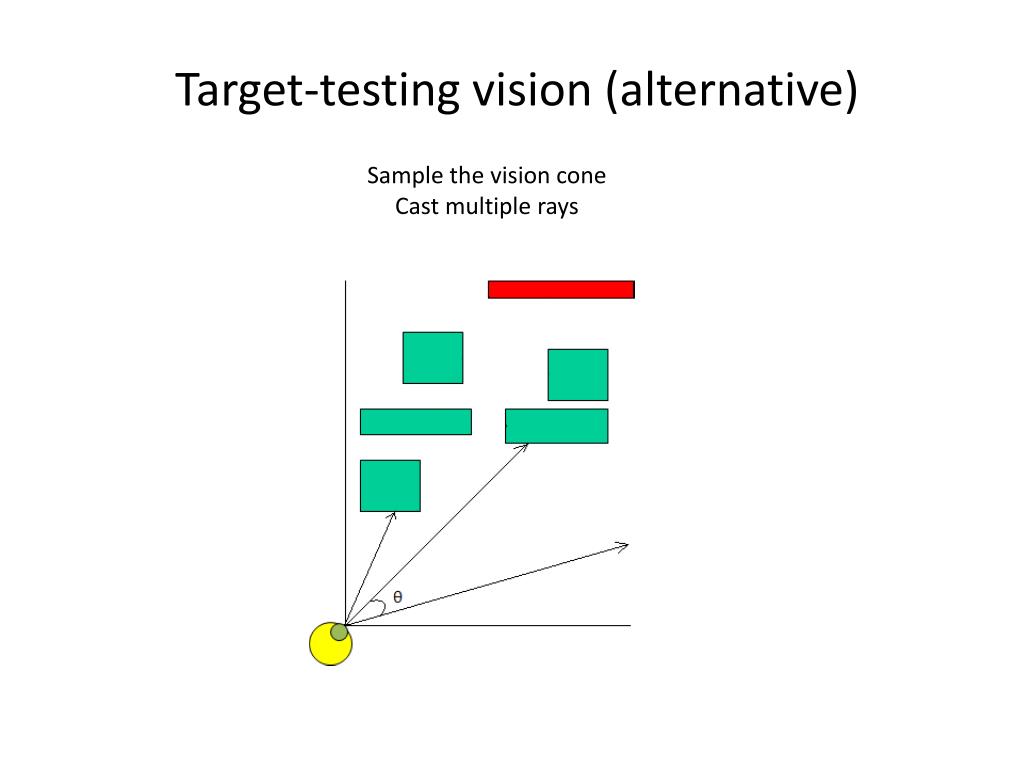

16. Target-testing vision (alternative) Sample the vision cone Cast multiple rays

17. Lab4 – predator-prey simulation • Unbalanced abilities • Vision • Distance • Field of view • Linear speed (moving forward) • Angular or rotational speed (turning)

18. Spatial Occupancy

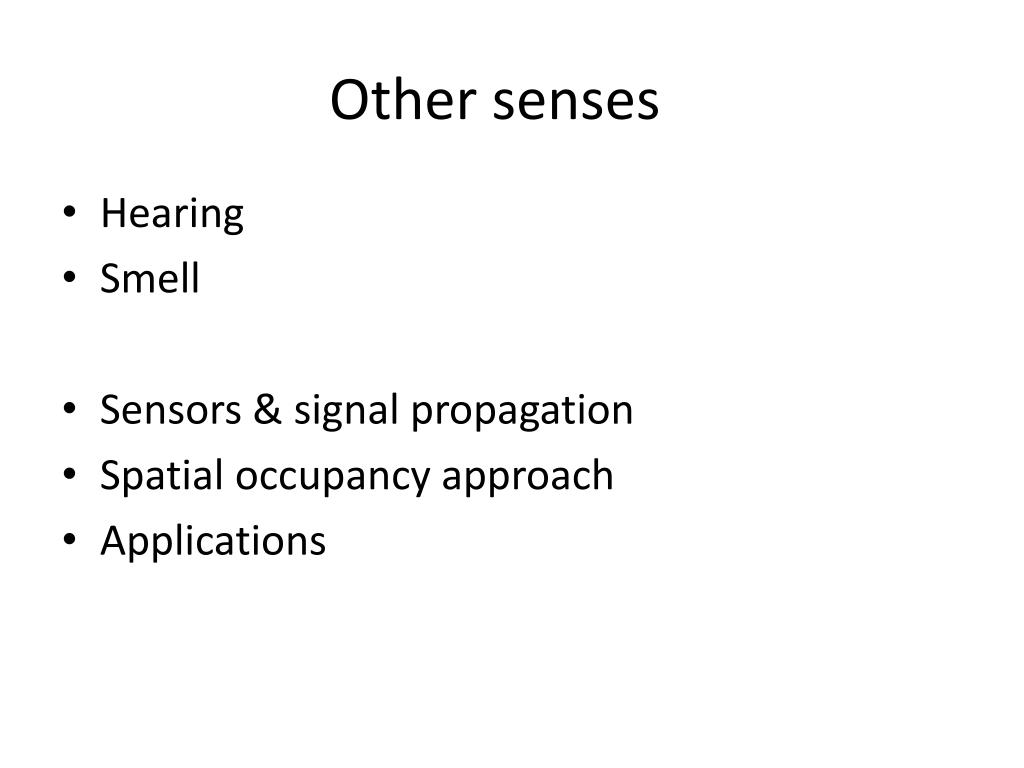

19. Other senses • Hearing • Smell • Sensors & signal propagation • Spatial occupancy approach • Applications

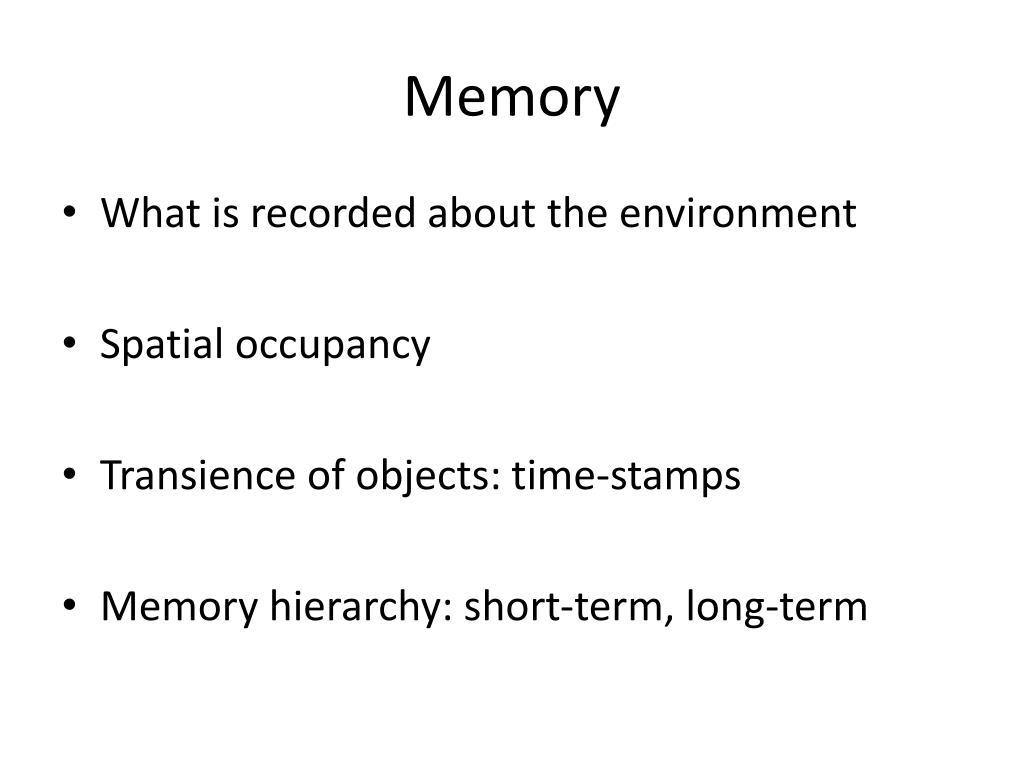

20. Memory • What is recorded about the environment • Spatial occupancy • Transience of objects: time-stamps • Memory hierarchy: short-term, long-term

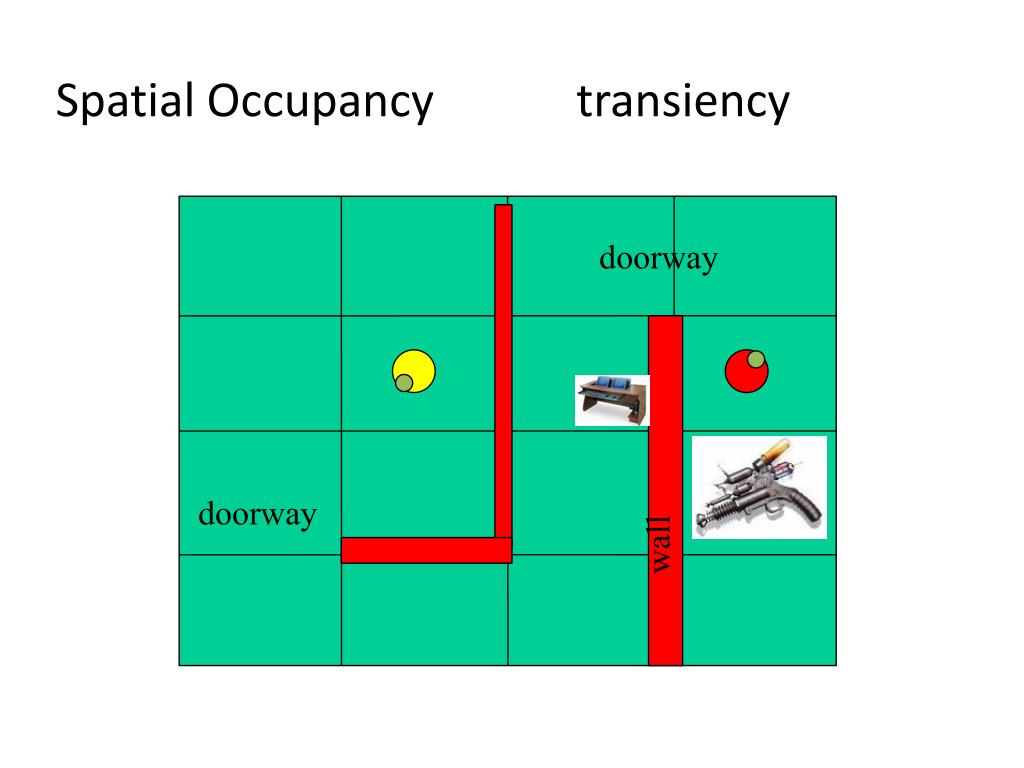

21. Spatial Occupancy transiency doorway doorway wall

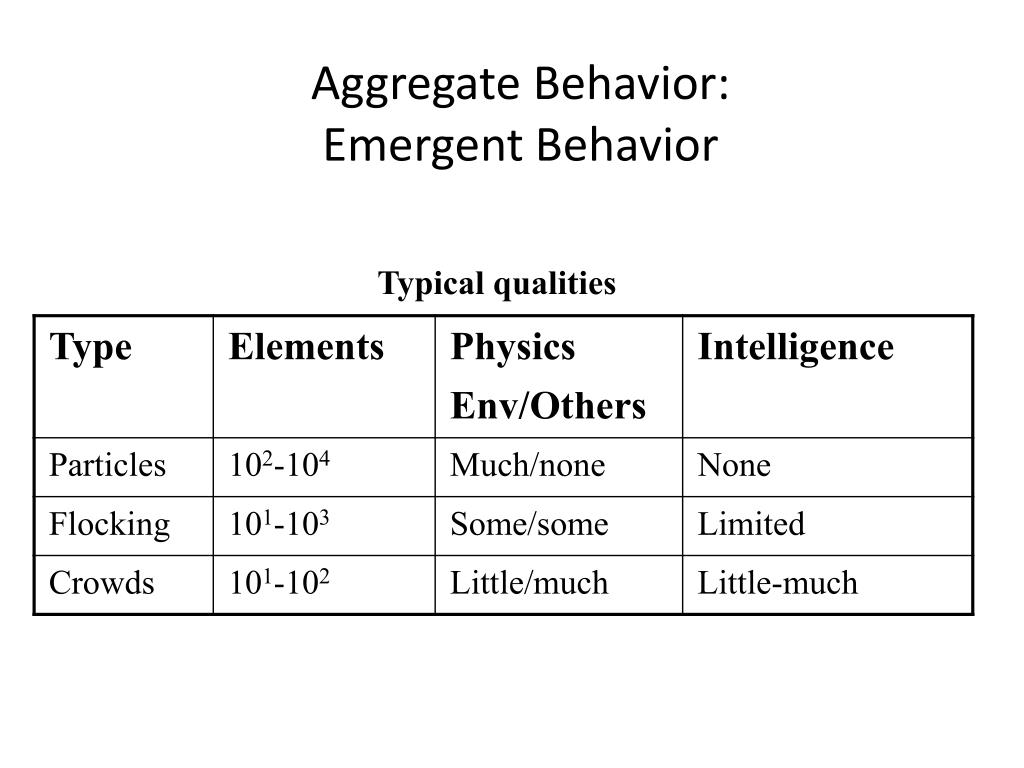

22. Aggregate Behavior: Emergent Behavior Typical qualities

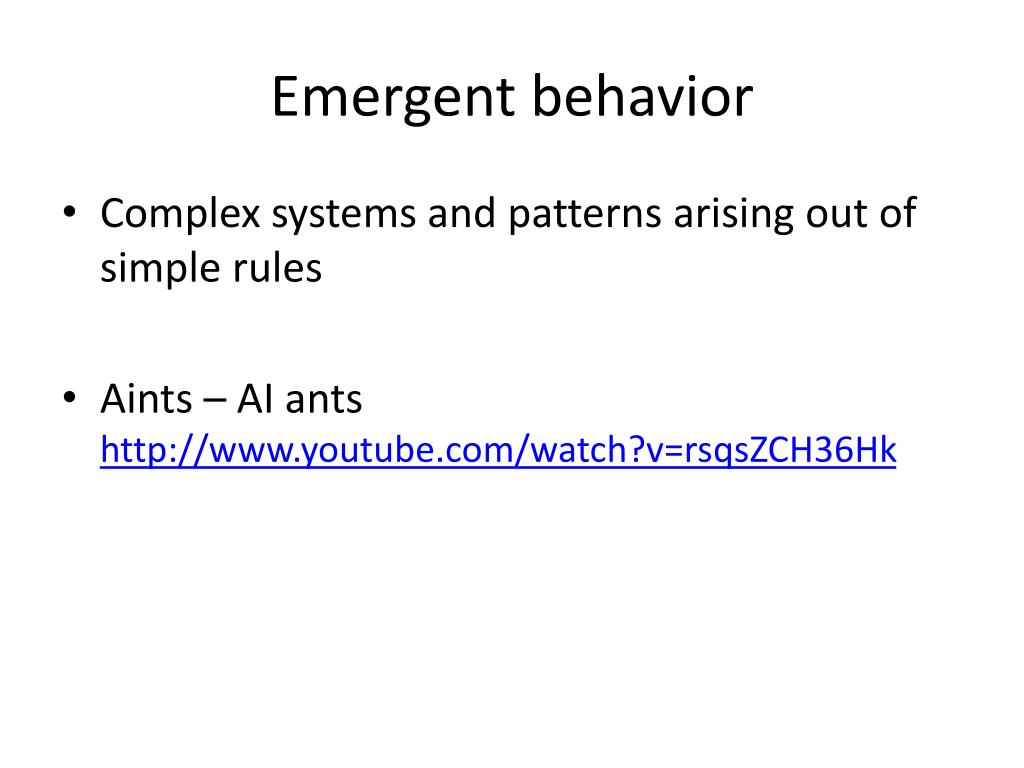

23. Emergent behavior • Complex systems and patterns arising out of simple rules • Aints– AI ants http://www.youtube.com/watch?v=rsqsZCH36Hk

24. Predator Prey vision anatomy

25. Prey-Predator (vision)

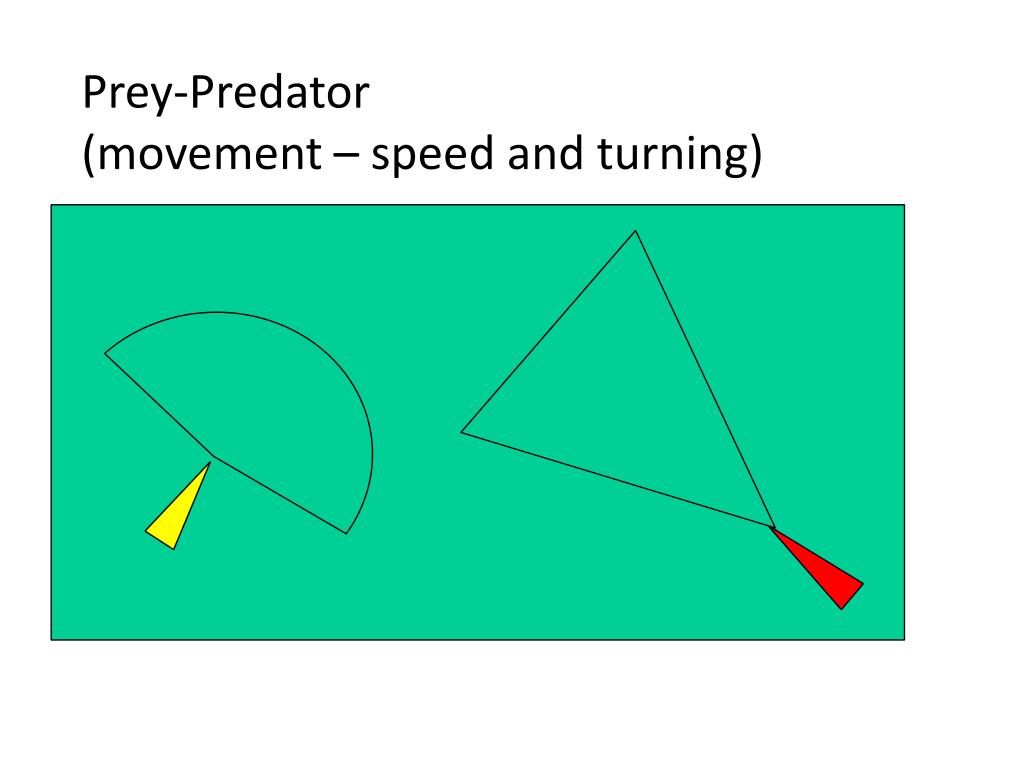

26. Prey-Predator (movement – speed and turning)

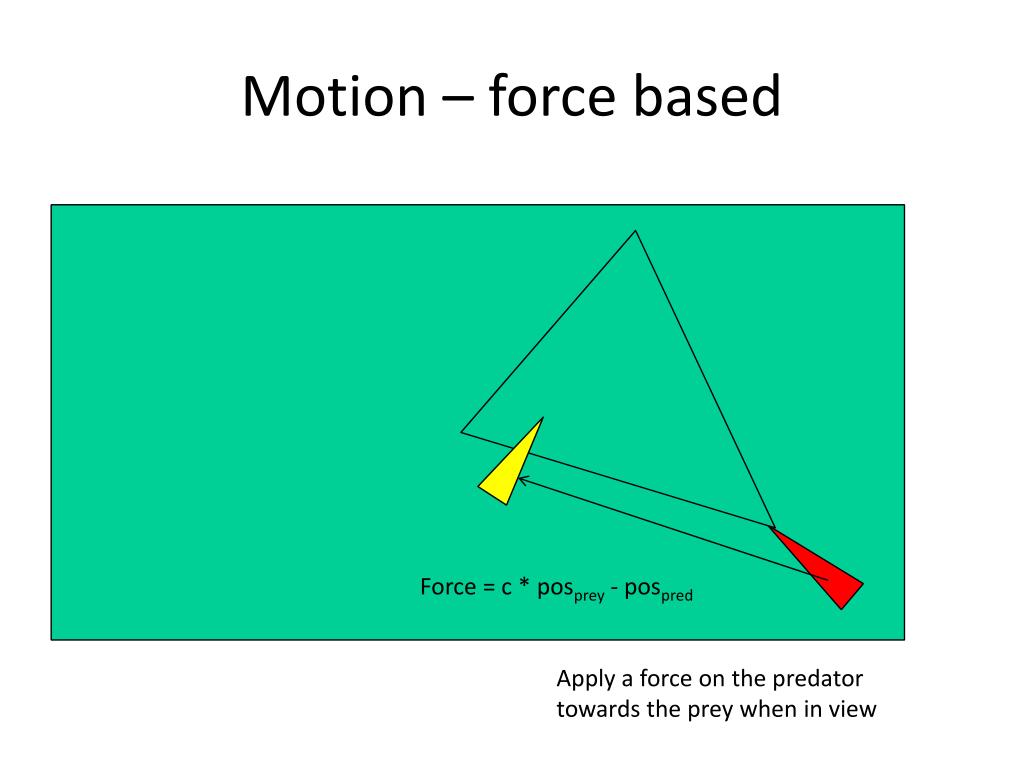

27. Motion – force based Force = c * posprey - pospred Apply a force on the predator towards the prey when in view

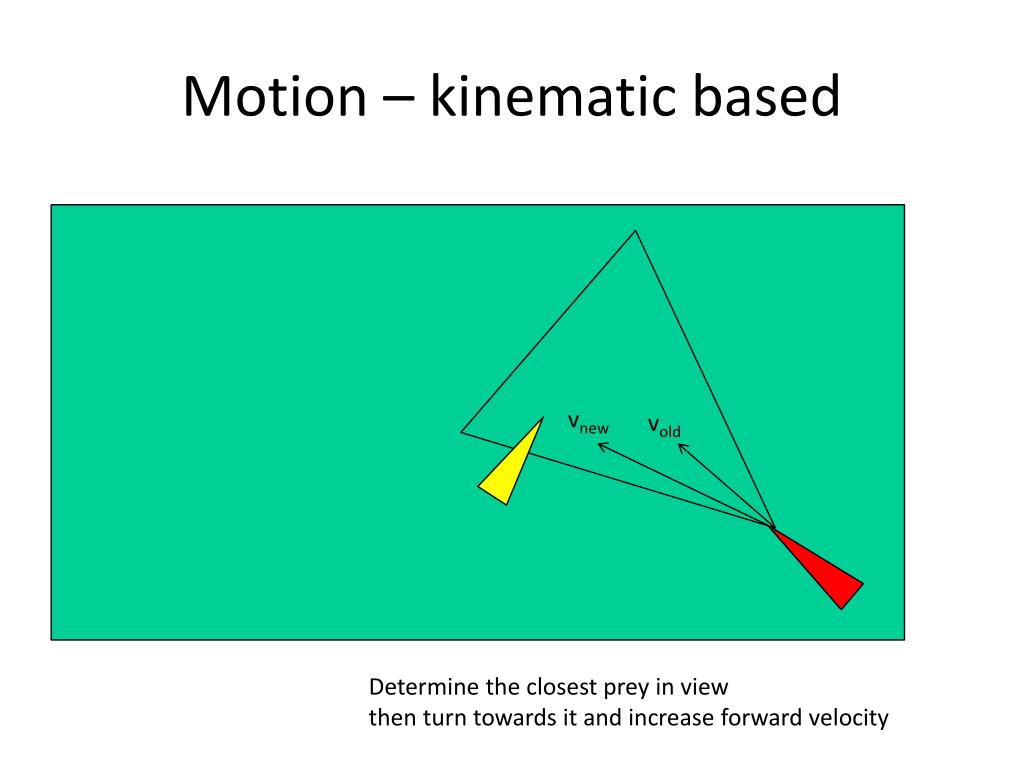

28. Motion – kinematic based vnew vold Determine the closest prey in view then turn towards it and increase forward velocity

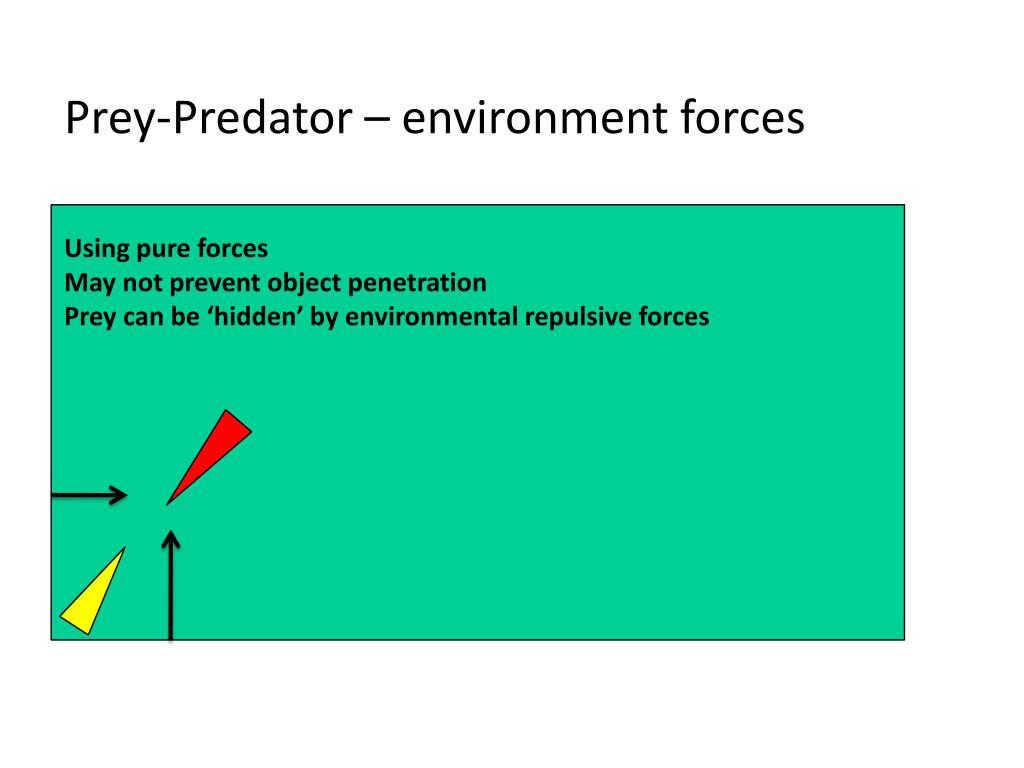

29. Prey-Predator – environment forces Using pure forces May not prevent object penetration Prey can be ‘hidden’ by environmental repulsive forces

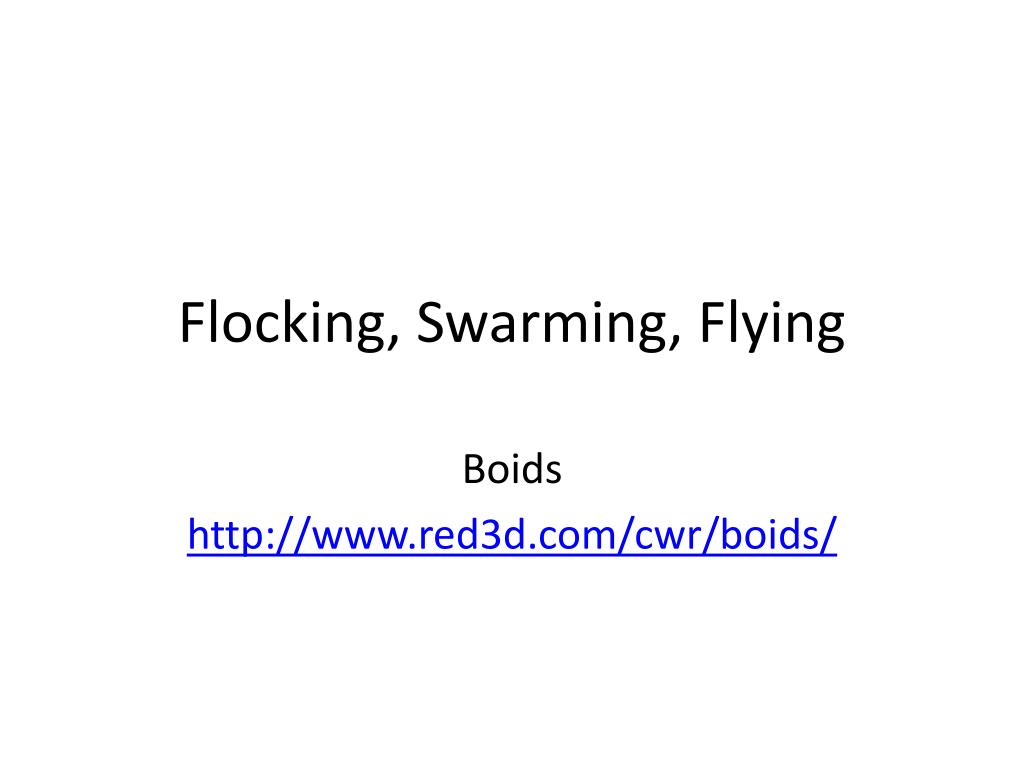

30. Flocking, Swarming, Flying Boids http://www.red3d.com/cwr/boids/

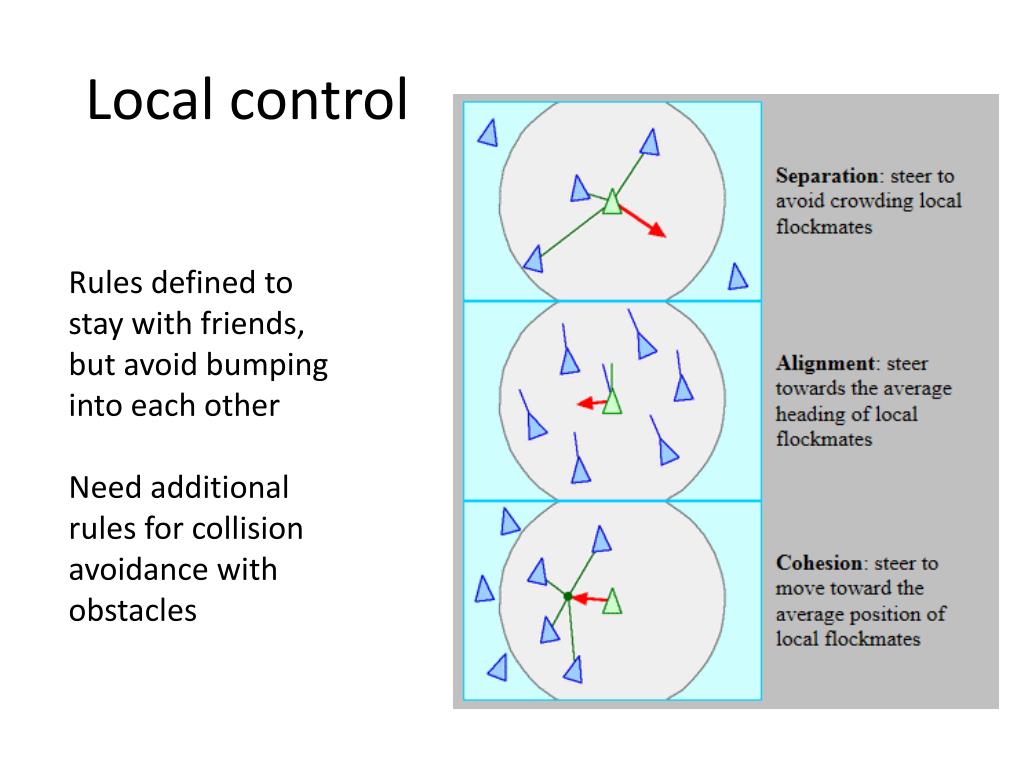

31. Local control Rules defined to stay with friends, but avoid bumping into each other Need additional rules for collision avoidance with obstacles

32. Local information

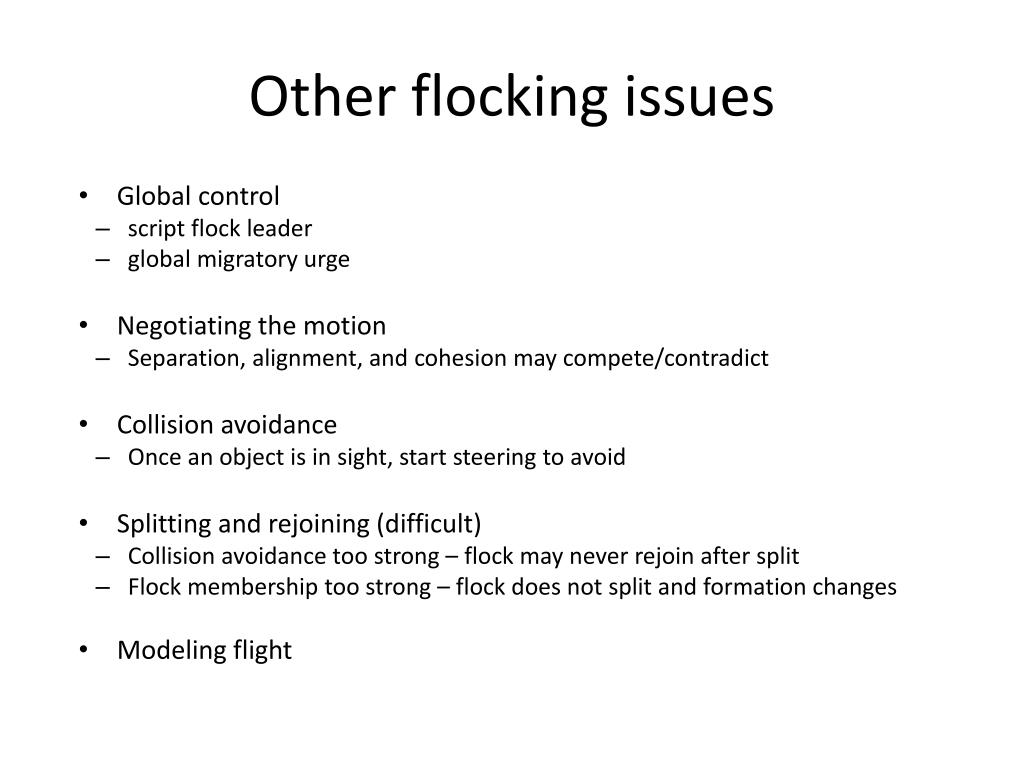

33. Other flocking issues • Global control • script flock leader • global migratory urge • Negotiating the motion • Separation, alignment, and cohesion may compete/contradict • Collision avoidance • Once an object is in sight, start steering to avoid • Splitting and rejoining (difficult) • Collision avoidance too strong – flock may never rejoin after split • Flock membership too strong – flock does not split and formation changes • Modeling flight

34. Forces Or “Reasoning” (e.g. rule-based) Negotiating the motion

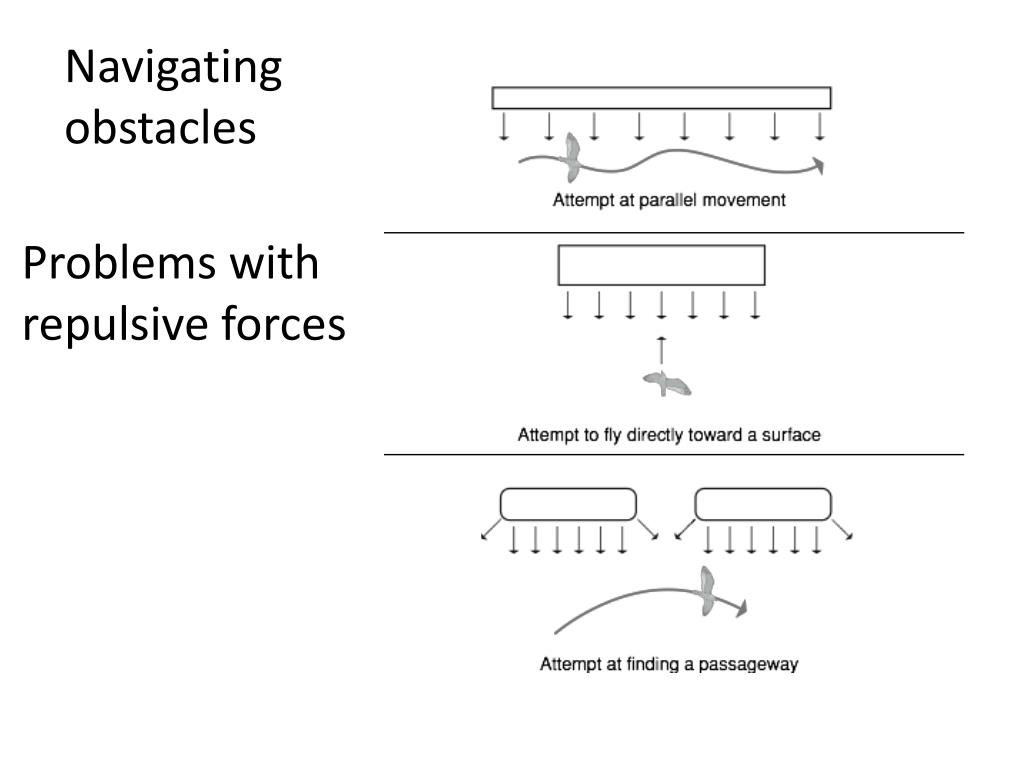

35. Navigating obstacles Problems with repulsive forces

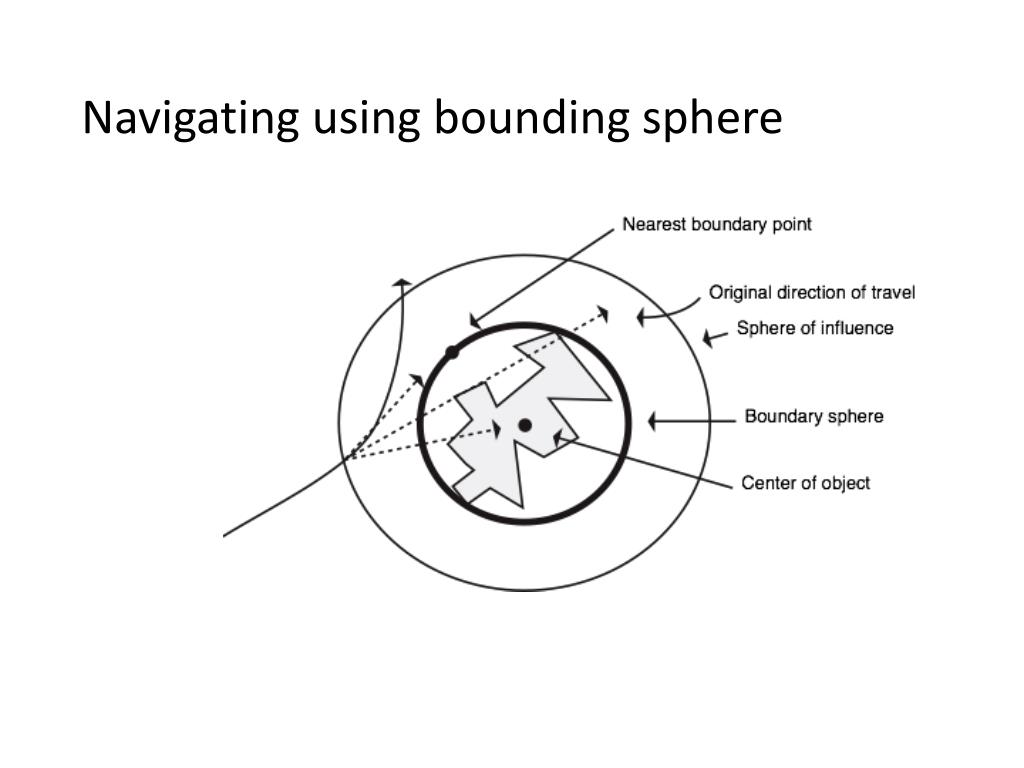

36. Navigating using bounding sphere

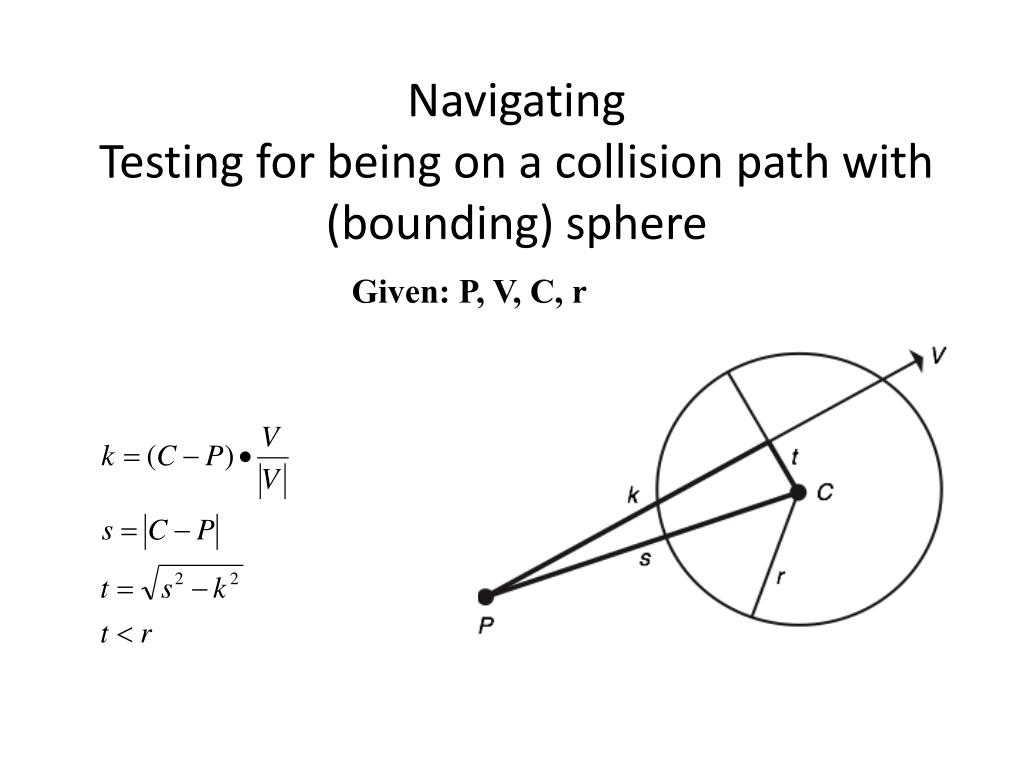

37. Navigating Testing for being on a collision path with (bounding) sphere Given: P, V, C, r

38. Finding closest non-colliding point Calculate s,t

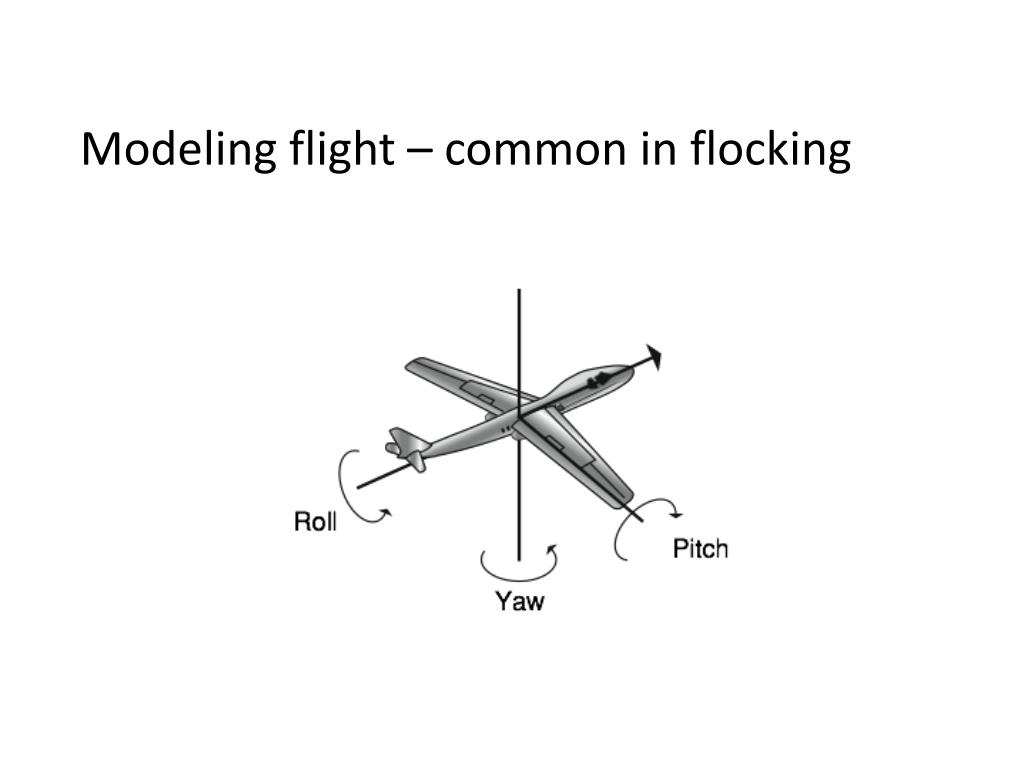

39. Modeling flight – common in flocking

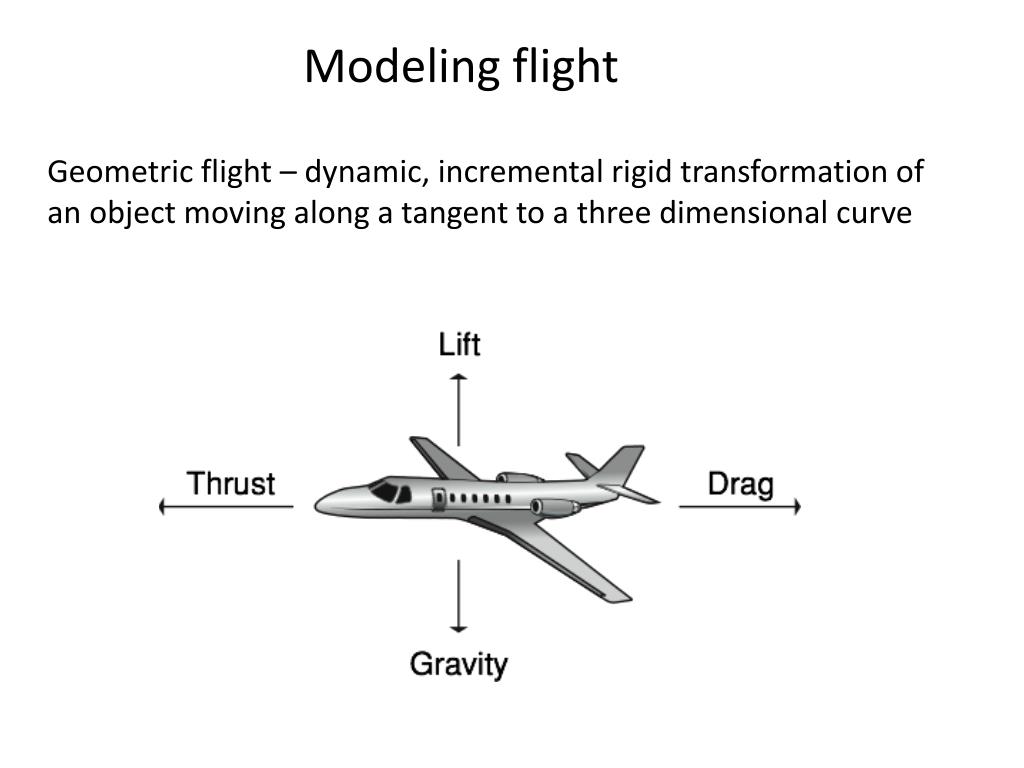

40. Modeling flight Geometric flight – dynamic, incremental rigid transformation of an object moving along a tangent to a three dimensional curve

41. Modeling Flight – Lift Air passing above wing most travel longer than air below it. Less pressure above wing = lift

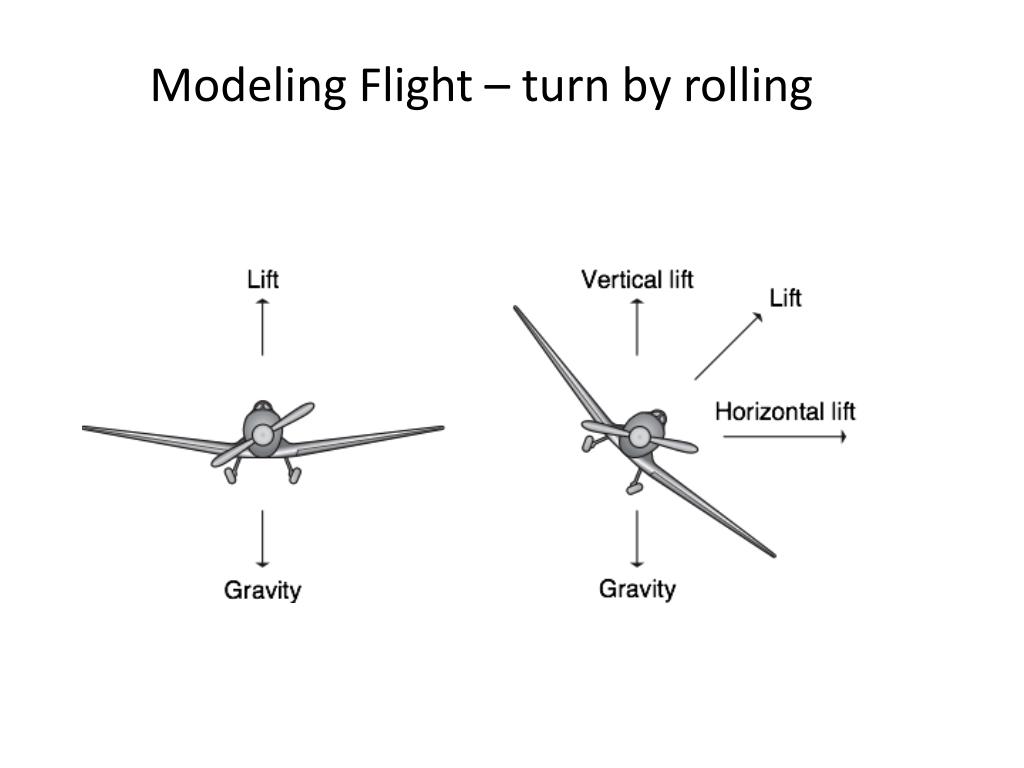

42. Modeling Flight – turn by rolling

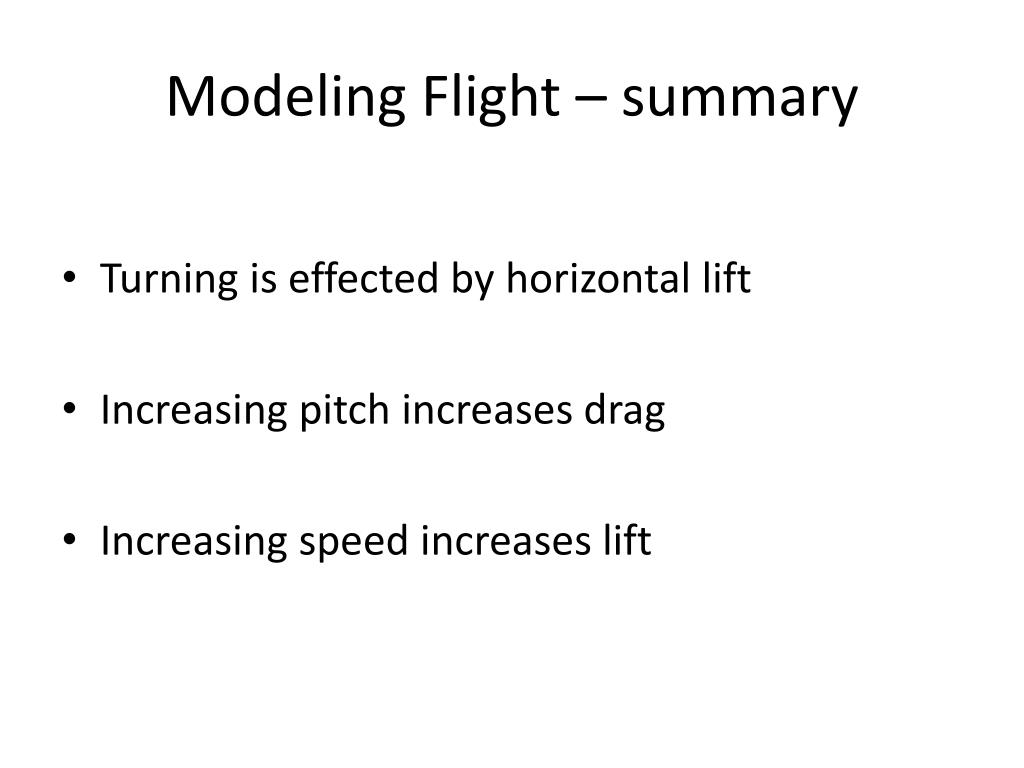

43. Modeling Flight – summary • Turning is effected by horizontal lift • Increasing pitch increases drag • Increasing speed increases lift
