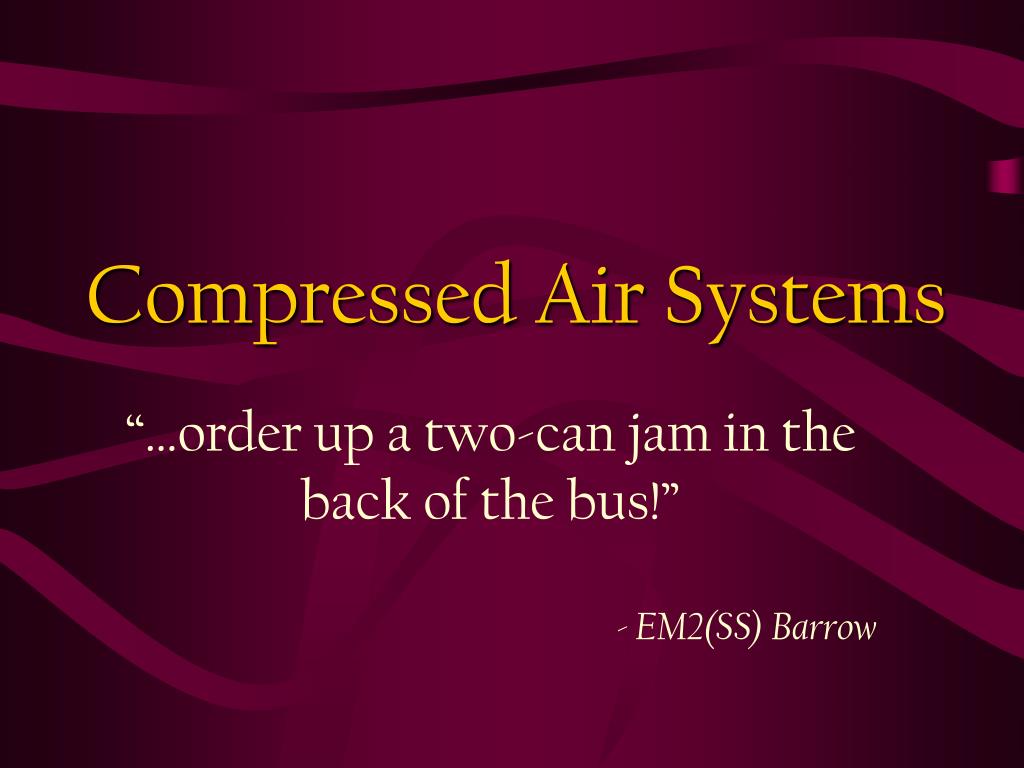

Compressed Air Systems. “…order up a two-can jam in the back of the bus!” - EM2(SS) Barrow. Introduction. Air systems are vital to ship operations Starting diesel and gas turbine engines Torpedo ejection Deballasting air (EMBT Blow) Prairie masker

hyatt-lambert
Télécharger la présentation

Compressed Air Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Compressed Air Systems “…order up a two-can jam in the back of the bus!” - EM2(SS) Barrow

  2. Introduction • Air systems are vital to ship operations • Starting diesel and gas turbine engines • Torpedo ejection • Deballasting air (EMBT Blow) • Prairie masker • Compressed air represents stored energy - capable of doing work at a later point • Used extensively both in high pressure and low pressure applications

  3. Air Compressors • Used to compress air from inlet pressure (atm) to a higher pressure (PV a RT) • Classified according to: • Type of displacement • Staging • Type of Drive (prime mover) • Operating Pressure • Capacity

  4. Air Compressors • Type of displacement • Positive: used for high pressures • Non-positive: used for lower pressures • Staging • Number of compression steps used in compression process • Type of drive system • Classified according to prime mover (almost all electric motors)

  5. Air Compressors • Operating (discharge) pressure • Low (<151 #) • Medium (151-1000 #) • High (>1000 #) • Capacity • Volume of air compressed • CFM (cubic feet per minute)

  6. Positive Displacement • Reciprocating Piston • Piston assembly with valves to control flow • Can either be single stage or multi-stage

  7. Positive Displacement • Rotary Compressor • Rotary sliding vane (not used) • Rotary impeller (low press/ high CFM applications) • Liquid piston (not used much)

  8. Positive Displacement • Rotary Compressor • Rotary sliding vane (not used) • Rotary impeller (low press/ high CFM applications) • Liquid piston (not used much)

  9. Positive Displacement • Rotary Compressor • Rotary sliding vane (not used) • Rotary impeller (low press/ high CFM applications) • Liquid piston (not used much)

  10. Non-Positive Displacement • Centrifugal compressor • Radial flow • Axial Compressor • Axial Flow

  11. Support Systems • Cooling • Most cooled by fresh water systems • Remove heat from compression process • Intercoolers used between stages • Aftercooler used after final discharge • Receivers • Storage tanks for reserve air capacity • Used on ALL compressors to lower pulsations • Safety features • Auto shutdown

  12. Specific Uses of Air • High Pressure • Torpedo Ejection • Emergency Blow • Hydraulics • Remotely-operated valves • Low Pressure • Prairie Masker system • Potable water • Pneumatic tools & valves

  13. Questions?
