  1. ideacentre™ All-In-One A600 - System Disassembly-

  2. FRU Disassembly - Remove Access Panel - Remove 5 tabs and 5 screws, Use both hands to press the access panel and pull it upwards.

  3. FRU Disassembly - Remove Access Panel - Use both hands to pull the access panel out.

  4. FRU Disassembly - Remove Hard Disk Drive - Press down both latches and open the panel.

  5. FRU Disassembly - Remove Hard Disk Drive - Disconnect the signal & power cable and pull the drive out of the bay.

  6. FRU Disassembly - Remove Hard Disk Drive - Remove the 2 screws on both side and remove the drive bracket.

  7. FRU Disassembly - Remove Optical Drive - Disconnect the cable and pull the optical drive out

  8. FRU Disassembly - Remove System Fan - Remove 4 screws and disconnect the cables and take the fans away.

  9. FRU Disassembly - Remove Display Adapter - Remove 4 screws on heatsink and 2 screws on display adapter and take the video module away.

  10. FRU Disassembly - Remove CPU Module - Remove 5 screws on heatsink and take the CPU module away.

  11. FRU Disassembly - Remove Back I/O Panel - Remove 2 screws and pull the I/O panel out.

  12. FRU Disassembly - Remove Memory Module - Pull two latches and pop the Memory module up to the 45°angles, and then pulling out the module in that angle.

  13. FRU Disassembly - Remove TV Tuner Module - Remove 2 screws and disconnected antennae and pop the module up to the 45°angles, and then pulling out the module in that angle.

  14. FRU Disassembly - Remove Wireless Module - Remove 2 screws and disconnected antennae and pop the module up to the 45°angles, and then pulling out the module in that angle.

  15. FRU Disassembly - Remove Bluetooth Receiver Module- Remove 1 screws and disconnected label then take the module away.

  16. FRU Disassembly - Remove Bluetooth Module- Take the bluetooth module away and disconnected label .

  17. FRU Disassembly - Remove Speaker Module- Subwoofer Disconnected label and remove 6 screws on speakers and take the speakers away..

  18. FRU Disassembly - Remove Camera Module- Disconnected connecter and release the camera cable then take the camera away .

  19. FRU Disassembly - Remove Inverter Card Module- Remove 2 screws and disconnected labels then take the inverter card away .

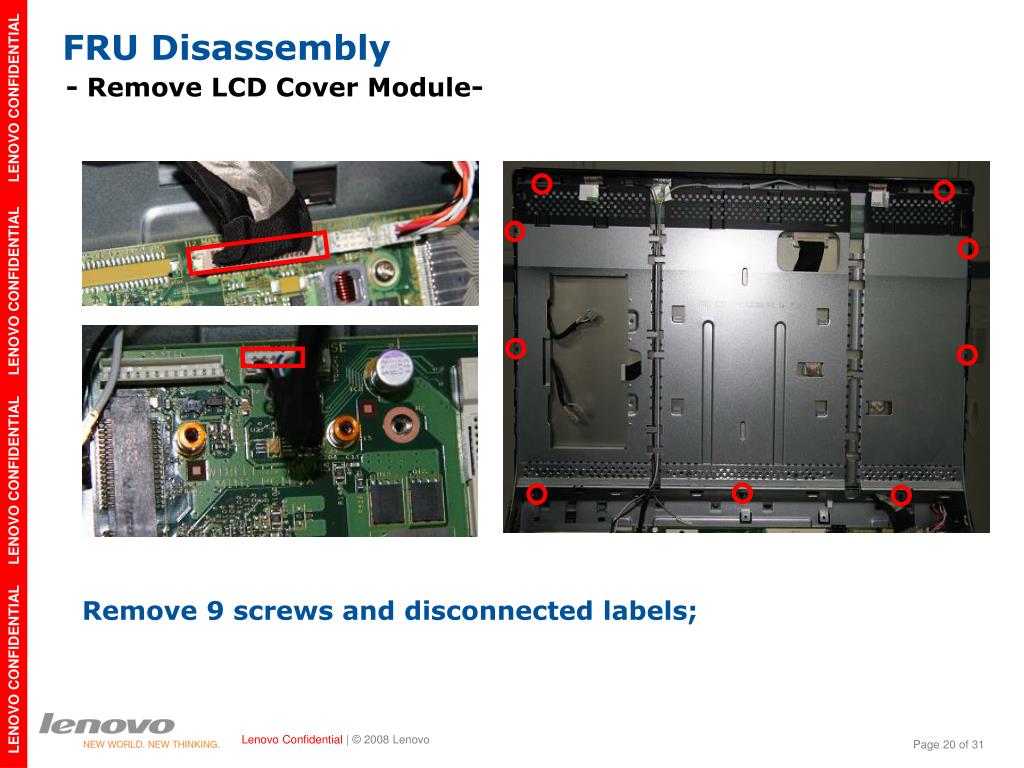

  20. FRU Disassembly - Remove LCD Cover Module- Remove 9 screws and disconnected labels;

  21. FRU Disassembly - Remove LCD Cover Module- Take the LCD cover away carefully.

  22. FRU Disassembly - Remove LCD Module- Disconnected labels and remove 2 screws on each side;

  23. FRU Disassembly - Remove LCD Module- Take the LCD away carefully.

  24. FRU Disassembly - Remove Motherboard Module- Remove the 6 screws and take the motherboard away.
