  1. Dialogue Manager Internals Sandra Steeves Information Builders

  2. Agenda • What is Dialogue Manager? • Dialogue Manager Processing • Dialogue Manager Limits • Dialogue Manager Variables • User • System • Implicit PROMPT • Navigating the Procedure • Debugging Dialogue Manager Procedures

  3. Conceptual View Stack FOCUS Command Processor SYSIN REPORT MODIFY MAINTAIN EXEC

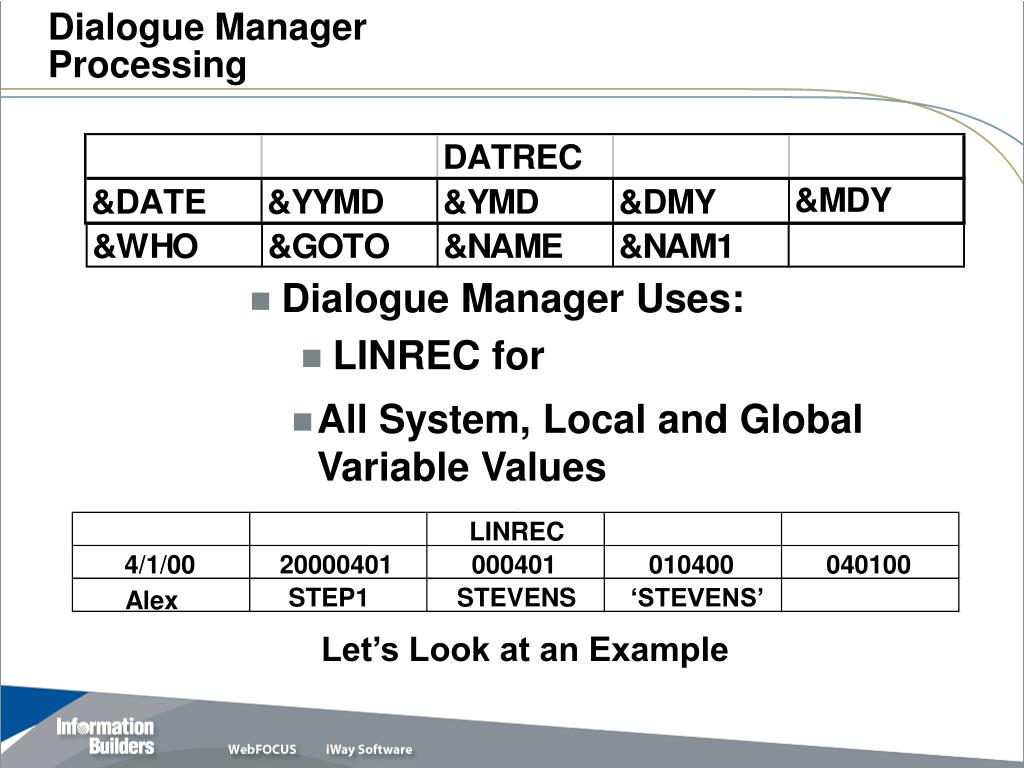

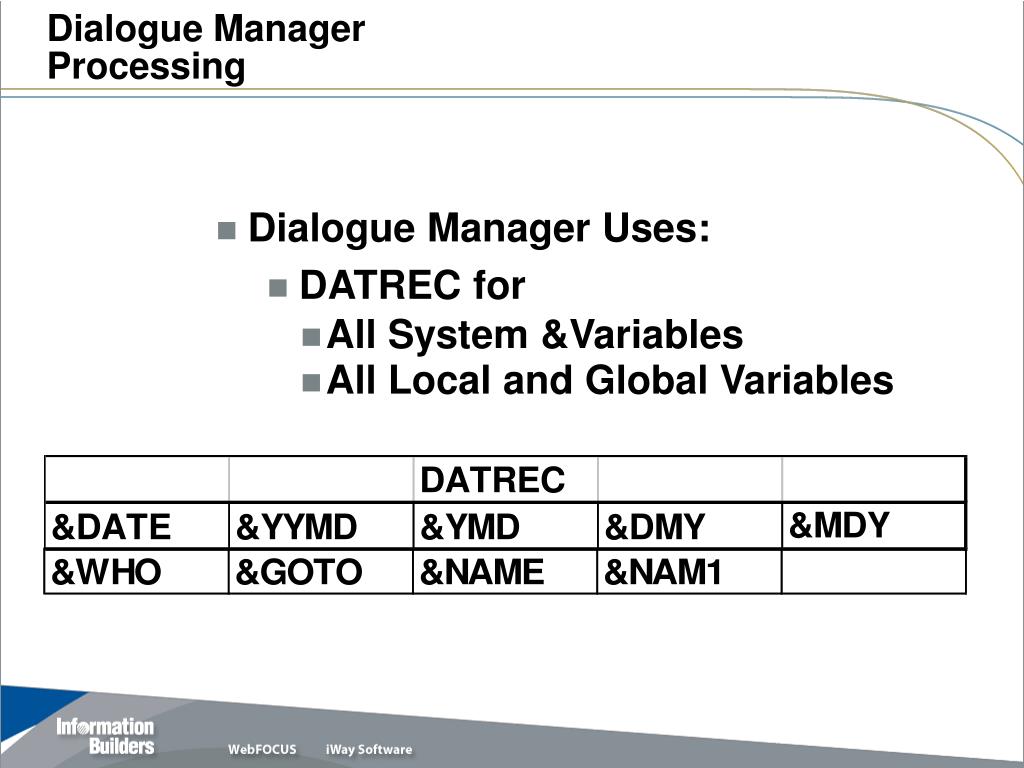

  4. All System &Variables • All Local and Global Variables Dialogue ManagerProcessing • Dialogue Manager Uses: • DATREC for

  5. Dialogue ManagerProcessing • Dialogue Manager Uses: • LINREC for • All System, Local and Global Variable Values LINREC 4/1/00 20000401 000401 010400 040100 STEP1 STEVENS ‘STEVENS’ Alex Let’s Look at an Example

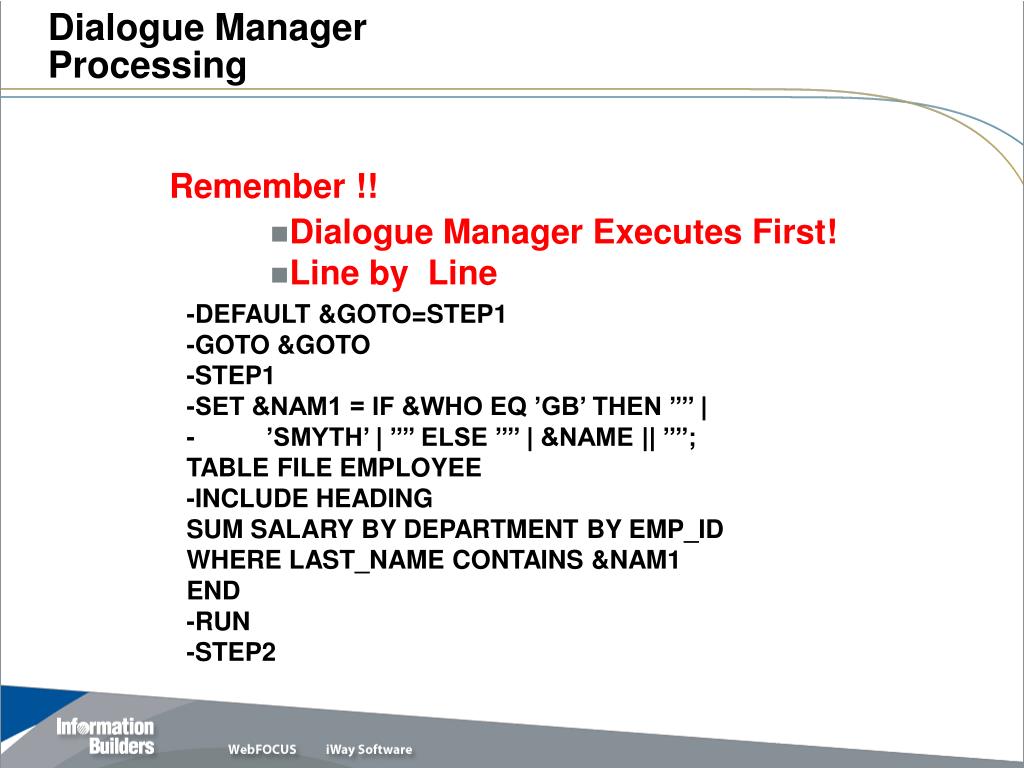

  6. Dialogue ManagerProcessing Remember !! • Dialogue Manager Executes First! • Line by Line -DEFAULT &GOTO=STEP1 -GOTO &GOTO -STEP1 -SET &NAM1 = IF &WHO EQ ’GB’ THEN ’’’’ | - ’SMYTH’ | ’’’’ ELSE ’’’’ | &NAME || ’’’’; TABLE FILE EMPLOYEE -INCLUDE HEADING SUM SALARY BY DEPARTMENT BY EMP_ID WHERE LAST_NAME CONTAINS &NAM1 END -RUN -STEP2

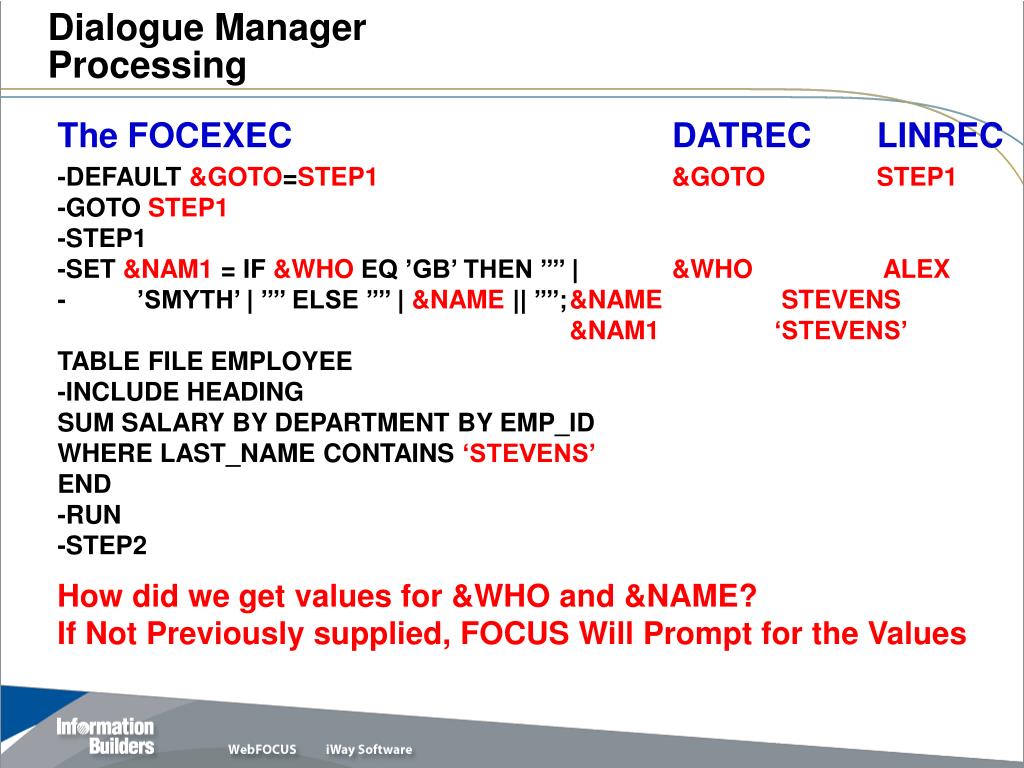

  7. Dialogue ManagerProcessing The FOCEXEC DATREC LINREC -DEFAULT &GOTO=STEP1&GOTOSTEP1 -GOTO STEP1 -STEP1 -SET &NAM1 = IF &WHO EQ ’GB’ THEN ’’’’ | &WHO ALEX - ’SMYTH’ | ’’’’ ELSE ’’’’ | &NAME || ’’’’; &NAME STEVENS &NAM1 ‘STEVENS’ TABLE FILE EMPLOYEE -INCLUDE HEADING SUM SALARY BY DEPARTMENT BY EMP_ID WHERE LAST_NAME CONTAINS ‘STEVENS’ END -RUN -STEP2 How did we get values for &WHO and &NAME? If Not Previously supplied, FOCUS Will Prompt for the Values

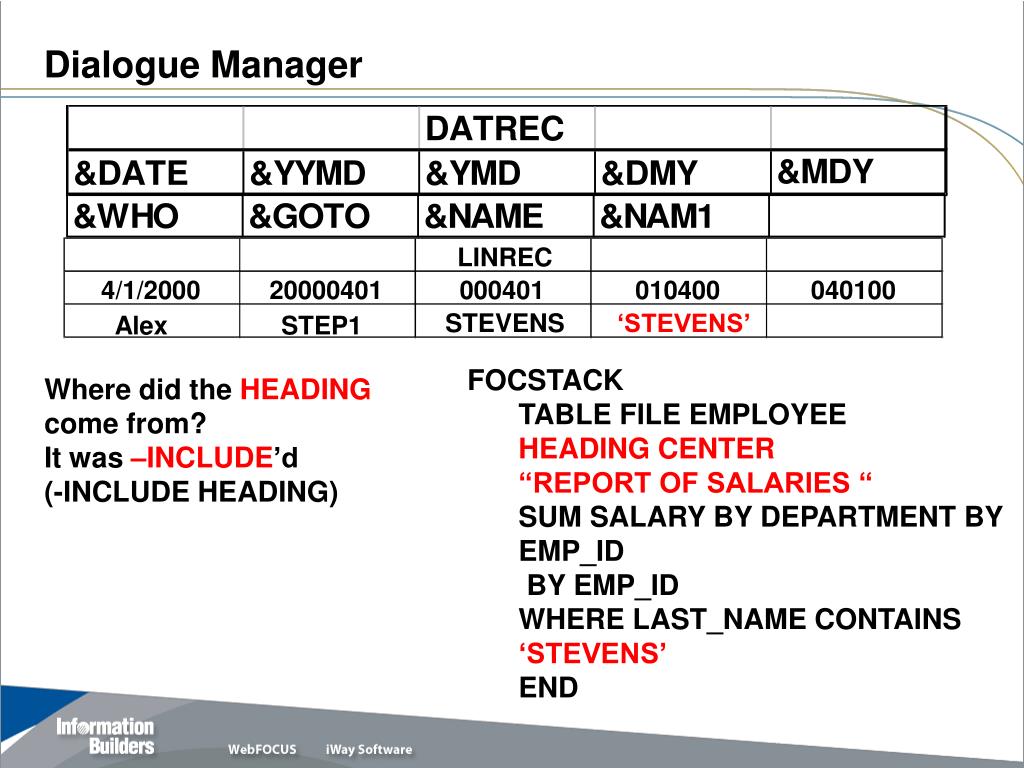

  8. Dialogue Manager LINREC 4/1/2000 20000401 000401 010400 040100 STEVENS ‘STEVENS’ Alex STEP1 FOCSTACK TABLE FILE EMPLOYEE HEADING CENTER “REPORT OF SALARIES “ SUM SALARY BY DEPARTMENT BY EMP_ID BY EMP_ID WHERE LAST_NAME CONTAINS ‘STEVENS’ END Where did the HEADING come from? It was –INCLUDE’d (-INCLUDE HEADING)

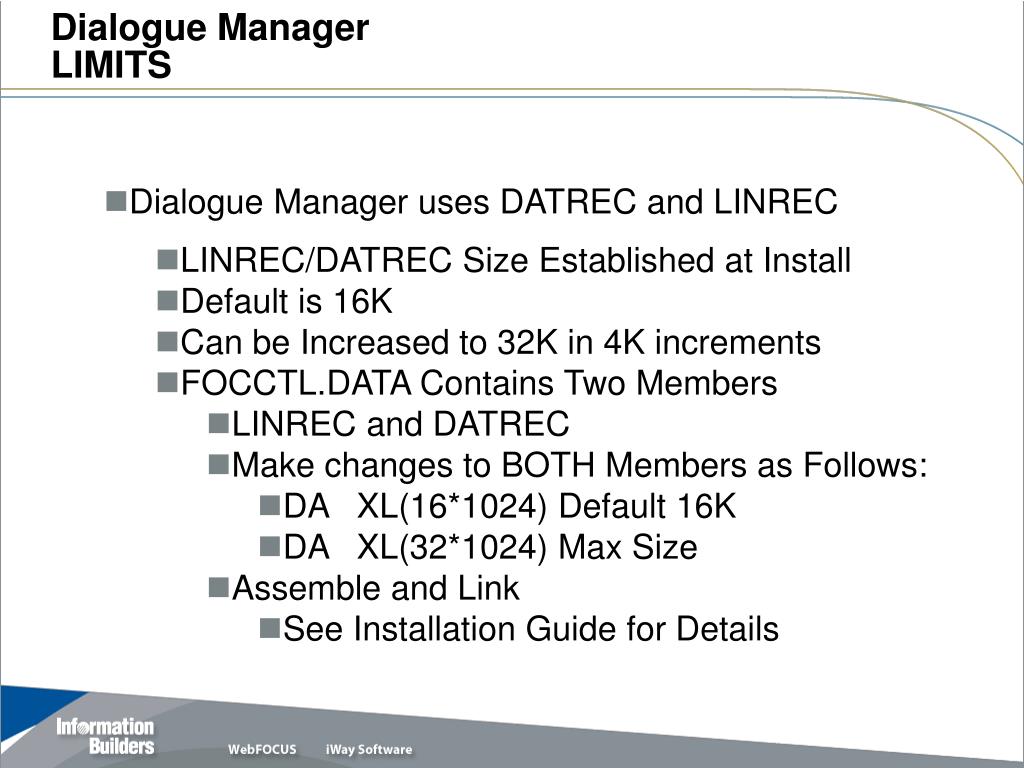

  9. Dialogue ManagerLIMITS • Dialogue Manager uses DATREC and LINREC • LINREC/DATREC Size Established at Install • Default is 16K • Can be Increased to 32K in 4K increments • FOCCTL.DATA Contains Two Members • LINREC and DATREC • Make changes to BOTH Members as Follows: • DA XL(16*1024) Default 16K • DA XL(32*1024) Max Size • Assemble and Link • See Installation Guide for Details

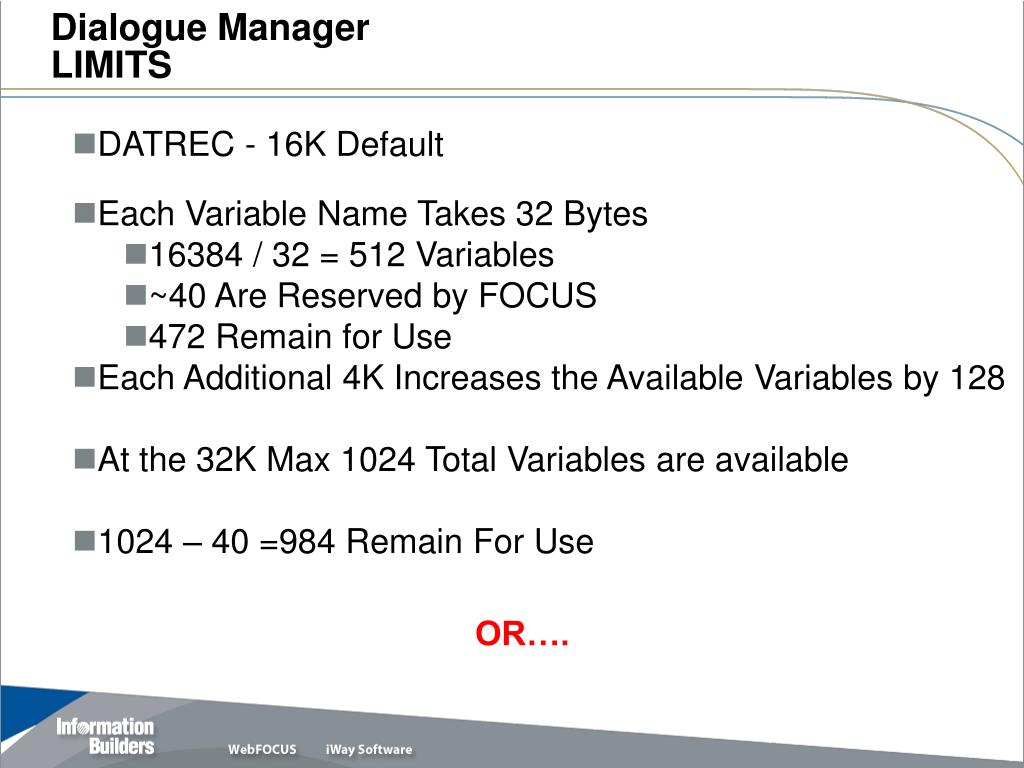

  10. Dialogue ManagerLIMITS • DATREC - 16K Default • Each Variable Name Takes 32 Bytes • 16384 / 32 = 512 Variables • ~40 Are Reserved by FOCUS • 472 Remain for Use • Each Additional 4K Increases the Available Variables by 128 • At the 32K Max 1024 Total Variables are available • 1024 – 40 =984 Remain For Use OR….

  11. Dialogue ManagerLIMITS • LINREC - 16K Default • Each Variable Value Can Be as Large as: • 16384 / (Number of Variables + 40 Reserved) = Max VariableSize (Never greater than 256 Bytes Each) • Each Additional 4K Increases the Available Variable Size • A 32K Max is allowed

  12. YMD DMY RECORDS… COUNTRY Dialogue Manager TABLE FILE CAR SUM RCOST BY COUNTRY IF COUNTRY EQ &COUNTRY END TABLE FILE CAR SUM DCOST BY CAR IF COUNTRY EQ &COUNTRY END EX PGM1 FOCSTACK.FTM PGM1.FEX TABLE FILE CAR SUM RCOST BY COUNTRY PLEASE SUPPLY ... COUNTRY = ENGLAND 020518 051802 0 ENGLAND

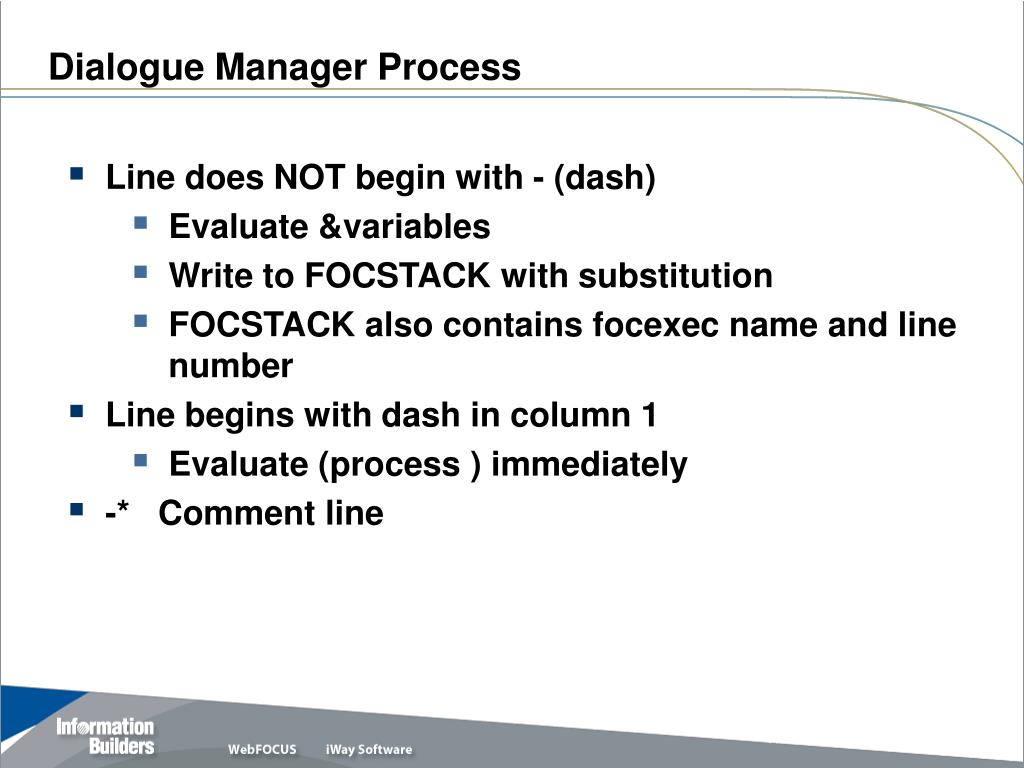

  13. Dialogue Manager Process • Line does NOT begin with - (dash) • Evaluate &variables • Write to FOCSTACK with substitution • FOCSTACK also contains focexec name and line number • Line begins with dash in column 1 • Evaluate (process ) immediately • -* Comment line

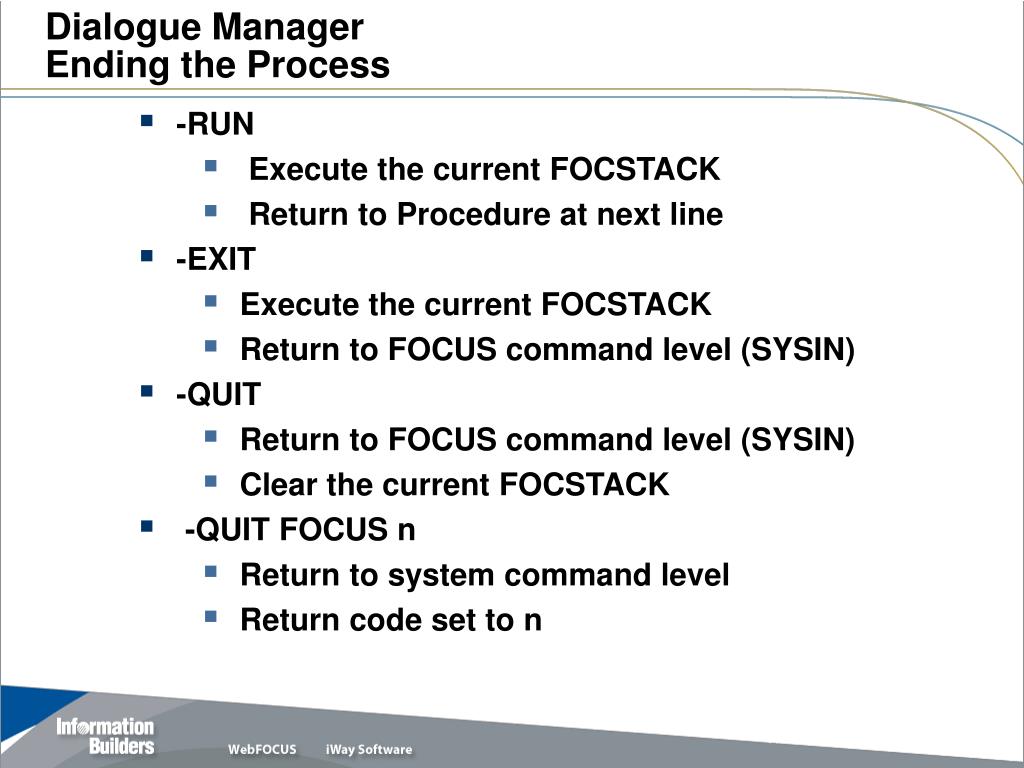

  14. Dialogue ManagerEnding the Process • -RUN • Execute the current FOCSTACK • Return to Procedure at next line • -EXIT • Execute the current FOCSTACK • Return to FOCUS command level (SYSIN) • -QUIT • Return to FOCUS command level (SYSIN) • Clear the current FOCSTACK • -QUIT FOCUS n • Return to system command level • Return code set to n

  15. Dialogue ManagerUser &variables • &variable • Local variables are identified by a single ampersand (&) preceding the name of the variable. They remain in effect throughout a single procedure. • &&variable • Global variables differ from local variables in that once a value is supplied, it remains current throughout the FOCUS session, unless set to another value with -SET or cleared by the LET CLEAR command.

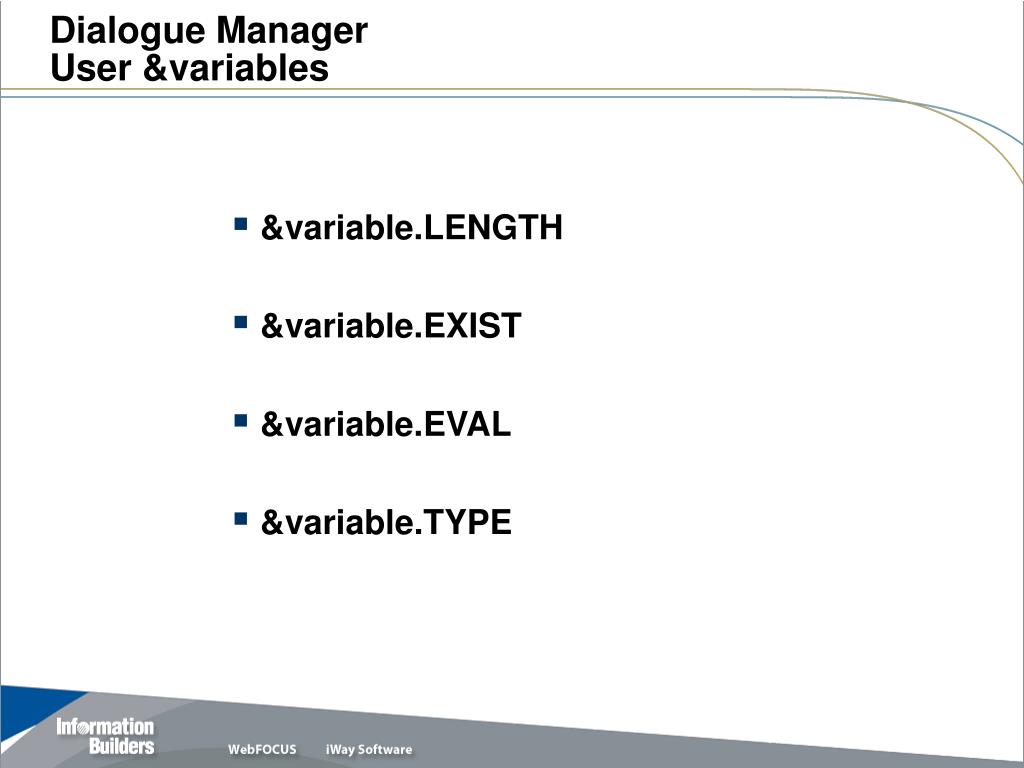

  16. Dialogue ManagerUser &variables • &variable.LENGTH • &variable.EXIST • &variable.EVAL • &variable.TYPE

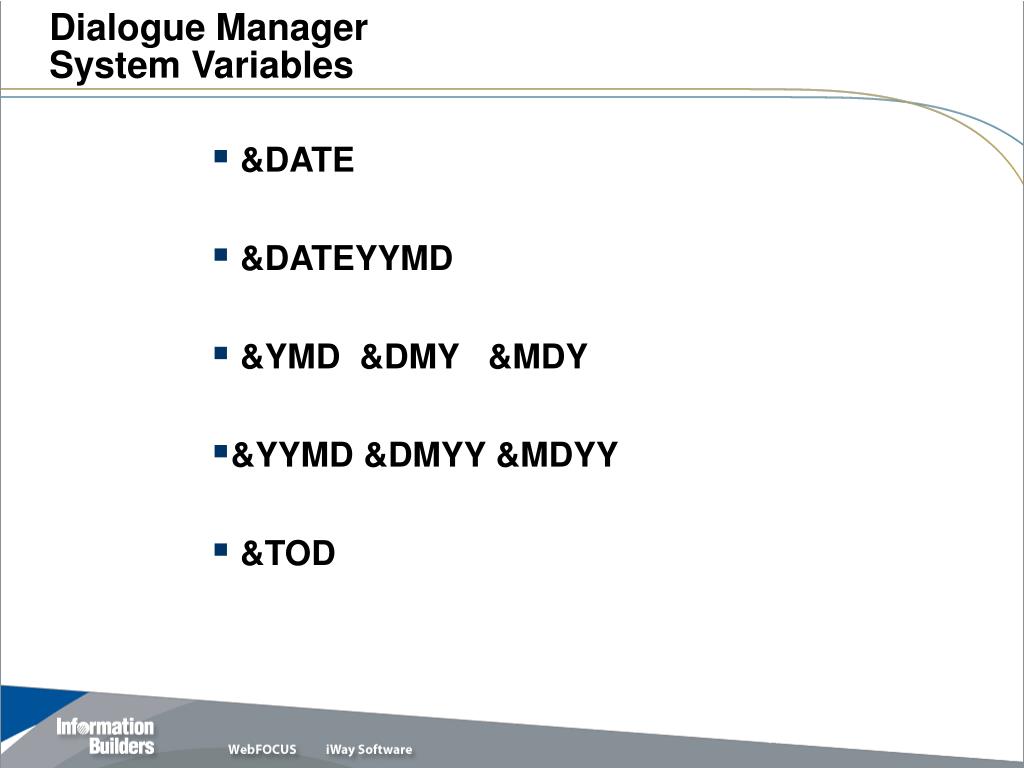

  17. Dialogue ManagerSystem Variables • &DATE • &DATEYYMD • &YMD &DMY &MDY • &YYMD &DMYY &MDYY • &TOD

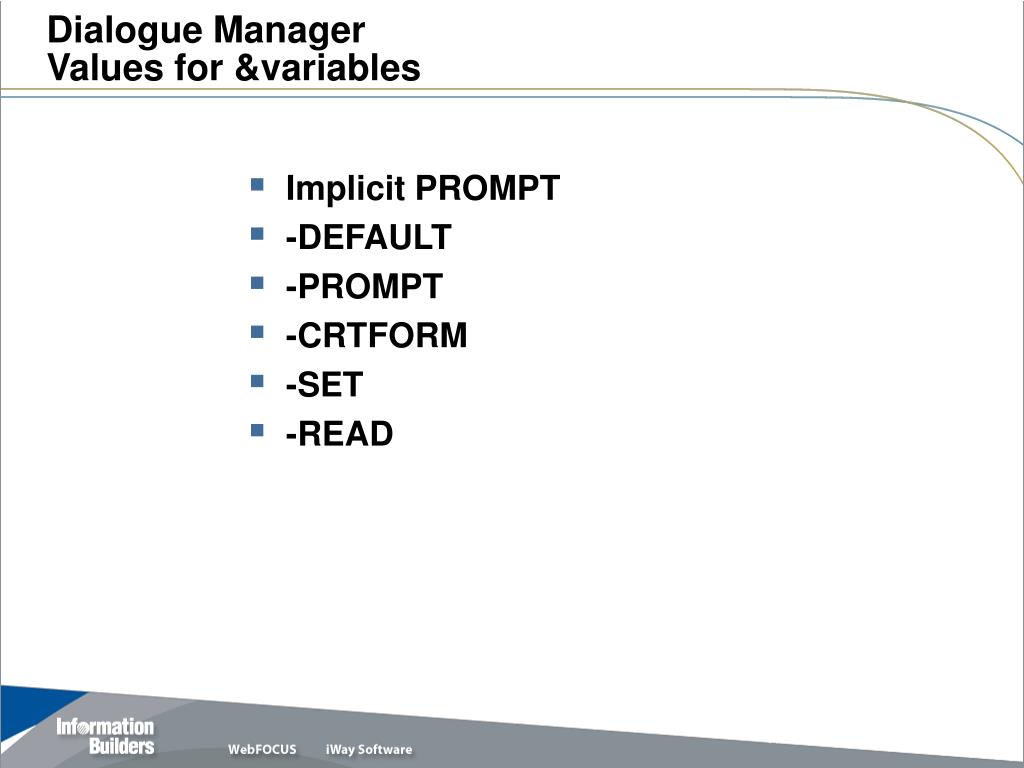

  18. Dialogue ManagerValues for &variables • Implicit PROMPT • -DEFAULT • -PROMPT • -CRTFORM • -SET • -READ

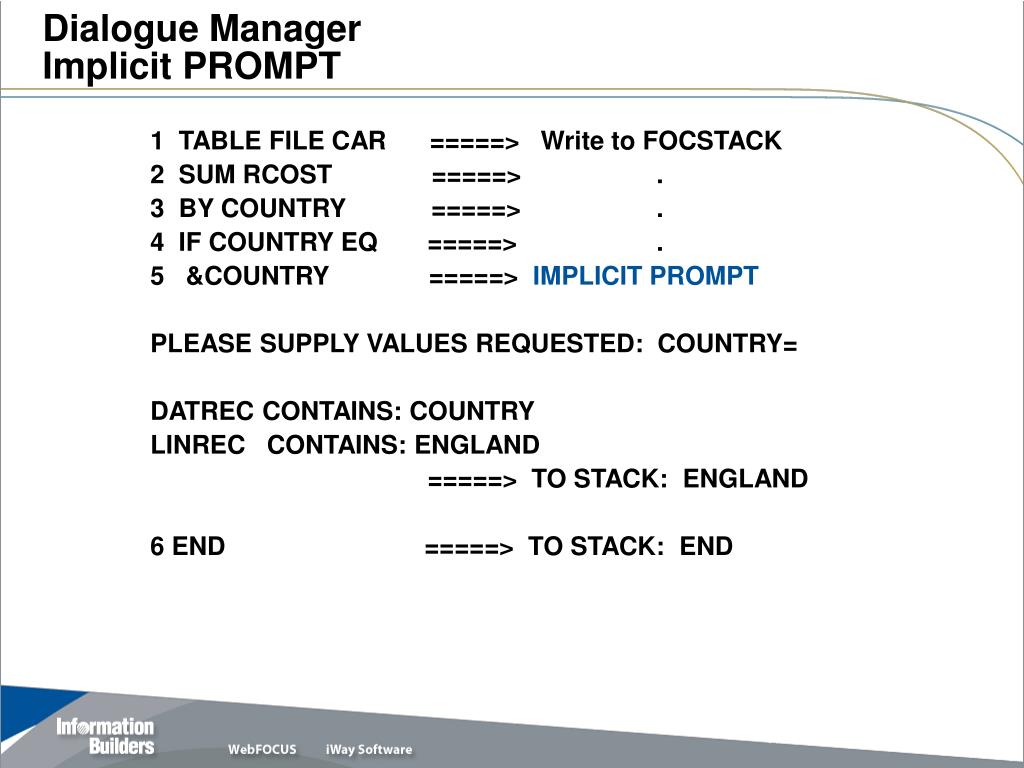

  19. Dialogue ManagerImplicit PROMPT 1 TABLE FILE CAR =====> Write to FOCSTACK 2 SUM RCOST =====> . 3 BY COUNTRY =====> . 4 IF COUNTRY EQ =====> . 5 &COUNTRY =====> IMPLICIT PROMPT PLEASE SUPPLY VALUES REQUESTED: COUNTRY= DATREC CONTAINS: COUNTRY LINREC CONTAINS: ENGLAND =====> TO STACK: ENGLAND 6 END =====> TO STACK: END

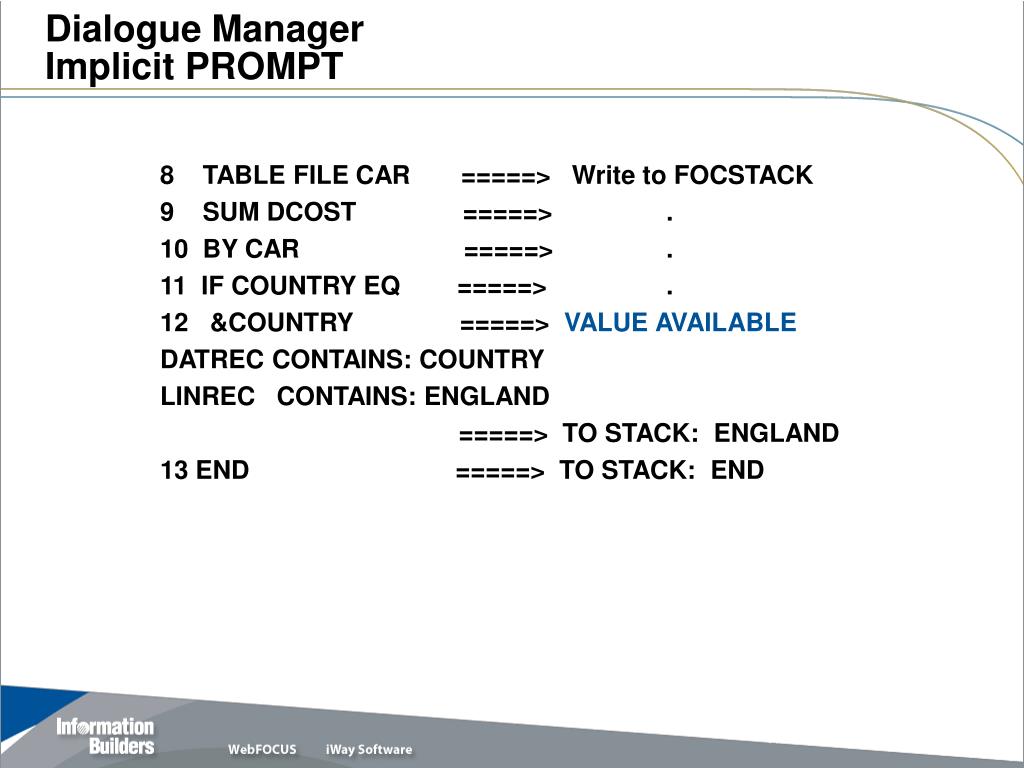

  20. Dialogue ManagerImplicit PROMPT 8 TABLE FILE CAR =====> Write to FOCSTACK 9 SUM DCOST =====> . 10 BY CAR =====> . 11 IF COUNTRY EQ =====> . 12 &COUNTRY =====> VALUE AVAILABLE DATREC CONTAINS: COUNTRY LINREC CONTAINS: ENGLAND =====> TO STACK: ENGLAND 13 END =====> TO STACK: END

  21. Dialogue Manager-DEFAULT(S) Syntax: -DEFAULT variable=value -DEFAULT &COUNTRY=ENGLAND TABLE FILE CAR SUM RCOST BY COUNTRY IF COUNTRY EQ ‘&COUNTRY’ END EX PRC1 OR EX PRC1 COUNTRY = FRANCE

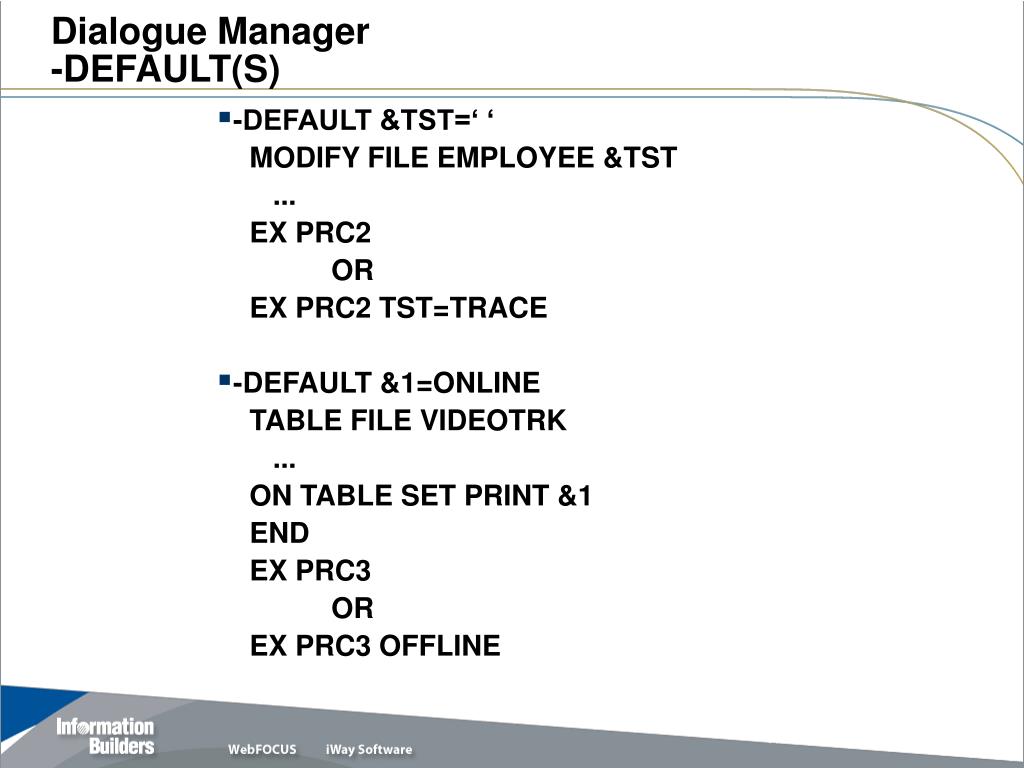

  22. Dialogue Manager-DEFAULT(S) • -DEFAULT &TST=‘ ‘ MODIFY FILE EMPLOYEE &TST ... EX PRC2 OR EX PRC2 TST=TRACE • -DEFAULT &1=ONLINE TABLE FILE VIDEOTRK ... ON TABLE SET PRINT &1 END EX PRC3 OR EX PRC3 OFFLINE

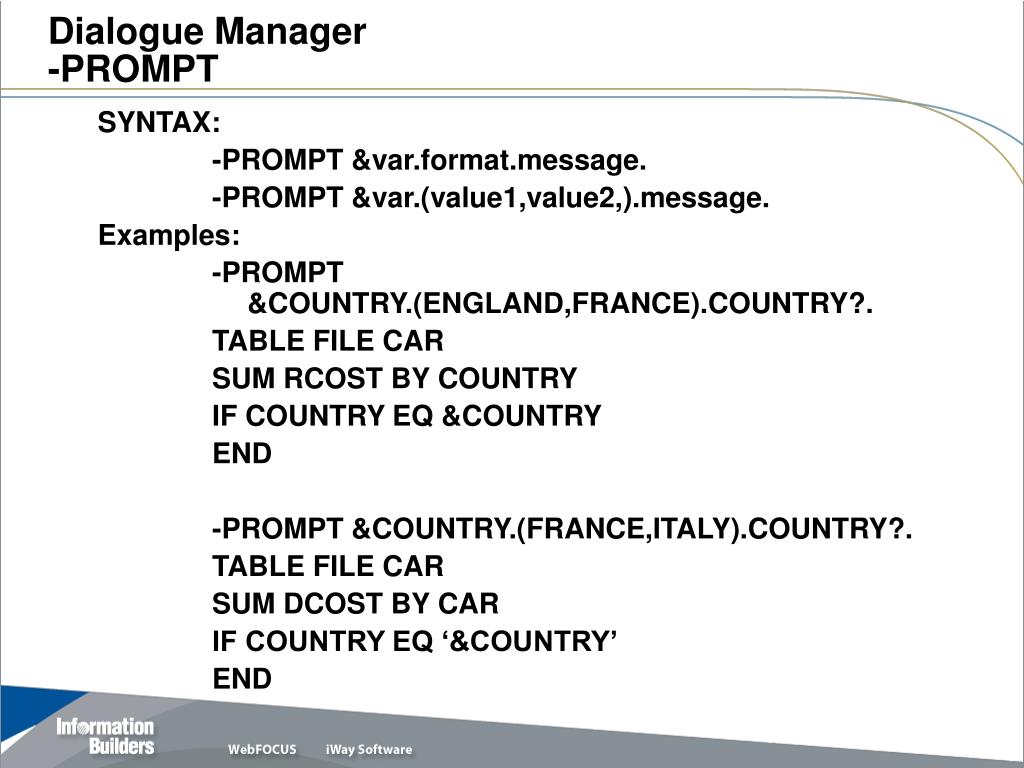

  23. Dialogue Manager-PROMPT SYNTAX: -PROMPT &var.format.message. -PROMPT &var.(value1,value2,).message. Examples: -PROMPT &COUNTRY.(ENGLAND,FRANCE).COUNTRY?. TABLE FILE CAR SUM RCOST BY COUNTRY IF COUNTRY EQ &COUNTRY END -PROMPT &COUNTRY.(FRANCE,ITALY).COUNTRY?. TABLE FILE CAR SUM DCOST BY CAR IF COUNTRY EQ ‘&COUNTRY’ END

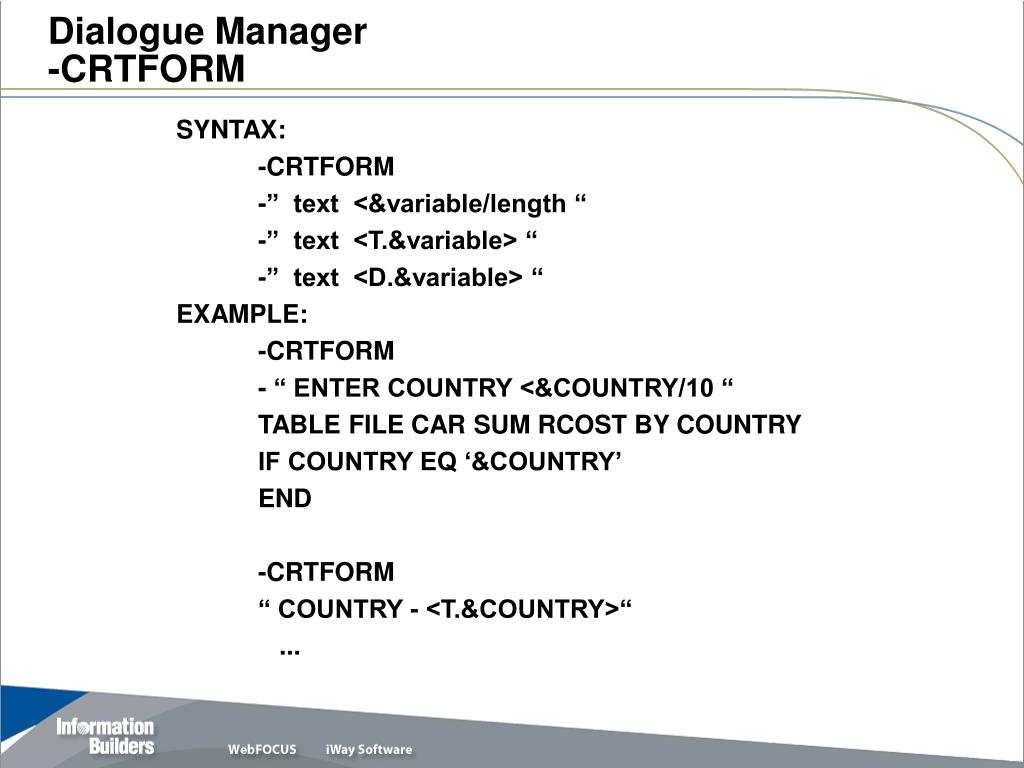

  24. Dialogue Manager-CRTFORM SYNTAX: -CRTFORM -” text <&variable/length “ -” text <T.&variable> “ -” text <D.&variable> “ EXAMPLE: -CRTFORM - “ ENTER COUNTRY <&COUNTRY/10 “ TABLE FILE CAR SUM RCOST BY COUNTRY IF COUNTRY EQ ‘&COUNTRY’ END -CRTFORM “ COUNTRY - <T.&COUNTRY>“ ...

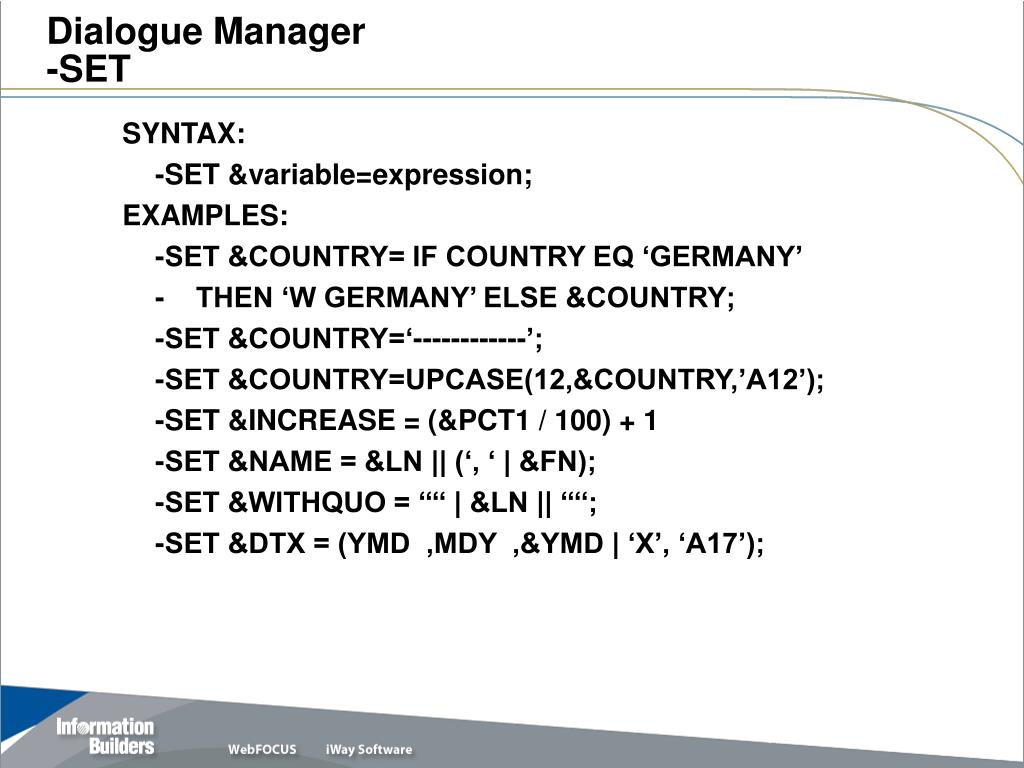

  25. Dialogue Manager-SET SYNTAX: -SET &variable=expression; EXAMPLES: -SET &COUNTRY= IF COUNTRY EQ ‘GERMANY’ - THEN ‘W GERMANY’ ELSE &COUNTRY; -SET &COUNTRY=‘------------’; -SET &COUNTRY=UPCASE(12,&COUNTRY,’A12’); -SET &INCREASE = (&PCT1 / 100) + 1 -SET &NAME = &LN || (‘, ‘ | &FN); -SET &WITHQUO = ‘‘‘‘ | &LN || ‘‘‘‘; -SET &DTX = (YMD ,MDY ,&YMD | ‘X’, ‘A17’);

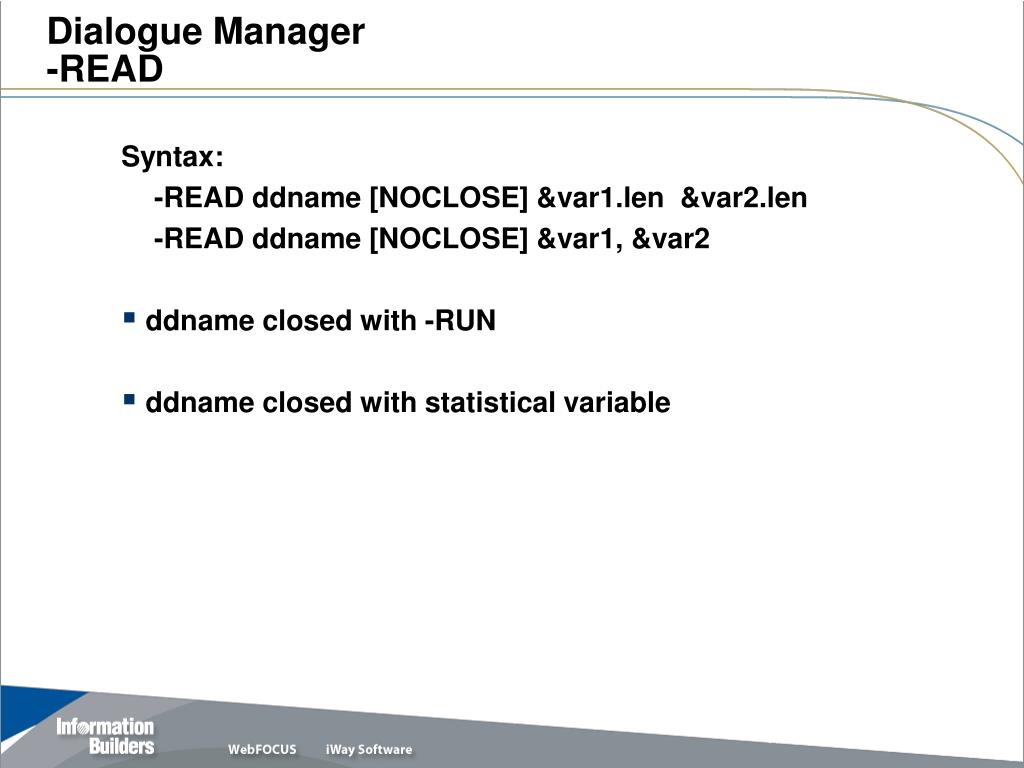

  26. Dialogue Manager-READ Syntax: -READ ddname [NOCLOSE] &var1.len &var2.len -READ ddname [NOCLOSE] &var1, &var2 • ddname closed with -RUN • ddname closed with statistical variable

  27. Dialogue Manager-READ TABLE FILE CAR SUM COUNTRY BY COUNTRY ON TABLE SAVE END -RUN -READ SAVE &COUNTRY.A10. GRAPH FILE CAR SUM SALES ACROSS MODEL ON GRAPH SAVE AS &COUNTRY WHERE COUNTRY EQ ‘&COUNTRY’ END

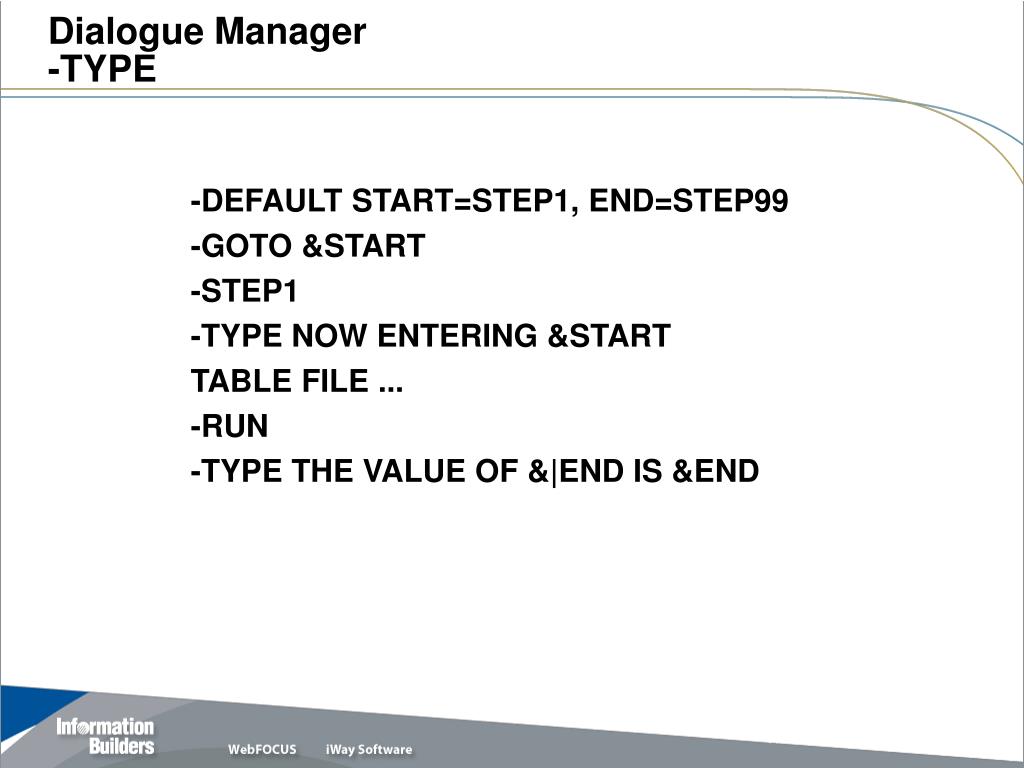

  28. Dialogue Manager-TYPE -DEFAULT START=STEP1, END=STEP99 -GOTO &START -STEP1 -TYPE NOW ENTERING &START TABLE FILE ... -RUN -TYPE THE VALUE OF &|END IS &END

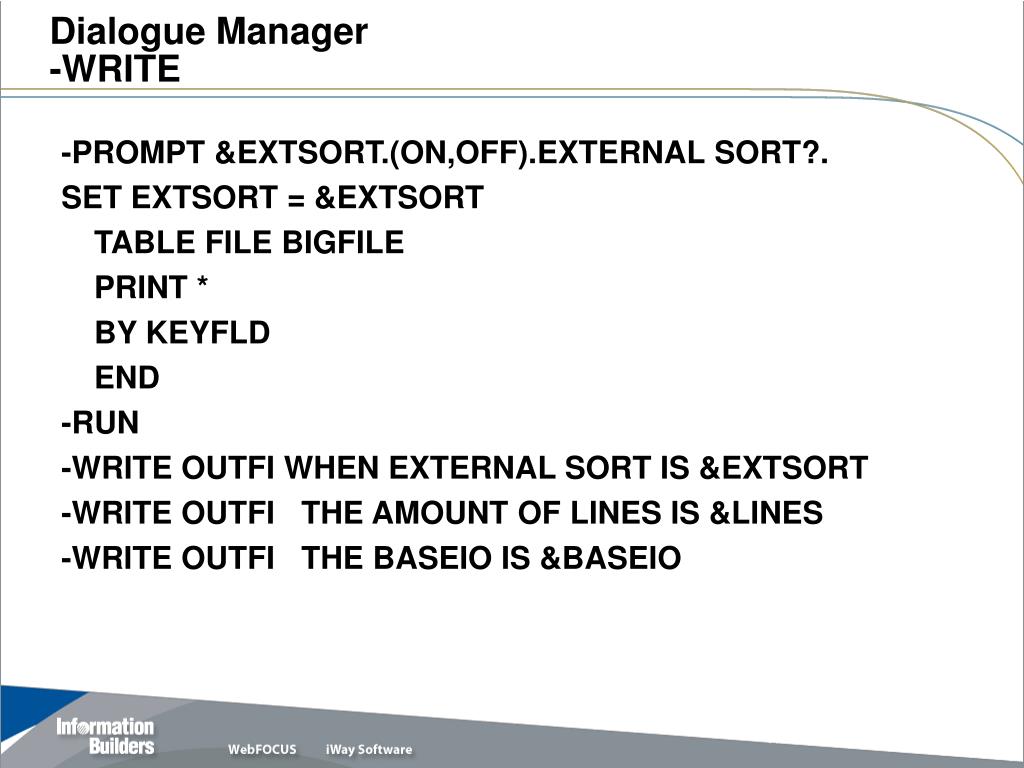

  29. Dialogue Manager-WRITE -PROMPT &EXTSORT.(ON,OFF).EXTERNAL SORT?. SET EXTSORT = &EXTSORT TABLE FILE BIGFILE PRINT * BY KEYFLD END -RUN -WRITE OUTFI WHEN EXTERNAL SORT IS &EXTSORT -WRITE OUTFI THE AMOUNT OF LINES IS &LINES -WRITE OUTFI THE BASEIO IS &BASEIO

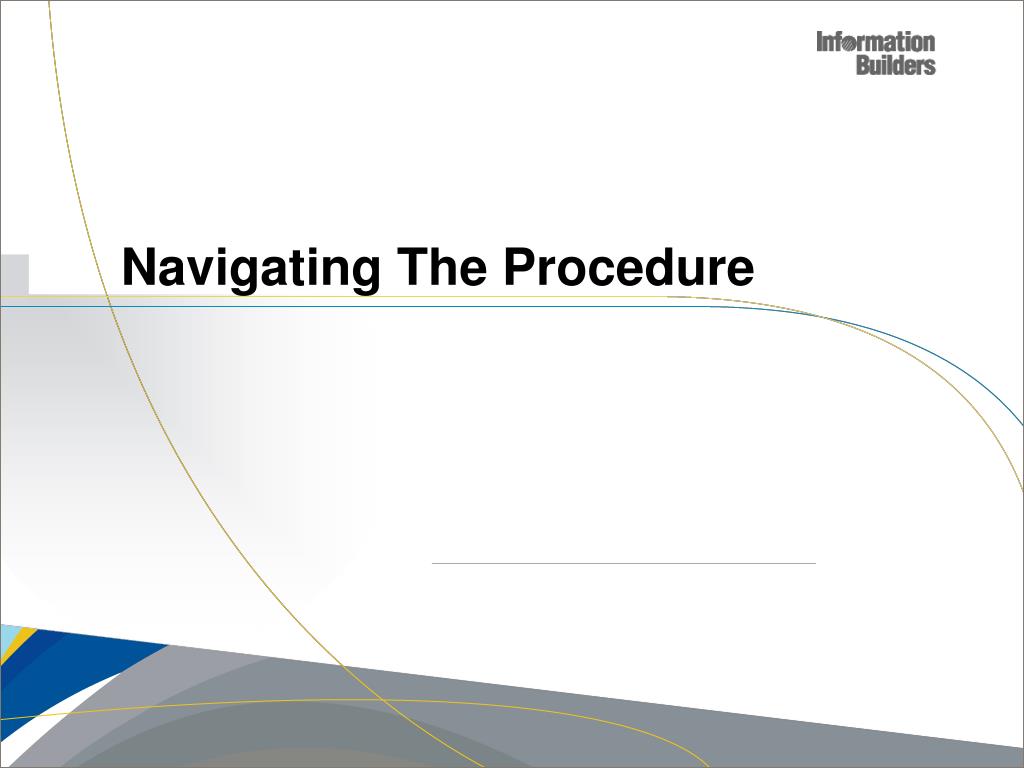

  30. Navigating The Procedure

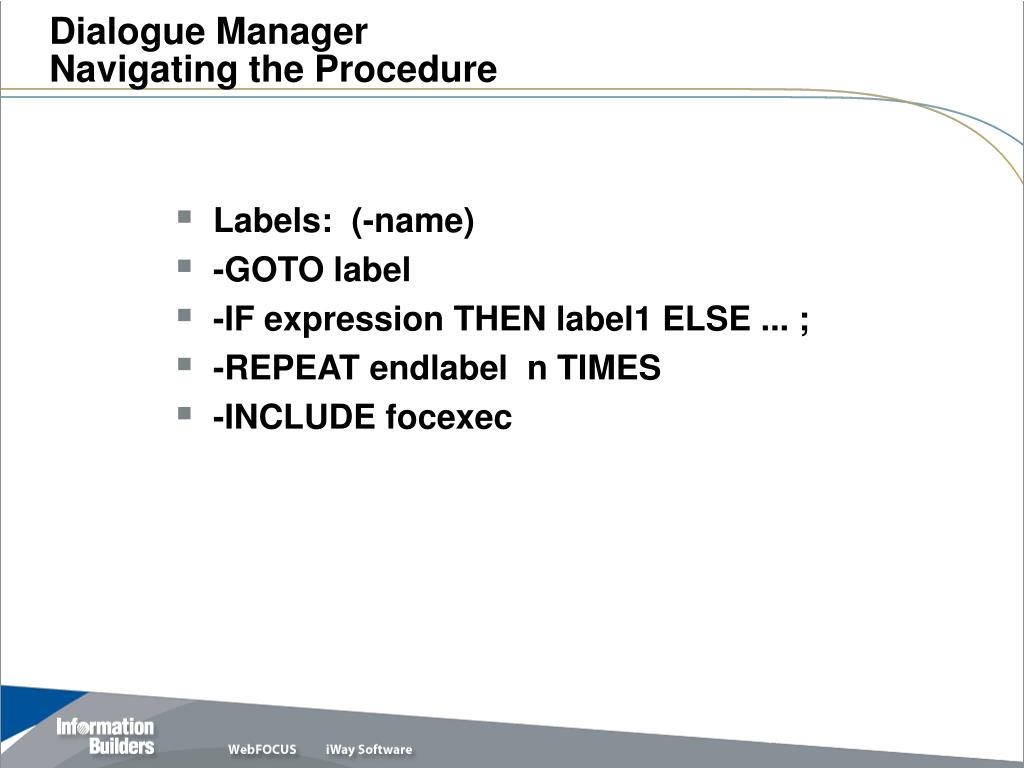

  31. Dialogue ManagerNavigating the Procedure • Labels: (-name) • -GOTO label • -IF expression THEN label1 ELSE ... ; • -REPEAT endlabel n TIMES • -INCLUDE focexec

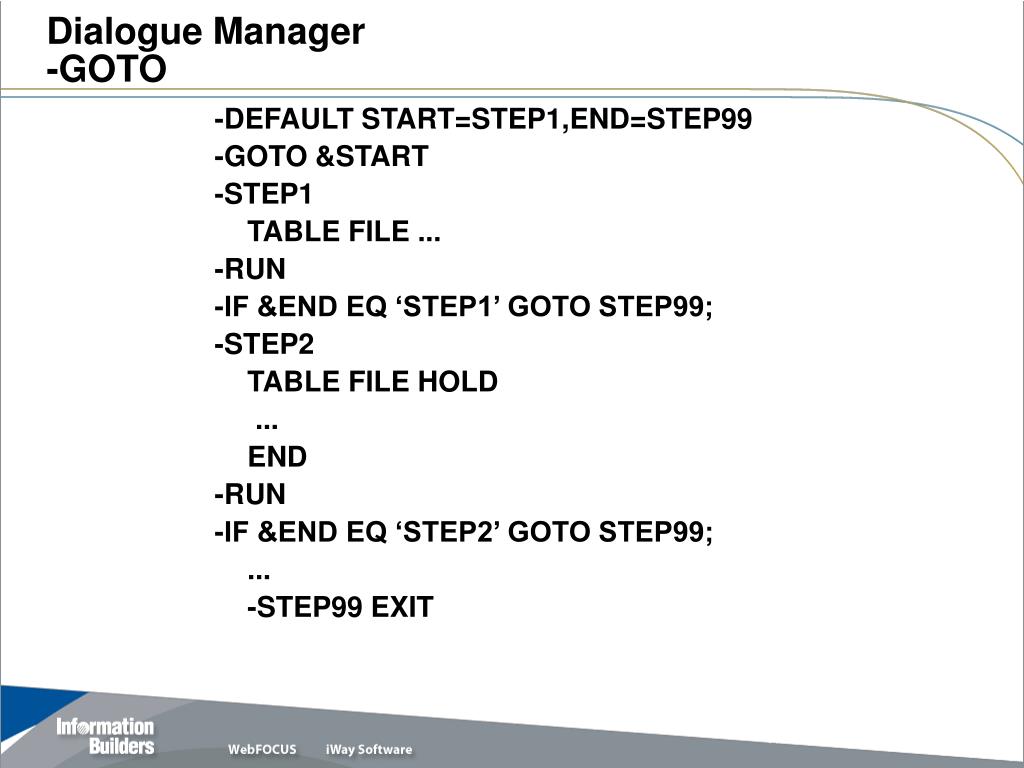

  32. Dialogue Manager-GOTO -DEFAULT START=STEP1,END=STEP99 -GOTO &START -STEP1 TABLE FILE ... -RUN -IF &END EQ ‘STEP1’ GOTO STEP99; -STEP2 TABLE FILE HOLD ... END -RUN -IF &END EQ ‘STEP2’ GOTO STEP99; ... -STEP99 EXIT

  33. Dialogue Manager-IF and -GOTO TABLE FILE CAR SUM COUNTRY BY COUNTRY WHERE COUNTRY EQ ‘ENGLAND’ OR ‘JAPAN’ ON TABLE SAVE END -RUN -LP -READ SAVE &COUNTRY.A10. -IF &IORETURN NE 0 GOTO NOMORE; TABLE FILE CAR SUM RC BY COUNTRY WHERE COUNTRY EQ ‘&COUNTRY’ END -GOTO LP -NOMORE EXIT

  34. Dialogue Manager-IF and -GOTO TABLE FILE CAR SUM COUNTRY BY COUNTRY WHERE COUNTRY EQ ‘ENGLAND’ OR ‘JAPAN’ ON TABLE SAVE END -RUN > NUMBER OF RECORDS IN TABLE= 2 LINES= 2 EBCDIC RECORD NAMED SAVE FIELDNAME ALIAS FORMAT LENGTH COUNTRY COUNTRY A10 10 COUNTRY COUNTRY A10 10 TOTAL 20

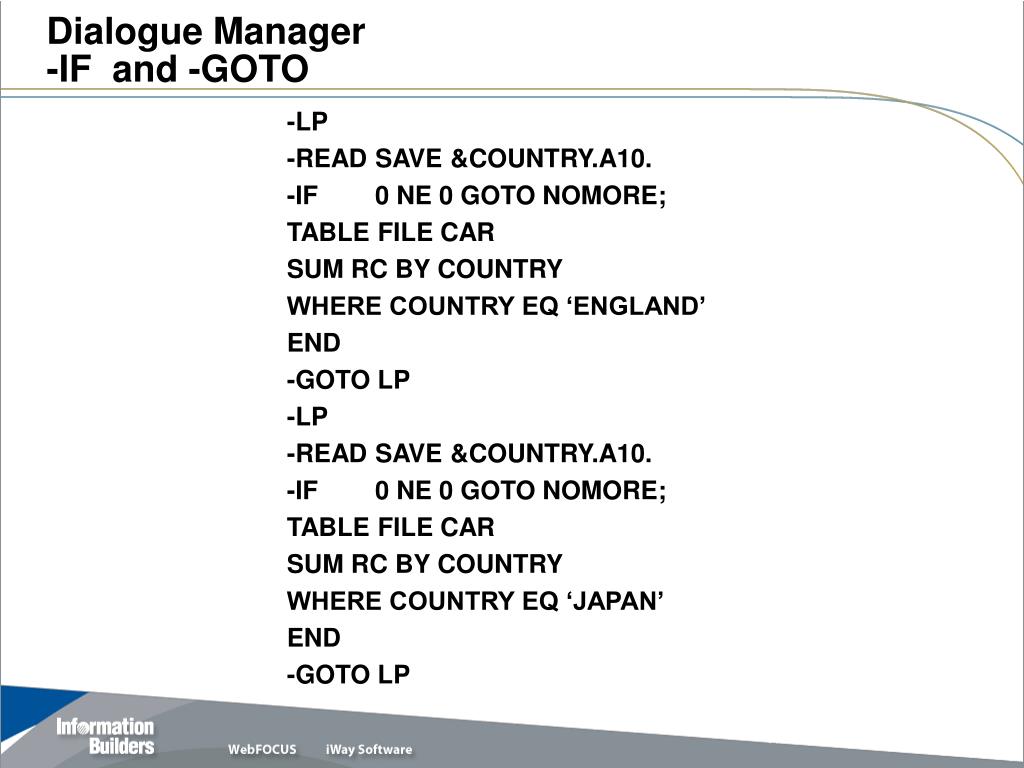

  35. Dialogue Manager-IF and -GOTO -LP -READ SAVE &COUNTRY.A10. -IF 0 NE 0 GOTO NOMORE; TABLE FILE CAR SUM RC BY COUNTRY WHERE COUNTRY EQ ‘ENGLAND’ END -GOTO LP -LP -READ SAVE &COUNTRY.A10. -IF 0 NE 0 GOTO NOMORE; TABLE FILE CAR SUM RC BY COUNTRY WHERE COUNTRY EQ ‘JAPAN’ END -GOTO LP

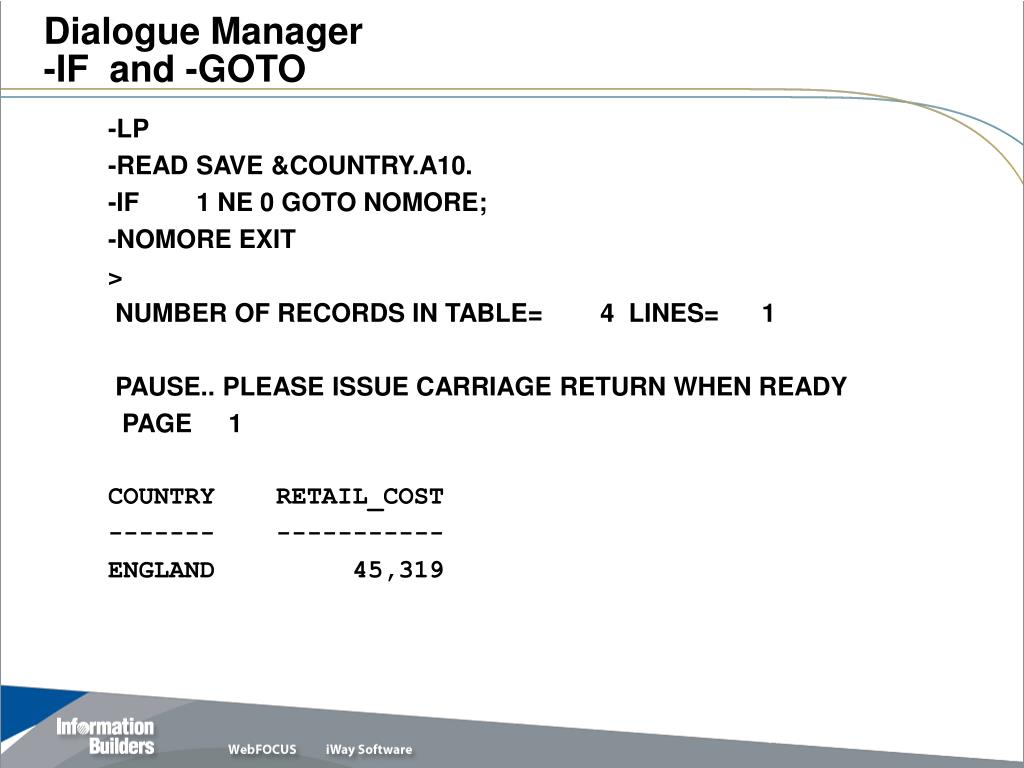

  36. Dialogue Manager-IF and -GOTO -LP -READ SAVE &COUNTRY.A10. -IF 1 NE 0 GOTO NOMORE; -NOMORE EXIT > NUMBER OF RECORDS IN TABLE= 4 LINES= 1 PAUSE.. PLEASE ISSUE CARRIAGE RETURN WHEN READY PAGE 1 COUNTRY RETAIL_COST ------- ----------- ENGLAND 45,319

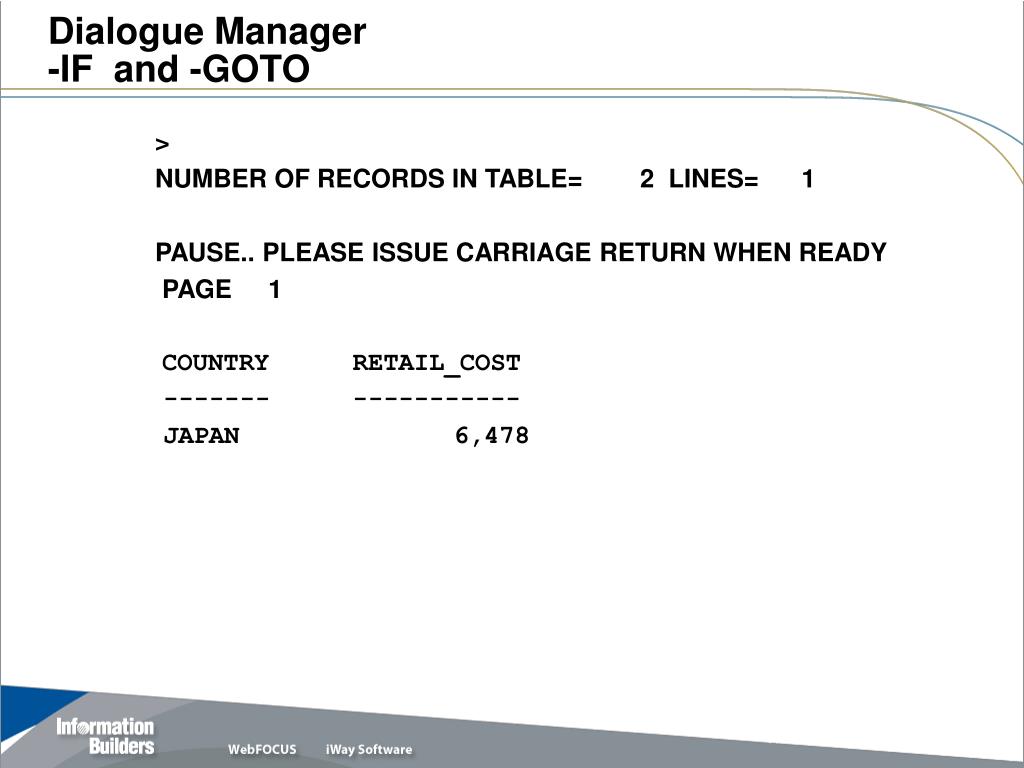

  37. Dialogue Manager-IF and -GOTO > NUMBER OF RECORDS IN TABLE= 2 LINES= 1 PAUSE.. PLEASE ISSUE CARRIAGE RETURN WHEN READY PAGE 1 COUNTRY RETAIL_COST ------- ----------- JAPAN 6,478

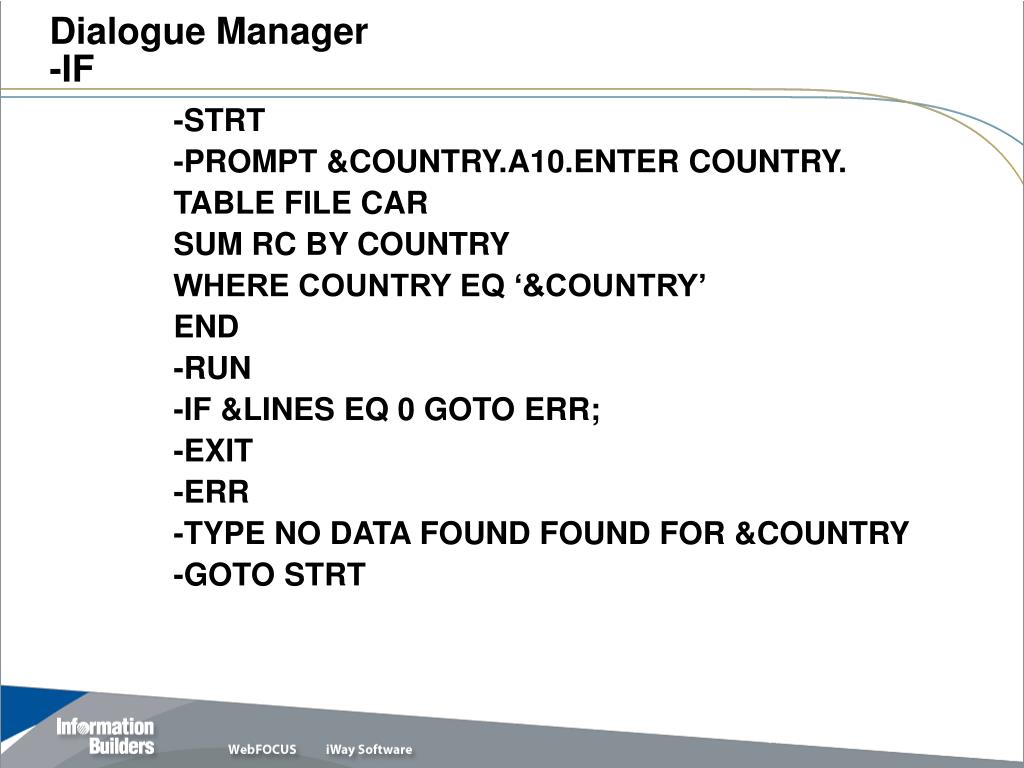

  38. Dialogue Manager-IF -STRT -PROMPT &COUNTRY.A10.ENTER COUNTRY. TABLE FILE CAR SUM RC BY COUNTRY WHERE COUNTRY EQ ‘&COUNTRY’ END -RUN -IF &LINES EQ 0 GOTO ERR; -EXIT -ERR -TYPE NO DATA FOUND FOUND FOR &COUNTRY -GOTO STRT

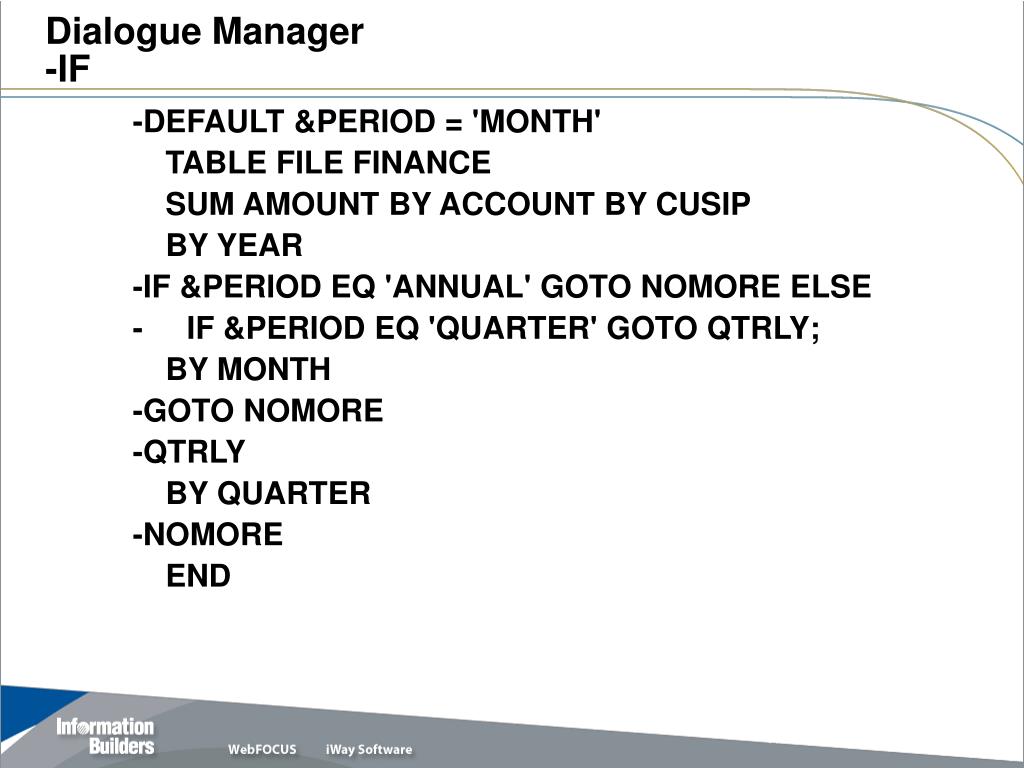

  39. Dialogue Manager-IF -DEFAULT &PERIOD = 'MONTH' TABLE FILE FINANCE SUM AMOUNT BY ACCOUNT BY CUSIP BY YEAR -IF &PERIOD EQ 'ANNUAL' GOTO NOMORE ELSE - IF &PERIOD EQ 'QUARTER' GOTO QTRLY; BY MONTH -GOTO NOMORE -QTRLY BY QUARTER -NOMORE END

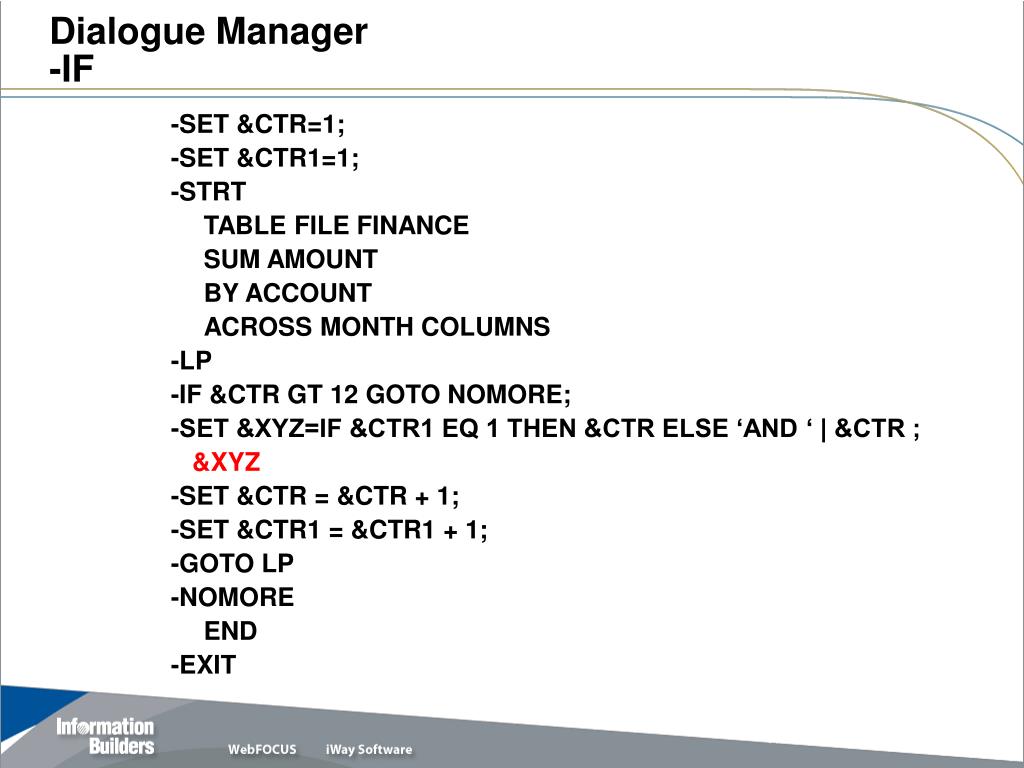

  40. Dialogue Manager-IF -SET &CTR=1; -SET &CTR1=1; -STRT TABLE FILE FINANCE SUM AMOUNT BY ACCOUNT ACROSS MONTH COLUMNS -LP -IF &CTR GT 12 GOTO NOMORE; -SET &XYZ=IF &CTR1 EQ 1 THEN &CTR ELSE ‘AND ‘ | &CTR ; &XYZ -SET &CTR = &CTR + 1; -SET &CTR1 = &CTR1 + 1; -GOTO LP -NOMORE END -EXIT

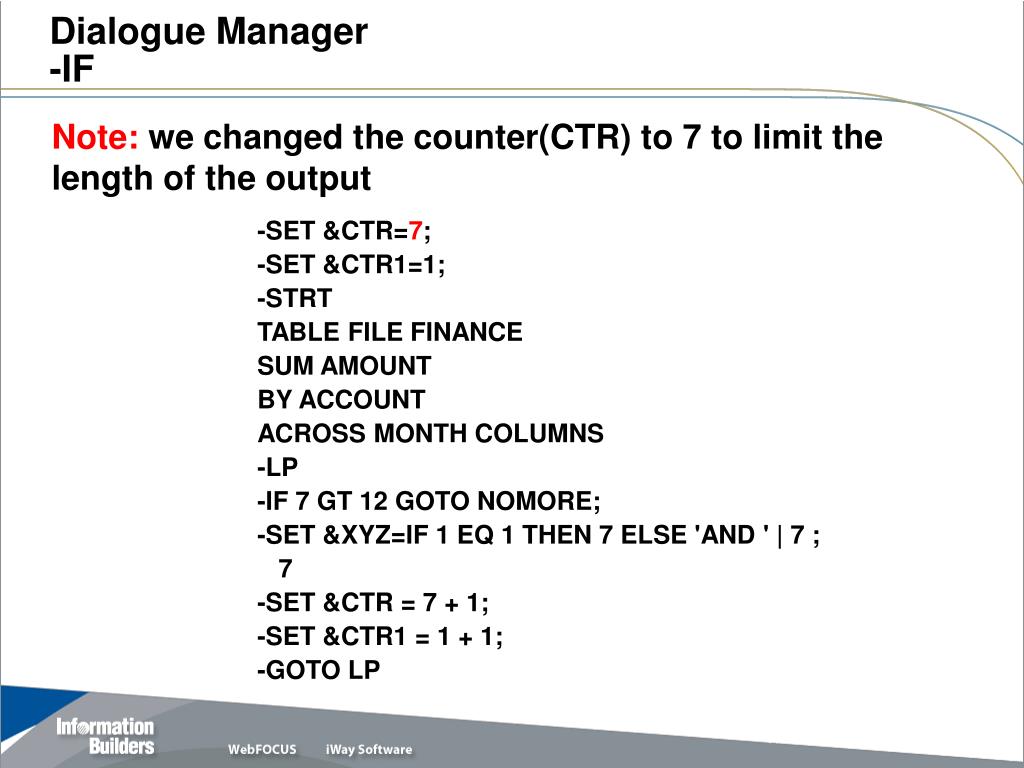

  41. Dialogue Manager-IF -SET &CTR=7; -SET &CTR1=1; -STRT TABLE FILE FINANCE SUM AMOUNT BY ACCOUNT ACROSS MONTH COLUMNS -LP -IF 7 GT 12 GOTO NOMORE; -SET &XYZ=IF 1 EQ 1 THEN 7 ELSE 'AND ' | 7 ; 7 -SET &CTR = 7 + 1; -SET &CTR1 = 1 + 1; -GOTO LP Note: we changed the counter(CTR) to 7 to limit the length of the output

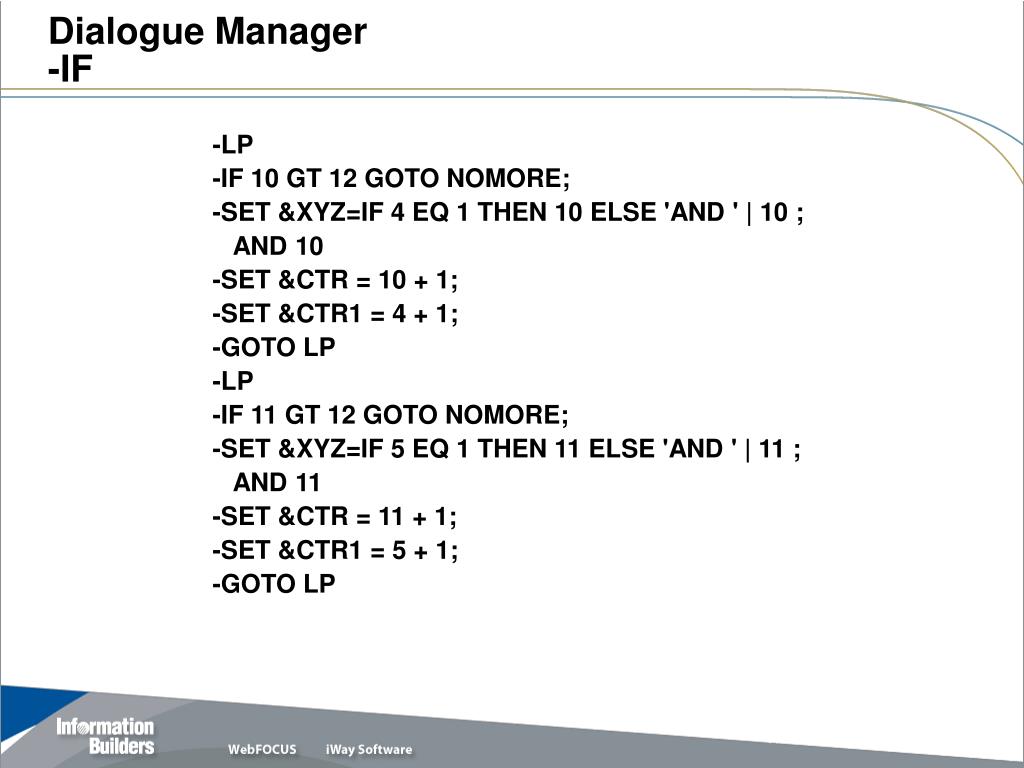

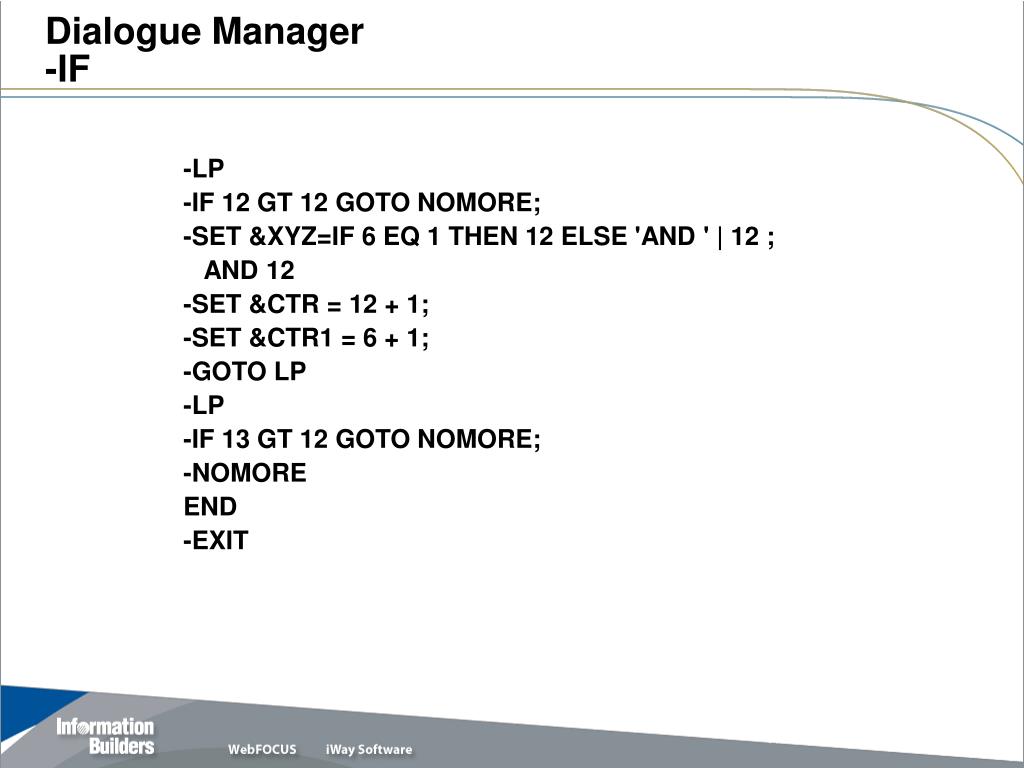

  42. Dialogue Manager-IF -LP -IF 8 GT 12 GOTO NOMORE; -SET &XYZ=IF 2 EQ 1 THEN 8 ELSE 'AND ' | 8 ; AND 8 -SET &CTR = 8 + 1; -SET &CTR1 = 2 + 1; -GOTO LP -LP -IF 9 GT 12 GOTO NOMORE; -SET &XYZ=IF 3 EQ 1 THEN 9 ELSE 'AND ' | 9 ; AND 9 -SET &CTR = 9 + 1; -SET &CTR1 = 3 + 1; -GOTO LP

  43. Dialogue Manager-IF -LP -IF 10 GT 12 GOTO NOMORE; -SET &XYZ=IF 4 EQ 1 THEN 10 ELSE 'AND ' | 10 ; AND 10 -SET &CTR = 10 + 1; -SET &CTR1 = 4 + 1; -GOTO LP -LP -IF 11 GT 12 GOTO NOMORE; -SET &XYZ=IF 5 EQ 1 THEN 11 ELSE 'AND ' | 11 ; AND 11 -SET &CTR = 11 + 1; -SET &CTR1 = 5 + 1; -GOTO LP

  44. Dialogue Manager-IF -LP -IF 12 GT 12 GOTO NOMORE; -SET &XYZ=IF 6 EQ 1 THEN 12 ELSE 'AND ' | 12 ; AND 12 -SET &CTR = 12 + 1; -SET &CTR1 = 6 + 1; -GOTO LP -LP -IF 13 GT 12 GOTO NOMORE; -NOMORE END -EXIT

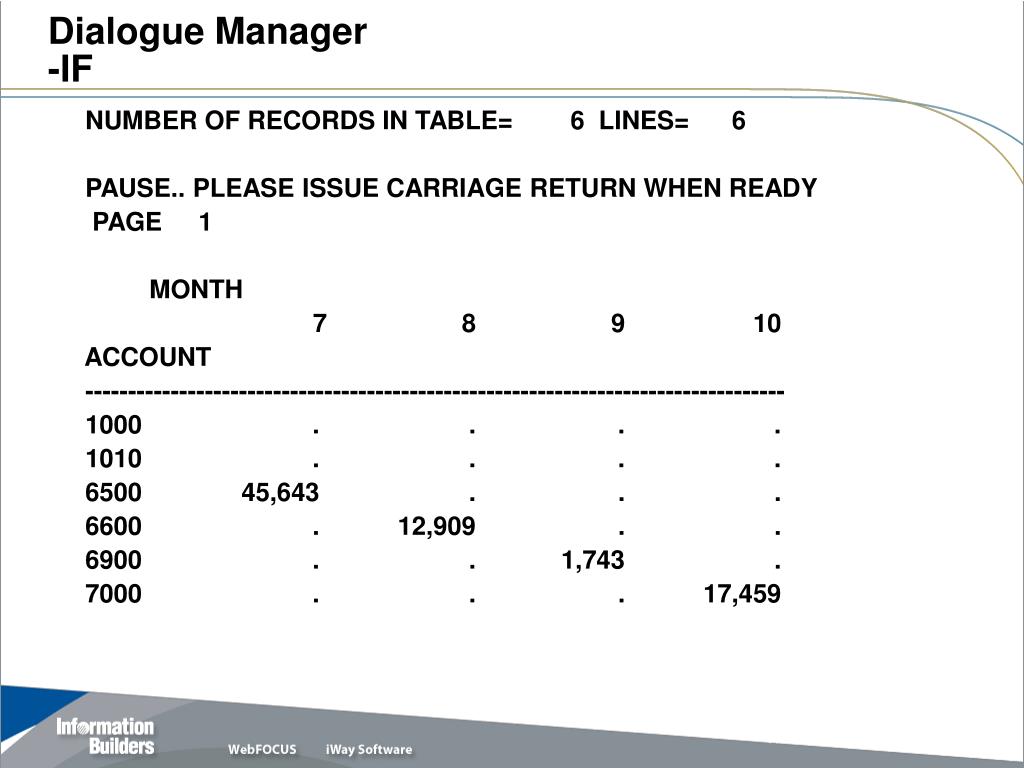

  45. Dialogue Manager-IF NUMBER OF RECORDS IN TABLE= 6 LINES= 6 PAUSE.. PLEASE ISSUE CARRIAGE RETURN WHEN READY PAGE 1 MONTH 7 8 9 10 ACCOUNT ---------------------------------------------------------------------------------- 1000 . . . . 1010 . . . . 6500 45,643 . . . 6600 . 12,909 . . 6900 . . 1,743 . 7000 . . . 17,459

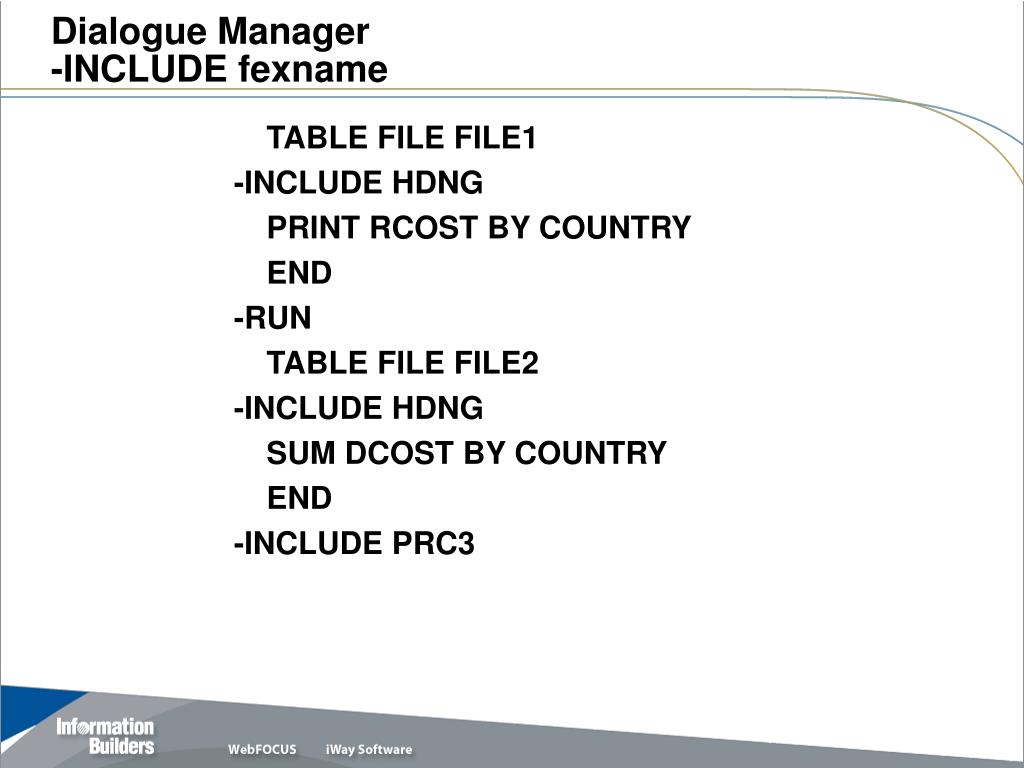

  46. Dialogue Manager-INCLUDE fexname TABLE FILE FILE1 -INCLUDE HDNG PRINT RCOST BY COUNTRY END -RUN TABLE FILE FILE2 -INCLUDE HDNG SUM DCOST BY COUNTRY END -INCLUDE PRC3

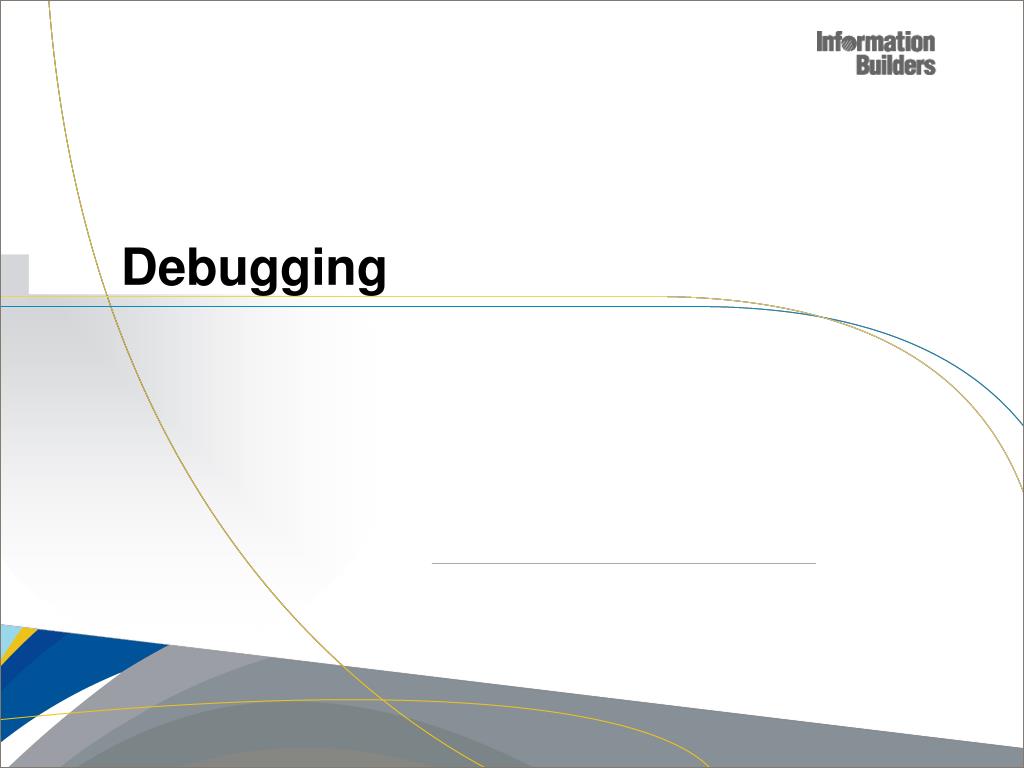

  47. Debugging

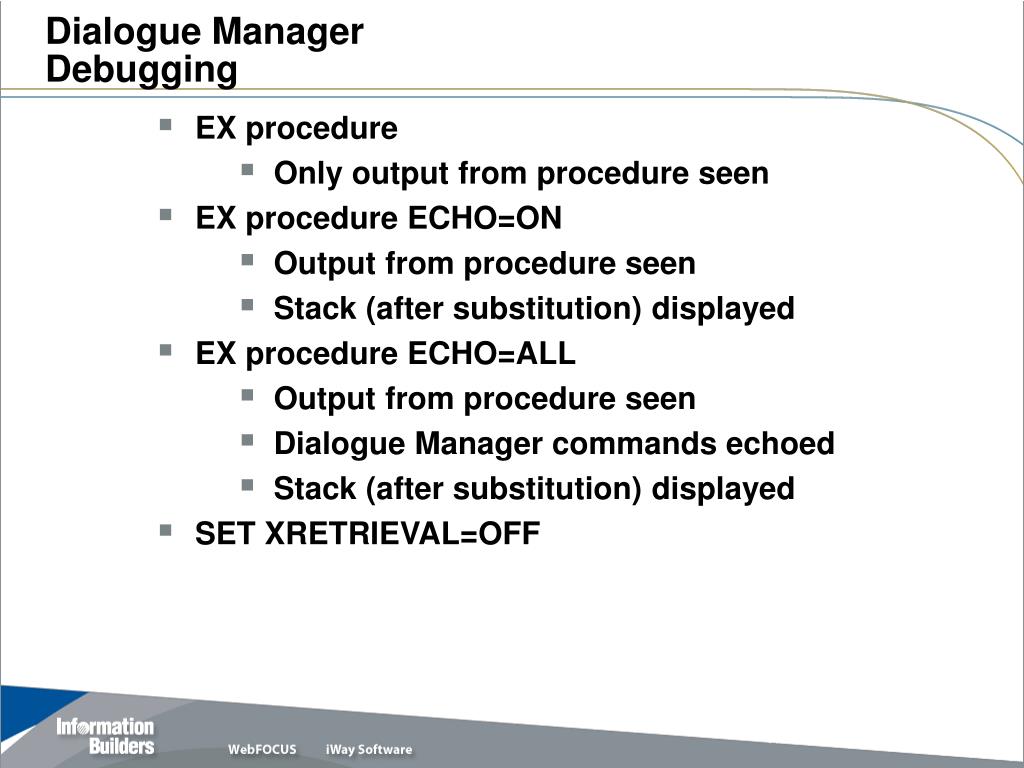

  48. Dialogue ManagerDebugging • EX procedure • Only output from procedure seen • EX procedure ECHO=ON • Output from procedure seen • Stack (after substitution) displayed • EX procedure ECHO=ALL • Output from procedure seen • Dialogue Manager commands echoed • Stack (after substitution) displayed • SET XRETRIEVAL=OFF

  49. Before You leave! Be Sure To Visit Our Problem Isolation Debugging Tool Site http://techsupport.informationbuilders.com/app/css_web_tool/default.htm

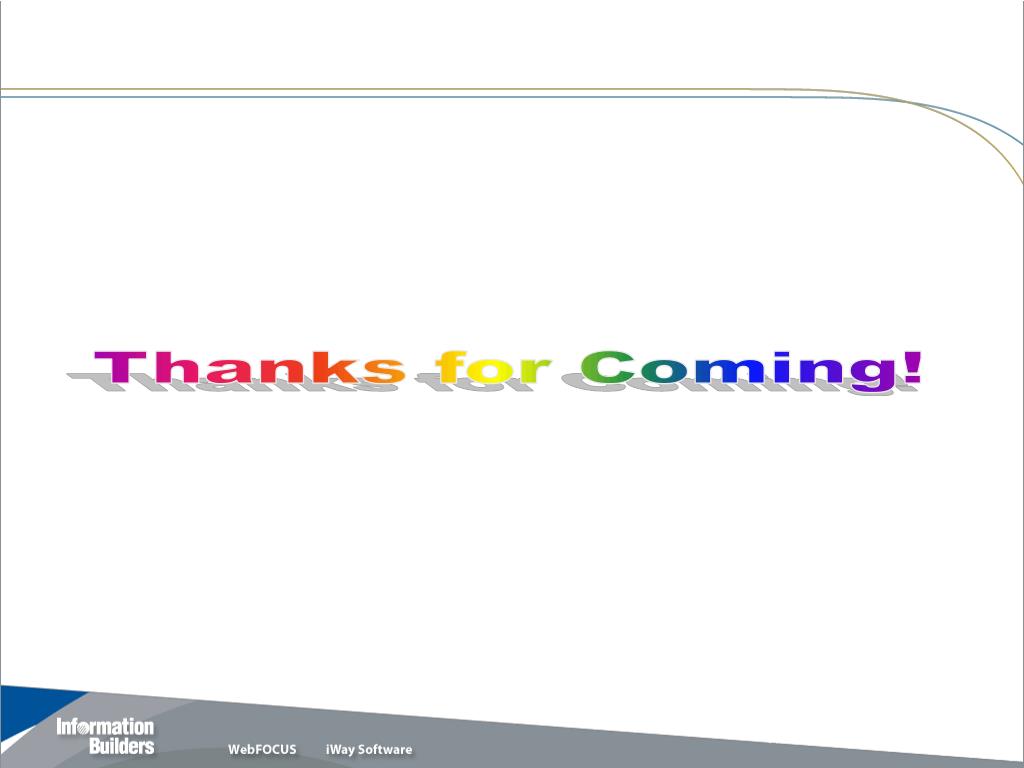

  50. QUESTIONS Thanks for Coming!
