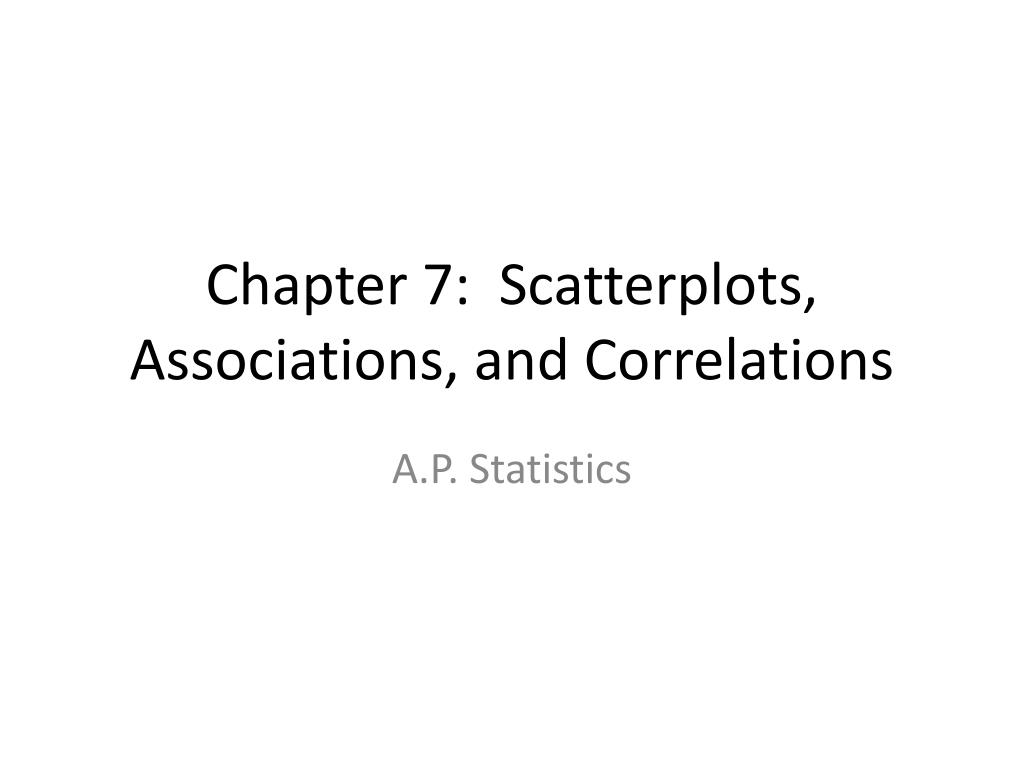

  1. Chapter 7: Scatterplots, Associations, and Correlations A.P. Statistics

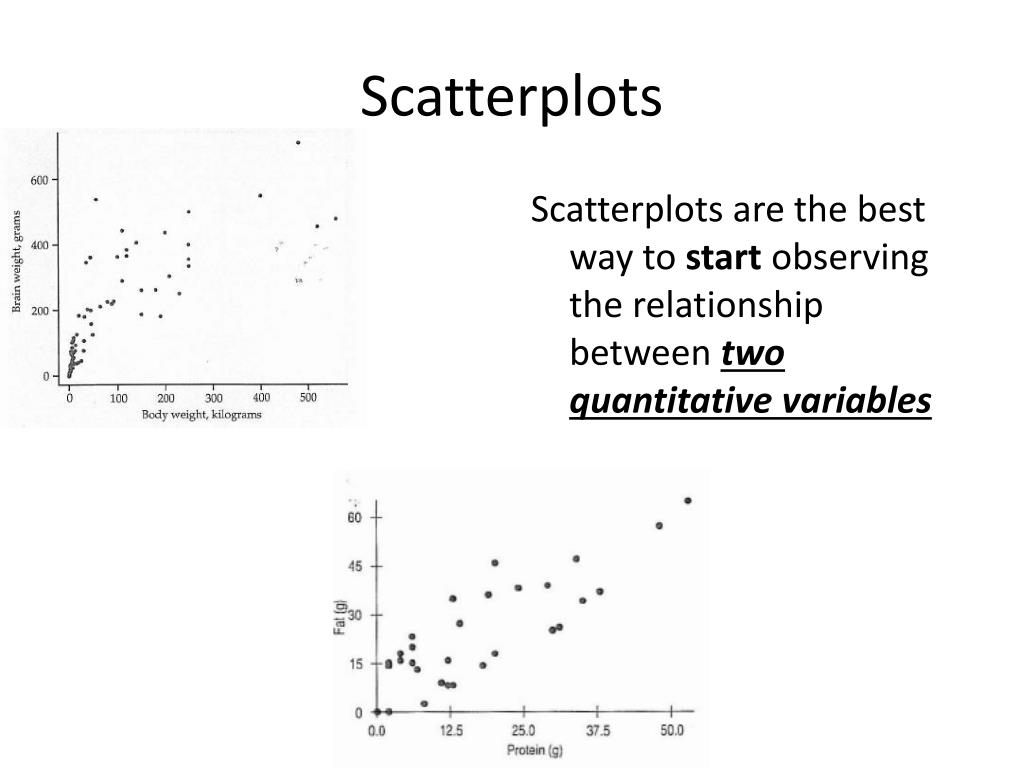

  2. Scatterplots Scatterplots are the best way to start observing the relationship between two quantitative variables

  3. Describing Scatterplots • Direction: Positive, Negative, none • Form: Linear, curved, cluster, etc • Strength: At this point: strong, moderate, weak • Unusual Features: outliers, clusters with, etc

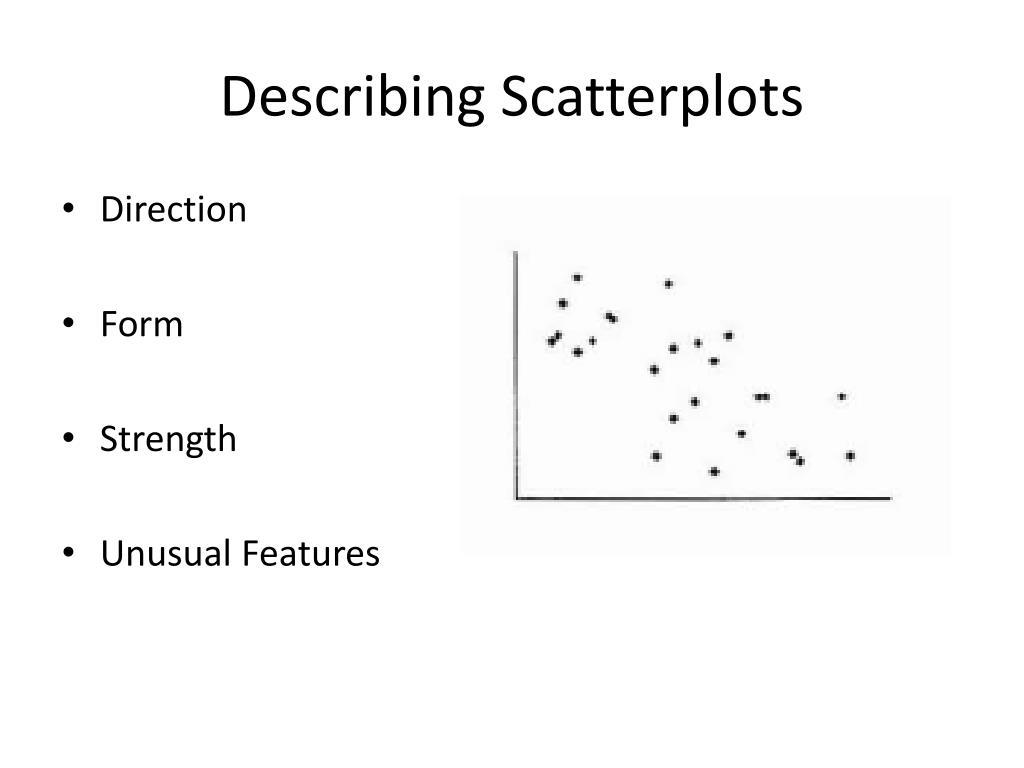

  4. Describing Scatterplots • Direction • Form • Strength • Unusual Features

  5. Describing Scatterplots • Direction • Form • Strength • Unusual Features

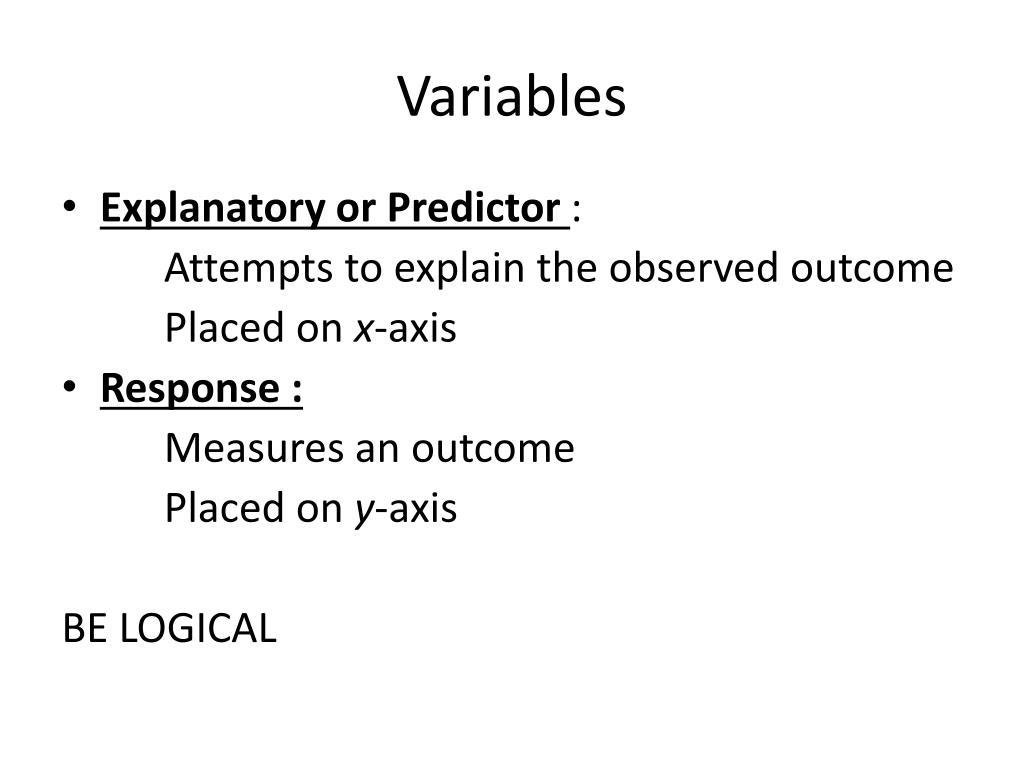

  6. Variables • Explanatory or Predictor : Attempts to explain the observed outcome Placed on x-axis • Response : Measures an outcome Placed on y-axis BE LOGICAL

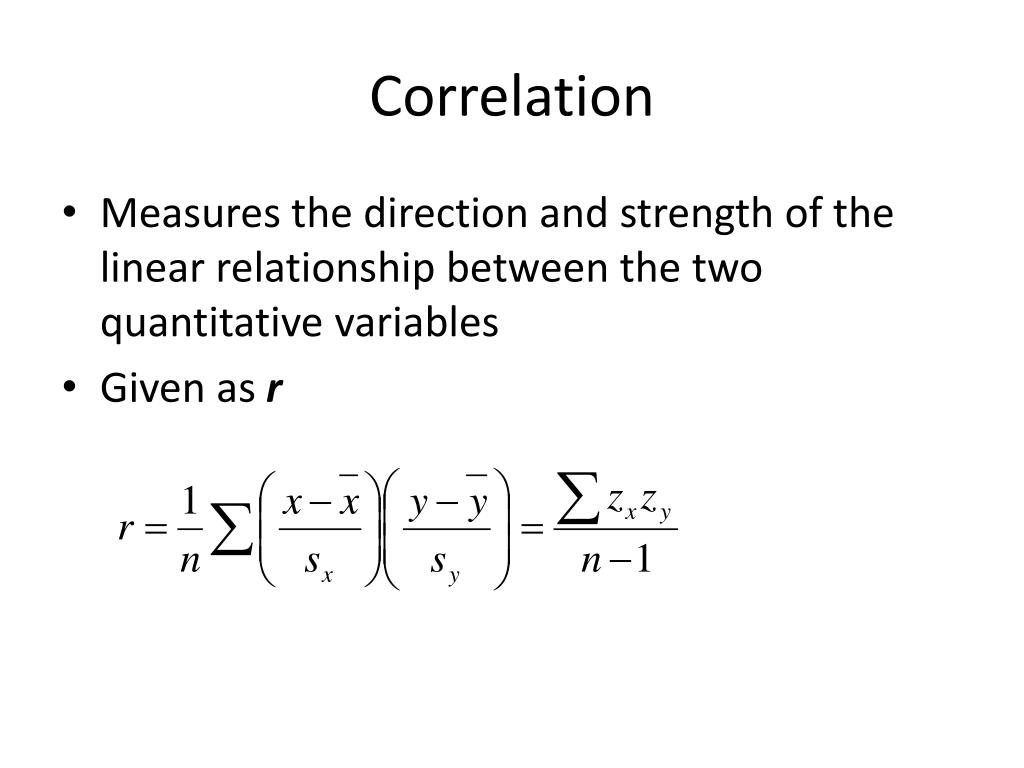

  7. Correlation • Measures the direction and strength of the linear relationship between the two quantitative variables • Given as r

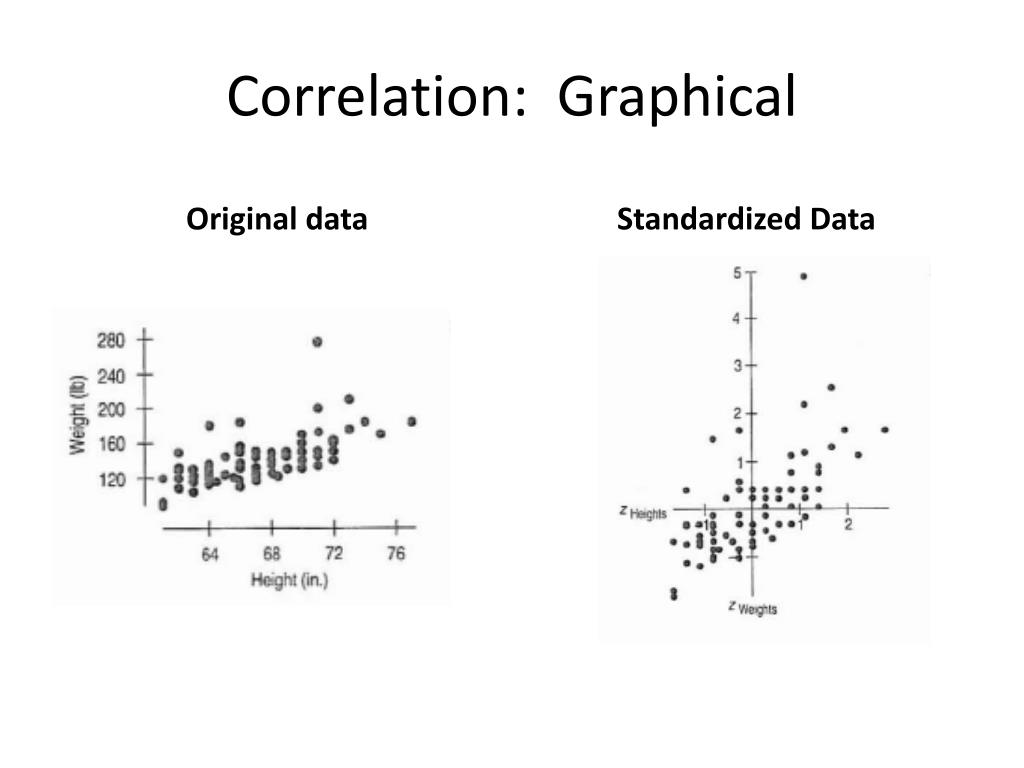

  8. Correlation: Graphical Original data Standardized Data

  9. Correlation Conditions • Quantitative Variables Condition • Straight Enough Condition • Outlier Condition Report correlation with and without outlier

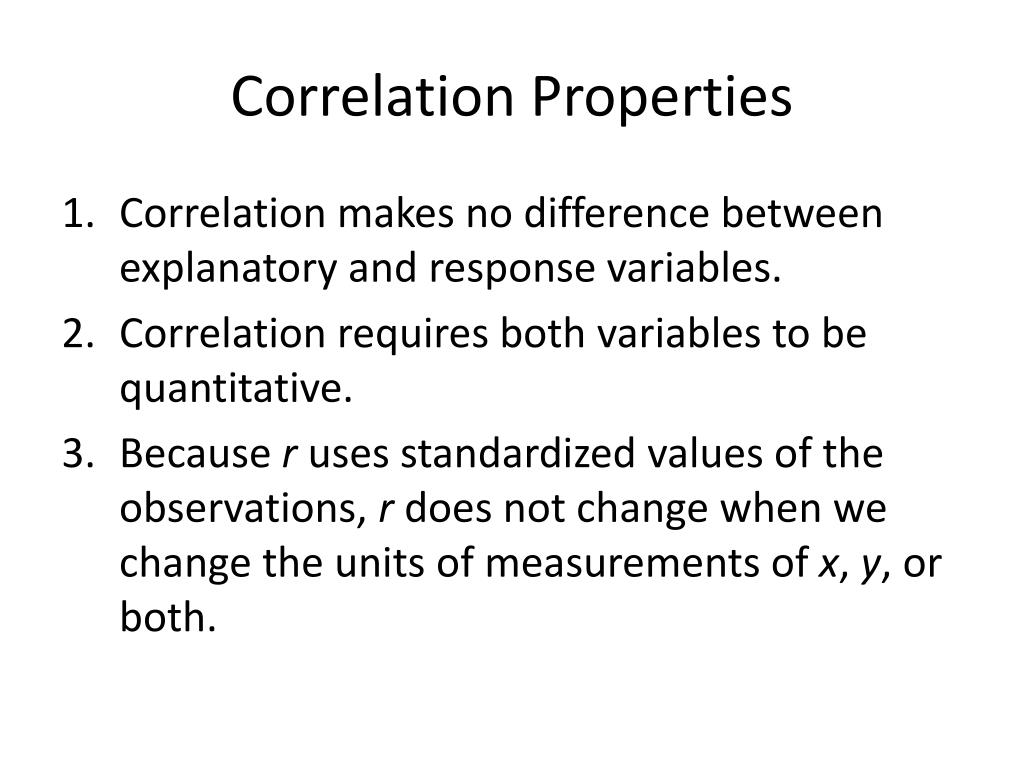

  10. Correlation Properties • Correlation makes no difference between explanatory and response variables. • Correlation requires both variables to be quantitative. • Because r uses standardized values of the observations, r does not change when we change the units of measurements of x, y, or both.

  11. Correlation Properties • Positive r indicates positive association between the variables and a negative r indicates negative association. • The correlation is always a number between -1 and 1. The strength of the linear relationship increases as r moves away from 0 towards either -1 or 1.

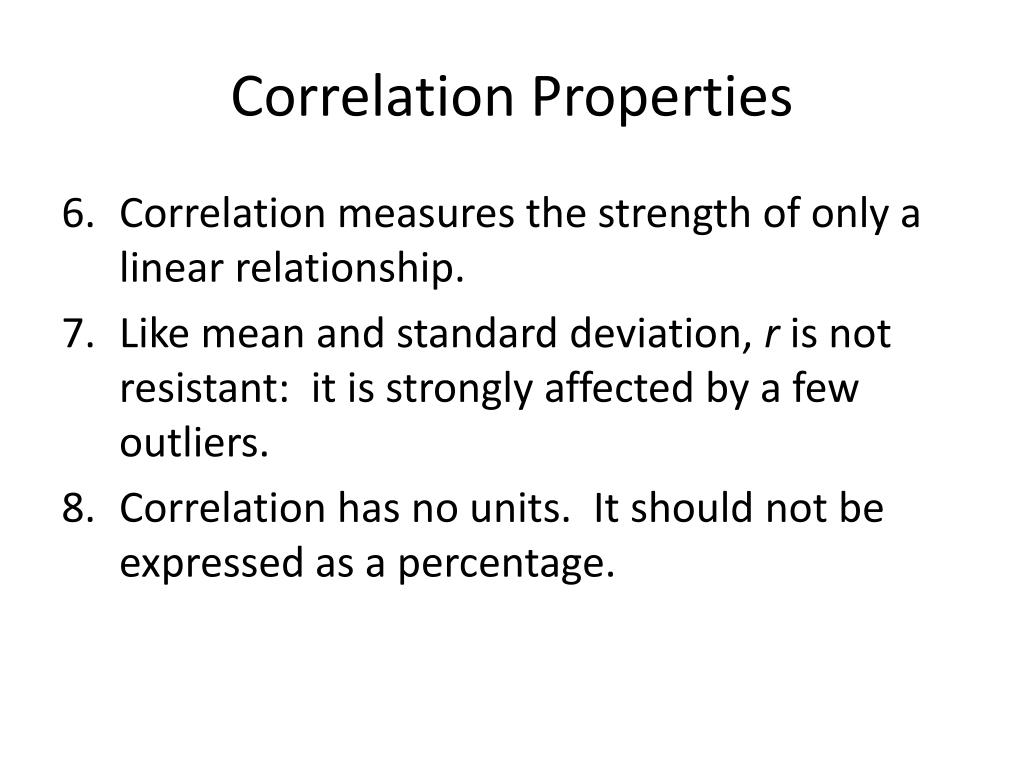

  12. Correlation Properties • Correlation measures the strength of only a linear relationship. • Like mean and standard deviation, r is not resistant: it is strongly affected by a few outliers. • Correlation has no units. It should not be expressed as a percentage.

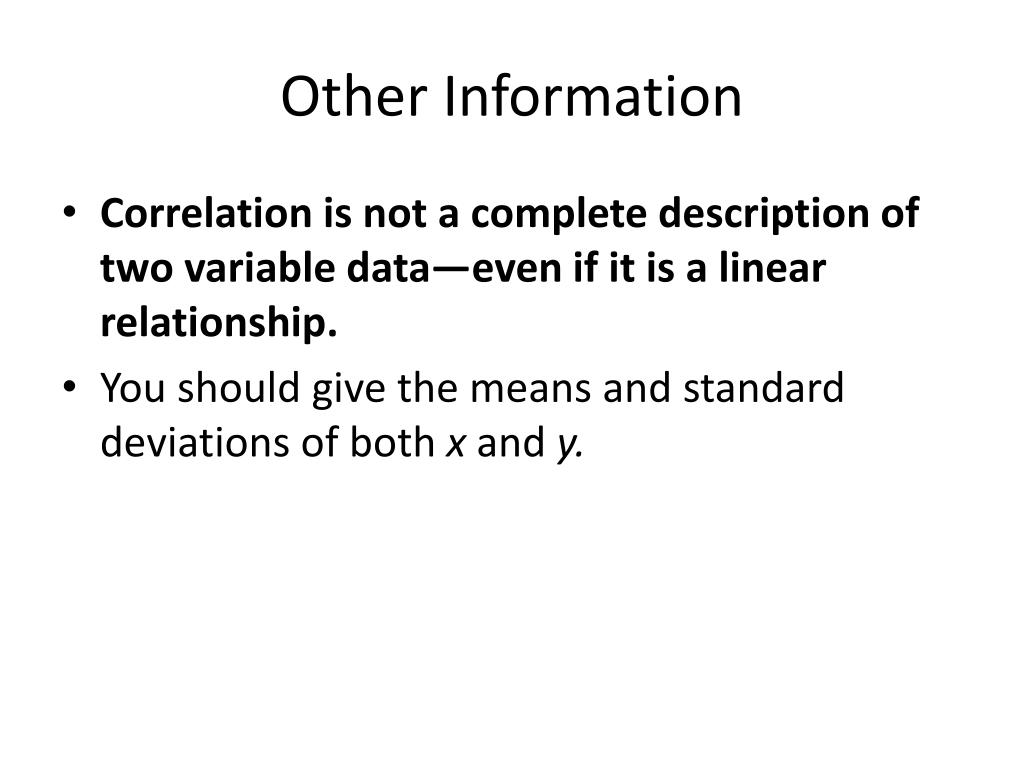

  13. Other Information • Correlation is not a complete description of two variable data—even if it is a linear relationship. • You should give the means and standard deviations of both x and y.

  14. Straightening Scatterplots • If a relationship between two quantitative variables is not linear, we can re-express it and straighten the form. Then we can apply the strengths of using correlation and the other measures that come from a linear relationship. • We will go more into depth about this in Chapter 10. • See page 154 in your text for graphic

  15. Problems? • Don’t say “correlation” when you mean “association”. • Don’t correlation categorical data. • Be sure the association is linear. • Beware of outliers. • Don’t confuse correlation with causation. • Watch out for lurking variables.

  16. Correlation vs. Causation • Scatterplots and correlations never prove causation. • The only thing that can show causation is a randomized controlled experiment.

  17. Correlation vs. Causation
