The Project. A Vendor’s Perspective. Samit Sengupta. Role of POSC. Provides a platform to enable open collaboration between oil companies, service companies, application vendors and regulatory bodies. WITSML Data Objects. Well Wellbore Rig Rig Equipment Pump

idania
Télécharger la présentation

The Project

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

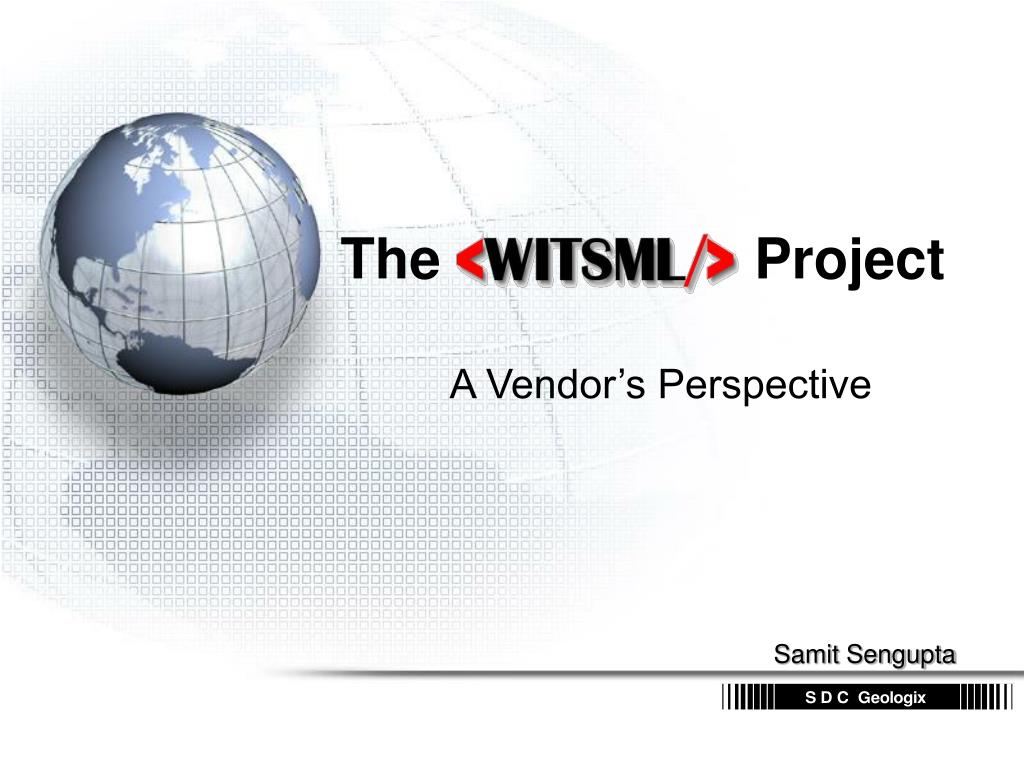

  1. The Project A Vendor’s Perspective Samit Sengupta

  2. Role of POSC Provides a platform to enable open collaboration between oil companies, service companies, application vendors and regulatory bodies

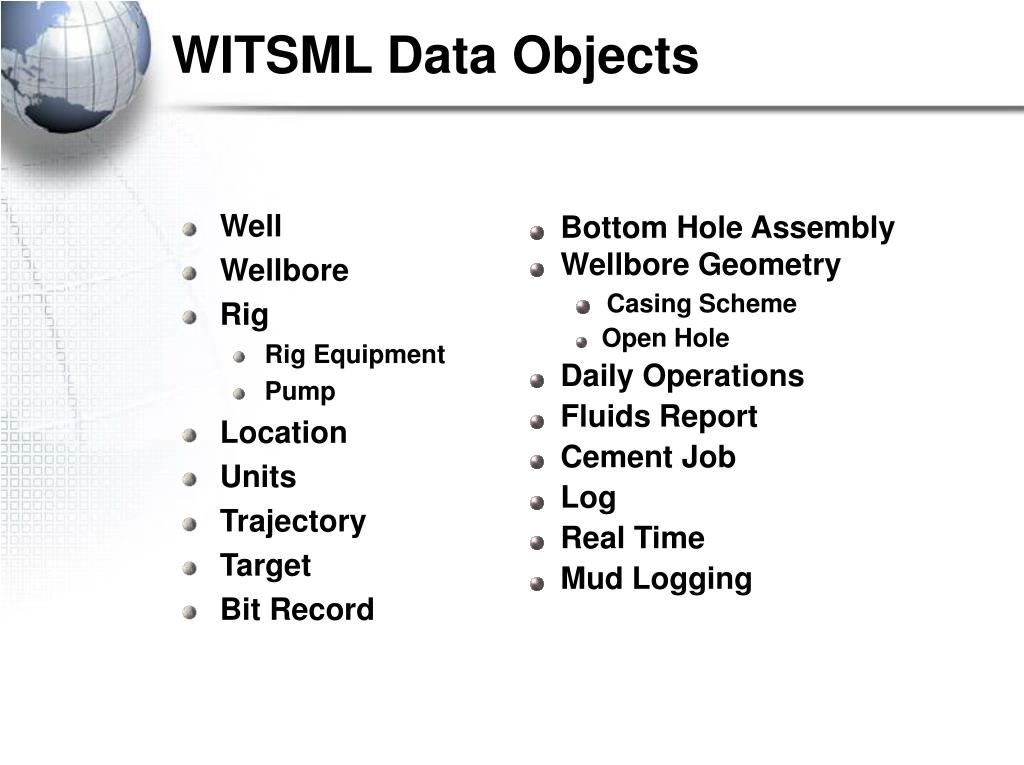

  3. WITSML Data Objects • Well • Wellbore • Rig • Rig Equipment • Pump • Location • Units • Trajectory • Target • Bit Record • Bottom Hole Assembly • Wellbore Geometry • Casing Scheme • Open Hole • Daily Operations • Fluids Report • Cement Job • Log • Real Time • Mud Logging

  4. Implementation Process Adapt Review SIG Analyze Release Pilot Steering Committee Technical Committee SIG Sub-teams

  5. Case Study The Mudlog SIG Sub-team • Chair • Cary Fico (ExxonMobil) • Participants: • John Lottinville (BHI) • Lee Geiser (Petrolink) • Gary Masters (POSC) • Samit Sengupta (SDC Geologix)

  6. Analysis of Business Process Rig HTTP Rig Server Server Mudloggers or WSG Cuttings lithology & show Screens descriptions, calcimetry , Drilling shale density Reports Contractor (DOC, XLS) On-line plots Analysis Real-time Log Image (PDF, PDS) HTTP Sensors Engineer Reports Raw (DOC, XLS) Comments & Data Observations Data Time Mudlogger’s Log Image (PDF, TIFF) Multiplex disk Edited Database Geol Samples/ Depth Ops Cores Data File (ASCII, LAS) transported Bus. Unit /FE Data from disk wellsite WSG Lithology & Generalized Data Flow Model(Changes with time, technology and organizational roles) Show Descriptions from SWC and cores Network E-Mail, WITS WSG Reports HTTP (DOC, XLS) Wellsite Comments & HTTP Observations Geologist Log Image (PDF) Archive HTTP QA/QC Screens On-line plots Real-time Memory HTTP Tools Data Ext Links Reports (DOC, XLS) Engineer Raw Data Comments & Data Observations disk LWD/MWD Log Image (PDF, PDS, Multiplex TIFF) Database Edited Partners/ Gov Data File (ASCII, LAS) Tools Engineer Data Comments & Raw disk Log Image Observations (PDF, PDS) Data Edited Wireline Multiplex Database Data File (DLIS, LAS) Real-time Screens On-line plots Rig Server

  7. Mudlog data content • Approximately 175 types of information • Gas & Hydrocarbon Data • hydrocarbon shows; staining, fluorescence, cut • total gas, gas chromatograph analysis (component concentrations), gas ratios • H2S & CO2 • Mud Data • composition, volume, • temp, resistivity, mud wt (in/out) • Drilling & Operation Data • hole depth, ROP • bit info: bit trips, type, no.,WOB, RPM • drilling parameter changes, drilling rate exponent • pump pressure, mud rate, mud pump stroke counts • coring points, DST, LOT • MWD / LWD • Cuttings & Lithologic Data • lith description rock type, color, texture etc., visual porosity • interpreted log and lithology percentage log

  8. WITSML Mudlog Extesnsion Log Object Mudog Extension Mudog Object

  9. Project Status • Mudlog extensions approved by Technical Committee • WITSML release 1.3 to incorporate mudlog extensions • Expected release date – 31 Jan 2005 • Evaluate use of mudlog object for other purposes such as Geological Report. • First phase pilot started by ExxonMobil

  10. WITSML Mudlog Object Pilot RIG OFFICE Real-time Viewer Real-time Sensor data Lagged Sensor data Real-time object WITSML Rig Server WITSML Office Server Lagged curves (log object), Lithology, descriptions (mudlog object) Corporate Datastore Curves Mudlog Object Mudlog Application Office Application Lithology Descriptions Annotations • ExxonMobil Pilot • Mudlogging Company : Stratagraph • Server provider : Petrolink • Application provider: SDC Geologix • Other operators, service/software provider?

  11. S D C Geologix Mudlog Object Demonstration Using GEO & Sitecom

  12. Use of Mudlog object in GEO Start Wizard Connect to Server Select Well/Wellbore/Data to load Select curves to load Map lithology names Finish! The mudlog is created by loading log and mudlog objects directly from a remote WITSML server.

  13. Thank - You
