Operating Systems Design (CS 423)

Operating Systems Design (CS 423) Elsa L Gunter 2112 SC, UIUC http://www.cs.illinois.edu/class/cs423/ Based on slides by Roy Campbell, Sam King, and Andrew S Tanenbaum

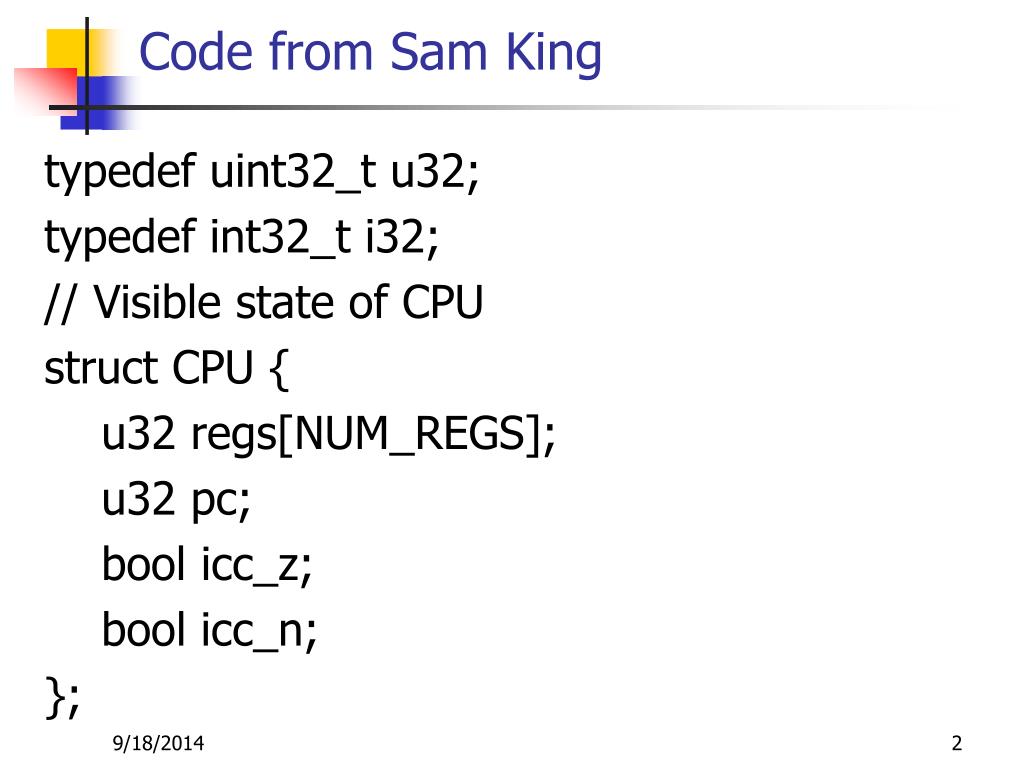

Code from Sam King typedef uint32_t u32; typedef int32_t i32; // Visible state of CPU struct CPU { u32 regs[NUM_REGS]; u32 pc; bool icc_z; bool icc_n; };

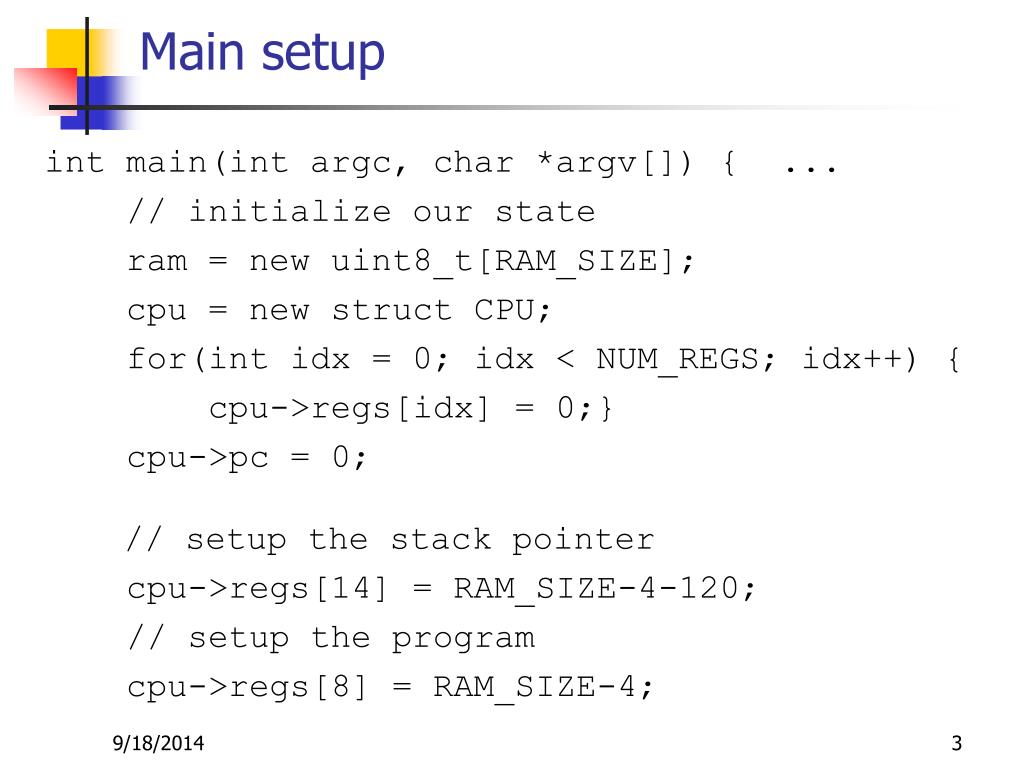

Main setup int main(int argc, char *argv[]) { ... // initialize our state ram = new uint8_t[RAM_SIZE]; cpu = new struct CPU; for(int idx = 0; idx < NUM_REGS; idx++) { cpu->regs[idx] = 0;} cpu->pc = 0; // setup the stack pointer cpu->regs[14] = RAM_SIZE-4-120; // setup the program cpu->regs[8] = RAM_SIZE-4;

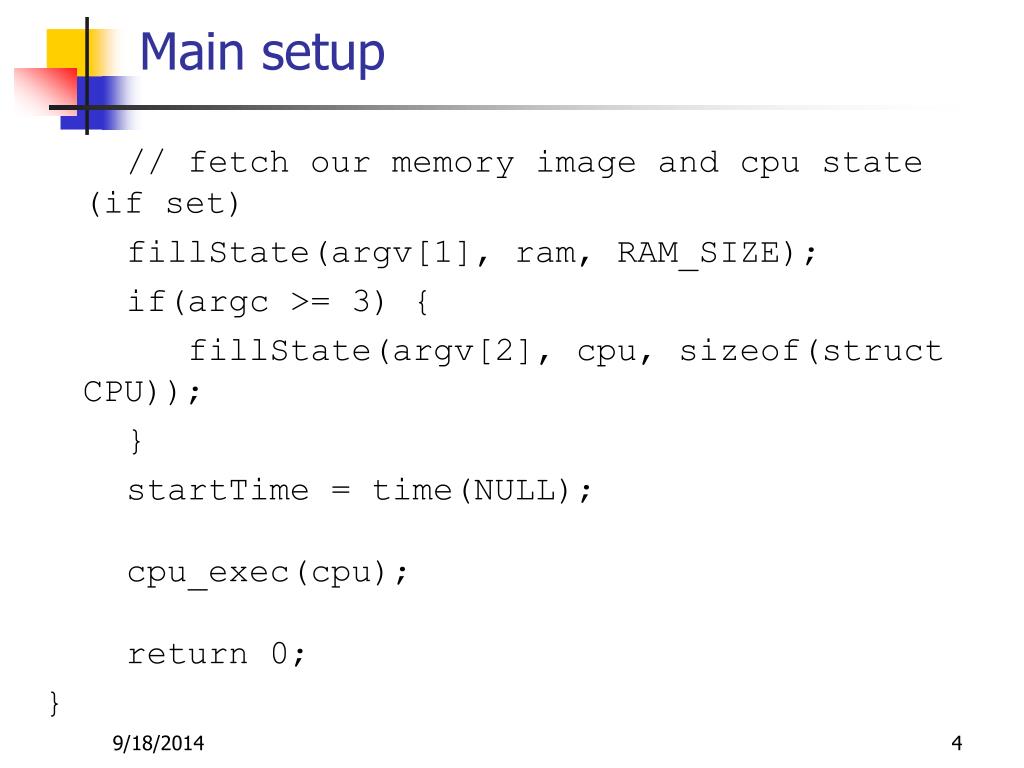

Main setup // fetch our memory image and cpu state (if set) fillState(argv[1], ram, RAM_SIZE); if(argc >= 3) { fillState(argv[2], cpu, sizeof(struct CPU)); } startTime = time(NULL); cpu_exec(cpu); return 0; }

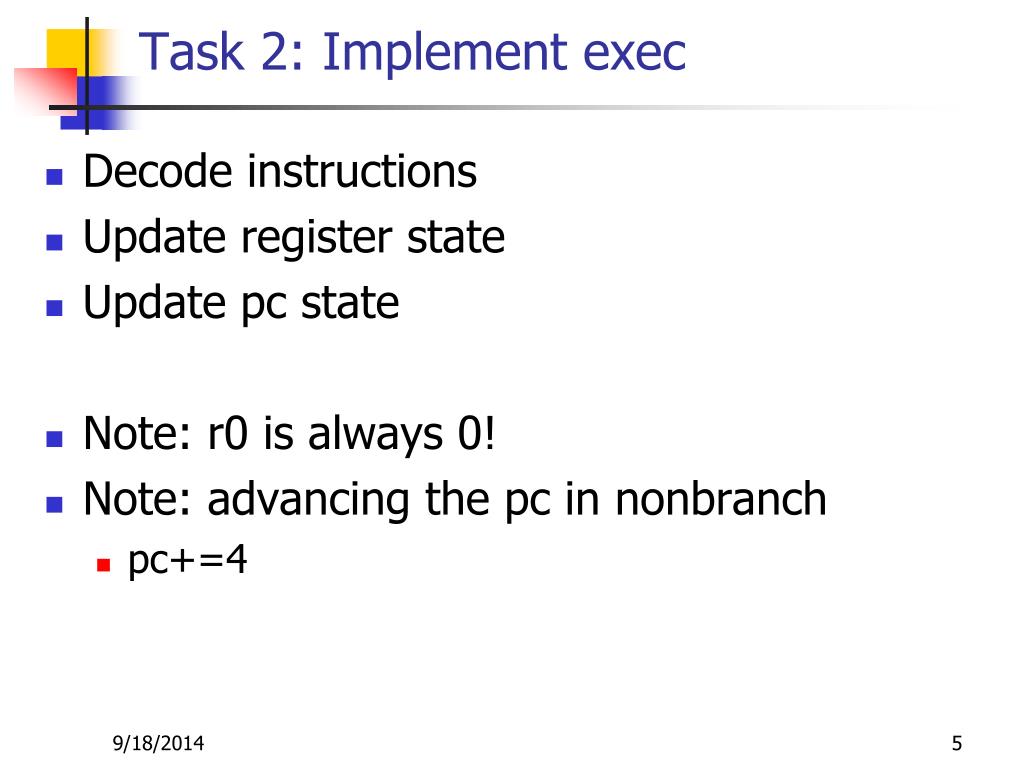

Task 2: Implement exec • Decode instructions • Update register state • Update pc state • Note: r0 is always 0! • Note: advancing the pc in nonbranch • pc+=4

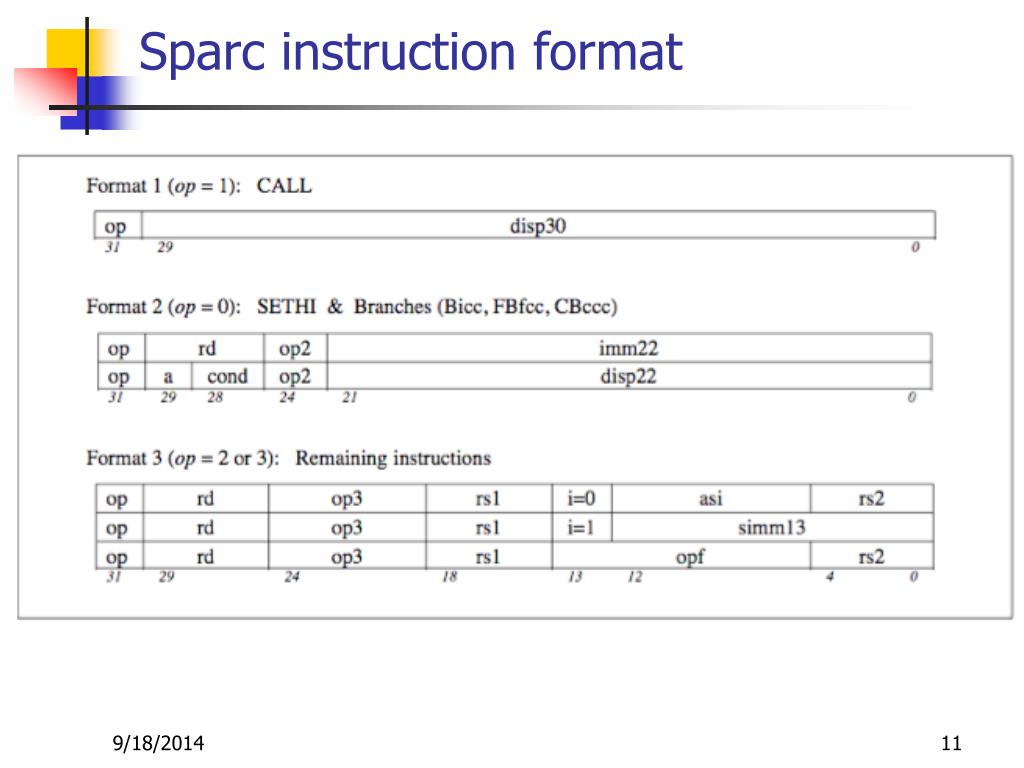

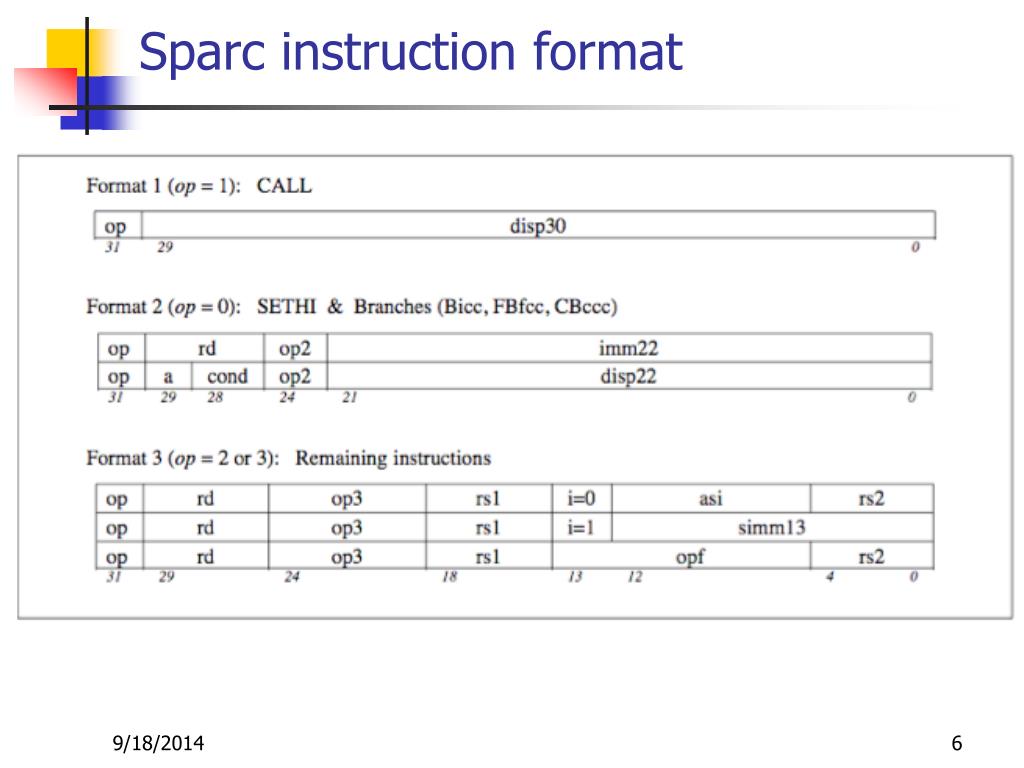

Sparc instruction format

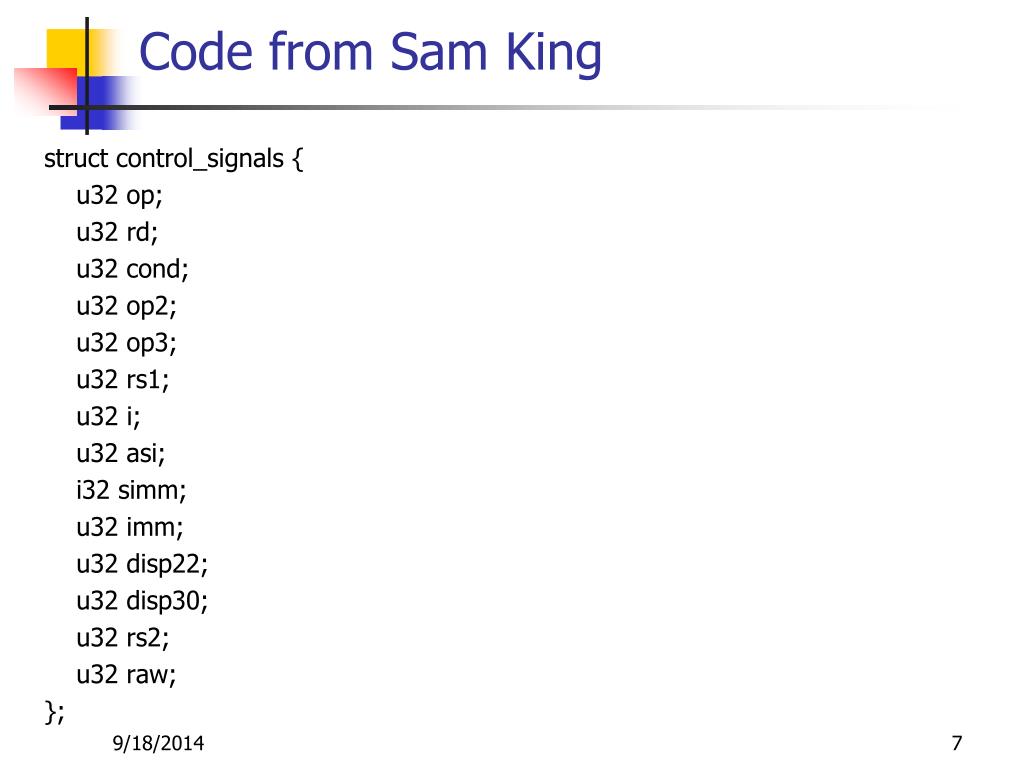

Code from Sam King struct control_signals { u32 op; u32 rd; u32 cond; u32 op2; u32 op3; u32 rs1; u32 i; u32 asi; i32 simm; u32 imm; u32 disp22; u32 disp30; u32 rs2; u32 raw; };

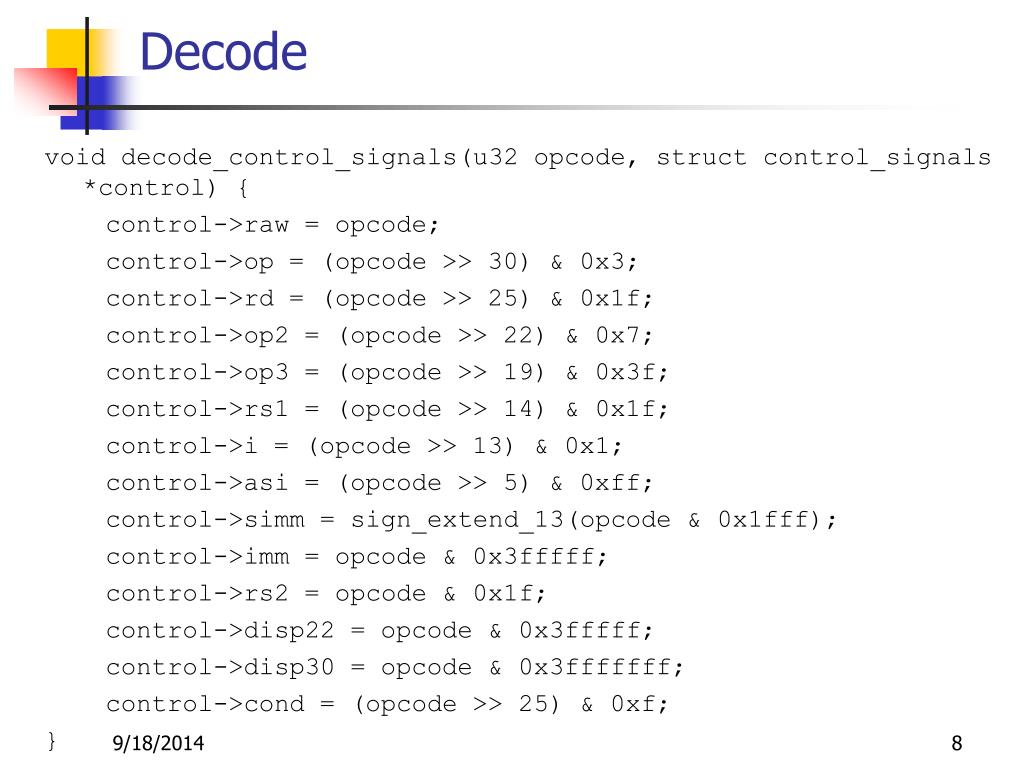

Decode void decode_control_signals(u32 opcode, struct control_signals *control) { control->raw = opcode; control->op = (opcode >> 30) & 0x3; control->rd = (opcode >> 25) & 0x1f; control->op2 = (opcode >> 22) & 0x7; control->op3 = (opcode >> 19) & 0x3f; control->rs1 = (opcode >> 14) & 0x1f; control->i = (opcode >> 13) & 0x1; control->asi = (opcode >> 5) & 0xff; control->simm = sign_extend_13(opcode & 0x1fff); control->imm = opcode & 0x3fffff; control->rs2 = opcode & 0x1f; control->disp22 = opcode & 0x3fffff; control->disp30 = opcode & 0x3fffffff; control->cond = (opcode >> 25) & 0xf; }

Task 2: Implement exec • Decode instructions • Update register state • Update pc state • Note: r0 is always 0! • Note: advancing the pc in nonbranch • pc+=4

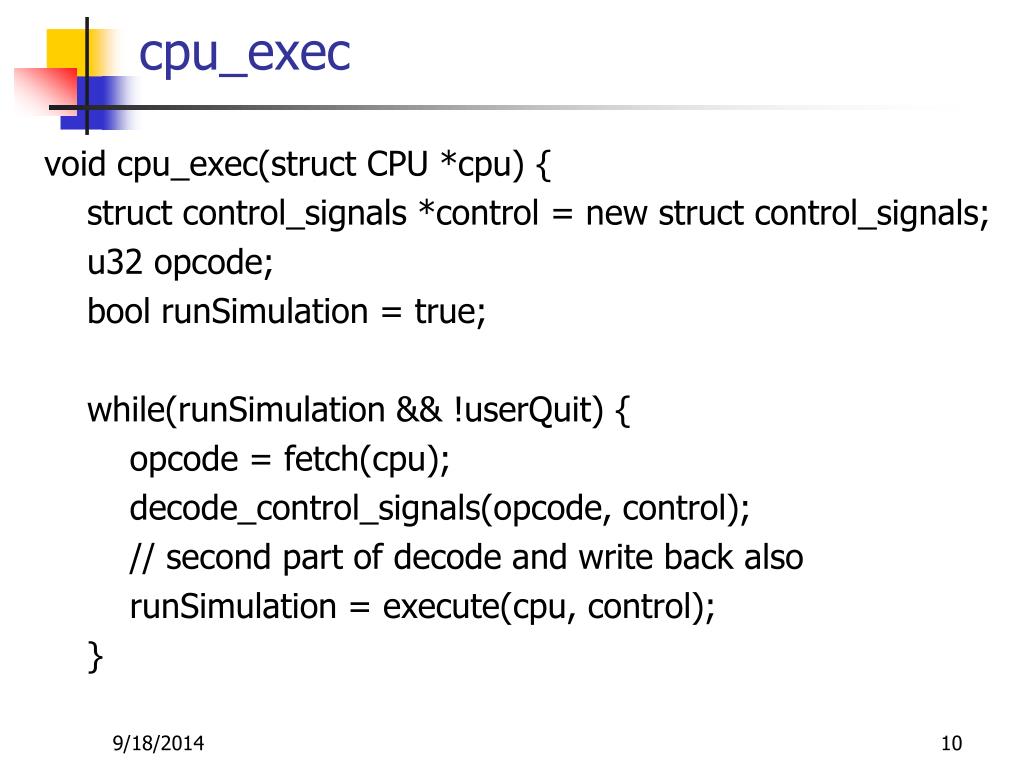

cpu_exec void cpu_exec(struct CPU *cpu) { struct control_signals *control = new struct control_signals; u32 opcode; bool runSimulation = true; while(runSimulation && !userQuit) { opcode = fetch(cpu); decode_control_signals(opcode, control); // second part of decode and write back also runSimulation = execute(cpu, control); }

Sparc instruction format

execute bool execute(struct CPU *cpu, struct control_signals *control) { u32 savedPc = cpu->pc; // writes to reg 0 are ignored and reads should always be 0 cpu->regs[0] = 0; switch (control->op) { case OP_FORMAT_1: process_format_1(cpu, control); break; . . . case OP_FORMAT_3_ALU: // 0x2 process_format_3_alu(cpu, control); break; . . . }

Execute – pc state // the pc is modified in the loop after the branch instruction if(cpu->pc == savedPc) { cpu->pc += sizeof(cpu->pc); if(cpu->pc < savedPc) { return false; } } return true; }

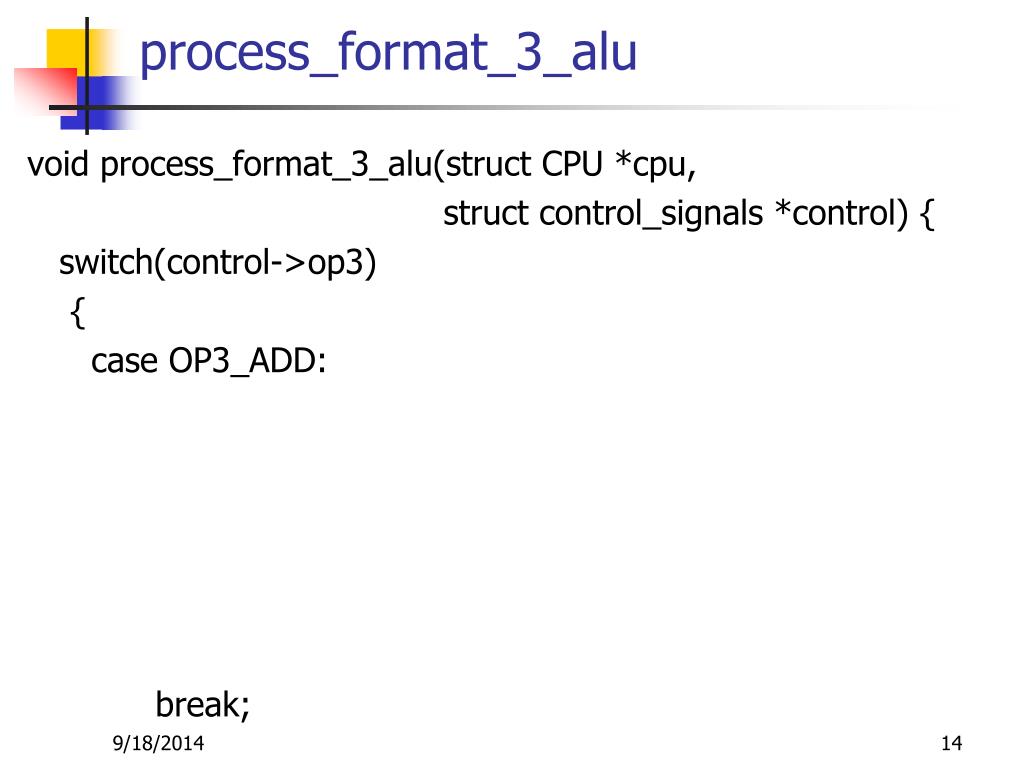

process_format_3_alu void process_format_3_alu(struct CPU *cpu, struct control_signals *control) { switch(control->op3) { case OP3_ADD: break;

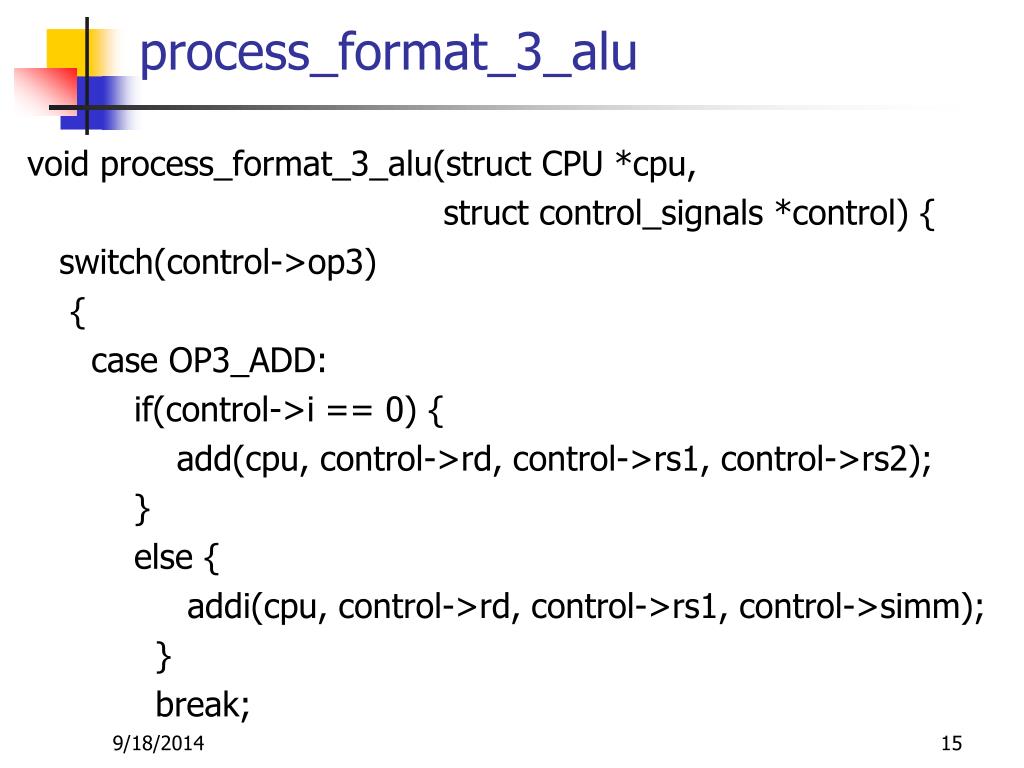

process_format_3_alu void process_format_3_alu(struct CPU *cpu, struct control_signals *control) { switch(control->op3) { case OP3_ADD: if(control->i == 0) { add(cpu, control->rd, control->rs1, control->rs2); } else { addi(cpu, control->rd, control->rs1, control->simm); } break;

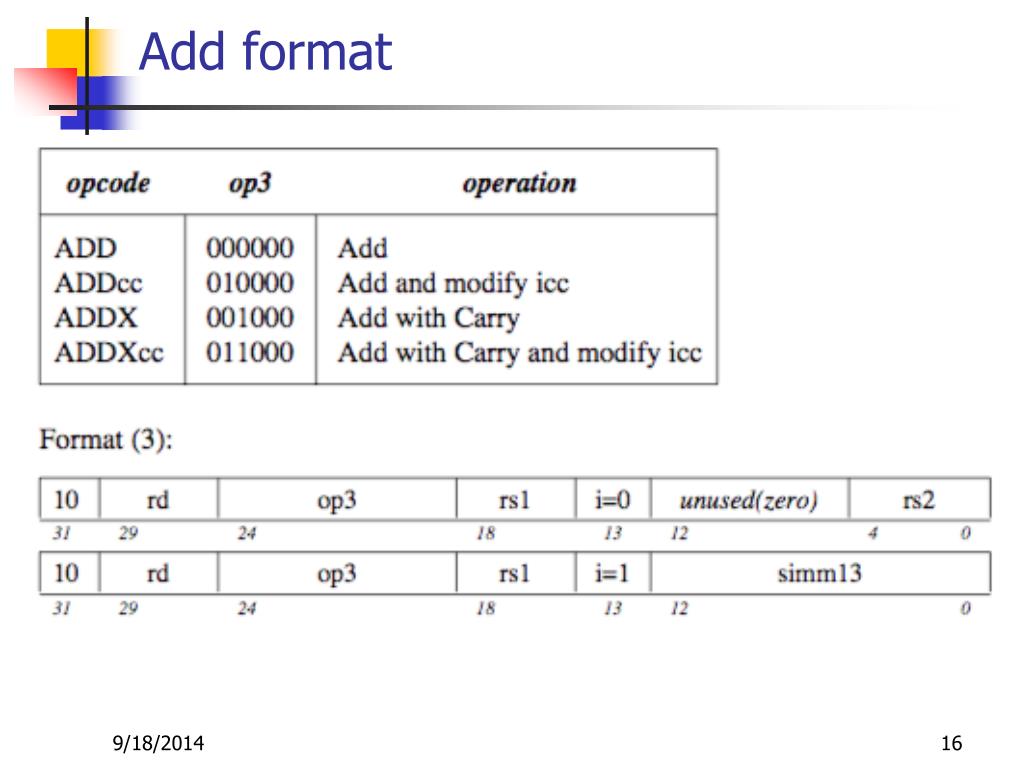

Add format

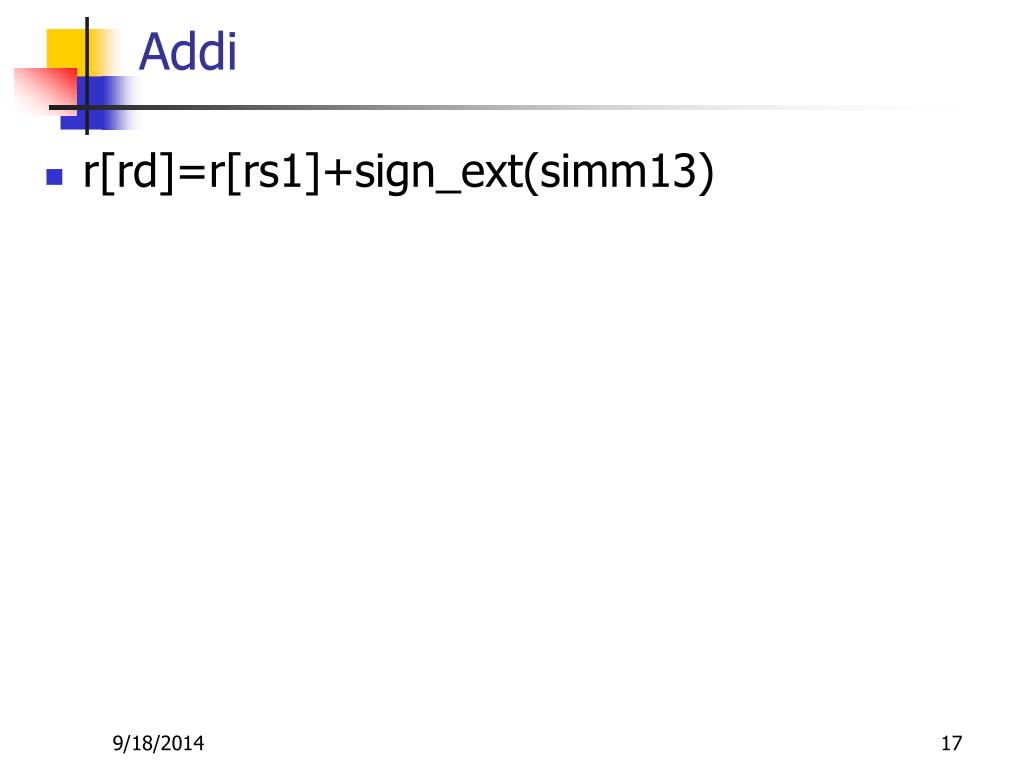

Addi • r[rd]=r[rs1]+sign_ext(simm13)

Addi • r[rd]=r[rs1]+sign_ext(simm13) void addi(struct CPU *cpu, u32 rd, u32 rs1, i32 signedImm) { cpu->regs[rd] = cpu->regs[rs1] + signedImm;

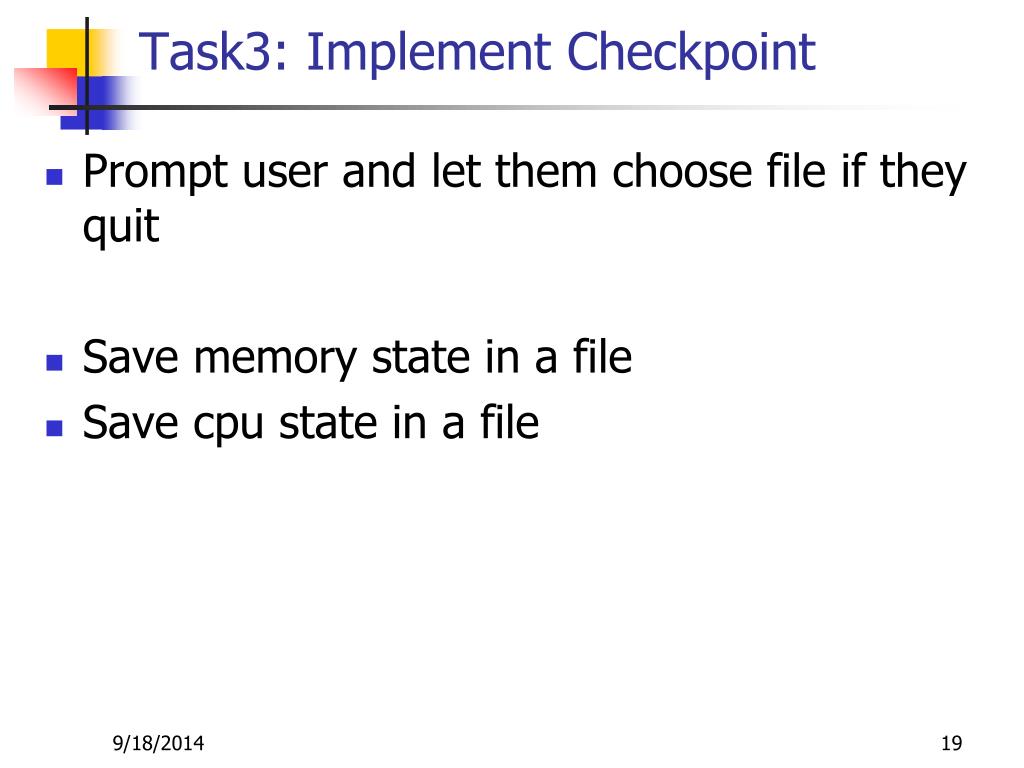

Task3: Implement Checkpoint • Prompt user and let them choose file if they quit • Save memory state in a file • Save cpu state in a file

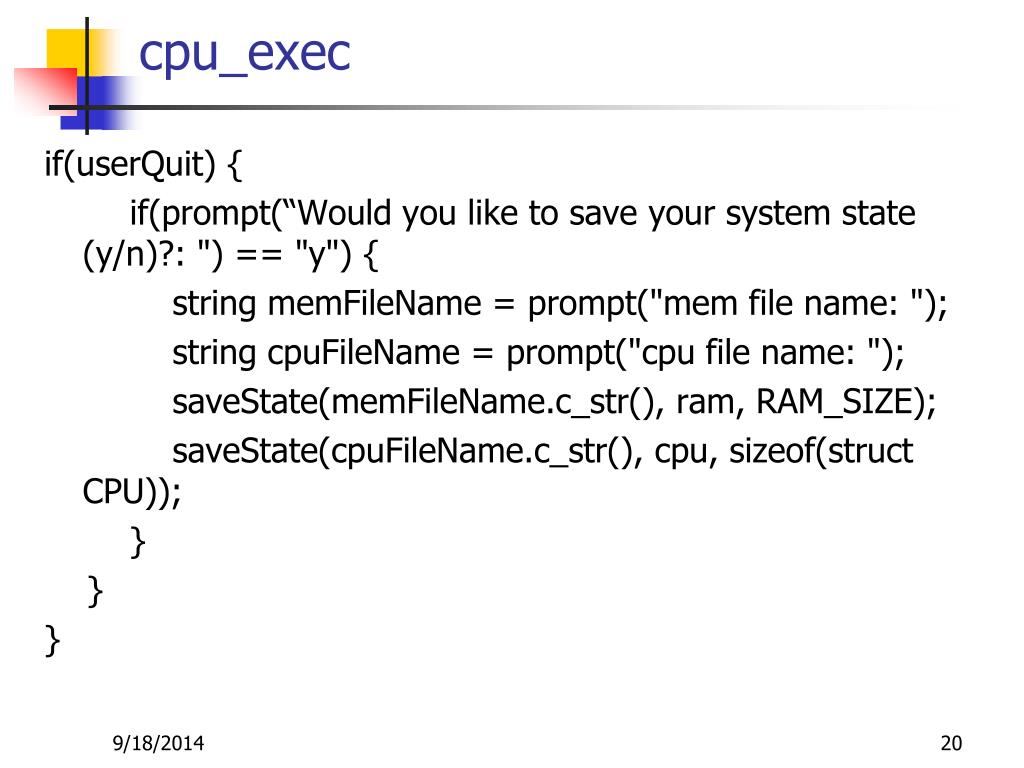

cpu_exec if(userQuit) { if(prompt(“Would you like to save your system state (y/n)?: ") == "y") { string memFileName = prompt("mem file name: "); string cpuFileName = prompt("cpu file name: "); saveState(memFileName.c_str(), ram, RAM_SIZE); saveState(cpuFileName.c_str(), cpu, sizeof(struct CPU)); } } }

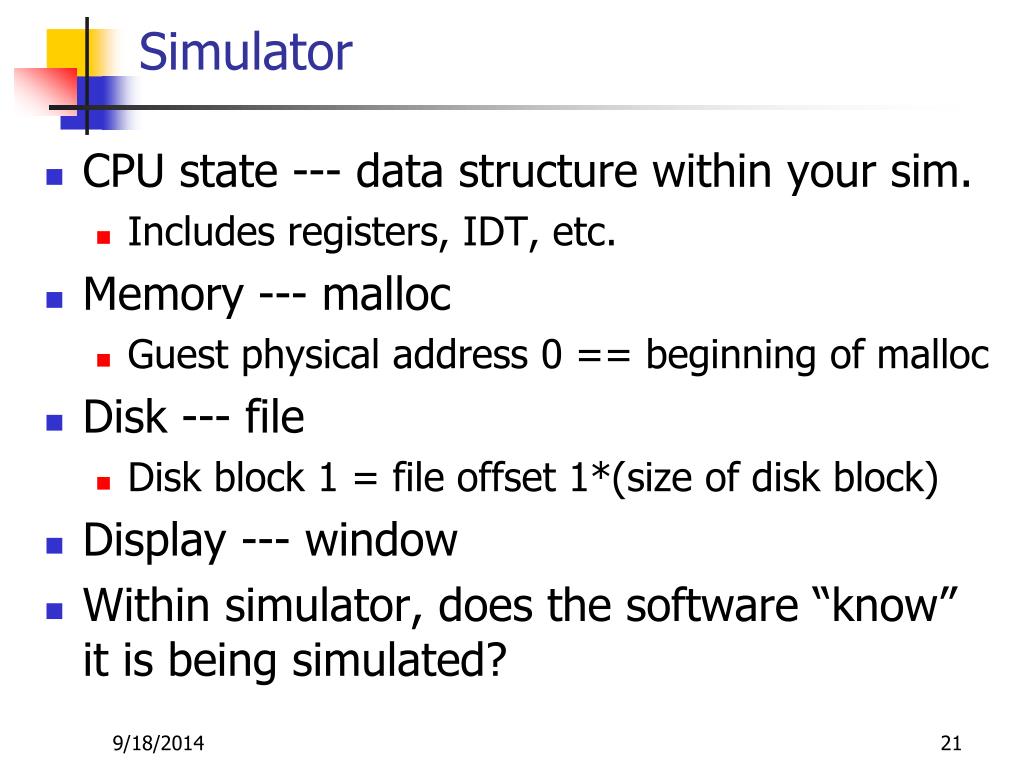

Simulator • CPU state --- data structure within your sim. • Includes registers, IDT, etc. • Memory --- malloc • Guest physical address 0 == beginning of malloc • Disk --- file • Disk block 1 = file offset 1*(size of disk block) • Display --- window • Within simulator, does the software “know” it is being simulated?

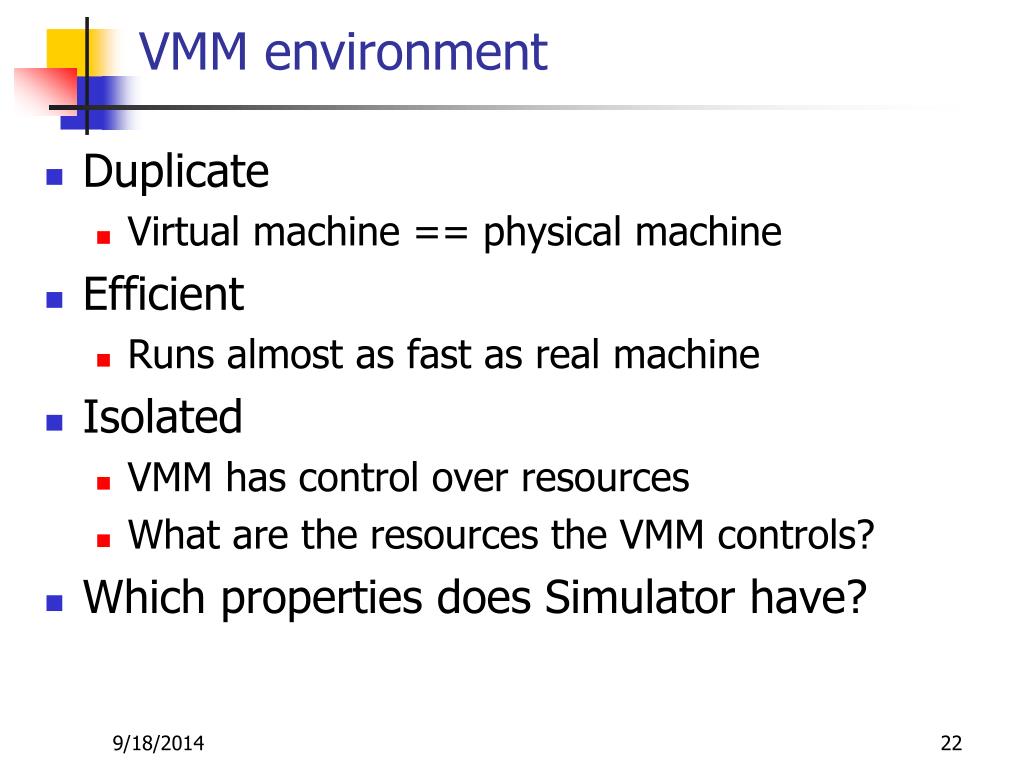

VMM environment • Duplicate • Virtual machine == physical machine • Efficient • Runs almost as fast as real machine • Isolated • VMM has control over resources • What are the resources the VMM controls? • Which properties does Simulator have?

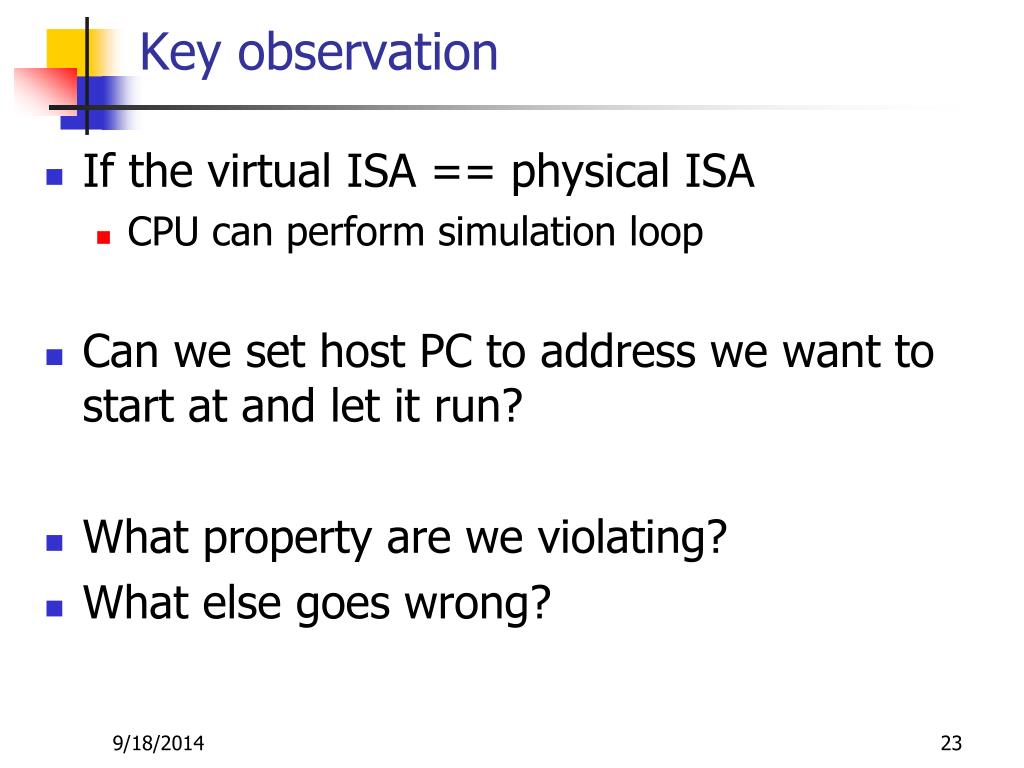

Key observation • If the virtual ISA == physical ISA • CPU can perform simulation loop • Can we set host PC to address we want to start at and let it run? • What property are we violating? • What else goes wrong?

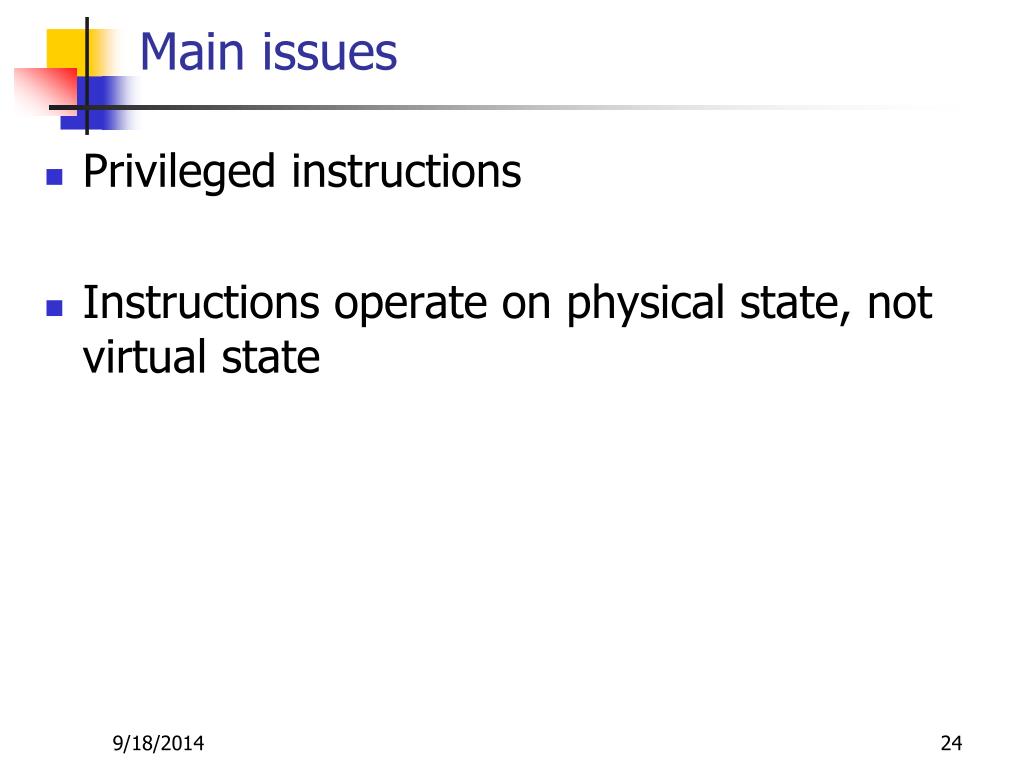

Main issues • Privileged instructions • Instructions operate on physical state, not virtual state

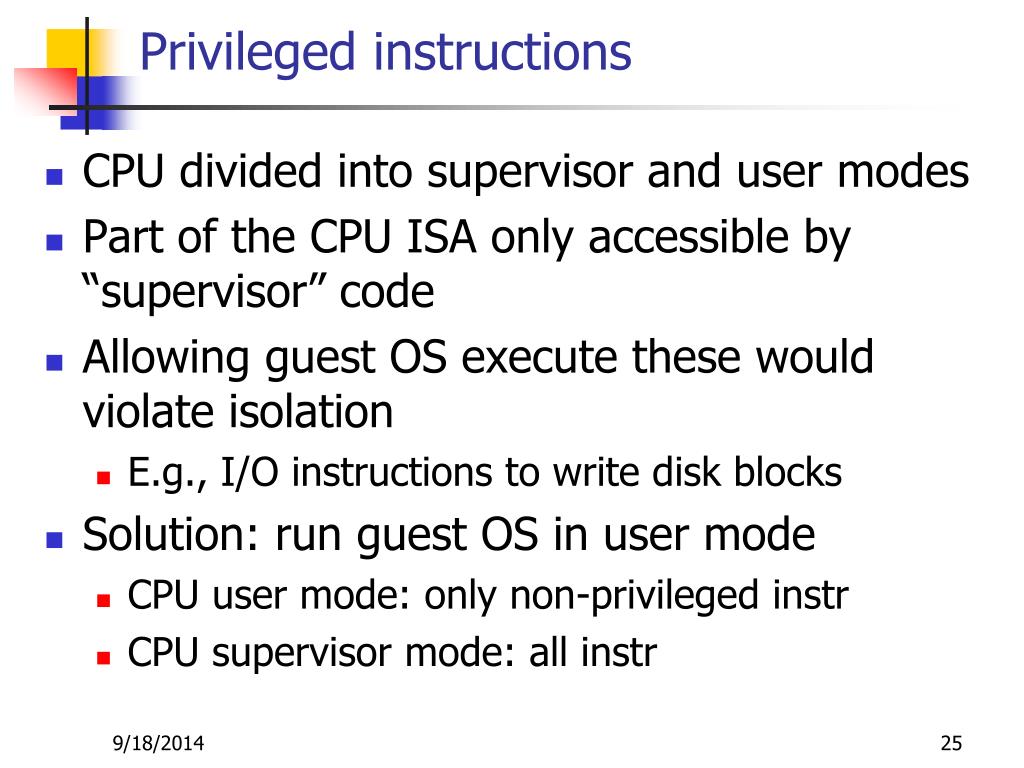

Privileged instructions • CPU divided into supervisor and user modes • Part of the CPU ISA only accessible by “supervisor” code • Allowing guest OS execute these would violate isolation • E.g., I/O instructions to write disk blocks • Solution: run guest OS in user mode • CPU user mode: only non-privileged instr • CPU supervisor mode: all instr

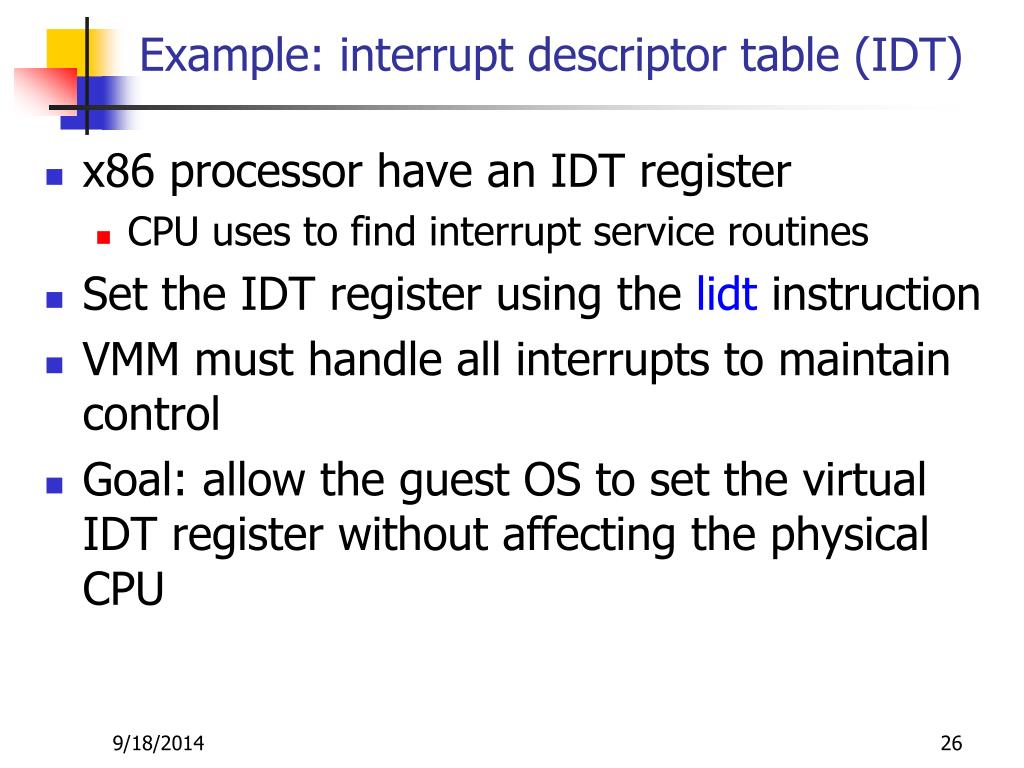

Example: interrupt descriptor table (IDT) • x86 processor have an IDT register • CPU uses to find interrupt service routines • Set the IDT register using the lidt instruction • VMM must handle all interrupts to maintain control • Goal: allow the guest OS to set the virtual IDT register without affecting the physical CPU

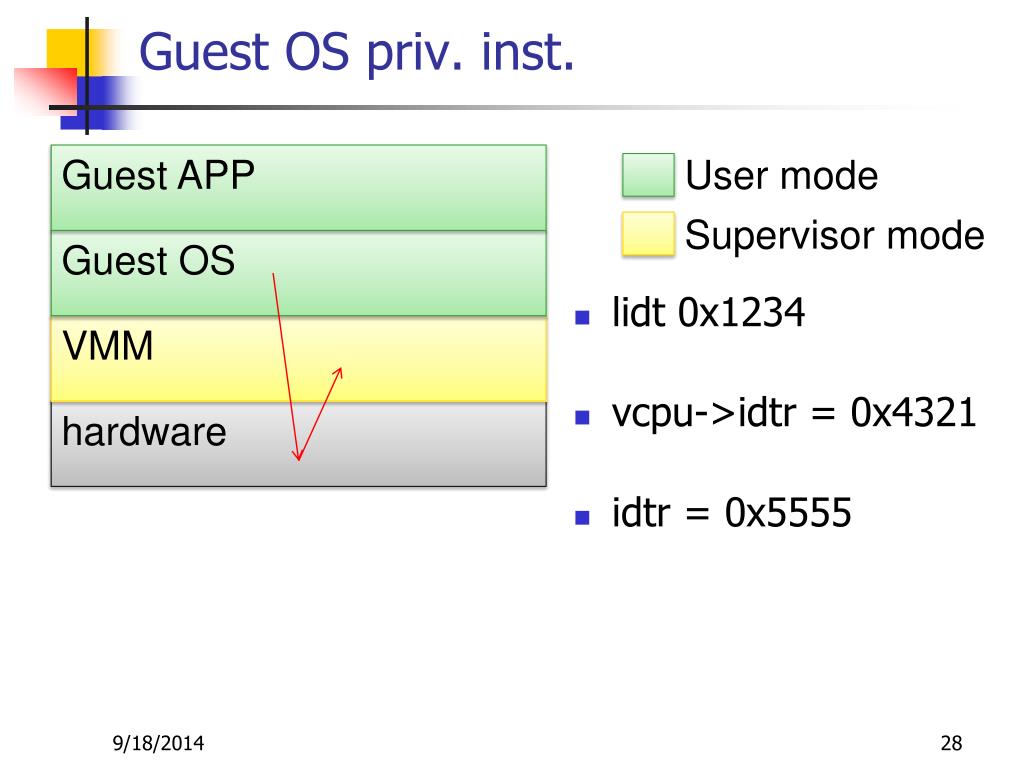

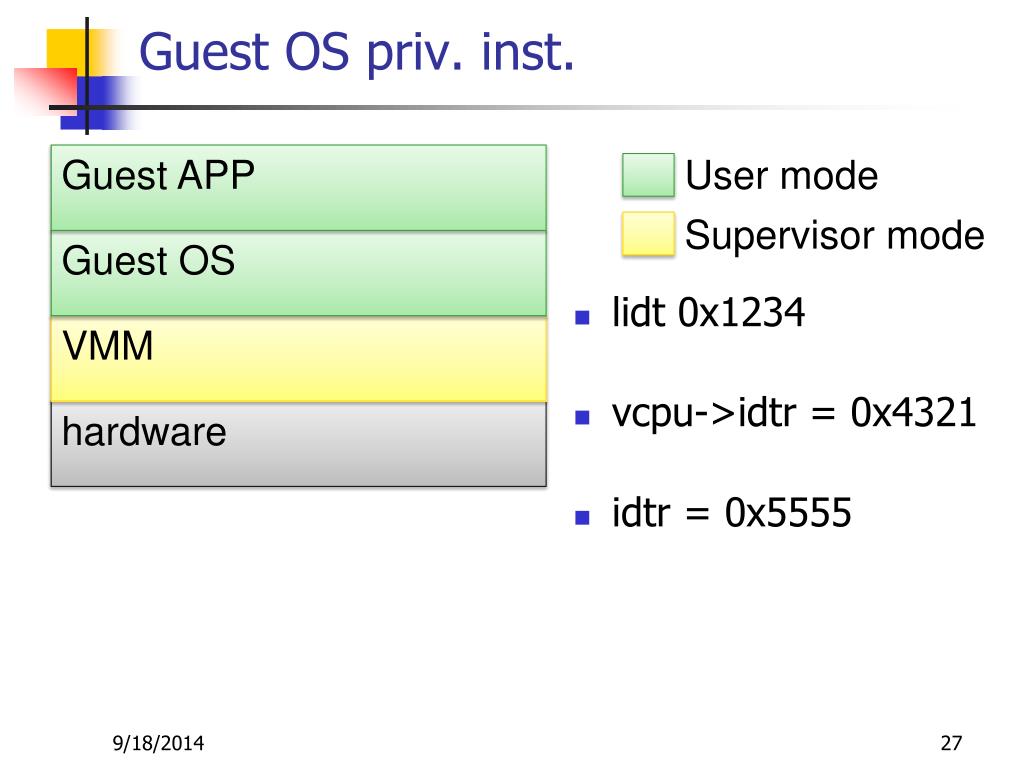

Guest OS priv. inst. • lidt 0x1234 • vcpu->idtr = 0x4321 • idtr = 0x5555 User mode Guest APP Guest OS Supervisor mode VMM hardware

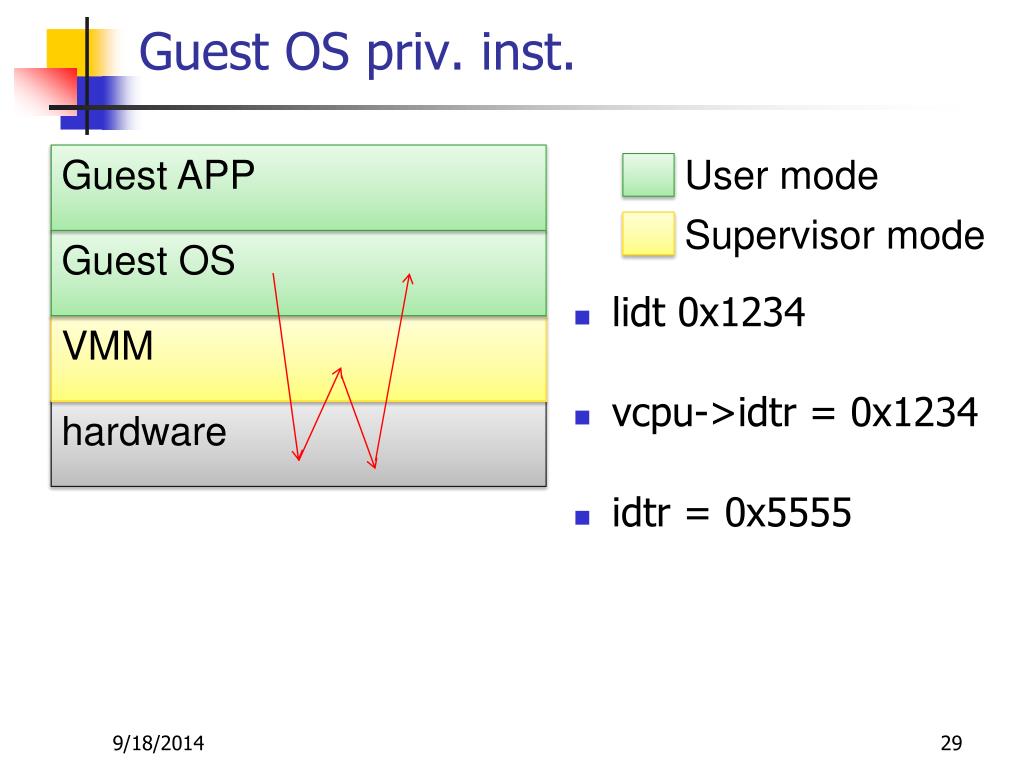

Guest OS priv. inst. • lidt 0x1234 • vcpu->idtr = 0x1234 • idtr = 0x5555 User mode Guest APP Guest OS Supervisor mode VMM hardware

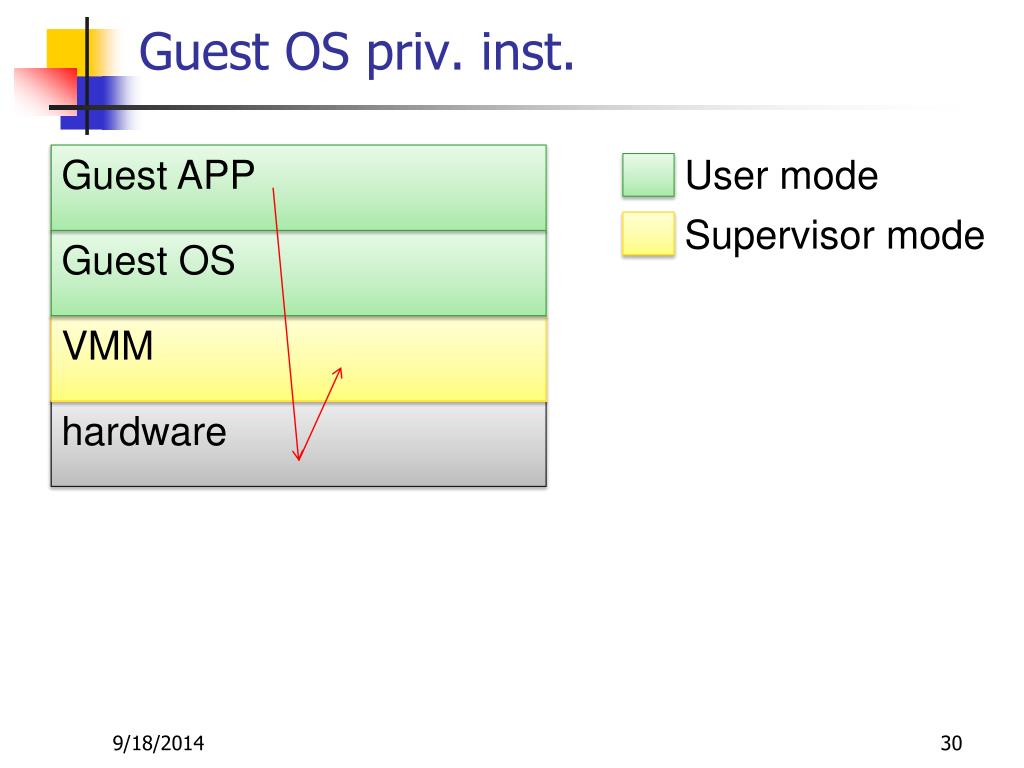

Guest OS priv. inst. User mode Guest APP Guest OS Supervisor mode VMM hardware

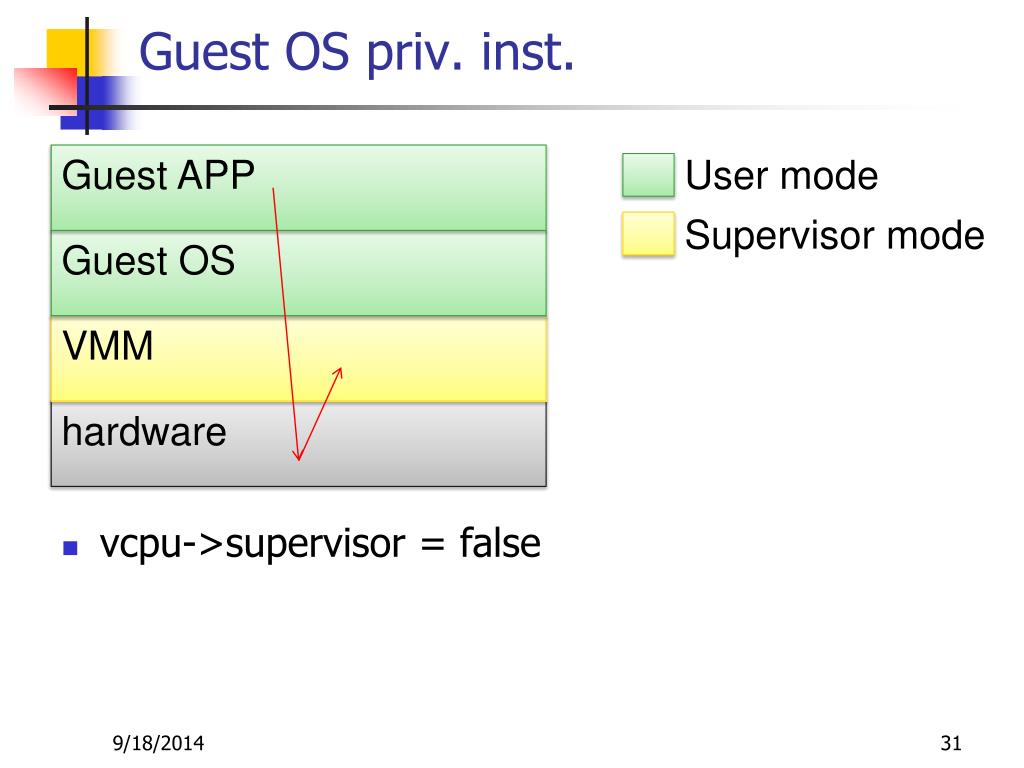

Guest OS priv. inst. • vcpu->supervisor = false User mode Guest APP Guest OS Supervisor mode VMM hardware

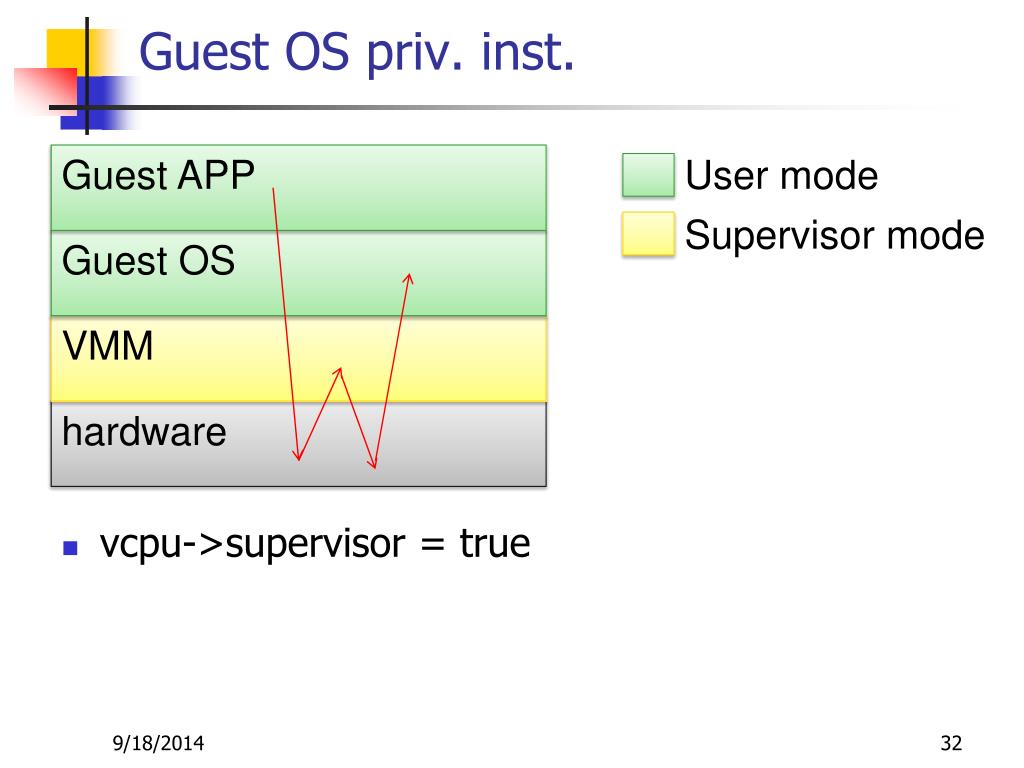

Guest OS priv. inst. • vcpu->supervisor = true User mode Guest APP Guest OS Supervisor mode VMM hardware
