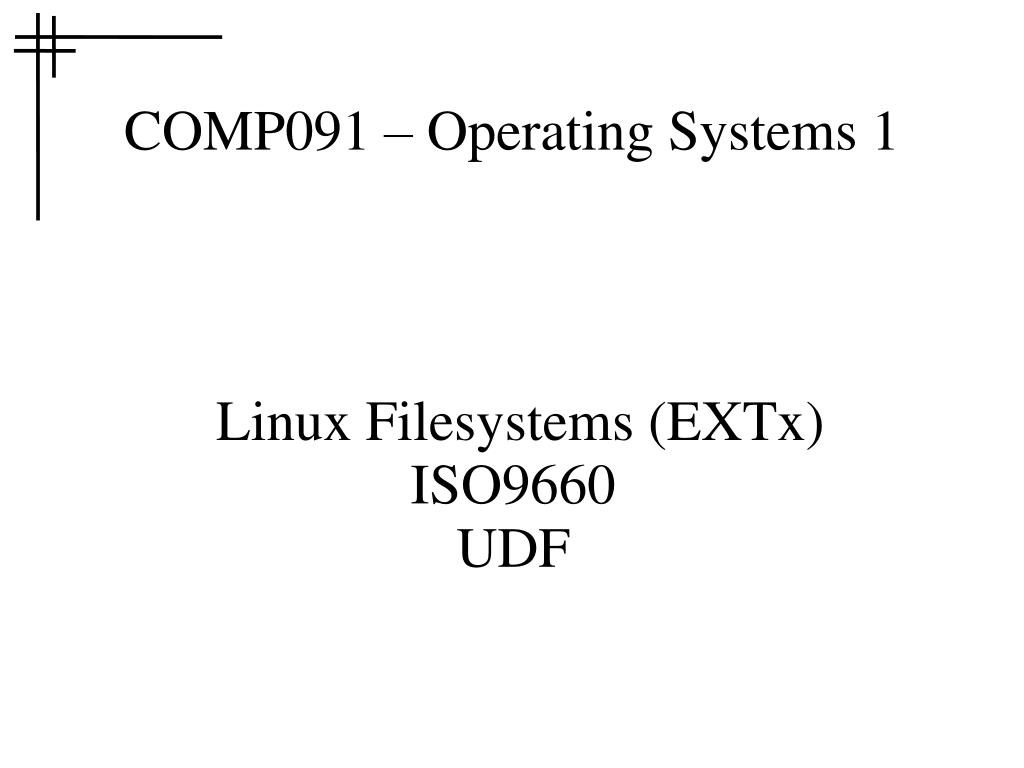

  1. Linux Filesystems (EXTx) ISO9660 UDF COMP091 – Operating Systems 1

  2. Linux Filesystems

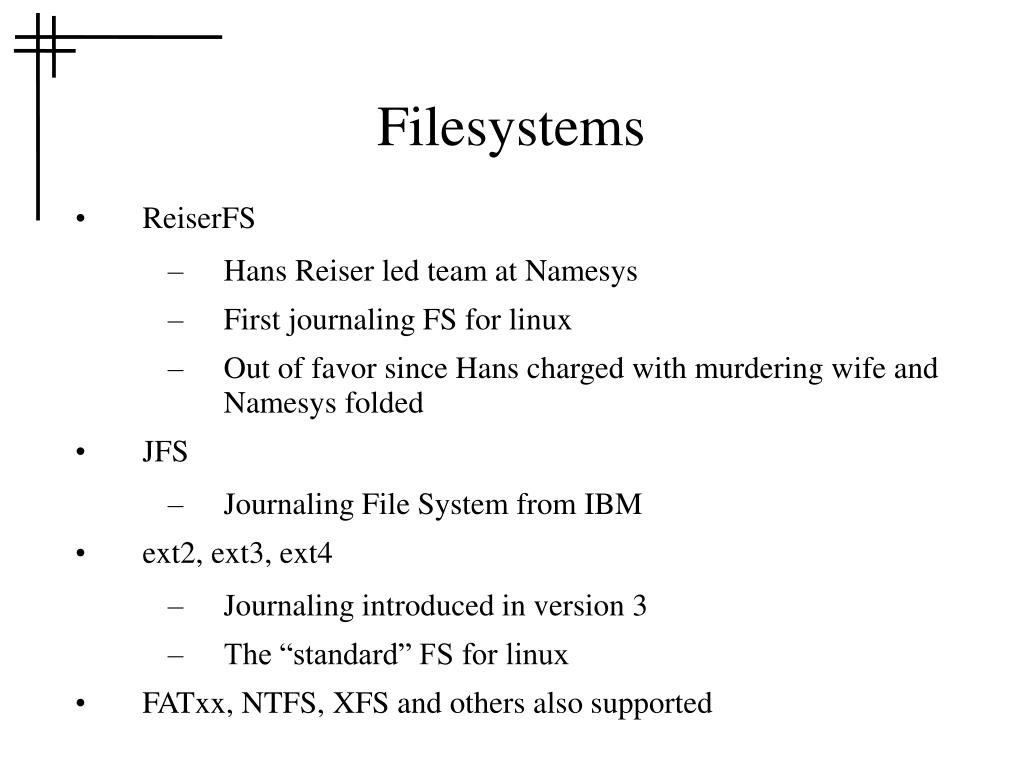

  3. Filesystems • ReiserFS • Hans Reiser led team at Namesys • First journaling FS for linux • Out of favor since Hans charged with murdering wife and Namesys folded • JFS • Journaling File System from IBM • ext2, ext3, ext4 • Journaling introduced in version 3 • The “standard” FS for linux • FATxx, NTFS, XFS and others also supported

  4. Ext file systems • ext: Extended File System • 1992 • Created for the linux kernel • Based on Unix File System (UFS) • 2GB, 255 character file names • ext2 • 2TB • POSIX ACL's • Timestamps

  5. Sidetrack: POSIX • Portable Operating System Interface • Family of IEEE standards • Institute of Electrical and Electronics Engineers • IEEE Std 1003.1-1988 • ISO/IEC 9945 • Richard Stallman suggested the name • Designed to maintain compatibility between operating systems.

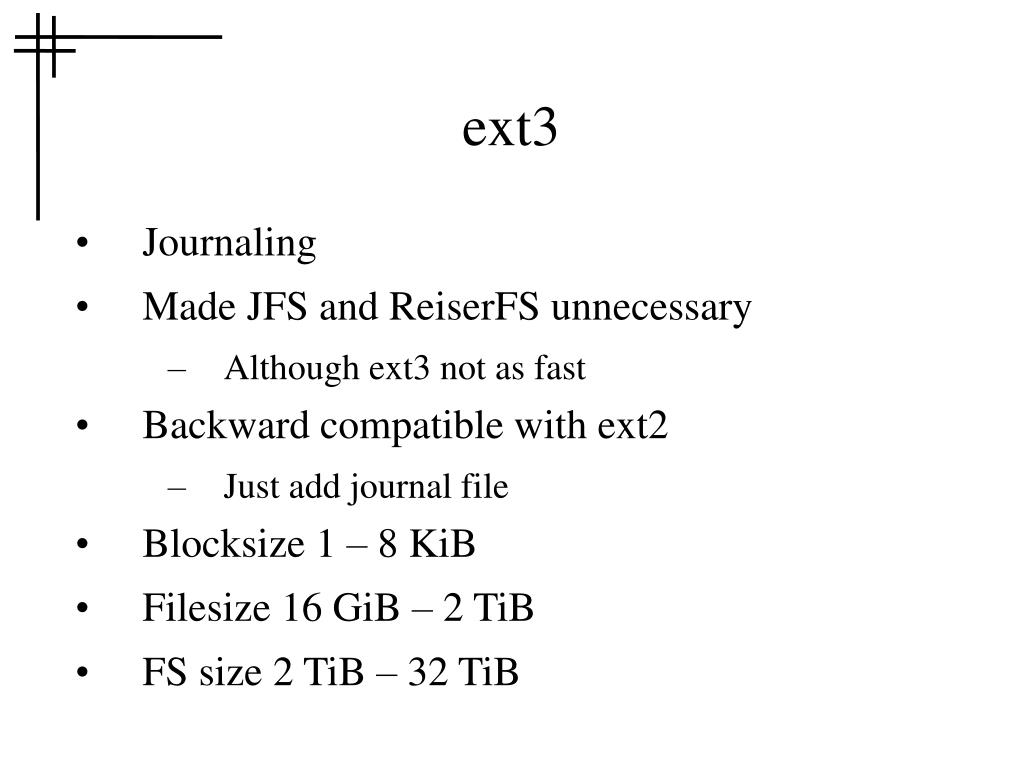

  6. ext3 • Journaling • Made JFS and ReiserFS unnecessary • Although ext3 not as fast • Backward compatible with ext2 • Just add journal file • Blocksize 1 – 8 KiB • Filesize 16 GiB – 2 TiB • FS size 2 TiB – 32 TiB

  7. Journal • After image log • Options: • Data and metadata, written before data • Metadata only, disk written before the journal is marked as committed • Metadata only, written in any order

  8. ext4 • Stable in linux 2.6.28 (2008) • Basically a batch of simultaneous updates to ext3 • Motivated partly by problems of large file systems • FS size 1 EiB(2**60) • File size 16 TiB

  9. ext4 • Extents replace block mapping for allocation • Extent = starting block and block count • Available pre-allocation • Delayed allocation • 64000 subdirectories (up from 32000) • Htree indexes • Nanosecond timestamps

  10. Blocks • Like clusters in FAT file system • In ext2/3: 1024, 2048 or 4096 • Specify when fs created • Block groups are large collections of contiguous blocks that partition the FS data structures • Usually size determined by FS but can be specified • Size limited by bitmaps so large FS may need multiple block groups

  11. Superblock • 2 sectors (1024 bytes) that describe the file system • Volume label • Block size • # blocks per group • # reserved blocks before the 1st block group • Count of free inodes & blocks (total all groups)

  12. Superblock • 1st superblock is1024 bytes past the beginning of the file system • Copies of the superblock are in the first block of each block group

  13. Group Descriptor Table • Stores • The group descriptors • One for each block group • Starting block addresses • block bitmap • inode bitmap • inode table • Count of free inodes & blocks for the group • Located in the block after the superblock • Backup copies are in the same block groups as the superblock backups

  14. Block Bitmap • One bit per block in the group • size = #blocks / 8 • Linux creates a block group to have as many blocks as there are bits in a block • Thus, a block bitmap is always 1 block in size • Tracks block allocation for the group

  15. Inode Bitmap • Tracks the allocation of inodes in the group • Size = #inodes per group / 8 • Size defined at file system creation • Typically fewer inodes than blocks in group

  16. inodes • Contained in inode table • Like MFT records for files • 256 bytes per inode • Number of inodes determines number of files • Specified when FS created • Contain file and directory metadata • Directory has file or directory name • And pointer to inode in the inode table • Inode points to the file content blocks

  17. inode contents • Type of the file • plain file, Directory, symbolic link, device file • Access permissions • Owner and group ID numbers • Size in bytes • Number of links (directory references) • Times of last access and last modification to the file • List of data blocks claimed by the file. • Address of the file's blocks on the disk

  18. Directories • Special files that associate names with the inode numbers used internally by the file system • Each entry associates one file name with one inode number • Consists of: • inode number, • length of the file name • actual text of the file name.

  19. Directory Structure • Hierarchical • Like FAT and NTFS • But all data stored in one tree • No C: N: etc • Includes network shares, all physical devices, removable devices and some virtual file systems

  20. / usr bin boot root mnt var Linux File Structure File system /mnt/floppy /mnt/cdrom /mnt/USB Points to a device /dev/fd0 /dev/hdc /dev/sda

  21. ISO9660

  22. ISO9660 • Filesystem spec for data on CDs (and DVDs) • 24 byte frames • 2352 byte sectors (98 frames) • 2048 user data, 288 bytes ECC and headers and sync data • A/V disks can use ECC area for data • Assumed contiguous allocation allows simpler FS structures

  23. ISO Limitations • For cross platform compatibility: • File names have upper case letters, digits, underscores and one “.” • No spaces • Eight level directories • 4GiB file size limit • Most OS ignore or circumvent these these limits • Path table (for efficiency) imposes limit 65,535 on number of directories (not linux)

  24. ISO Extensions • Sessions • ISO is read only, contiguous pre-allocating FS • Doesn't expect data to be appended • Sessions allow data to be added to a CD • Each new session contains an updated copy of the entire disk's directories and other data structures

  25. ISO Extensions • Joliet • Unicode names • Avoids file name restrictions • Rock Ridge supports POSIX acl's and longer names • El Torito allows cd's to be bootable • Apple's ISO 9660 extensions allow for Apple resource forks

  26. UDF x.x

  27. UDF • Universal Disk Format • Open specification designed for any media • Mostly used for DVD and BD instead of ISO9660 • Official file system for DVD-Video and Audio per DVD Forum • Design suitable for incremental updates • As opposed to creating ISO then burning • Specification maintained by Optical Storage Technology Association (OSTA) • Most of the world's optical product manufacturers and resellers

  28. UDF Revisions • 1.02: DVD video • 1.50: Introduced VAT for CD-R/DVD-R • 2.00: File types for DVD recording • 2.01: Fix bugs in 2.00 • 2.50: Adds metadata partition, Used on some Blu-ray disks • 2.60: Adds Pseudo OverWrite. Used by some other Blu-ray disks

  29. UDF “Builds” • Plain (the original one) • Must be built then burned to CD like ISO9660 • VAT • Like ISO9660 with lots of little sessions • Spared • For -RW media • Knows to move often changed metadata around to avoid wearing out sectors with re-writes

  30. Compatibility • Windows calls UDF “Live File System” • Because nothing should be referred to by its real name • Vista and later support all features • Linux support is evolving • Read for all versions • Write is “safe” up to 2.01 for plain build

  31. Terminology

  32. Terminology • Sector • Hard drives • At interface between disk and controller • Header, data and ECC • Header contains sync bytes, address identification, flaw flag and header parity bytes • Usually 512 bytes for data • Can be 2048 or 4096 (advanced format sectors) • Sometimes interleaved Data

  33. Terminology • Track • One ring of sectors around a disk • Can be read by one read head without moving the head • Invisible to FS and application • Cylinder • On multi-platter disk, one head per platter, all move in unison • Cylinder = the tracks read by the heads without moving the heads

  34. Terminology • Block • Sometimes called physical record • Consists of multiple logical records • On tape media where there is no sector • Or multiple sectors • On disk • Transfer unit from device to file system • Application can specify block size to fine tune performance • Block size = track size can make sense

  35. Terminology • Record • = logical record • Meaningful to applications • Internal structure of files • File is usually a collection of logical records • Not relevant to FS or OS • Except in files OS cares about, like directories, executables, MFT • Physical record usually means block • Sometimes sector is called physical record

  36. Terminology • Stream • The non-metadata part of a file • Actual data is a string of bytes • Byte 0 to byte filesize – 1 • This part of file sometimes called the data stream • NTFS allows alternate data streams • Some of the metadata are called streams • In MFT name value pairs, value is called stream

  37. Terminology • Cluster • Allocation unit • Sometimes called block • In ext FS allocation units are called blocks • Ext4 allocation unit called extent

  38. Terminology • Partition • A subdivision of the space on a disk • Contiguous, may need to start on physical boundaries • FSs are contained in partitions • Often called volumes • Partitions are the “mounting unit” • Note C: is where a FS in a partition or volume is mounted • But C:, D: etc are often called drives, or disks
