Final Parameters for the FOPI RPC upgrade

Final Parameters for the FOPI RPC upgrade. Everard Cordier (Heidelberg University, Germany). Outline: RPC-6 gaps performance (test Nov-Dec 03) RPC-8 gaps performance (test Aug 04) Application for CBM Next steps Conclusions. CBM MEETING Oct 2004.

iliana-herring
Télécharger la présentation

Final Parameters for the FOPI RPC upgrade

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Final Parameters for the FOPI RPC upgrade Everard Cordier (Heidelberg University, Germany) • Outline: • RPC-6 gaps performance (test Nov-Dec 03) • RPC-8 gaps performance (test Aug 04) • Application for CBM • Next steps • Conclusions CBM MEETING Oct 2004

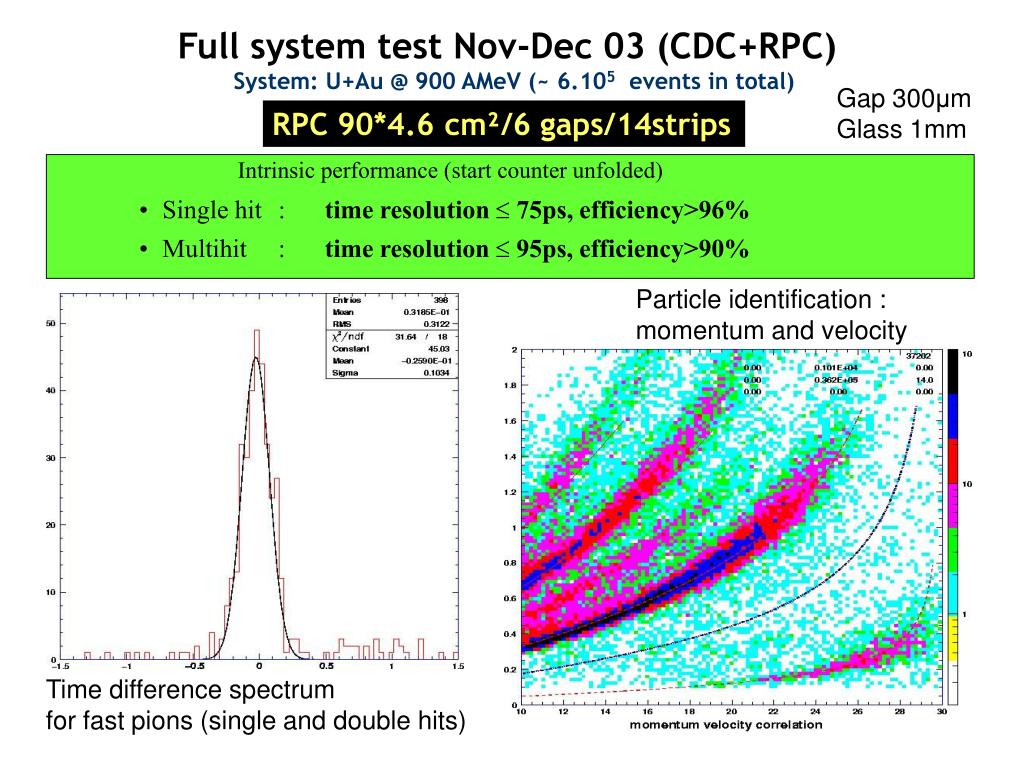

  2. Full system test Nov-Dec 03 (CDC+RPC) System: U+Au @ 900 AMeV (~ 6.105 events in total) Gap 300μm Glass 1mm RPC 90*4.6 cm²/6 gaps/14strips Intrinsic performance (start counter unfolded) • Single hit :time resolution  75ps, efficiency>96% • Multihit : time resolution  95ps, efficiency>90% Particle identification : momentum and velocity Time difference spectrum for fast pions (single and double hits)
