Understanding XML Programming in Java: DOM, SAX, and More

This document explores XML programming in Java, focusing on key standard APIs like DOM and SAX. The Document Object Model (DOM) provides a generic tree model defined by W3C, allowing full document navigation and editing. In contrast, Simple API for XML (SAX) offers a streaming model, notifying applications with event-driven updates. The text covers the pros and cons of both DOM and SAX, detailing their architecture and usability, along with links to official specifications. A comprehensive guide for Java developers working with XML.

iliana-neal
Télécharger la présentation

Understanding XML Programming in Java: DOM, SAX, and More

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

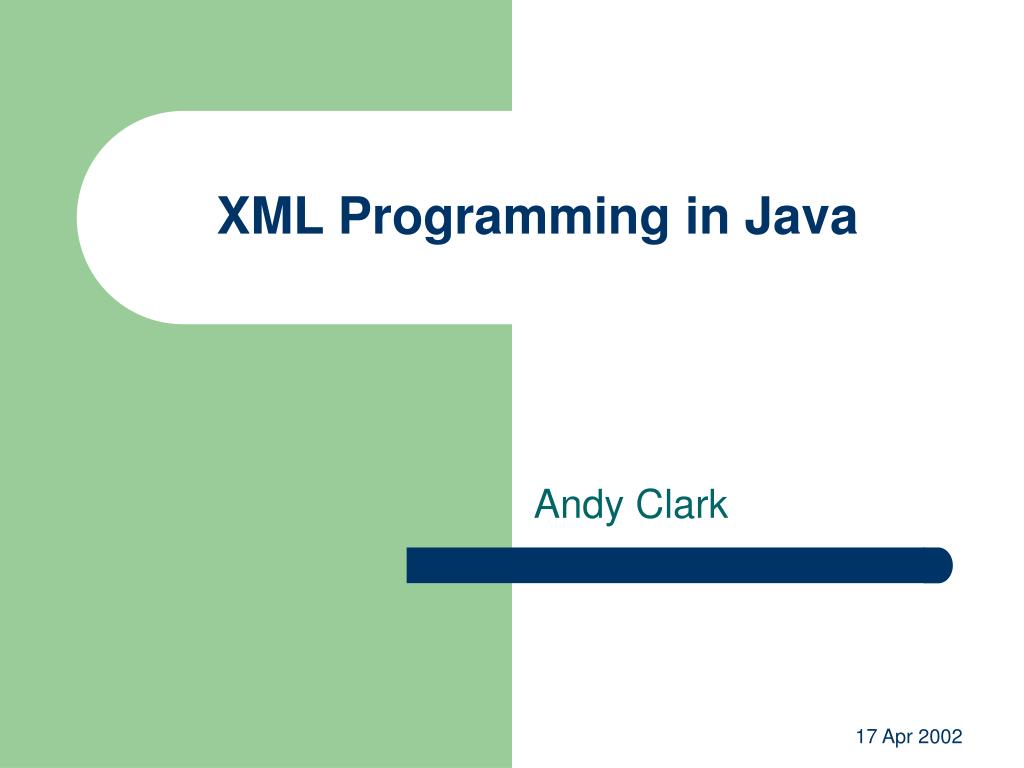

  1. XML Programming in Java Andy Clark 17 Apr 2002

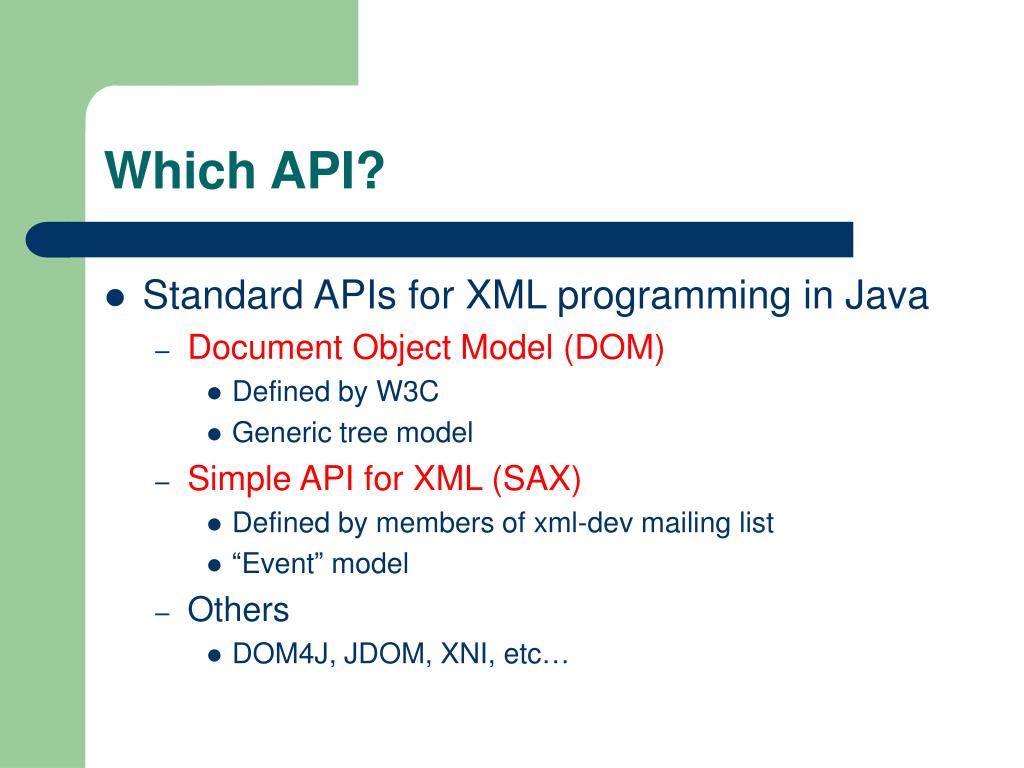

  2. Which API? • Standard APIs for XML programming in Java • Document Object Model (DOM) • Defined by W3C • Generic tree model • Simple API for XML (SAX) • Defined by members of xml-dev mailing list • “Event” model • Others • DOM4J, JDOM, XNI, etc…

  3. DOM Design Premise • Derived from browser document model • Defined in IDL • Lowest common denominator programming lang. • Most methods packed into base Node object • Re-invents basic collection interfaces • Factory model • Allows custom classes to be used for nodes • Separation between required and optional modules

  4. DOM Modules • DOM Level 1 • Core (required) • HTML (optional) • DOM Level 2 • Core (required) • Views, Events, Style, Traversal, Range (optional) • DOM Level 3 – working draft • Core (required) • Abstract Schema, Load/Save, Events, XPath (optional)

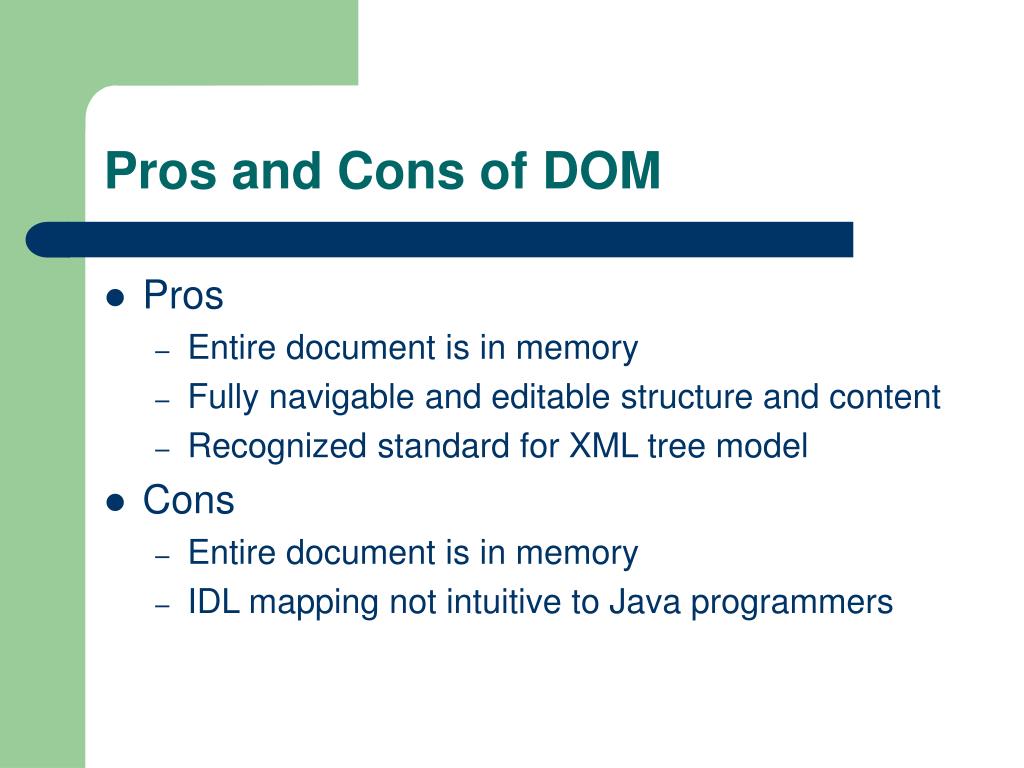

  5. Pros and Cons of DOM • Pros • Entire document is in memory • Fully navigable and editable structure and content • Recognized standard for XML tree model • Cons • Entire document is in memory • IDL mapping not intuitive to Java programmers

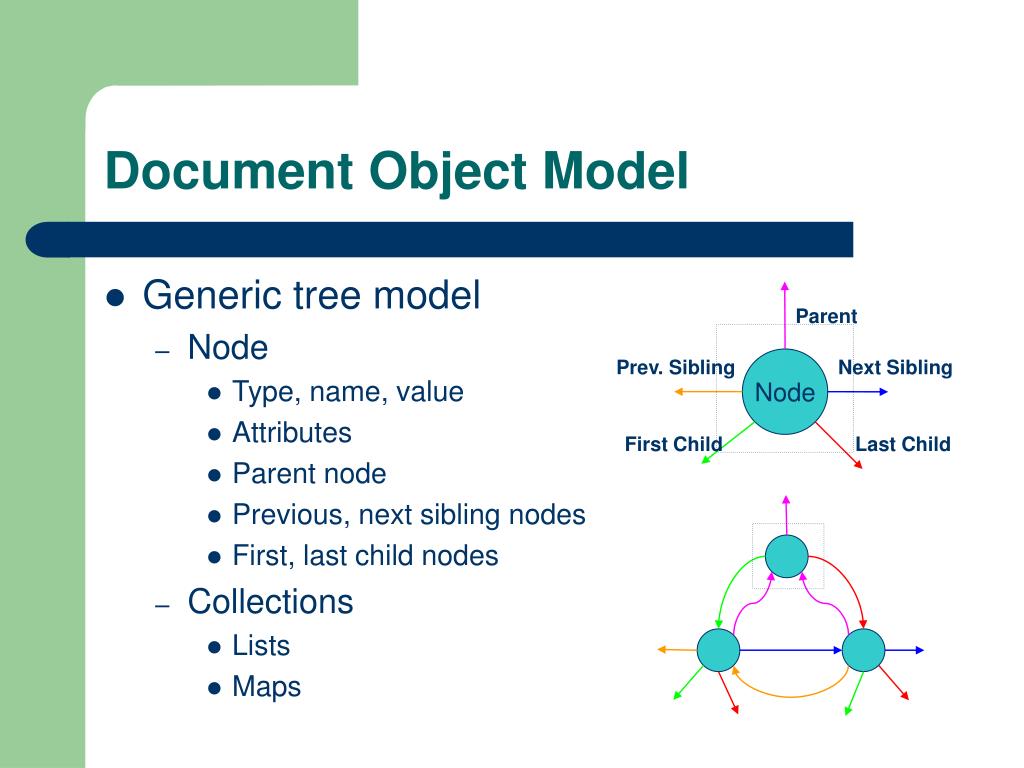

  6. Parent Prev. Sibling Next Sibling First Child Node Last Child Document Object Model • Generic tree model • Node • Type, name, value • Attributes • Parent node • Previous, next sibling nodes • First, last child nodes • Collections • Lists • Maps

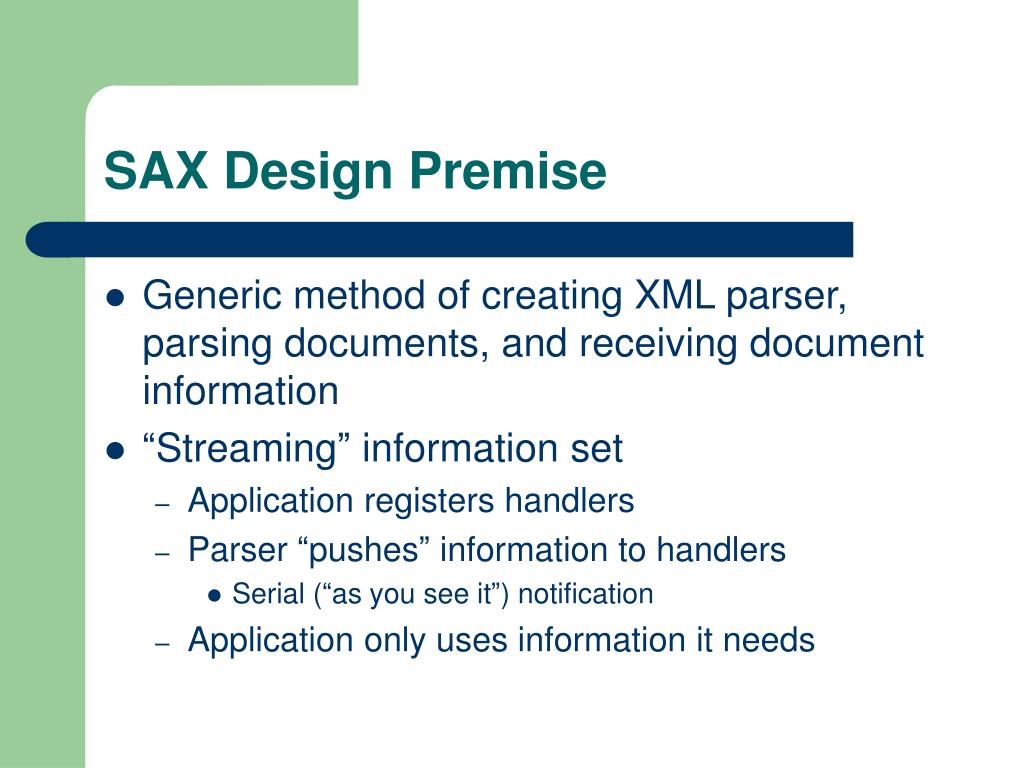

  7. SAX Design Premise • Generic method of creating XML parser, parsing documents, and receiving document information • “Streaming” information set • Application registers handlers • Parser “pushes” information to handlers • Serial (“as you see it”) notification • Application only uses information it needs

  8. Pros and Cons of SAX • Pros • Simple API designed for Java • Uses very little memory • Recognized standard for XML event model • Cons • Application forced to do everything

  9. Useful Links • DOM Specification • Level 1: http://www.w3.org/TR/REC-DOM-Level-1 • Level 2: http://www.w3.org/TR/REC-DOM-Level-2 • SAX • http://sax.sourceforge.net/

  10. XML Programming in Java Andy Clark
