  1. IBM Tivoli Provisioning Manager 7.1.1Technical Overview

  2. Collaboration TPM Data • Data model objects • Other TPM data Security Notification Escalation TPM 7.1 Extends Tivoli's process automation engine for Task Automation TPM CCMDB SRM Common User Interface Common Configuration Services Patch Deployment Software Deployment OS Deployment Virtualization … Web Based Workflow Process Workflow Runtime & Services User Configurable User Interfaces TPM Engines for Scalable Distribution & Task Mgt. Configurable by roles Data Extensions Operational Mgmt Products Common Data Subsystem Role base data access Data Vizualization CIs • Attributes • Relationships Assets • Attributes • Relationships Process Artifacts • Related to CIs and Assets Meta Data • Configurations • Process Reporting Engine Report Definition Out of the Box Reports Discovery TPM Discovery Discovery and Application Dependency Mapping (TADDM) Reconciliation Federation Discovery IT Infrastructure (Server, Storage, Network, Security, Software, Applications, Transactions, Services)

  3. AM DMS DCD TPM 7.1 Component Architecture DE SDI Tivoli Common Agent (TCA)

  4. Key TPM 7.1 Features and Customer Value New UI Capabilities, including Start CentersCompliance Automationincluding Closed-loop Desired State Management with TADDMPatch Management AutomationSoftware Provisioning Automation Bare metal image deployment with TPM for OS DeploymentTPM task invocation from ISM processesVirtualization Enhancements (VMware, Solaris, WPARs)Reports (BIRT based)New Web Replay

  5. TPM Release 7.1.1 Additions • Migration from TPM 5.1.1.2 to TPM 7.1.1 • Upgrade from TPM 7.1 to 7.1.1 • IPv6 Support • FIPS compliance • Retrofit 5.1.1.2 feature addition (Inventory extension, Pause/Resume) • Red Hat 5 Patch Management on SDI (scalable solution) • Virtualization & server management enhancements • VM status, VMware Templates, Better AIX LPAR support (HMC Discovery, validation, etc.) • Other enhancements (for example, Host/IP change, Sun Patches) • Additional Platforms

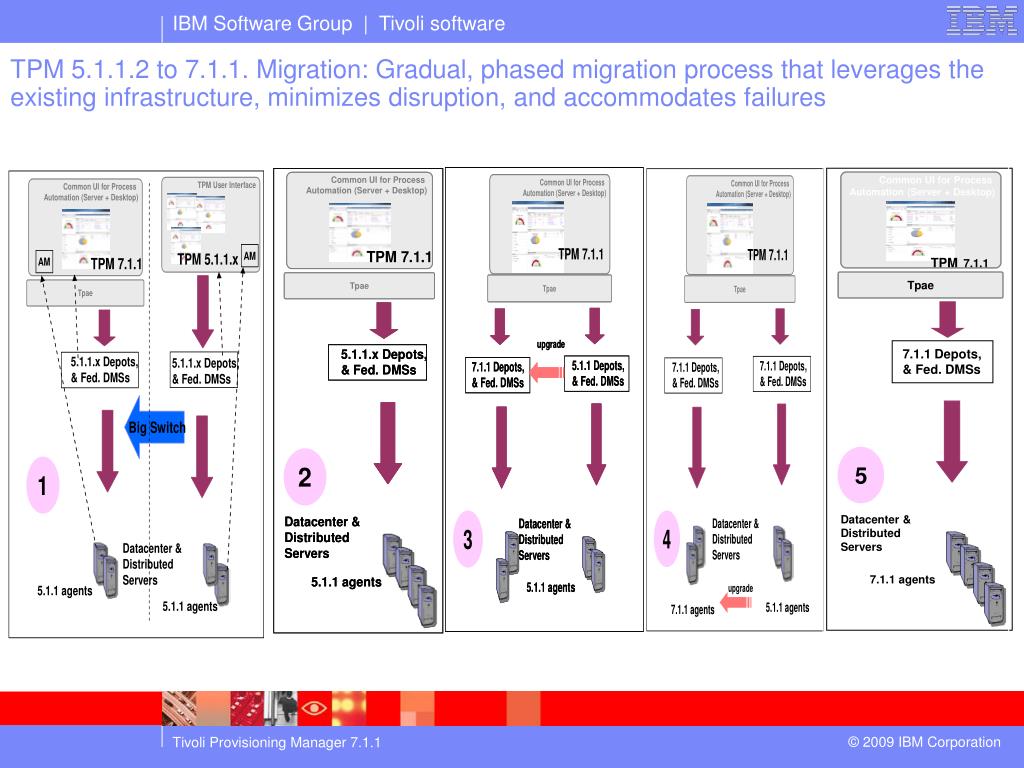

  6. TPM 5.1.1.2 to 7.1.1. Migration: Gradual, phased migration process that leverages the existing infrastructure, minimizes disruption, and accommodates failures Common UI for Process Automation (Server + Desktop) TPM7.1.1 Tpae 7.1.1 Depots, & Fed. DMSs 5 Datacenter & Distributed Servers 7.1.1 agents

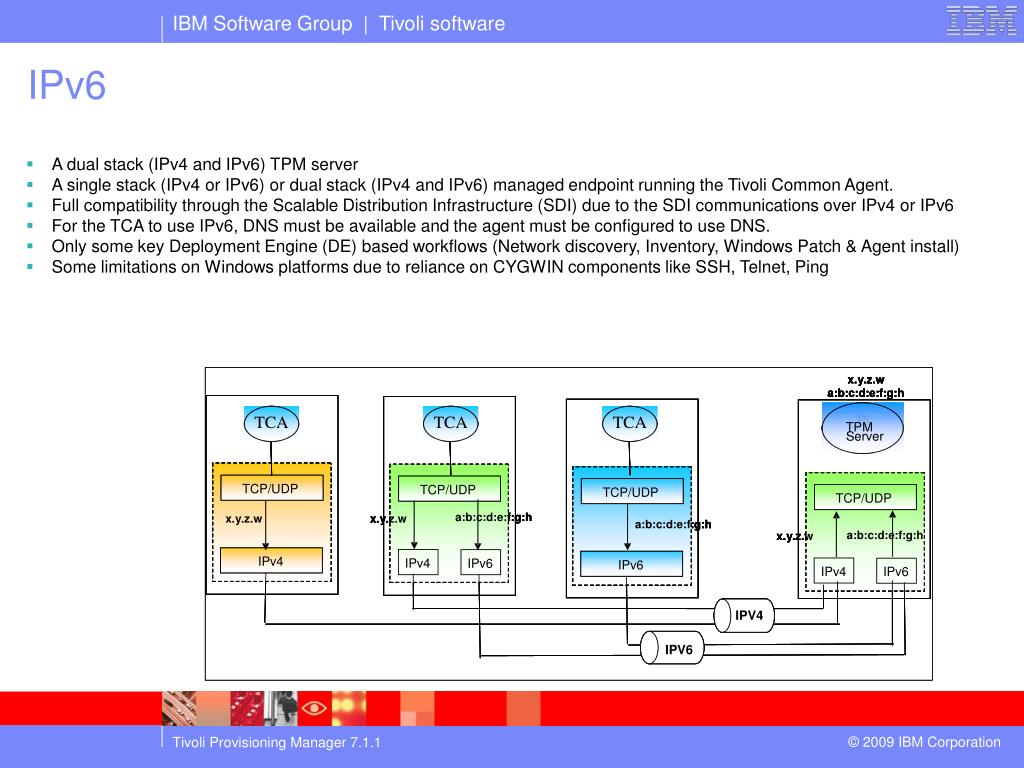

  7. IPv6 • A dual stack (IPv4 and IPv6) TPM server • A single stack (IPv4 or IPv6) or dual stack (IPv4 and IPv6) managed endpoint running the Tivoli Common Agent. • Full compatibility through the Scalable Distribution Infrastructure (SDI) due to the SDI communications over IPv4 or IPv6 • For the TCA to use IPv6, DNS must be available and the agent must be configured to use DNS. • Only some key Deployment Engine (DE) based workflows (Network discovery, Inventory, Windows Patch & Agent install) • Some limitations on Windows platforms due to reliance on CYGWIN components like SSH, Telnet, Ping

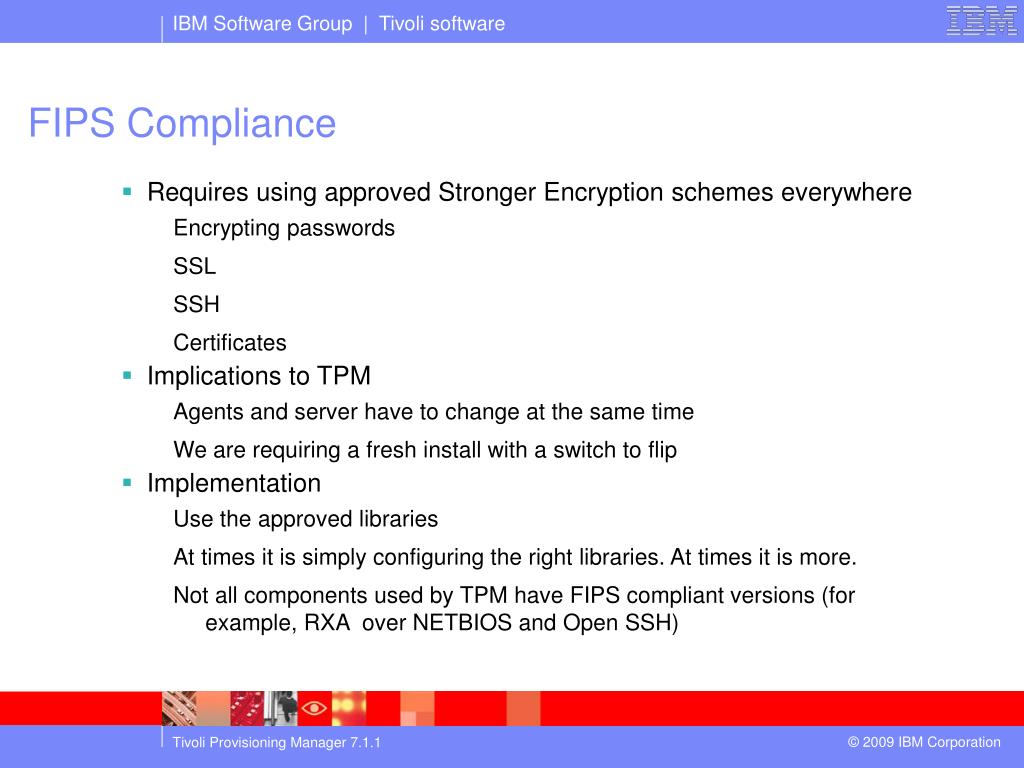

  8. FIPS Compliance • Requires using approved Stronger Encryption schemes everywhere • Encrypting passwords • SSL • SSH • Certificates • Implications to TPM • Agents and server have to change at the same time • We are requiring a fresh install with a switch to flip • Implementation • Use the approved libraries • At times it is simply configuring the right libraries. At times it is more. • Not all components used by TPM have FIPS compliant versions (for example, RXA over NETBIOS and Open SSH)

  9. Inventory Extension Common UI for Process Automation (Server + Desktop) DCM Custom tables TPM7.1.1 DCM import + Filters 7.1.1 Depots, & Fed. DMSs Disc. Scan jobs Custom scan scripts XML or MIF output Datacenter & Distributed Servers 7.1.1 agents

  10. BACK UPS

  11. Customer Value with TPM 7.1 New, Highly Customizable TPM GUI technology • Easy modification of existing applications. • Ability to create your own applications. • Easily customizable to display only required data and tasks for a specific role/user • Consistent look and feel across ISM products provides seamless interactions and minimizes user education requirements • Can incorporate functions from multiple ISM products on single screen Inclusion of TPM tasks in Change, Release, and SRM process flow definitions Ability to easily take TPM actions on CCMDB CIs • Use CMDB CI’s as database for process flow construction and information is automatically translated to TPM DCM for operational purposes. Ability to use Tpae workflow editor to design and formalize TPM activities • Can define Tpae workflows to formalize and automate multi-person TPM activity flows • TPM activity flows can include non-TPM related tasks, i.e. sign-offs, escalations, etc. Extensive Web Replay scenario library provides guidelines/education on product usage • Quick method for product education and skills transfer

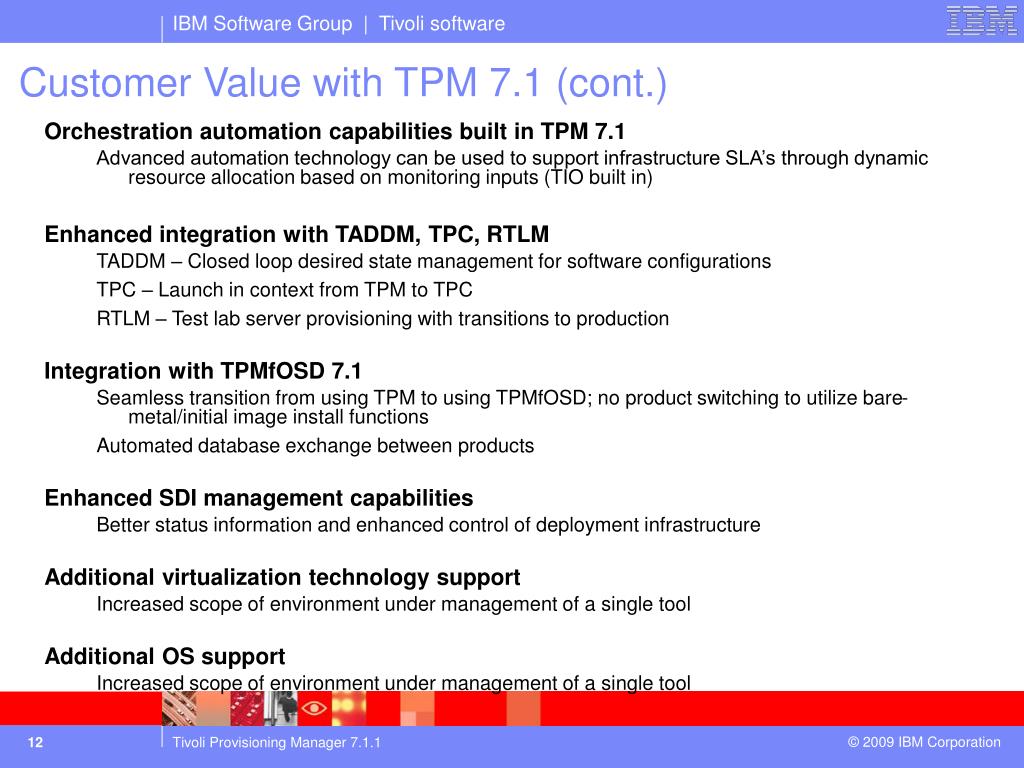

  12. Customer Value with TPM 7.1 (cont.) Orchestration automation capabilities built in TPM 7.1 • Advanced automation technology can be used to support infrastructure SLA’s through dynamic resource allocation based on monitoring inputs (TIO built in) Enhanced integration with TADDM, TPC, RTLM • TADDM – Closed loop desired state management for software configurations • TPC – Launch in context from TPM to TPC • RTLM – Test lab server provisioning with transitions to production Integration with TPMfOSD 7.1 • Seamless transition from using TPM to using TPMfOSD; no product switching to utilize bare-metal/initial image install functions • Automated database exchange between products Enhanced SDI management capabilities • Better status information and enhanced control of deployment infrastructure Additional virtualization technology support • Increased scope of environment under management of a single tool Additional OS support • Increased scope of environment under management of a single tool

  13. Closed-loop Desired State Mgmt Automation Discover Endpoints TADDM Run Remediation Workflow to update the configuration settings Populate and Synchronize Software Installation Gold Standard Set up Compliance Templates for Desired State Approve Recommendation Run Compliance Check

  14. Task Task . . . TPM Activity Plan and related objects Task ISM Adjacency: Processes Integration with TPM Release/Change Workorder/JobPlan CreateTPMtask Spec. Application: Patch Install Launch Assisted Workflow Track Task Task: classified: Install Patch MXWorkflow mainObject: Task Task Automation Facade

  15. Bare metal image deployment - TPMfOSD integration Features • Full Integration with TPM for OS Deployment product – from TPM you: • Set up your deployment images: • Discover existing deployment servers, or install new ones • Capture cloned images from TPM managed computers • Create unattended OS setup images from CD media • View and edit image properties • Create hardware configuration images, e.g. RAID, BIOS • Discover bare-metal computers • Deploy images to your managed computers

  16. TPMfOSD UI integration TPM UI TPMfOSD Panels

  17. TPMfOSD integration Support for target computers Primary platforms • Windows Server 2003 - x86-32 / x86-64 • Windows Server 2008 - x86-32 / x86-64 • Windows XP SP2 - x86-32 / x86-64 • Windows Vista - x86-32 / x86-64 • RHEL 5 - x86-32 / x86-64 • RHEL 5 – pSeries • RHEL 5 - cell blades • SLES 10 - x86-32 / x86-64 • SLES 10 – pSeries • SLES 10 – zSeries • AIX 5L 5.3 - pSeries • AIX 6.1.1 - pSeries • VMWare ESX 3.0 - x86-64 • VMWare ESX 3.5 - x86-64 Secondary platforms • RHEL 4 - x86-32 / x86-64 • Red Hat Desktop 4 - x86-32 / x86-64 • Red Hat Desktop 5 - x86-32 / x86-64 • SUSE (SLES) 9 - x86-32 / x86-64 • Solaris 9 – SPARC • Solaris 10 – SPARC • Windows 2000 SP4 - x86-32

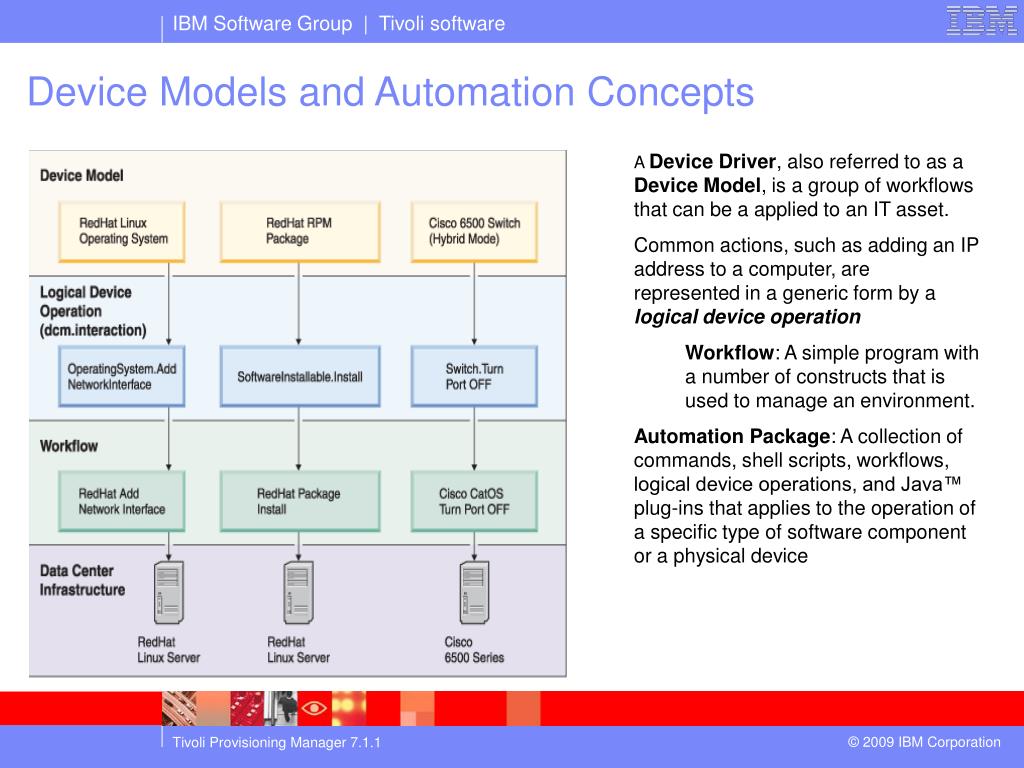

  18. Device Models and Automation Concepts • A Device Driver, also referred to as a Device Model, is a group of workflows that can be a applied to an IT asset. • Common actions, such as adding an IP address to a computer, are represented in a generic form by a logical device operation • Workflow: A simple program with a number of constructs that is used to manage an environment. • Automation Package: A collection of commands, shell scripts, workflows, logical device operations, and Java™ plug-ins that applies to the operation of a specific type of software component or a physical device

  19. DO DO DO DO DO DO DO DO DO DO DO DO Data Layer: Enhanced UI & Preserving DCM + Workflows TPM workflows Deployment Engine MBO MBO linked linked MBO MBO MBO MBO MBO MBO MBO MBO MBO MBO DAO layer Tivoli's process automation engine Runtime DAO layer Tivoli's process automation engine Runtime LWI WAS 6.1 Tivoli's process automation engine Database Containing DCM
