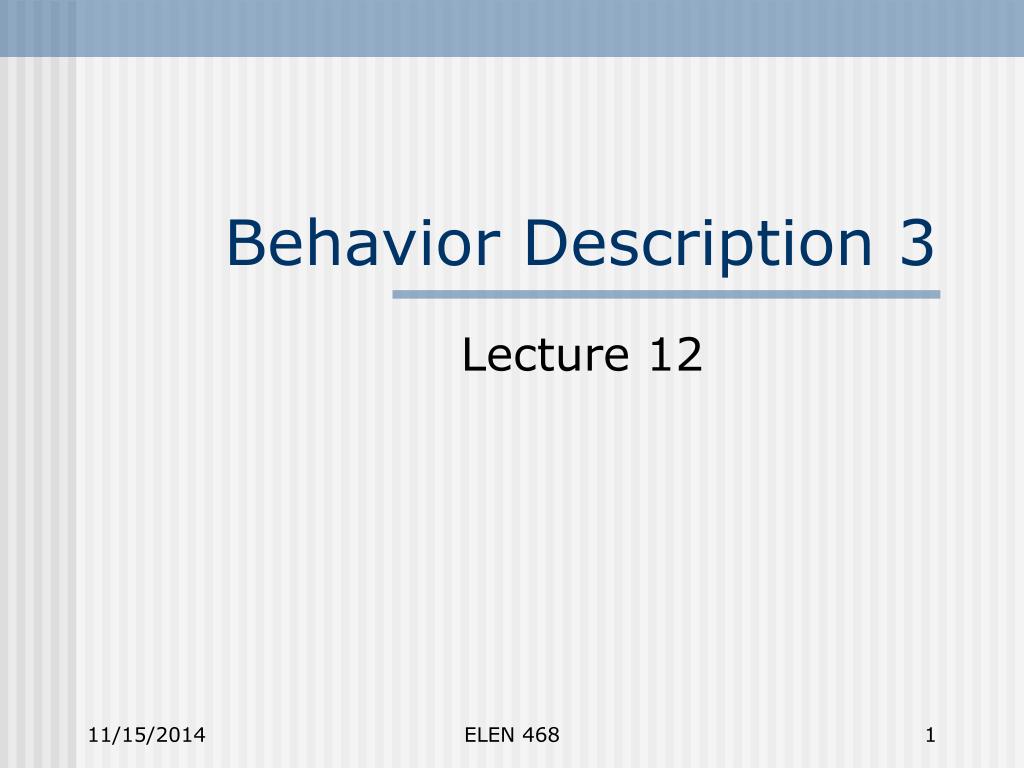

  1. Behavior Description 3 Lecture 12 ELEN 468

  2. Tasks (subroutines) module bit_counter (data, count); input [7:0] data; output [3:0] count; reg [3:0] count; always @(data) t(data, count); task t; input [7:0] a; output [3:0] c; reg [3:0] c; reg [7:0] tmp; begin c = 0; tmp = a; while (tmp) begin c = c + tmp[0]; tmp = tmp >> 1; end end endtask endmodule ELEN 468

  3. Task Rules • A task may be declared only within a module • A task may be called only from a procedural statement • A task may be called from the same module or from a different module by hierarchical de-referencing • A task can call itself • Variables may be defined locally within a task ELEN 468

  4. Functions module word_aligner (w_in, w_out); input [7:0] w_in; output [7:0] w_out; assign w_out = align (w_in); function [7:0] align; input [7:0] word; begin align = word; if (align != 0) while (align[7] == 0) align = align << 1; end endfunction endmodule ELEN 468

  5. Timing Verification • Static timing analysis • Consider structure topology of circuit, enumerate signal propagation paths and determine if timing constraints are met • Dynamic timing analysis • Simulate circuit timing using input vectors • Timing check tasks • $setup, $hold, $period, $width, $skew, $recovery, $nochange • Can be invoked within a behavior or testbench or in a specify block ELEN 468

  6. Setup Constraint • $setup(data, posedge clock, 5); • It specifies an interval before the active edge of clock. • Data must arrive before the interval. 5 5 clock data ELEN 468

  7. Hold Violation • $hold(data, posedge clock, 2); • It specifies an interval after the active edge of clock. • Data must be stable in the interval. 2 2 clock data ELEN 468

  8. SetupHold • $setuphold(data, posedge clock, 5, 2); 2 2 5 5 clock data ELEN 468

  9. Signal Period • $period(posedge clock, t_limit); • Signal period must be sufficiently long. clock cycle time clock t_limit ELEN 468

  10. Pulse Width • $width(posedge clock, t_mpw); • The width of the clock pulse must not be too small. clock pulse width clock t_mpw ELEN 468

  11. Clock Skew • $skew(negedge clk1, negedge clk2, t_skew); • Signal skew is the arriving time difference of two signals. • Clock skew should be limited. clk1 skew clk2 ELEN 468

  12. Recovery Time • $recovery(negedge bus_control, bus_driver, t_rec); • Time to go from Z to 0 or 1. Bus_control Bus_driver Z t_rec ELEN 468

  13. No Signal Change • $nochange(posedge clk, data, -5, 2); • Equivalent to • $setuphold(data, posedge clk, 5, 2); ELEN 468

  14. Finite State Machines • Explicit FSM • States are defined explicitly • FSM_style1 (page 240) • Minimum behavioral description • FSM_style2 (page 240 • Use behavioral to define next state, easier to use • FSM_style3 (page 241) • Output synchronized with clock ELEN 468

  15. Example 7.58 (page 242) ELEN 468
