  1. James Johnson Kerberos

  2. What is it? • A system of authenticating securely over open networks • Developed by MIT in 1983 • Based on Needham-Schroeder • Extended to fix vulnerabilities in Needham-Schroeder • Currently widely used in industry • ActiveDirectory

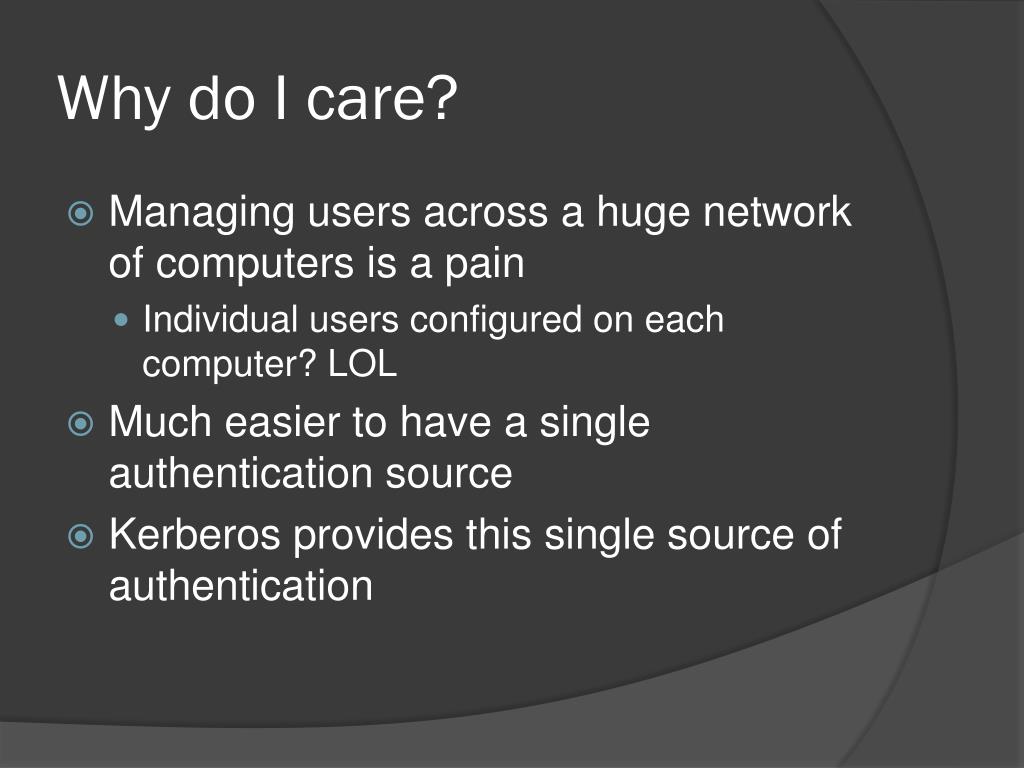

  3. Why do I care? • Managing users across a huge network of computers is a pain • Individual users configured on each computer? LOL • Much easier to have a single authentication source • Kerberos provides this single source of authentication

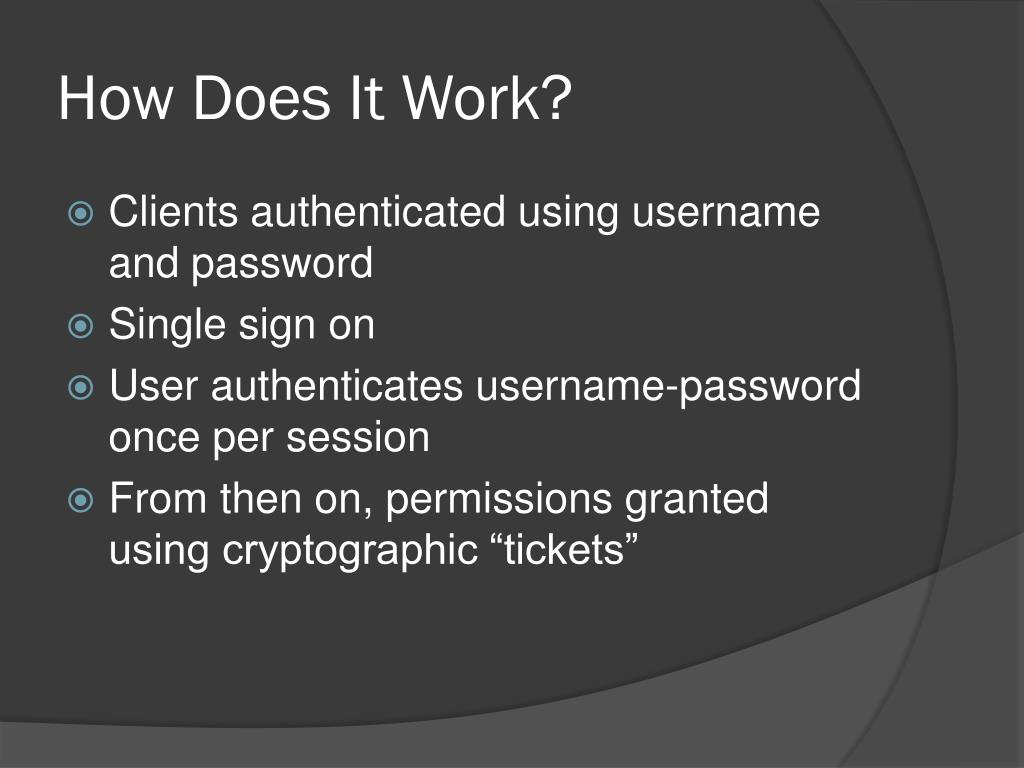

  4. How Does It Work? • Clients authenticated using username and password • Single sign on • User authenticates username-password once per session • From then on, permissions granted using cryptographic “tickets”

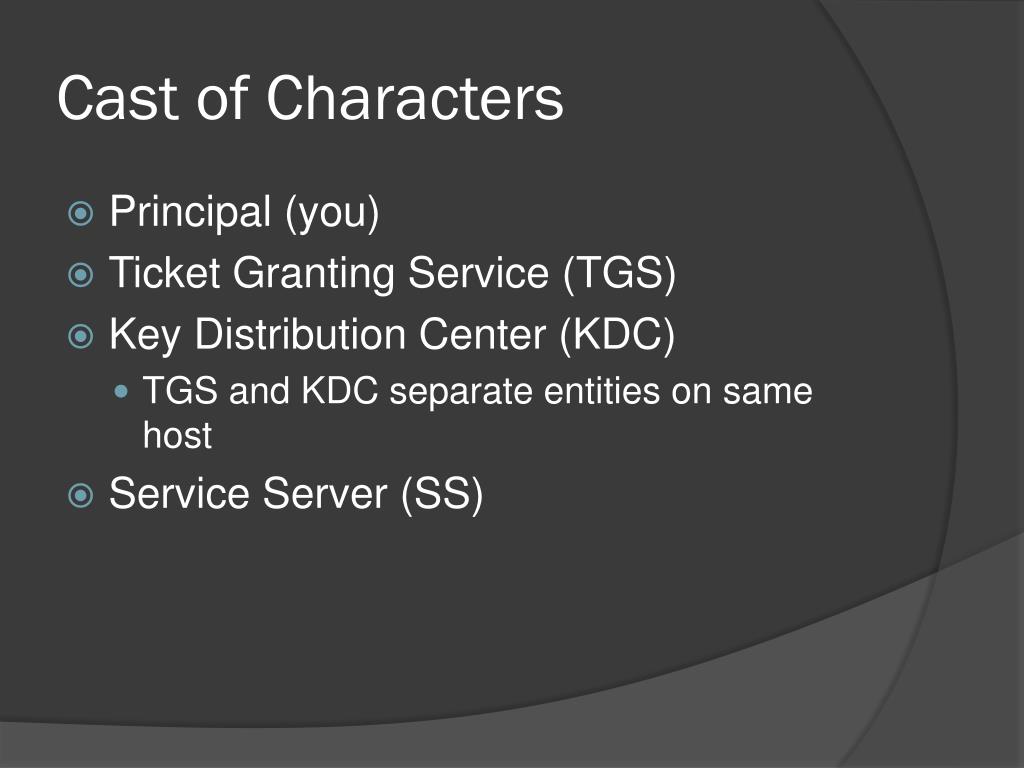

  5. Cast of Characters • Principal (you) • Ticket Granting Service (TGS) • Key Distribution Center (KDC) • TGS and KDC separate entities on same host • Service Server (SS)

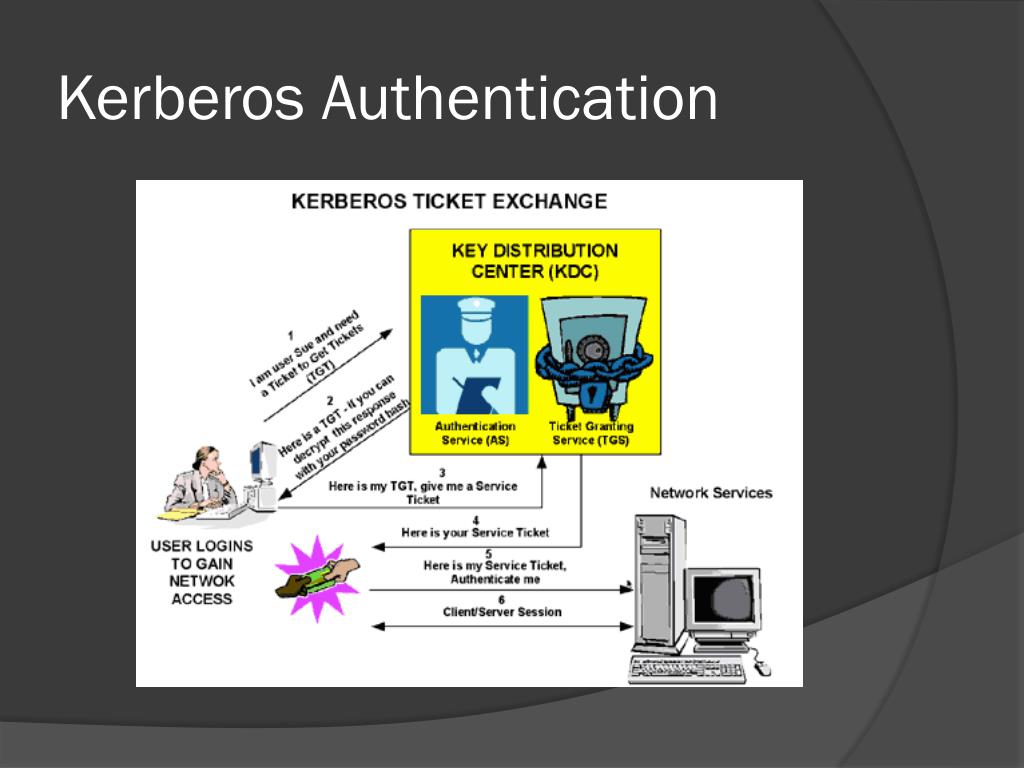

  6. Kerberos Authentication

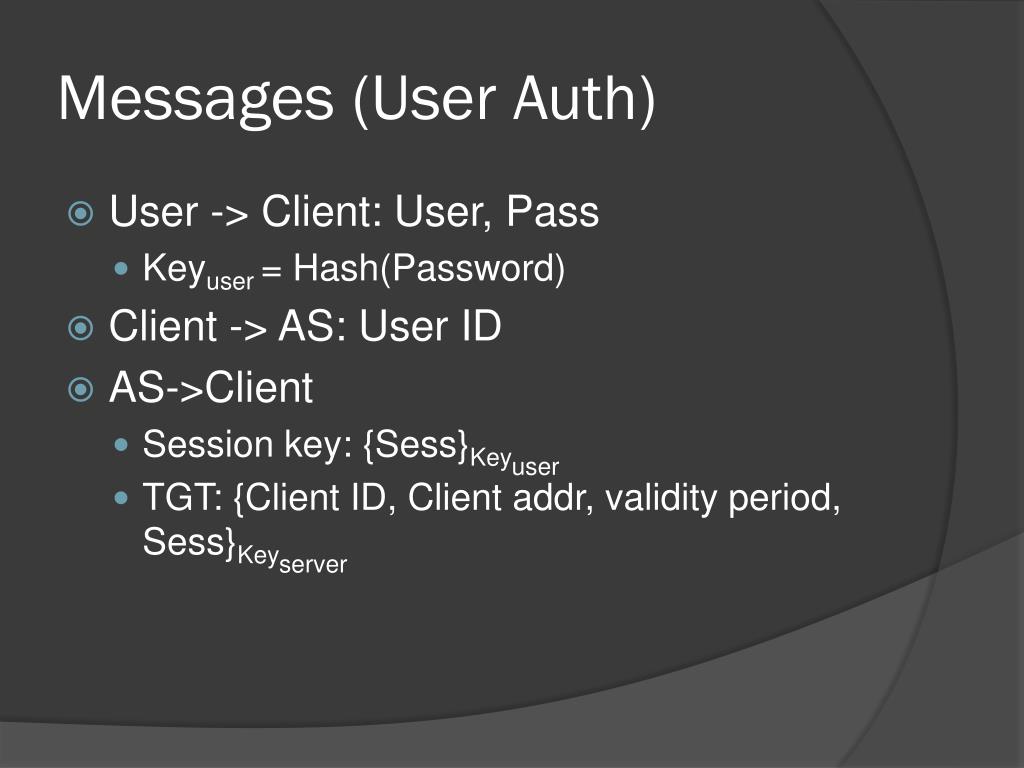

  7. Messages (User Auth) • User -> Client: User, Pass • Keyuser = Hash(Password) • Client -> AS: User ID • AS->Client • Session key: {Sess}Keyuser • TGT: {Client ID, Client addr, validity period, Sess}Keyserver

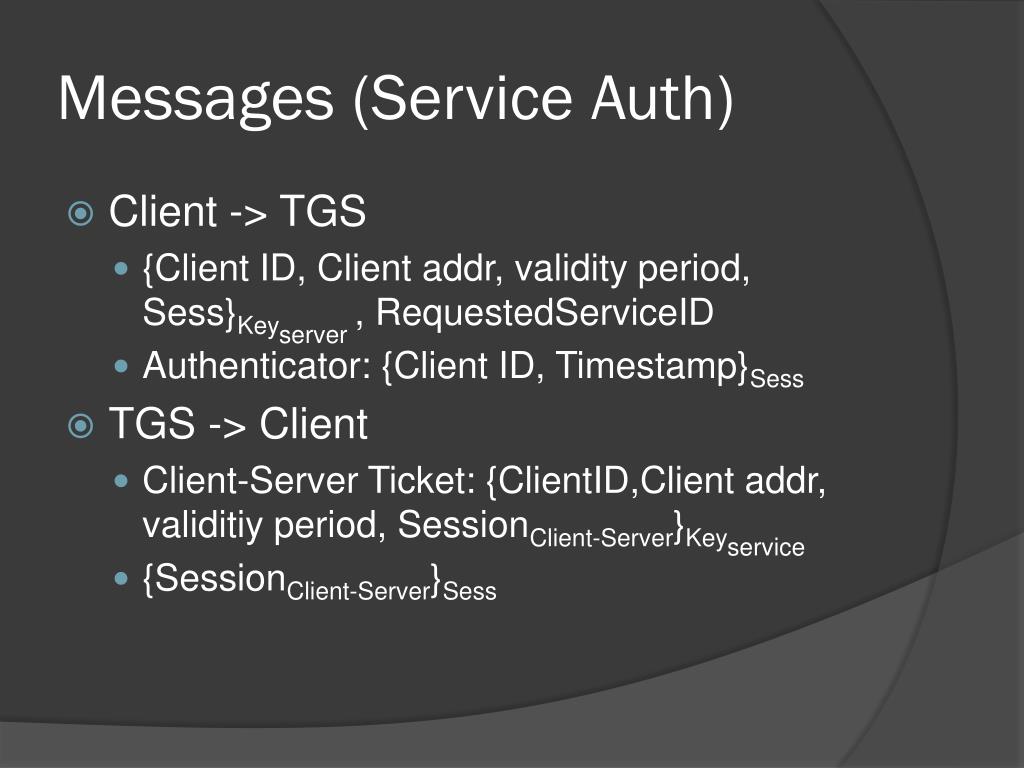

  8. Messages (Service Auth) • Client -> TGS • {Client ID, Client addr, validity period, Sess}Keyserver , RequestedServiceID • Authenticator: {Client ID, Timestamp}Sess • TGS -> Client • Client-Server Ticket: {ClientID,Client addr, validitiy period, SessionClient-Server}Keyservice • {SessionClient-Server}Sess

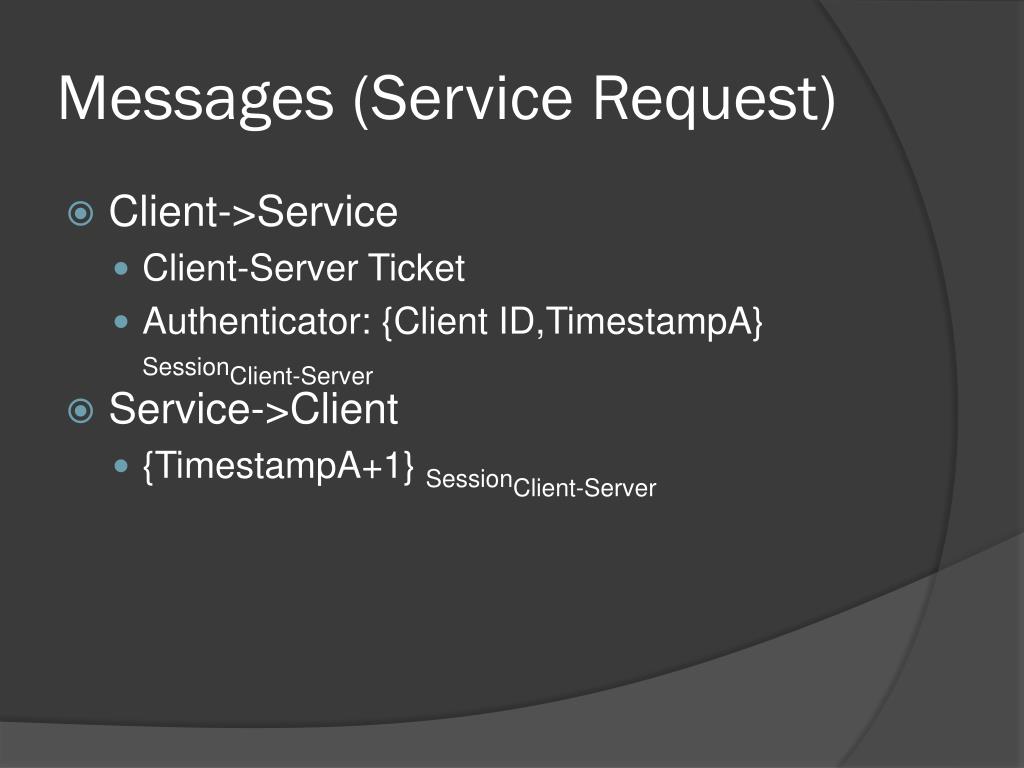

  9. Messages (Service Request) • Client->Service • Client-Server Ticket • Authenticator: {Client ID,TimestampA} SessionClient-Server • Service->Client • {TimestampA+1} SessionClient-Server

  10. Domains/Realms • Kerberos designed to work across organizational boundaries • Each TGS constitutes a realm • Organizations can share “inter-realm keys” • Local AS issues TGT for remote TGS • Encrypted with inter-realm key • “Referral Ticket”

  11. Transitive Domain Referral

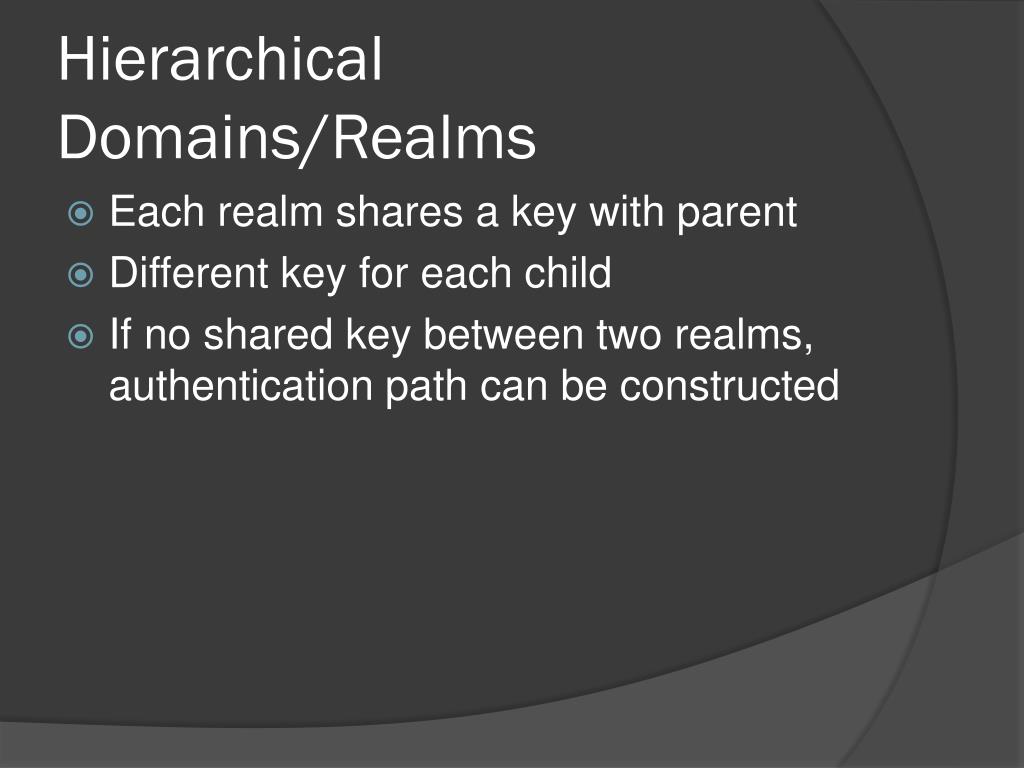

  12. Hierarchical Domains/Realms • Each realm shares a key with parent • Different key for each child • If no shared key between two realms, authentication path can be constructed

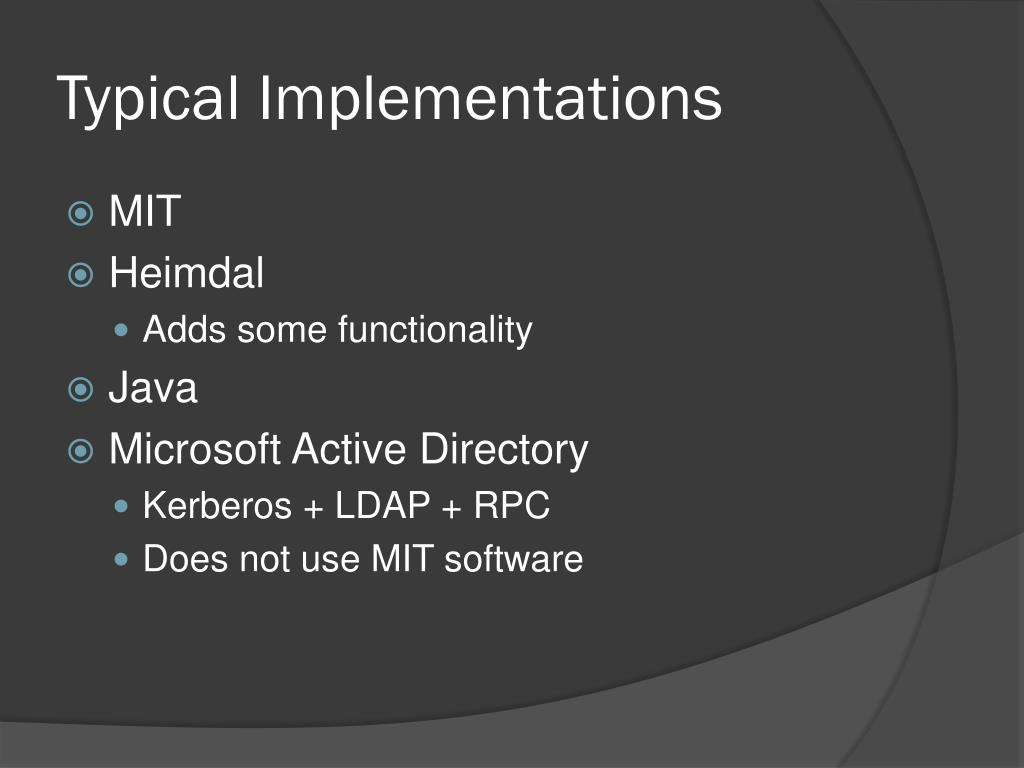

  13. Typical Implementations • MIT • Heimdal • Adds some functionality • Java • Microsoft Active Directory • Kerberos + LDAP + RPC • Does not use MIT software

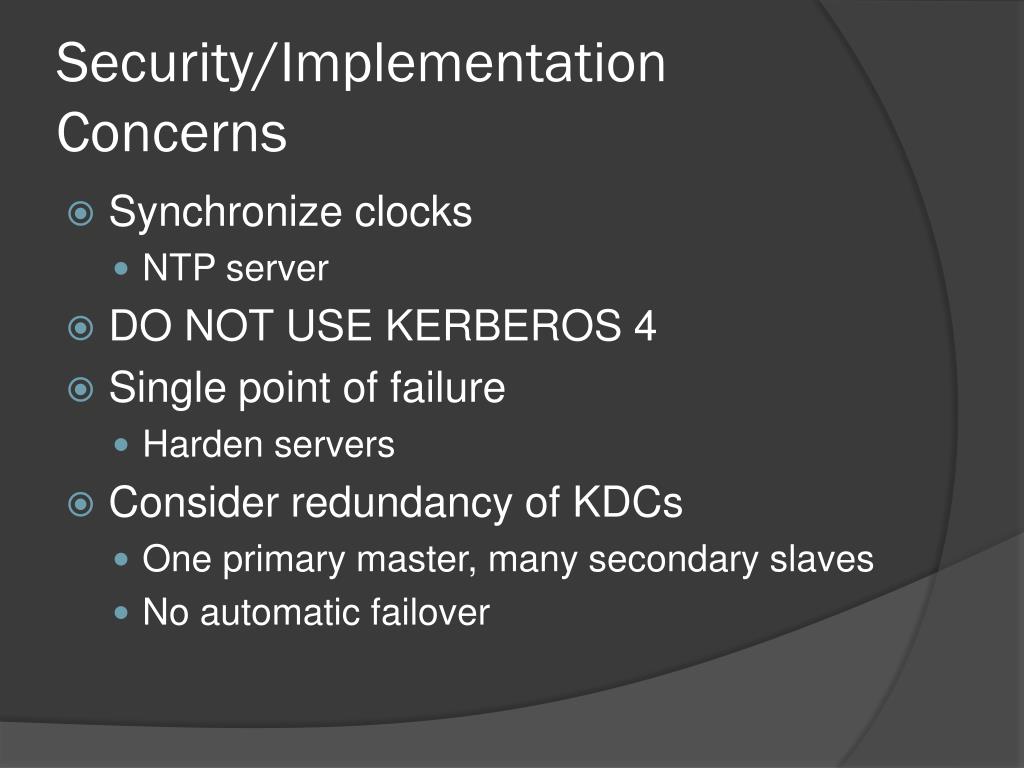

  14. Security/Implementation Concerns • Synchronize clocks • NTP server • DO NOT USE KERBEROS 4 • Single point of failure • Harden servers • Consider redundancy of KDCs • One primary master, many secondary slaves • No automatic failover

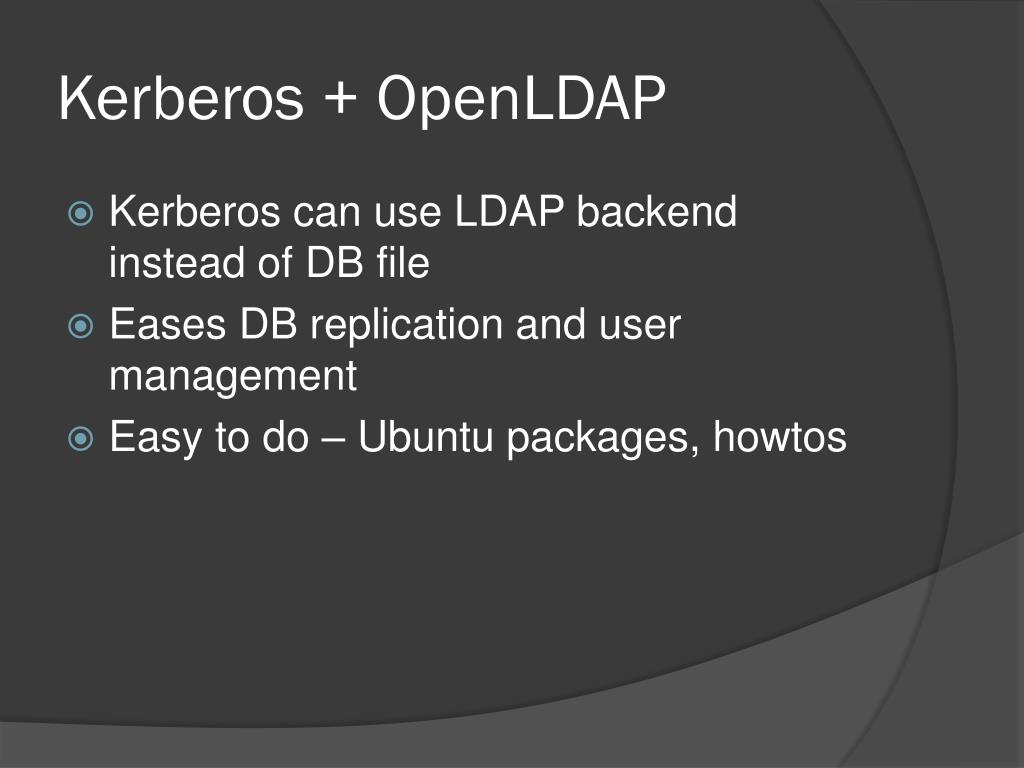

  15. Kerberos + OpenLDAP • Kerberos can use LDAP backend instead of DB file • Eases DB replication and user management • Easy to do – Ubuntu packages, howtos

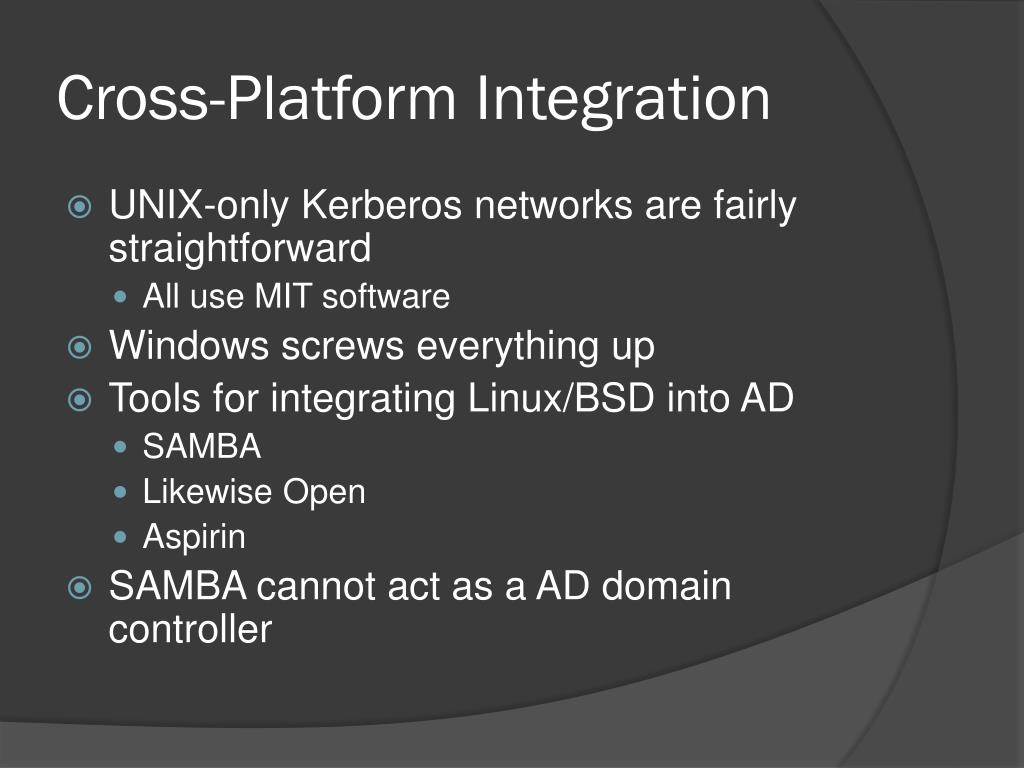

  16. Cross-Platform Integration • UNIX-only Kerberos networks are fairly straightforward • All use MIT software • Windows screws everything up • Tools for integrating Linux/BSD into AD • SAMBA • Likewise Open • Aspirin • SAMBA cannot act as a AD domain controller

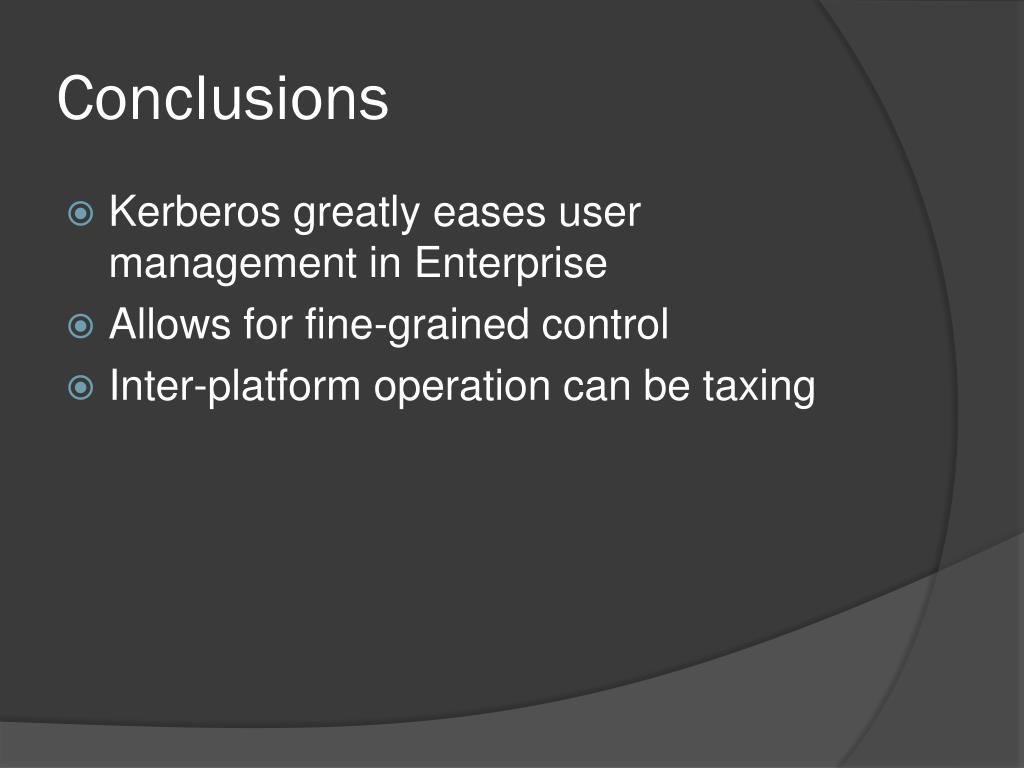

  17. Conclusions • Kerberos greatly eases user management in Enterprise • Allows for fine-grained control • Inter-platform operation can be taxing

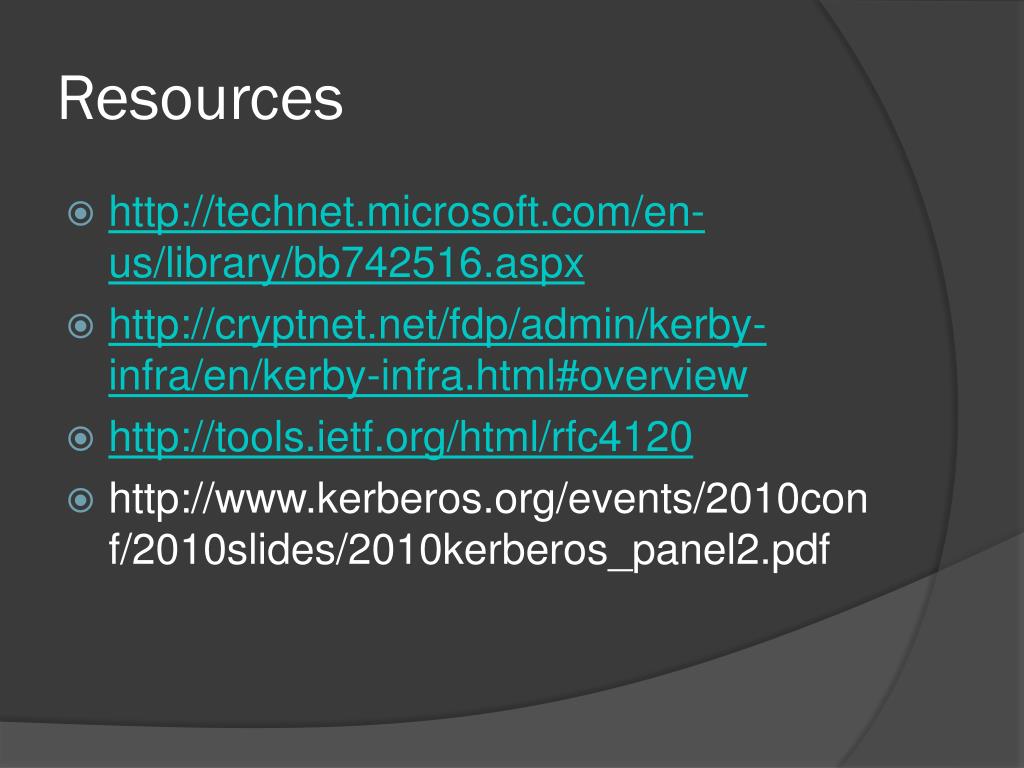

  18. Resources • http://technet.microsoft.com/en-us/library/bb742516.aspx • http://cryptnet.net/fdp/admin/kerby-infra/en/kerby-infra.html#overview • http://tools.ietf.org/html/rfc4120 • http://www.kerberos.org/events/2010conf/2010slides/2010kerberos_panel2.pdf
