SE 313 – Computer Graphics

1. SE 313 – Computer Graphics Lecture 12: Lighting and Materials Lecturer: GazihanAlankuş

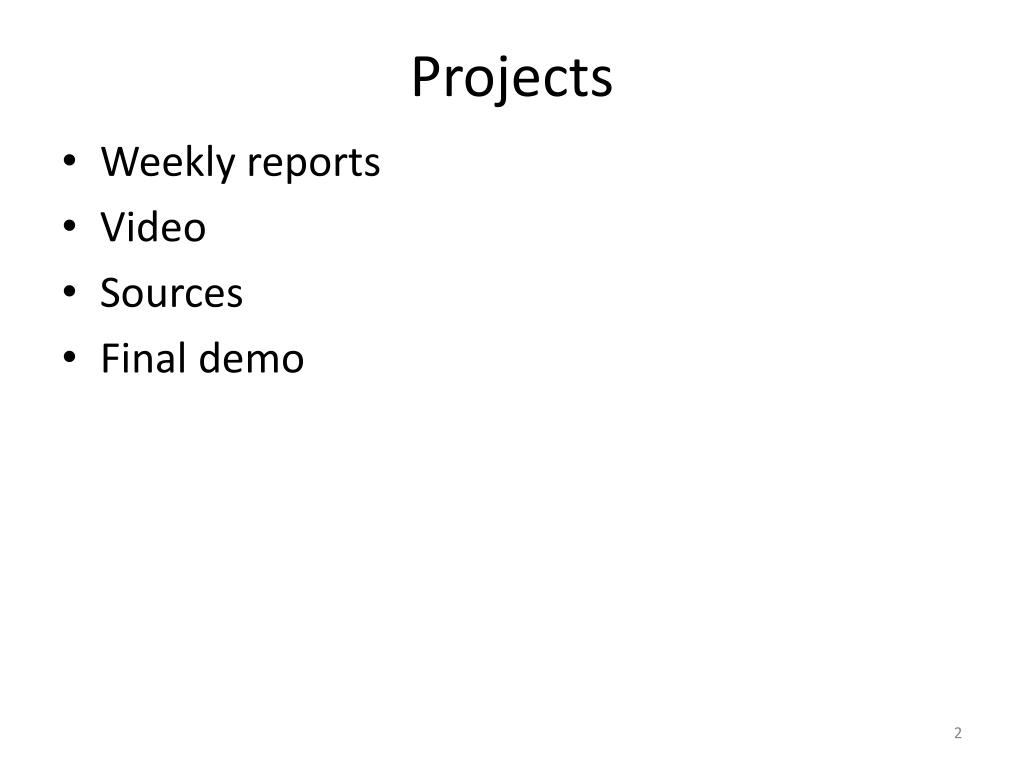

2. Projects • Weekly reports • Video • Sources • Final demo

3. Projects • Weekly reports • Help me understand your own contribution • Video • Sources • Final demo

4. Projects • Weekly reports • Video • Prepare a video that demonstrates your project • Example: https://www.youtube.com/watch?v=auurLcPFGrs&list=PL0E431E2DD85623D5&index=6 • Should include: • A title scene with your names, IEU, SE 313, my name • Project description and demonstration • Between 2-5 minutes • Upload to YouTube with this text(text in [brackets] are optional): • Term project for SE 313 Computer Graphics in İzmir University of economics. [your names (optional)] İzmir EkonomiÜniversitesi SE 313 BilgisayarGrafiğidönemprojesi. [your names (optional)] • Sources • Final demo

5. Projects • Weekly reports • Video • Sources • Give me all your source files • Include a README file on how to use them • Step-by-step instructions • Versions of software that you used • External factors • If you had external help (downloaded models and textures, help you received from someone else, etc.), clearly write them. • Was this a project that was a joint project with some other class? If so, write it down. • If you don’t do these, you claim that it was all your work and was for this class only. If I prove that it wasn’t, you have cheated and will be punished according to university rules. • Final demo

6. Projects • Weekly reports • Video • Sources • Final demo • Set up a half-hour meeting with me • The last day for the meeting is 18th of January • My available times may be filled before that. Be quick and try to find a time. • Send everything (video, sources, etc.) me 24 hours before that

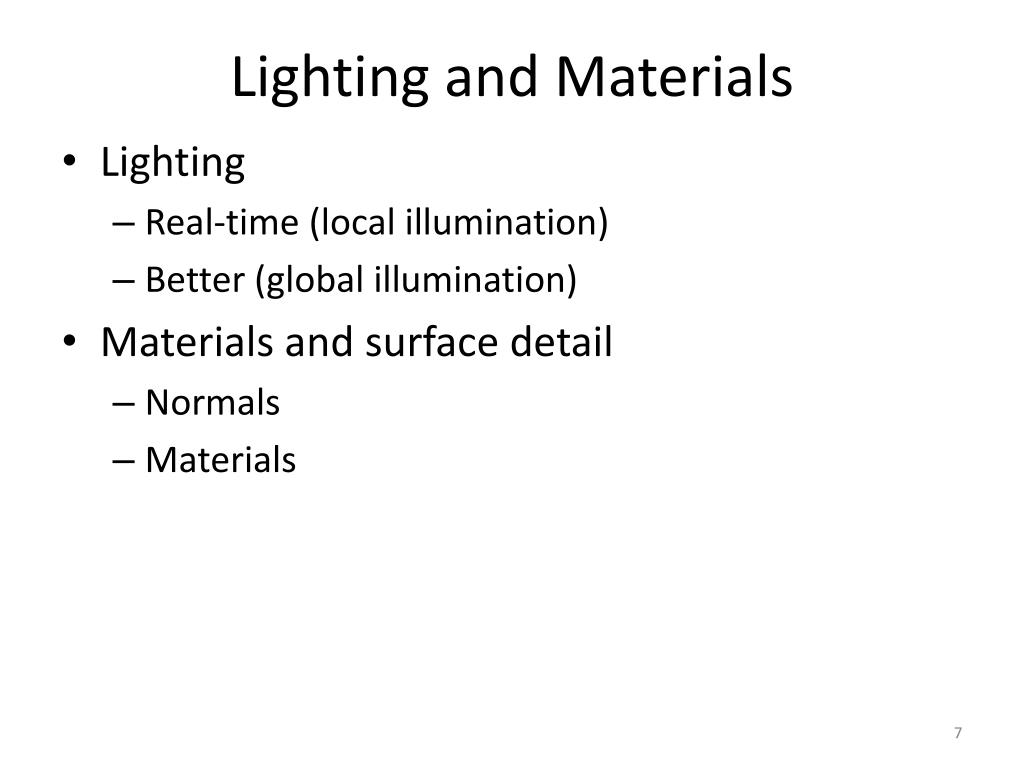

7. Lighting and Materials • Lighting • Real-time (local illumination) • Better (global illumination) • Materials and surface detail • Normals • Materials

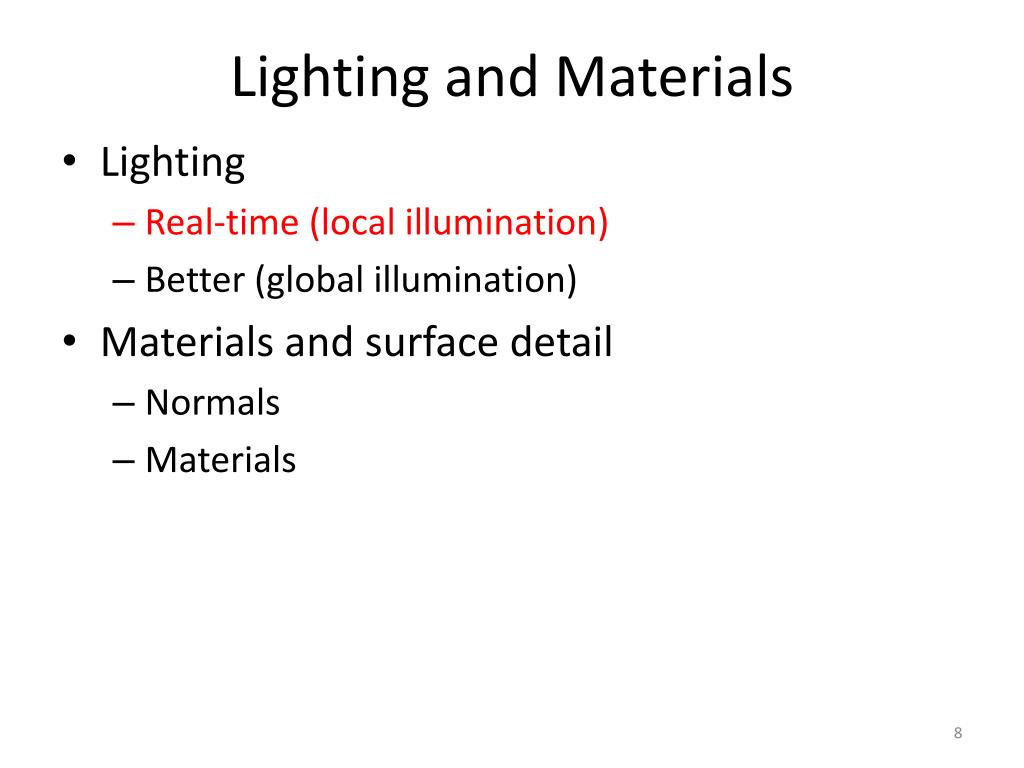

8. Lighting and Materials • Lighting • Real-time (local illumination) • Better (global illumination) • Materials and surface detail • Normals • Materials

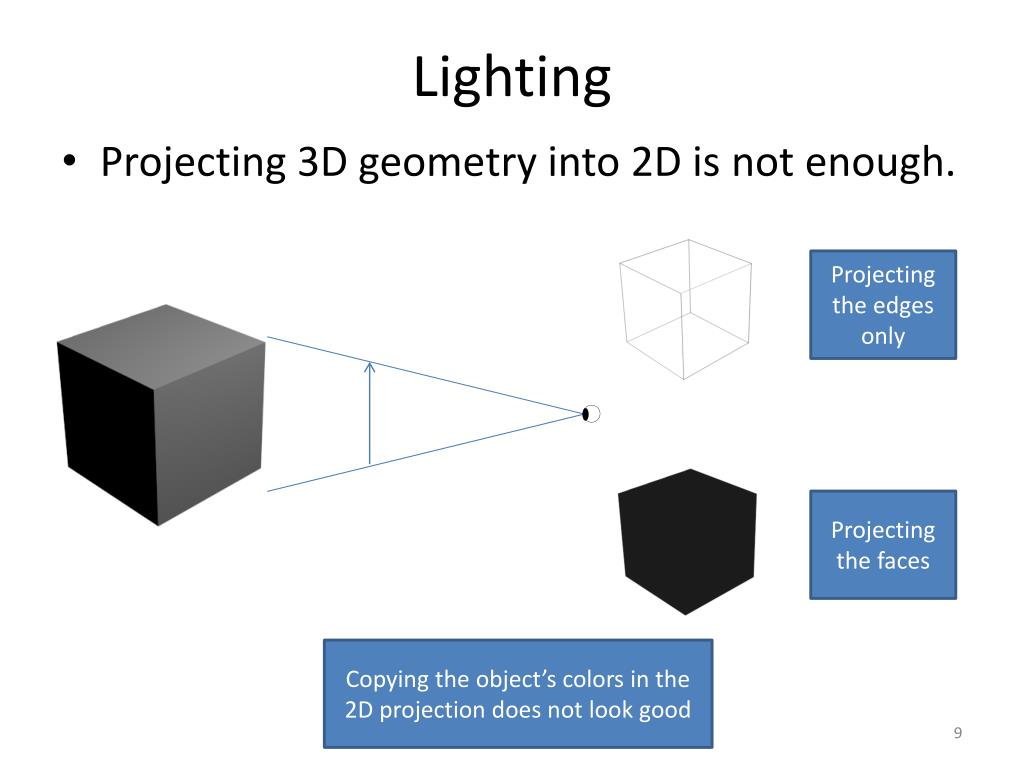

9. Lighting • Projecting 3D geometry into 2D is not enough. Projecting the edges only Projecting the faces Copying the object’s colors in the 2D projection does not look good

10. Lighting • We see objects through light bouncing from them • We see different tones according to the way light bounces • Computers need to simulate this to create realistic pictures

11. Lighting • Simulating light is very difficult. There can be infinite number of rays coming from a light source. We need something fast!

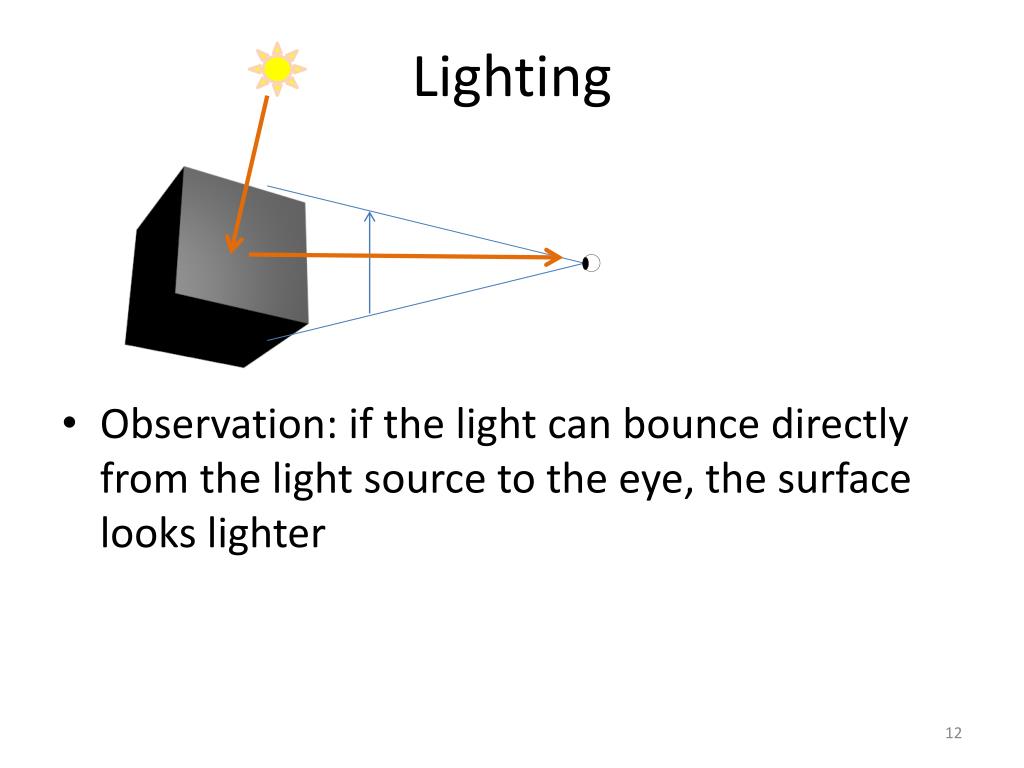

12. Lighting • Observation: if the light can bounce directly from the light source to the eye, the surface looks lighter

13. Lighting • Observation: if the light cannot bounce directly, then the face looks darker • We use these observations to simulate lighting • We use the normal vector to determine the orientation of the face

14. Two types of lighting • Diffuse reflection • We see darker color even if light does not bounce directly to the eye • Specular reflection • We only see color when light bounces directly to the eye

15. Ambient lighting • There is so much light that comes from the sun, light bounces from everything in the environment • Even if you are in a closed room in daytime, there is light in the environment

16. The three types of lighting

17. Emission • Emission is the fourth type of lighting • Simulates objects that emit light by themselves (if it’s a lamp, for example)

18. Different colors for different lighting

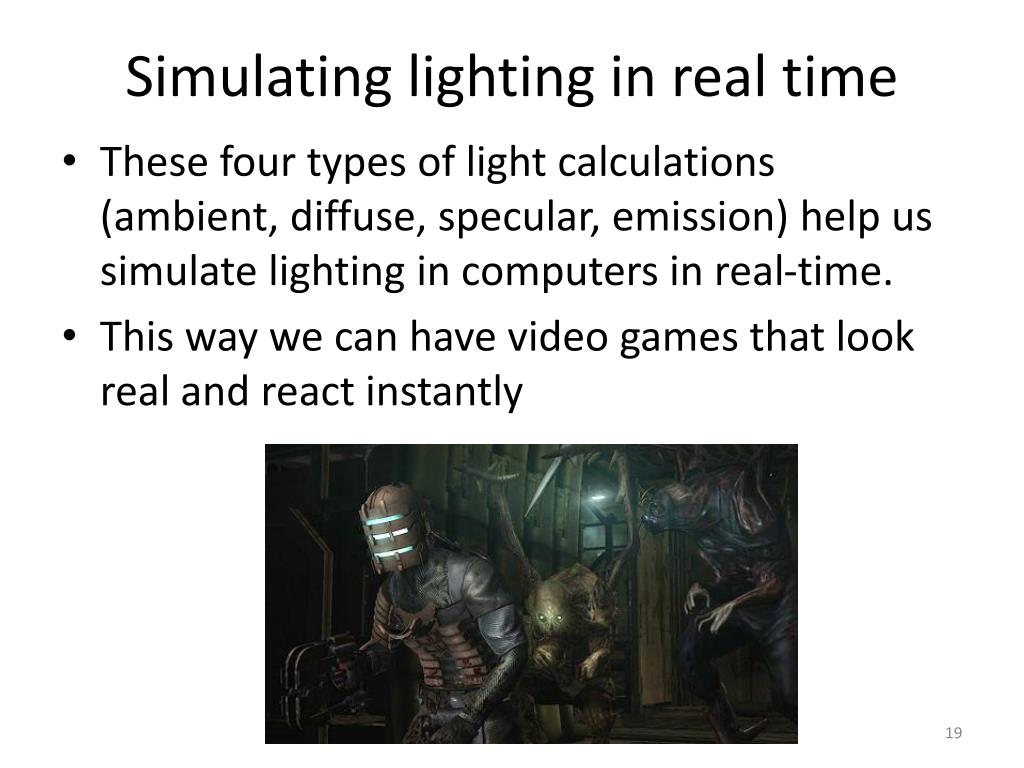

19. Simulating lighting in real time • These four types of light calculations (ambient, diffuse, specular, emission) help us simulate lighting in computers in real-time. • This way we can have video games that look real and react instantly

20. Lighting and Materials • Lighting • Real-time (local illumination) • Better (global illumination) • Materials and surface detail • Normals • Materials

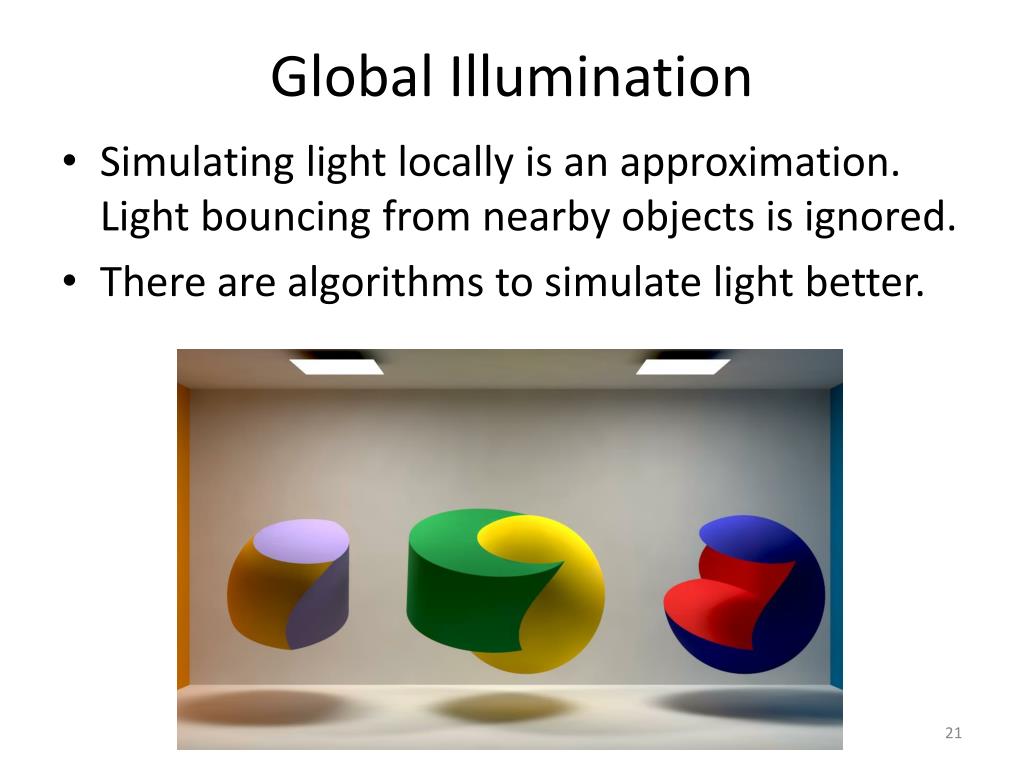

21. Global Illumination • Simulating light locally is an approximation. Light bouncing from nearby objects is ignored. • There are algorithms to simulate light better.

22. Radiosity • Relationships between faces of polygons are computed to see whether they would illuminate or shade each other • Slower than local illumination, better results

23. Ray tracing • Light is reversible • Rather than simulating the actual lights, trace light rays that would come to the eye • Start from the eye and see whether you reach a light source after bouncing on objects • Slower than radiosity. Very real-looking results.

24. How they are used in practice Local Illumination Global Illumination Batch applications Movies The image has to look very real Renders slowly Render farms with many supercomputers are used for long movies What you see in Blender Render view • Real-time applications • Video Games • The image does not have to be very realistic • Renders very quickly • What you see in Blender 3D view

25. Lighting and Materials • Lighting • Real-time (local illumination) • Better (global illumination) • Materials and surface detail • Normals • Materials

26. Normals • Surface normals determine the color tones that the surface will have because of lights

27. Normal Mapping • Surface normals determine the color tones that the surface will have because of lights • Surfaces with such detail requires too much geometric detail and renders slowly. • We fake it by using normals from a detailed model on a non-detailed model

28. Normal Mapping • With normal mapping, you can have a mesh with less detail that looks like another mesh with more detail

29. Lighting and Materials • Lighting • Real-time (local illumination) • Better (global illumination) • Materials and surface detail • Normals • Materials

30. Materials • Things that determine the color of a surface • Properties of lights • Properties of surfaces

31. Materials • Things that determine the color of a surface • Properties of lights • Position • Colors and intensities for ambient, diffuse, specular components • Properties of surfaces • Normals • Colors for how ambient, diffuse and specular components will be reflected • Emission

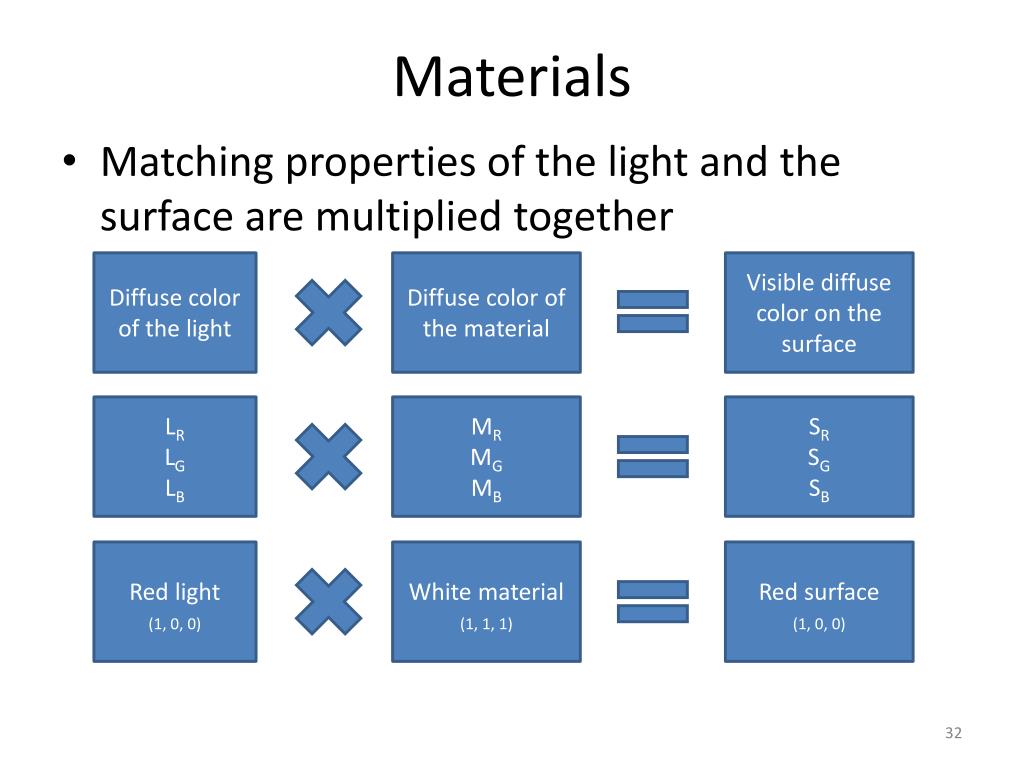

32. Materials • Matching properties of the light and the surface are multiplied together Diffuse color of the light Diffuse color of the material Visible diffuse color on the surface LRLGLB MRMGMB SRSGSB Red light (1, 0, 0) White material (1, 1, 1) Red surface (1, 0, 0)

33. Next week • We will practice these in Blender next week • Now we will have a lab that you will be graded in

34. Lab • Modeling • Texturing

35. Lab: Modeling • Starting from a cube, model this table.

36. Lab: Modeling • Model the legs by subdividing the bottom face, extrude individually, scale, translate, extrude • Model the book on the table by creating the rectangle by cutting the edges one by one using the knife tool. Then, extrude it up.

37. Lab: Modeling • Model the drawer using extrude. • After taking the drawer out, extrude inwards to create the inside of the drawer.

38. Lab: Texturing • Open the redwood texture in the main uv mapping so that the whole model has the redwood texture.

39. Lab: Texturing • Map the book cover on the book cover on top of the table. • Create a separate UV map for the book and name it “book” • Map the book image in that UVMap • Using the clone brush, copy that to the main texture

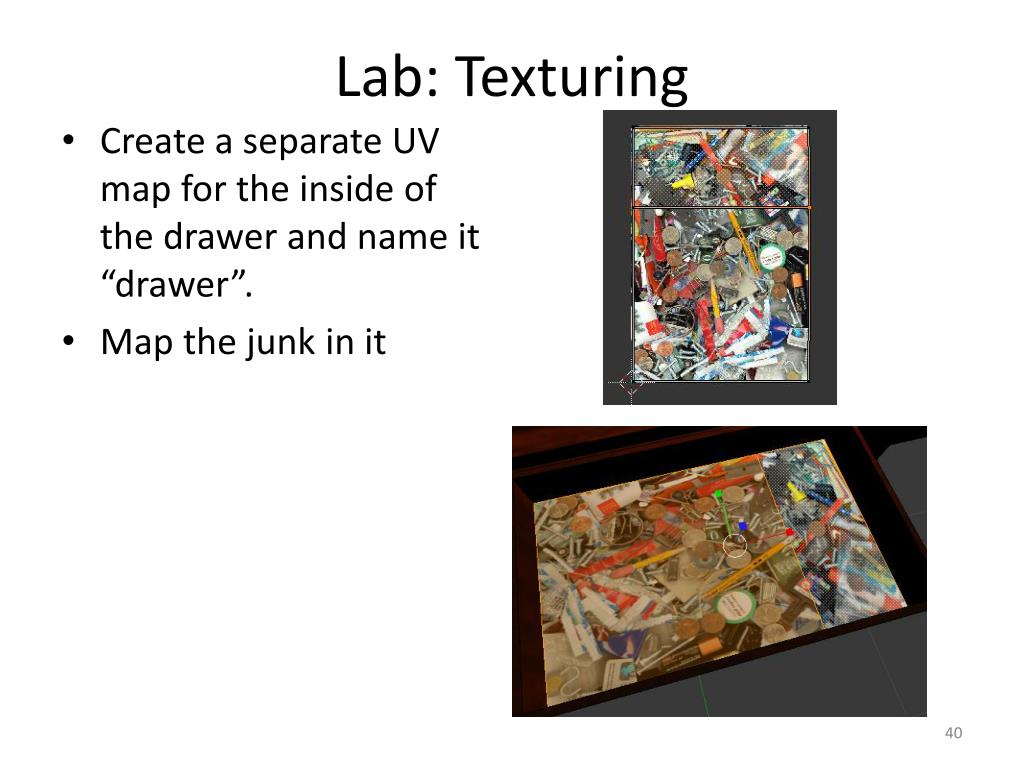

40. Lab: Texturing • Create a separate UV map for the inside of the drawer and name it “drawer”. • Map the junk in it

41. Lab: Texturing • Use the clone brush to paint into the main UV map from the drawer UV map • Leave some empty places to give a dirty look.

42. Lab: Bonus • Bonus1: Use other wood textures to give a more detailed view to the table • Bonus2: create other geometry on top of the table and texture them with images you find on the internet
