Relational Databases. Stephen Fulwider COT 4810 4 March 2008. DBMS. “software designed to assist in maintaining and utilizing large collections of data.” (Ramakrishnan) VLDB (>1TB Storage) Google Yahoo! NSA/FBI/CIA. Alternate: File Systems.

Relational Databases - slide 1
01 / 18Relational Databases
1 / 17

Télécharger la présentation

Relational Databases
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

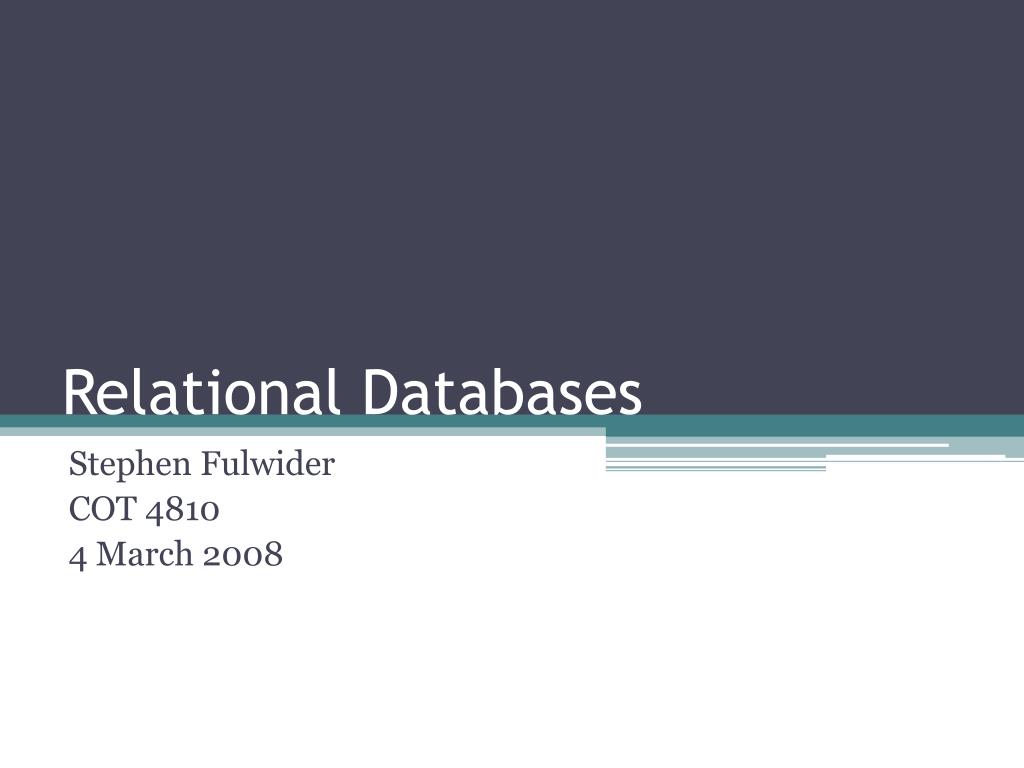

  1. Relational Databases Stephen Fulwider COT 4810 4 March 2008

  2. DBMS • “software designed to assist in maintaining and utilizing large collections of data.” (Ramakrishnan) • VLDB (>1TB Storage) • Google • Yahoo! • NSA/FBI/CIA

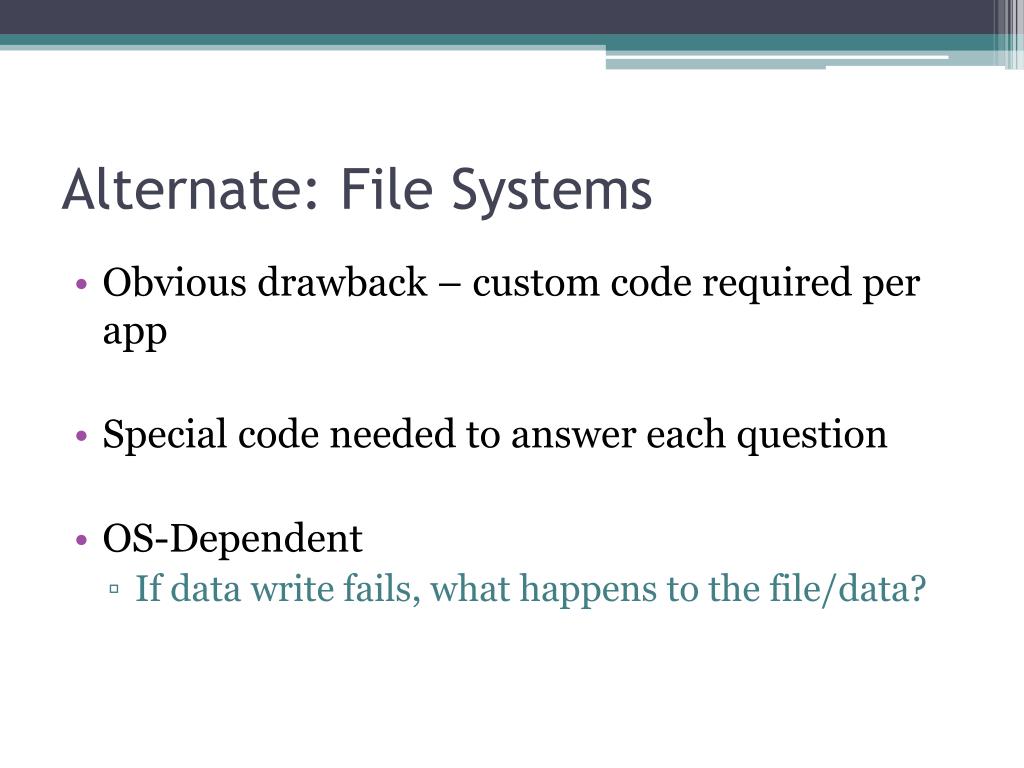

  3. Alternate: File Systems • Obvious drawback – custom code required per app • Special code needed to answer each question • OS-Dependent • If data write fails, what happens to the file/data?

  4. When not to use? • Small amount of data • Overhead not worth it • Only a few operations needed • Custom solution can yield better performance • Need to change data in unsupported way • e.g. modify pictures, or large amounts of text

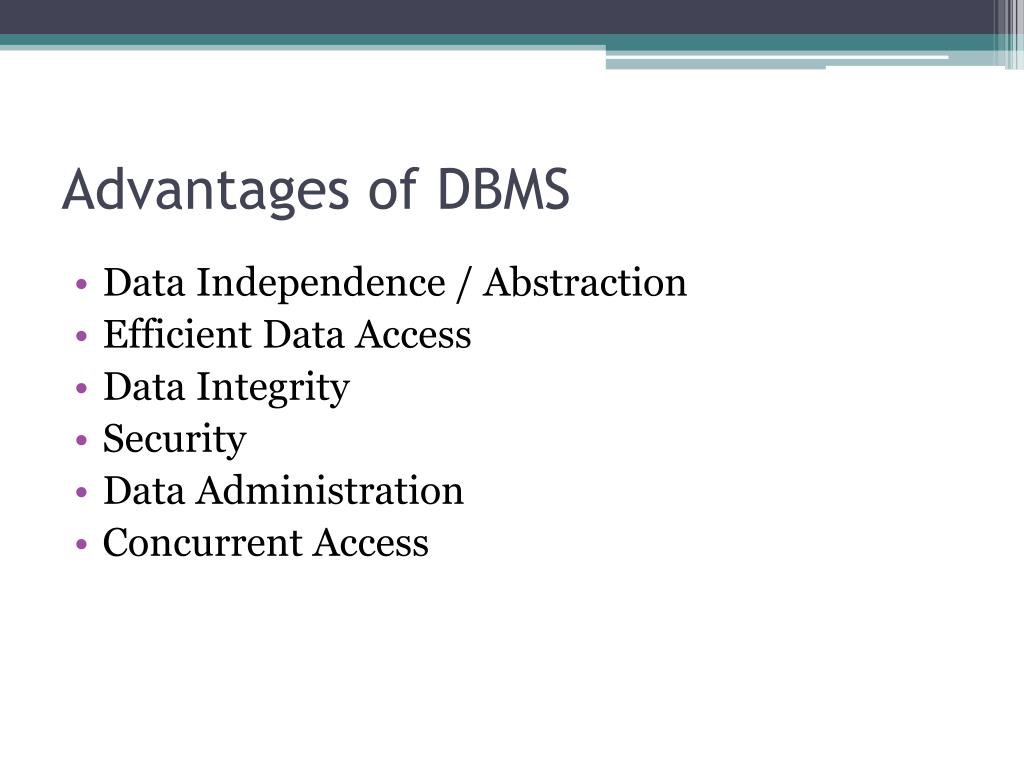

  5. Advantages of DBMS • Data Independence / Abstraction • Efficient Data Access • Data Integrity • Security • Data Administration • Concurrent Access

  6. The Relational Model • Relation – a set of records. • Schema – description of data. • Schema specifies the field names (or attributes) • Students(sid: string, name: string, login: string, age: int, gpa: real)

  7. Levels of Abstractions (Schemas) • External • User-level interactions “DDL” • Conceptual • Logical • Stored data in terms of DBMS • Physical • How Data is stored • Indexing

  8. Data Independence • Logical • Changes in relations • Physical • Changes in file structure, indices, etc.

  9. DBMS Components • ACID Properties • Atomicity – all or none • Consistency – data cannot be inconsistent • Isolation – concurrent transactions • Durability – changes will not be lost • Together these form the backbone of what makes a DBMS a DBMS

  10. Integrity constraints • Ensure the data is good • It’s the C of the ACID standard • Make sure numbers are in range • Make sure strings are well formatted • Make sure dates are in proper order • GPA = 42.8? Or -3.1? • E-mail = “ smith@cs” – wasted space and could cause issues with some mail programs

  11. Queries • DBMS Specific FRIENDLY vs. • Relational calculus PROOFY vs. • Relational algebra MIX

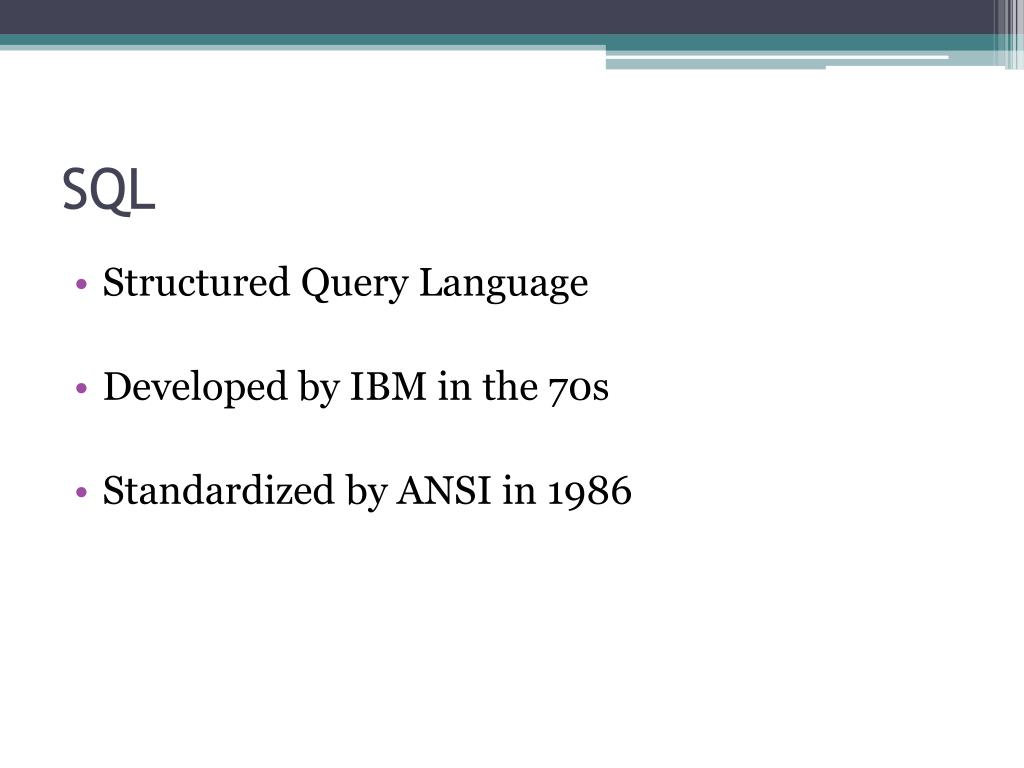

  12. SQL • Structured Query Language • Developed by IBM in the 70s • Standardized by ANSI in 1986

  13. Queries • Selection • SQL • SELECT Attribute • FROM Table • RA: • Simple! Let’s get a little more complex

  14. Queries (continued) • SQL • SELECT Attribute • FROM Table • WHERE boolean expression • RA • What about multiple tables?

  15. Queries (continued) • SQL • SELECT Attribute • FROM Table1, Table2 • WHERE boolean expression relating attributes from two tables • RA

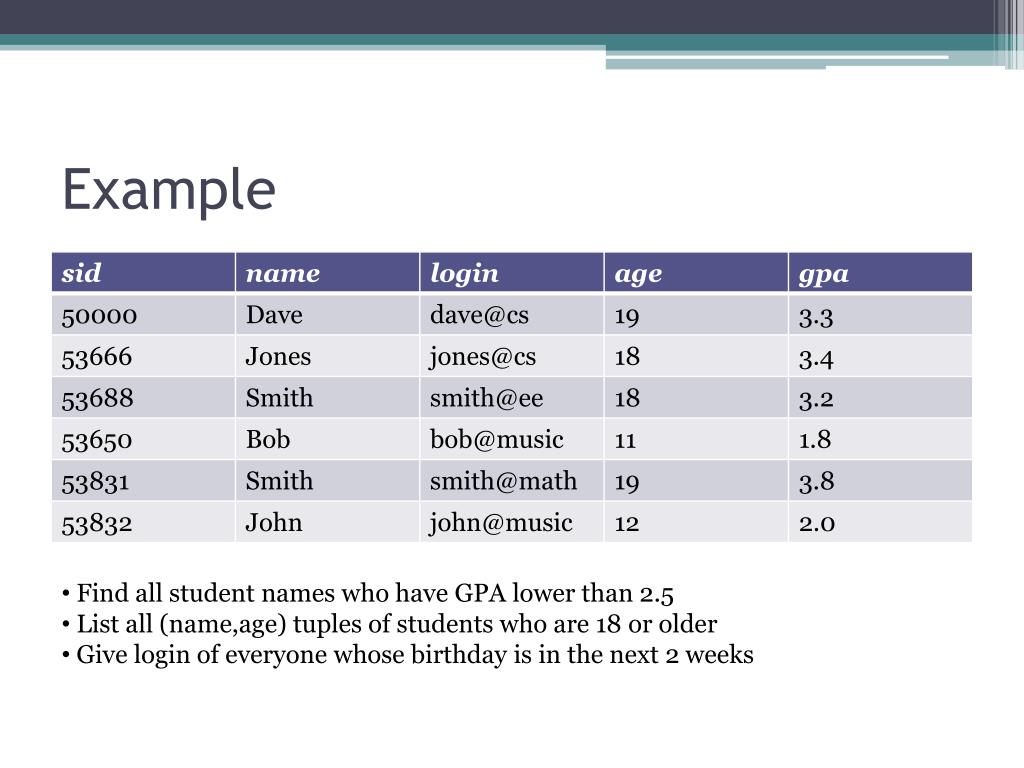

  16. Example • Find all student names who have GPA lower than 2.5 • List all (name,age) tuples of students who are 18 or older • Give login of everyone whose birthday is in the next 2 weeks

  17. Homework Questions • Given the following Schema: Students(sid: string, name: string, login: string, age: int, gpa: real) • Write a SQL Statement to list all (name,age,gpa) tuples of students who are younger than their GPA*10. • Write the equivalent relational algebra expression.

  18. References • Dewdney, A.K. The (New) Turing Omnibus. New York: Henry Holt and Company, 1993. • Ramakrishnan, Gehrke. Database Management Systems. Third Edition. McGraw Hill. Ithaca, New York. 2003.
