Surviving OpenHack 4

1. SurvivingOpenHack 4 Steve Riley and Timothy Bollefer Microsoft Corporation

2. Yes we can • Believe it! • Any reasonably skilled administrator can build a Windows environment that is secure and resilient against attack • You’ll learn today how we won the latest OpenHack competition by eWeek • You can use these principles today on your own deployments

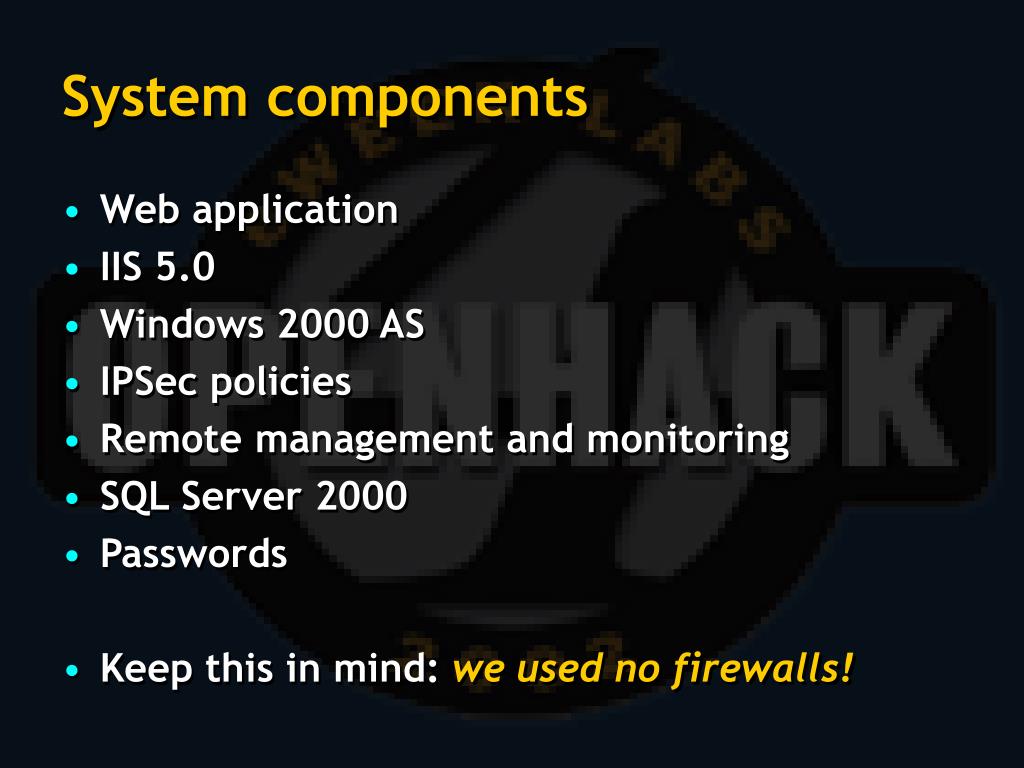

3. System components • Web application • IIS 5.0 • Windows 2000 AS • IPSec policies • Remote management and monitoring • SQL Server 2000 • Passwords • Keep this in mind: we used no firewalls!

4. Web application

5. Web application • Built on eWeek’s eXcellence Awards web site • User sets up account • Enters a product or service for judging • Submits a credit card number to pay entry fee • Read information about award • Built with .NET Framework • ASP.NET • ADO.NET • Cryptography class libraries

6. Web applicationUser authentication • ASP.NET provides many options • Integrated Windows authentication • Basic • Digest • .NET Passport • Client certificate • Forms (custom) • eWeek requested forms

7. Web applicationForms authentication • POST user name and password over SSL • Use encrypted cookie to keep logon session • Unauthenticated users can access home page (and a couple others) • Requests to secure pages get redirected to logon page

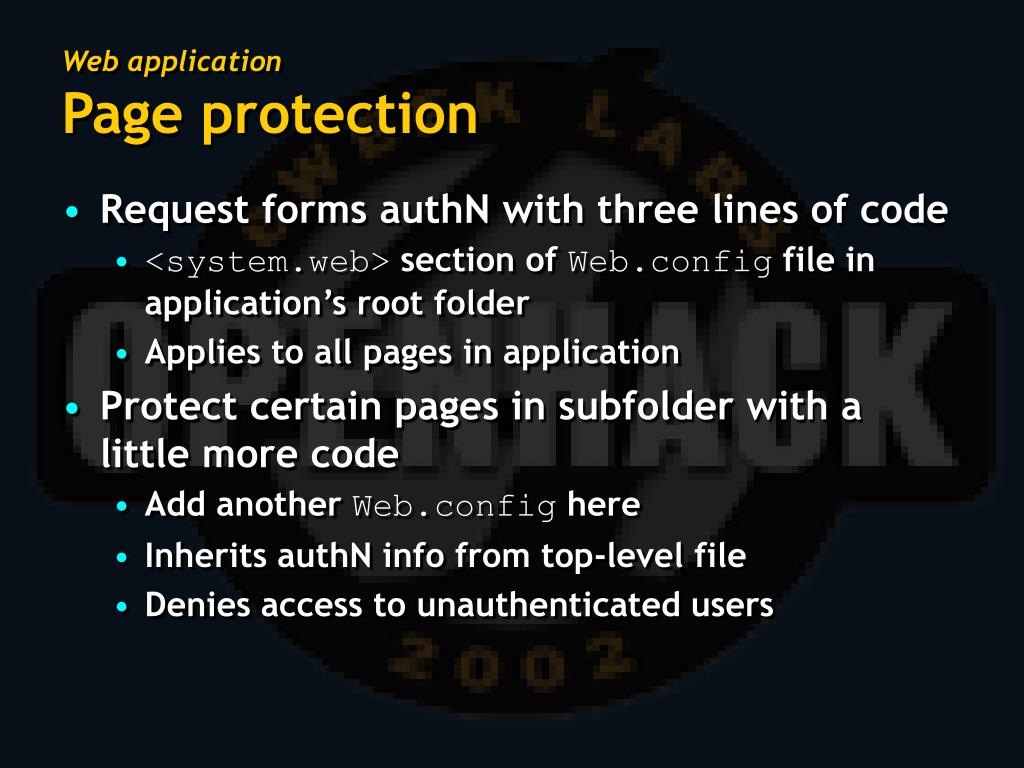

8. Web applicationPage protection • Request forms authN with three lines of code • <system.web> section of Web.config file in application’s root folder • Applies to all pages in application • Protect certain pages in subfolder with a little more code • Add another Web.config here • Inherits authN info from top-level file • Denies access to unauthenticated users

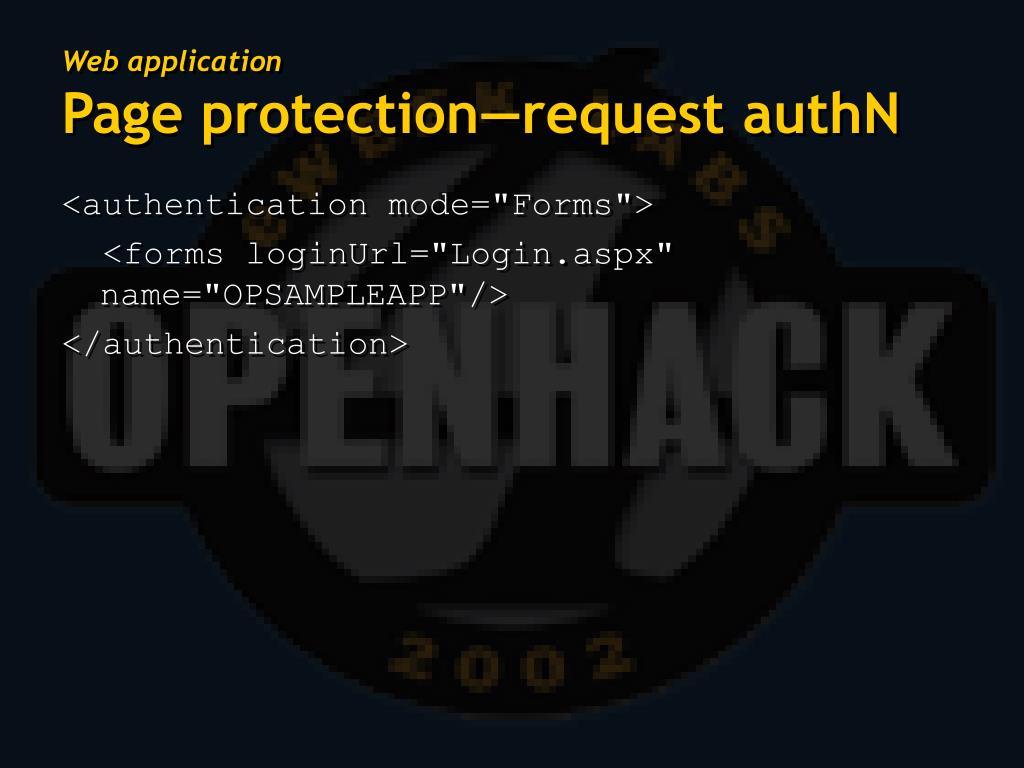

9. Web applicationPage protection—request authN <authentication mode="Forms"> <forms loginUrl="Login.aspx" name="OPSAMPLEAPP"/> </authentication>

10. Web applicationPage protection—required authN <?xml version="1.0" encoding="utf-8" ?> <configuration> <system.web> <authorization> <deny users="?" /> </authorization> </system.web> </configuration>

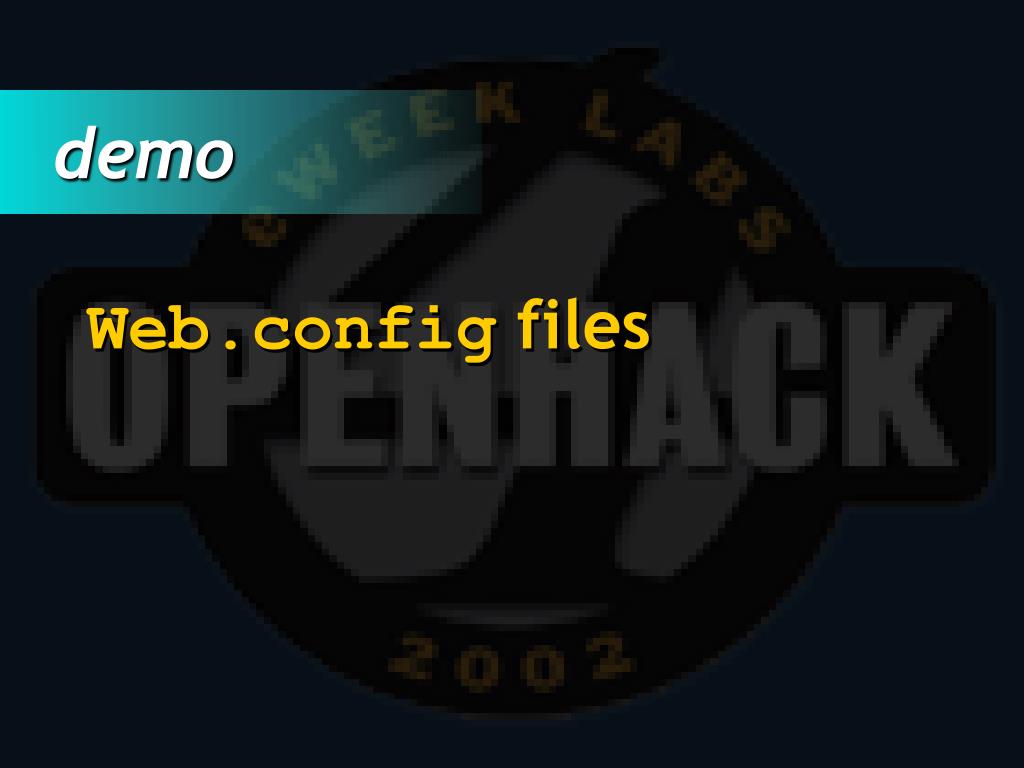

11. demo Web.config files

12. Web applicationAccount creation and login • New account • Encrypt password with 3DES • Store in database with user name • Login to existing account • Encrypt password with 3DES • Compare with encrypted password in database • Create cookie and send to user • System.Web.Security.FormsAuthentication class • All over SSL • Prevents replay attacks

13. Web applicationInput validation • Critically important security function • Ensure user input doesn’t change application’s behavior • Helps guard against— • Buffer overruns • Cross-site scripting • Malicious code execution

14. Web applicationInput validation • Requires multiple layers • Plan for the worst • Assume one or more tiers could be compromised • Four checks • Validate all field input • Validate query string portion of URL • Use stored procedures with type-checked parameters • HTML-encode all data sent to users

15. Web applicationInput validation—1st check • Two ASP.NET classes • RegularExpressionValidator • RequiredFieldValidator • Limited input characters to space, apostrophe, comma, period, letters, numbers • Other characters blocked • Commonly used to upload malicious code

16. Web applicationInput validation—2nd check • Parse URL query string • System.Text.RegularExpressions.Regex • Validate input with regular expression • Allow numbers only Regex isNumber = new Regex("^[0-9]+$"); if(isNumber.Match(inputData) ) { // use it } else { //discard it }

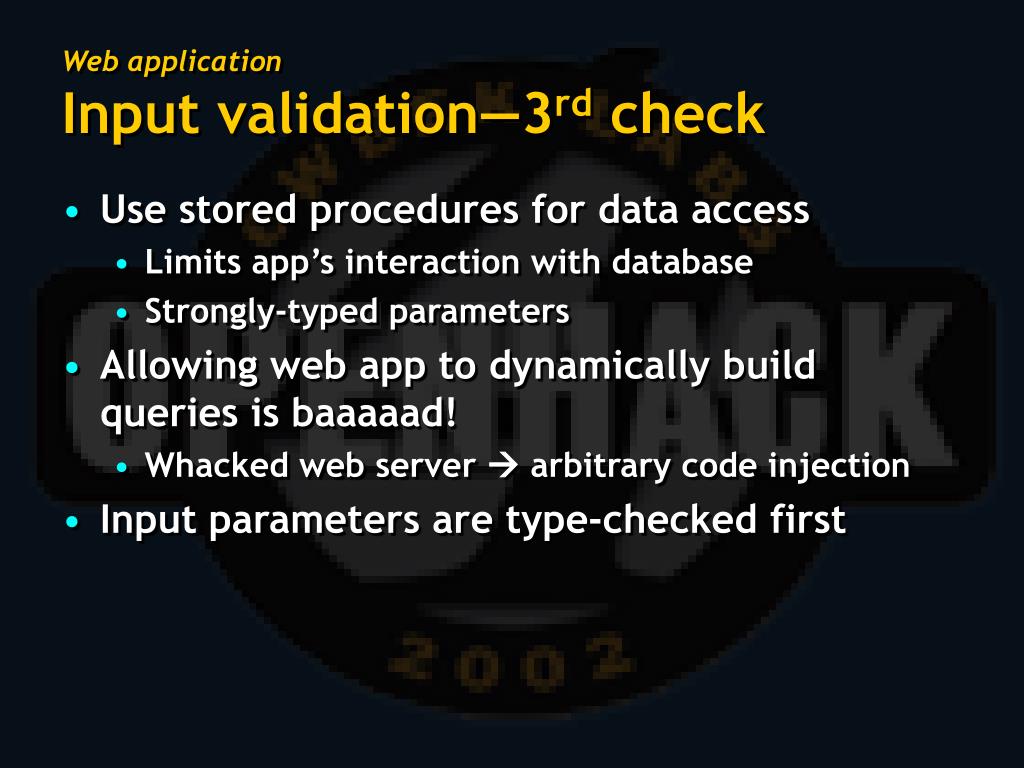

17. Web applicationInput validation—3rd check • Use stored procedures for data access • Limits app’s interaction with database • Strongly-typed parameters • Allowing web app to dynamically build queries is baaaaad! • Whacked web server  arbitrary code injection • Input parameters are type-checked first

18. Web applicationInput validation—4th check • HTML encode all data sent back to user • HtmlEncode method in System.Web.HttpServerUtility class • Prevents cross-site scripting attacks • Compromise database  enter script in records  return to user  execute in browser • Script commands translated to harmless text SomeLabel.Text = Server.HtmlEncode(username);

19. demo Input validation code

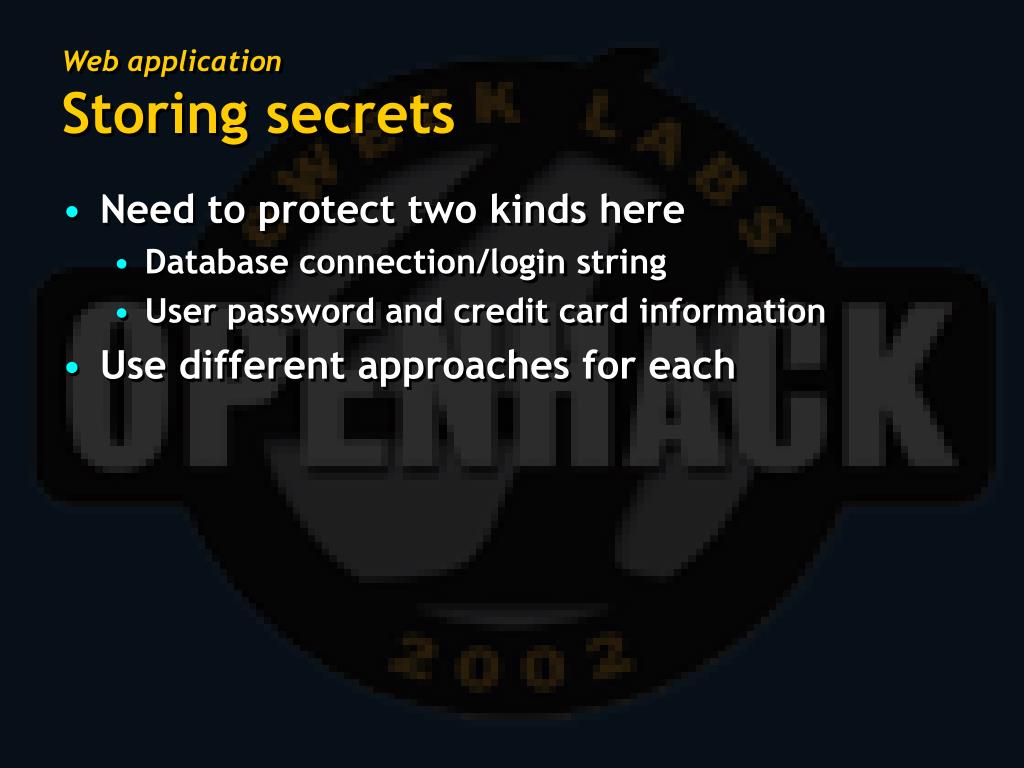

20. Web applicationStoring secrets • Need to protect two kinds here • Database connection/login string • User password and credit card information • Use different approaches for each

21. Web applicationStoring secrets—connection string • Web app needs to authenticate to database • Usual method is to store ID/password in code • Holy grail for an attacker • Use integrated Windows authN • String contains only server location and DB name • Stored in “code-behind” file—core app logic • Not user interface definition files • Still not enough • Attacker on physical machine could read file • So…

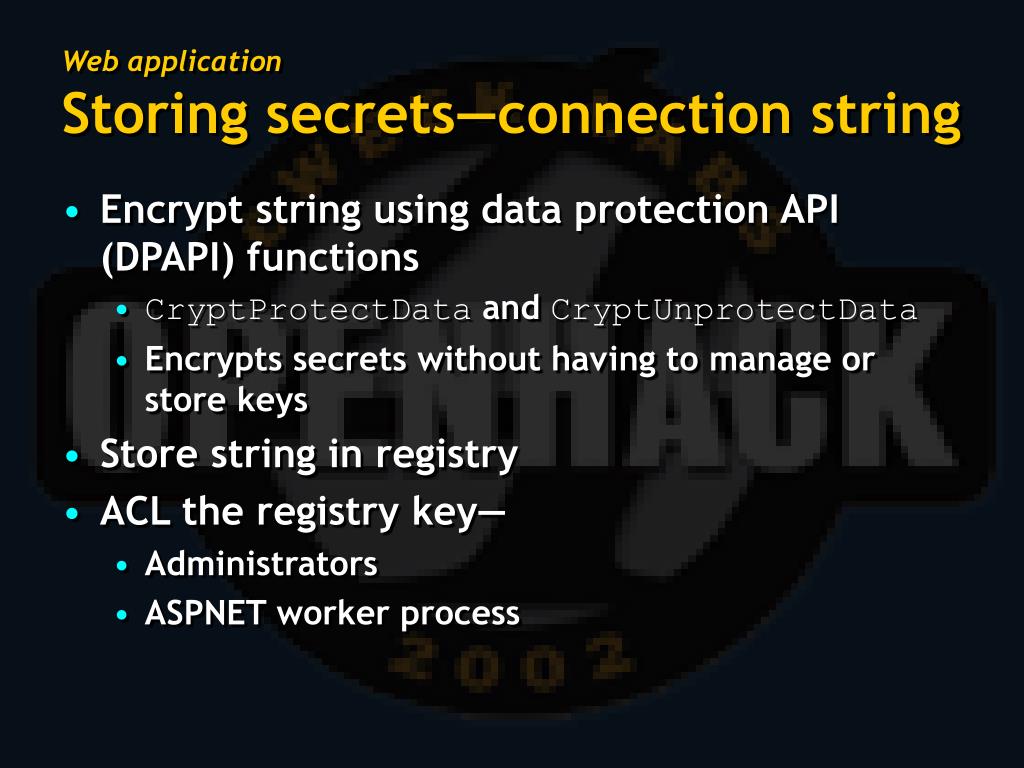

22. Web applicationStoring secrets—connection string • Encrypt string using data protection API (DPAPI) functions • CryptProtectData and CryptUnprotectData • Encrypts secrets without having to manage or store keys • Store string in registry • ACL the registry key— • Administrators • ASPNET worker process

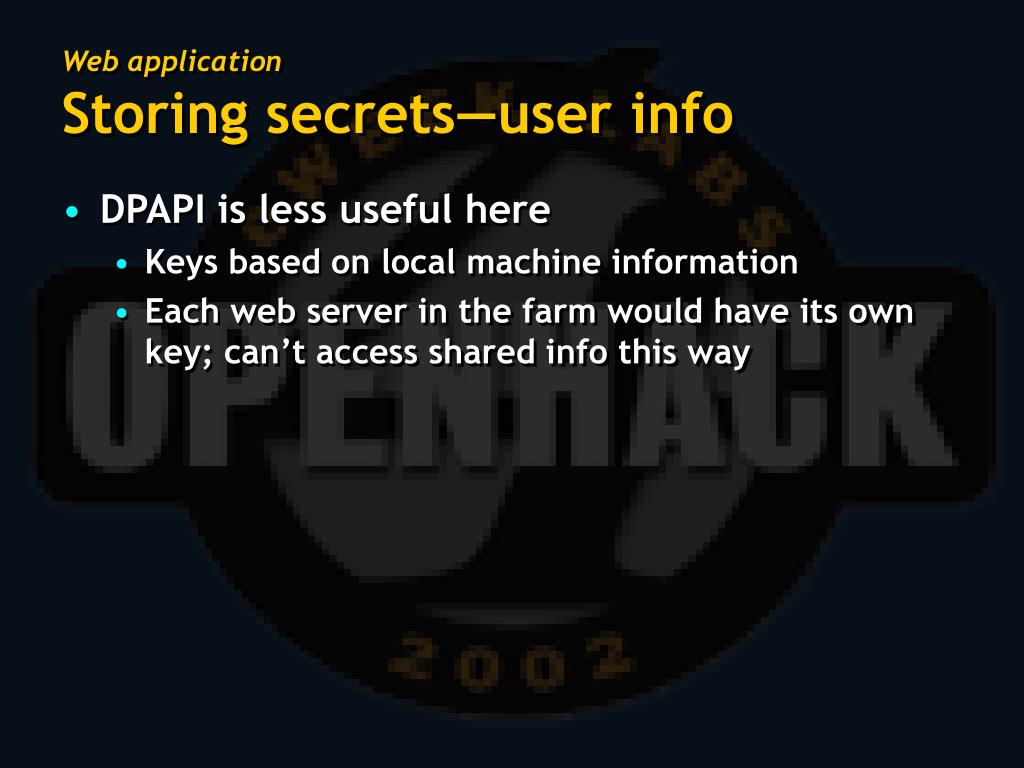

23. Web applicationStoring secrets—user info • DPAPI is less useful here • Keys based on local machine information • Each web server in the farm would have its own key; can’t access shared info this way

24. Web applicationStoring secrets—user info • Generate 3DES encryption key and initialization vector • TripleDES class in System.Security.Cryptography • Symmetrically encrypt password and credit card number stored in DB • Salt: cryptographically strong random first block • Encrypt key and IV with DPAPI and store in ACLed registry on each web server

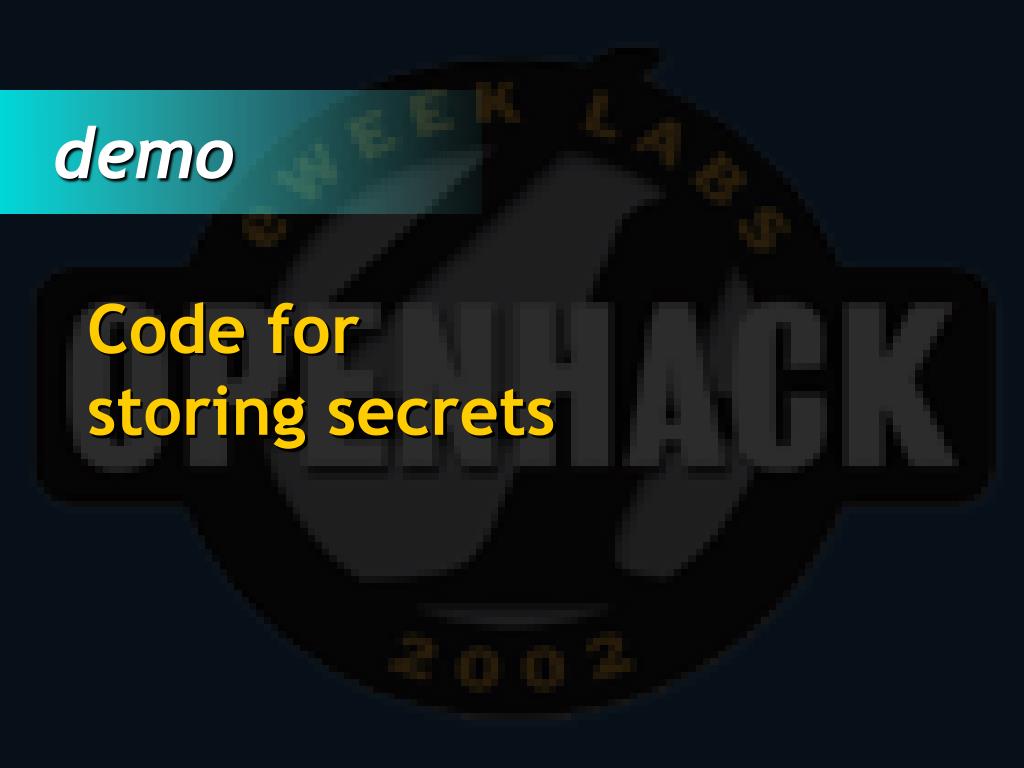

25. demo Code forstoring secrets

26. Internet Information Services 5.0

27. IIS 5.0 • Updated service packs and security patches • Moved default web site • Ran IISLockDown tool • Installed and updated .NET Framework • Remapped extensions • Configured account privileges and permissions • Installed URLScan • Added ACLs to application folder and logs

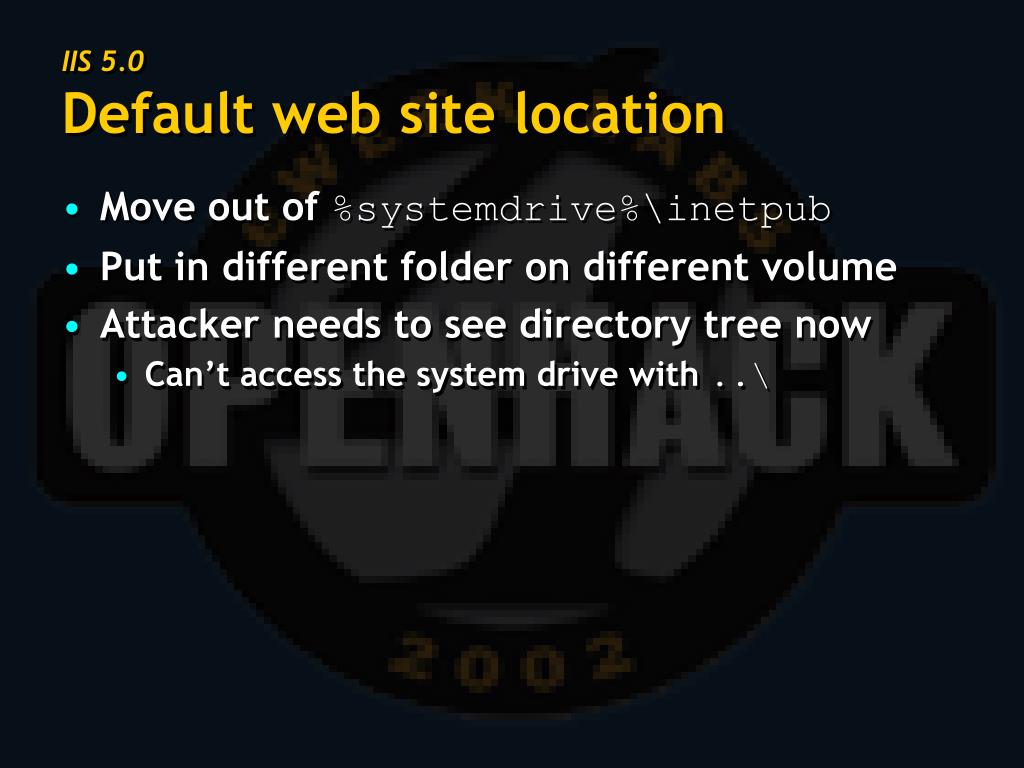

28. IIS 5.0Default web site location • Move out of %systemdrive%\inetpub • Put in different folder on different volume • Attacker needs to see directory tree now • Can’t access the system drive with ..\

29. IIS 5.0IISLockDown • Use static web server template • No need for dynamic content types in this app • Will modify in a bit • Get it now:http://microsoft.com/technet/security/tools/tools/locktool.asp

30. IIS 5.0.NET Framework • Redistributable:http://msdn.microsoft.com/downloads/sample.asp?url=/msdn-files/027/001/829/msdncompositedoc.xml • Service pack 2:http://msdn.microsoft.com/netframework/downloads/updates/sp/default.asp • Latest hotfix (cred strengthening):http://support.microsoft.com/default.aspx?scid=kb;en-us;Q329250 • MDAC 2.7:http://www.microsoft.com/data/download.htm

31. IIS 5.0Remove extension mappings • Need only .aspx and a few static content types • Remap other application extensions to 404.dll extension • Included with IISLockDown

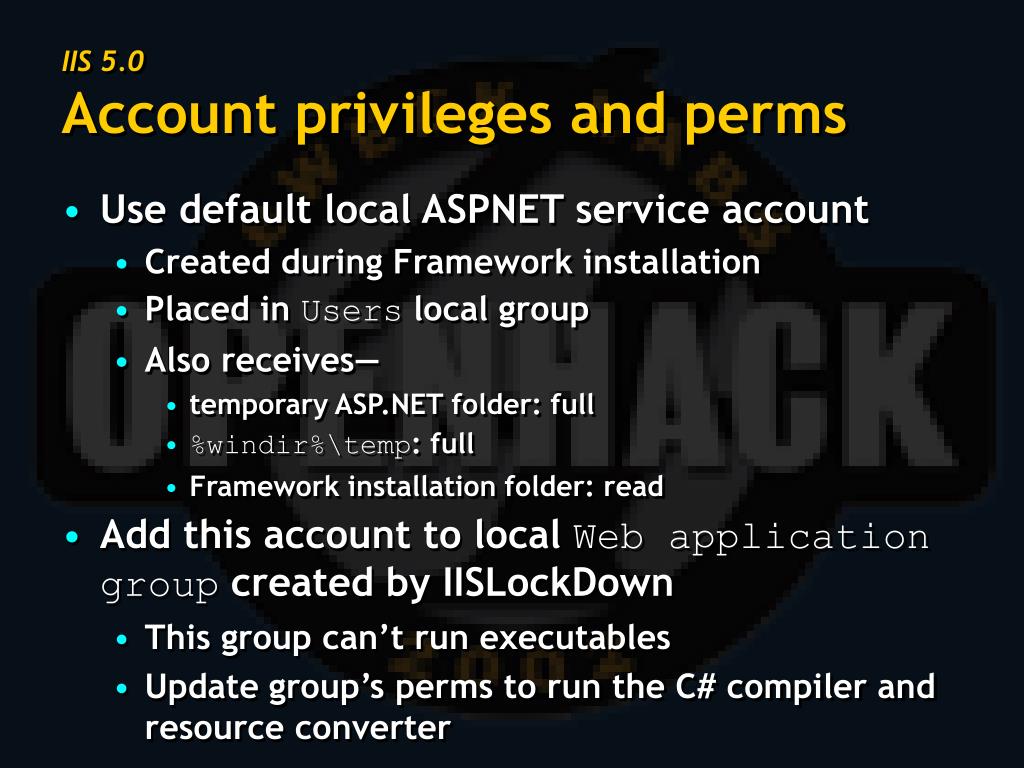

32. IIS 5.0Account privileges and perms • Use default local ASPNET service account • Created during Framework installation • Placed in Users local group • Also receives— • temporary ASP.NET folder: full • %windir%\temp: full • Framework installation folder: read • Add this account to local Web application group created by IISLockDown • This group can’t run executables • Update group’s perms to run the C# compiler and resource converter

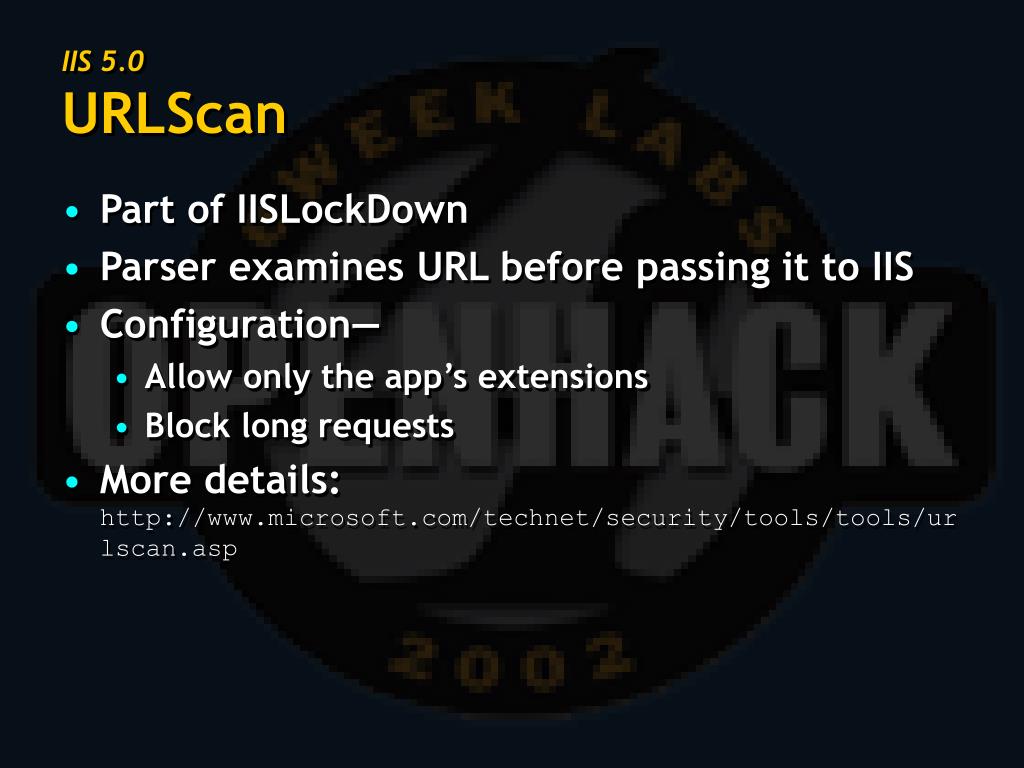

33. IIS 5.0URLScan • Part of IISLockDown • Parser examines URL before passing it to IIS • Configuration— • Allow only the app’s extensions • Block long requests • More details:http://www.microsoft.com/technet/security/tools/tools/urlscan.asp

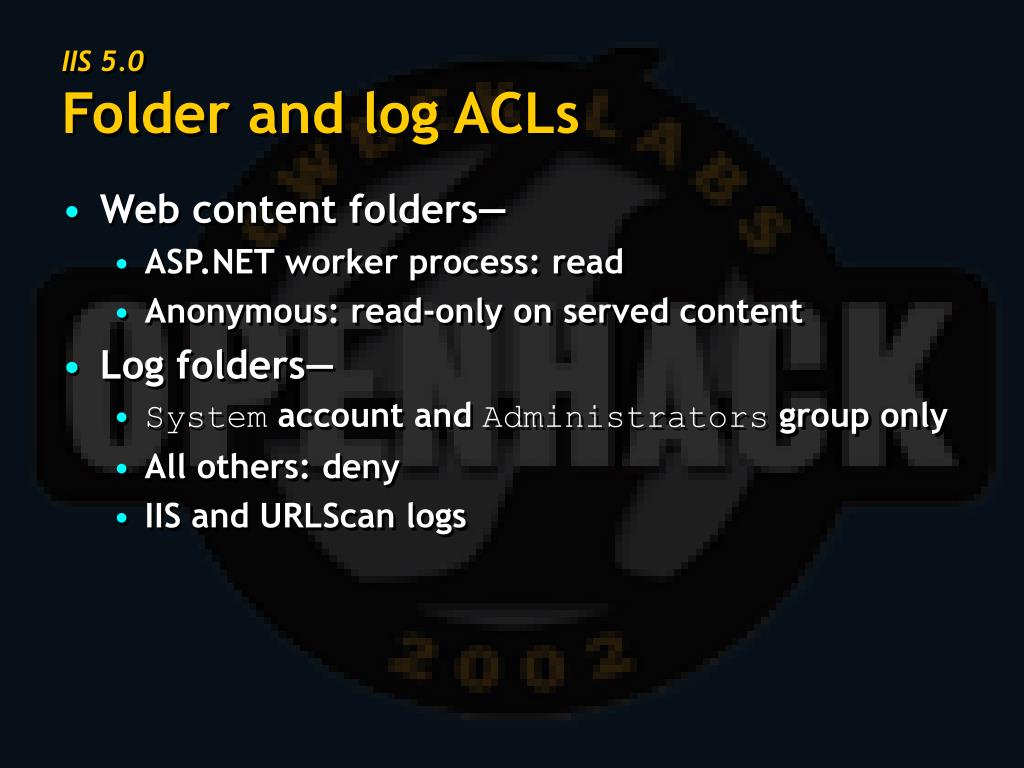

34. IIS 5.0Folder and log ACLs • Web content folders— • ASP.NET worker process: read • Anonymous: read-only on served content • Log folders— • System account and Administrators group only • All others: deny • IIS and URLScan logs

35. demo IISLockDownExtension remappingAccountsURLScanFolder/log ACLs

36. Windows 2000 Advanced Server

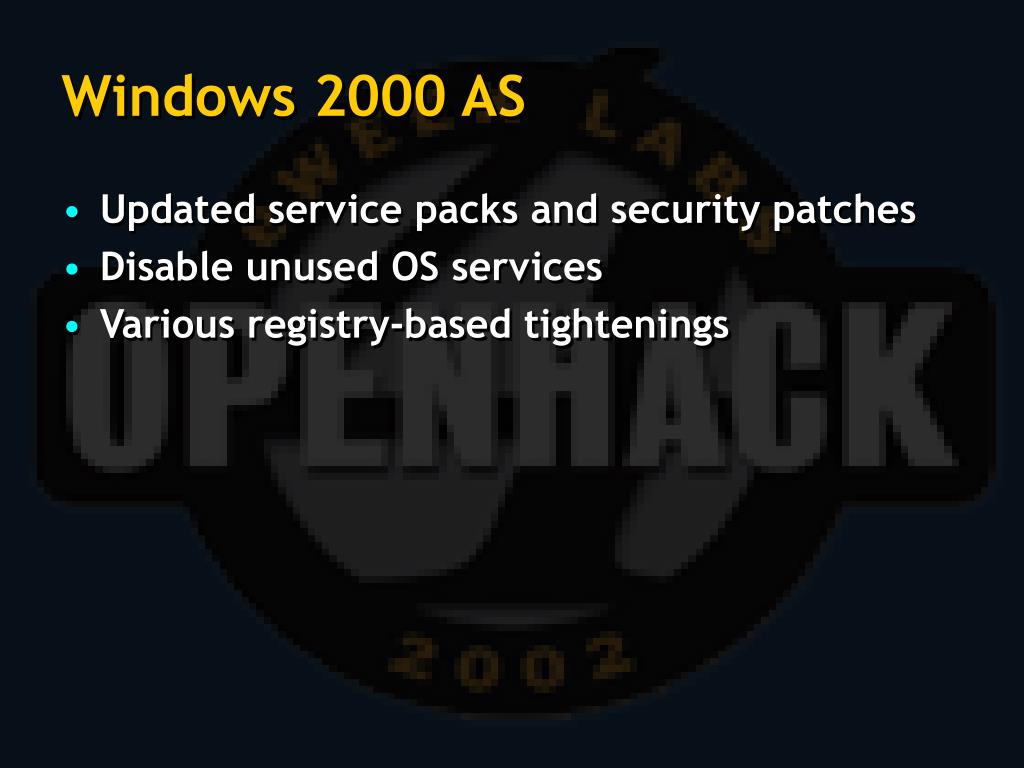

37. Windows 2000 AS • Updated service packs and security patches • Disable unused OS services • Various registry-based tightenings

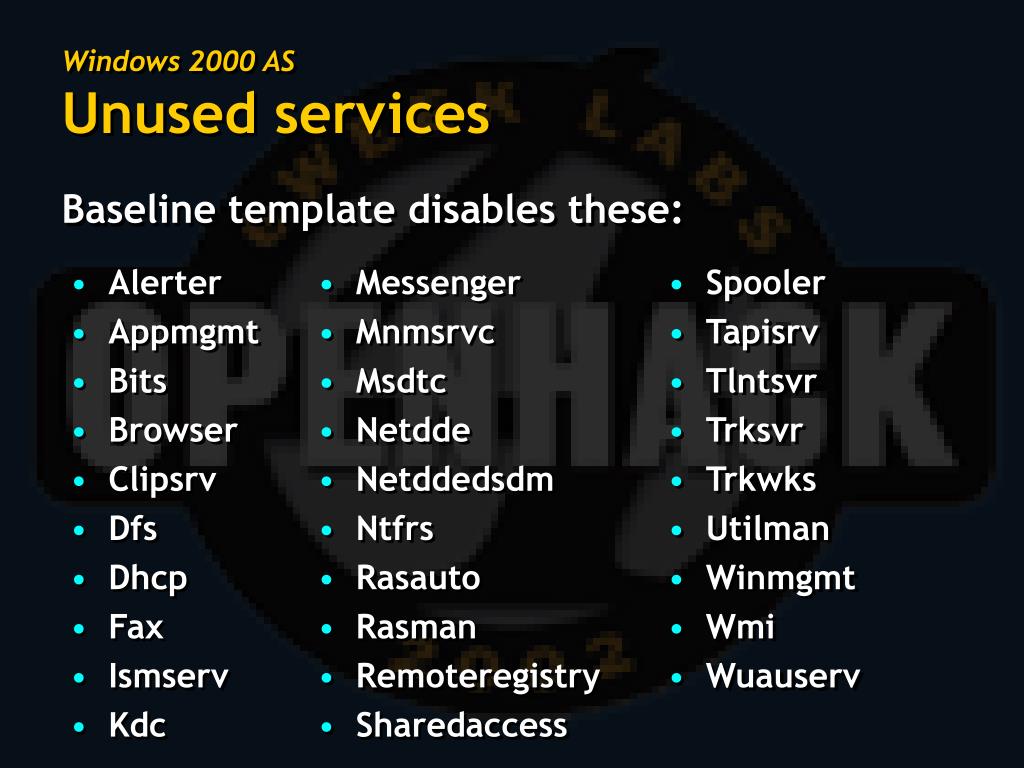

38. Alerter Appmgmt Bits Browser Clipsrv Dfs Dhcp Fax Ismserv Kdc Windows 2000 ASUnused services Baseline template disables these: • Messenger • Mnmsrvc • Msdtc • Netdde • Netddedsdm • Ntfrs • Rasauto • Rasman • Remoteregistry • Sharedaccess • Spooler • Tapisrv • Tlntsvr • Trksvr • Trkwks • Utilman • Winmgmt • Wmi • Wuauserv

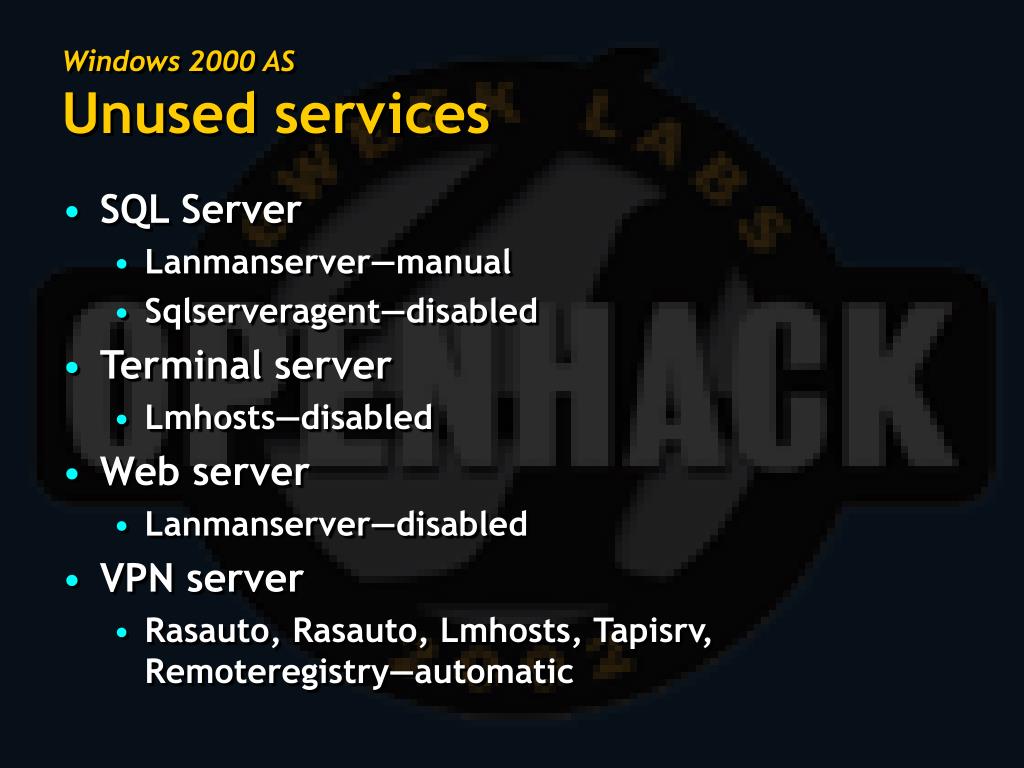

39. Windows 2000 ASUnused services • SQL Server • Lanmanserver—manual • Sqlserveragent—disabled • Terminal server • Lmhosts—disabled • Web server • Lanmanserver—disabled • VPN server • Rasauto, Rasauto, Lmhosts, Tapisrv, Remoteregistry—automatic

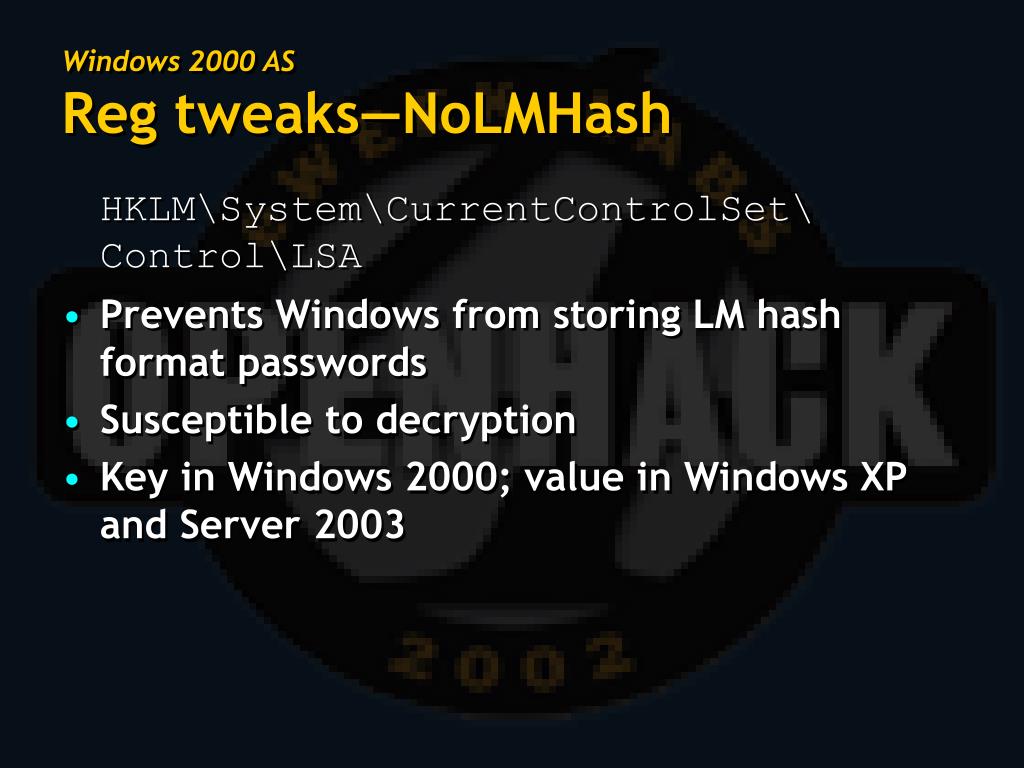

40. Windows 2000 ASReg tweaks—NoLMHash HKLM\System\CurrentControlSet\Control\LSA • Prevents Windows from storing LM hash format passwords • Susceptible to decryption • Key in Windows 2000; value in Windows XP and Server 2003

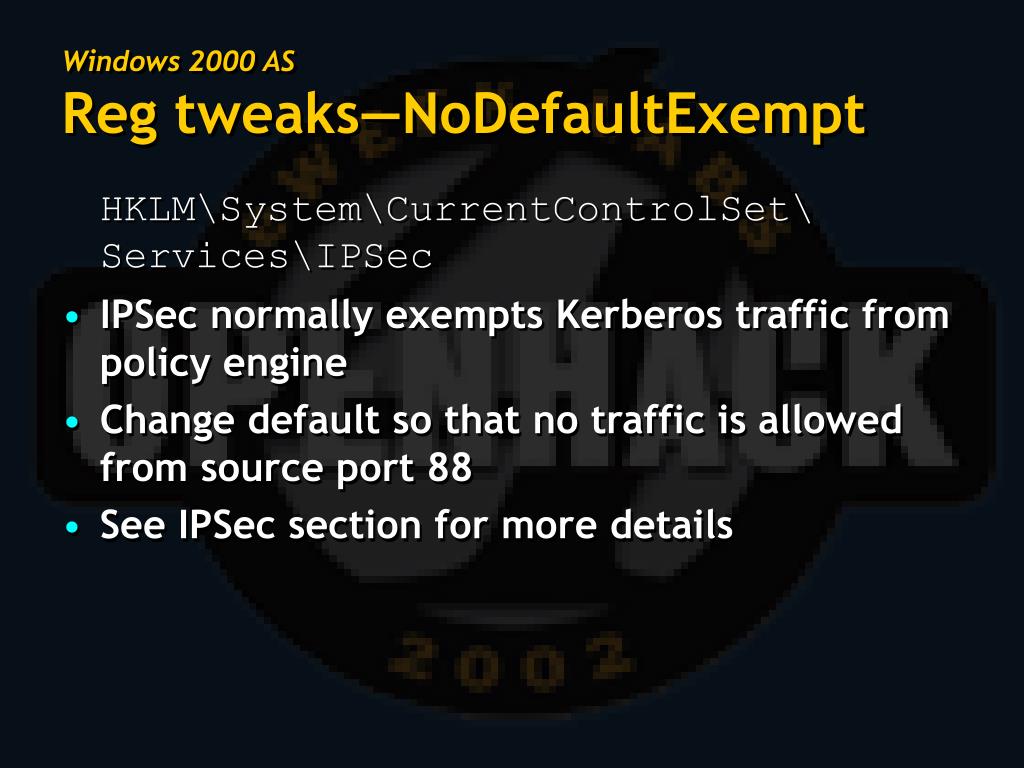

41. Windows 2000 ASReg tweaks—NoDefaultExempt HKLM\System\CurrentControlSet\Services\IPSec • IPSec normally exempts Kerberos traffic from policy engine • Change default so that no traffic is allowed from source port 88 • See IPSec section for more details

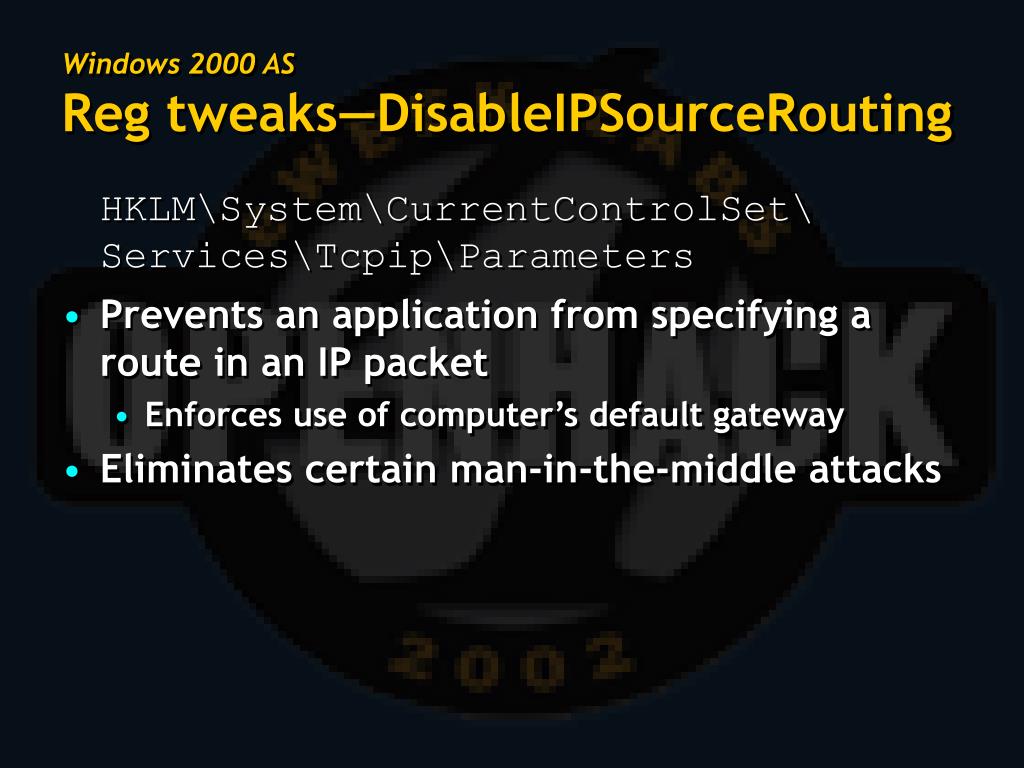

42. Windows 2000 ASReg tweaks—DisableIPSourceRouting HKLM\System\CurrentControlSet\Services\Tcpip\Parameters • Prevents an application from specifying a route in an IP packet • Enforces use of computer’s default gateway • Eliminates certain man-in-the-middle attacks

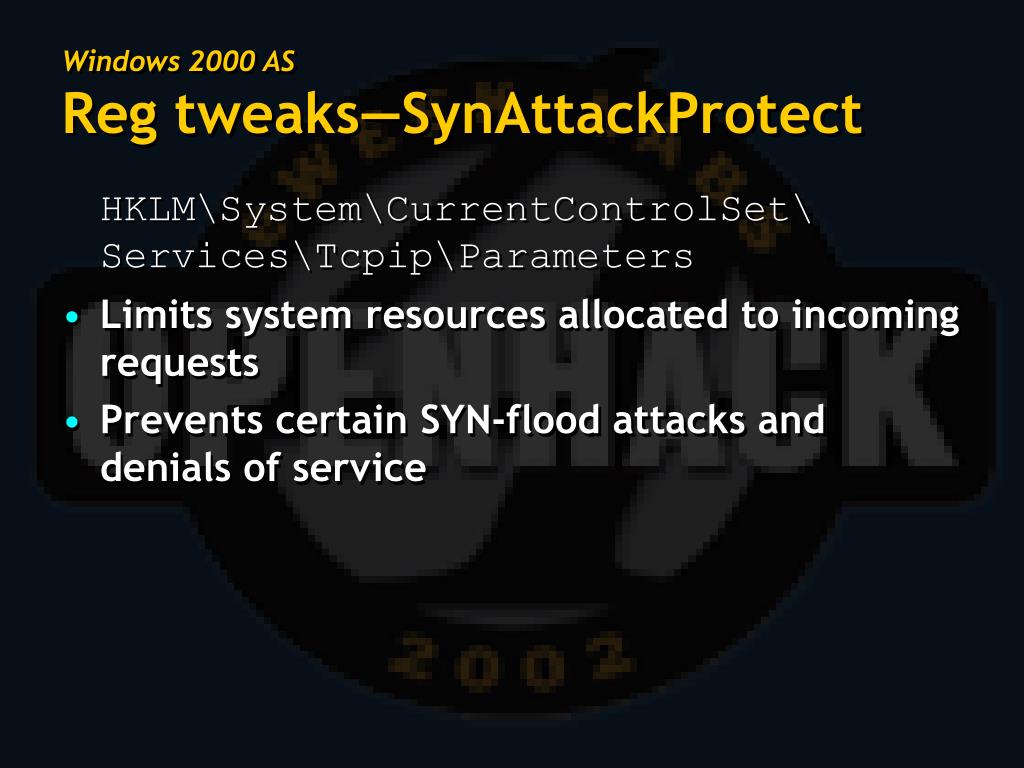

43. Windows 2000 ASReg tweaks—SynAttackProtect HKLM\System\CurrentControlSet\Services\Tcpip\Parameters • Limits system resources allocated to incoming requests • Prevents certain SYN-flood attacks and denials of service

44. demo Registry tweaks

45. IPSec policies

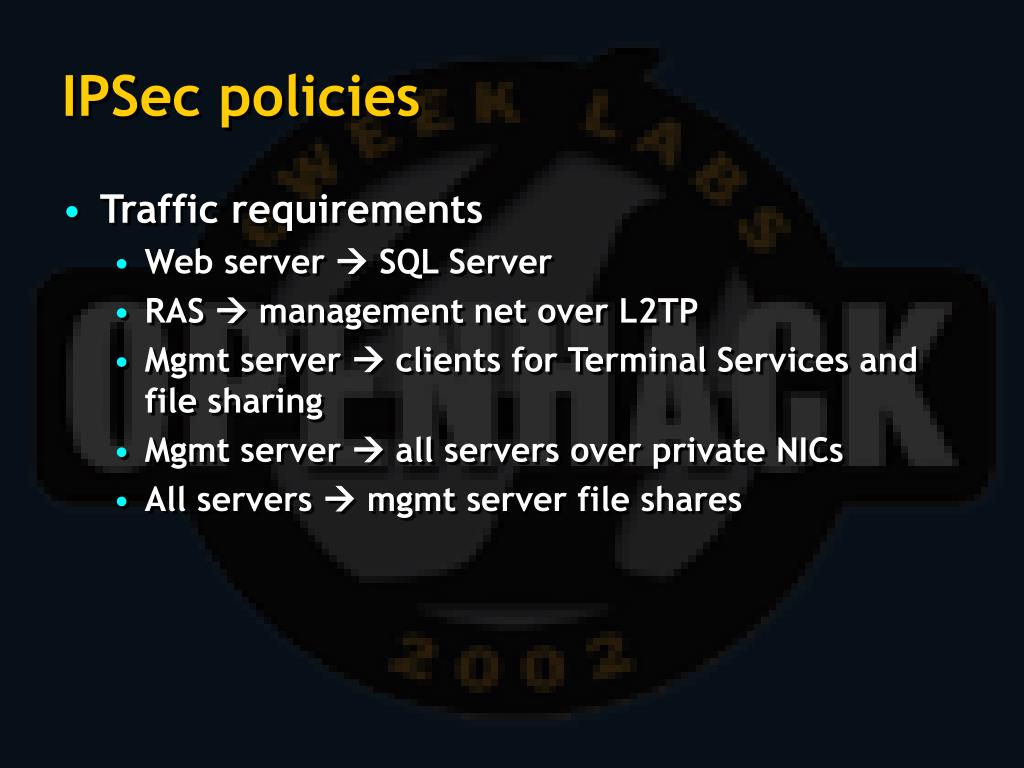

46. IPSec policies • Traffic requirements • Web server  SQL Server • RAS  management net over L2TP • Mgmt server  clients for Terminal Services and file sharing • Mgmt server  all servers over private NICs • All servers  mgmt server file shares

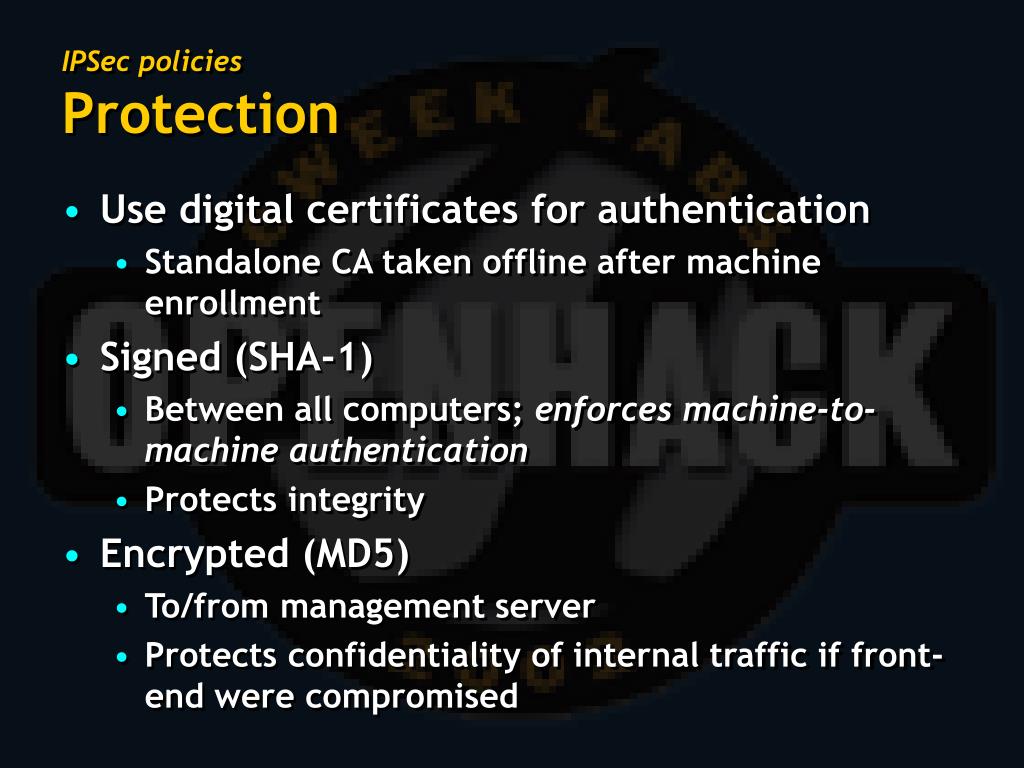

47. IPSec policiesProtection • Use digital certificates for authentication • Standalone CA taken offline after machine enrollment • Signed (SHA-1) • Between all computers; enforces machine-to-machine authentication • Protects integrity • Encrypted (MD5) • To/from management server • Protects confidentiality of internal traffic if front-end were compromised

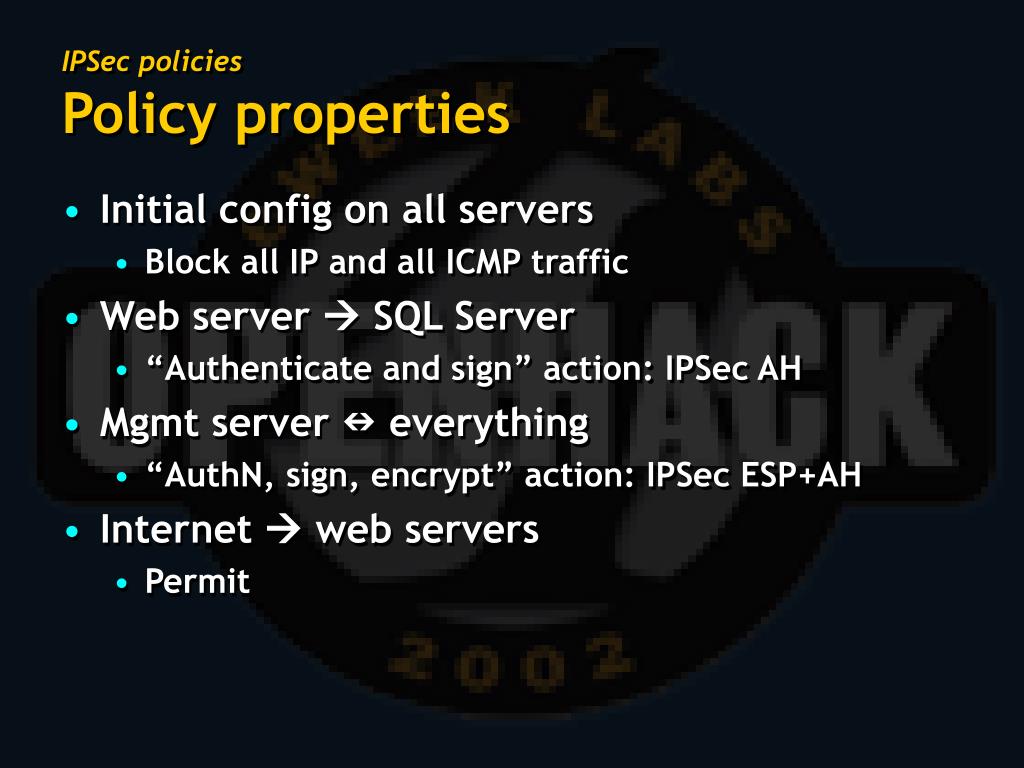

48. IPSec policiesPolicy properties • Initial config on all servers • Block all IP and all ICMP traffic • Web server  SQL Server • “Authenticate and sign” action: IPSec AH • Mgmt server  everything • “AuthN, sign, encrypt” action: IPSec ESP+AH • Internet  web servers • Permit

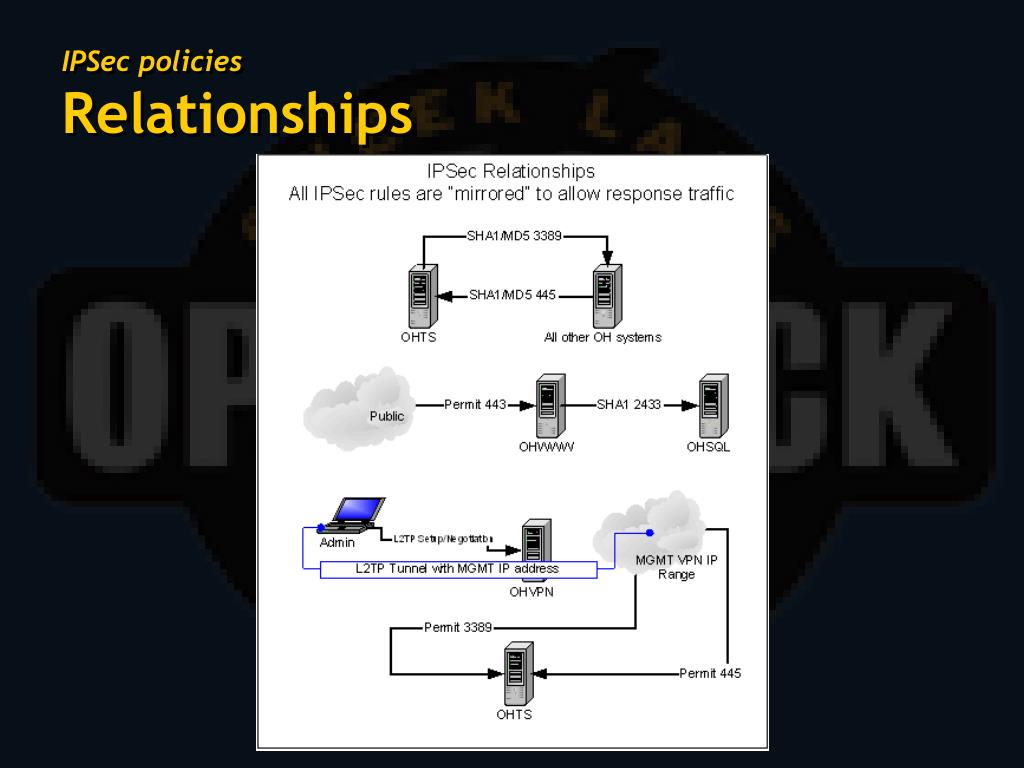

49. IPSec policiesRelationships

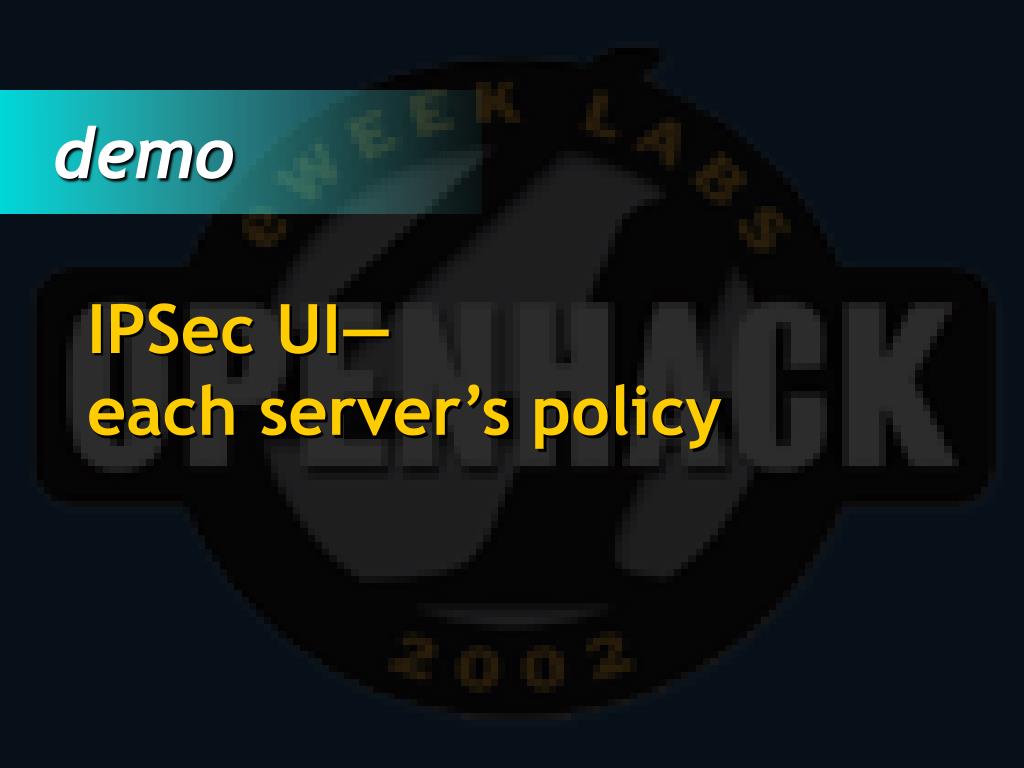

50. demo IPSec UI—each server’s policy
