  1. Lesson 3FPGA Programming Basics • Introduction • Defining FPGA Logic with LabVIEW • FPGA VI Development Process • Developing the FPGA VI • Front Panel Communication • Testing with the Emulator • Compiling the FPGA VI

  2. A. Introduction FPGA Layout and Components

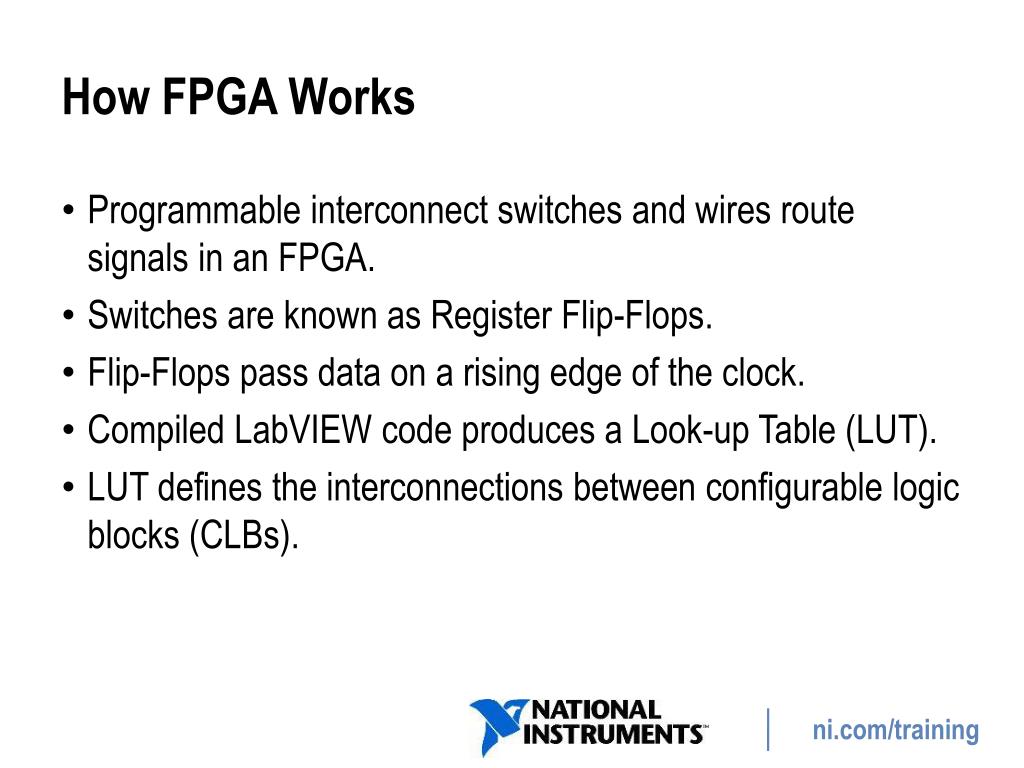

  3. How FPGA Works • Programmable interconnect switches and wires route signals in an FPGA. • Switches are known as Register Flip-Flops. • Flip-Flops pass data on a rising edge of the clock. • Compiled LabVIEW code produces a Look-up Table (LUT). • LUT defines the interconnections between configurable logic blocks (CLBs).

  4. How FPGA Works (continued) Implements a VI that calculates a value for F from inputs A, B, C, and D where F = CD(A + B)

  5. FPGA Family Specifications • Hardware Comparisons • Most important specification is number of logic slices • Slices help to represent the amount of logic that can implemented on a single FPGA • Ways to conserve FPGA space are covered in more detail in Lesson 8: FPGA Optimization

  6. B. Defining FPGA Logic with LabVIEW • FPGA Module • Do not have to learn VHDL • True parallel execution • Deterministic

  7. Compiling LabVIEW VIs to FPGA Hardware • Convert the FPGA VI into executable code • FPGA Module compiles VI • Graphical code translated to VHDL • Xilinx ISE compiler creates circuit from VHDL • Compiler optimizes the implementation • A bitstream file results • Bitstream loads at run time • Bitstream reloads at power-up • On-board flash memory • Controller over PCI Bus

  8. Benefits of FPGA Logic in LabVIEW • FPGA provides: • Timing • Triggering • Processing • Custom I/O • Each fixed I/O uses a portion of the FPGA logic • The PCI interface also uses a portion of the FPGA logic

  9. C. FPGA VI Development Process • Keep in mind… • No operating system on the FPGA • Download and run one top-level VI at a time • FPGA can run independently of the host • FPGA can store data • Editing a VI in the FPGA Target activates the FPGA palette • Integer math and fixed-point math

  10. D. Developing the FPGA VI • FPGA is fast and reliable • FPGA has limited space

  11. Add a VI Under the FPGA Target

  12. Demonstration • Create an FPGA VI and explore the Functions palette supported under FPGA.

  13. E. Front Panel Communication • FPGA Front Panel • Use simple controls and indicators • Use controls and indicators only when the value will be needed on the host • Use temporary controls and indicators for debugging

  14. Interactive Front Panel Communication

  15. Interactive Front Panel Communication (continued) • FPGA has no user interface • Must communicate data from FPGA to host PC • Requires no additional programming • Front panel displays on host PC • Block diagram executes on FPGA as compiled • Communication layer shares all control and indicator values • Cannot use debugging tools when running FPGA VI • Test with Emulator first, or add indicators as probes

  16. F. Testing with the Emulator • Compiling—few minutes to several hours • Verify logic before compiling • LabVIEW bit-accurate emulation mode • Executes logic on the Windows PC • Traditional debugging tools are available • Two kinds of emulation • Random data for inputs • Target hardware for I/O

  17. Using the Emulator • Right-click the FPGA Target in the Project Explorer window and select Properties. • Select General. • Select an Emulator option. • Click OK. • Run the VI. • *Set the Emulator to Off after test

  18. Exercise 3-1: Creating a LabVIEW FPGA VI • Create a VI that adds two numbers and runs a benchmark in parallel that determines how fast code is running. • Run the VI in emulation mode and use debugging tools.

  19. G. Compiling the FPGA VI • Click Run • Converts graphical code to VHDL • Generates intermediate files

  20. Compiling VI for FPGA Dialog Box • Disconnect – Disconnects from the Compile Server so that you can continue working in LabVIEW • Follow instructions in the dialog box to reconnect

  21. LabVIEW FPGA Compile Server Dialog Box • Tools»FPGAModule»Start Local Compile Server to view previous compile reports • Click Compile List

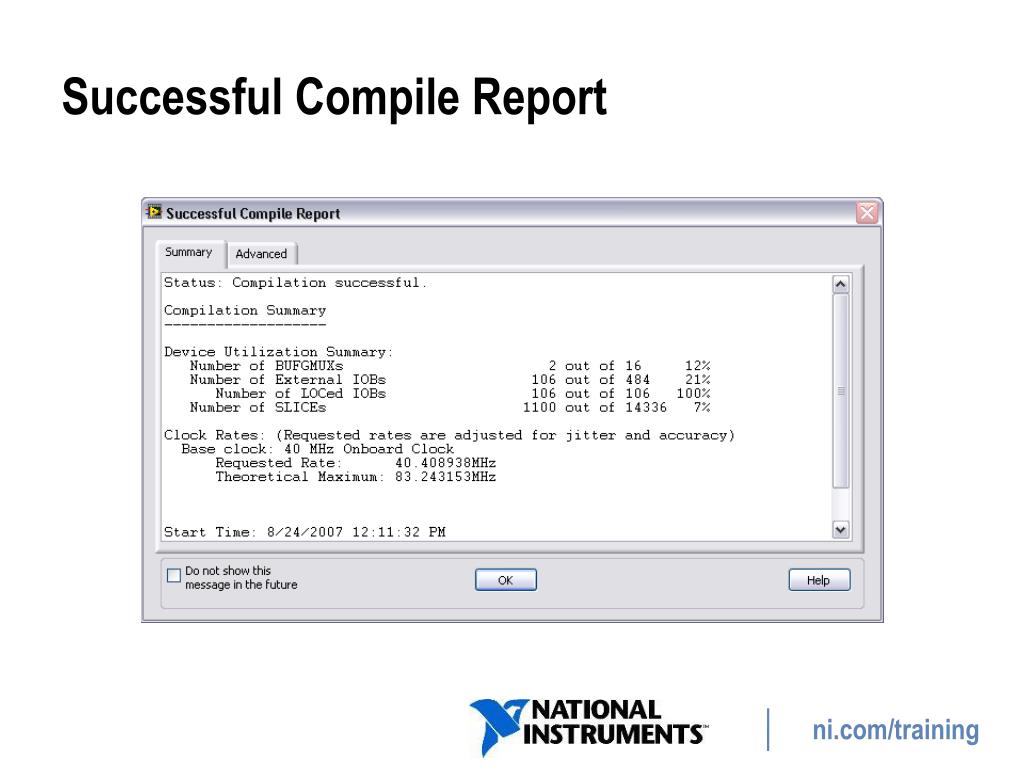

  22. Successful Compile Report

  23. Exercise 3-2: Compile a LabVIEW FPGA VI • Compile the application created in Exercise 3-1.

  24. Summary—Quiz • 1. The FPGA VI runs in an operating system on the FPGA processor. a. True b. False • 2. You must know VHDL programming to reconfigure the FPGA. a. True b. False

  25. Summary—Quiz • 3. The FPGA can achieve true, simultaneous parallel processing of parallel operations. a. True b. False • 4. Interactive Front Panel Communication runs the front panel on the Windows PC and the circuit configured from the block diagram on the FPGA. a. True b. False
