  1. Database Replication Heinz Stockinger CERN-EP/CMC University of Vienna

  2. Outline • Requirements for Distributed and Replicated Databases • Objectivity/DRO 5.2 tests between CERN and Japan • Limitations of DRO • Possible replication methods • Communication between federations with CORBA Database Replication, 2

  3. Distributed/Replicated Databases • CMS foresees Regional Centres to enhance computing facilities • [figures based on Monarc] • raw data: 100% CERN, 5% RC • reconstructed data 100% CERN, 50 - 100% RC • tag data 100% CERN, 100% RC Regional Centre Regional Centre Regional Centre Database Replication, 3

  4. Some use cases • Reconstruction at CERN - copies of these data should be available in RCs with a certain delay of time • tag data should be available “everywhere” • analysis of data will be done at CERN and RCs • not all data are replicated: • enable remote data access with a reasonable low response time Database Replication, 4

  5. Objectivity/Data Replication Option • three possible replication methods: • 1. Synchronous replication: write to a replicated DB needs a quorum of all other replicas • replicate (empty DB) - populate • 2.“Asynchronous” methods: 2.a) populate - replicate 2.b) replicate - off-line - populate - on-line (recalculation of quorum in V5.2) Database Replication, 5

  6. Objectivity/DRO 5.2 tests CERN - Japan • 3 different methods have been tested on LAN • tests extended to WAN (thanks to Youhei Morita!, Monarc) • DRO 5.1 tests already done by Hiroyuki Sato (KEK) • between CERN and Japan: 2 Mbps network link • machines used: • monarc01, at CERN • arksol1, at KEK • arksol2, at KEK Database Replication, 6

  7. Replicate - populate on WAN 8k page 32k page Small objects: 1 int 2.2 MB written 2.7 MB written Cache250 Cache10 Cache250 ~2.5 s ~2.5 s ~2.7 s DB1 local ~880 kB/s ~1080kB/s ~1000 kB/s remote ~56 s ~48-72 s ~38 s ~40kB/s ~36-~54kB/s ~71 kB/s “Repl” write 1 DB1 AP1 DB1 AP2 ~50 s ~124 s ~62-71 s ~2x17 kB/s ~2x37/43 kB/s ~2X54 kB/s AMS AMS WAN “Repl” write 2 ~73 s ~64 s ~131 s DB1 AP1 DB1 AP2 ~3x17 kB/s ~3x37 kB/s ~3x42 kB/s DB1 AP3 AMS AMS Less time for commit AMS WAN FTP ~77kB/s Database Replication, 7

  8. Populate - replicate on WAN • RPC timeout has to be adjusted • test done with 32k page: • replicate 4.5 MB • ~356s = ~12 kB/s • compare to replicating empty DB: • replicate 1.8 MB • ~180s = ~10 kB/s • see Hiroyuki Sato: much overhead on handshake • replicated write looks much better Database Replication, 8

  9. Conclusion on Objectivity/DRO • Features are not adequate for event data • DRO only works for a single federation • but we still want to have fully replicated Objy DB files Database Replication, 9

  10. My aims for replicated federations • current solution: • reserve DB IDs for federations • manually copy DB - FTP the DB - attach the DB to another destination • don’t want to use manual FTP to copy DB files • want to automate this procedure • want to add other features like • replicate only containers or certain objects • asynchronous replication (on demand) • communication between federations (e.g. to synchronise fd catalogue operations) • want to study possible update mechanisms Database Replication, 10

  11. Replication algorithm for Objy DB files • DB IDs have to be identical • synchronisation only needs to be done on the DB catalogue • total order of DB creation among all federations (DB IDs can be reserved for certain federations) • there is no need to synchronise the actual writing of data • relax consistency of data (too often used in replication research but in HEP it is a real feature) • transfer DB files asynchronously to federations when there is/are time/resources • can be do in a batch mode • network traffic can be monitored: send file when the network is not heavily used Database Replication, 11

  12. CORBA: A Communication mechanism • Federations need to “communicate” with each other • assume each RC (including CERN) has one federation ObjyFD CERN CORBA ObjyFD RC1 ObjyFD RC2 CORBA CORBA WAN Database Replication, 12

  13. CORBA as replication server • Each federation has a CORBA replication server: • transferring files (entire DB files or only parts of a DB) • exchange synchronisation messages (RPC) • execute update on local federation • propagate new data (changes) to other federations • the usage of CORBA servers is a research project and needs a deep understanding of how CORBA can be applied for • efficient data transfer • possibility of remote access of data Database Replication, 13

  14. Efficient data transfer • CORBA does not have too outstanding “high-performance” features but: • the transfer of DB files to RCs does not have to be in real time (can have a certain delay) • communication mechanism and client-server paradigm is dominating • I plan to convert parts of the event data into XML • and send XML files over the network • integrate the XML files into the remote federation • this work is part of the WISDOM project Database Replication, 14

  15. ... container DB Preliminary work on Partial Replication in Objy • investigation of copying single containers • problem with associations that lead to other containers • principle tests: can a single container with associations be copied without knowing about the schema? NO: • deep copy of Objectivity is not sufficient • 1:1 associations can’t be deep copied • ooCopyInit () can’t use a parameter (always copy to the same container) Database Replication, 15

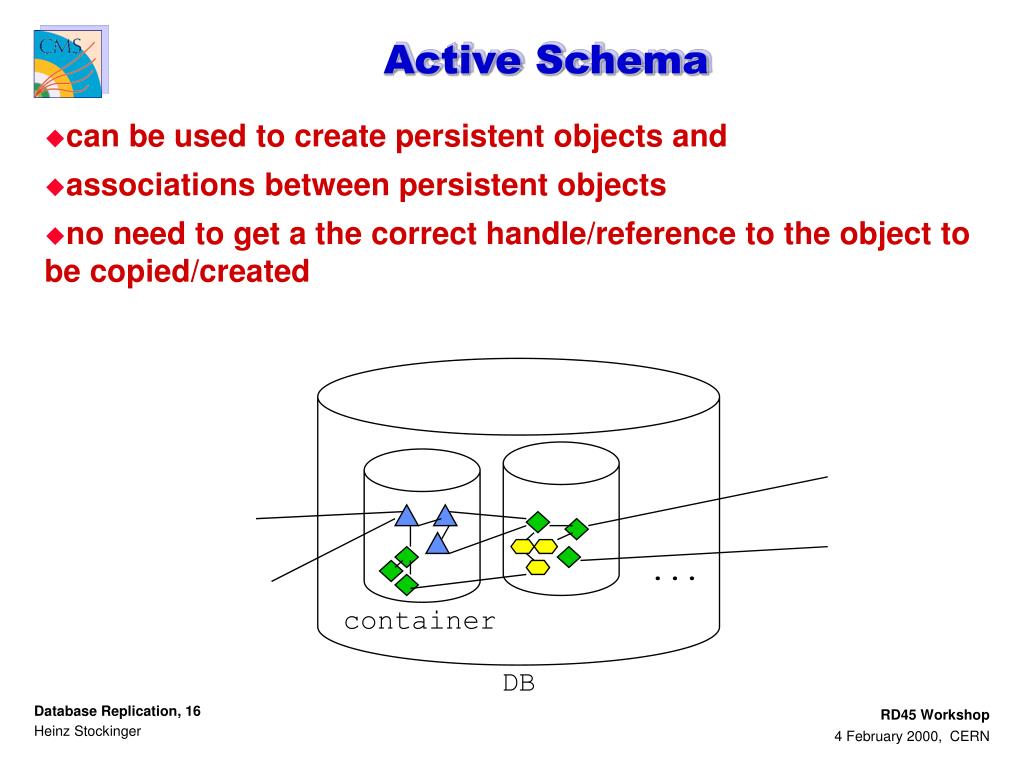

  16. ... container DB Active Schema • can be used to create persistent objects and • associations between persistent objects • no need to get a the correct handle/reference to the object to be copied/created Database Replication, 16

  17. Open research questions • In how far can a transparent system for Regional Centres be established? • Remote data access with CORBA servers: • read from the “closest replica” in terms of network cost and server load: • monitoring tools have to be explored and integrated into a “remote access engine” • What happens if metadata (DB schema) changes? • How to deal with different versions of objects? Database Replication, 17

  18. Summary • Needs for replicated data for the CMS experiment have been investigated • currently available replication features of Objectivity have been studied and tested • Objectivity/DRO does not satisfy our needs • alternative solutions have to be provided • I have chosen CORBA as a communication mechanism for further research Database Replication, 18
