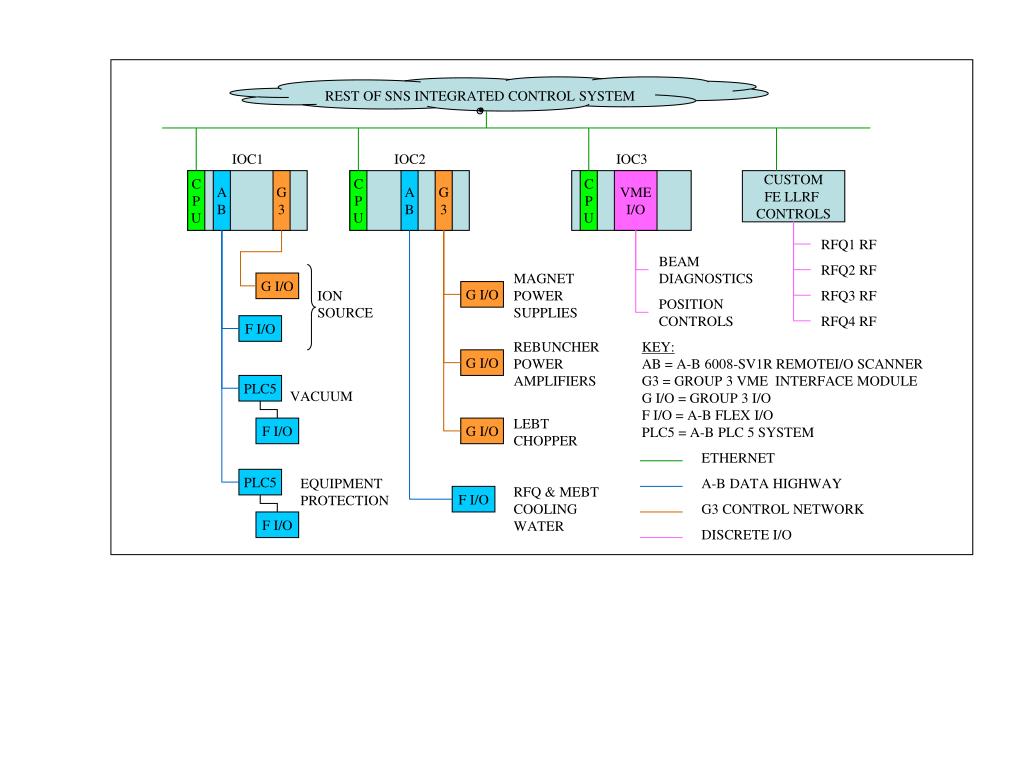

  1. REST OF SNS INTEGRATED CONTROL SYSTEM IOC1 IOC2 IOC3 C P U A B G 3 C P U A B G 3 C P U VME I/O CUSTOM FE LLRF CONTROLS RFQ1 RF BEAM DIAGNOSTICS RFQ2 RF MAGNET POWER SUPPLIES G I/O ION SOURCE G I/O RFQ3 RF POSITION CONTROLS RFQ4 RF F I/O REBUNCHER POWER AMPLIFIERS KEY: AB = A-B 6008-SV1R REMOTEI/O SCANNER G3 = GROUP 3 VME INTERFACE MODULE G I/O = GROUP 3 I/O F I/O = A-B FLEX I/O PLC5 = A-B PLC 5 SYSTEM G I/O PLC5 VACUUM LEBT CHOPPER F I/O G I/O ETHERNET PLC5 EQUIPMENT PROTECTION A-B DATA HIGHWAY RFQ & MEBT COOLING WATER F I/O G3 CONTROL NETWORK F I/O DISCRETE I/O

  2. REST OF SNS INTEGRATED CONTROL SYSTEM VAC IOC IOC1 IOC2 IOC3 LLRF IOC1 P.S. IOC C P U C P U G 3 C P U G 3 C P U VME I/O C P U SNS LLRF MODULES C P U G 3 NAD NAD BEAM DIAG. BEAM DIAG. POSITION CONTROLS RFQ1 RF G I/O G I/O REBUNCHER POWER AMPLIFIERS RFQ2 RF MAGNET POWER SUPPLIES ION SOURCE G I/O LLRF IOC2 CL PLC C P U SNS LLRF MODULES CL PLC KEY: B I/O = BECKHOFF I/O CL PLC = A-B CONTROLLOGIX PLC SYS. G3 = GROUP 3 VME INTERFACE MODULE G I/O = GROUP 3 I/O F I/O = A-B FLEX I/O NAD = PC-BASED “NETWORK ATTACHED DEVICE” VACUUM RFQ & MEBT COOLING WATER F I/O F I/O RFQ3 RF ION SOURCE F I/O RFQ4 RF MEBT CHOPPER B I/O CL PLC ETHERNET EQUIP. PROTECT. LEBT CHOPPER A-B CONTROLNET B I/O F I/O G3 CONTROL NETWORK DISCRETE I/O
