1. Decentralizing Grids Jon Weissman University of Minnesota E-Science Institute Nov. 8 2007

2. Roadmap • Background • The problem space • Some early solutions • Research frontier/opportunities • Wrapup

3. Background • Grids are distributed … but also centralized • Condor, Globus, BOINC, Grid Services, VOs • Why? client-server based • Centralization pros • Security, policy, global resource management • Decentralization pros • Reliability, dynamic, flexible, scalable • **Fertile CS research frontier**

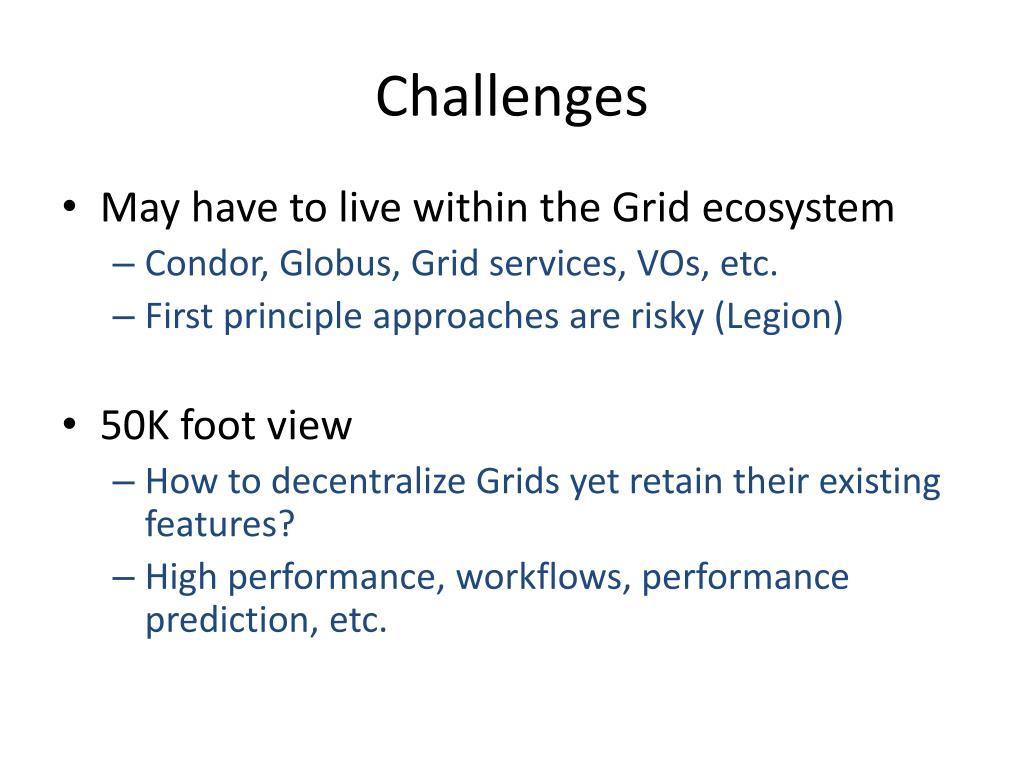

4. Challenges • May have to live within the Grid ecosystem • Condor, Globus, Grid services, VOs, etc. • First principle approaches are risky (Legion) • 50K foot view • How to decentralize Grids yet retain their existing features? • High performance, workflows, performance prediction, etc.

5. Decentralized Grid platform • Minimal assumptions about each “node” • Nodes have associated “assets” (A) • basic: CPU, memory, disk, etc. • complex: application services • exposed interface to assets: OS, Condor, BOINC, Web service • Nodes may up or down • Node trust is not a given (do X, does Y instead) • Nodes may connect to other nodes or not • Nodes may be aggregates • Grid may be large > 100K nodes, scalability is key

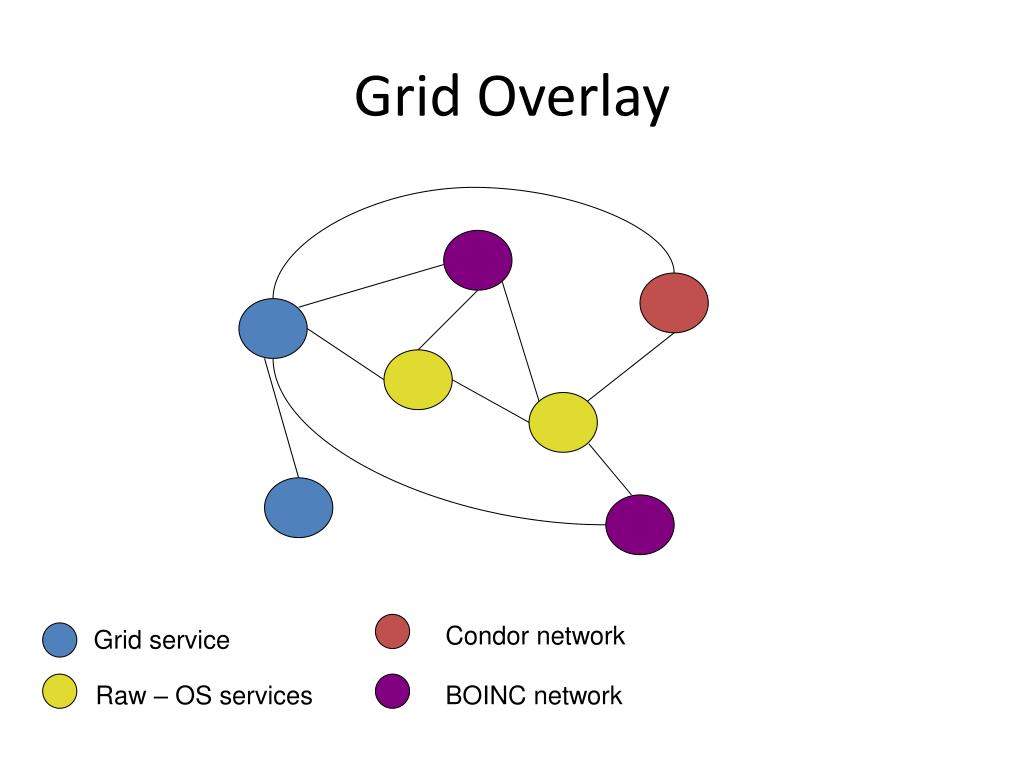

6. Grid Overlay Condor network Grid service Raw – OS services BOINC network

7. Grid Overlay - Join Condor network Grid service Raw – OS services BOINC network

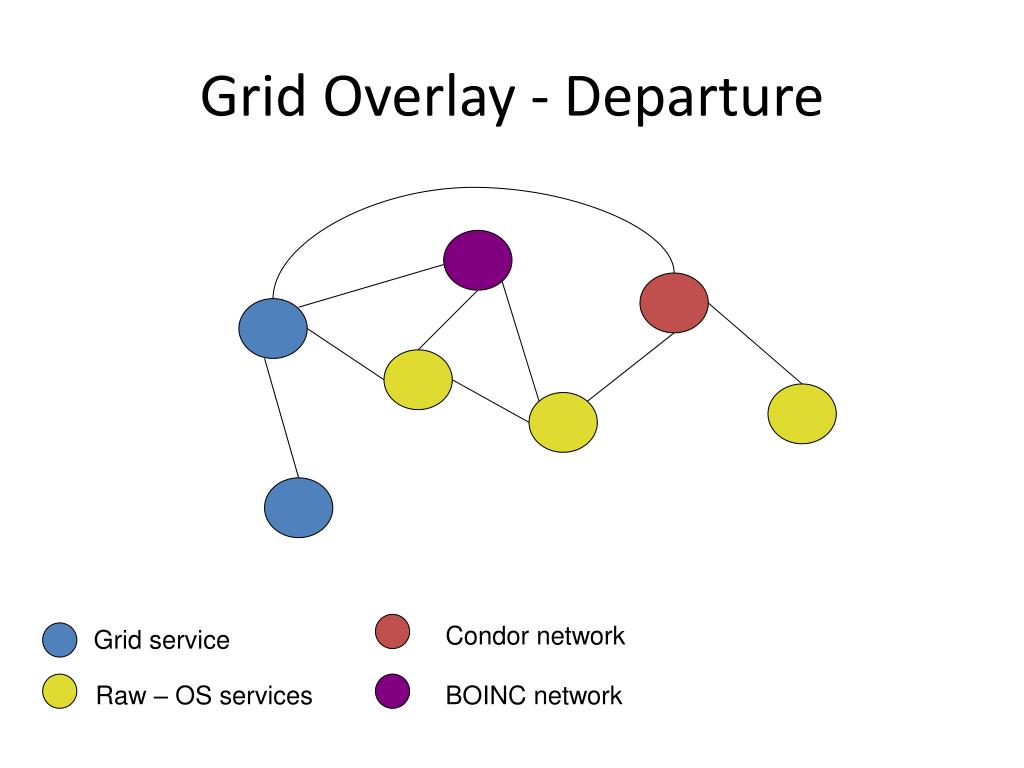

8. Grid Overlay - Departure Condor network Grid service Raw – OS services BOINC network

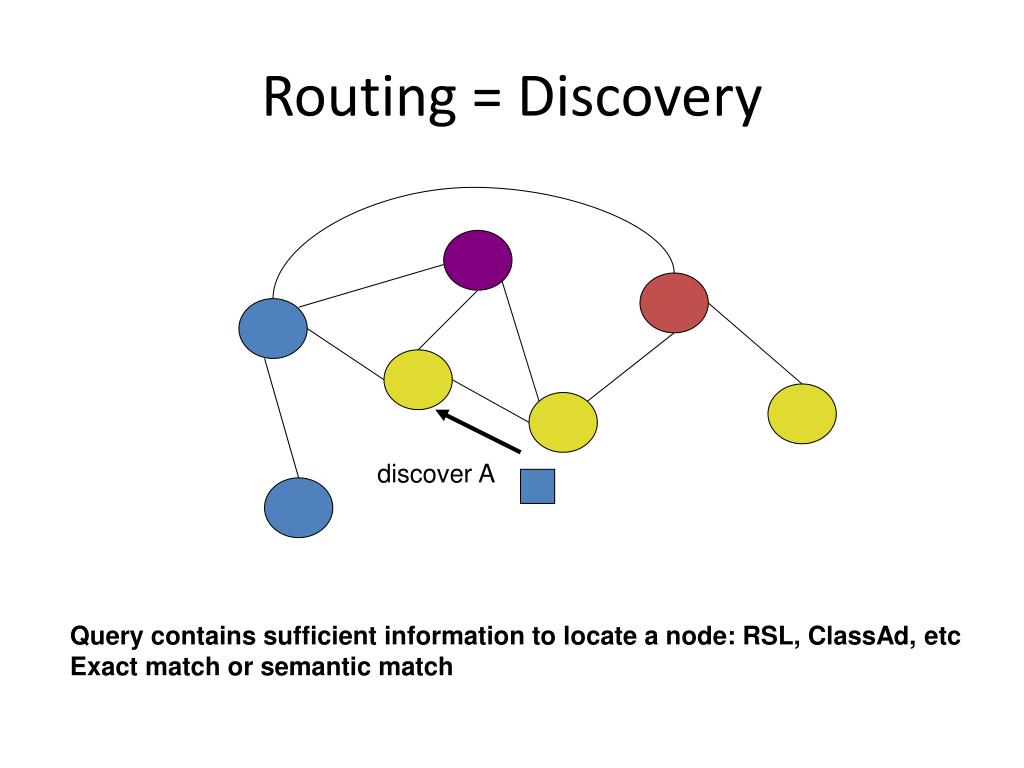

9. Routing = Discovery discover A Query contains sufficient information to locate a node: RSL, ClassAd, etc Exact match or semantic match

10. Routing = Discovery bingo!

11. Routing = Discovery Discovered node returns a handle sufficient for the “client” to interact with it - perform service invocation, job/data transmission, etc

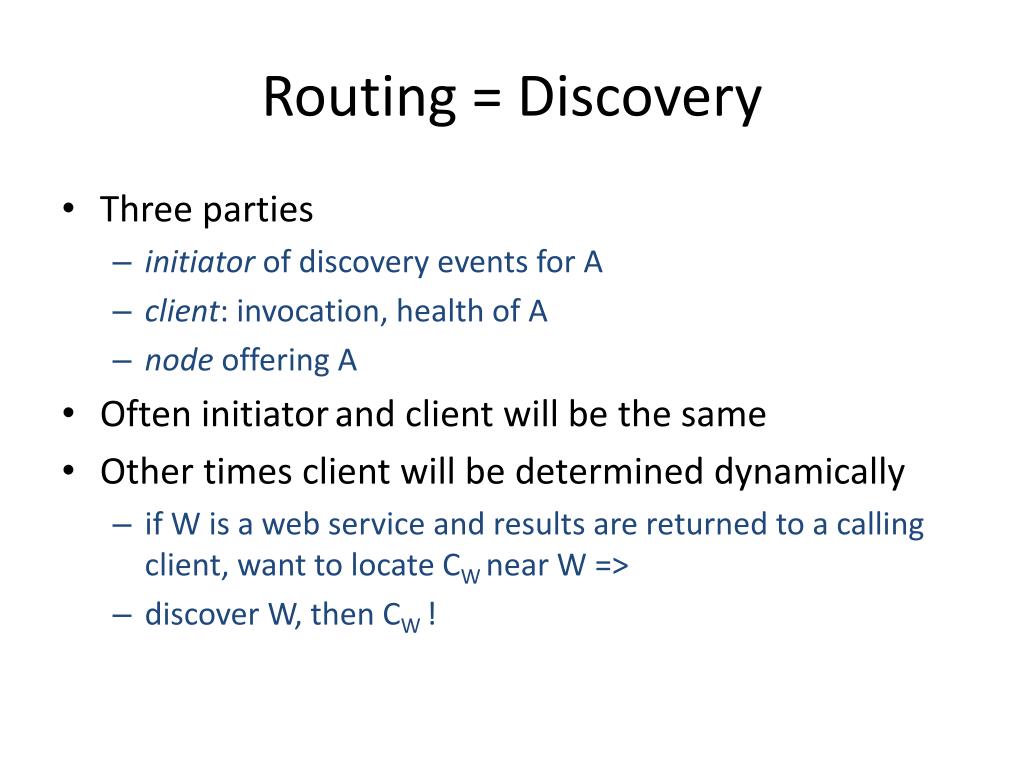

12. Routing = Discovery • Three parties • initiator of discovery events for A • client: invocation, health of A • node offering A • Often initiatorand client will be the same • Other times client will be determined dynamically • if W is a web service and results are returned to a calling client, want to locate CW near W => • discover W, then CW !

13. Routing = Discovery X discover A

14. Routing = Discovery

15. Routing = Discovery bingo!

16. Routing = Discovery

17. Routing = Discovery outside client

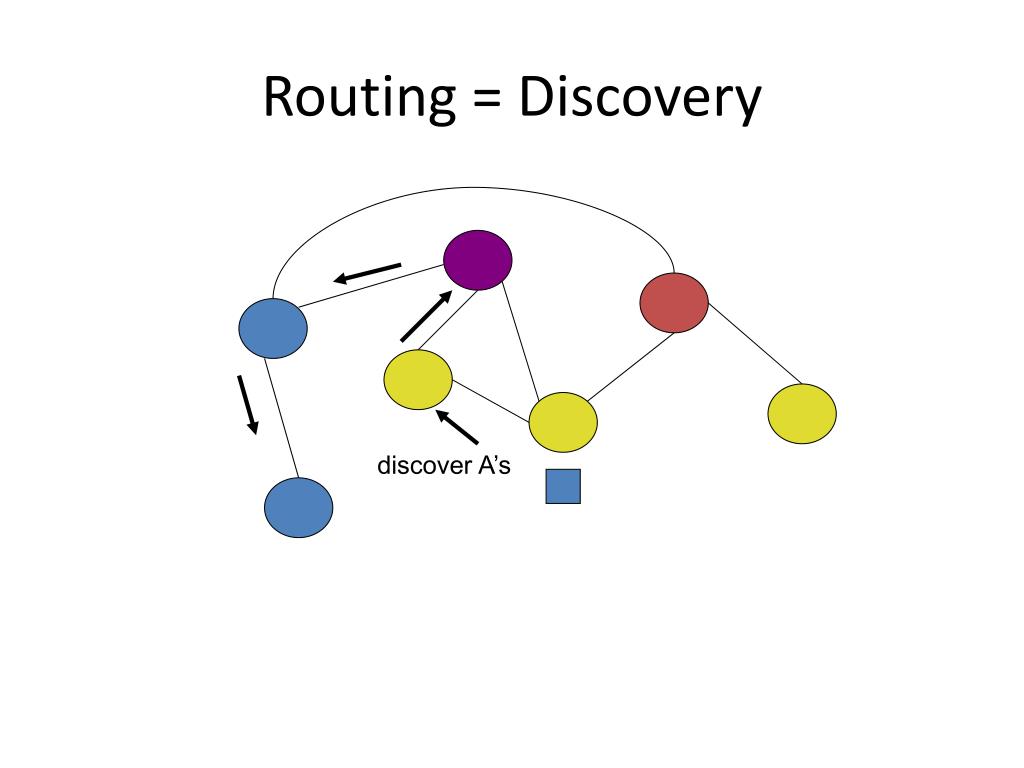

18. Routing = Discovery discover A’s

19. Routing = Discovery

20. Grid Overlay • This generalizes … • Resource query (query contains job requirements) • Looks like decentralized “matchmaking” • These are the easy cases … • independent simple queries • find a CPU with characteristics x, y, z • find 100 CPUs each with x, y, z • suppose queries are complex or related? • find N CPUs with aggregate power = G Gflops • locate an asset near a prior discovered asset

21. Grid Scenarios • Grid applications are more challenging • Application has a more complex structure – multi-task, parallel/distributed, control/data dependencies • individual job/task needs a resource near a data source • workflow • queries are not independent • Metrics are collective • not simply raw throughput • makespan • response • QoS

22. Related Work • Maryland/Purdue • matchmaking • Oregon-CCOF • time-zone CAN

23. Related Work (cont’d) None of these approaches address the Grid scenarios (in a decentralized manner) • Complex multi-task data/control dependencies • Collective metrics

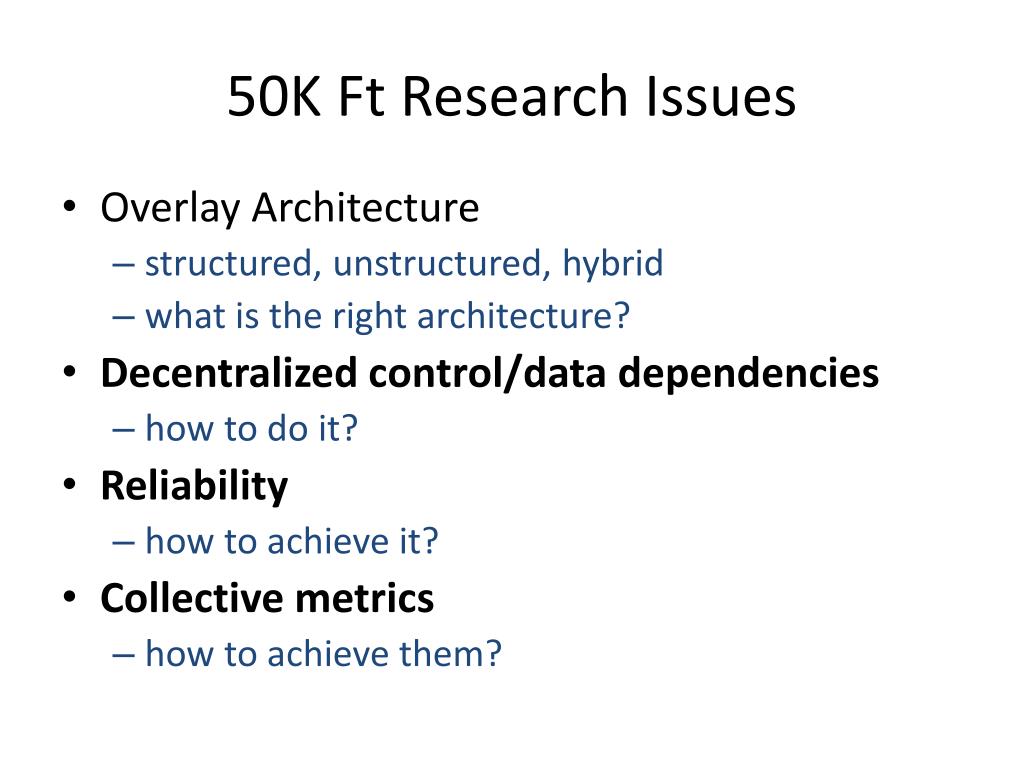

24. 50K Ft Research Issues • Overlay Architecture • structured, unstructured, hybrid • what is the right architecture? • Decentralized control/data dependencies • how to do it? • Reliability • how to achieve it? • Collective metrics • how to achieve them?

25. = component service request job task … Context: Application Model answer = data source

26. Context: Application Models Reliability Collective metrics Data dependence Control dependence

27. Context: Environment • RIDGE project - ridge.cs.umn.edu • reliable infrastructure for donation grid envs • Live deployment on PlanetLab – planet-lab.org • 700 nodes spanning 335 sites and 35 countries • emulators and simulators • Applications • BLAST • Traffic planning • Image comparison

28. Application Models Reliability Collective metrics Data dependence Control dependence

29. G B Reliability Example C E D B G

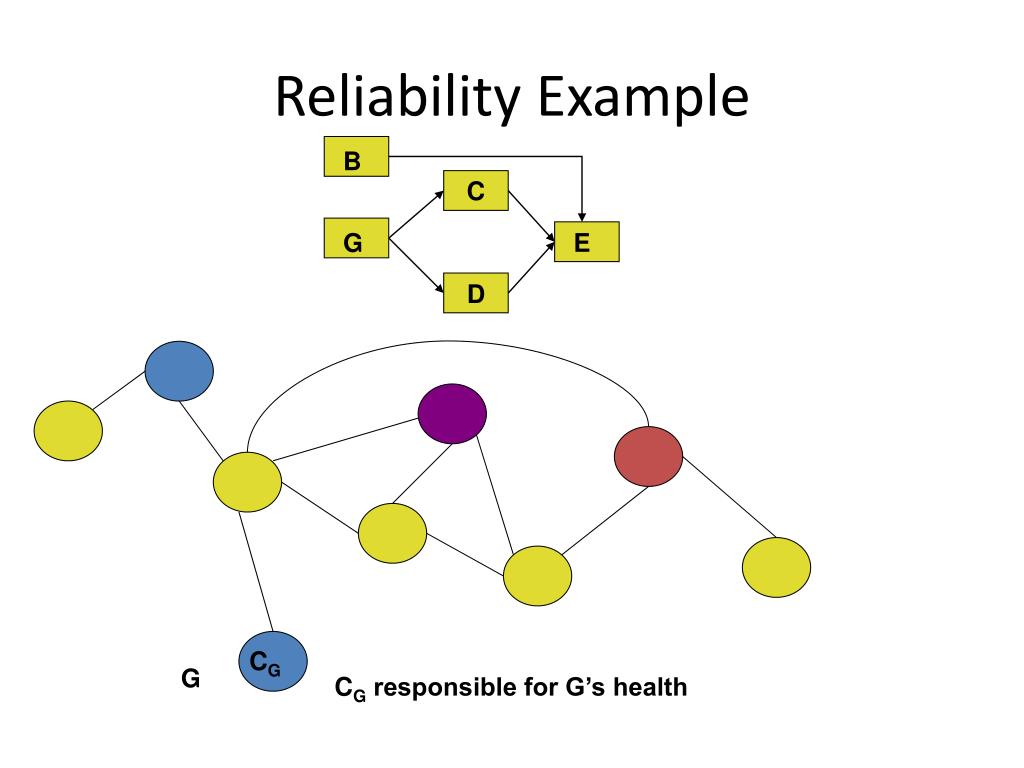

30. G B Reliability Example C E D B CG G CG responsible for G’s health

31. G B Reliability Example C E D B G, loc(CG ) CG

32. G B Reliability Example C E D B G CG could also discover G then CG

33. G B Reliability Example C E D X B CG

34. G B Reliability Example C E D G. … CG

35. G B Reliability Example C E D G CG

36. G B Client Replication C E D B G

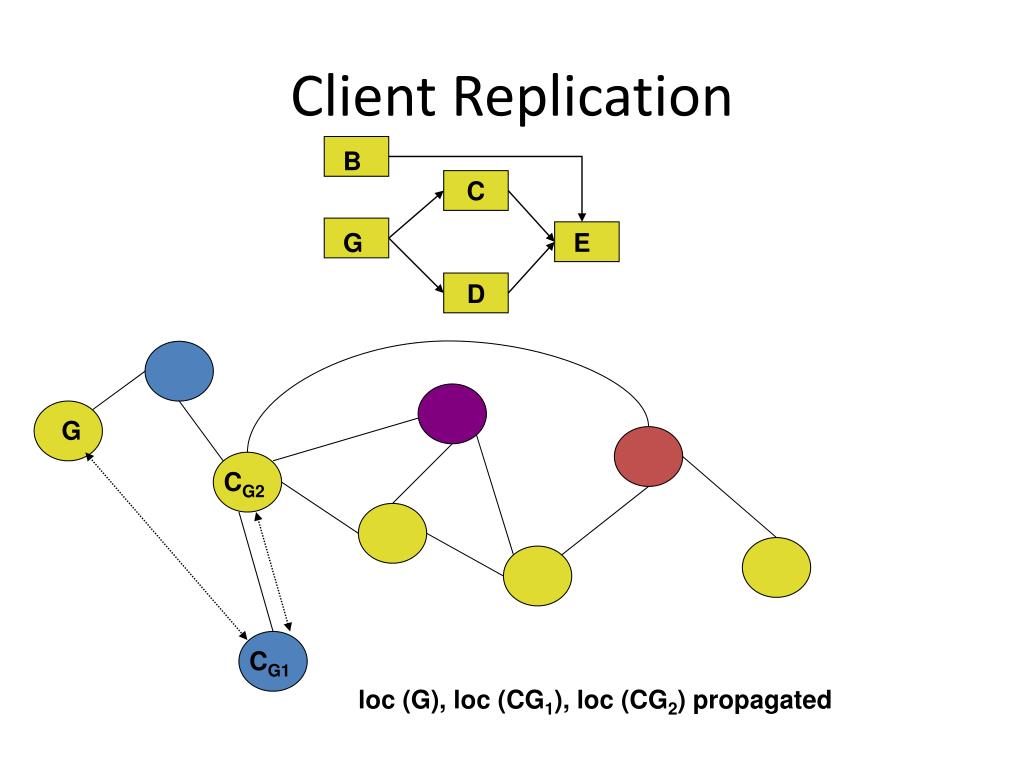

37. G B Client Replication C E D B G CG2 CG1 loc (G), loc (CG1), loc (CG2) propagated

38. G B Client Replication C E D B G CG2 X CG1 client “hand-off” depends on nature of G and interaction

39. G B Component Replication C E D B G

40. G B Component Replication C E D G2 G1 CG

41. Replication Research • Nodes are unreliable – crash, hacked, churn, malicious, slow, etc. • How many replicas? • too many – waste of resources • too few – application suffers

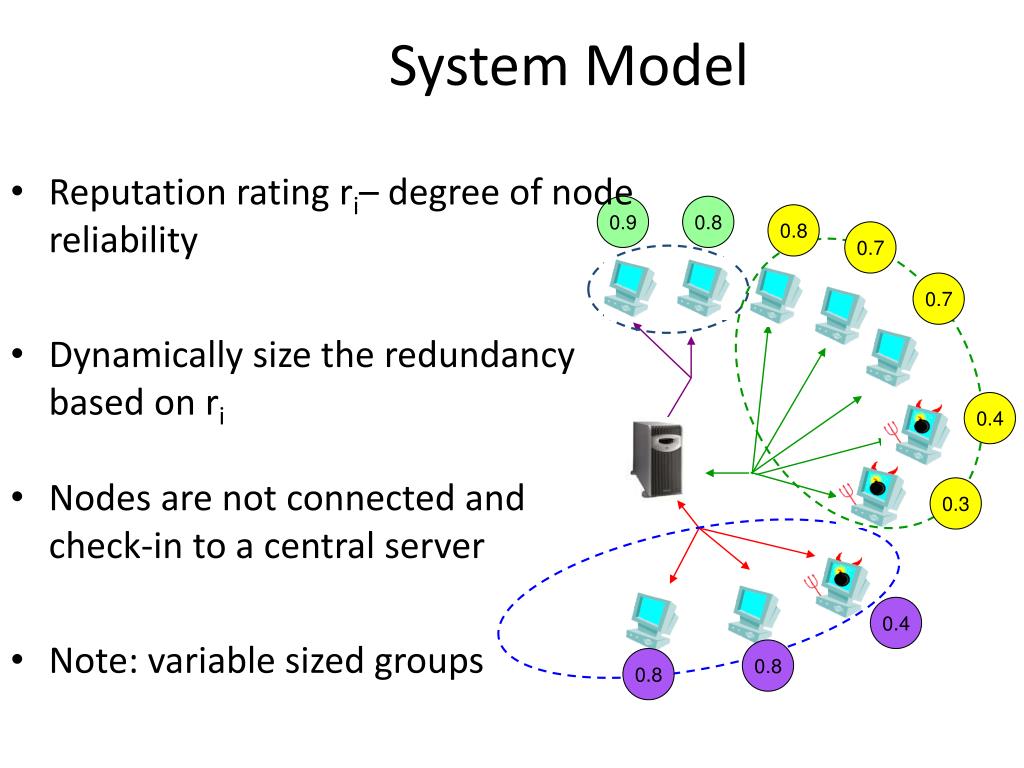

42. System Model • Reputation rating ri– degree of node reliability • Dynamically size the redundancy based on ri • Nodes are not connected and check-in to a central server • Note: variable sized groups 0.9 0.8 0.8 0.7 0.7 0.4 0.3 0.4 0.8 0.8

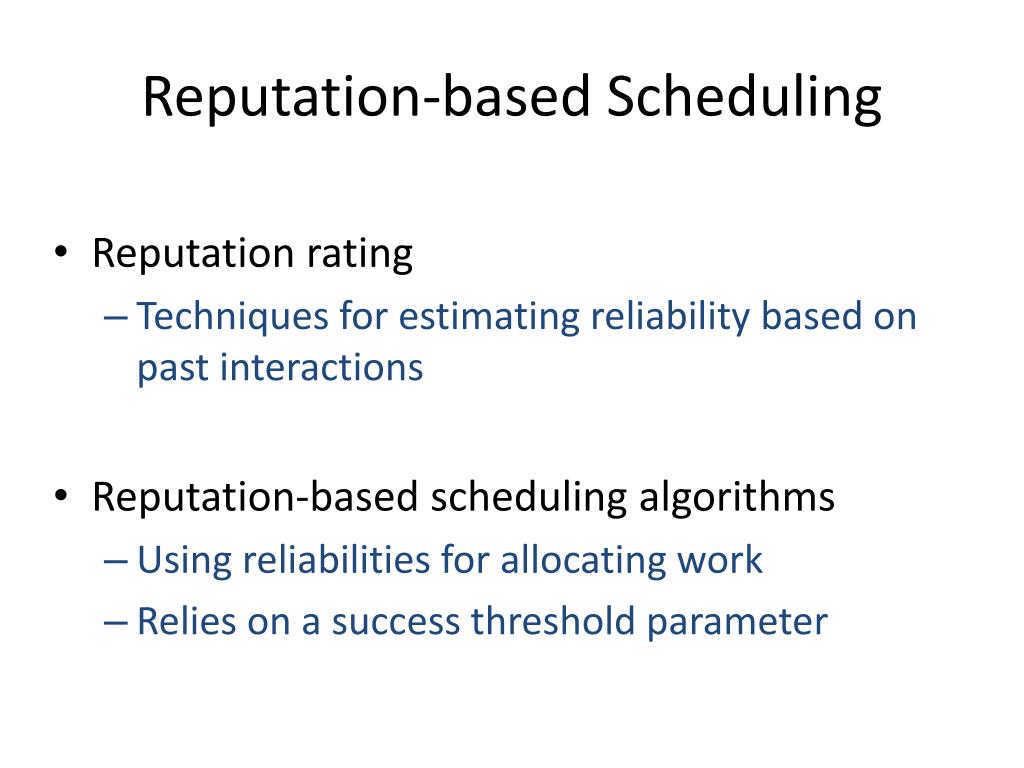

43. Reputation-based Scheduling • Reputation rating • Techniques for estimating reliability based on past interactions • Reputation-based scheduling algorithms • Using reliabilities for allocating work • Relies on a success threshold parameter

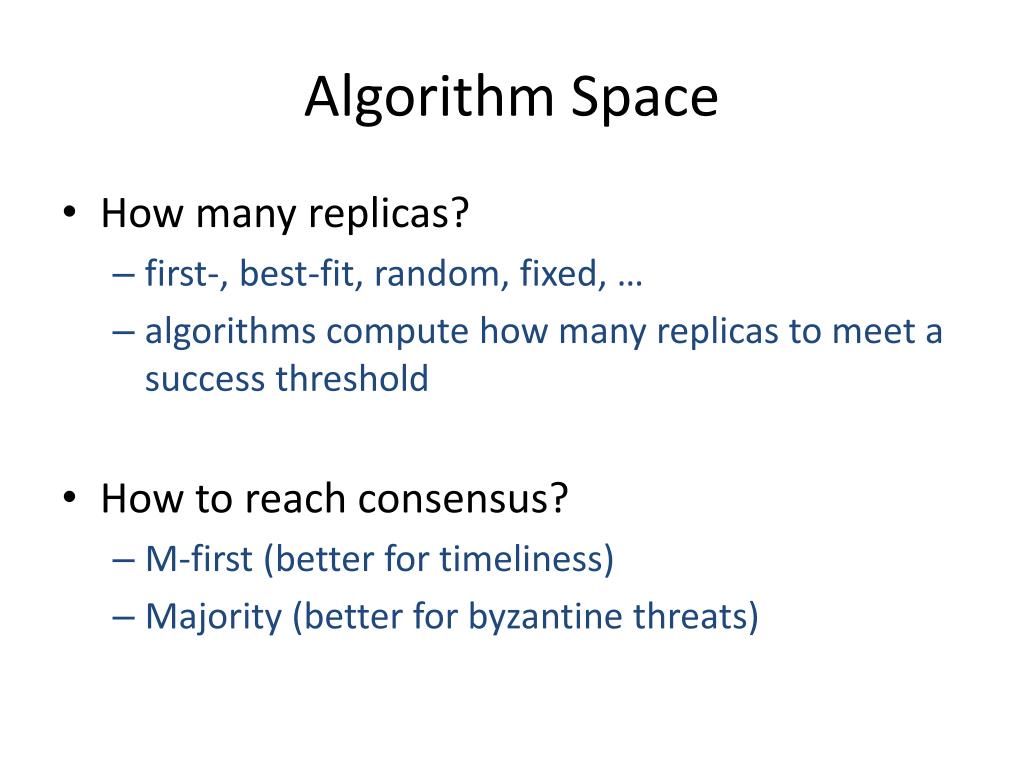

44. Algorithm Space • How many replicas? • first-, best-fit, random, fixed, … • algorithms compute how many replicas to meet a success threshold • How to reach consensus? • M-first (better for timeliness) • Majority (better for byzantine threats)

45. Experimental Results: correctness This was a simulation based on byzantine behavior … majority voting

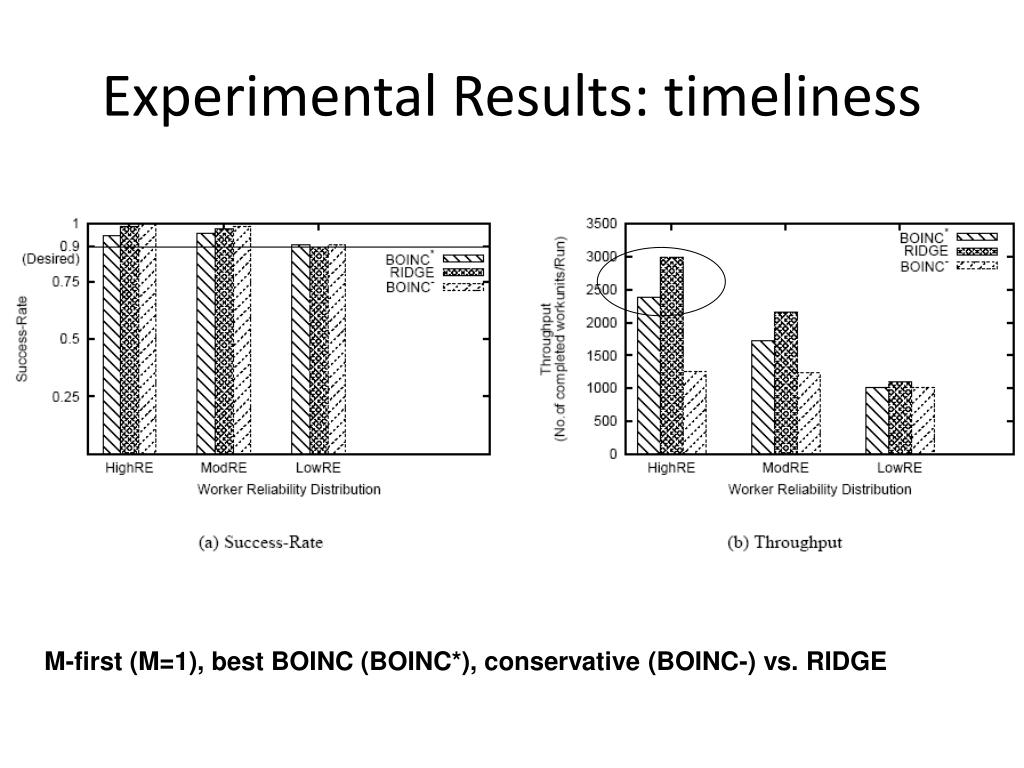

46. Experimental Results: timeliness M-first (M=1), best BOINC (BOINC*), conservative (BOINC-) vs. RIDGE

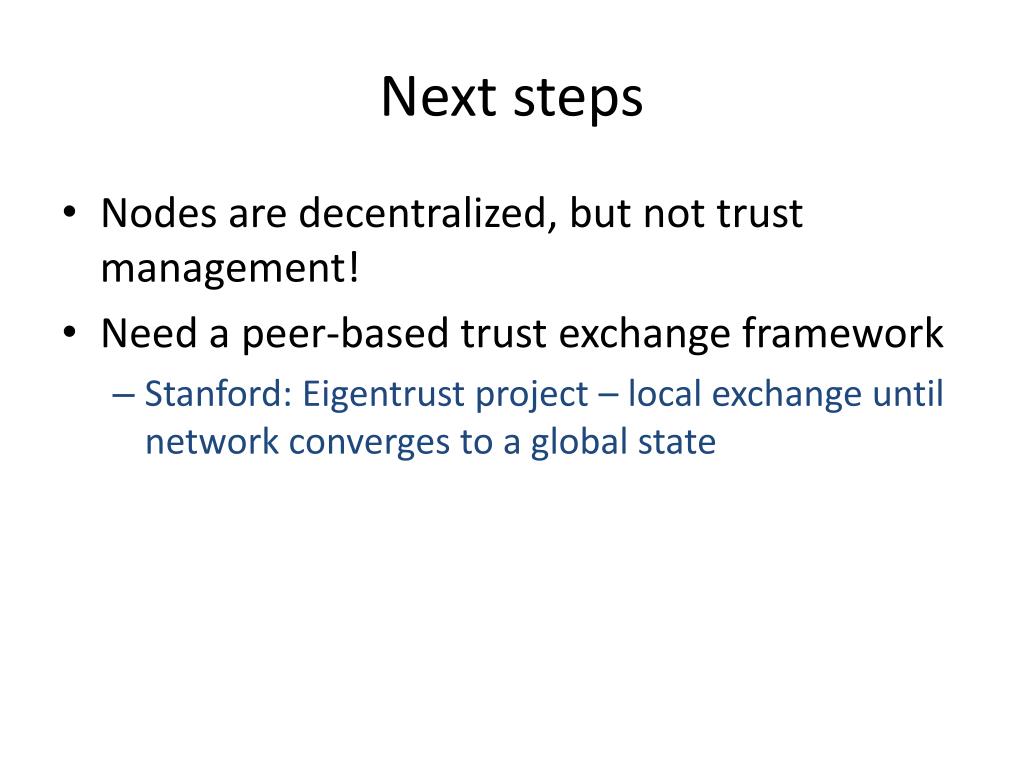

47. Next steps • Nodes are decentralized, but not trust management! • Need a peer-based trust exchange framework • Stanford: Eigentrust project – local exchange until network converges to a global state

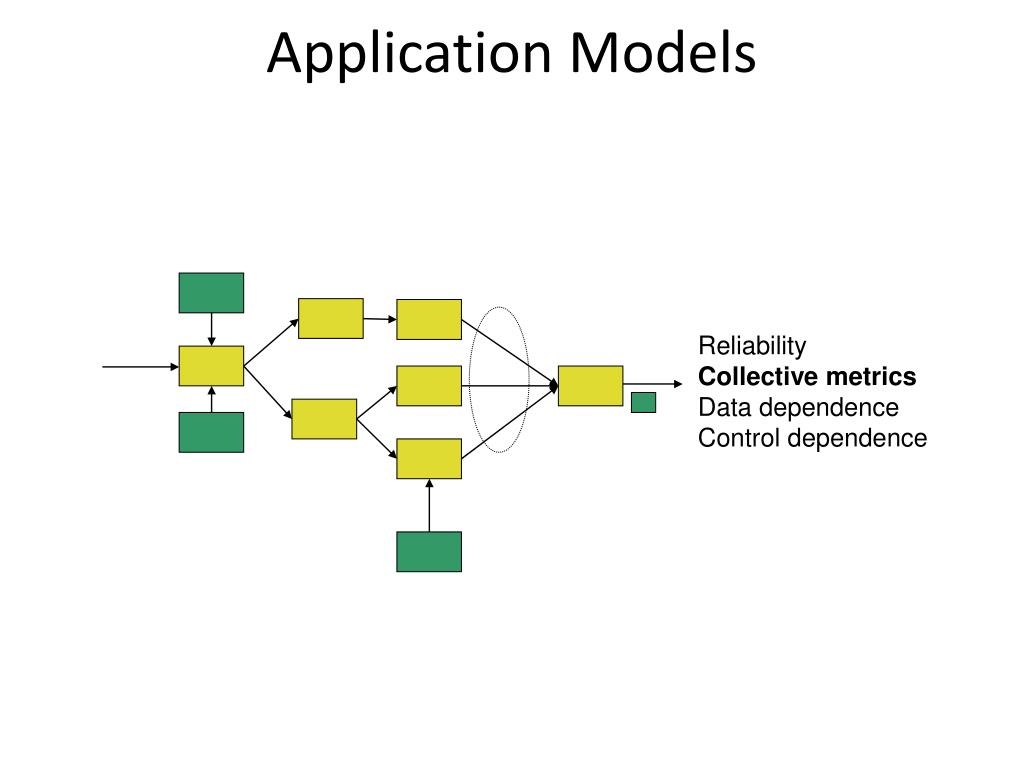

48. Application Models Reliability Collective metrics Data dependence Control dependence

49. BLAST Collective Metrics • Throughput not always the best metric • Response, completion time, application-centric • makespan - response

50. Communication Makespan • Nodes download data from replicated data nodes • Nodes choose “data servers” independently (decentralized) • Minimize the maximum download time for all worker nodes (communication makespan) data download dominates
