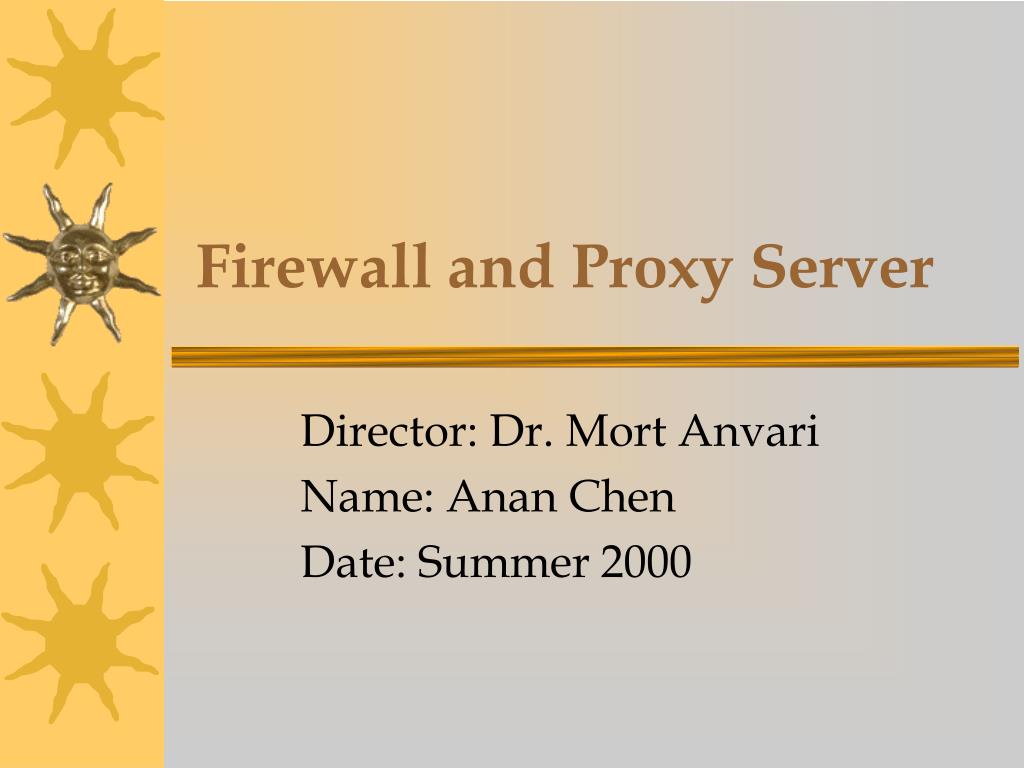

  1. Firewall and Proxy Server Director: Dr. Mort Anvari Name: Anan Chen Date: Summer 2000

  2. Content • Firewall • Proxy Server • Relationship between Proxy Server and Firewall • Types of Firewalls • Hardware requirements • Software requirements • Conclusion

  3. Firewall 1 • A computer firewall is a router or other communications device which filters access to a protected network. • Firewall is also a program that screens all incoming traffic and protects the network from unwelcome intruders.

  4. Firewall 2 • Firewalls can also be used as access control measures to only allow certain people within the organization access to the Internet. Many firewalls now contain features to control, authenticate and secure users who may want to access a company internal data from the Internet or even another company.

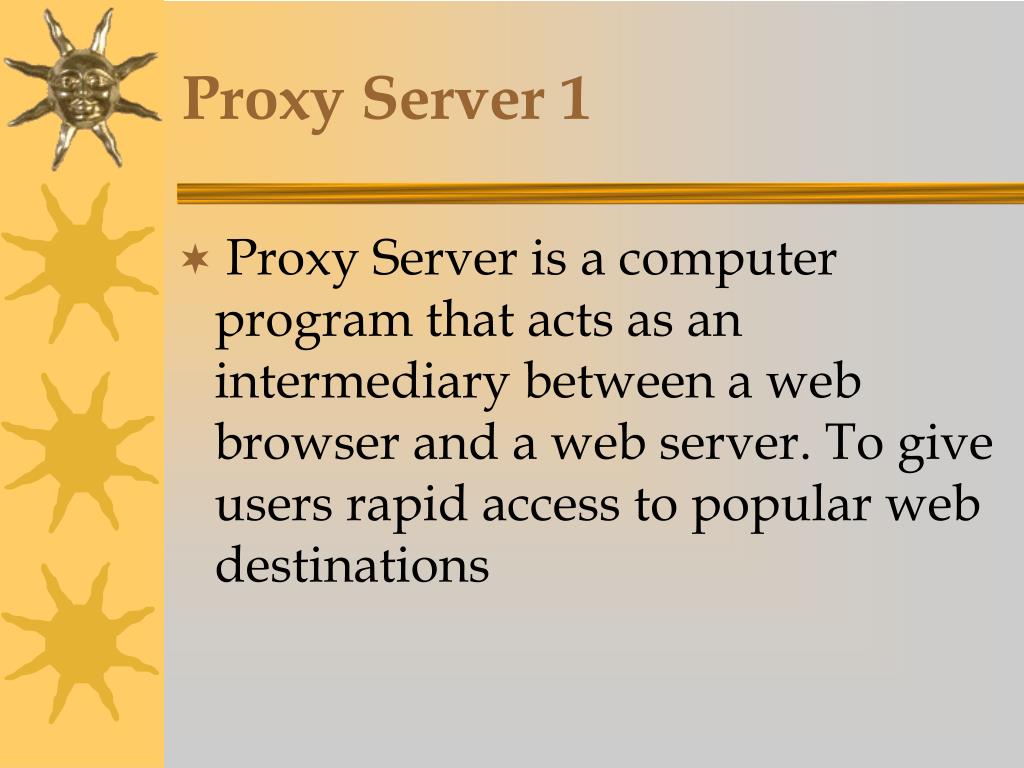

  5. Proxy Server 1 • Proxy Server is a computer program that acts as an intermediary between a web browser and a web server. To give users rapid access to popular web destinations

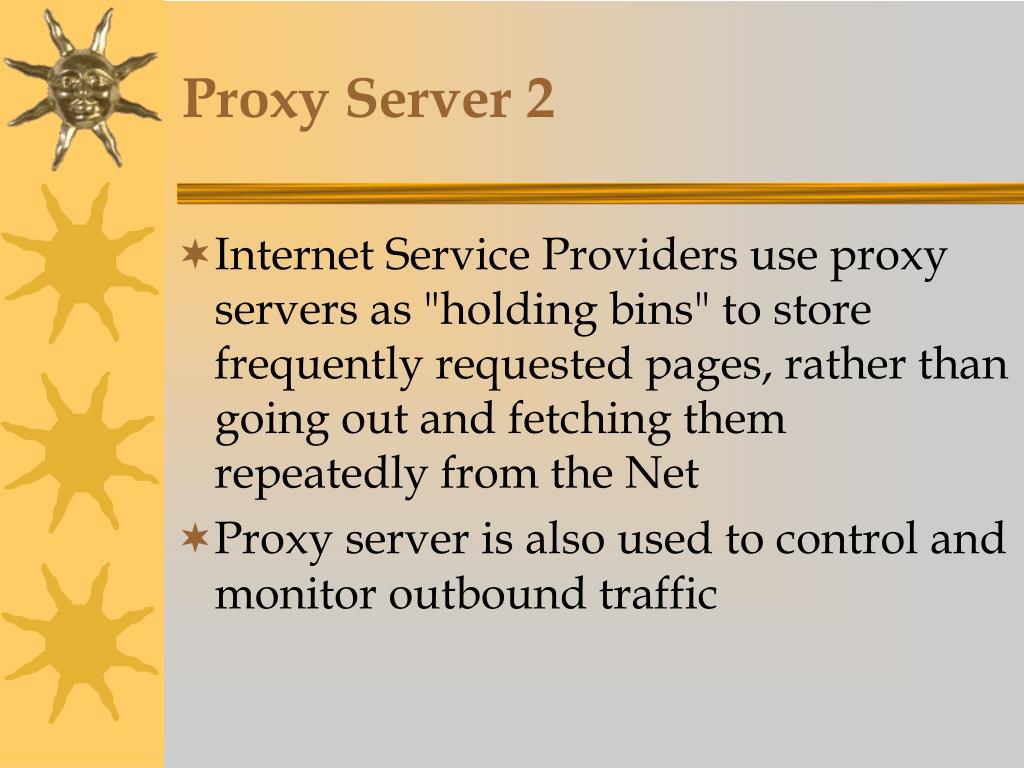

  6. Proxy Server 2 • Internet Service Providers use proxy servers as "holding bins" to store frequently requested pages, rather than going out and fetching them repeatedly from the Net • Proxy server is also used to control and monitor outbound traffic

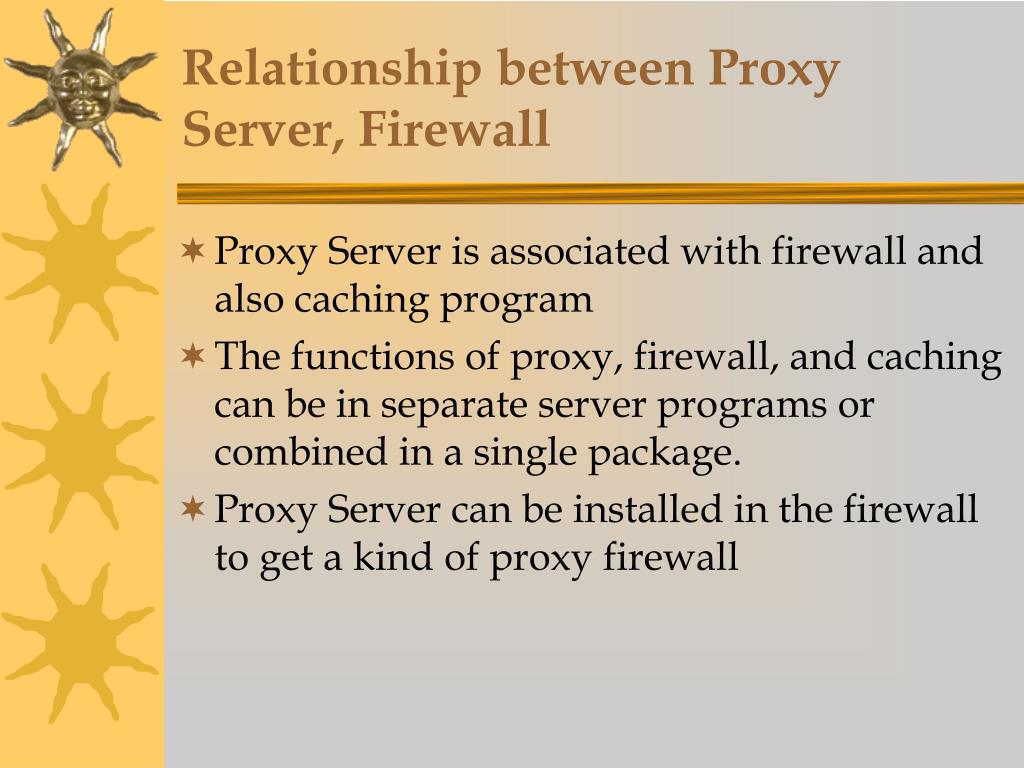

  7. Relationship between Proxy Server, Firewall • Proxy Server is associated with firewall and also caching program • The functions of proxy, firewall, and caching can be in separate server programs or combined in a single package. • Proxy Server can be installed in the firewall to get a kind of proxy firewall

  8. Types of Firewalls • Packet Filtering Firewalls • Proxy Server Firewalls

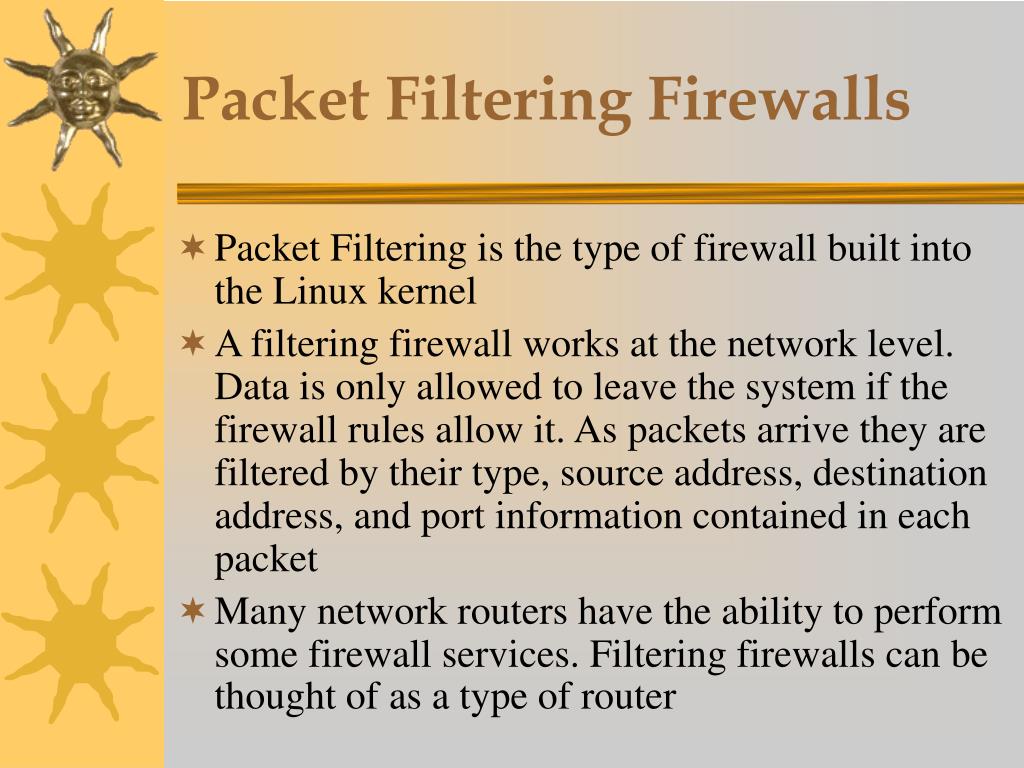

  9. Packet Filtering Firewalls • Packet Filtering is the type of firewall built into the Linux kernel • A filtering firewall works at the network level. Data is only allowed to leave the system if the firewall rules allow it. As packets arrive they are filtered by their type, source address, destination address, and port information contained in each packet • Many network routers have the ability to perform some firewall services. Filtering firewalls can be thought of as a type of router

  10. Proxy Server firewalls • Application Proxy • SOCKS Proxy

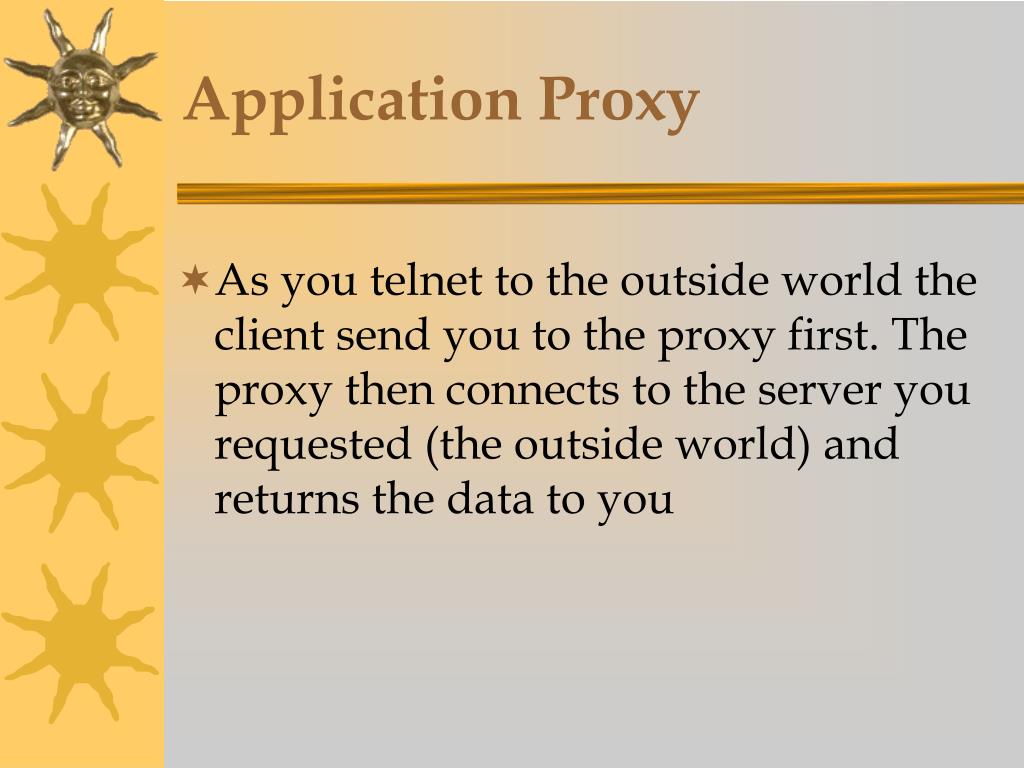

  11. Application Proxy • As you telnet to the outside world the client send you to the proxy first. The proxy then connects to the server you requested (the outside world) and returns the data to you

  12. SOCKS Proxy • SOCKS is networking proxy protocol that enables hosts on one side of a SOCKS server to gain full access to hosts on the other side of the SOCKS server without requiring direct IP reachability. SOCKS redirects connection requests from hosts on opposite sides of a SOCKS server. The SOCKS server authenticates and authorizes the requests, establishes a proxy connection, and relays data

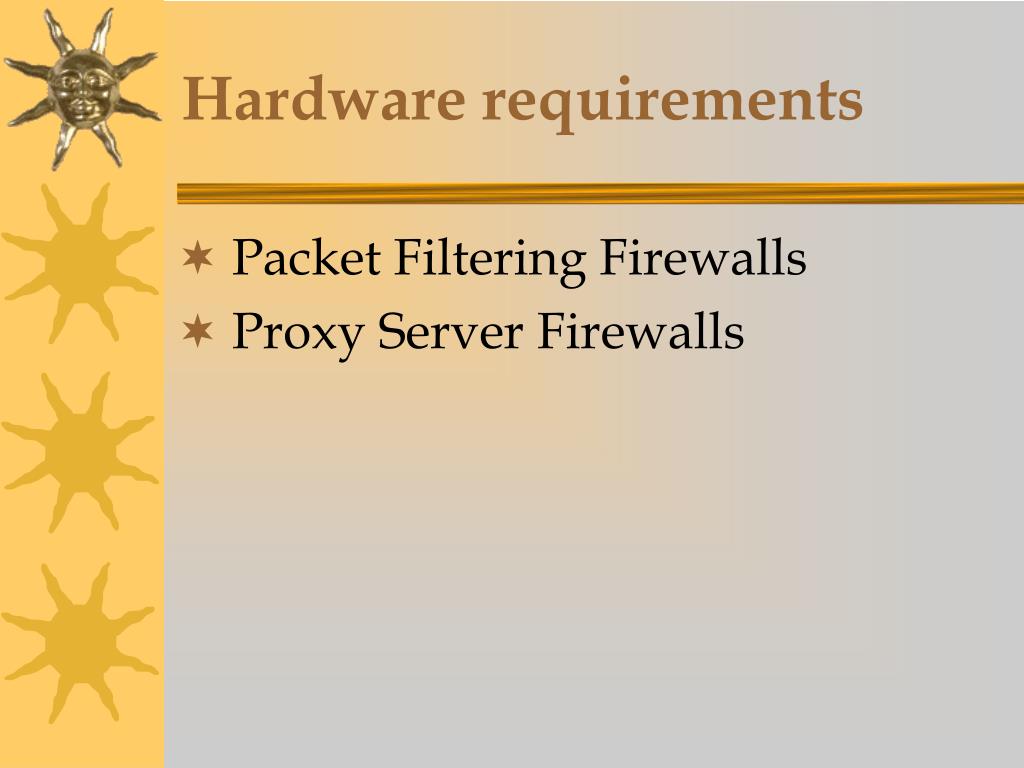

  13. Hardware requirements • Packet Filtering Firewalls • Proxy Server Firewalls

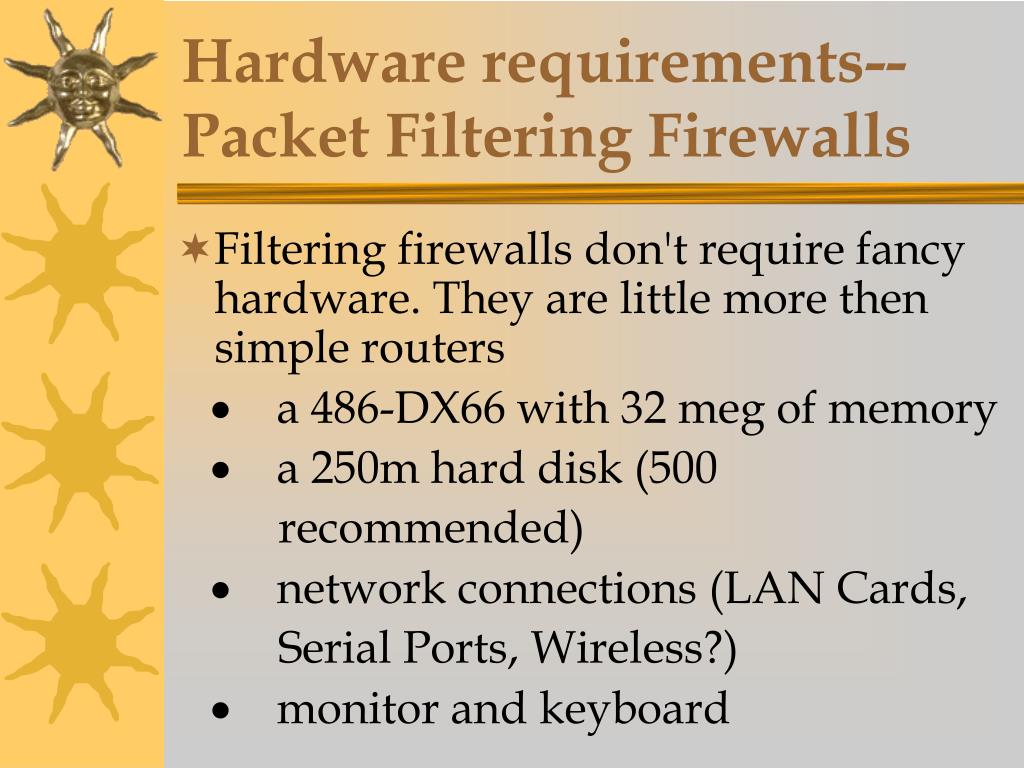

  14. Hardware requirements--Packet Filtering Firewalls • Filtering firewalls don't require fancy hardware. They are little more then simple routers  a 486-DX66 with 32 meg of memory  a 250m hard disk (500 recommended)  network connections (LAN Cards, Serial Ports, Wireless?)  monitor and keyboard

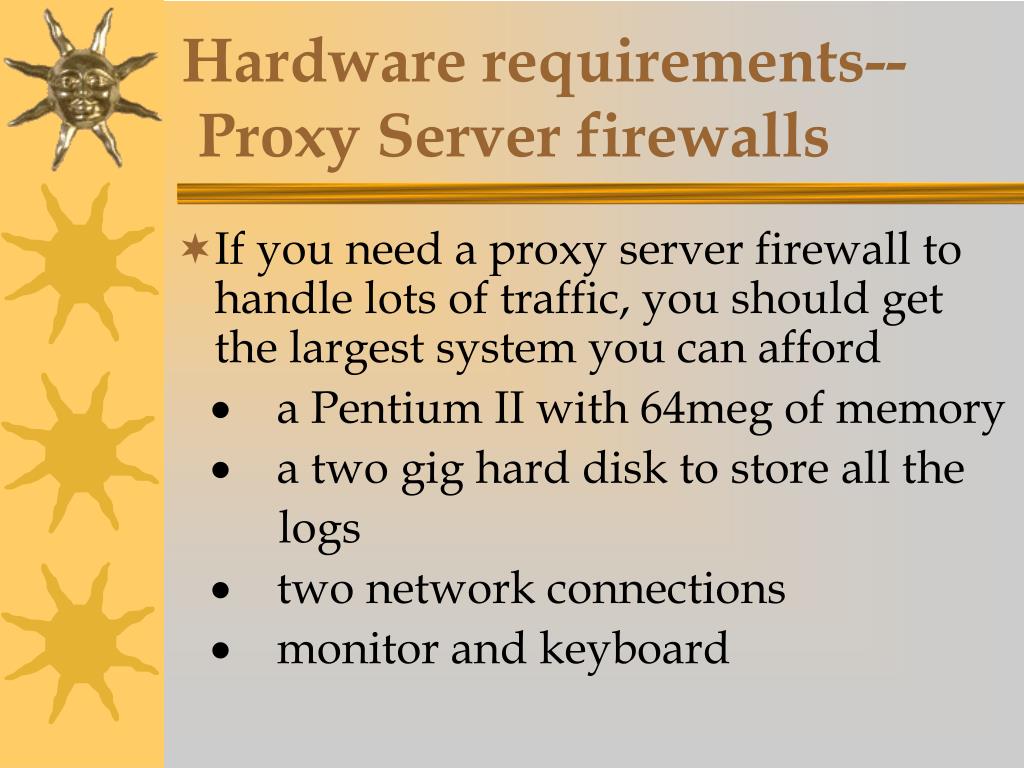

  15. Hardware requirements--Proxy Server firewalls • If you need a proxy server firewall to handle lots of traffic, you should get the largest system you can afford  a Pentium II with 64meg of memory  a two gig hard disk to store all the logs  two network connections  monitor and keyboard

  16. Software requirements • Packet Filtering Firewalls • Proxy Server Firewalls

  17. Software requirements-- Packet Filtering Firewalls • To create a filtering firewall, you don't need any special software. Linux will do • The built-in Linux firewall has changed several times, for the newer 2.4 kernel there is a new firewall utility with more features

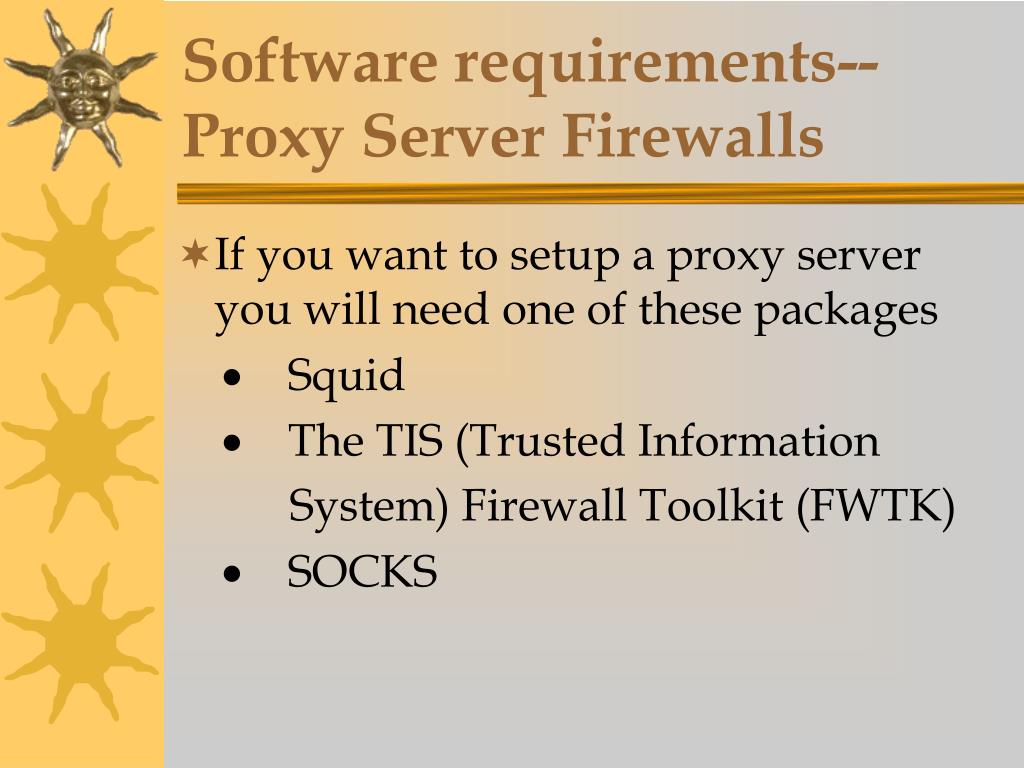

  18. Software requirements-- Proxy Server Firewalls • If you want to setup a proxy server you will need one of these packages  Squid  The TIS (Trusted Information System) Firewall Toolkit (FWTK)  SOCKS

  19. Squid • Squid is a great package and works with Linux's Proxy feature

  20. TIS • Trusted Information System's (TIS) is available at http://www.tis.com/research/software/ • The TIS Internet Firewall Toolkit is a set of programs and configuration practices designed to facilitate the building of network firewalls. • The toolkit software is designed to run on UNIX systems

  21. SOCKS • The SOCKS proxy server available from http://www.socks.nec.com/ • SOCKS can be installed both in NT system and UNIX system

  22. Conclusion • Both firewall and proxy server are used for net work security and facility • Proxy server can be a part of firewall
