  1. Random Walks on Graphs to Model Saliency in Images ViswanathGopalakrishnanYiqunHuDeepuRajan School of Computer Engineering Nanyang Technological University, Singapore 639798 CVPR2009 Reporter: Chia-Hao Hsieh Date: 2010/05/04

  2. Outline • Introduction • Methods • Experimental results

  3. Introduction • Salient region detection based on Markov random walks • Combine global/local property • Seeded salient region identification

  4. Methods • Graph representation • Nodes, Edges • Finding the most salient node

  5. Graph Representation • Node: patches of size 8x8 on the image • Edge: connection between the nodes • Feature: color/orientation • Cb, Cr • Orientation histogram entropy at 5 different scales HP(θi) is the histogram value of the ith orientation bin corresponding to the orientation θi Node feature vector

  6. Finding the Most Salient Node • Most salient: globally pop-out (isolated) • A random walker take more time to reach • If on a compact object, a random walker take less time to reach on a k-regular graph

  7. Background Nodes • Inhomogeneous background • Goal: Capture as much of these variations as possible by locating at least one background node in each of such regions • Maximizing the distance to the most salient node, also maximizing the distance between background nodes

  8. Seeded Salient Region Extraction • If global only • Erroneously classify to salient region • If local only • Spatially close to a salient node • Linearly combine global and local feature

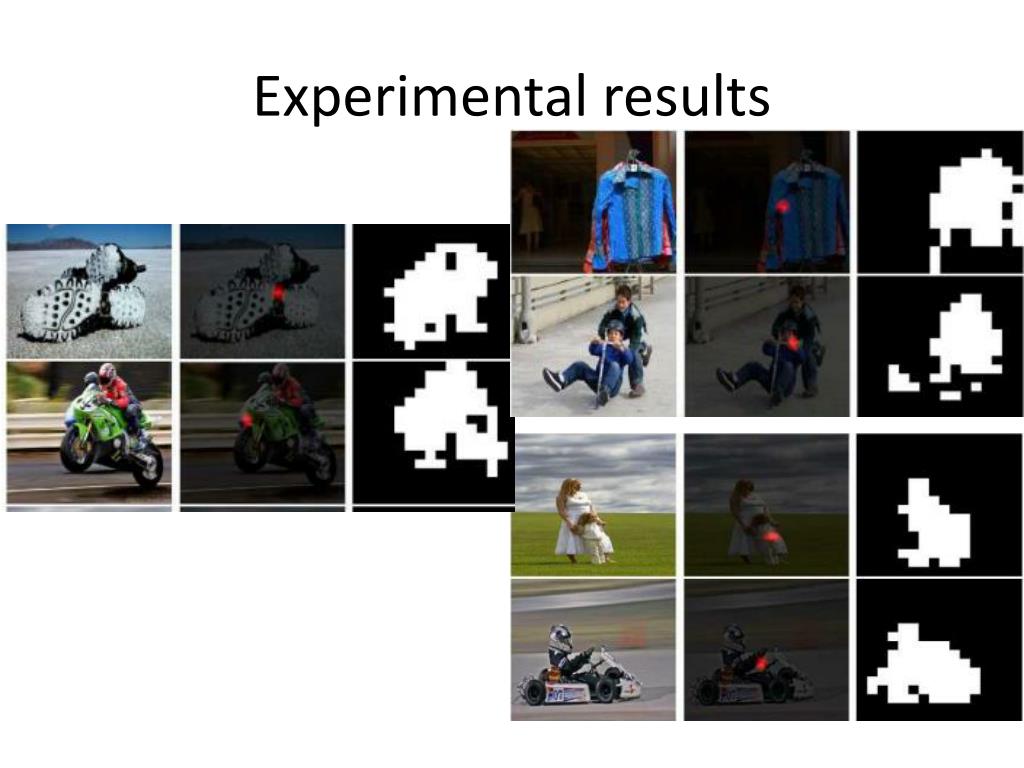

  9. Experimental results

  10. Experimental results Comparison of precision, recall, f-Measure Failure examples
