Lesson 7-2

The Pythagorean Theorem. Lesson 7-2. The Pythagorean Theorem. Given any right triangle, A 2 + B 2 = C 2. C. A. B. Example. In the following figure if A = 3 and B = 4, Find C. A 2 + B 2 = C 2 3 2 + 4 2 = C 2 9 + 16 = C 2 5 = C. C. A. B.

iolana
Télécharger la présentation

Lesson 7-2

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

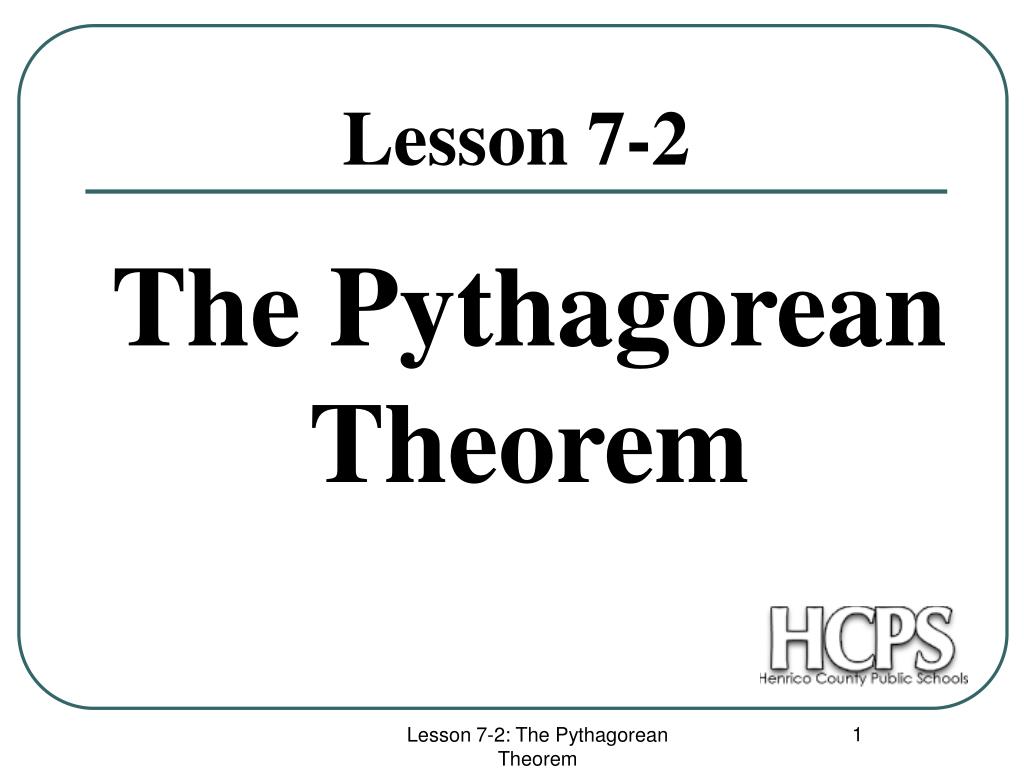

  1. The Pythagorean Theorem Lesson 7-2 Lesson 7-2: The Pythagorean Theorem

  2. The Pythagorean Theorem Given any right triangle, A2 + B2 = C2 C A B Lesson 7-2: The Pythagorean Theorem

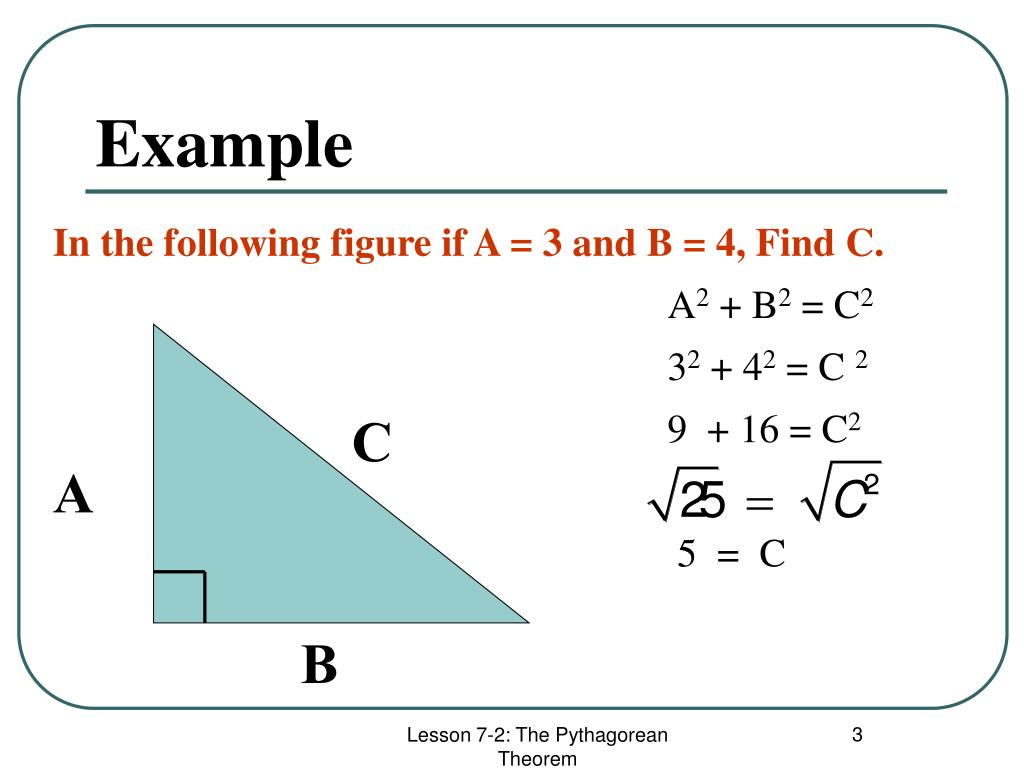

  3. Example In the following figure if A = 3 and B = 4, Find C. A2 + B2 = C2 32 + 42 = C 2 9 + 16 = C2 5 = C C A B Lesson 7-2: The Pythagorean Theorem

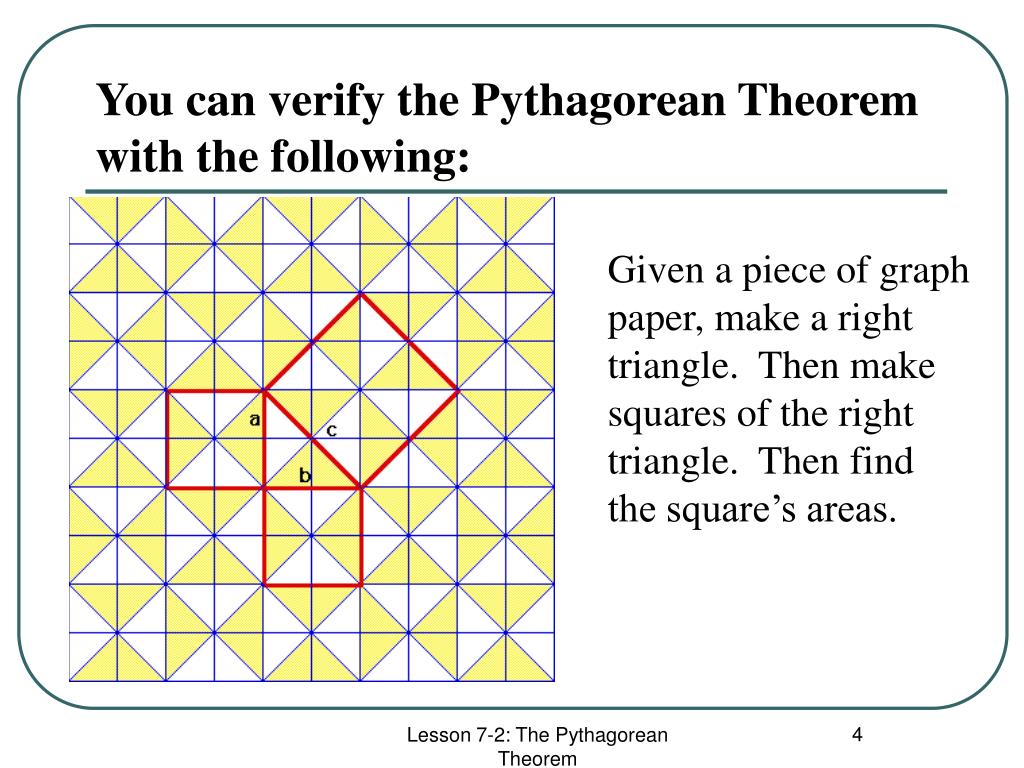

  4. You can verify the Pythagorean Theorem with the following: Given a piece of graph paper, make a right triangle. Then make squares of the right triangle. Then find the square’s areas. Lesson 7-2: The Pythagorean Theorem

  5. A=8, B= 15, Find C A=7, B= 24, Find C A=9, B= 40, Find C A=10, B=24, Find C A =6, B=8, Find C Pythagorean Theorem : Examples C = 17 C = 25 C A C = 41 C = 26 B C = 10 Lesson 7-2: The Pythagorean Theorem

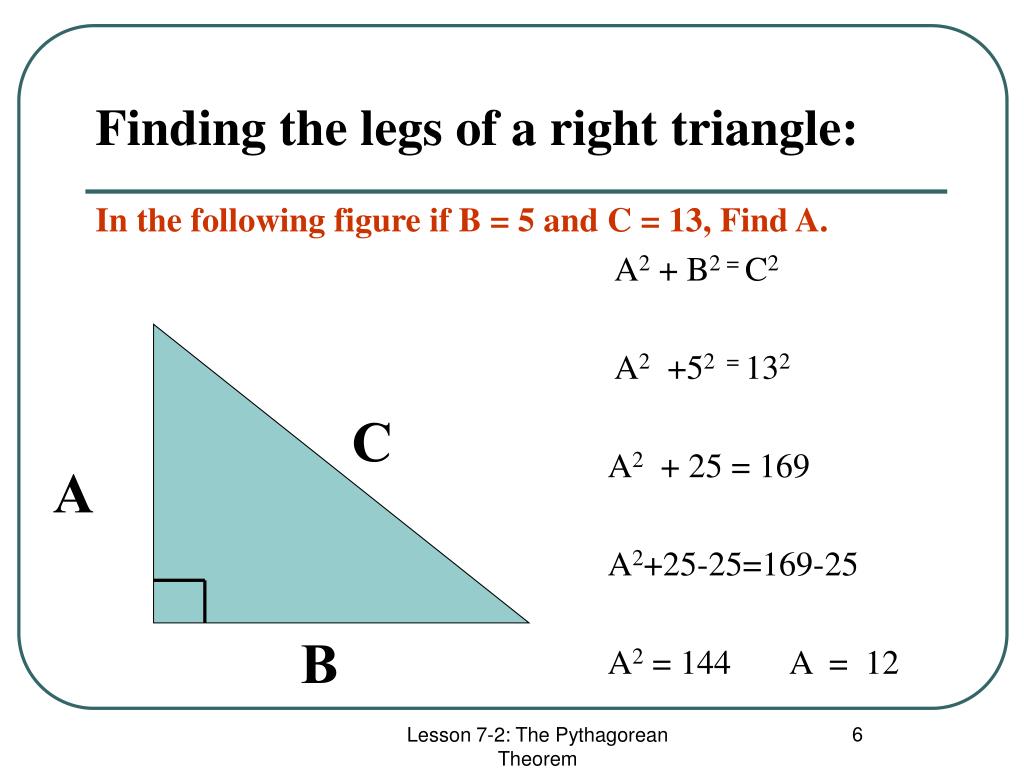

  6. Finding the legs of a right triangle: In the following figure if B = 5 and C = 13, Find A. A2 + B2 = C2 A2 +52 = 132 A2 + 25 = 169 A2+25-25=169-25 A2 = 144 A = 12 C A B Lesson 7-2: The Pythagorean Theorem

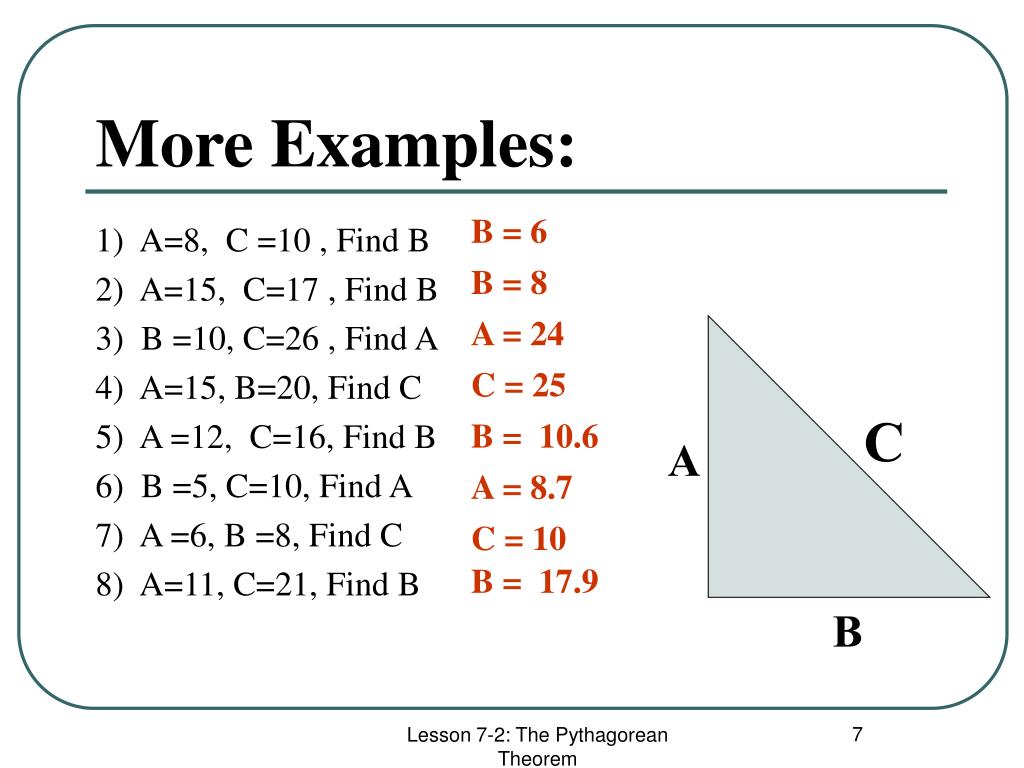

  7. 1) A=8, C =10 , Find B 2) A=15, C=17 , Find B 3) B =10, C=26 , Find A 4) A=15, B=20, Find C 5) A =12, C=16, Find B 6) B =5, C=10, Find A 7) A =6, B =8, Find C 8) A=11, C=21, Find B More Examples: B = 6 B = 8 A = 24 C = 25 C B = 10.6 A A = 8.7 C = 10 B = 17.9 B Lesson 7-2: The Pythagorean Theorem

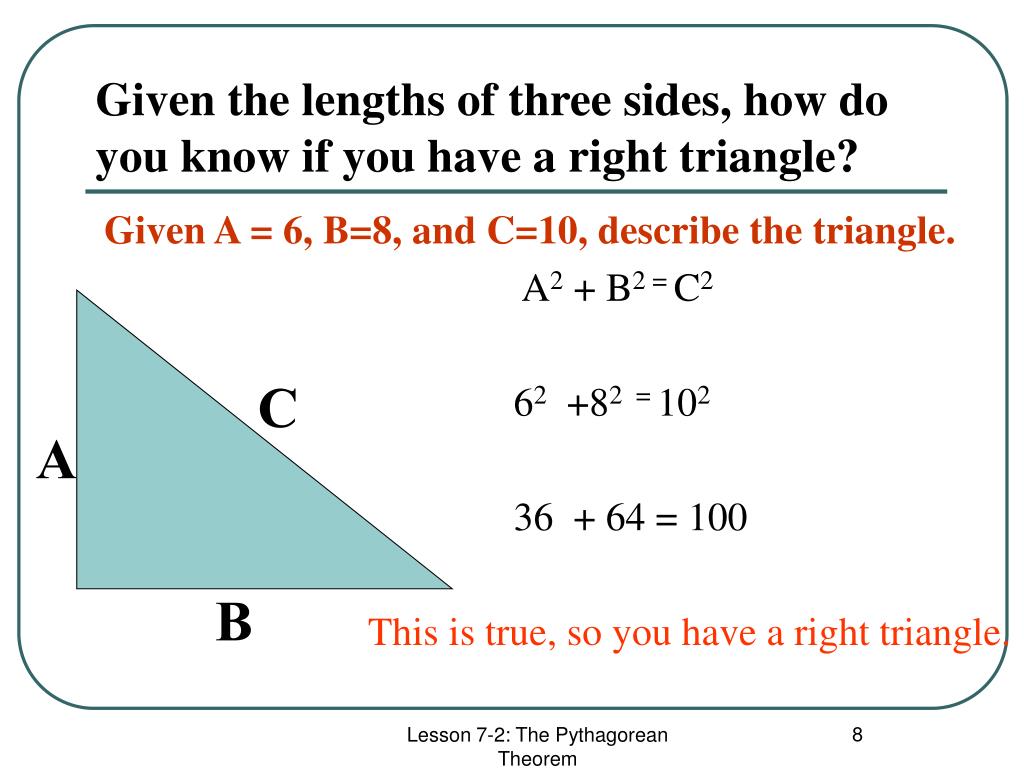

  8. Given the lengths of three sides, how do you know if you have a right triangle? Given A = 6, B=8, and C=10, describe the triangle. A2 + B2 = C2 62 +82 = 102 36 + 64 = 100 This is true, so you have a right triangle. C A B Lesson 7-2: The Pythagorean Theorem

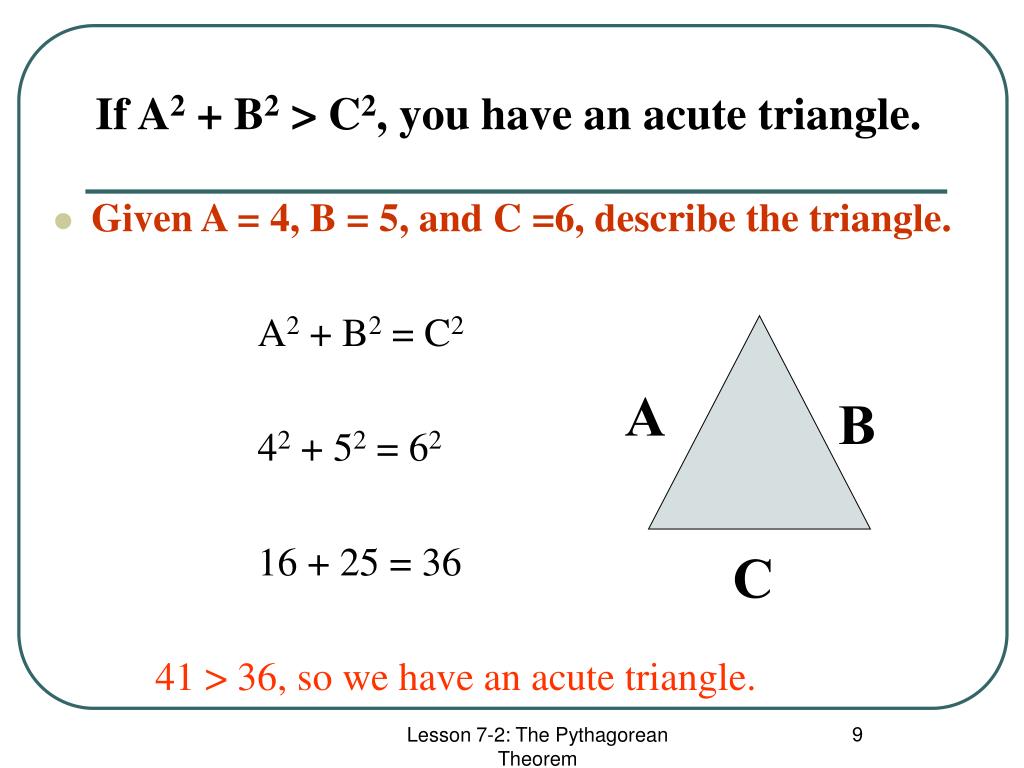

  9. Given A = 4, B = 5, and C =6, describe the triangle. A2 + B2 = C2 42 + 52 = 62 16 + 25 = 36 41 > 36, so we have an acute triangle. If A2 + B2 > C2, you have an acute triangle. A B C Lesson 7-2: The Pythagorean Theorem

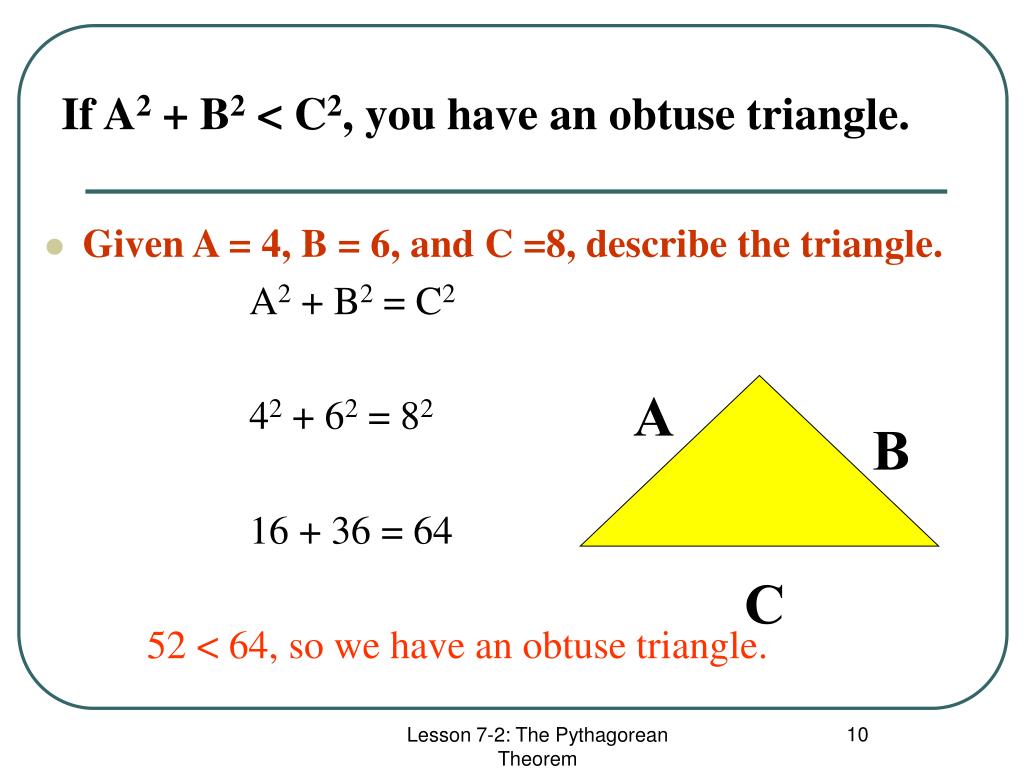

  10. Given A = 4, B = 6, and C =8, describe the triangle. A2 + B2 = C2 42 + 62 = 82 16 + 36 = 64 52 < 64, so we have an obtuse triangle. If A2 + B2 < C2, you have an obtuse triangle. A B C Lesson 7-2: The Pythagorean Theorem

  11. 1) A=9, B=40, C=41 2) A=10, B=15, C=20 3) A=2, B=5, C=6 4) A=12, B=16, C=20 5) A=11, B=12, C=14 6) A=2, B=3, C=4 7) A=1, B=7, C=7 8) A=90, B=120, C=150 Describe the following triangles as acute, right, or obtuse right right obtuse right C acute A obtuse acute right B Lesson 7-2: The Pythagorean Theorem
