Strategies for Minimizing Variability in Experimental Design

This document provides a comprehensive overview on designing experiments to minimize variability in response variables. It discusses the importance of accuracy and precision, identifies factors that influence these metrics, and outlines a step-by-step approach to experimental design, including replication and randomization. Various transformations are recommended to normalize data, ensuring accurate analysis of results. A case study on the filling weight of dry soup mix illustrates the application of these techniques, highlighting key factors affecting bond strength and variability.

ipo
Télécharger la présentation

Strategies for Minimizing Variability in Experimental Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. IV.3 Designs to Minimize Variability • Background • An Example • Design Steps • Transformations • The Analysis • A Case Study

  2. BackgroundAccuracy/Precision • Factors Can Affect Response Variable by Either • Changing Its Average Value (Accuracy) • Changing Its Variation (Precision) or • BOTH

  3. BackgroundExample 4 - Example I.2.3 Revisited • Which Factors Affect • Accuracy? • Precision?

  4. BackgroundAnalysis for Changes in Variability • For studying Variability, we can use ALL the designs, ALL the ideas that we used when studying changes in mean response level. • However, • Smaller Variability is ALWAYS better • We MUST work with replicated experiments • We will need to transform the response s

  5. Example 5Mounting an Integrated Circuit on SubstrateFigure 5 - Factor LevelLochner and Matar - Figure 5.11 • Response: bond strength

  6. Example 5 - Design StepsSelecting the DesignFigure 6 - The Experimental DesignLochner and Matar - Figure 5.12 • 1. Select an appropriate experimental design

  7. Example 5 - Design StepsReplication and Randomization • 2. Determine number of replicates to be used • Consider at Least 5 (up to 10) • In Example 5: 5 replicates, 40 trials • 3. Randomize order of ALL trials • Replicates Run Sequentially Often Have Less Variation Than True Process Variation • This May Be Inconvenient!

  8. Example 5 - Design StepsCollecting the DataFigure 7 - The DataLochner and Matar - Figure 5.13 • 4. Perform experiment; record data • 5. Group data for each factor level combination and calculate s.

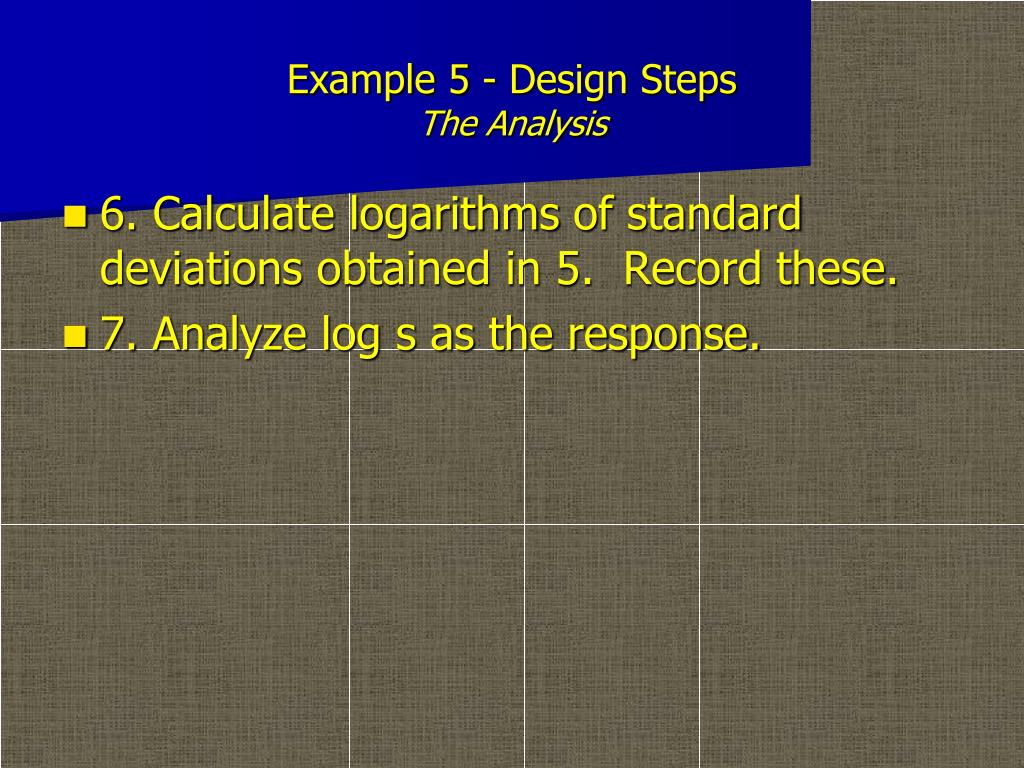

  9. Example 5 - Design StepsThe Analysis • 6. Calculate logarithms of standard deviations obtained in 5. Record these. • 7. Analyze log s as the response.

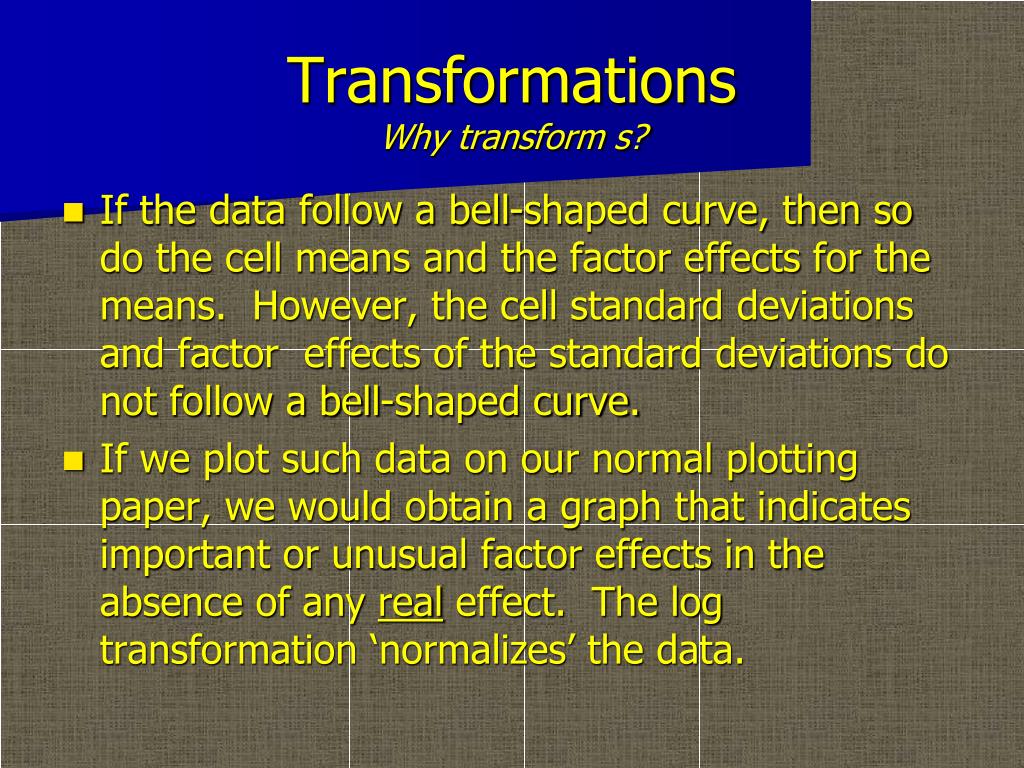

  10. TransformationsWhy transform s? • If the data follow a bell-shaped curve, then so do the cell means and the factor effects for the means. However, the cell standard deviations and factor effects of the standard deviations do not follow a bell-shaped curve. • If we plot such data on our normal plotting paper, we would obtain a graph that indicates important or unusual factor effects in the absence of any real effect. The log transformation ‘normalizes’ the data.

  11. TransformationsDistributions and Normal Probability Plots of s2 and Log(s2)

  12. Example 5 - AnalysisFigure 8 - Response Table for MeanLochner and Matar - Figure 5.14

  13. Example 5 - AnalysisFigure 9 - Response Table for Log(s)Lochner and Matar - Figure 5.15

  14. Example 5 - AnalysisFigure 10 - Effects Normal Probability Plot for Mean • What Factor Settings Favorably Affect the Mean?

  15. Example 5 - AnalysisFigure 11 - Effects Normal Probability Plot for Log(s)Lochner and Matar - Figure 5.16 • What Factor Settings Favorably Affect Variability?

  16. Example 5 - Interpretation • Silver IC post coating increases bond strength anddecreases variation in bond strength. • Adhesive D2A decreases variation in bond strength. • 120-minute cure time increases bond strength.

  17. Case Study 1Filling Weight of Dry Soup Mix - Factors and Response

  18. Case Study 1Filling Weight of Dry Soup Mix - Effects Table • Interpret This Data • Determine the Important Effects • Do the Interaction Tables and Plots for Significant Interactions
