  1. Future Trends & Applications for Remote Surveillance Presentation by

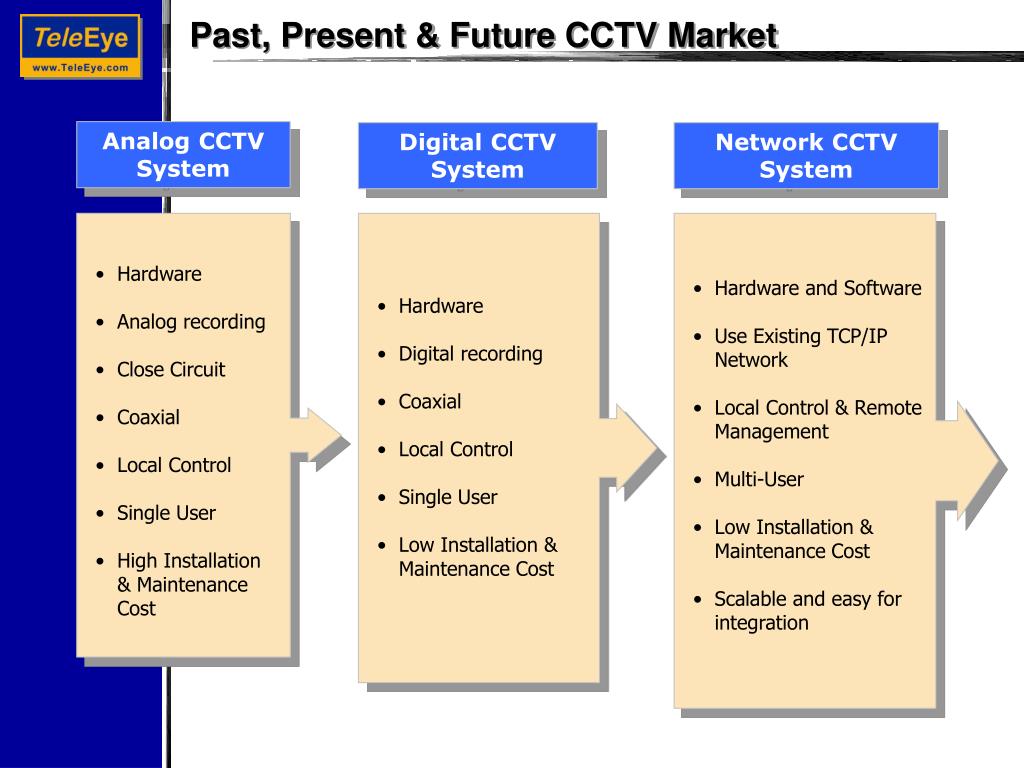

  2. Past, Present & Future CCTV Market Analog CCTV System Digital CCTV System Network CCTV System • Hardware • Analog recording • Close Circuit • Coaxial • Local Control • Single User • High Installation & Maintenance Cost • Hardware and Software • Use Existing TCP/IP Network • Local Control & Remote Management • Multi-User • Low Installation & Maintenance Cost • Scalable and easy for integration • Hardware • Digital recording • Coaxial • Local Control • Single User • Low Installation & Maintenance Cost

  3. Network CCTV Example of LAN Setup in an office RJ45 Cat-5 Cable LAN Workstations Network Switch

  4. Network CCTV Example of Network Video Transmitter Setup LAN Workstations Network Switch SF389 SF389 SF389 SF389 SF389 TeleEye RX Series SF389 Monitor PTZ Keyboard Controller

  5. 192.168.0.8 192.168.0.6 192.168.0.4 192.168.0.2 Example of LAN IP Settings 192.168.0.9 192.168.0.7 192.168.0.5 192.168.0.3 192.168.0.10 192.168.0.11 192.168.0.12 192.168.0.13 192.168.0.14 192.168.0.15 Network CCTV LAN Workstations Network Switch SF389 SF389 SF389 SF389 SF389 TeleEye RX Series SF389 Monitor PTZ Keyboard Controller

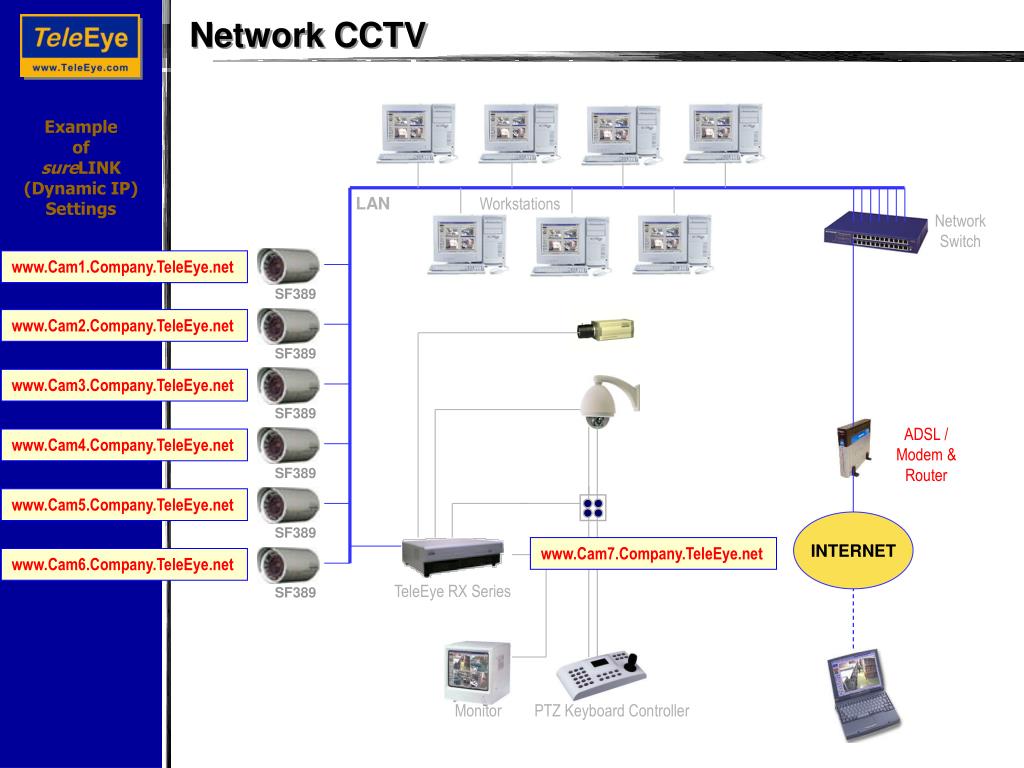

  6. Example of sureLINK (Dynamic IP) Settings www.Cam1.Company.TeleEye.net www.Cam2.Company.TeleEye.net www.Cam3.Company.TeleEye.net ADSL / Modem & Router www.Cam4.Company.TeleEye.net www.Cam5.Company.TeleEye.net INTERNET www.Cam7.Company.TeleEye.net www.Cam6.Company.TeleEye.net Network CCTV LAN Workstations Network Switch SF389 SF389 SF389 SF389 SF389 RS485 + / - TeleEye RX Series SF389 Monitor PTZ Keyboard Controller

  7. Network CCTV Example of Wireless Video Transmission with M-Monitoring Software LAN Workstations Network Switch SF389 SF389 SF389 ADSL / Modem & Router SF389 2.5G / 3G INTERNET SF389 TeleEye M-303 TeleEye RX Series SF389 Monitor PTZ Keyboard Controller

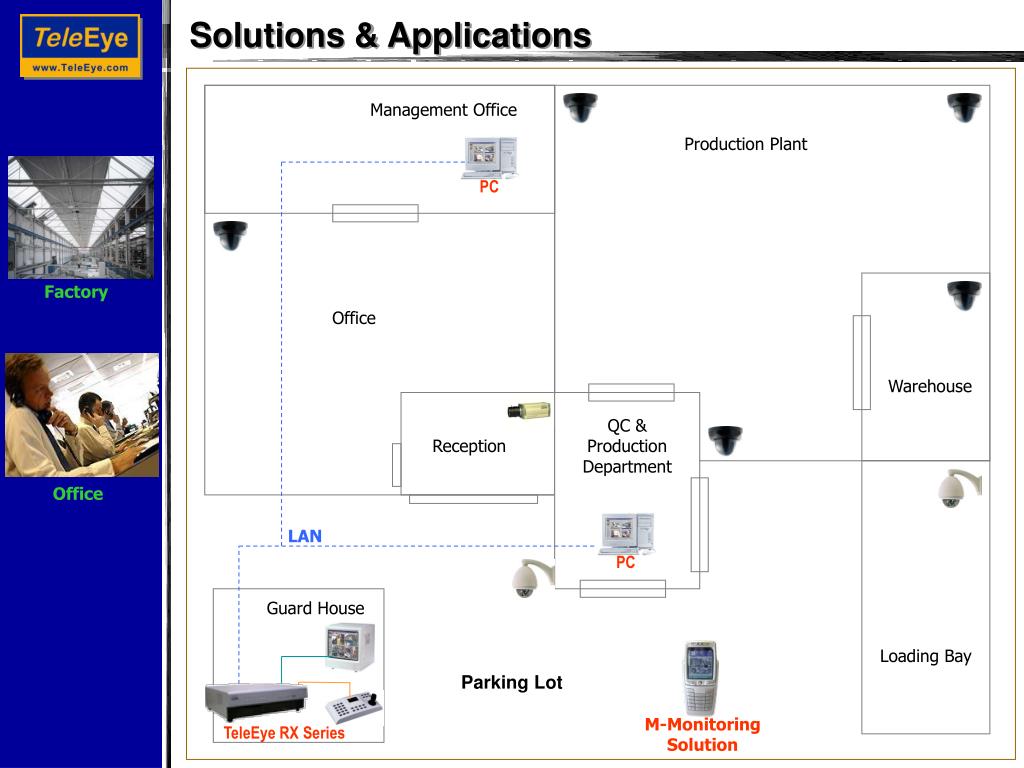

  8. Solutions & Applications Management Office Production Plant PC Factory Office Warehouse QC & Production Department Reception Office LAN PC Guard House Loading Bay Parking Lot M-Monitoring Solution TeleEye RX Series

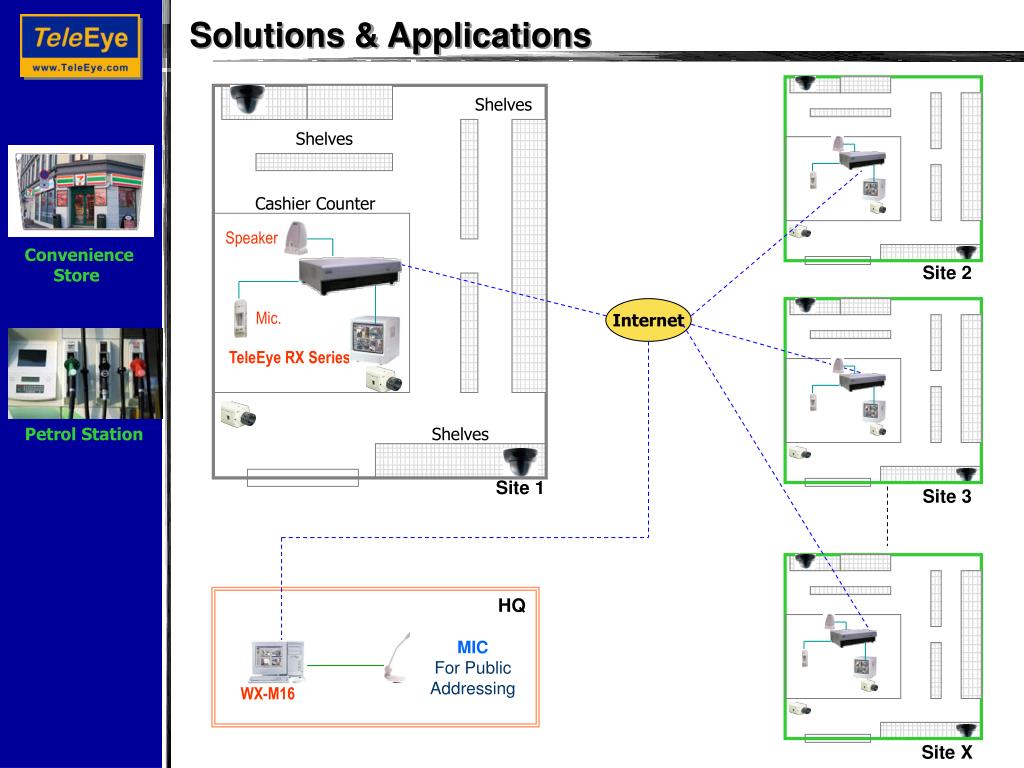

  9. Solutions & Applications Shelves Shelves Cashier Counter Speaker Convenience Store Site 2 Internet Mic. TeleEye RX Series Petrol Station Shelves Site 1 Site 3 HQ MIC For Public Addressing WX-M16 Site X

  10. Solutions & Applications TeleEye RX Series ATM ATM Center 2 Leased Line / ADSL ATM PIR ATM Center 1 ATM Center 3 Control Center WX-M16 WX-M16 WX-M16 ATM Center X

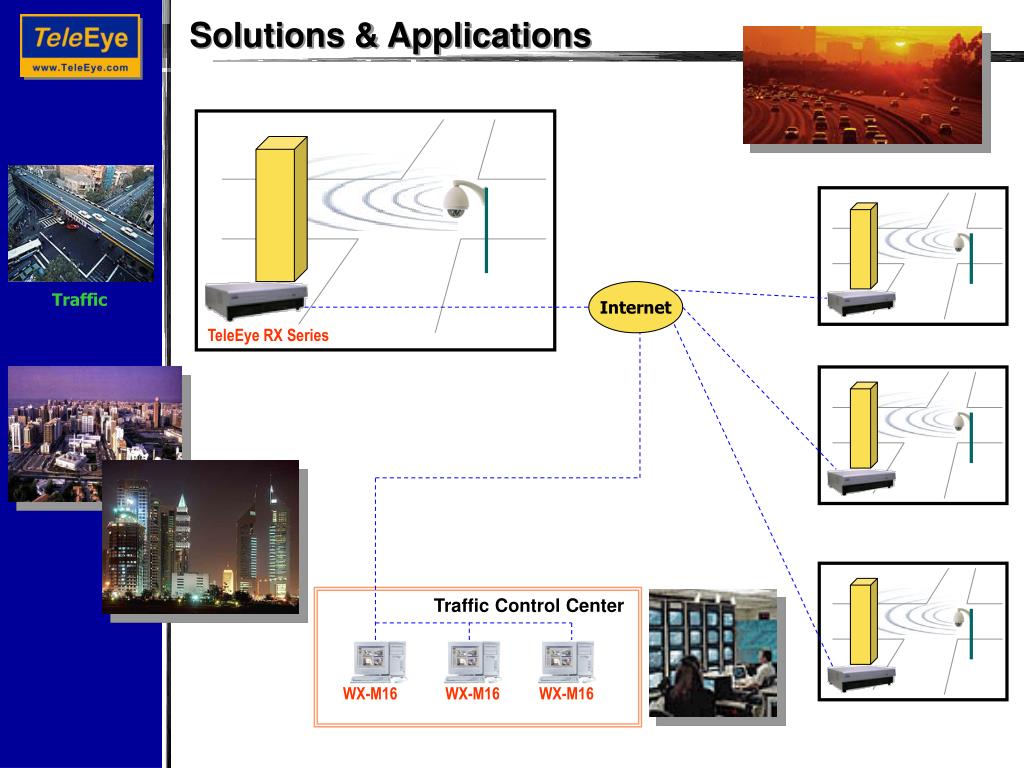

  11. Solutions & Applications Internet Traffic TeleEye RX Series Traffic Control Center WX-M16 WX-M16 WX-M16

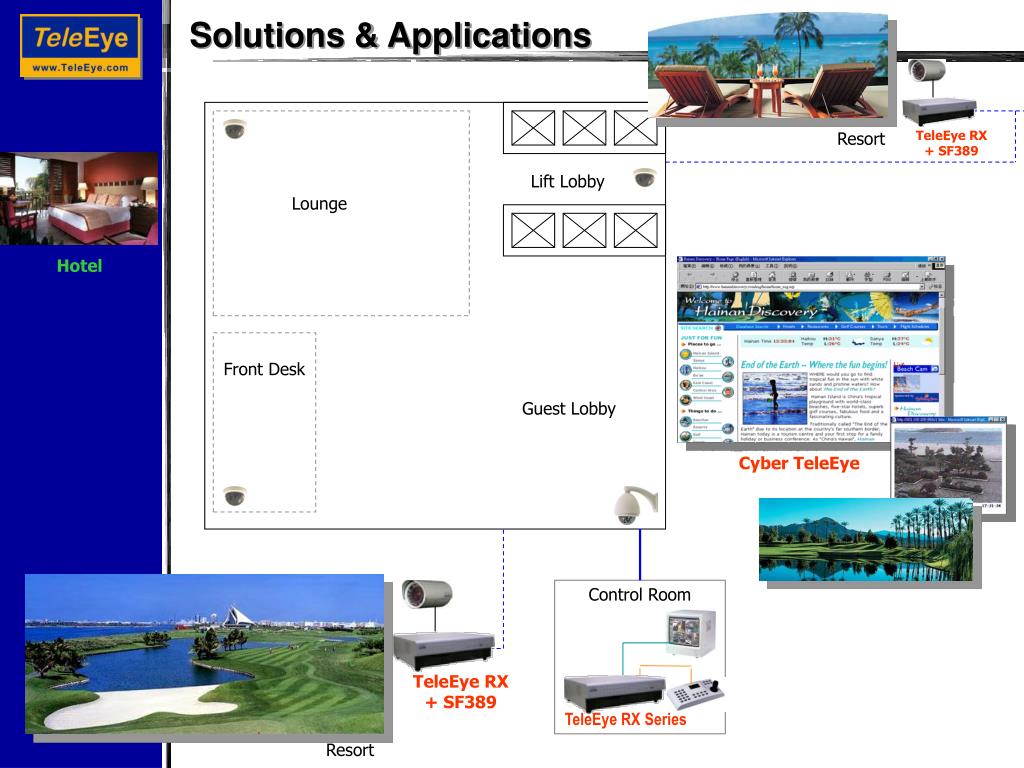

  12. TeleEye RX + SF389 Solutions & Applications Resort Lift Lobby Lounge Hotel Front Desk Guest Lobby Cyber TeleEye Control Room TeleEye RX + SF389 TeleEye RX Series Resort

  13. Solutions & Applications TeleEye RX + DM Series Unmanned Sites PSTN / ISDN Control Center WX-30 WX-30 WX-30

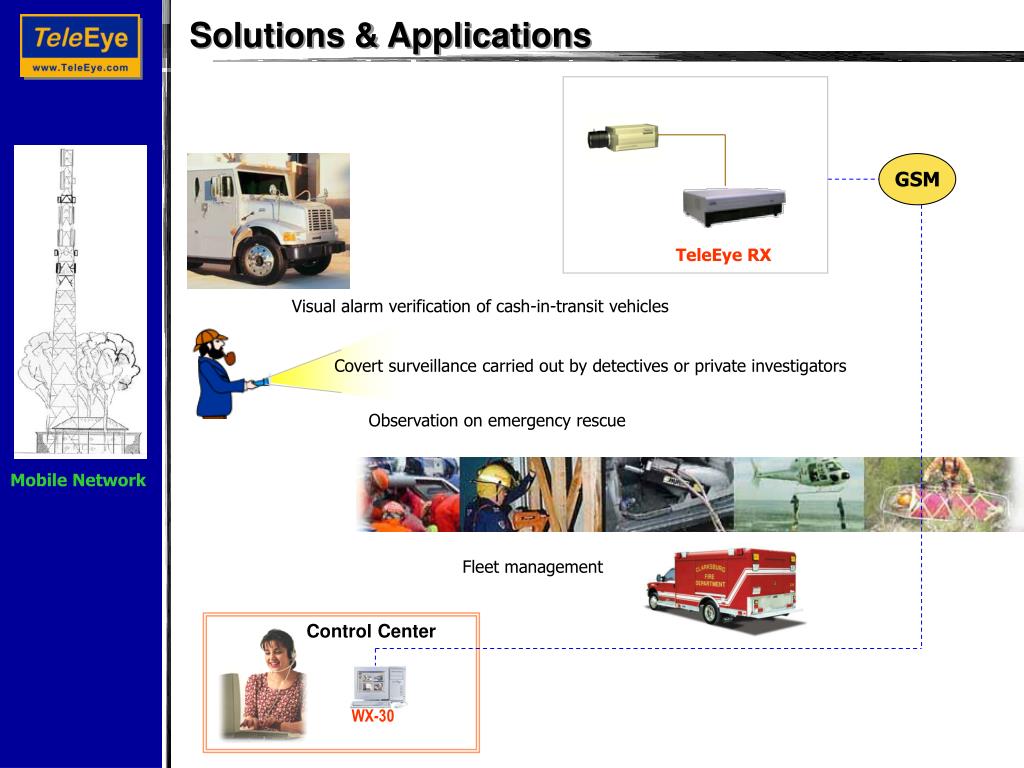

  14. Solutions & Applications GSM TeleEye RX Visual alarm verification of cash-in-transit vehicles Covert surveillance carried out by detectives or private investigators Observation on emergency rescue Mobile Network Fleet management Control Center WX-30

  15. Central Monitoring Station REMOTE SITES Alarm Sensors Alarm Sensors TeleEye Transmitter via Internet TeleEye Transmitter via PSTN 56k Modem ADSL Modem PSTN Internet CENTRAL MONITORING STATION 56k Modem Connection Servers LAN CMS ADSL Modem Operator 1 Operator 2 Operator X Administrator Central Data Server Video Viewer

  16. Conclusion • Remote Surveillance and Network CCTV are • Irresistible • Cost saving, easy to operate and manage, flexible to expand • Open up many new business opportunities
