1. Computer Science II University of Palestine Faculty of Engineering and Urban planning Software Engineering Department Lecture 6 of Mohammad Amin KuhailM.Sc. (York, UK) Stacks, Queues, Lists I Tuesday, 2 October 2007

2. Asymptotic Notations Outline • Asymptotic Notation • Stacks • Queues

3. Asymptotic Notation 2. Relatives of the Big-Oh

4. Asymptotic Notation 3. Asymptotic Analysis

5. STACKS Definition In computer science, a stack is a temporary abstract data type and data structure based on the principle of Last In First Out (LIFO). Stacks are used extensively at every level of a modern computer system [2].

6. STACKS Explanation • Push: pushes an element on the top of the stored elements. • Pop: Pops the last inserted element.

7. STACKS Examples of use: • Web browsers. • Undo mechanism in Text browsers. • Function call.

8. STACKS ADT Refresher • An abstract data type (ADT) is an abstraction of a data structure • An ADT specifies: 􀂄 Data stored 􀂄 Operations on the data 􀂄 Error conditions associated with operations

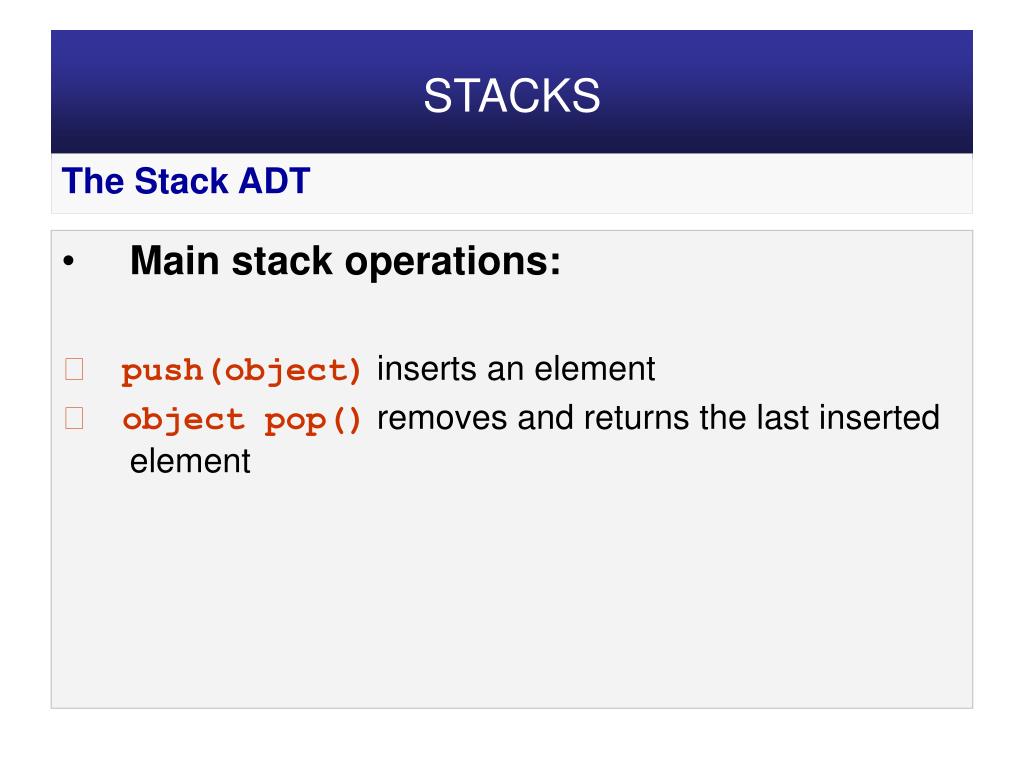

9. STACKS The Stack ADT • Main stack operations: 􀂄push(object) inserts an element 􀂄object pop() removes and returns the last inserted element

10. STACKS The Stack ADT • Auxiliary stack operations: 􀂄 object top(): returns the last inserted element without removing it 􀂄 integer size(): returns the number of elements stored 􀂄 boolean isEmpty(): indicates whether no elements are stored

11. STACKS Example from book

12. STACKS Stack Interface public interface Stack { public int size(); public boolean isEmpty(); public Object top() throws EmptyStackException; public void push(Object o); public Object pop() throws EmptyStackException; }

13. STACKS Exception public class StackEmptyException extends RuntimeException { Public StackEmptyException(String err){ super(err); } }

14. STACKS Implementing Stacks using Arrays • When the array is empty t is -1, t is initially -1 • Fixed already assigned size, say 100000 • (First entered, Last returned) element is the element 0. • (Last entered, First returned )element is the element t • Stack size is t+1

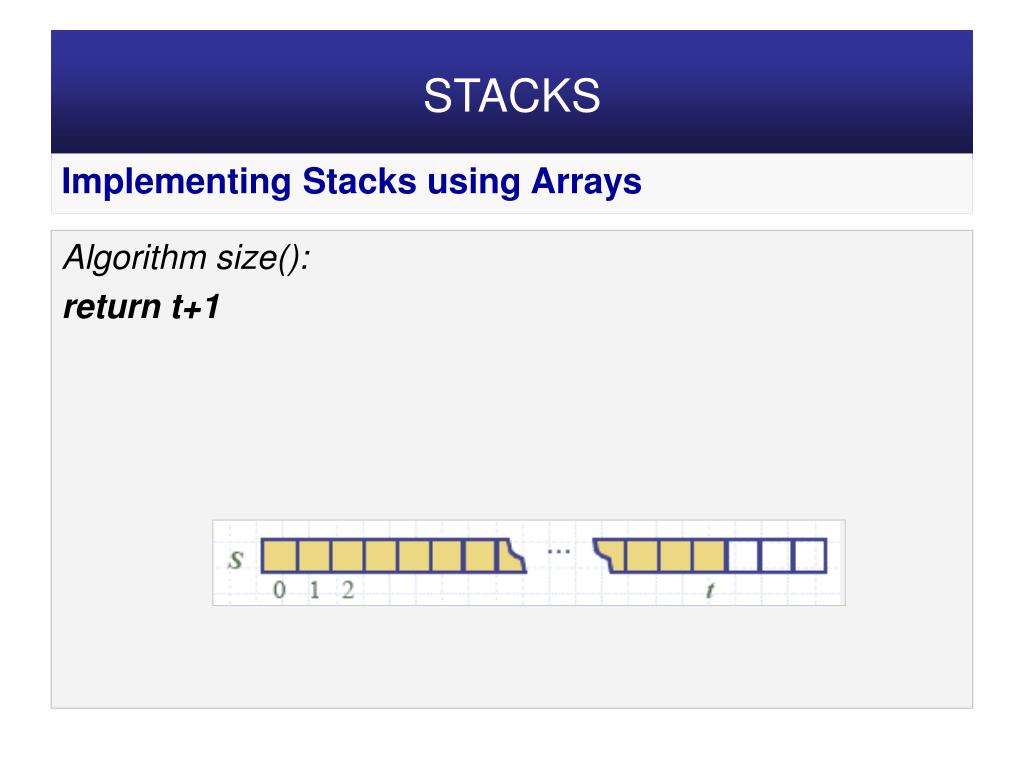

15. STACKS Implementing Stacks using Arrays Algorithm size(): return t+1

16. STACKS Implementing Stacks using Arrays Algorithm size(): return t+1

17. STACKS Implementing Stacks using Arrays public int size() { return (t+1); }

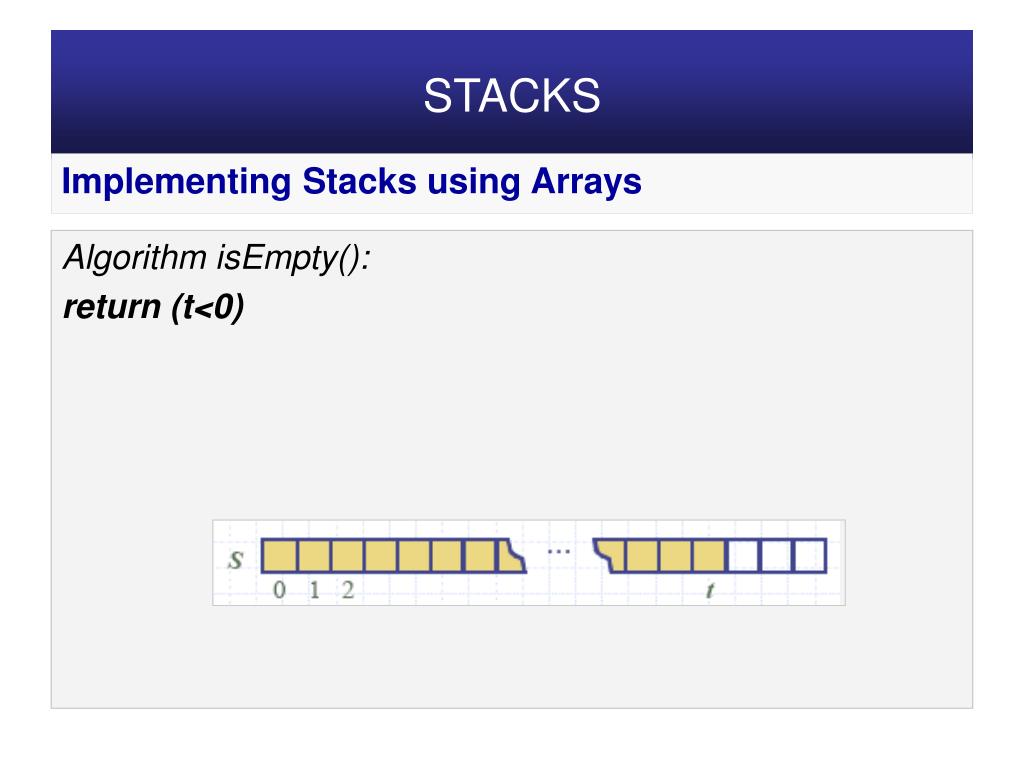

18. STACKS Implementing Stacks using Arrays Algorithm isEmpty(): return (t<0)

19. STACKS Implementing Stacks using Arrays public boolean isEmpty(){ return (t<0); }

20. STACKS Implementing Stacks using Arrays Algorithm top(): if isEmpty() then throw a StackEmptyException return S[t]

21. STACKS Implementing Stacks using Arrays public Object top()throws StackEmptyException{ if(isEmpty()) throw new StackEmptyException(“Stack is Empty”); return S[top]; }

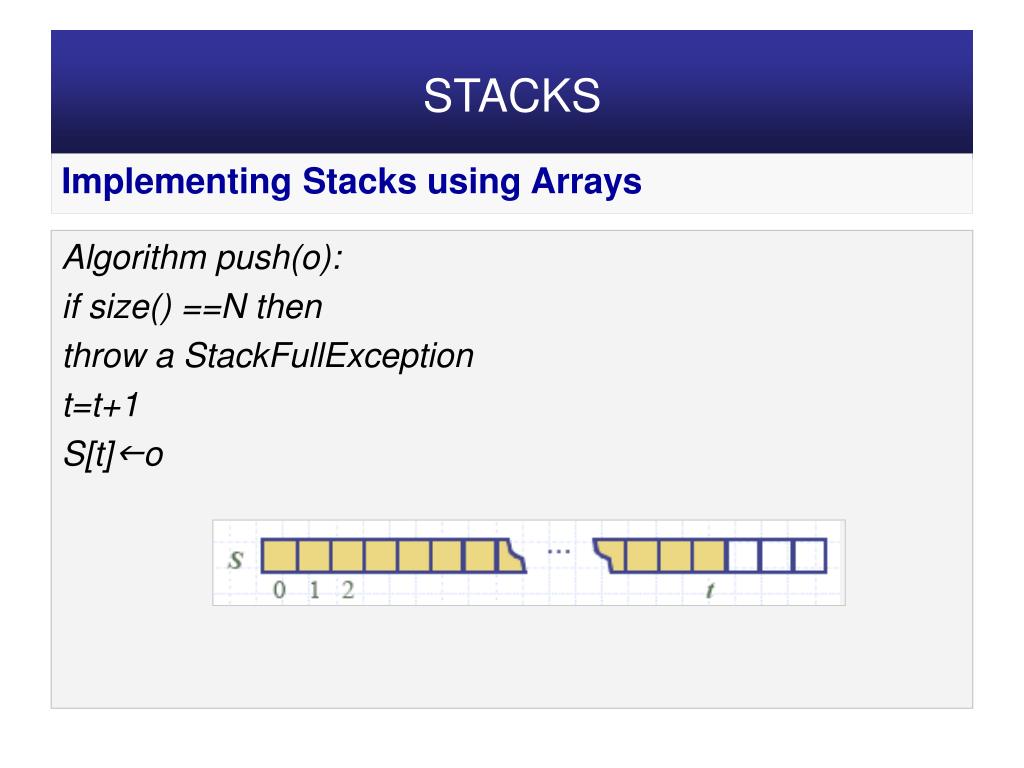

22. STACKS Implementing Stacks using Arrays Algorithm push(o): if size() ==N then throw a StackFullException t=t+1 S[t]o

23. STACKS Implementing Stacks using Arrays publicvoid push(Object obj)throws StackFullException{ if(size()==N) throw new StackFullException(“Stack is Full”); S[++top]=obj; }

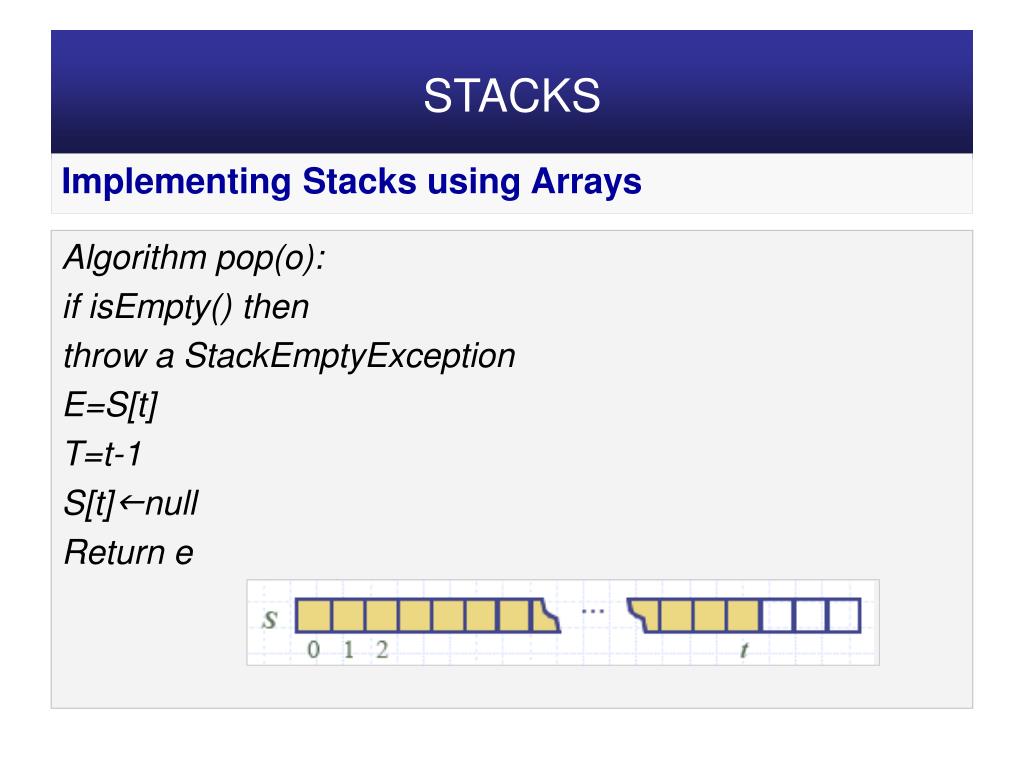

24. STACKS Implementing Stacks using Arrays Algorithm pop(o): if isEmpty() then throw a StackEmptyException E=S[t] T=t-1 S[t]null Return e

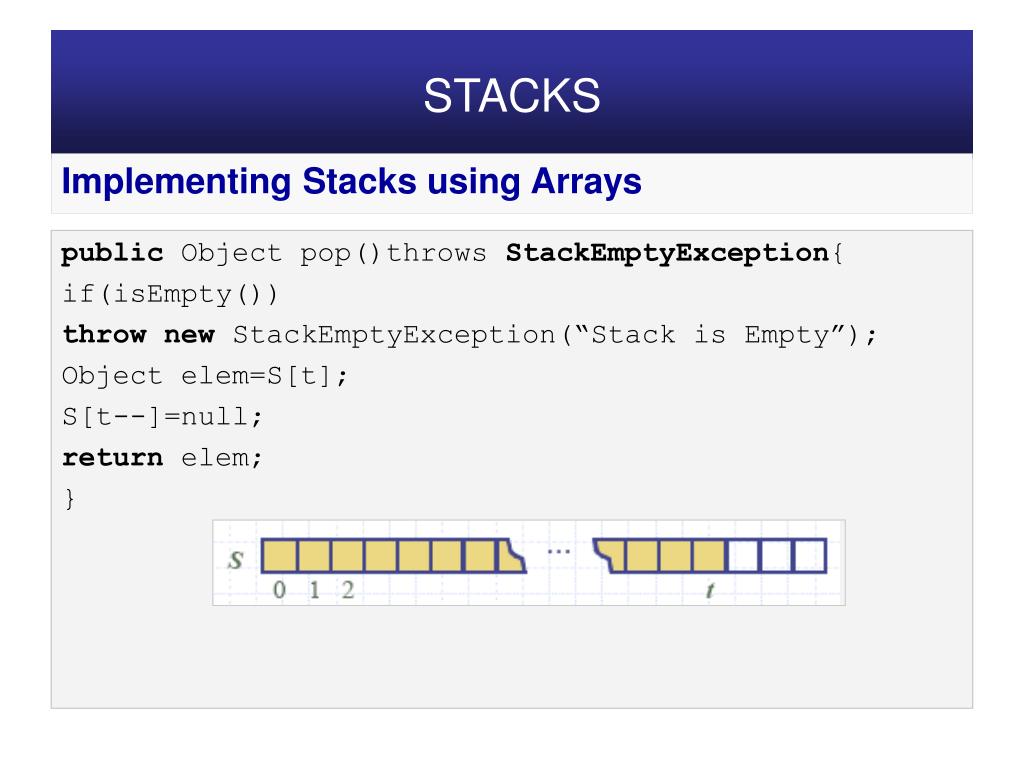

25. STACKS Implementing Stacks using Arrays public Object pop()throws StackEmptyException{ if(isEmpty()) throw new StackEmptyException(“Stack is Empty”); Object elem=S[t]; S[t--]=null; return elem; }

26. STACKS Performance, Space Usage Space Usage: O(N) Size, isEmpty, top, push, pop: O(1)

27. STACKS Application reverse publicstatic Integer[] reverse(Integer[] a){ ArrayStack S = new ArrayStack(a.length); Integer[] b= new Integer[a.length]; for(int i=0;i<a.length;i++) S.push(a[i]); for(int i=0;i<a.length;i++) b[i]=(Integer)(S.pop()); return b; }

28. STACKS Exercises: • match Parentheses Algorithm ParenMatch(S,n): Input: An array X of n tokens, each of which is either a grouping symbol, a variable, an arithmetic operator, or a number Output: true if and only if all the grouping symbols in X match

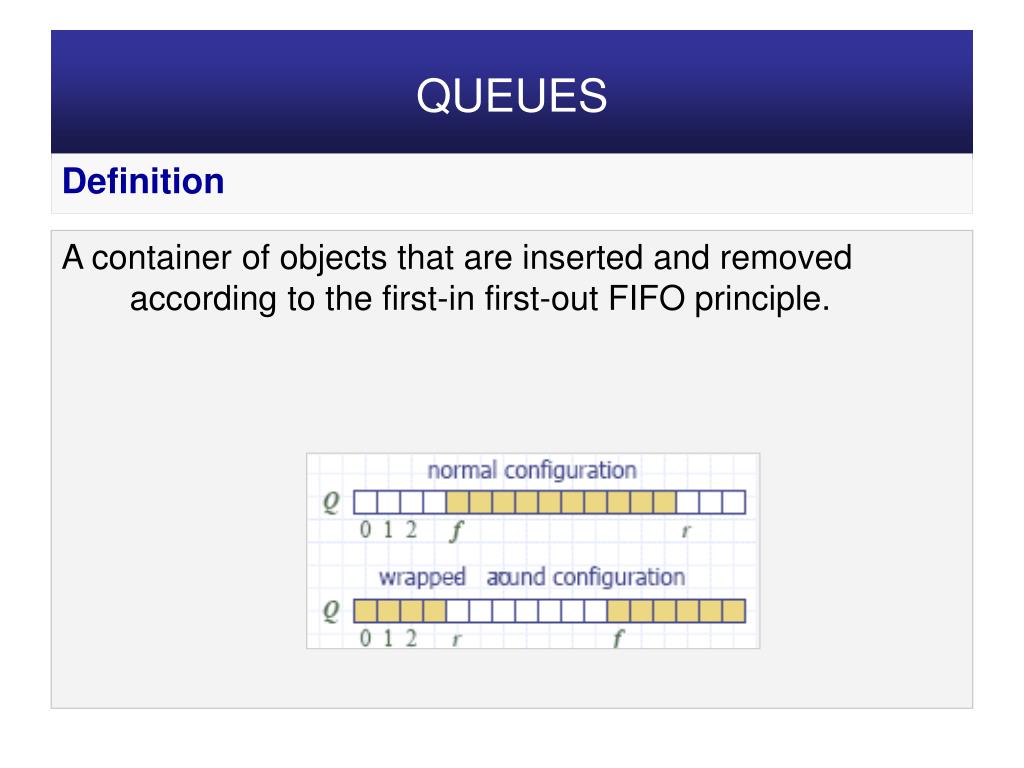

29. QUEUES Definition A container of objects that are inserted and removed according to the first-in first-out FIFO principle.

30. QUEUES Basics • Front • Rear • Enqueue: from the rear r • Dequeue: from the front f

31. QUEUES Queue ADT Fundamentals methods • enqueue(object): inserts an element at the end of the queue • object dequeue(): removes and returns the element at the front of the queue

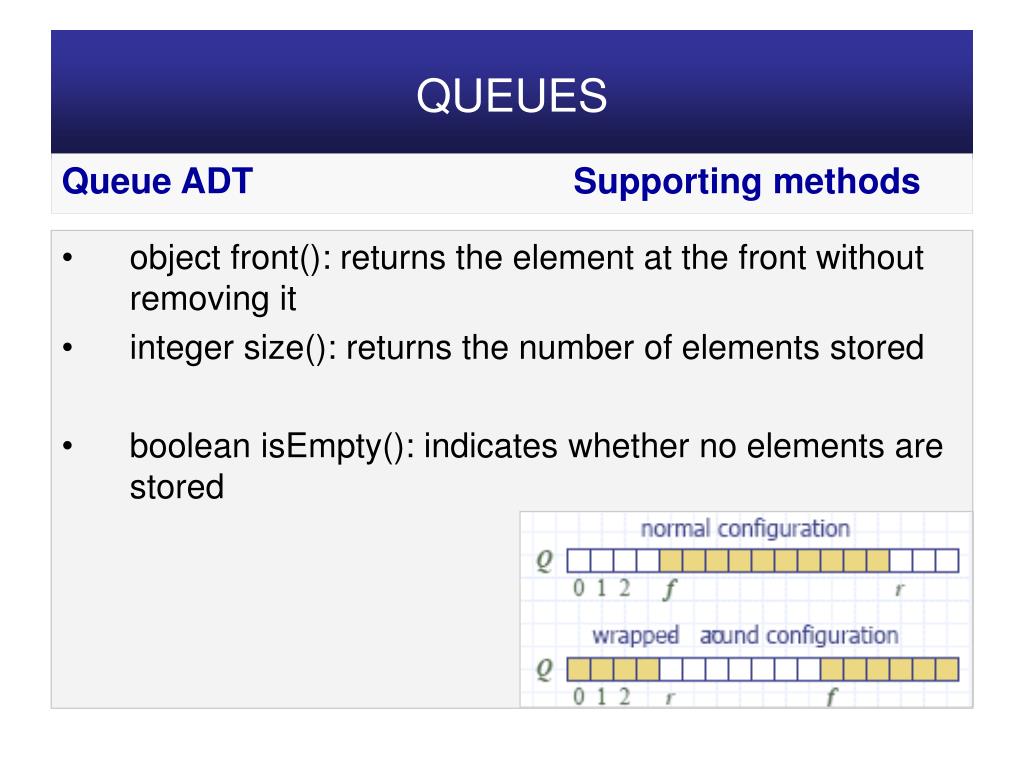

32. QUEUES Queue ADT Supporting methods • object front(): returns the element at the front without removing it • integer size(): returns the number of elements stored • boolean isEmpty(): indicates whether no elements are stored

33. QUEUES Example from book

34. QUEUES Interface in Java public interface Queue { public int size(); public boolean isEmpty(); public Object front() throws EmptyQueueException; public void enqueue(Object o); public Object dequeue() throws EmptyQueueException; }

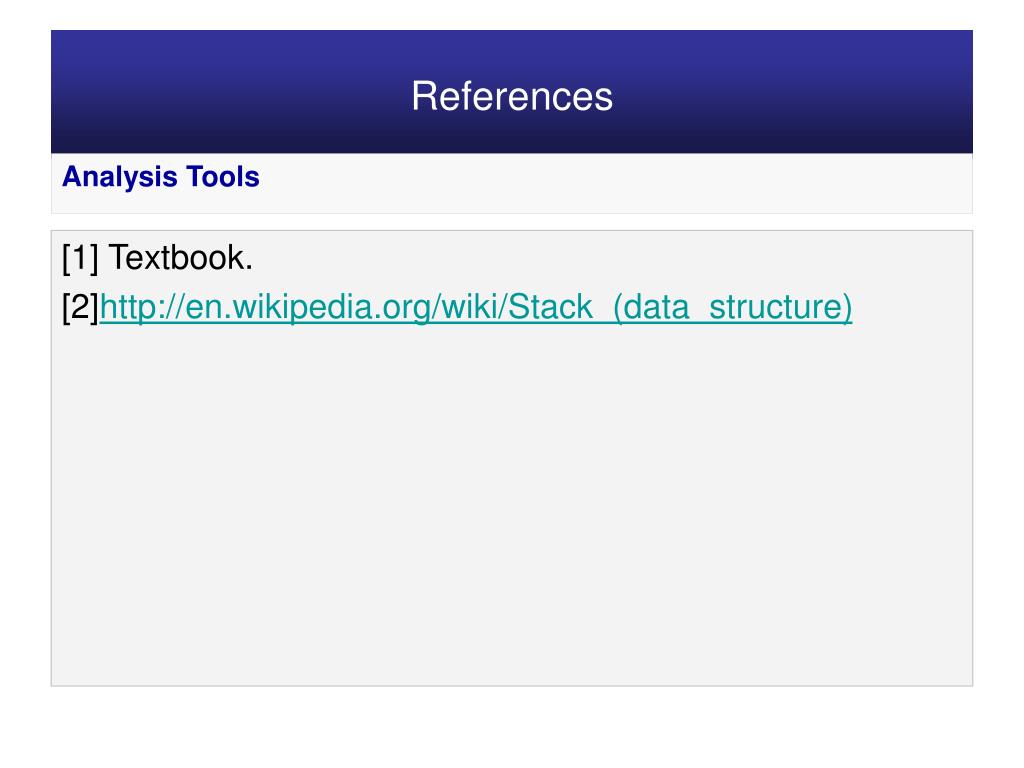

35. References Analysis Tools [1] Textbook. [2]http://en.wikipedia.org/wiki/Stack_(data_structure)
