Base Case Building Update

DESCRIPTION

Detailed update on power grid building for increased load levels in the NWE region up to 2025, including assumptions, topology changes, and new generation upgrades.

1 / 4

Télécharger la présentation

Base Case Building Update

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Base Case Building Update For TRANSAC 10/21/10

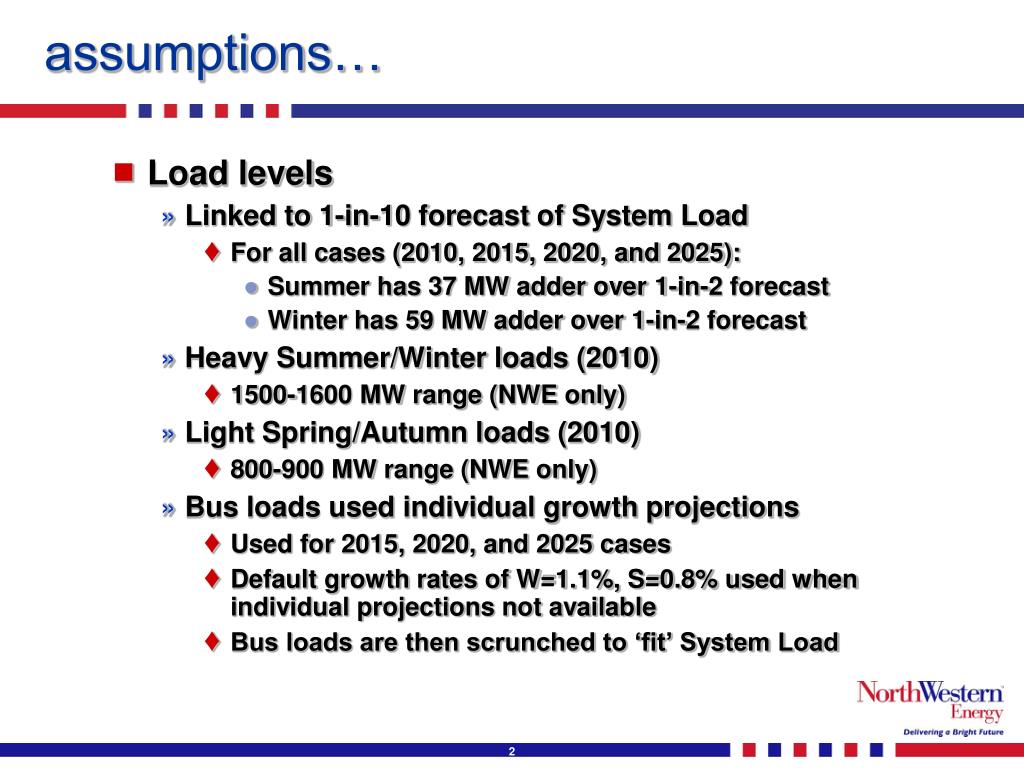

  2. assumptions… • Load levels • Linked to 1-in-10 forecast of System Load • For all cases (2010, 2015, 2020, and 2025): • Summer has 37 MW adder over 1-in-2 forecast • Winter has 59 MW adder over 1-in-2 forecast • Heavy Summer/Winter loads (2010) • 1500-1600 MW range (NWE only) • Light Spring/Autumn loads (2010) • 800-900 MW range (NWE only) • Bus loads used individual growth projections • Used for 2015, 2020, and 2025 cases • Default growth rates of W=1.1%, S=0.8% used when individual projections not available • Bus loads are then scrunched to ‘fit’ System Load

  3. assumptions… • Topology • All cases: • Existing wind dispatched at 35% for LA & LSP • Existing wind dispatched at 50% for HS & HW • 2010 cases • Smurfit-Stone load gone • MCGS included, but off-line • Great Falls 115/100 kV transformer upgrade • Hardin Auto 230/115 kV transformer upgrade • Missoula #4 100/69 kV transformer upgrades • Laurel Auto capacitors • Laurel 50 kV configuration

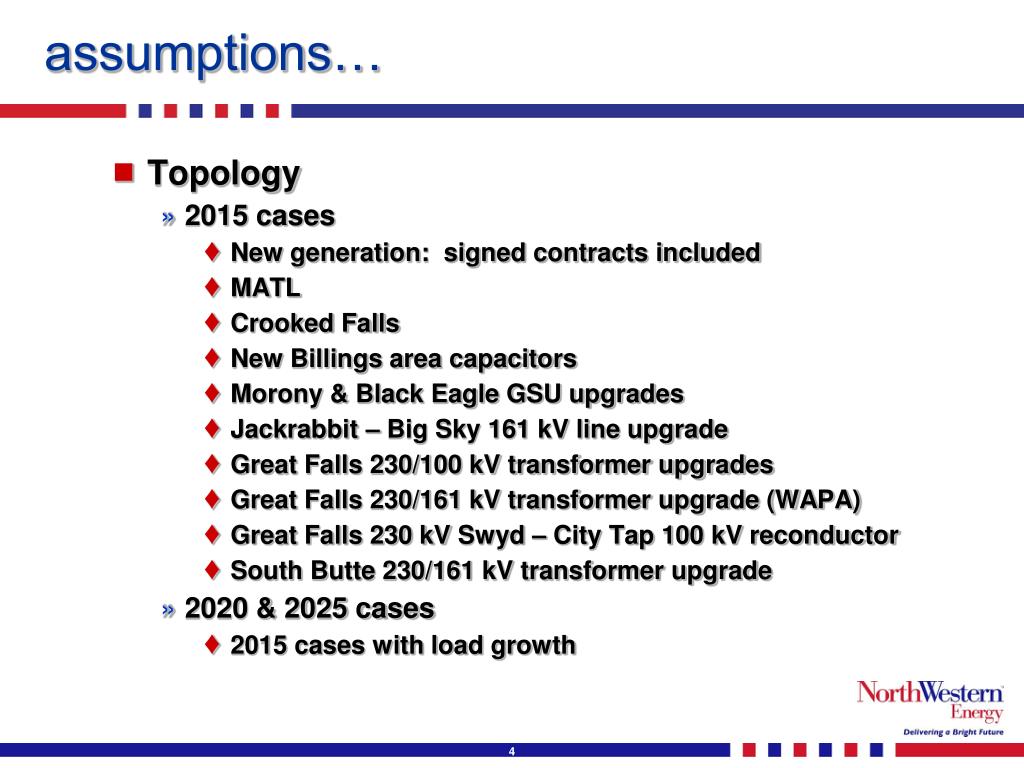

  4. assumptions… • Topology • 2015 cases • New generation: signed contracts included • MATL • Crooked Falls • New Billings area capacitors • Morony & Black Eagle GSU upgrades • Jackrabbit – Big Sky 161 kV line upgrade • Great Falls 230/100 kV transformer upgrades • Great Falls 230/161 kV transformer upgrade (WAPA) • Great Falls 230 kV Swyd – City Tap 100 kV reconductor • South Butte 230/161 kV transformer upgrade • 2020 & 2025 cases • 2015 cases with load growth
