  1. The PUBLISH Method Draft-olson-sip-publish-00 Sean Olson <seanol@microsoft.com>

  2. Overview • A general purpose mechanism for publishing event state • First application is presence publication • Based on model for presence composition • Defines new PUBLISH method • New PType, PStream, PState Headers Sean Olson <seanol@microsoft.com>

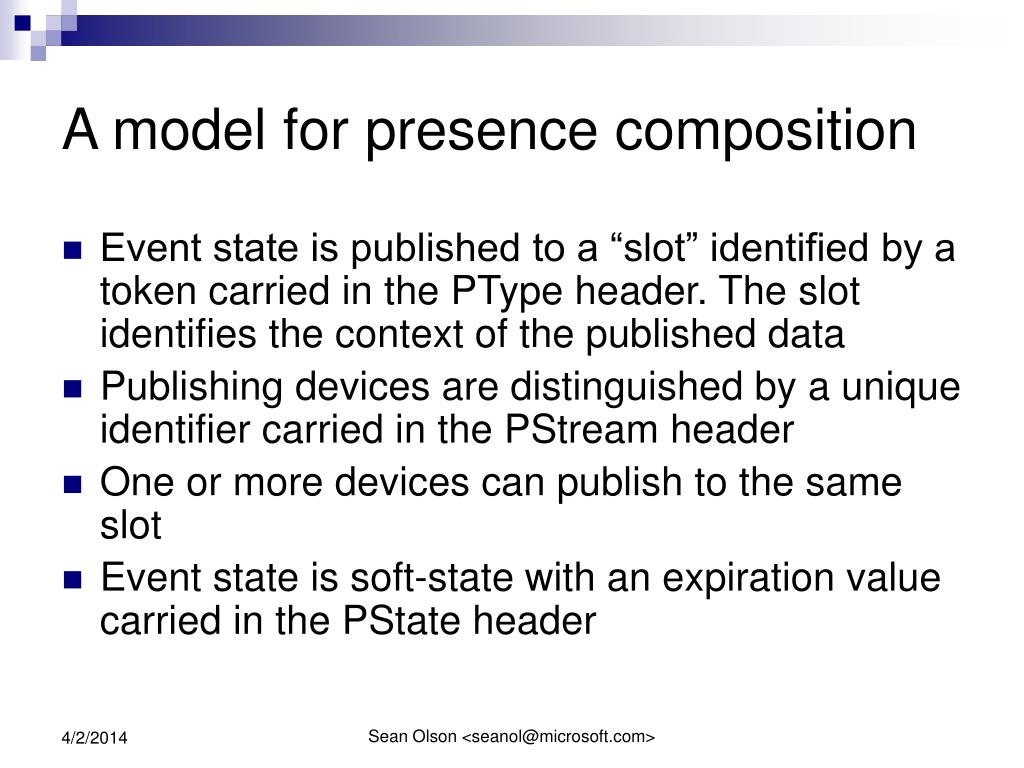

  3. A model for presence composition • Event state is published to a “slot” identified by a token carried in the PType header. The slot identifies the context of the published data • Publishing devices are distinguished by a unique identifier carried in the PStream header • One or more devices can publish to the same slot • Event state is soft-state with an expiration value carried in the PState header Sean Olson <seanol@microsoft.com>

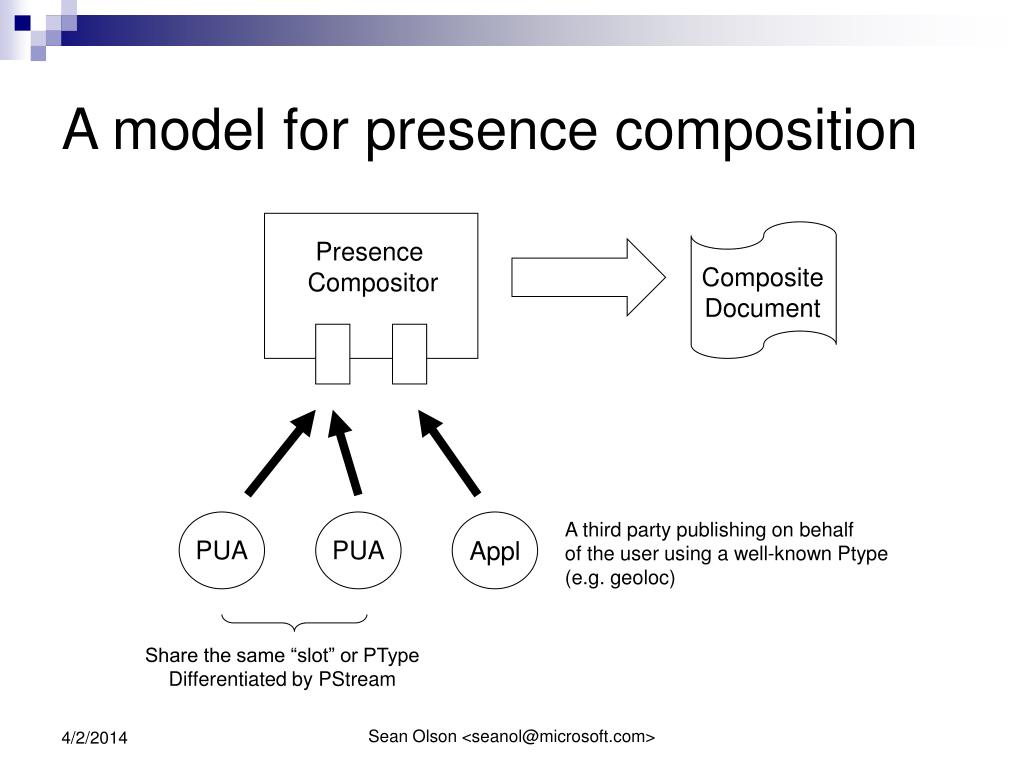

  4. Composite Document PUA PUA Appl A model for presence composition Presence Compositor A third party publishing on behalf of the user using a well-known Ptype (e.g. geoloc) Share the same “slot” or PType Differentiated by PStream Sean Olson <seanol@microsoft.com>

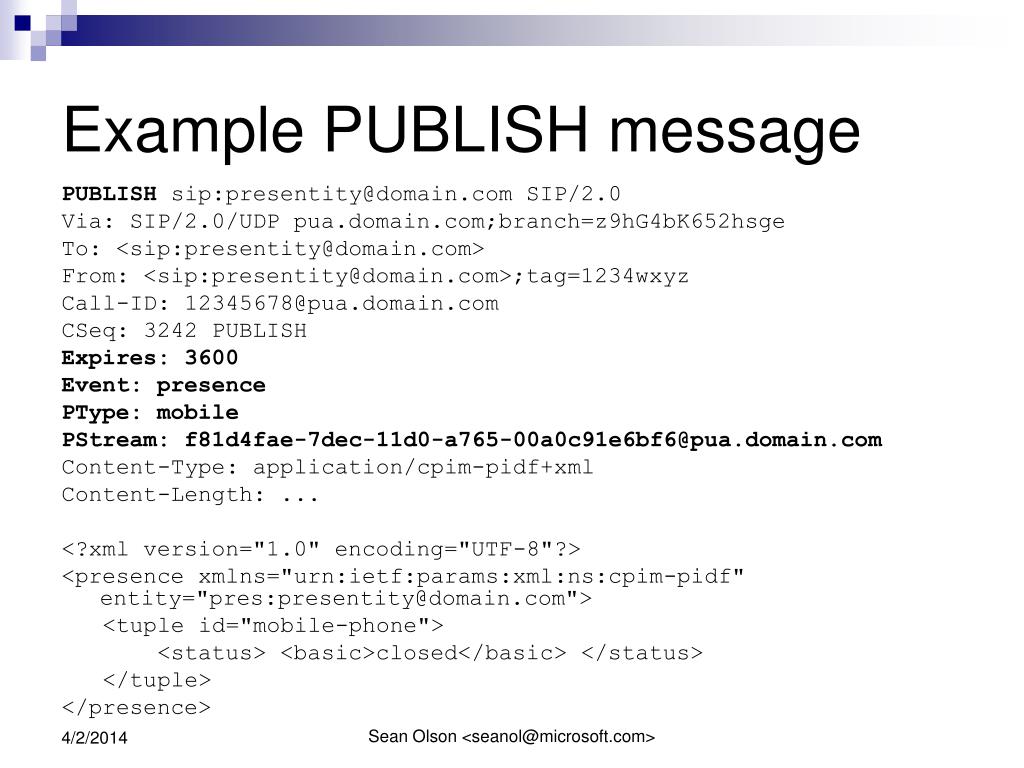

  5. Example PUBLISH message PUBLISH sip:presentity@domain.com SIP/2.0 Via: SIP/2.0/UDP pua.domain.com;branch=z9hG4bK652hsge To: <sip:presentity@domain.com> From: <sip:presentity@domain.com>;tag=1234wxyz Call-ID: 12345678@pua.domain.com CSeq: 3242 PUBLISH Expires: 3600 Event: presence PType: mobile PStream: f81d4fae-7dec-11d0-a765-00a0c91e6bf6@pua.domain.com Content-Type: application/cpim-pidf+xml Content-Length: ... <?xml version="1.0" encoding="UTF-8"?> <presence xmlns="urn:ietf:params:xml:ns:cpim-pidf" entity="pres:presentity@domain.com"> <tuple id="mobile-phone"> <status> <basic>closed</basic> </status> </tuple> </presence> Sean Olson <seanol@microsoft.com>

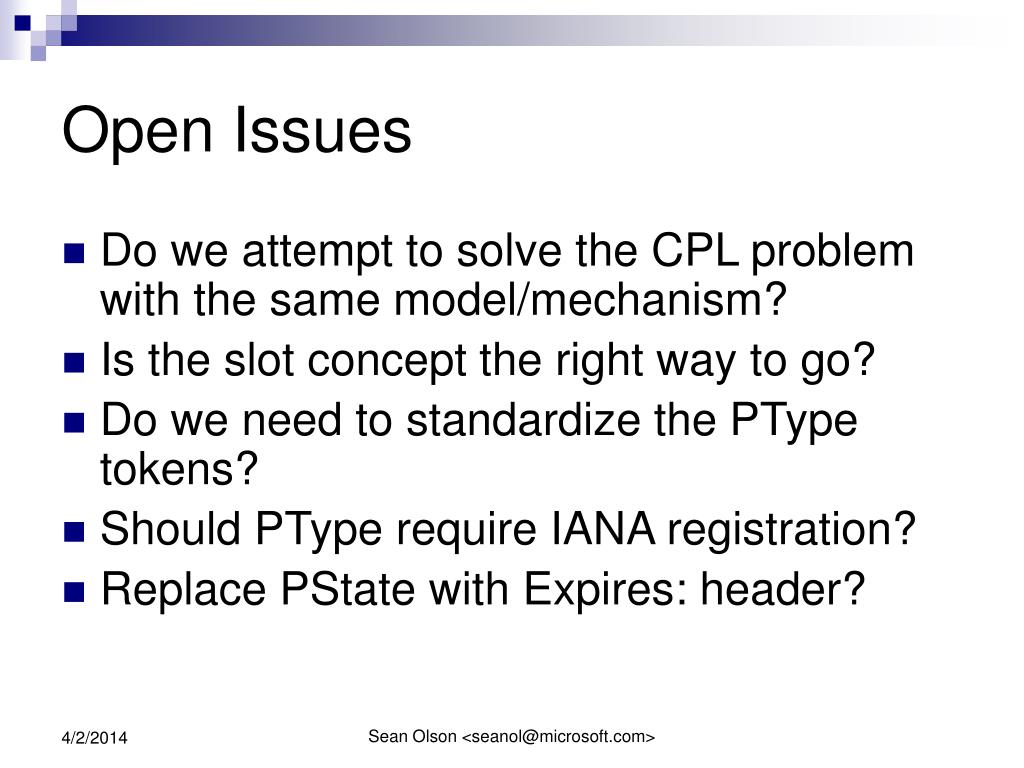

  6. Open Issues • Do we attempt to solve the CPL problem with the same model/mechanism? • Is the slot concept the right way to go? • Do we need to standardize the PType tokens? • Should PType require IANA registration? • Replace PState with Expires: header? Sean Olson <seanol@microsoft.com>
