  1. OTR TYRE MOUNTING PROCEDURE

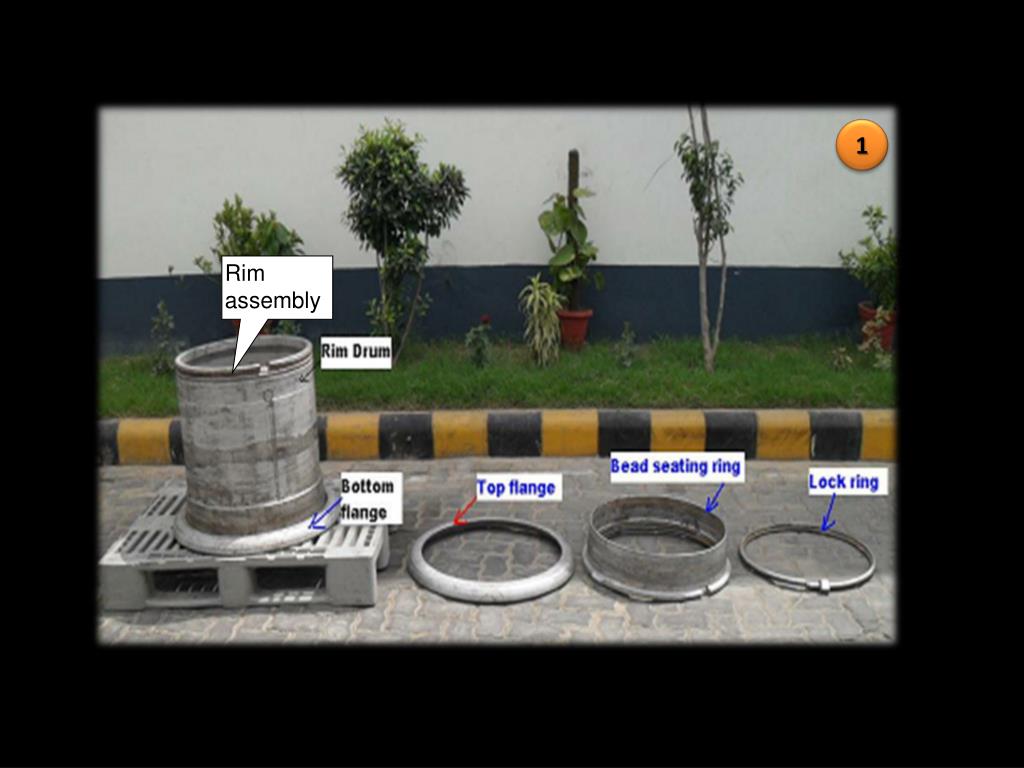

  2. 1 Rim assembly

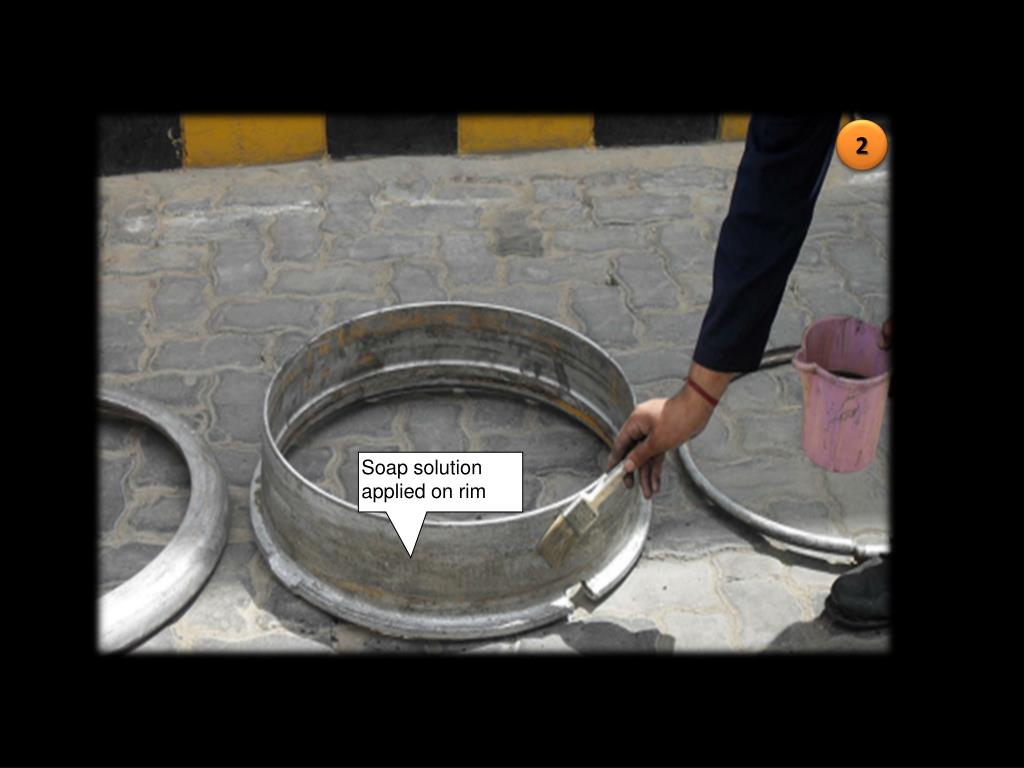

  3. 2 Soap solution applied on rim

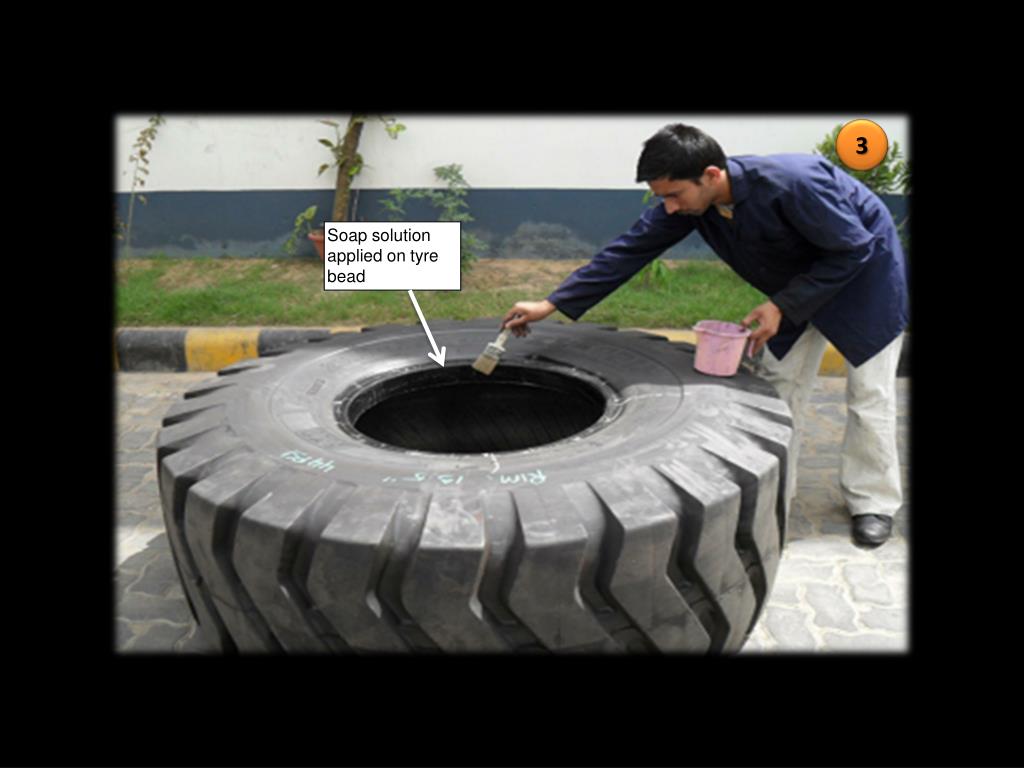

  4. 3 Soap solution applied on tyre bead

  5. 4 Carry the tyre with tyre handler

  6. 5

  7. 6 Lay down the tyre inside rim drum

  8. 7 Top flange fixed on rim

  9. 8 Bead seating ring fixed between tyre bead and rim drum

  10. 9 Bead seating ring fixed between tyre bead and rim drum

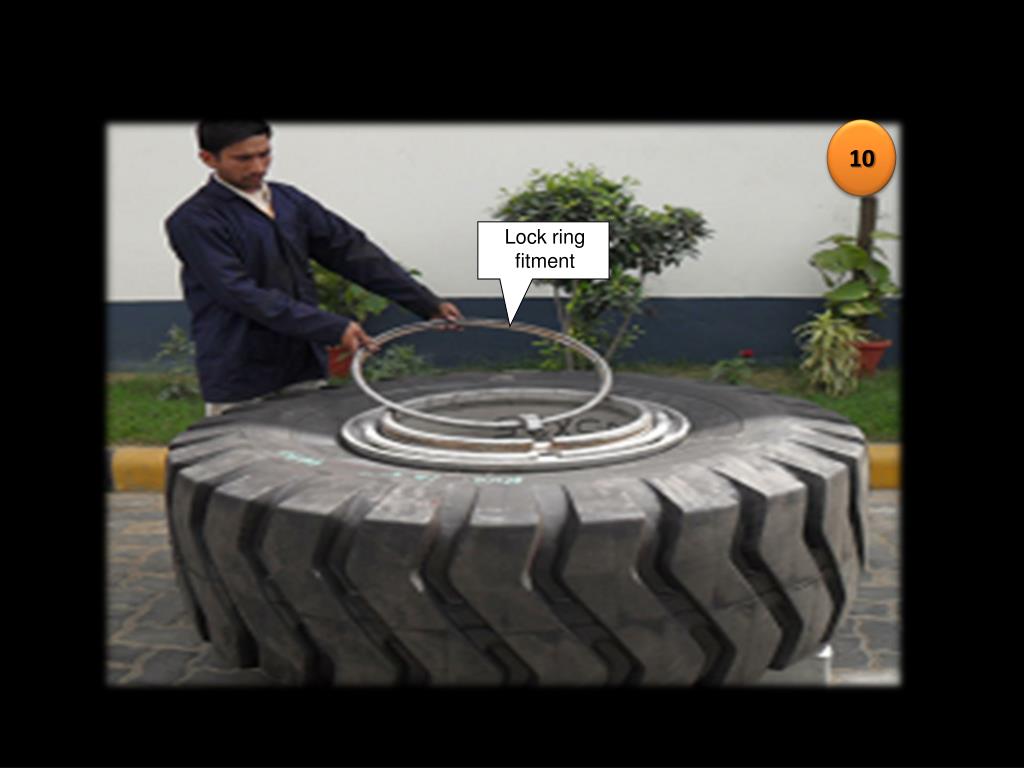

  11. 10 Lock ring fitment

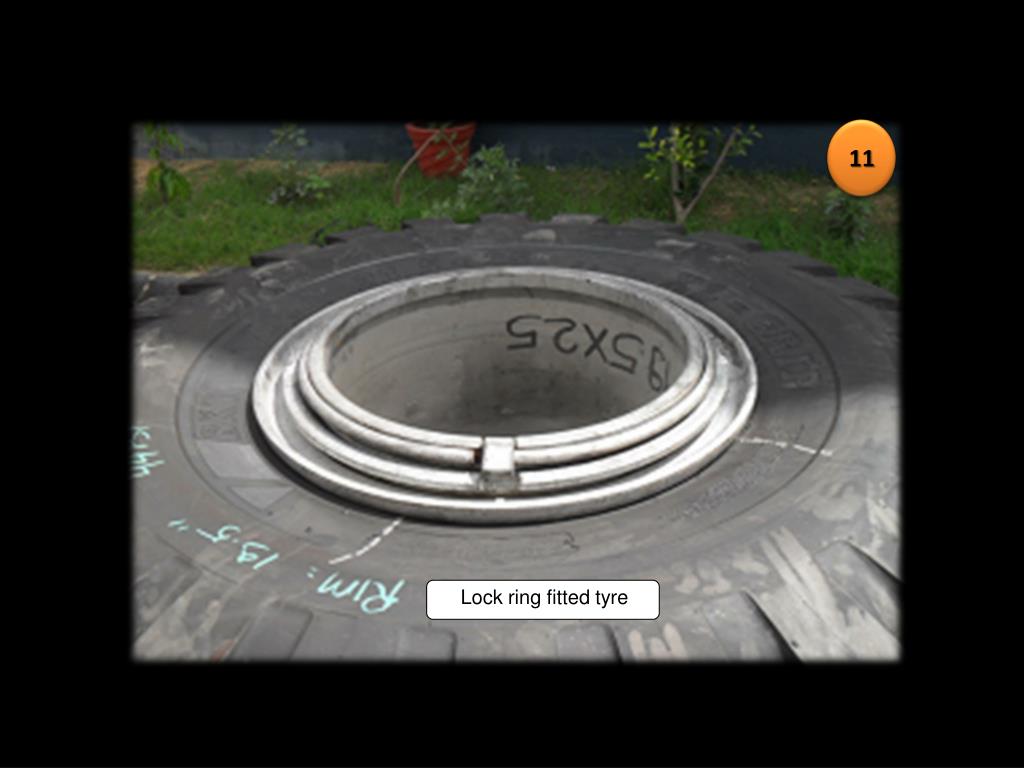

  12. 11 Lock ring fitted tyre

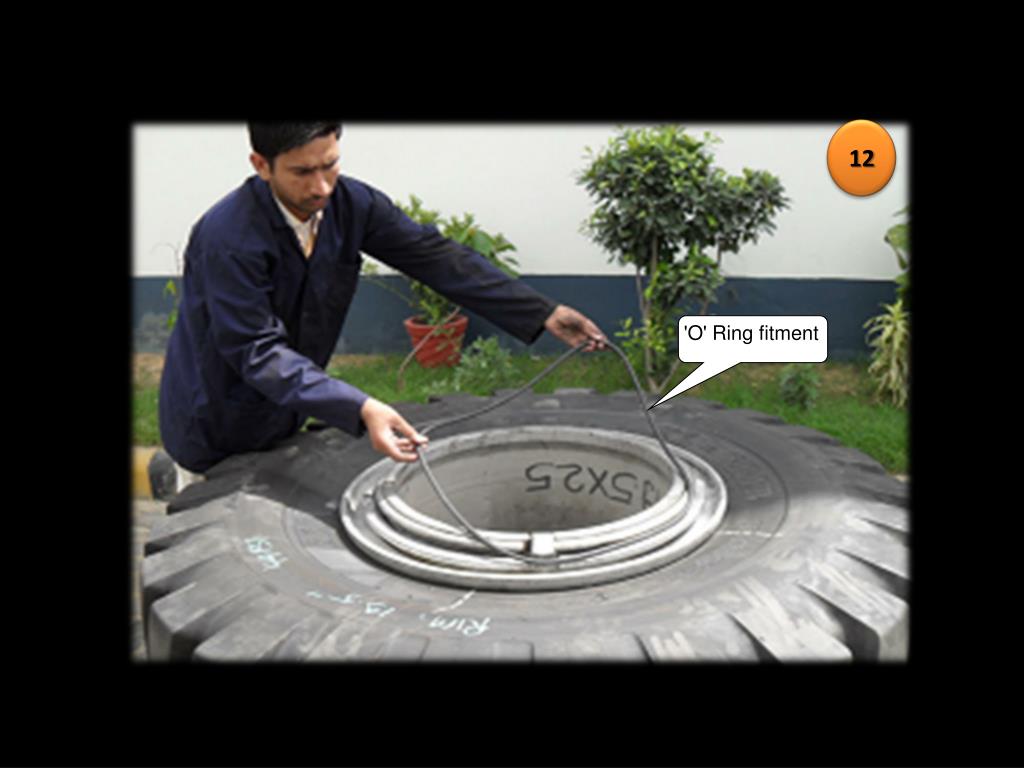

  13. 12 'O' Ring fitment

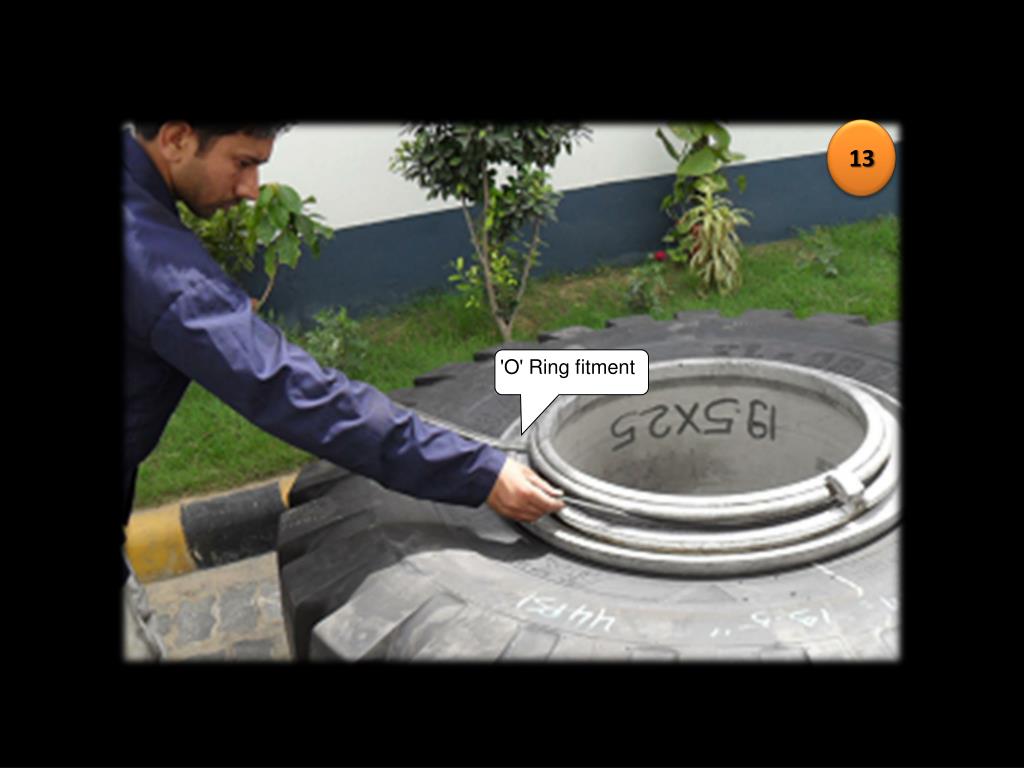

  14. 13 'O' Ring fitment

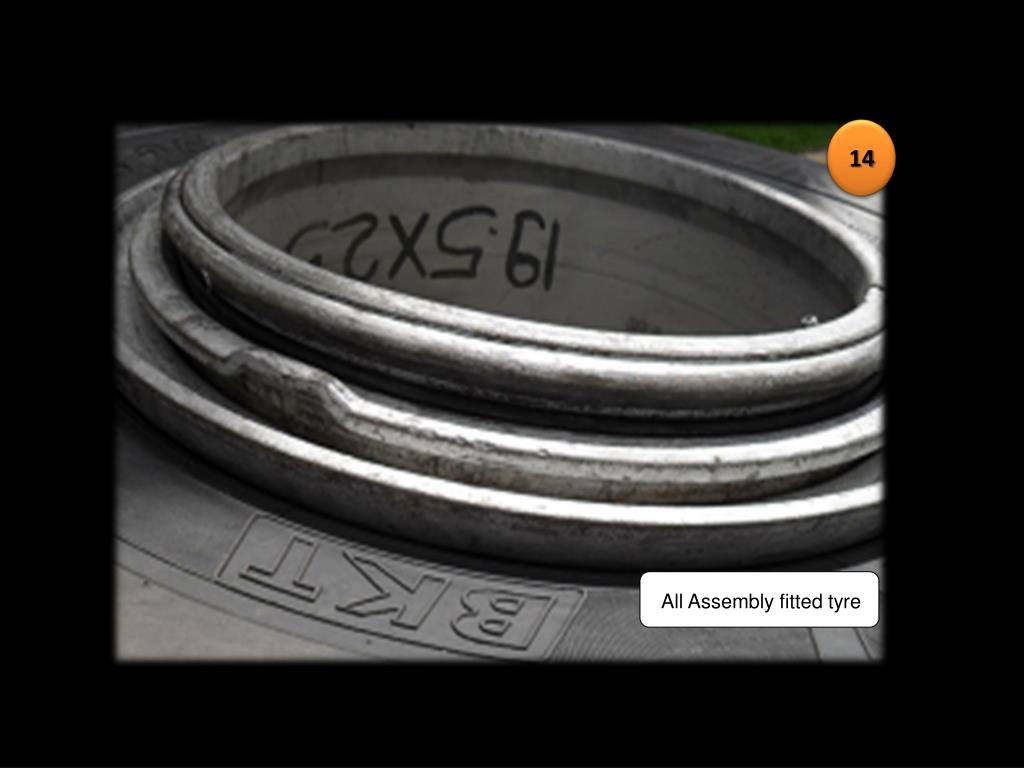

  15. 14 All Assembly fitted tyre

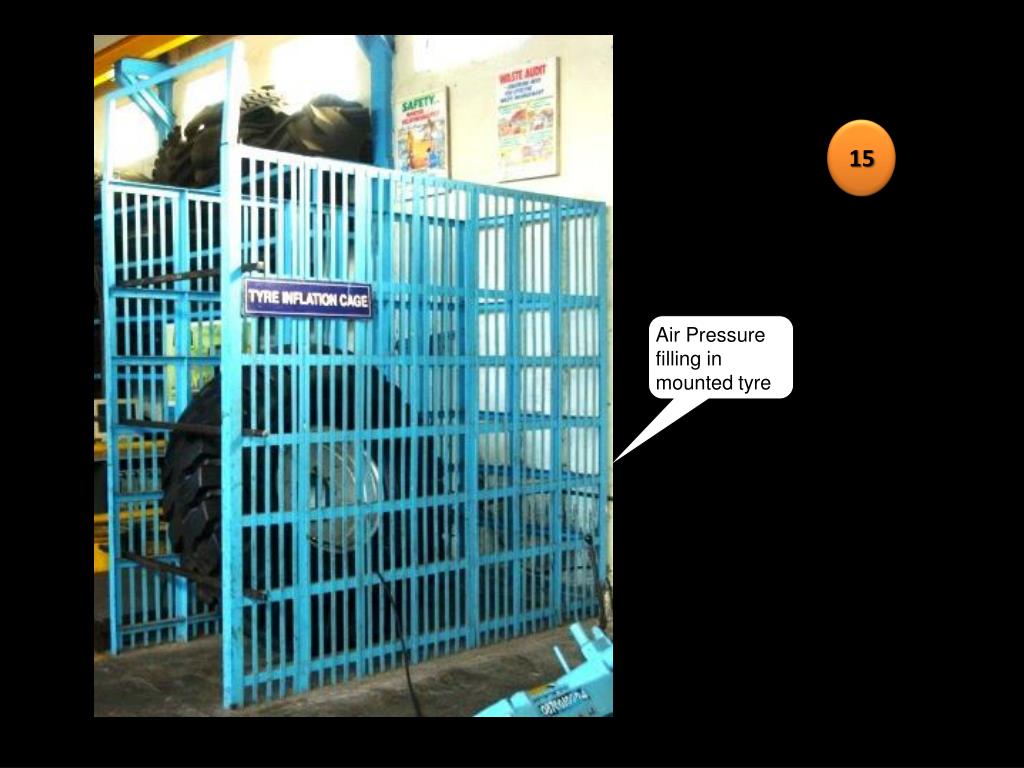

  16. 15 Air Pressure filling in mounted tyre

  17. Thank You
