  1. ERP Integration Bob Phare rphare@commandalkon.com (205) 879-3282 ext. 1130 Chris Strickland cstrickland@commandalkon.com (205) 879-3282 ext. 1241

  2. Session Objective • This session will describe how our core products are exploiting COMMANDedx capabilities to transform integration with third-party enterprise and financial systems. ERP Integration

  3. Agenda • Overview of COMMANDedx • Definitions and Concepts • Specific ERP integration scenarios • ERP – COMMANDseries • ERP – COMMANDbatch • ERP – Apex • Some technical “nuts and bolts” ERP Integration

  4. COMMANDedx Overview • COMMANDedx – Enterprise Data Exchange • Is an integration platform that is standardizing the method of transporting data between Command Alkon and third-party products. • Allows systems with different platforms and data structures to exchange information in a uniform fashion ERP Integration

  5. COMMANDedx Overview • COMMANDedx Technology • Integrates via standard XML entities (Business Objects) • Message bus is based on ISA-95 and OAGIS standards • Publisher–Subscriber model • Full Diagnostic Support Tools (Server / Web Based) • Product status: • Fully functional and shipping in two separate configurations. ERP Integration

  6. Definitions and Background • ERP – “Enterprise Resource Planning” system • “A system used to manage and coordinate all the resources, information, and functions of a business.” • This may be a true ERP system like SAP or a simple accounting system. • OAG – Open Applications Group • A not-for-profit standards development organization focused on building data exchange standards for B2B and A2A integration. • OAGIS – “Open Applications Group Integration Specification” • A broad data exchange standard developed by OAG. • ISA-95 – Describes interfaces between enterprise and control systems. ERP Integration

  7. Definitions and Background • XML – “Extensible Markup Language” • A set of rules for encoding data in a format that is both human-readable and machine-readable. • XML format is simple, general-purpose, and can be used over the Web. • (Also known as “Excellent Marketing Language”) • BOD – “Business Object Document” • Describes/defines a type of transaction between systems • Consists of a “Verb” and a “Noun” • Example: Sync Credit • CAI has defined approximately 20 Business Objects based on OAGIS and ISA-95 • Business Objects are the building blocks of system integration ERP Integration

  8. “Business Objects are the Building Blocks” OAGIS “CustomerPartyMaster” System A System B Customers CUST A • Data “Publishers” vs. Data “Subscribers” ERP Integration

  9. COMMANDedx “Plumbing” • Command Alkon – Traditional Integration Approach ERP Integration

  10. COMMANDedx Overview • COMMANDedx Integration introduces the “Enterprise Data Bus” ERP A A A ERP Integration

  11. Service Gateway COMMANDedx “Plumbing” • External ERP systems normally access the Data Bus via the Service Gateway. CMD series CMD batch A Apex ERP CMD qc COMMANDedx Data Bus Integra A KP Products • This allows the external system to view the various CAI products as a single system with a single interface point. TMS Products ERP Integration

  12. Three Integration Scenarios • ERP to COMMANDseries • ERP to COMMANDbatch • ERP to Apex ERP Integration

  13. Three Integration Scenarios Scenario 1: ERP to COMMANDseries ERP Integration

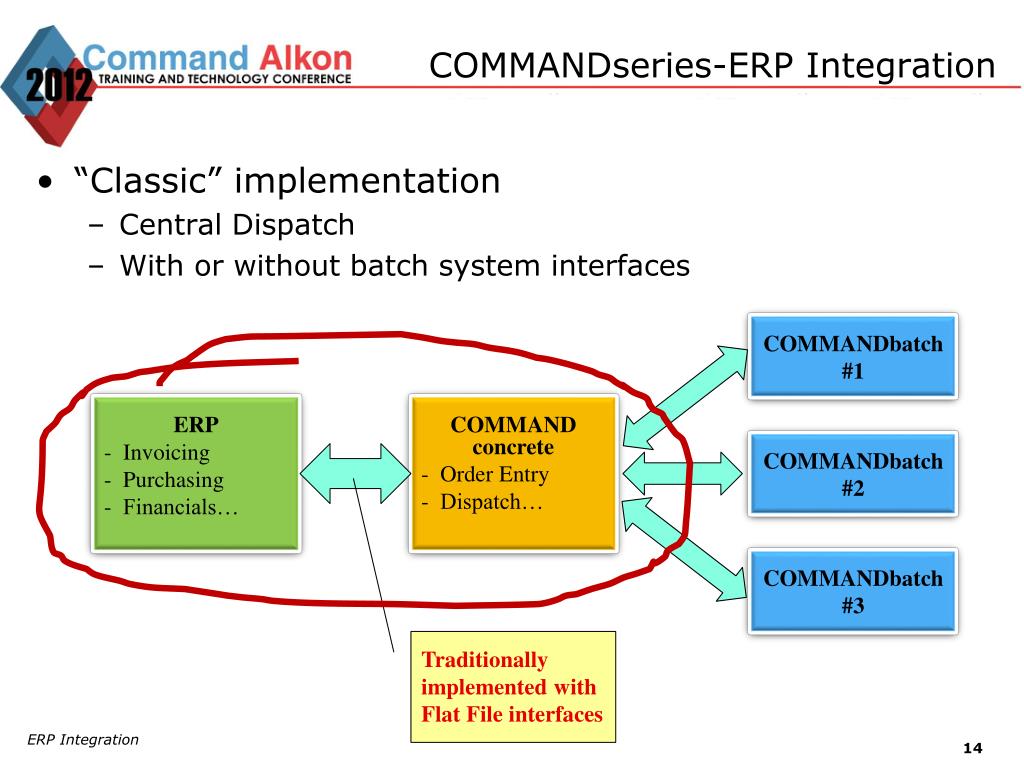

  14. COMMANDseries-ERP Integration • “Classic” implementation • Central Dispatch • With or without batch system interfaces COMMANDbatch#1 ERP - Invoicing - Purchasing - Financials… COMMAND concrete - Order Entry - Dispatch… COMMANDbatch#2 COMMANDbatch#3 Traditionally implemented with Flat File interfaces ERP Integration

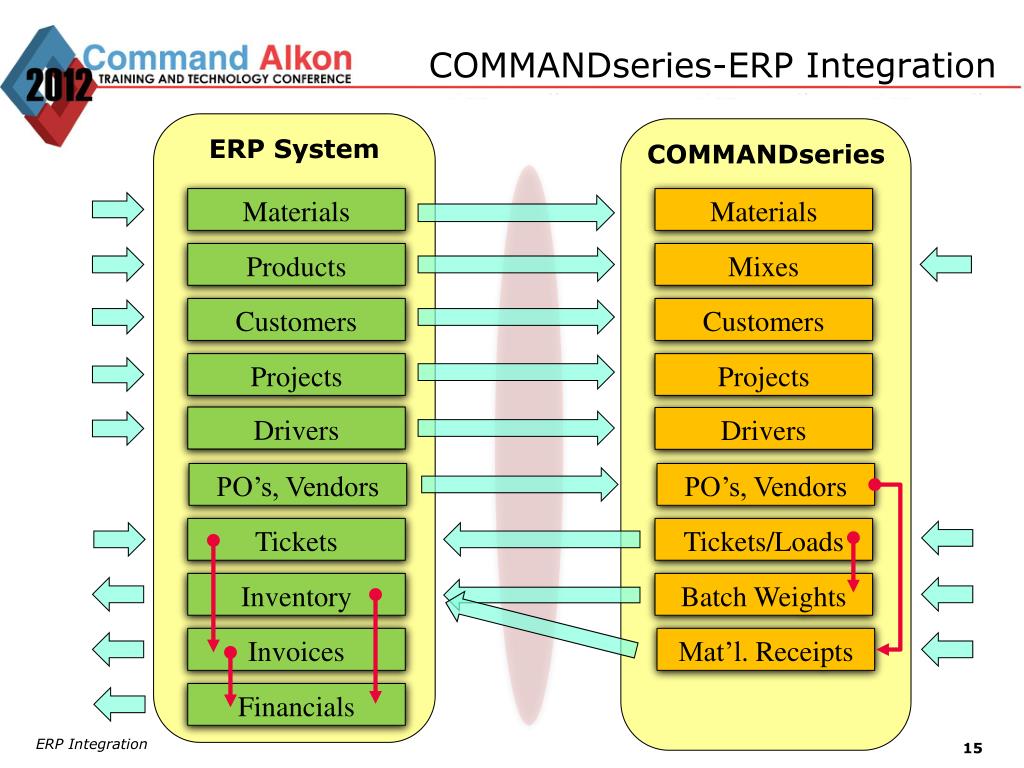

  15. COMMANDseries-ERP Integration ERP System COMMANDseries Materials Materials Products Mixes Customers Customers Projects Projects Drivers Drivers PO’s, Vendors PO’s, Vendors Tickets Tickets/Loads Inventory Batch Weights Invoices Mat’l. Receipts Financials ERP Integration

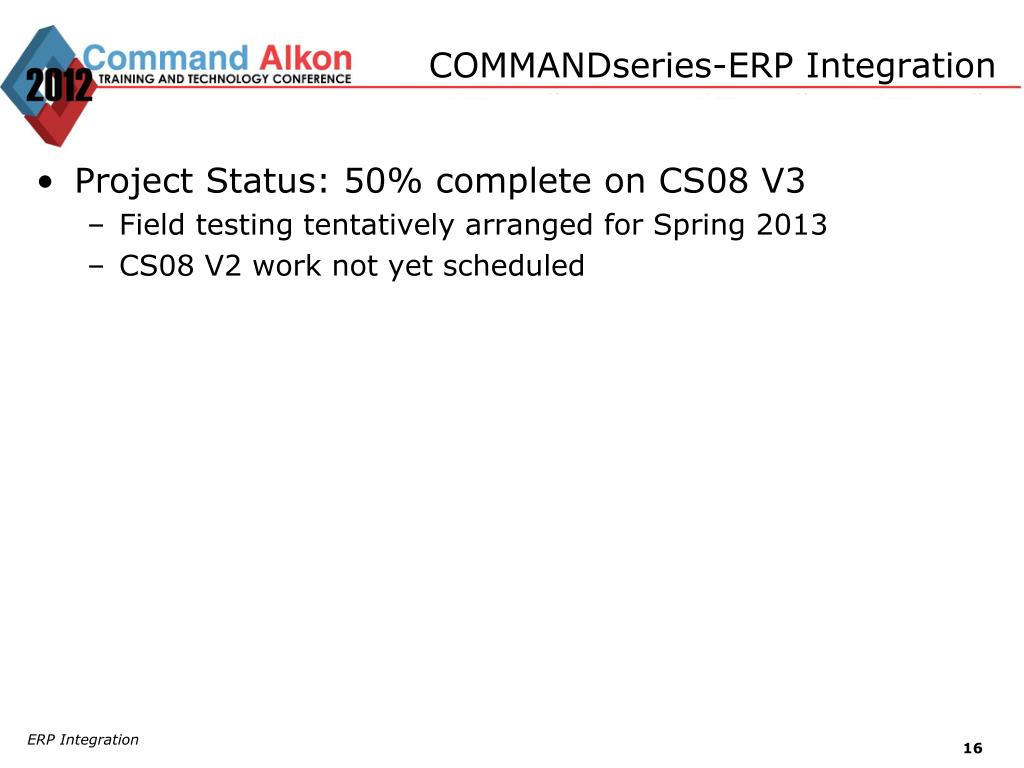

  16. COMMANDseries-ERP Integration • Project Status: 50% complete on CS08 V3 • Field testing tentatively arranged for Spring 2013 • CS08 V2 work not yet scheduled ERP Integration

  17. Three Integration Scenarios Scenario 2: ERP to COMMANDbatch ERP Integration

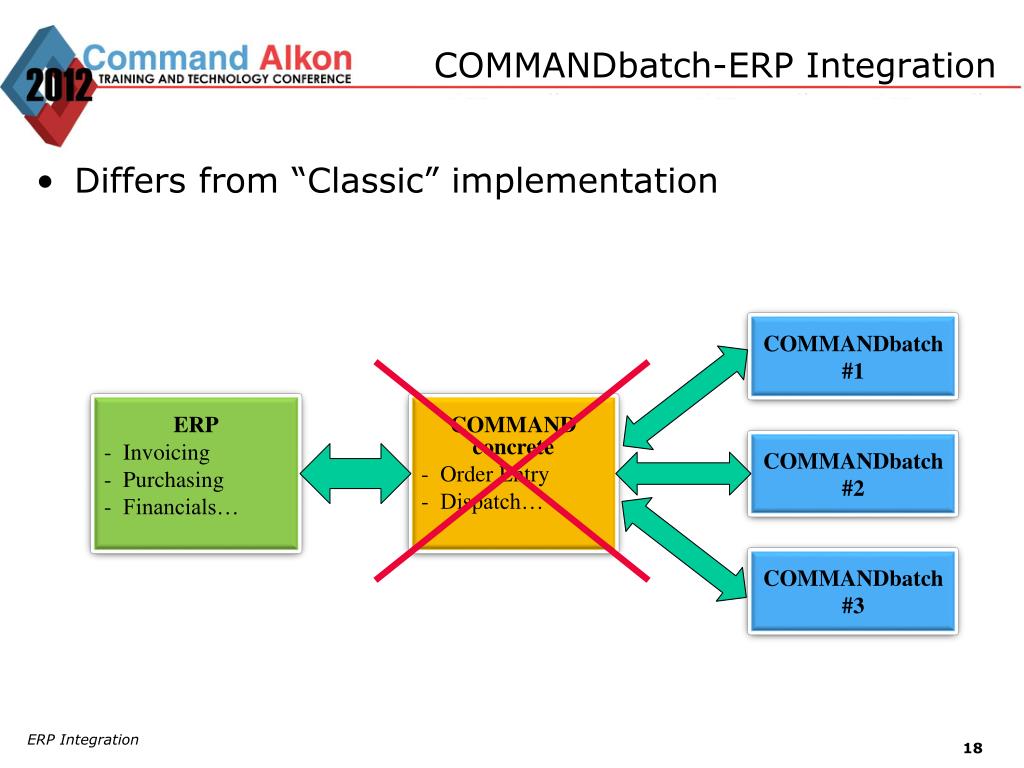

  18. COMMANDbatch-ERP Integration • Differs from “Classic” implementation COMMANDbatch#1 ERP - Invoicing - Purchasing - Financials… COMMAND concrete - Order Entry - Dispatch… COMMANDbatch#2 COMMANDbatch#3 ERP Integration

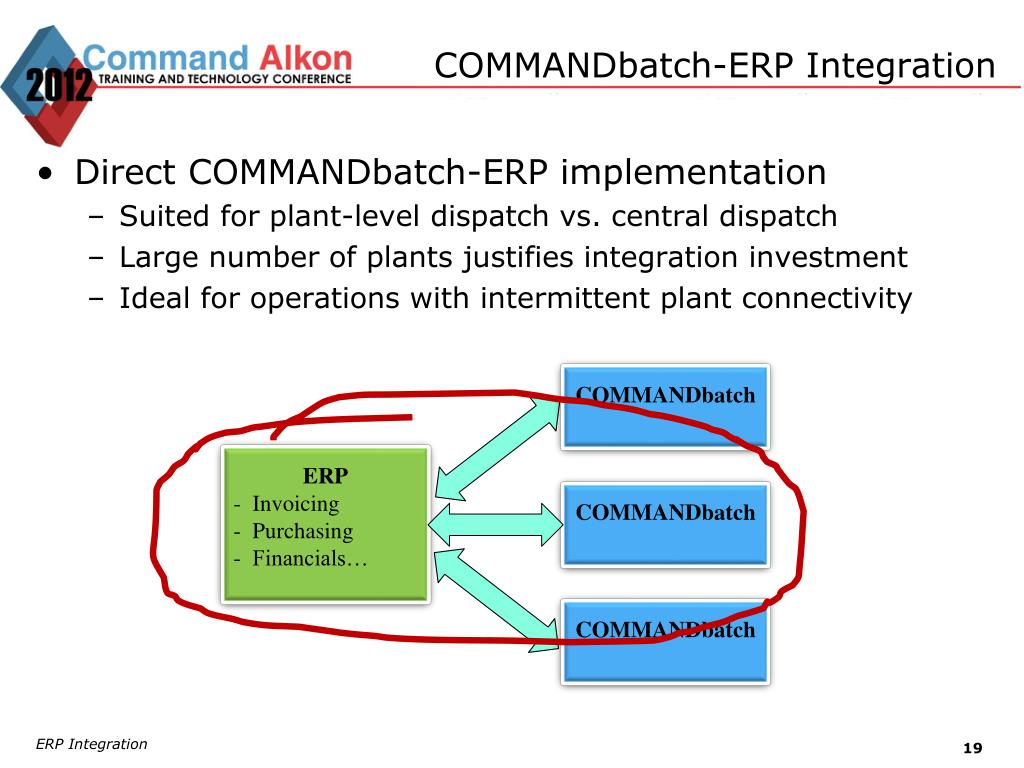

  19. COMMANDbatch-ERP Integration • Direct COMMANDbatch-ERP implementation • Suited for plant-level dispatch vs. central dispatch • Large number of plants justifies integration investment • Ideal for operations with intermittent plant connectivity COMMANDbatch ERP - Invoicing - Purchasing - Financials… COMMANDbatch COMMANDbatch ERP Integration

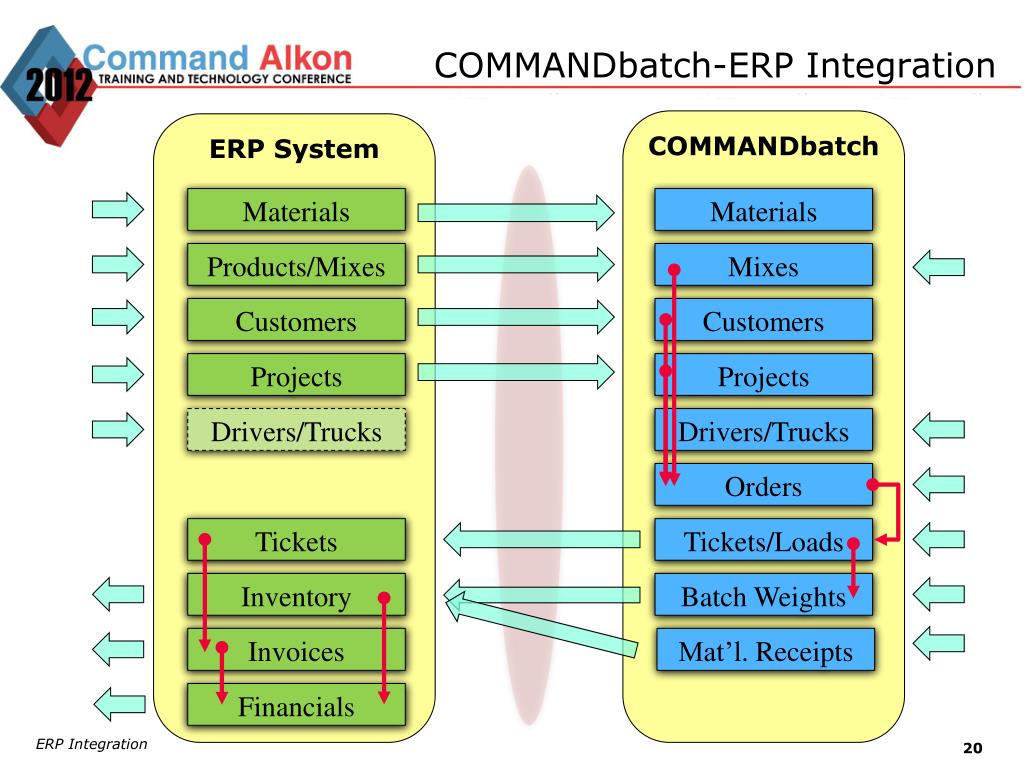

  20. COMMANDbatch-ERP Integration COMMANDbatch ERP System Materials Materials Products/Mixes Mixes Customers Customers Projects Projects Drivers/Trucks Drivers/Trucks Orders Tickets Tickets/Loads Inventory Batch Weights Invoices Mat’l. Receipts Financials ERP Integration

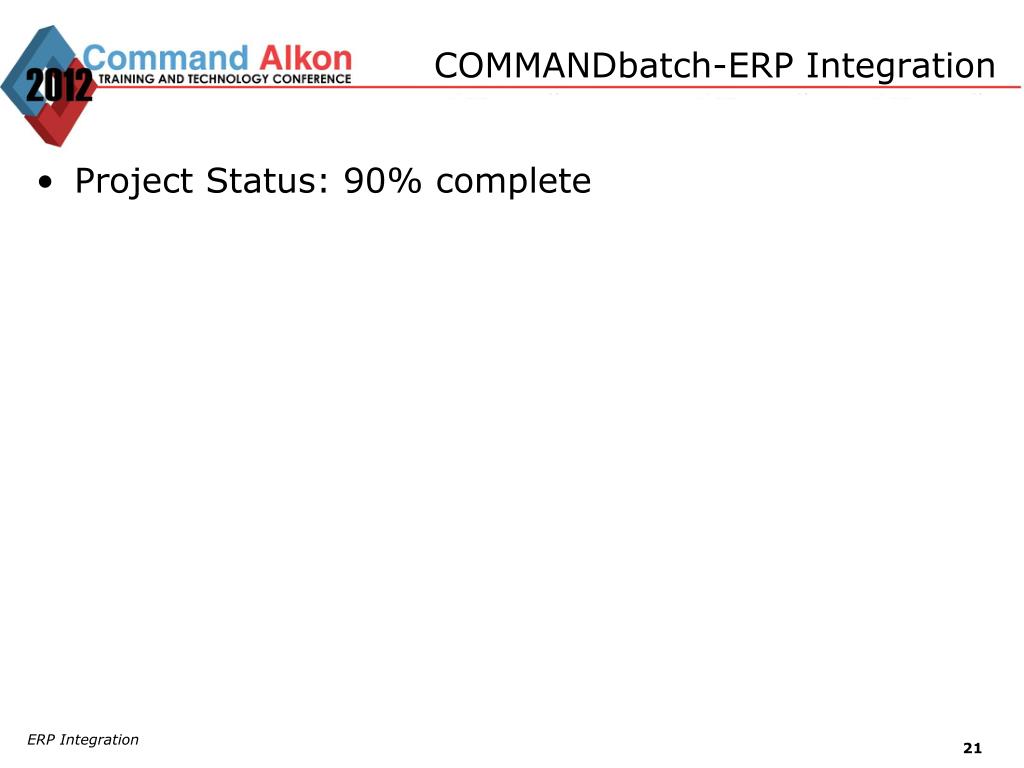

  21. COMMANDbatch-ERP Integration • Project Status: 90% complete ERP Integration

  22. Three Integration Scenarios Scenario 3: ERP to Apex ERP Integration

  23. Apex-ERP Integration • Typical Apex configurations are • Distributed; or • Centralized/Distributed Apex #1 - Order Entry - Scaling/Ticketing ERP - Invoicing - Purchasing - Financials… Apex (Data Consolidation) Apex #2 Apex #3 ERP Integration

  24. Apex-ERP Integration • The data and process flows are similar regardless of configuration • In a centralized configuration, Apex manages data replication to the plant systems • In a distributed configuration, COMMANDedx manages routing of data. ERP - Invoicing - Purchasing - Financials… Apex ERP Integration

  25. Apex-ERP Integration Apex ERP System Items/Materials Items Customers Customers Haulers Haulers Projects Sales Orders Trucks Trucks Orders Tickets Tickets/Loads In/Out/Produced Inventory Inventory Invoices Financials ERP Integration

  26. Apex-ERP Process Flow • Project Status: 10% complete. • Requirements review and high-level design underway • Currently out of scope: • Tickets dispatched on ERP, sent to Apex • Cartage calculated on Apex, sent to ERP ERP Integration

  27. Justifying COMMANDedx …or, “Why would I want to do this?” • “Business real-time” data synchronization • Improves operational efficiency • Reduces workarounds currently required to deal with slow or missing data • Higher reliability and reduced support cost • “Guaranteed delivery” of data, and internal delivery confirmation • Transactional control over data objects such as Projects and Mix Designs • Real-time error checking allows timely correction of data problems if/when they occur. ERP Integration

  28. Justifying COMMANDedx …or, “Why would I want to do this?” • Greater functionality, i.e. more data shared between systems. • Higher data security • No intermediate flat files to be misplaced or corrupted • More difficult to hack the system • Equal or lower implementation cost on new systems • Configuration flexibility makes future system changes easier. ERP Integration

  29. “Business Objects are the Building Blocks” OAGIS “CustomerPartyMaster” System A System B Customers CUST A ERP Integration

  30. Anatomy of a Business Object (XML) Customer Code <CustomerPartyMaster xmlns="http://www.openapplications.org/oagis/9"> <PartyIDs> <ID>1003636</ID> <TaxID /> </PartyIDs> <AccountID>1003636</AccountID> <Name sequence="1">Ronald Reagan</Name> <Name sequence="2">REAGAN</Name> <Location type="Primary"> <Address> <AttentionOfName>White House</AttentionOfName> <AddressLine sequence="1">1600 Pennsylvania Ave</AddressLine> <AddressLine sequence="2" /> <AddressLine sequence="3" /> <CityName>Washington</CityName> <CountrySubDivisionCode>DC</CountrySubDivisionCode> <CountryCode>USA</CountryCode> <PostalCode>20502</PostalCode> </Address> </Location> <Location type="Invoice"> <Address> <AttentionOfName>White House</AttentionOfName> <AddressLine sequence="1">1600 Pennsylvania Ave</AddressLine> <AddressLine sequence="2" /> <AddressLine sequence="3" /> <CityName>Washington</CityName> <CountrySubDivisionCode>DC</CountrySubDivisionCode> <CountryCode>USA</CountryCode> <PostalCode>20502</PostalCode> </Address> </Location> Description Short Description Primary Address Element Invoice Address Element A ERP Integration

  31. Service Gateway Connecting to the Gateway CMD series A COMMANDedx Data Bus SOAP Services File Services A ERP Integration

  32. Related Sessions ERP Integration

  33. Questions (& Answers?) ERP Integration

  34. Please Complete Your Evaluation • Be sure to circle the session you are evaluating on the back of your card • Management (Track Name) • MGT-003 (Session Code) • ERP Integration (Session Title) • All breakout session materials can be accessed at: www.commandalkon.com/cc2012/update/index.htm • Thank You! ERP Integration
