  1. Advanced Metering Infrastructure (AMI) Smart metering “A Game Changer” Rick Crinklaw General Manager, Lane Electric Cooperative Board Member, PNGC Power Oregon Connection Telecommunications Conference Hood River Inn - Hood River, Oregon October 24, 2013

  2. About Lane Electric… Headquartered in Eugene Formed May 17, 1939 46 employees 12 Substations 13,000 member-consumers 2,600 sq. miles in Lane County 4 districts / 7 directors Largest customers:Goshen Forest Products King Estate Winery Oakridge High School Fun Fact! There are 40 different cooperatives, municipal, PUD’s and investor owned electric utilities that serve Oregon. 10 of them service Lane County alone.

  3. Who is PNGC Power? • Pacific Northwest Generating Cooperative (PNGC Power) • Generation & Transmission Cooperative (G&T) • Headquartered in Portland • Responsible for meeting electric loads of its members • Member owned by 16 electric distribution cooperatives in six western states • Lane Electric is a member/owner of PNGC

  4. PNGC Members

  5. US Department of Energy Smart Metering - ARRA • July 2009 Application to USDOE submitted • Oct. 2010 Grant awarded and announcement • Dec. 2010 USDOE contract completion goal • Feb. 2010 USDOE fires contracting officers • May 2010 USDOE/PNGC contract finalized and signed PNGC/Member Agreements signed • Aug. 2010 Project execution, cyber security, matrix/benefit plans approved by USDOE • Sept. 2010 Received first grant reimbursement

  6. But… • Lane Electric was not part of the ARRA project • Evaluated and selected Cannon AMI system in 2005 • Fully deployed system in 2006 • +/- 98% Read-rate end of 2006 • Arguably, 1st fully deployed/operational system in Oregon

  7. Delivery Systems… Radio Frequency (RF) Telephone Lines Coax Cable (TV)

  8. Delivery Systems… Power Line Carrier (PLC)

  9. Meter to SubstationOver Powerline Carrier (PLC) PLC

  10. Backhaul System: DSL Phone Lines DSL Backhaul Substation Command Center

  11. Infrastructure; Home to Command Center 2 3 1 PLC DSL Command Center

  12. Power Line Carrier System (PLC)… Uses the same lines that deliver our electricity. Is more successful and cost effective for short distances rather than long distances. Components needed to send data signals through transformers onto distribution lines and back to the central station can be more expensive. Communications is slower due to limited bandwidth and one-way capabilities (data can only be transmitted from the meter to the utility).

  13. % of Oregon Electric Customers With Smart Meters 1,048,556 meters

  14. % of Oregon Electric Customers With Smart Meters

  15. % of Oregon Electric Customers With Smart Meters

  16. % of Oregon Electric Customers With Smart Meters

  17. % of Oregon Electric Customers With Smart Meters

  18. By the numbers… PGE 823,171 meters 78.5%

  19. Infrastructure… Then and Now! Ultimately, not much has changed… Until NOW!

  20. System Capabilities… Read meters Store hourly data Retrieve information for member assistance Monitor voltage levels Connect & disconnect service Outage management

  21. System Integrates with… OMS System CIS System Billing System Mapping System SmartHub Everything!

  22. What we use AMI for… Assist with billing concerns…

  23. What we use AMI for… SmartHub…

  24. Energy Monitoring … SmartHub…

  25. Energy Monitoring … Smart Devices…

  26. PrePay… Smart Devices…

  27. PrePay… Smart Devices…

  28. Outage Management… Power Outage Status Updates…

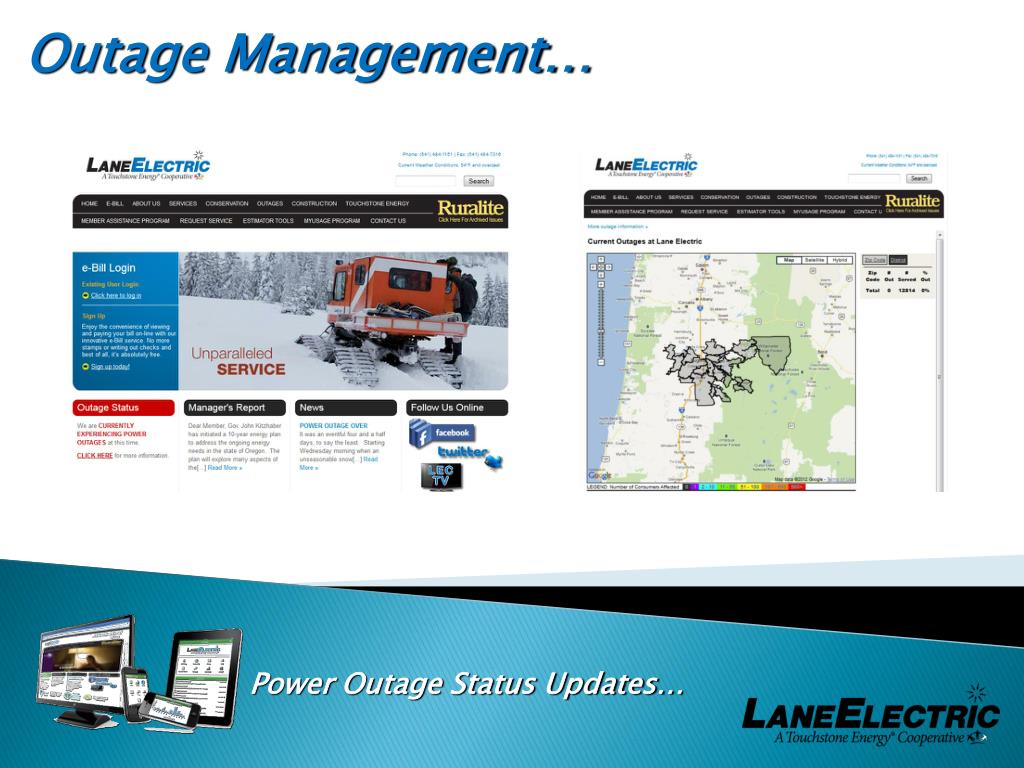

  29. Outage Management… www.laneelectric.com Power Outage Status Updates…

  30. Mapping…

  31. Looking ahead… In-Home Displays (IHD) IHD Built-In Zigbee module enables communication with Wireless Home Area Network (WHAN)

  32. Looking ahead… Currently Using Near Future Future

  33. Thank You!Q & A After Presentations
