  1. Optimum route finder to the point of interest through public transport By AnandPaleja Pratik Mehta

  2. Index • Introduction • Available spatial and non-spatial data • Data Preparation • Creating Network data • Available services in network analyst • Creating final data • Uploading on server • Development • Interface

  3. 1. Introduction • Origin bus stop • Point of interest (hospitals, malls, theatres etc.) • Nearest bus stop from point of interest • Route from point of interest to nearest bus stop • Route from origin bus stop to destination bus stop

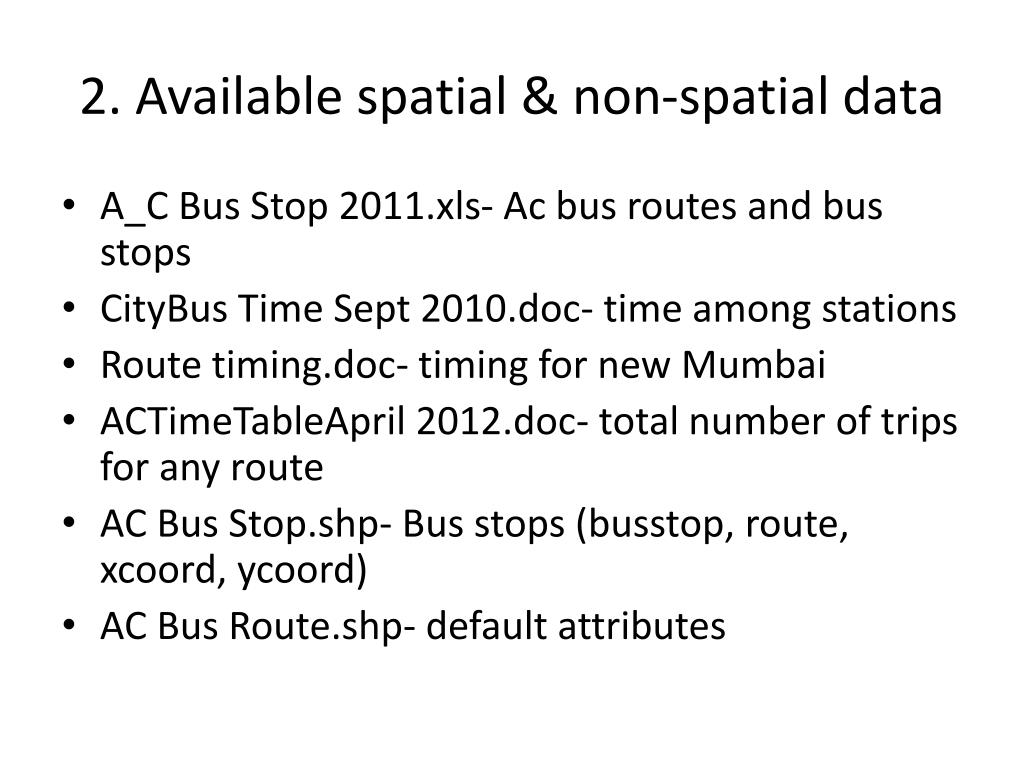

  4. 2. Available spatial & non-spatial data • A_C Bus Stop 2011.xls- Ac bus routes and bus stops • CityBus Time Sept 2010.doc- time among stations • Route timing.doc- timing for new Mumbai • ACTimeTableApril 2012.doc- total number of trips for any route • AC Bus Stop.shp- Bus stops (busstop, route, xcoord, ycoord) • AC Bus Route.shp- default attributes

  5. 3. Data Preparation • Requires direction and unique id for bus stop • Directions • Up and down • Truncated routes • Bus Stops • Two names • Two points on same location • Unique id for each stations (odd & even)

  6. 3. Data Preparation • Bus Route • Add Name attribute • Locator • Why we need locator? • Many styles available • Depends on your data • Can set sensitivity too • Tolerance value is necessary

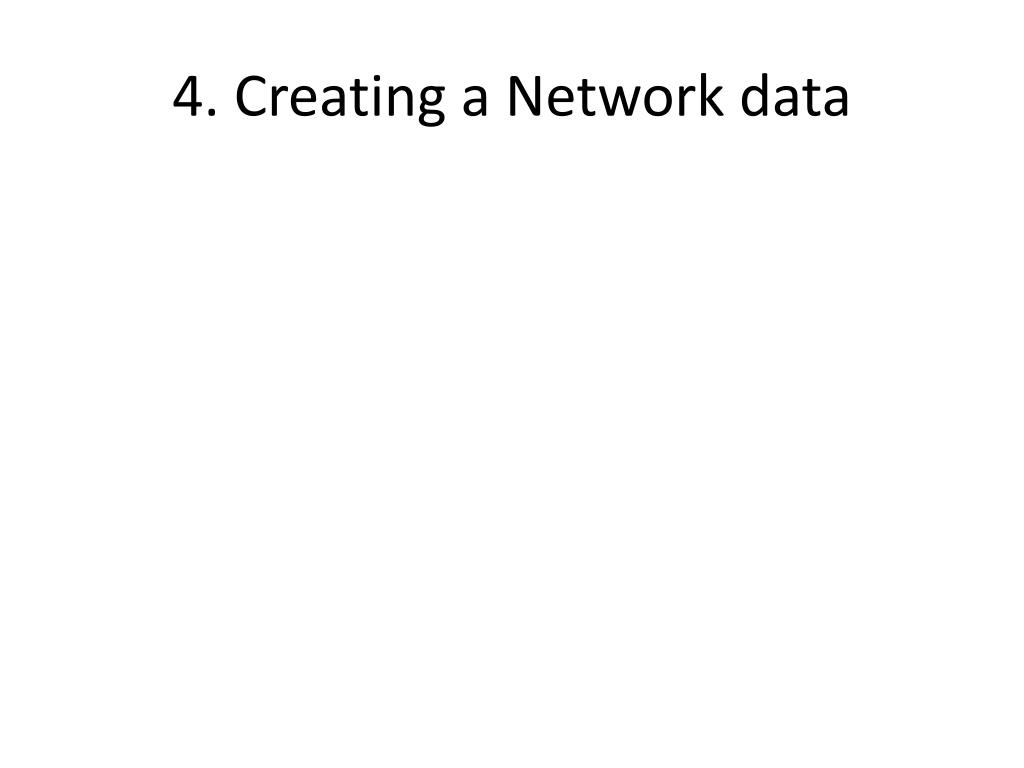

  7. 4. Creating a Network data

  8. 5. Available services in network analyst • Route • Closest facility • Service Area (Accessibility) • OD Cost matrix (number of origins + number of destinations) • Same like closest facility • Doesn’t give true shape • Vehicle routing problem • Location-allocation • http://help.arcgis.com/en/arcgisdesktop/10.0/help/index.html#/Types_of_network_analysis_layers/004700000032000000/

  9. 6. Creating final data • Manual digitization • Find Route tool (Available in ArcGIS 10) • Requires network dataset • Locator • Add attributes in shapefiles • Route (RouteNo, Run) • Stops (StopID, Sequence, Run, RouteNo, Ref_ID) • Adding time • Alone Route no and run are not enough • Combination of three

  10. 7. Uploading on Server • Type of services server provides • Map service (.mxd) • Geocode service (.loc) • Geodata Service • Geometry service (no GIS resource requires) • Geoprocessing services (toolbox- .tbx) • Image Service (For raster data) • Search Service

  11. 7. Uploading on server • Capabilities available • Mapping • KML • Feature Access • WMS • WFS • Mobile Data Access • Network Analysis

  12. 8. Development • In built application • SOAP Services (Java, .NET) • Lack of functionalities • REST Services (JavaScript, Silverlight, Flex, Apex) • Very popular

  13. 9. Interface

  14. Continue…
