zSeries with default IP address of 192.168.1.200. Cross-over. Ethernet cable. This application note describes how to connect your computer directly to a Newport zSeries using a cross-over Ethernet cable and communicate with the zSeries over TCP/IP protocol. .

issac
Télécharger la présentation

Ethernet port

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

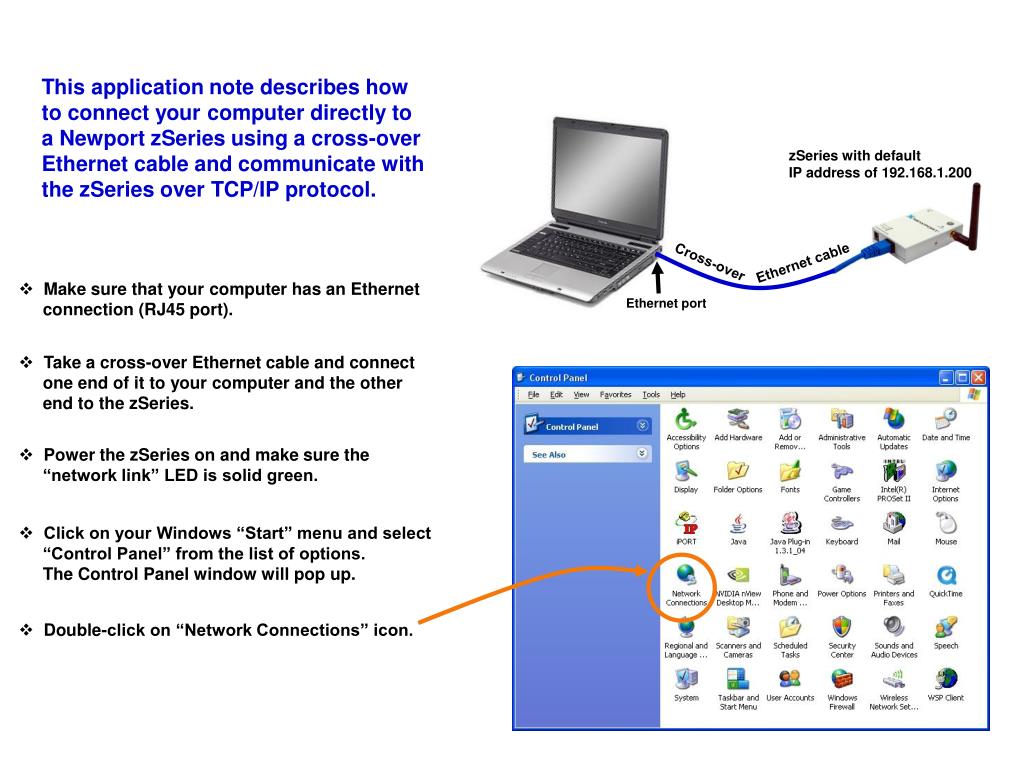

  1. zSeries with default IP address of 192.168.1.200 Cross-over Ethernet cable This application note describes how to connect your computer directly to a Newport zSeries using a cross-over Ethernet cable and communicate with the zSeries over TCP/IP protocol. • Make sure that your computer has an Ethernet connection (RJ45 port). Ethernet port • Take a cross-over Ethernet cable and connect one end of it to your computer and the other end to the zSeries. • Power the zSeries on and make sure the “network link” LED is solid green. • Click on your Windows “Start” menu and select • “Control Panel” from the list of options. • The Control Panel window will pop up. • Double-click on “Network Connections” icon.

  2. Click on “Properties” button. • Select “Internet Protocol (TCP/IP)” and click on “Properties” button. • Fill out the fields for the IP address and Subnet mask exactly as indicated here. Press OK on this window and all other remaining windows. • You now have “Network Connections” window opened. The “Local Area Connection” icon has all the settings for your Ethernet connection. Double-click on this icon. • Now, you need to reboot your computer.

  3. Once your PC is back up, open your browser and type the zSeries’ default IP address of 192.168.1.200 in the “Address” window of your browser and press the “Enter” key. You will soon be inside the home page of the zSeries’ WEB server and from there you can access all the readings and charts.
