  1. Encryption and Firewalls Chapter 7

  2. Learning Objectives • Understand the role encryption plays in firewall architecture • Know how digital certificates work and why they are important security tools • Analyze the workings of SSL, PGP, and other popular encryption schemes • Enable Internet Protocol Security (IPSec) and identify its protocols and modes

  3. Encryption • Process of encoding and decoding information to: • Preserve its integrity • Maintain privacy • Ensure identity of users participating in the encrypted data session

  4. Why Firewalls Need to Use Encryption • Hackers take advantage of a lack of encryption • Encryption: • Preserves data integrity • Increases confidentiality • Is relied upon by user authentication • Plays a fundamental role in enabling VPNs

  5. Hackers Take Advantage of a Lack of Encryption

  6. Hackers Take Advantage of a Lack of Encryption

  7. The Cost of Encryption • CPU resources and time • Bastion host that hosts the firewall should be robust enough to manage encryption and other security functions • Encrypted packets may need to be padded to uniform length to ensure that some algorithms work effectively • Can result in slowdowns • Monitoring can burden system administrator

  8. Preserving Data Integrity • Even encrypted sessions can go wrong as a result of man-in-the-middle attacks • Encryption can perform nonrepudiation using a digital signature

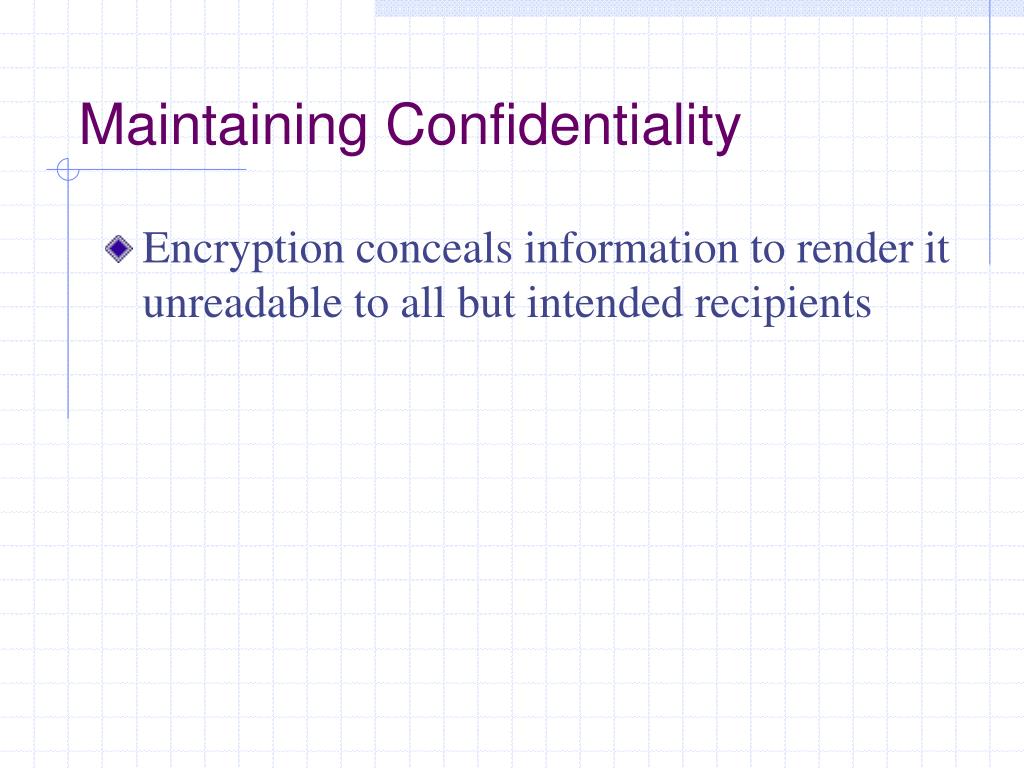

  9. Maintaining Confidentiality • Encryption conceals information to render it unreadable to all but intended recipients

  10. Authenticating Network Clients • Firewalls need to trust that the person’s claimed identity is genuine • Firewalls that handle encryption can be used to identify individuals who have “digital ID cards” that include encrypted codes • Digital signatures • Public keys • Private keys

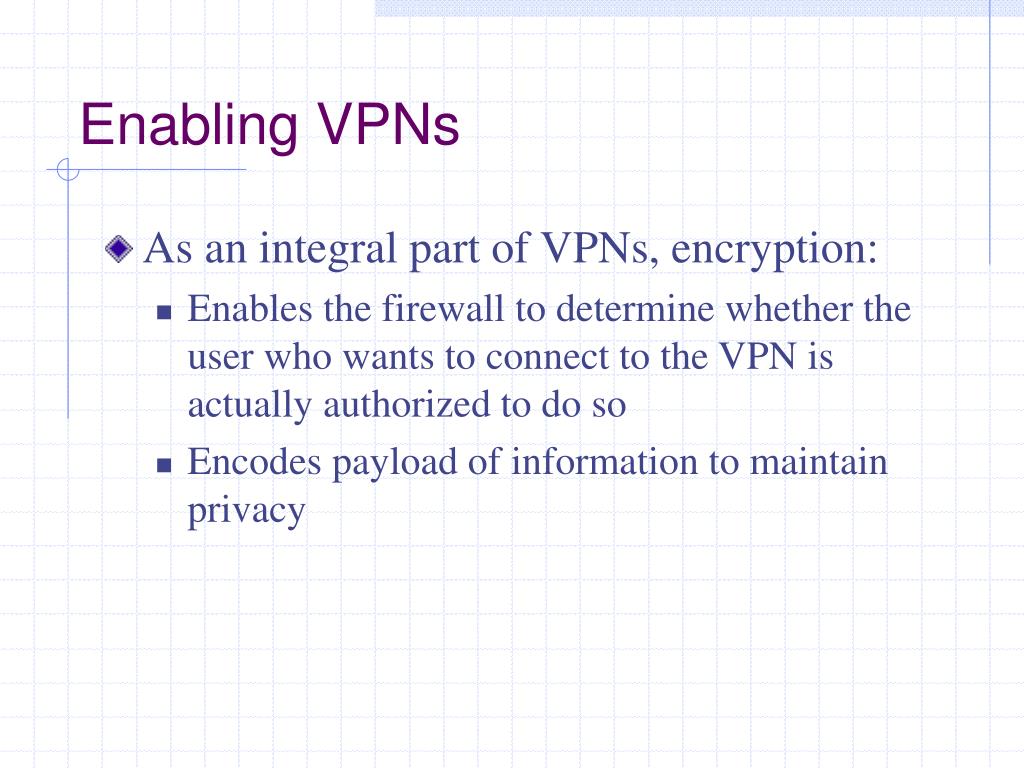

  11. Enabling VPNs • As an integral part of VPNs, encryption: • Enables the firewall to determine whether the user who wants to connect to the VPN is actually authorized to do so • Encodes payload of information to maintain privacy

  12. Digital Certificates and Public and Private Keys • Digital certificate • Electronic document that contains a digital signature (encrypted series of numerals and characters), which authenticates identity of person sending certificate • Keys • Basis of digital certificates and signatures • Enable holders of digital certificates to encrypt communications (using their private key) or decrypt communications (using sender’s public key)

  13. Digital Certificates • Transport encrypted codes (public and private keys) through the firewall from one host to another • Help ensure identity of the individual who owns the digital certificate • Provide another layer of security in firewall architecture

  14. Aspects of Digital Certificates • Establishment of an infrastructure for exchanging public and private keys • Need to review and verify someone’s digital certificate • Difference between client- and server-based digital certificates

  15. The Private Key Infrastructure • Lightweight Directory Access Protocol (LDAP) • Publicly available database that holds names of users and digital certificates • Public-Key Infrastructure (PKI) • Enables distribution of digital certificates and public and private keys • Underlies many popular and trusted security schemes (eg, PGP and SSL)

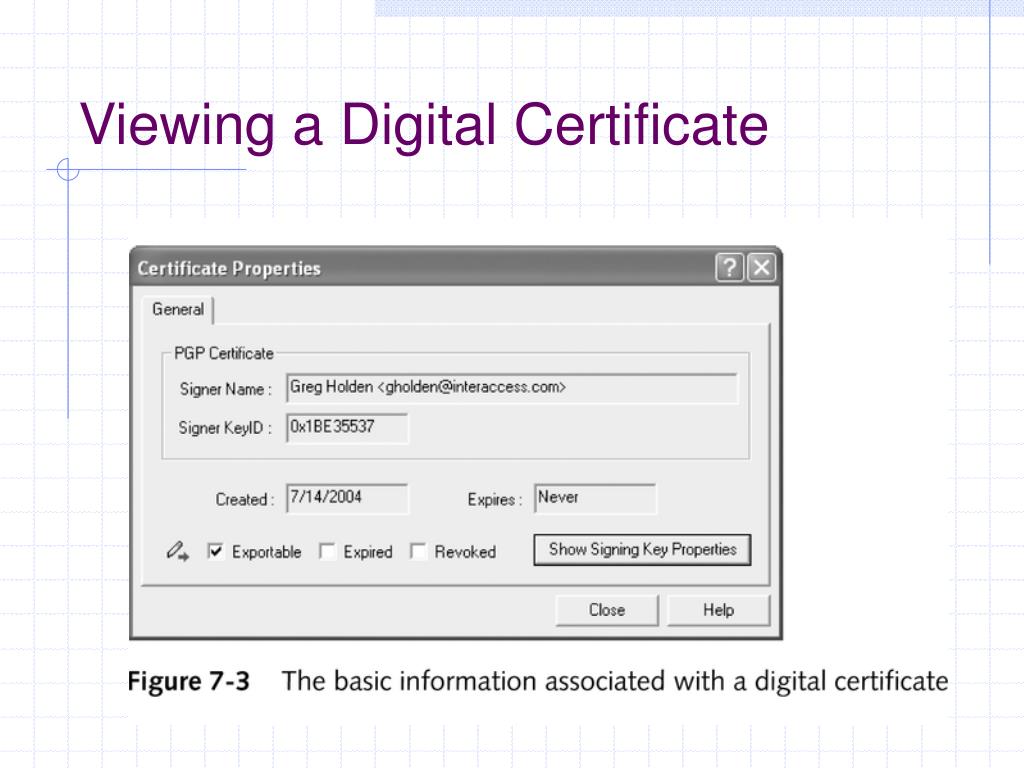

  16. Viewing a Digital Certificate

  17. Viewing a Digital Certificate

  18. Types of Digital Certificates a Firewall Will Encounter • Client-based digital certificates • Obtained by users from a Certification Authority (CA), which issues them and vouches for owner’s identity • Server-based digital certificates • Issued by a CA to a company that issues them to individuals

  19. Keys • Value generated by an algorithm that can also be processed by an algorithm to encrypt or decrypt text • Length of the key determines how secure the level of encryption is

  20. Aspects of Keys That Pertain to Firewall-Based Encryption • Public and private keys • Need to generate public keys • Need to securely manage private keys • Need to use a key server either on network or Internet • Differences between private and public key servers

  21. Public and Private Keys • Private key • Secret code generated by an algorithm • Never shared with anyone • Public key • Encoded information generated when private key is processed by the same algorithm • Can be exchanged freely with anyone online

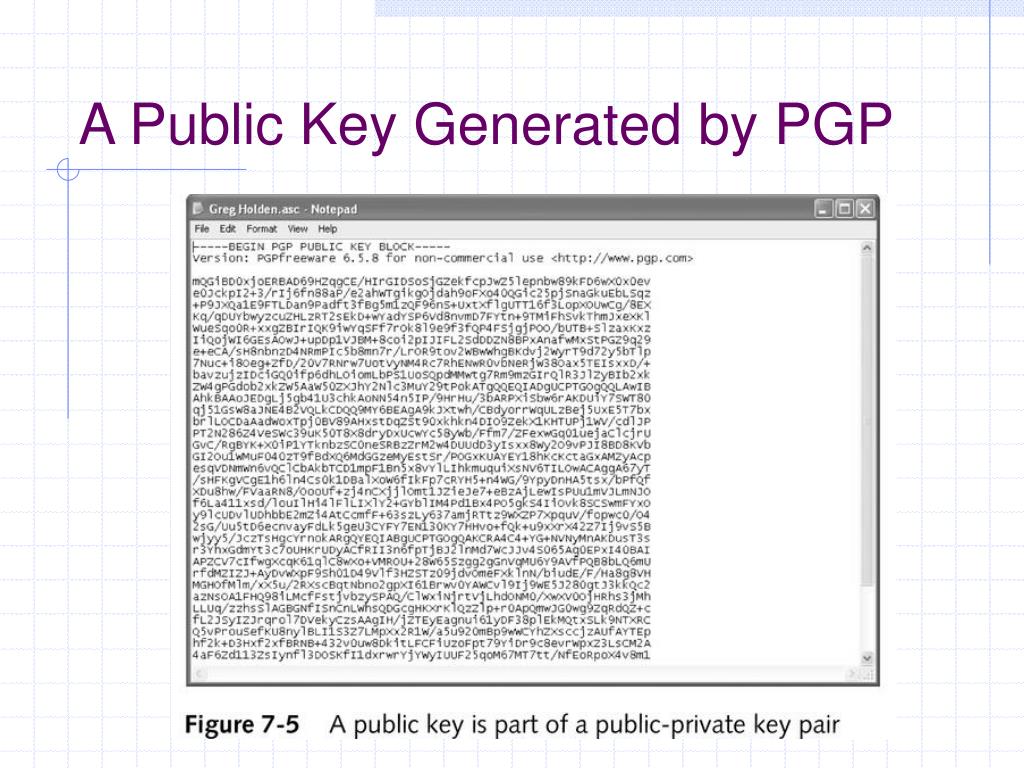

  22. A Public Key Generated by PGP

  23. An Encrypted Communication Session

  24. Choosing the Size of Keys

  25. Generating Keys

  26. Managing Keys • Manual distribution • Use of a CA • Use of a Key Distribution Center (KDC)

  27. Using a Key Server That Is on Your Network

  28. Using an Online Key Server

  29. Analyzing Popular Encryption Schemes • Symmetric key encryption • Asymmetric key encryption • Pretty Good Privacy (PGP) • Secure Sockets Layer (SSL)

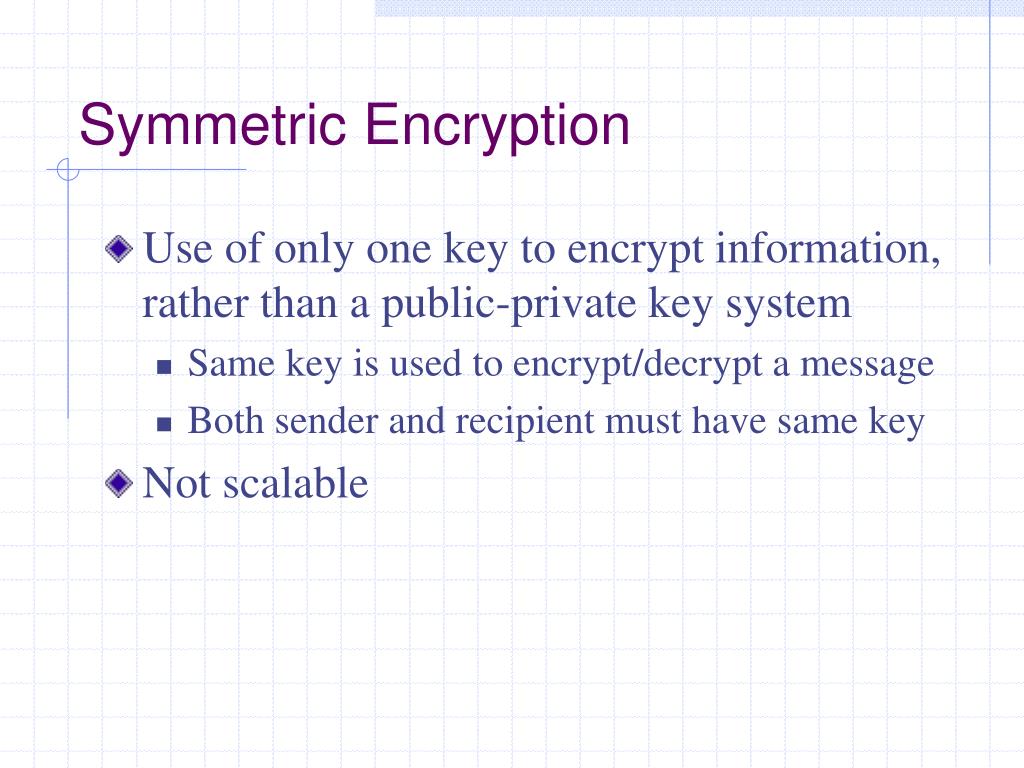

  30. Symmetric Encryption • Use of only one key to encrypt information, rather than a public-private key system • Same key is used to encrypt/decrypt a message • Both sender and recipient must have same key • Not scalable

  31. Symmetric Key Encryption

  32. Asymmetric Encryption • Uses only one user’s public key and private key to generate unique session keys that are exchanged by users during a particular session • Only the private key must be kept secret • Scales better than symmetric encryption • Disadvantages • Slower • Only a few public key algorithms are available (eg, RSA and EIGamal) that are secure and easy to use for both encryption and key exchange

  33. Asymmetric Key Encryption

  34. PGP • Hybrid system that combines advantages of asymmetric (scalability) and symmetric (speed) encryption systems

  35. PGP • Process • File/message is encrypted • Session key is encrypted using public key half of asymmetric public-private key pair • Recipient of encrypted message uses his/her private key to decode the session key • Session key is used to decode message/file • Encryption schemes used to generate public and private key pairs • Rivest-Shamir-Adleman (RSA) encryption • Diffie-Hellman encryption

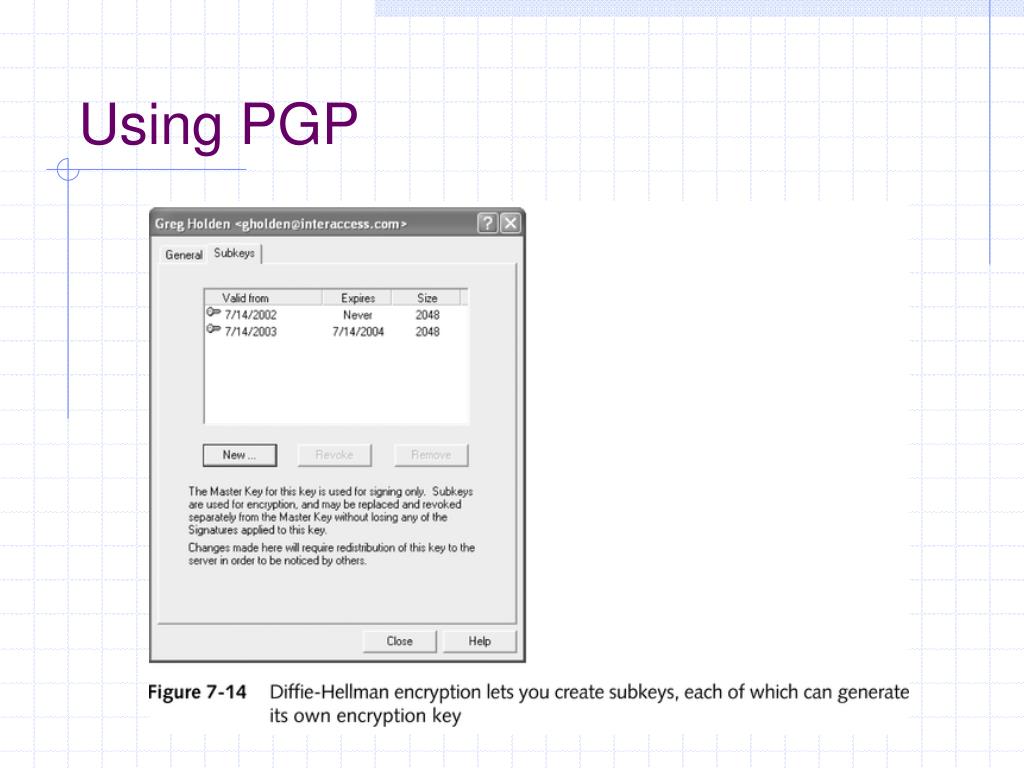

  36. Using PGP

  37. Using PGP

  38. X.509 • Standard set of specifications for assembling and formatting digital certificates and encrypting data within them • A commonly used type of PKI • Widely used and well trusted

  39. X.509 and PGP Compared • X.509 • Perception of trust • PGP • Does not make use of the CA concept • Gives users ability to wipe files from hard disk (and delete permanently) • Available both in freeware and commercial versions

  40. X.509 and PGP Compared

  41. SSL • Secure way to transmit data • Uses both symmetric and asymmetric keys • Asymmetric keys start an SSL session • Symmetric keys are dynamically generated for the bulk of the transfer

  42. Using Internet Protocol Security (IPSec) Encryption • Creates a secure IP connection between two computers • Operates under the Application layer • Transparent to users

  43. Understanding IPSec • Set of standards and software tools that encrypt IP connections between computers • Allows a packet to specify a mechanism for authenticating its origin, ensuring data integrity, and ensuring privacy

  44. Modes of IPSec • Transport mode • Tunnel mode • Choice depends on type of network and whether it uses NAT

  45. Transport Mode • IPSec authenticates two computers that establish a connection • Can optionally encrypt packets • Does not use a tunnel

  46. Tunnel Mode • IPSec encapsulates IP packets and can optionally encrypt them • Encrypts packet headers rather than the data payload • Incompatible with NAT

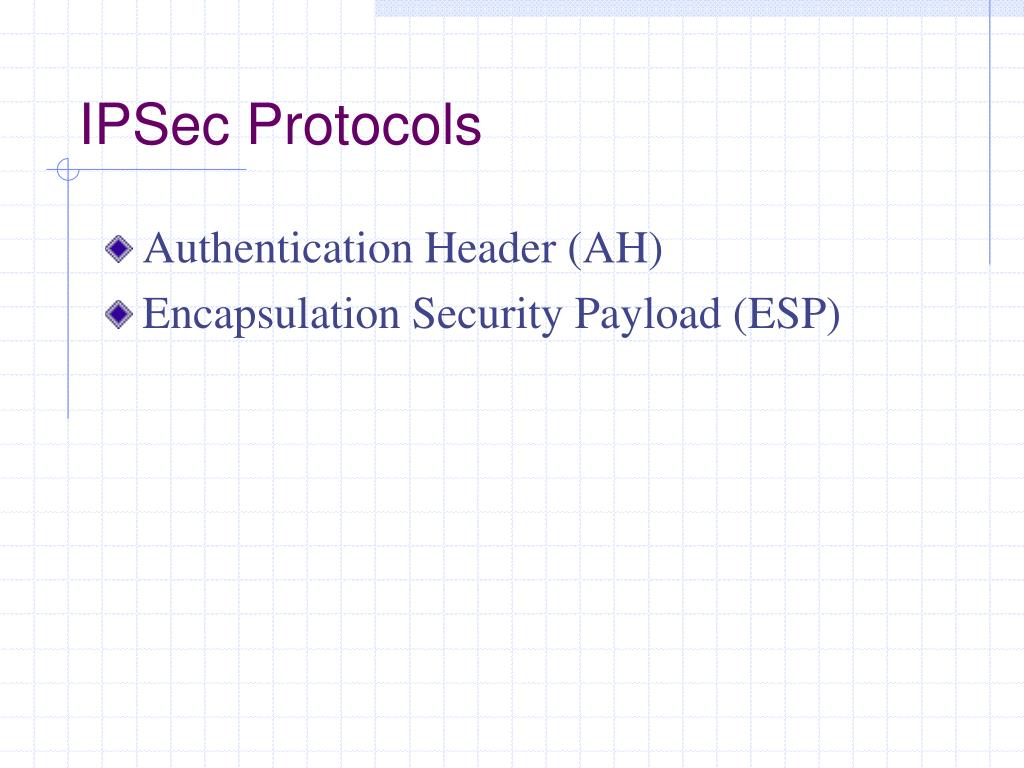

  47. IPSec Protocols • Authentication Header (AH) • Encapsulation Security Payload (ESP)

  48. Authentication Header (AH) • Adds a digital signature to packets to protect against repeat attacks, spoofing, or other tampering • Verifies that parts of packet headers have not been altered between client and IPSec-enabled host • Incompatible with NAT

  49. AH

  50. Encapsulation Security Payload (ESP) • More robust than AH; encrypts data part of packets as well as the headers • Provides confidentiality and message integrity • Can cause problems with firewalls that use NAT
