  1. Chapter 7: NAT in Internet and Intranet Designs • Designs That Include NAT • Essential NAT Design Concepts • Data Protection in NAT Designs • NAT Design Optimization

  2. NAT and Microsoft Windows 2000 • Network Address Translation (NAT) • Is included in Routing and Remote Access • Provides small office or home office (SOHO) connectivity • Supports translated connections only • Is not available in Windows 2000 Professional

  3. NAT Design Review • Amount and confidentiality of data • Network resources accessed by remote users • Future growth plans • Existing routers • Network uptime

  4. NAT Characteristics • NAT modifies the IP packet. • IP header • Transmission Control Protocol (TCP) header • User Datagram Protocol (UDP) header • IP packet data • NAT does not work with many protocols.

  5. NAT Design Decisions • Base on organizational requirements. • Decide what the design will support. • Connection type • Client type • Connection method • Network filters • Remote access methods • Number of connections

  6. Stand-Alone SOHO Design

  7. NAT in SOHO Designs • Provides automatic IP configuration to Dynamic Host Configuration Protocol (DHCP) clients • Uses IP filters to restrict access • Provides automatic network address translation • Supports public and private IP addressing • Provides shared Internet access • Provides Internet connectivity over Windows 2000 network interface

  8. Branch Office Connectivity Design

  9. NAT in the Network Design

  10. NAT Server Interfaces • Minimum of two network interfaces • Persistent or nonpersistent connections • IP address and subnet mask

  11. IP Address Assignment • NAT automatic address assignment • Manual configuration • Automatic Private IP Assignment (APIPA) • DHCP server

  12. DNS Name Resolution • Clients need fully qualified domain name (FQDN)–to–IP resolution. • Clients use the DNS server to resolve FQDNs. • Manually configure for specific DNS servers • Specify automatic use of the DNS server NAT

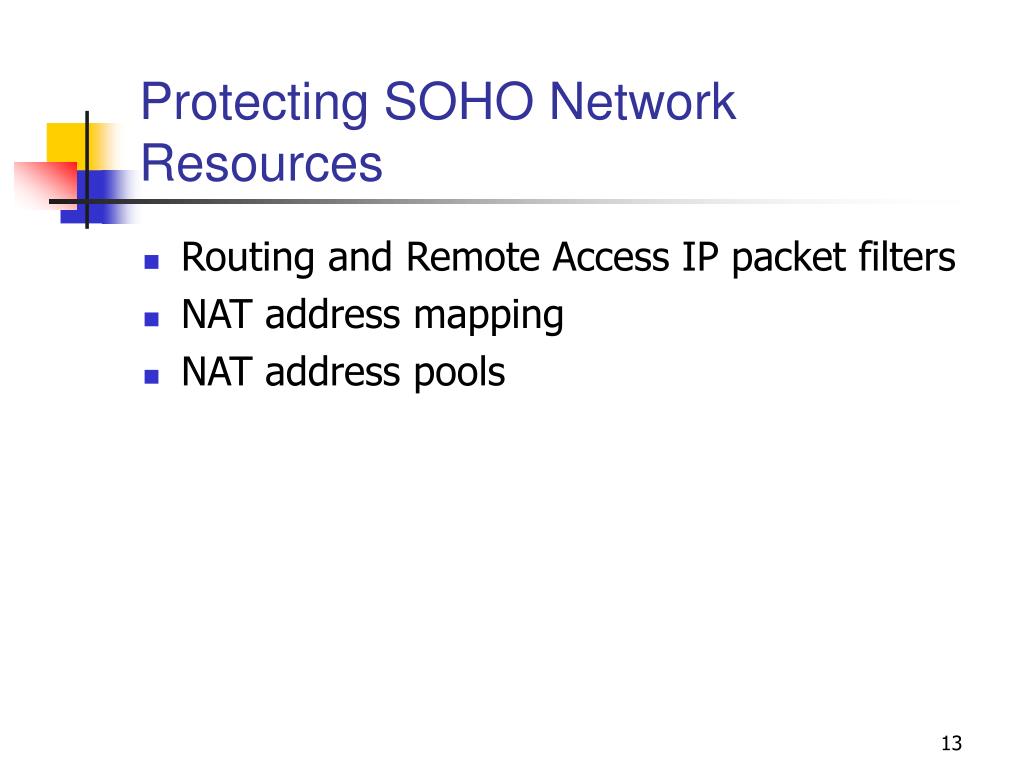

  13. Protecting SOHO Network Resources • Routing and Remote Access IP packet filters • NAT address mapping • NAT address pools

  14. Restricting Internet Access • Use Routing and Remote Access IP packet filters. • Restrict outbound traffic by specifying IP headers. • Allow or disallow users access to Internet resources.

  15. Protecting Corporate Network Resources

  16. NAT Optimization • Dedicate a computer to running NAT. • Choose persistent Internet connection. • Consider using Microsoft Proxy Server 2.0 or Routing and Remote Access routing.

  17. Chapter Summary • NAT is cost effective. • The NAT server should be placed between the network and the Internet. • Resources can be protected by using • Routing and Remote Access packet filters • NAT address mapping • NAT address pools • Use virtual private network (VPN) to protect confidential data. • NAT can be optimized.
