Presentation Transcript

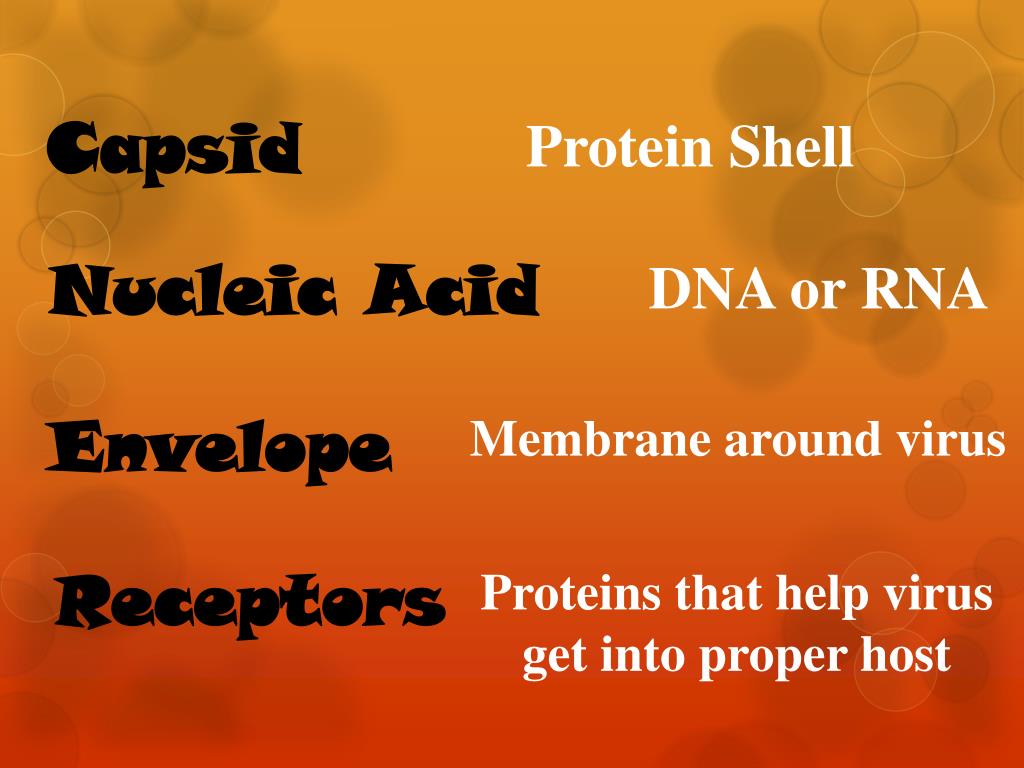

  1. Capsid Protein Shell Nucleic Acid DNA or RNA Envelope Membrane around virus Receptors Proteins that help virus get into proper host

  2. Attachment The virus attaches to receptors on the host cell.

  3. Entry into the Cell The virus is able to get into the cell in one of three ways.

  4. Fusion of the Membranes The viral envelope and cell membrane fuse, allowing the virus to enter the cell.

  5. Endocytosis The virus is engulfed by the cell membrane.

  6. Injection E. coli Bacteriophage T4

  7. What happens once the genetic material is inside the cell? • One of two different processes may occur: • 1. The virus takes over the cell and begins to replicate right away, killing the host cell in the process. • 2. The virus doesn’t take over or kill the host cell right away, but does begin to replicate.

  8. Lytic Cycle ATTACHMENT There are 5 steps in the Lytic Cycle RELEASE (LYSIS)

  9. Lytic Cycle ATTACHMENT 1. Attachment – the virus attaches to receptors on the host

  10. Lytic Cycle 2. Penetration – the nucleic acid moves across the cell membrane into the host cell

  11. Lytic Cycle 3. Replication and Synthesis – the virus degrades the host nucleic acid and uses the host to make new viral components.

  12. Lytic Cycle 4. Assembly – viral components are assembled into new viruses.

  13. Lytic Cycle RELEASE / LYSIS 5. Release / Lysis – fully assembled viruses are released when the host cell bursts

  14. Lytic Cycle ATTACHMENT RELEASE / LYSIS Viruses that are in a lytic cycle are described as VIRULENT

  15. T4 Bacteriophage Lysing E. coli Bacterium

  16. Bacteriophage Lambda (λ)

  17. ATTACHMENT REPLICATION NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN PENETRATION Lysogenic Cycle INTEGRATION nnnnnnnnnnnnnnnnndddd There are 4 steps in the Lysogenic Cycle

  18. ATTACHMENT NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN PENETRATION Lysogenic Cycle nnnnnnnnnnnnnnnnndddd Steps 1 and 2 are identical to the first two steps in the lytic cycle.

  19. Lysogenic Cycle INTEGRATION 3. Integration – Phage DNA integrates into bacterial DNA

  20. Lysogenic Cycle INTEGRATION When it becomes integrated into the host DNA, the viral genome is referred to as a PROPHAGE.

  21. Lysogenic Cycle REPLICATION 4. Replication – The integrated prophage replicates when bacterial DNA replicates

  22. NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN Lysogenic Cycle nnnnnnnnnnnnnnnnnd Viruses that enter into a lysogenic cycle are known as TEMPERATE VIRUSES

  23. What is special about Bacteriophage λ? ATTACHMENT REPLICATION RELEASE / LYSIS PENETRATION REPLICATION AND SYNTHESIS ASSEMBLY INTEGRATION

  24. Bacteriophage λ attached to an E. coli Bacterium

  25. Replication of Viral Nucleic Acids DNA Viruses – replication of viral DNA is similar to the process that the host cell uses to replicates its own DNA DNA  DNA

  26. Replication of Viral Nucleic Acids Most RNA Viruses – replication of viral RNA is dependent upon an enzyme that is encoded on the viral genome RNA  RNA

  27. Replication of Viral Nucleic Acids Retroviruses – RNA viruses that convert their RNA into DNA using an enzyme that is included with the viral genome RNA  DNA

  28. Replication of Viral Nucleic Acids Retroviruses – This DNA is inserted into the host genome, where it can be transcribed back into viral RNA during normal cellular activity.

  29. Replication of Viral Nucleic Acids Retroviruses – Once the DNA is integrated into the host genome, some retroviruses may become LATENT, where they remain inactive for long periods of time.

  30. Replication of Viral Nucleic Acids Human Immunodeficiency Virus (HIV), the virus that causes AIDS, is an example of a retrovirus that can become latent.

  31. Lytic Cycle Virus hijacks the host cell and keeps making more copies of itself until the host bursts open Lysogenic Cycle Virus integrates into the host genome and replicates when the host divides. When triggered it can enter the lytic cycle. Retroviruses RNA viruses that convert their RNA to DNA which then integrates into the host genome. HIV Retrovirus that infects humans which can remain latent for long periods of time.

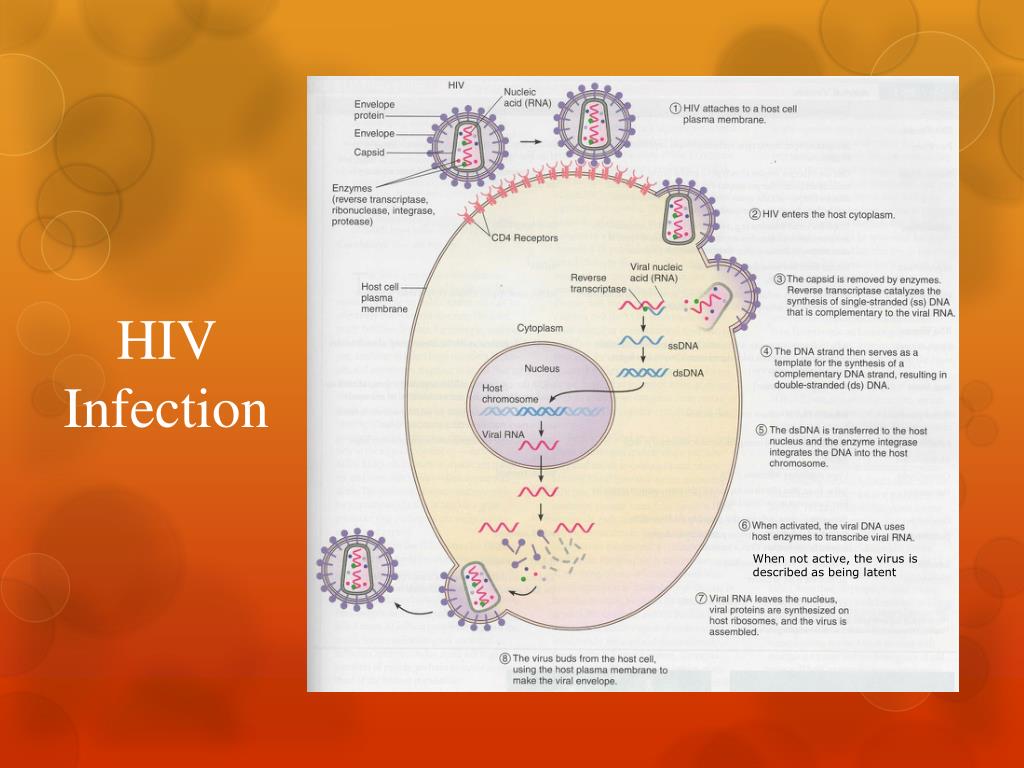

  32. HIV Infection When not active, the virus is described as being latent

  33. Lytic and Lysogenic Cycles

  34. Lytic and Lysogenic Cycles ATTACHMENT REPLICATION RELEASE / LYSIS PENETRATION REPLICATION AND SYNTHESIS ASSEMBLY INTEGRATION

  35. Lytic Cycle ddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddd dddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddd

  36. dddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddd dddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddddd Lysogenic Cycle

  37. Lytic and Lysogenic Cycles
