Continuous Collision Detection • For each moving object, compute what grid cells it occupies and will cross & occupy if its current velocity is added • Find the first contact time between each object pair • Sort the collisions, earliest first • Move all affected objects to time of first collision, updating positions • Update velocities of collided objects • Go back to 1 for collided objects only • If no more collisions, update all objects to end of frame • Ref[3]

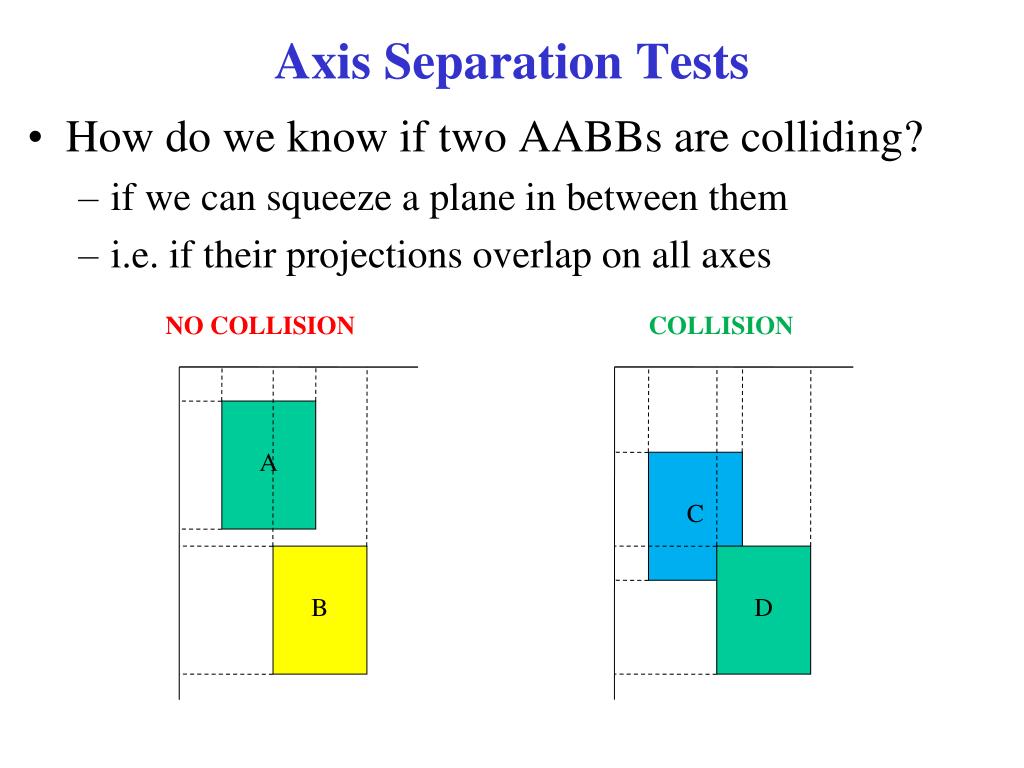

Axis Separation Tests • How do we know if two AABBs are colliding? • if we can squeeze a plane in between them • i.e. if their projections overlap on all axes NO COLLISION COLLISION A C B D

Times as % • You might want to think of your times as % of the frame • Then correct positions according to this % • For example, if I know my object is supposed to move 10 units this frame (we’ve locked the frame rate), if a collision happens ½ way through, move all affected objects ½ distance of their velocity and recompute collisions data for collided data • Re-sort collisions and find next contact time

First time of contact between A & B • For object A, in x-axis (xA, yA, vxA-vxB, vyA-vyB) • Time = distance/velocity • Since velocity = distance/time if ((xB-(Bwidth/2)) > (xA+(Awidth/2))) { tx_first_contact = (xB-(Bwidth/2) – (xA + (Awidth/2)))/(vxA-vxB); tx_last_contact = ((xB + (Bwidth/2)) – (xA-(Awidth/2)))/vxA-vxB); if (tx_first_contact > 1) no collision this frame } What if ((xB-(Bwidth/2)) < (xA+(Awidth/2)))?

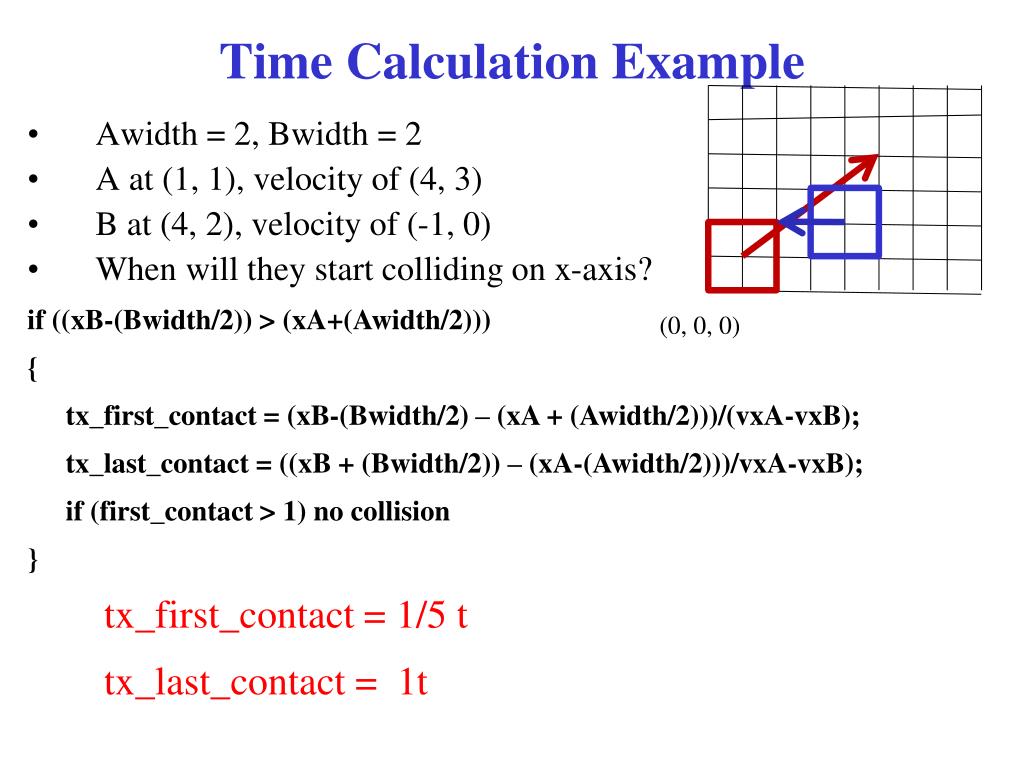

Time Calculation Example • Awidth = 2, Bwidth = 2 • A at (1, 1), velocity of (4, 3) • B at (4, 2), velocity of (-1, 0) • When will they start colliding on x-axis? • if ((xB-(Bwidth/2)) > (xA+(Awidth/2))) • { • tx_first_contact = (xB-(Bwidth/2) – (xA + (Awidth/2)))/(vxA-vxB); • tx_last_contact = ((xB + (Bwidth/2)) – (xA-(Awidth/2)))/vxA-vxB); • if (first_contact > 1) no collision • } (0, 0, 0) tx_first_contact = 1/5 t tx_last_contact = 1t

Sweep & Prune • Also called Sort & Sweep • A broad phase algorithm • This is an efficient way of managing data for method of separating axis (MSA) tests • Baraff, D. (1992), Dynamic Simulation of Non-Penetrating Rigid Bodies, (Ph. D thesis), Computer Science Department, Cornell University

Improvements on MSA • It greatly reduces the number of object-object comparisons. • How? • it only compares objects near each other on one of the axes (x/y or x/y/z) • How? • sorting

Sweep & Prune approach • Think of each axis separately, for each object considered: • Calculate position range on x-axis • extract (minX, maxX) • Place all (minX, maxX) pairs into array • Sort array by minX • now, it’s easy to see what overlaps in X axis • an O(N) problem, not O(N2). Why? • don’t compare all objects to one another, only ones “near” each other • note, we’ll have sorting costs, of course • For x-axis collided pairs, repeat for Y & Z axes • Pairs that overlapped on all 3 tests collided

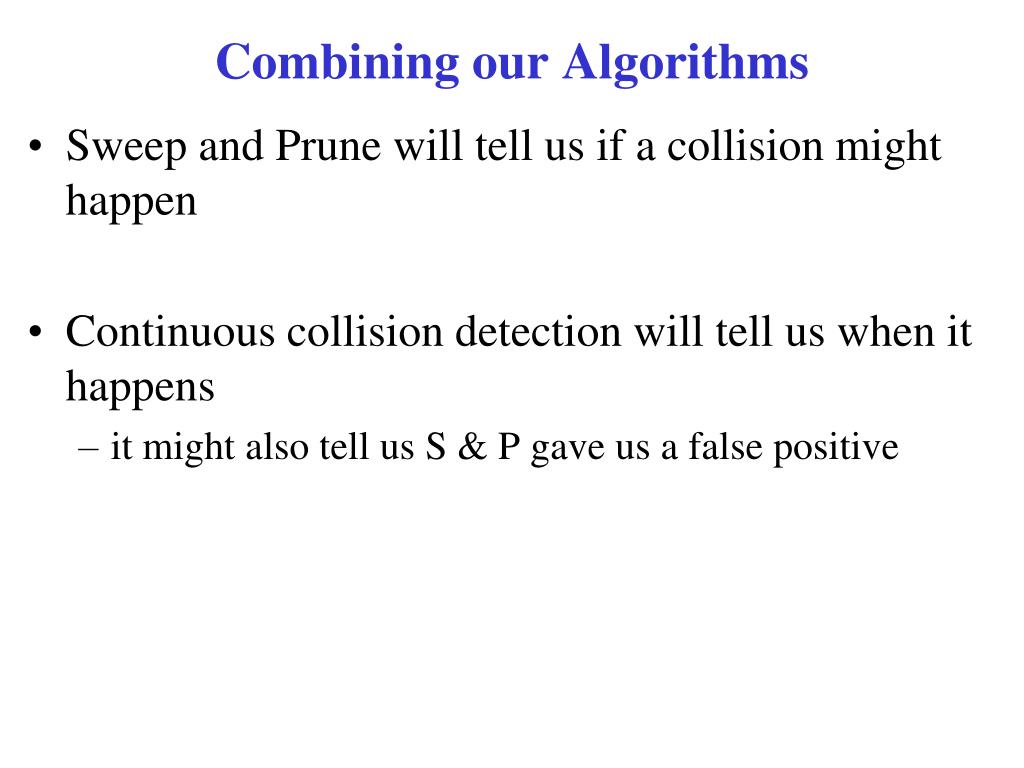

Combining our Algorithms • Sweep and Prune will tell us if a collision might happen • Continuous collision detection will tell us when it happens • it might also tell us S & P gave us a false positive

What about physics? • Every time we detect a collision, we can store data about that event in one of these objects: class Collision { public: CollidableObject *co1; CollidableObject *co2; float timeOfCollision; float startTimeOfXCollision; float startTimeOfYCollision; float endTimeOfXCollision; float endTimeOfYCollision; };

Collision Construction Warning • Each frame you’ll test for collisions • You may find multiple collisions each frame • You’ll want to store info about each collision in a Collision object. Why? • so you can sort them • use them to update the CollidableObjects • DON’T construct new Collision objects each frame • recycle them instead

Recycling Collision objects • When your game starts, construct an array of Collision objects. How many? • 100 should do, make it 1000 to be over-safe • an array stack is easiest • When a collision is detected: • take a collision object from array to use • When collision resolved: • put it back

Oh, and Collision Events • What events might these be? • Some Invoked on bot to bot basis • Damage • Some invoked globally • Game over

GamePhysics::update strategy • For each sprite: find all collisions with tiles, make a Collision object for each and compute time of collision. Add each Collision object to a collisions array • For each sprite, do the same as step 1 but for all Sprite-Sprite collisions • Sort the Collision array by time of collision • If collisions array is not empty, move all sprites to time of first collision (change their x, y according to vX, vY and % of frame) • Resolve collision (change vX, vY of sprites involved) …

GamePhysics::update strategy • Execute collision response code • Ex: sprite type 1 collides with sprite type 2, so reduce HP of sprite type 1 • this step may be combined with step 5. i.e., sometimes you might not want to change velocity of a sprite after collision • Remove all collisions from array involved in resolved collision • Perform steps 1 & 2 only for sprites involved in collisions • Continue to do these steps until you reach the end of the frame • NOTE: after each collision resolution, make sure the objects are not colliding. Why? • floating point error
