  1. File formats and conversions

  2. Important formats • How • Fasta • Raw/Peptide • Tab

  3. How • One or more entries • First line • Length of sequence (6 digits right aligned) • Name of sequence • Next lines • Sequence, usually 80 characters pr line • Last lines • Assignments of the positions in the sequence

  4. How file 553 ATP0_BOVIN_1E79.C MLSVRVAAAVARALPRRAGLVSKNALGSSFIAARNLHASNSRLQKTGTAEVSSILEERILGADTSVDLEETGRVLSIGDG IARVHGLRNVQAEEMVEFSSGLKGMSLNLEPDNVGVVVFGNDKLIKEGDIVKRTGAIVDVPVGEELLGRVVDALGNAIDG KGPIGSKARRRVGLKAPGIIPRISVREPMQTGIKAVDSLVPIGRGQRELIIGDRQTGKTSIAIDTIINQKRFNDGTDEKK KLYCIYVAIGQKRSTVAQLVKRLTDADAMKYTIVVSATASDAAPLQYLAPYSGCSMGEYFRDNGKHALIIYDDLSKQAVA YRQMSLLLRRPPGREAYPGDVFYLHSRLLERAAKMNDAFGGGSLTALPVIETQAGDVSAYIPTNVISITDGQIFLETELF YKGIRPAINVGLSVSRVGSAAQTRAMKQVAGTMKLELAQYREVAAFAQFGSDLDAATQQLLSRGVRLTELLKQGQYSPMA IEEQVAVIYAGVRGYLDKLEPSKITKFENAFLSHVISQHQALLSKIRTDGKISEESDAKLKEIVTNFLAGFEA -------------------------------------------------------------...SS.TTTEEEEEEEETT EEEEEE.TT.BTTEEEEETTS.EEEEEEE.SS.EEEEESS.GGG..TT.EEEEEEEESEEE.SGGGTT.EE.TTS.B.SS S.....S.EEETT.....STTB....SB...S.HHHHHHS..BTT.B.EEEESTTSSHHHHHHHHHHHTHHHHSSS.GGG ..EEEEEEES..HHHHHHHHHHHHHHT.GGGEEEEEE.TTS.HHHHHHHHHHHHHHHHHHHHTT.EEEEEEETHHHHHHH HHHHHHHTT....GGGS.TTHHHHHHHHHTT..BB.GGGTS.EEEEEEEEE.STT.TTSHHHHHHHTTSSEEEEE.HHHH HHT.SS.B.TTT.EESSGGGGS.HHHHHHHTTHHHHHHHHHHHHHHHTT.....HHHHHHHHHHHHHHHHT...SS.... HHHHHHHHHHHHTSTTTTS.GGGHHHHHHHHHHHHHHH.HHHHHHHHHHTS..HHHHHHHHHHHHHHHHHHH.

  5. Fasta • One or more entries • First line • The character “>” • The name • Optional descriptions not read by all readers • Rest of lines • The sequence usually 50-80 characteres per line

  6. Raw/peptide • Short sequences • One peptide per line

  7. Tab format • One or more entries • One entry per line • Tab delimited fields • Name • Sequence • Assignments/features

  8. Converters • Saco_convert • From/To • How • Fasta • Tab • Makefsa • Raw peptides to fasta peptides

  9. Databases at CBS

  10. Databases - ready for BLAST • SwissProt • PDB • GenBank • nr • Non redundant set of proteins from the above plus TREMBL, PIR and others • sptr_nrdb • Non redundant set of proteins from SwissProt and TREMBL

  11. BLAST routines - single search • blastp • aadb aaquery • blastn • ntdb ntquery • blastx • aadb ntquery • tblastn • ntdb aaquery • tblastx • ntdb ntquery

  12. Blastpgp - iterative blast • Repetetive searches with AA query through an AA database • Results in hits plus an optional position specific scoring matrix

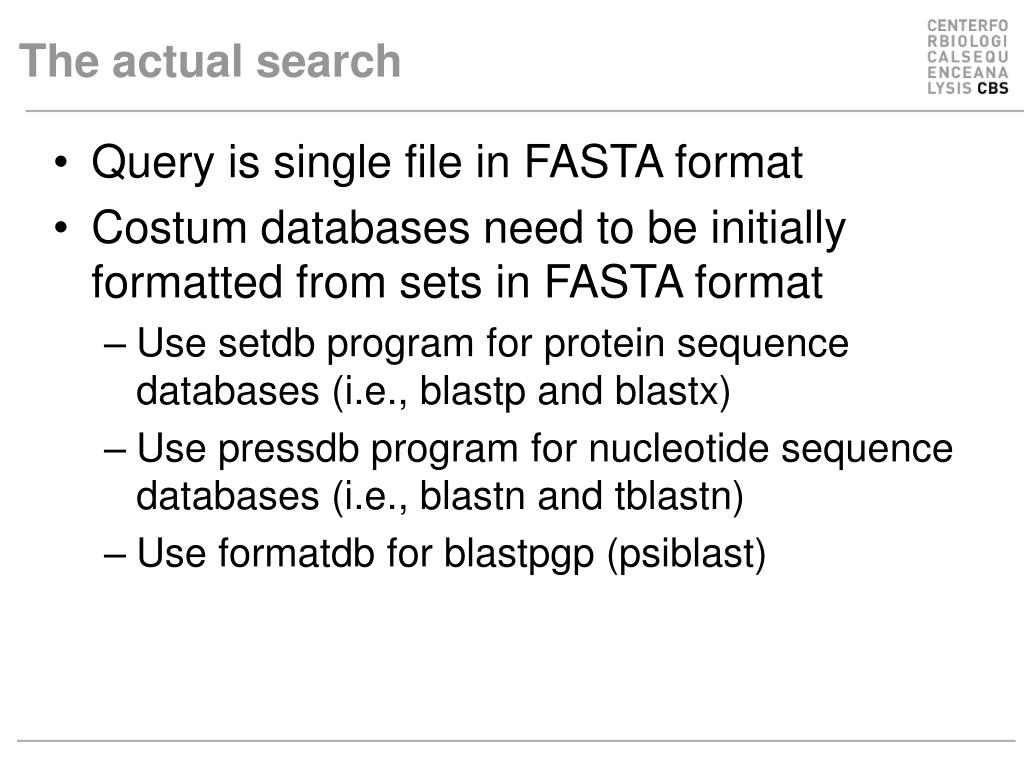

  13. The actual search • Query is single file in FASTA format • Costum databases need to be initially formatted from sets in FASTA format • Use setdb program for protein sequence databases (i.e., blastp and blastx) • Use pressdb program for nucleotide sequence databases (i.e., blastn and tblastn) • Use formatdb for blastpgp (psiblast)

  14. Exercises

  15. Conversion exersise • Convert the file A1.rsee.test to fasta format • Convert the file ss_sub300.how to fasta format

  16. Blast • Take the first entry in ss_sub300.how and blastp it against ss_sub300.how and PDB • Make a position specific scoring matrix for the entry using psiblast and nr and save the profile as binary and readable matrices • Use the binary matrix to search against PDB and ss_sub300.how
