Fischer-Rosanoff Convention

Fischer-Rosanoff Convention. Before 1951, only relative configurations could be known. Sugars and amino acids with same relative configuration as (+)-glyceraldehyde were assigned D and same as (-)-glyceraldehyde were assigned L.

jacob
Télécharger la présentation

Fischer-Rosanoff Convention

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

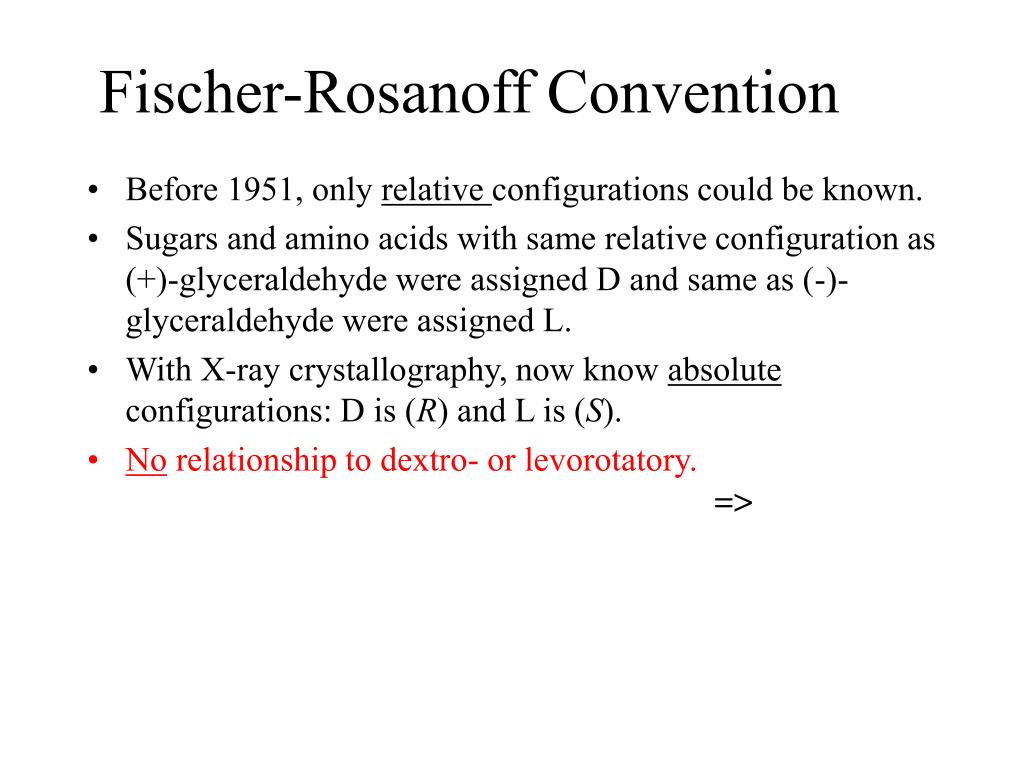

  1. Fischer-Rosanoff Convention • Before 1951, only relative configurations could be known. • Sugars and amino acids with same relative configuration as (+)-glyceraldehyde were assigned D and same as (-)-glyceraldehyde were assigned L. • With X-ray crystallography, now know absolute configurations: D is (R) and L is (S). • No relationship to dextro- or levorotatory. =>

  2. => * * D and L Assignments *

  3. Properties of Diastereomers • Diastereomers have different physical properties: m.p., b.p. • They can be separated easily. • Enantiomers differ only in reaction with other chiral molecules and the direction in which polarized light is rotated. • Enantiomers are difficult to separate.=>

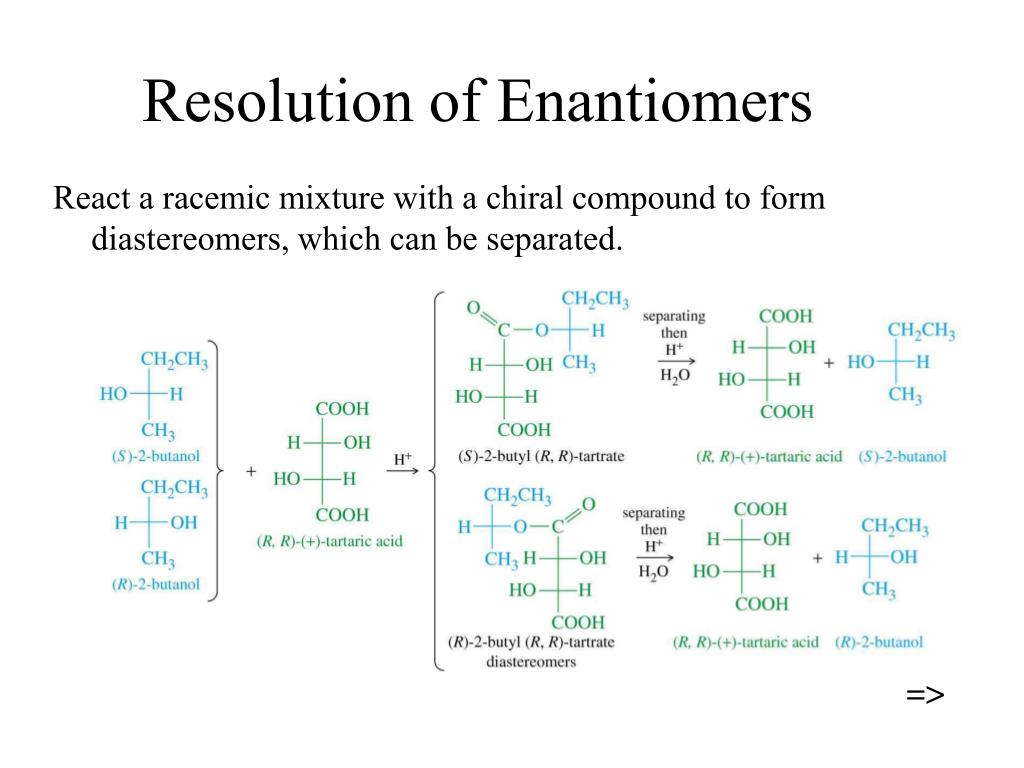

  4. Resolution of Enantiomers React a racemic mixture with a chiral compound to form diastereomers, which can be separated. =>

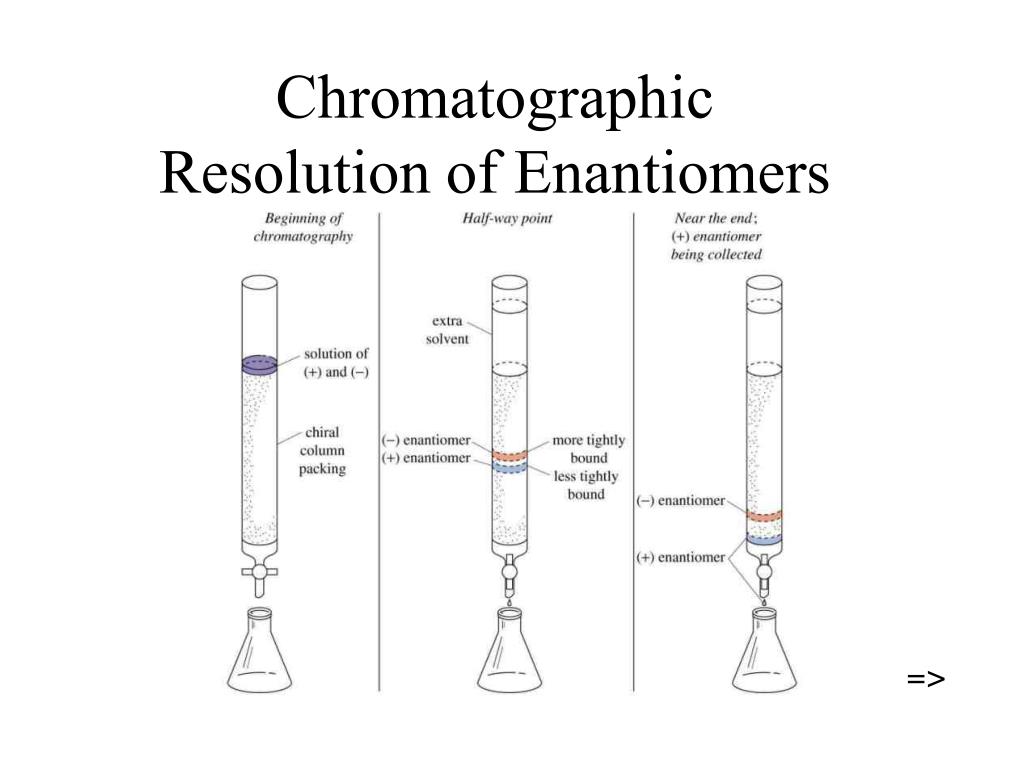

  5. ChromatographicResolution of Enantiomers =>

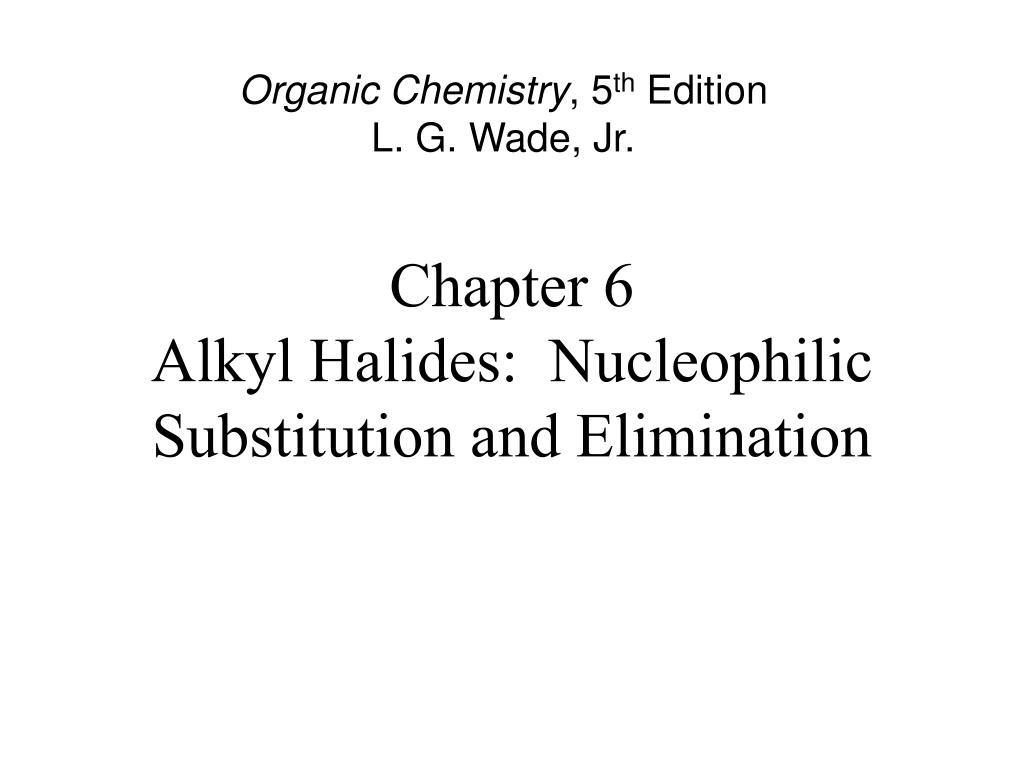

  6. Organic Chemistry, 5th EditionL. G. Wade, Jr. Chapter 6Alkyl Halides: Nucleophilic Substitution and Elimination

  7. => Classes of Halides • Alkyl: Halogen, X, is directly bonded to sp3 carbon. • Vinyl: X is bonded to sp2 carbon of alkene. • Aryl: X is bonded to sp2 carbon on benzene ring. • Examples:

  8. Polarity and Reactivity • Halogens are more electronegative than C. • Carbon-halogen bond is polar, so carbon has partial positive charge. • Carbon can be attacked by a nucleophile. • Halogen can leave with the electron pair. =>

  9. Classes of Alkyl Halides • Methyl halides: only one C, CH3X • Primary: C to which X is bonded has only one C-C bond. • Secondary: C to which X is bonded has two C-C bonds. • Tertiary: C to which X is bonded has three C-C bonds. =>

  10. => Classify These:

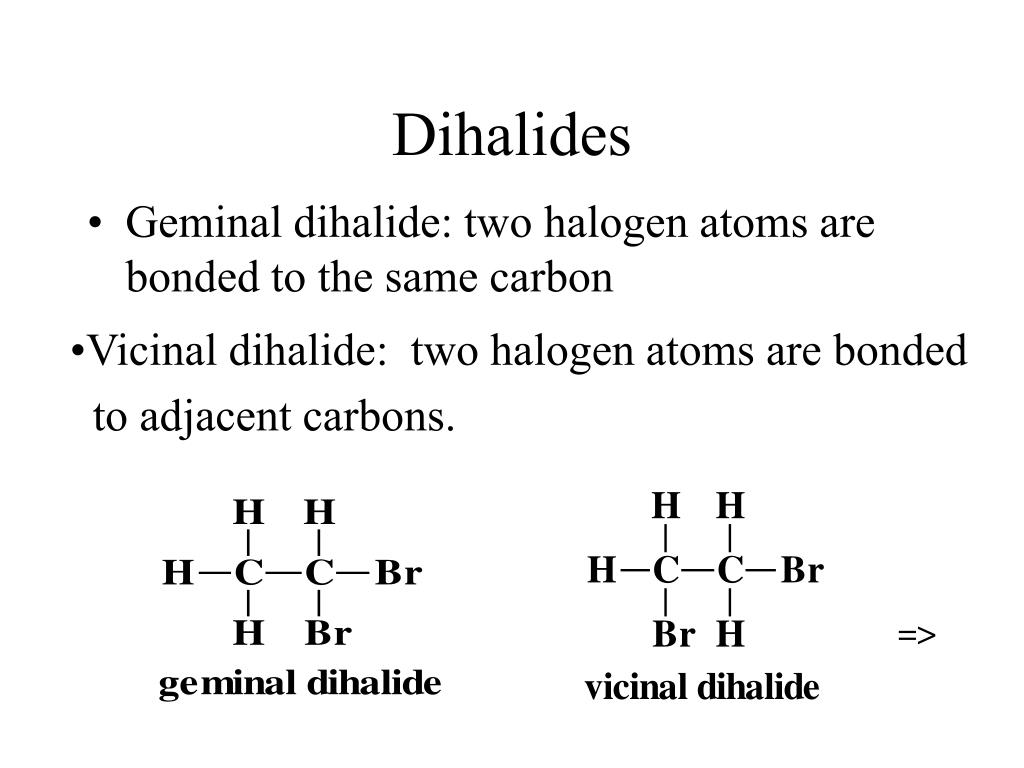

  11. => Dihalides • Geminal dihalide: two halogen atoms are bonded to the same carbon • Vicinal dihalide: two halogen atoms are bonded • to adjacent carbons.

  12. => IUPAC Nomenclature • Name as haloalkane. • Choose the longest carbon chain, even if the halogen is not bonded to any of those C’s. • Use lowest possible numbers for position.

  13. => Systematic Common Names • Name as alkyl halide. • Useful only for small alkyl groups. • Name these:

  14. “Trivial” Names • CH2X2 called methylene halide. . • CHX3 is a haloform. • CX4 is carbon tetrahalide. • Examples: • CH2Cl2 is methylene chloride • CHCl3 is chloroform -CHI3 is iodoform • CCl4 is carbon tetrachloride

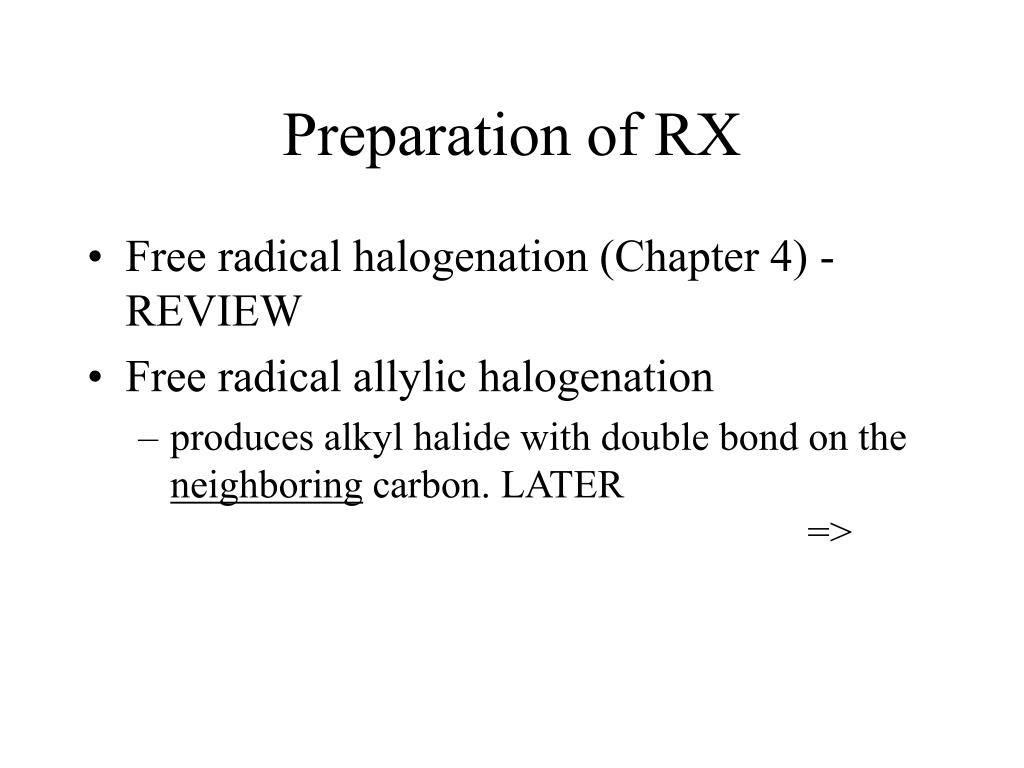

  15. Preparation of RX • Free radical halogenation (Chapter 4) - REVIEW • Free radical allylic halogenation • produces alkyl halide with double bond on the neighboring carbon. LATER =>

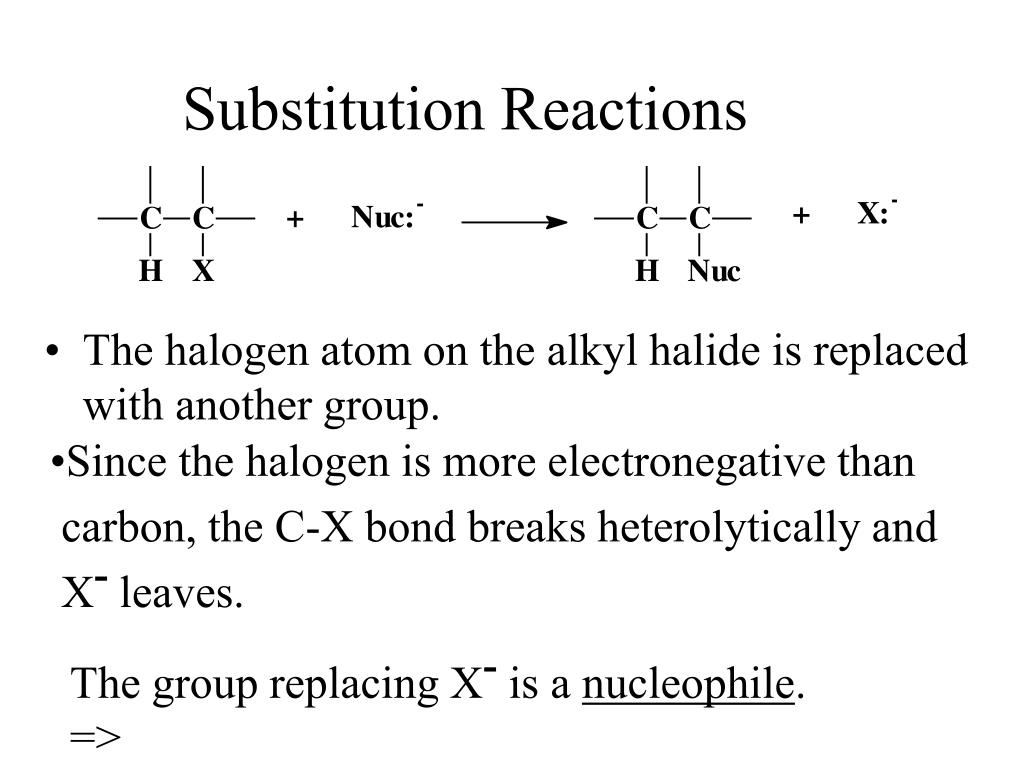

  16. Substitution Reactions • The halogen atom on the alkyl halide is replaced with another group. • Since the halogen is more electronegative than • carbon, the C-X bond breaks heterolytically and • X- leaves. The group replacing X- is a nucleophile. =>

  17. Elimination Reactions • The alkyl halide loses halogen as a halide ion, and also loses H+ on the adjacent carbon to a base. • The alkyl halide loses halogen as a halide ion, and • also loses H+ on the adjacent carbon to a base. • A pi bond is formed. Product is alkene. • Also called dehydrohalogenation (-HX).

  18. Ingold

  19. Ingold Sir Christopher Father of Physical Organic Chemistry Coined such names and symbols as: SN1, SN2, E1, E2, nucleophile, electrophile resonance effect, inductive effect/ In print, he often attacked enemies vigorously and sometimes in vitrolic manner.

  20. SN2 Mechanism • Rate is first order in each reactant • Both reactants are involved in RDS Note: one-step reaction with no intermediate • Bimolecular nuleophilic substitution. • Concerted reaction: new bond forming • and old bond breaking at same time INVERSION OF CONFIGURATION

  21. SN2 Energy Diagram • One-step reaction. • Transition state is highest in energy. =>

  22. Uses for SN2 Reactions • Synthesis of other classes of compounds. • Halogen exchange reaction. =>

  23. => SN2: Nucleophilic Strength • Stronger nucleophiles react faster. • Strong bases are strong nucleophiles, but not all strong nucleophiles are basic.

  24. Trends in Nuc. Strength • Of a conjugate acid-base pair, the base is stronger: OH- > H2O, NH2- > NH3 • Decreases left to right on Periodic Table. More • electronegative atoms less likely to form new bond: • OH- > F-, NH3 > H2O • Increases down Periodic Table, as size and polarizability • increase: I- > Br- > Cl-

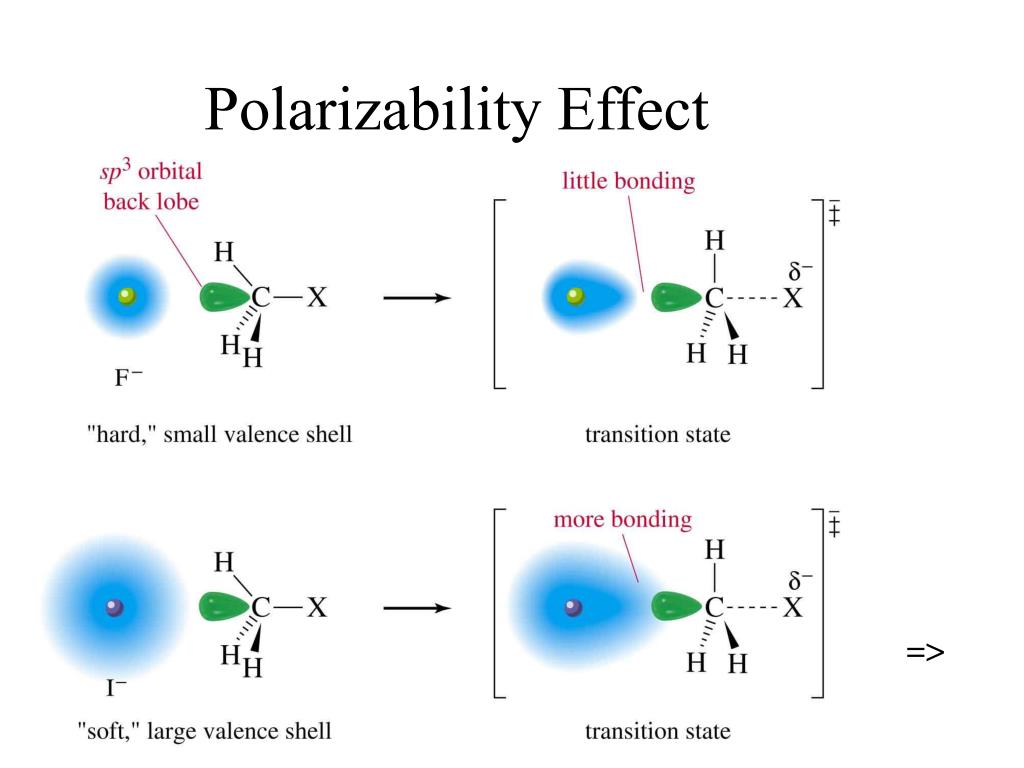

  25. Polarizability Effect =>

  26. => Bulky Nucleophiles Sterically hindered for attack on carbon, so weaker nucleophiles.

  27. => Solvent Effects (1) Polar protic solvents (O-H or N-H) reduce the strength of the nucleophile. Hydrogen bonds must be broken before nucleophile can attack the carbon.

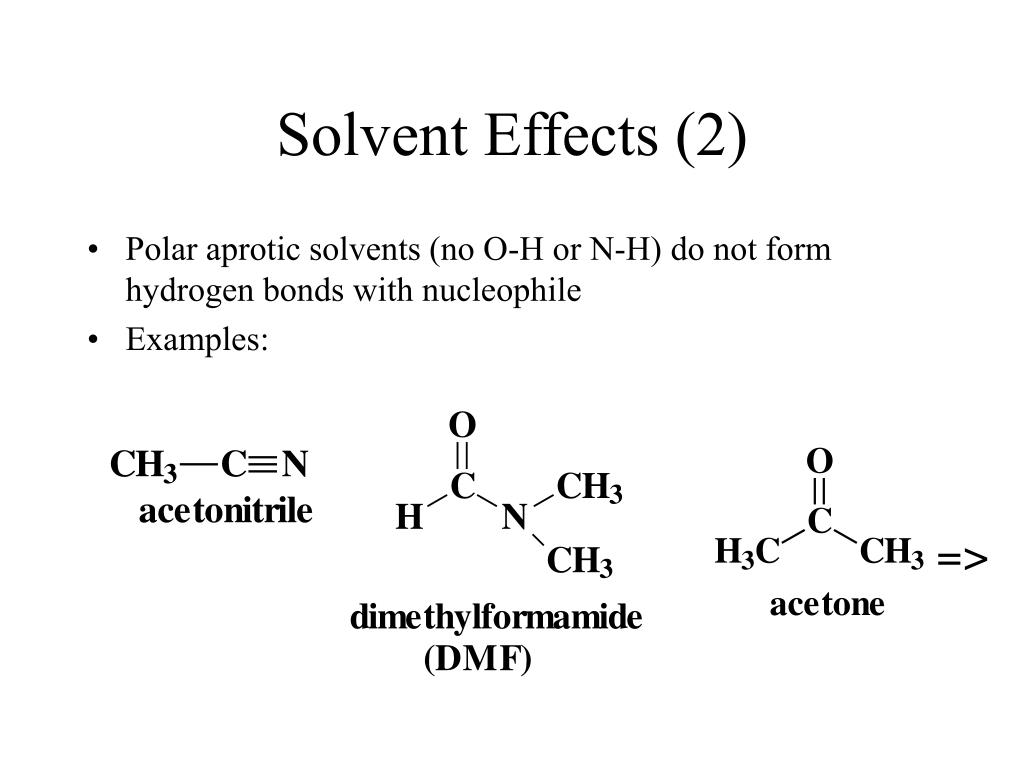

  28. => Solvent Effects (2) • Polar aprotic solvents (no O-H or N-H) do not form hydrogen bonds with nucleophile • Examples:

  29. => Crown Ethers • Solvate the cation, so nucleophilic strength of the anion increases. • Fluoride becomes a good nucleophile.

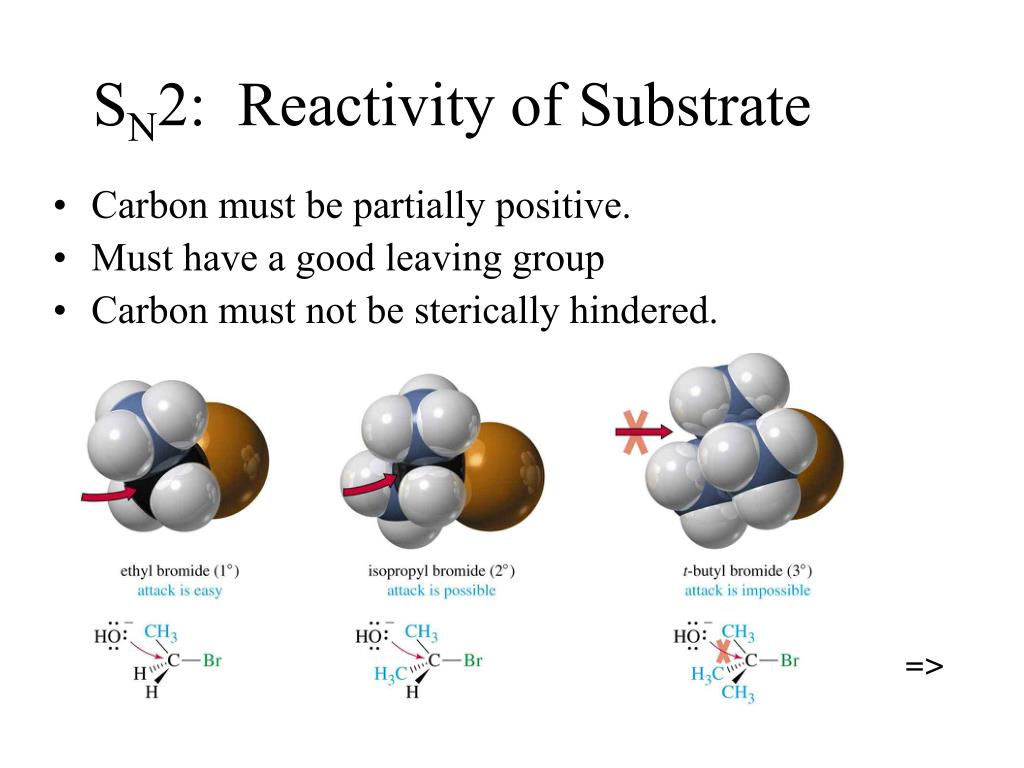

  30. => SN2: Reactivity of Substrate • Carbon must be partially positive. • Must have a good leaving group • Carbon must not be sterically hindered.

  31. => Leaving Group Ability • Electron-withdrawing • Stable once it has left (not a strong base) • Polarizable to stabilize the transition state.

  32. Structure of Substrate • Relative rates for SN2: CH3X > 1° > 2° >> 3° • Tertiary halides do not react via the SN2 mechanism, due to steric hindrance. =>

  33. Stereochemistry of SN2 Walden inversion =>

  34. SN1 Reaction • Unimolecular nucleophilic substitution. • Two step reaction with carbocation intermediate. • Rate is first order in the alkyl halide, zero order in the nucleophile. • Racemization occurs. =>

  35. => SN1 Mechanism (1) Formation of carbocation (slow)

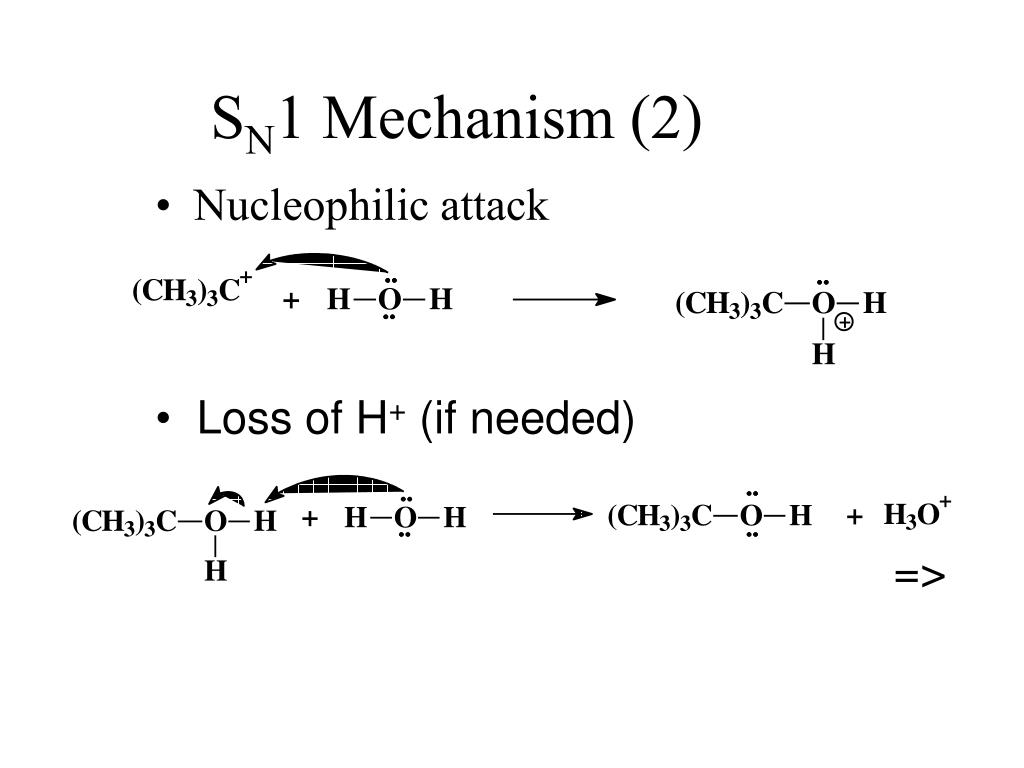

  36. => SN1 Mechanism (2) • Nucleophilic attack • Loss of H+ (if needed)

  37. SN1 Energy Diagram • Forming the carbocation is endothermic • Carbocation intermediate is in an energy well. =>

  38. Rates of SN1 Reactions • 3° > 2° > 1° >> CH3X • Order follows stability of carbocations (opposite to SN2) • More stable ion requires less energy to form • Better leaving group, faster reaction (like SN2) • Polar protic solvent best: It solvates ions strongly with hydrogen bonding. =>

  39. Stereochemistry of SN1 Racemization: inversion and retention =>

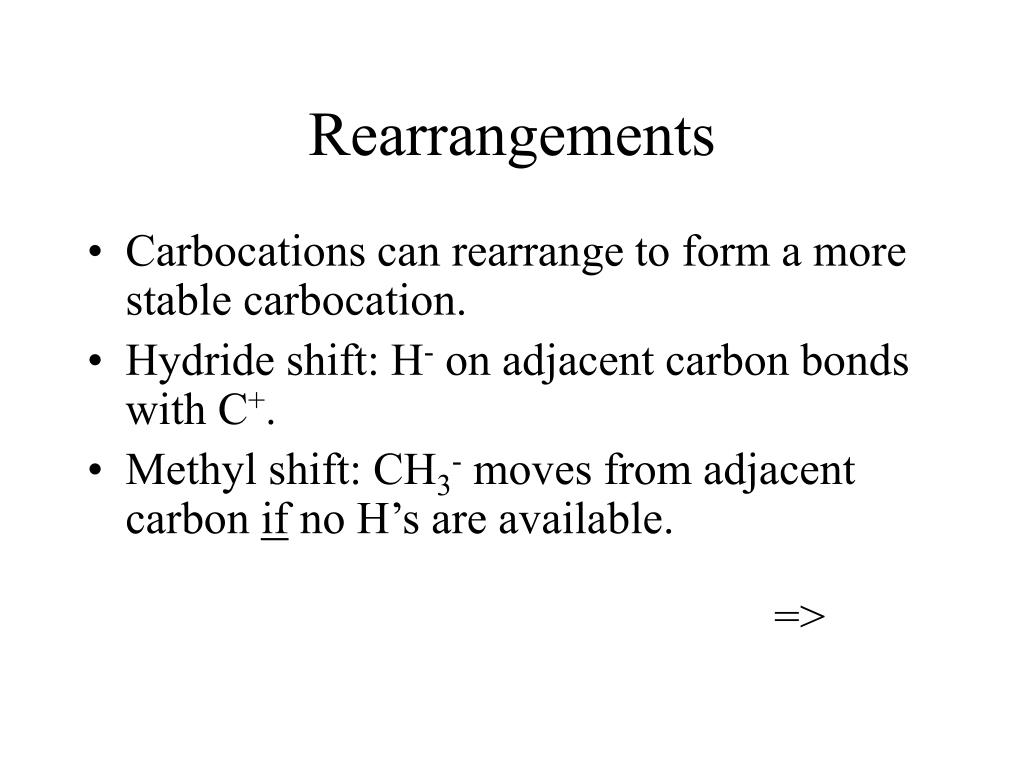

  40. Rearrangements • Carbocations can rearrange to form a more stable carbocation. • Hydride shift: H- on adjacent carbon bonds with C+. • Methyl shift: CH3- moves from adjacent carbon if no H’s are available. =>

  41. => Hydride Shift

  42. => Methyl Shift

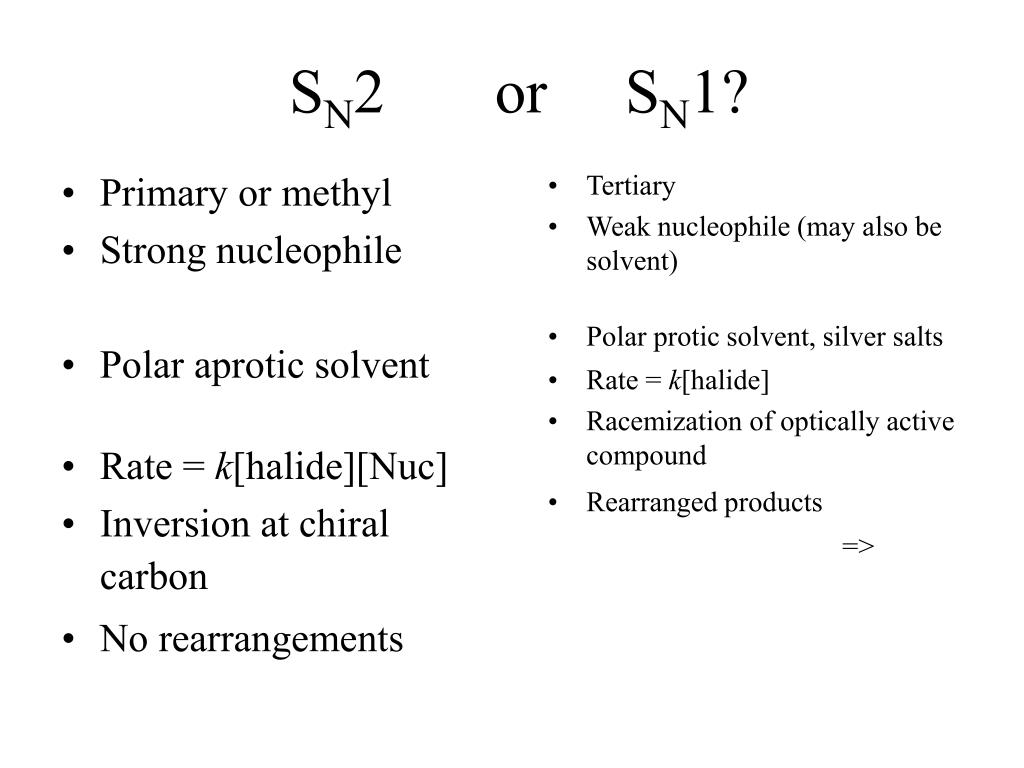

  43. Primary or methyl Strong nucleophile Polar aprotic solvent Rate = k[halide][Nuc] Inversion at chiral carbon No rearrangements Tertiary Weak nucleophile (may also be solvent) Polar protic solvent, silver salts Rate = k[halide] Racemization of optically active compound Rearranged products => SN2 or SN1?
