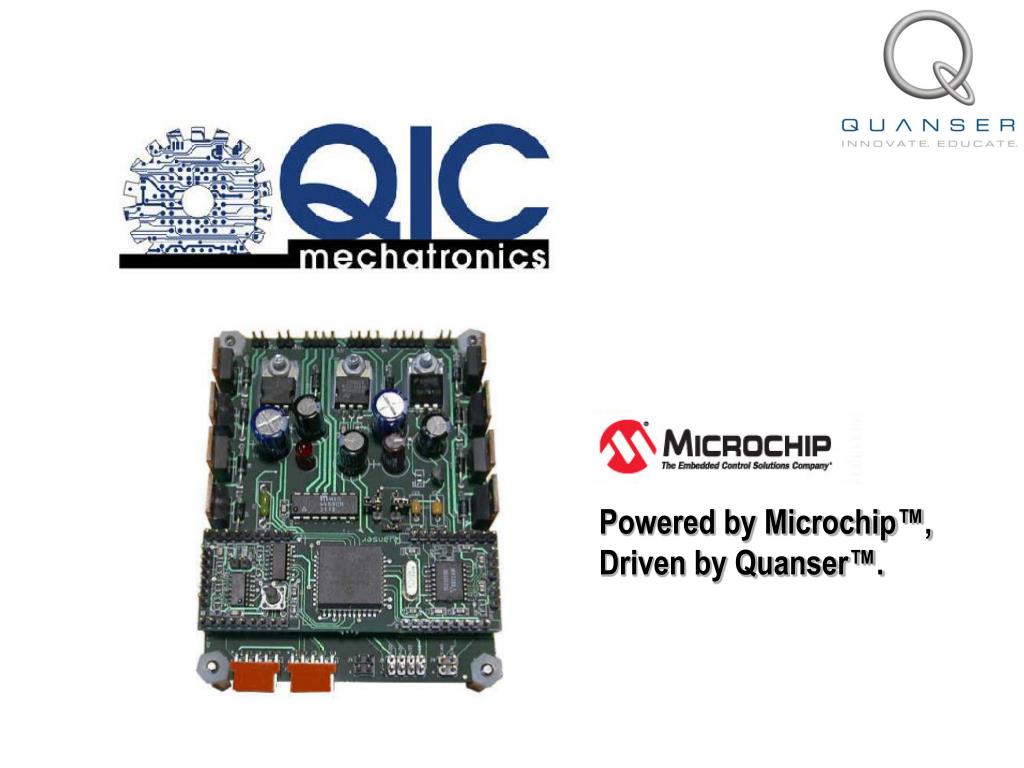

  1. Powered by Microchip™, Driven by Quanser™.

  2. Teaching Mechatronics?

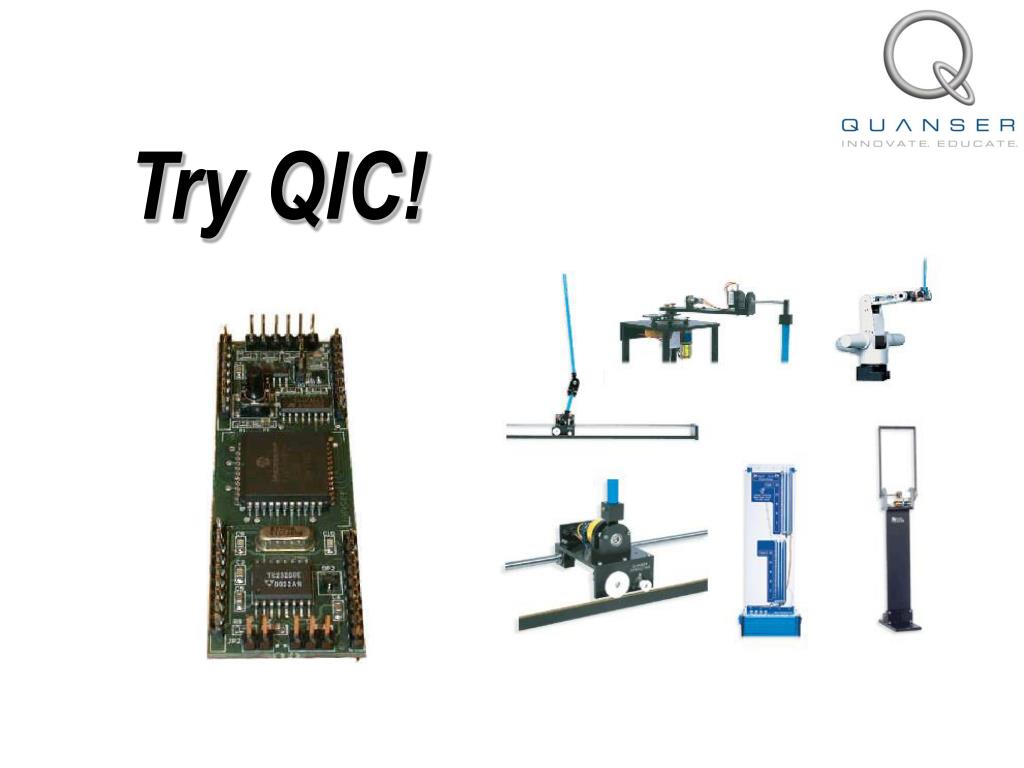

  3. Try QIC!

  4. What is QIC? QIC is an integrated suite of development components designed to simplify embedded controller development. • Hardware • QIC Processor Core • QIC Carrier Boards • Software • QIC Commander • QIC Programmer

  5. QIC Architecture PC Processor Core Serial Cable QIC Connector Carrier Board Encoder Cable Load Cable Experiments

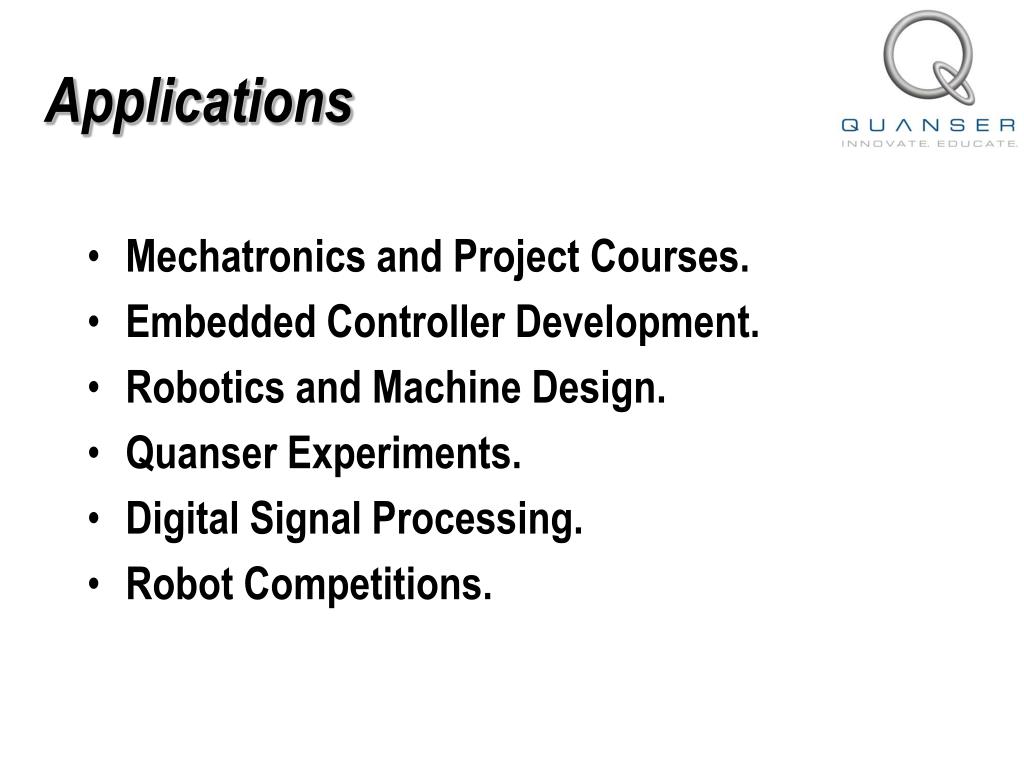

  6. Applications • Mechatronics and Project Courses. • Embedded Controller Development. • Robotics and Machine Design. • Quanser Experiments. • Digital Signal Processing. • Robot Competitions.

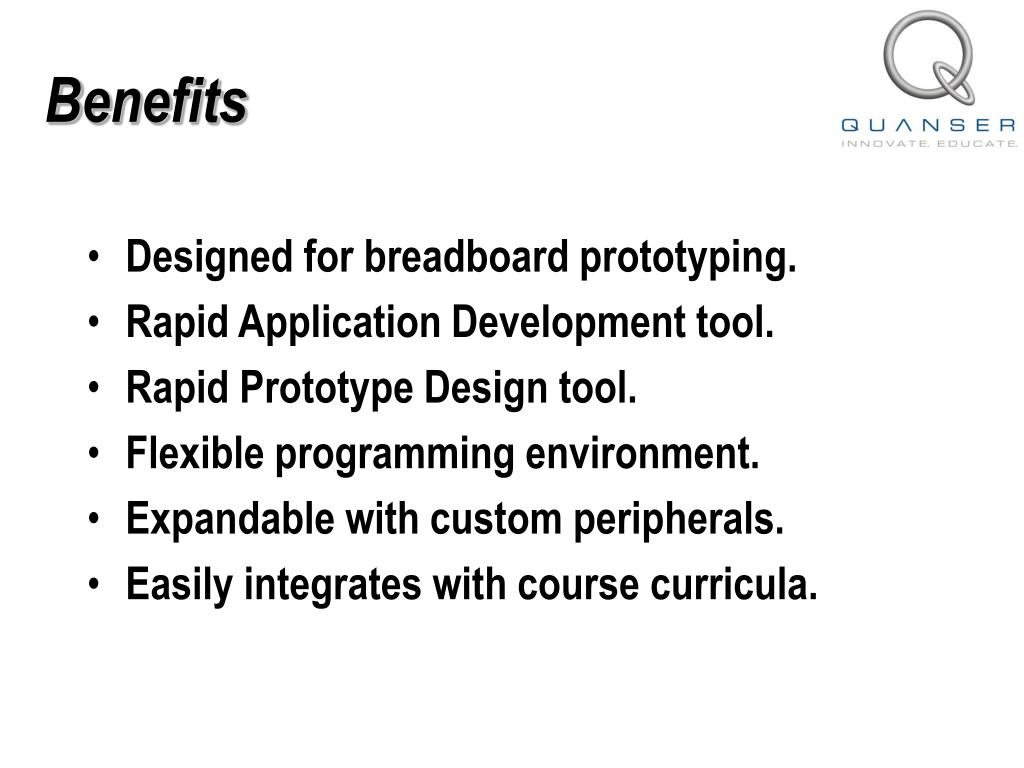

  7. Benefits • Designed for breadboard prototyping. • Rapid Application Development tool. • Rapid Prototype Design tool. • Flexible programming environment. • Expandable with custom peripherals. • Easily integrates with course curricula.

  8. Multiple ProgrammingEnvironments Assembly MATLAB/Simulink C/C++

  9. Summary QIC is an integrated suite of development components designed to simplify embedded controller development. • Hardware • QIC Processor Core • QIC Carrier Boards • Software • QIC Commander • QIC Programmer

  10. Further Information Contact Quanser Tel : +1 (905) 940 3575 Email : Info@quanser.com

  11. Software Requirements Return to Architecture slide Click Logo • Minimum Requirements • Windows 95 / 98 / ME / NT / 2000 / XP • 64 Mb RAM • Serial Port • Pentium 233 MHz

  12. Carrier BoardSpecifications Return to Architecture slide Click Logo

  13. Processor CoreSpecifications Return to Architecture slide Click Logo
