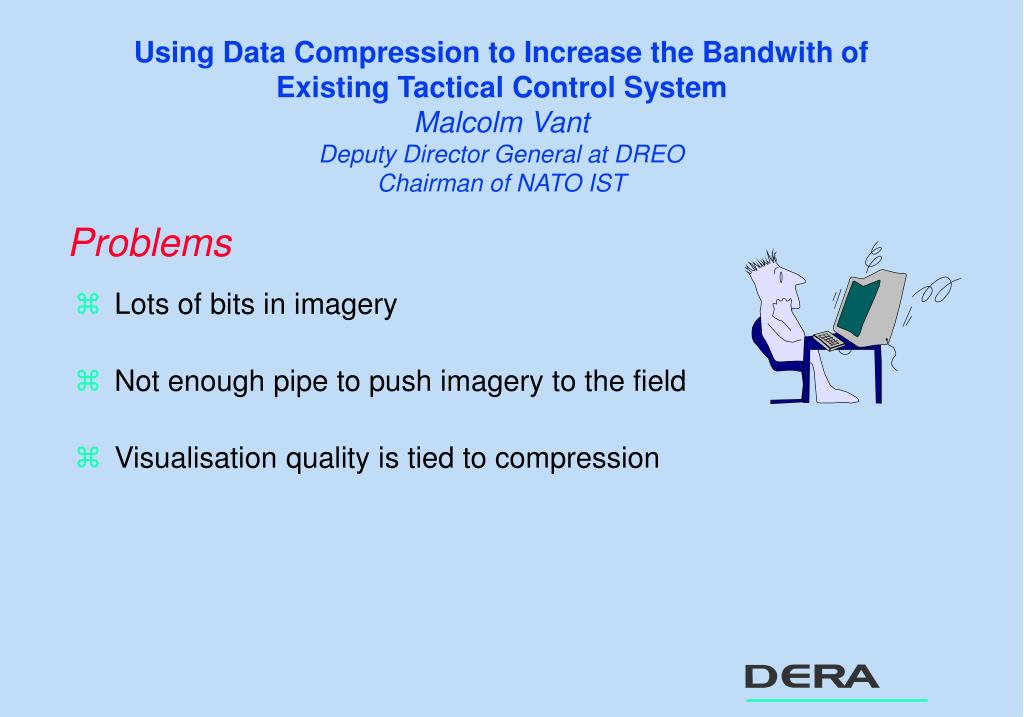

1. Using Data Compression to Increase the Bandwith of Existing Tactical Control SystemMalcolm VantDeputy Director General at DREOChairman of NATO IST • Lots of bits in imagery • Not enough pipe to push imagery to the field • Visualisation quality is tied to compression Problems

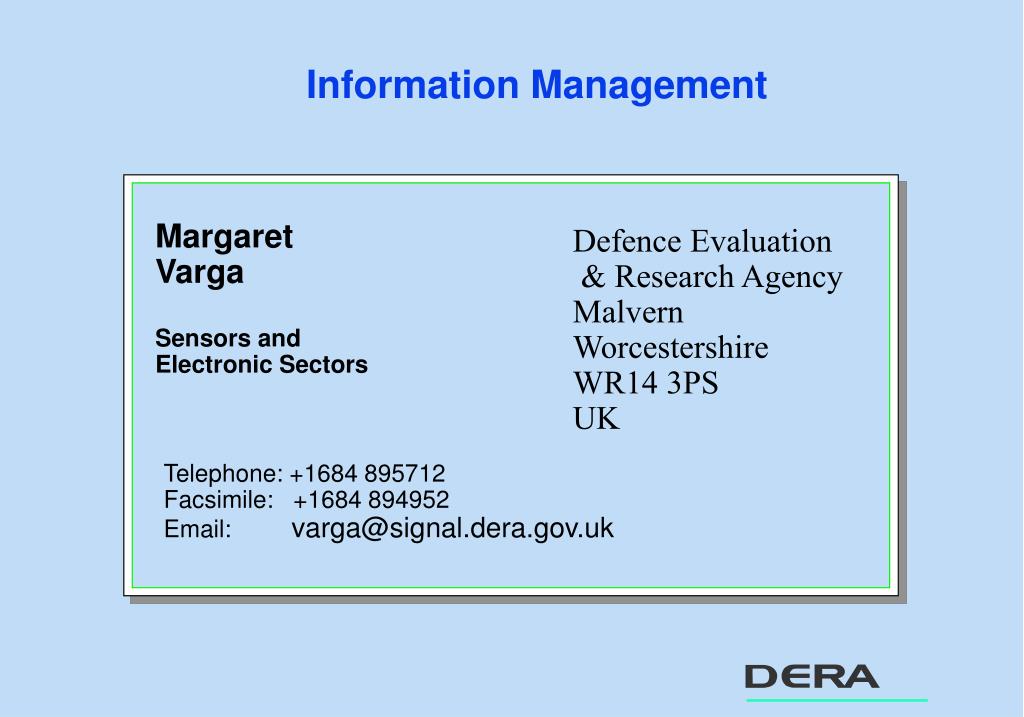

2. Margaret Varga Sensors and Electronic Sectors Defence Evaluation & Research Agency Malvern Worcestershire WR14 3PS UK Click to add sub-title Telephone: +1684 895712 Facsimile: +1684 894952 Email: varga@signal.dera.gov.uk Information Management

3. Background • Huge volumes of diverse data to be analysed • Existing systems are outpaced • Manual examination is still the main approach • Need for fast, cost effective and reliable semi-automatic or automatic approaches • To retrieve, screen, evaluate, correlate, disseminate, archive and present information at the right time, place and format

4. Information Deluge

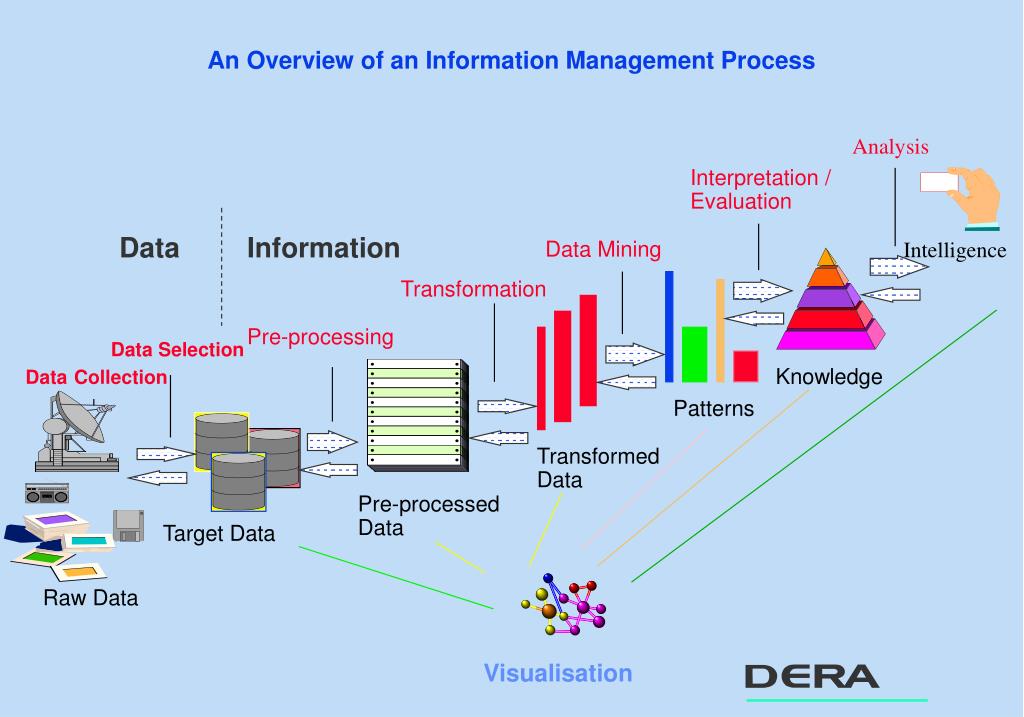

5. An Overview of an Information Management Process Analysis Interpretation / Evaluation Data Information Intelligence Data Mining Transformation Pre-processing Data Selection DataCollection Knowledge Patterns Transformed Data Pre-processed Data Target Data Raw Data Visualisation

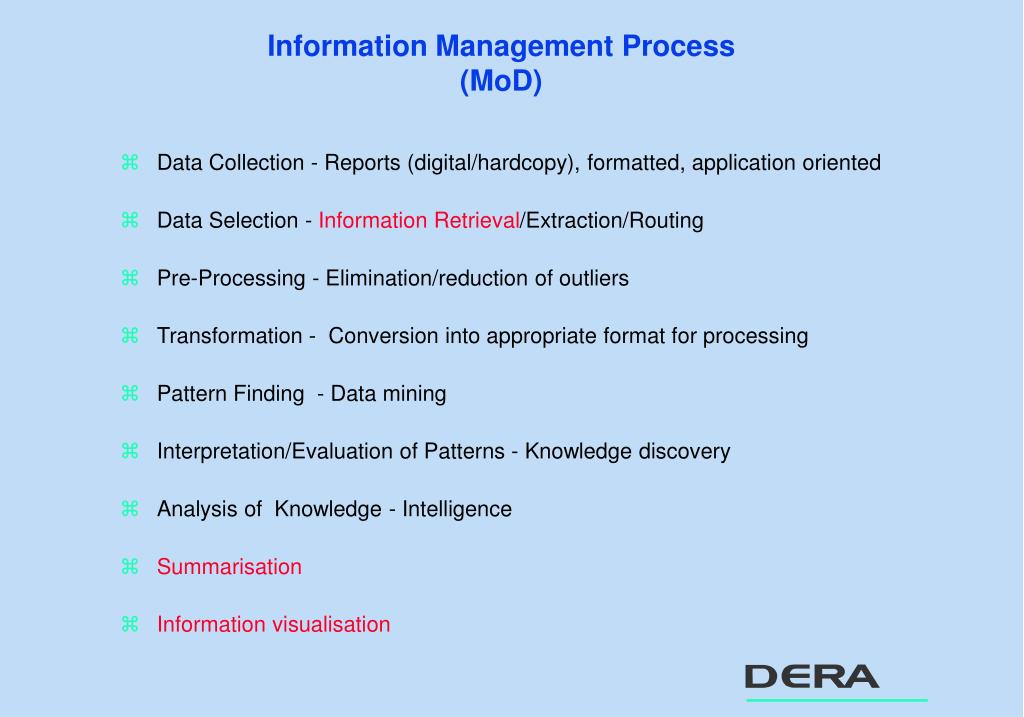

6. Information Management Process(MoD) • Data Collection - Reports (digital/hardcopy), formatted, application oriented • Data Selection - Information Retrieval/Extraction/Routing • Pre-Processing - Elimination/reduction of outliers • Transformation - Conversion into appropriate format for processing • Pattern Finding - Data mining • Interpretation/Evaluation of Patterns - Knowledge discovery • Analysis of Knowledge - Intelligence • Summarisation • Information visualisation

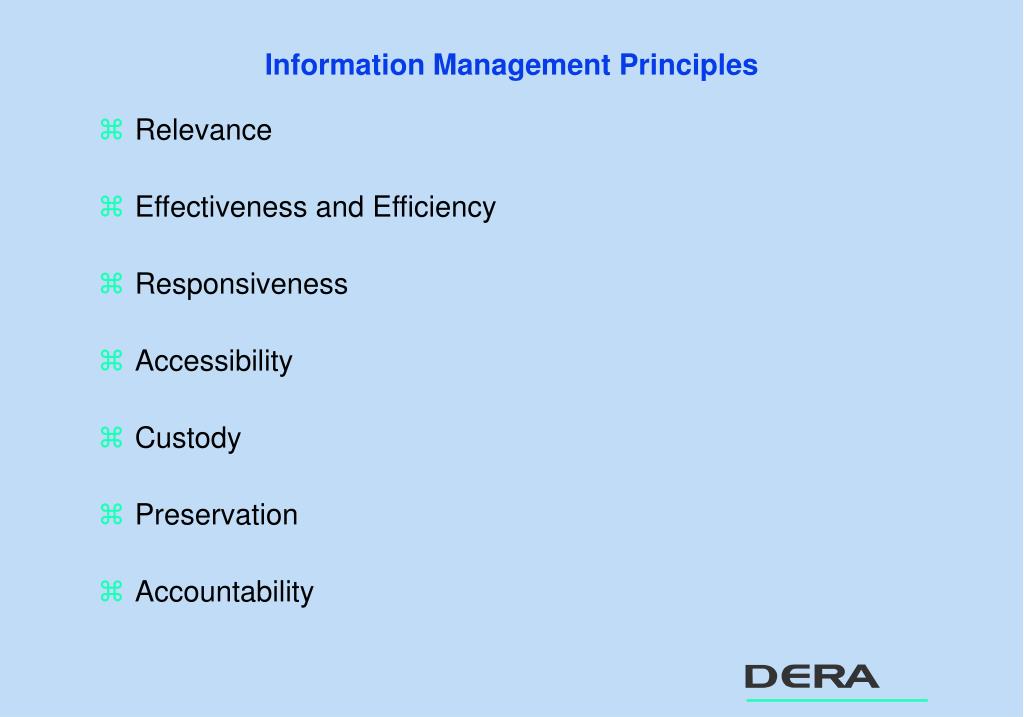

7. Information Management Principles • Relevance • Effectiveness and Efficiency • Responsiveness • Accessibility • Custody • Preservation • Accountability

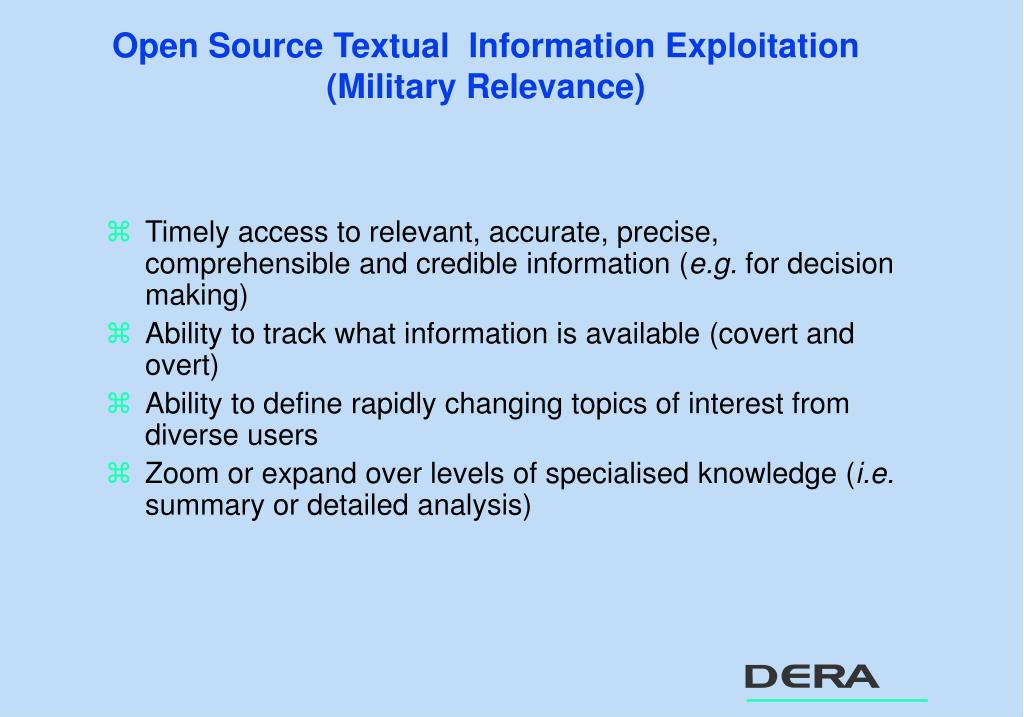

8. Open Source Textual Information Exploitation(Military Relevance) • Timely access to relevant, accurate, precise, comprehensible and credible information (e.g. for decision making) • Ability to track what information is available (covert and overt) • Ability to define rapidly changing topics of interest from diverse users • Zoom or expand over levels of specialised knowledge (i.e. summary or detailed analysis)

9. Limitations of Existing Information Retrieval Approaches • Commercial Off The Shelf (COTS) products are only effective in a few domain specific applications • COTS based on user-specified ad hoc keywords, phrases or topics: • subject scope can become too general and unfamiliar • costly (time & money), depends on predefined search definition • irrelevant reports are retrieved and relevant reports may remain hidden • Full reports are presented • Duplicate information from same and different sources is presented • Retrieved reports are ranked by existence and frequency of keywords- not necessary equivalent to relevancy

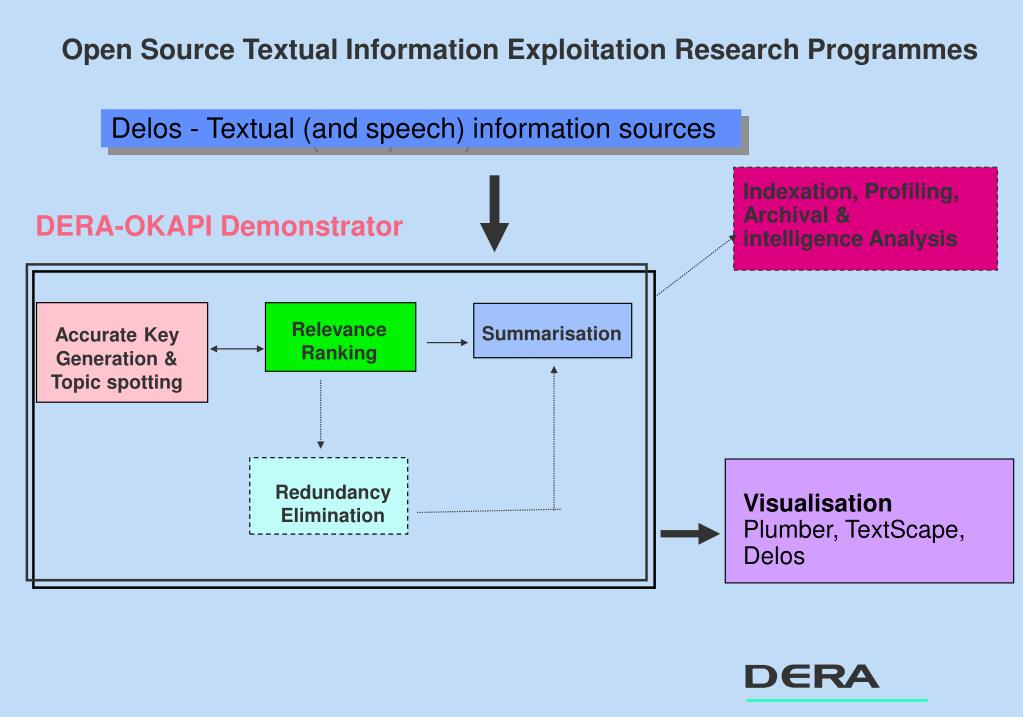

10. Relevance Ranking AccurateKey Generation & Topic spotting Summarisation Redundancy Elimination Open Source Textual Information Exploitation Research Programmes Delos - Textual (and speech) information sources Indexation, Profiling, Archival & intelligence Analysis DERA-OKAPI Demonstrator Visualisation Plumber, TextScape, Delos

11. DERA-OKAPI Information Retrieval Demonstrator

12. DERA-OKAPI Information Retrieval Demonstrator

13. DERA-OKAPI Information Retrieval Demonstrator

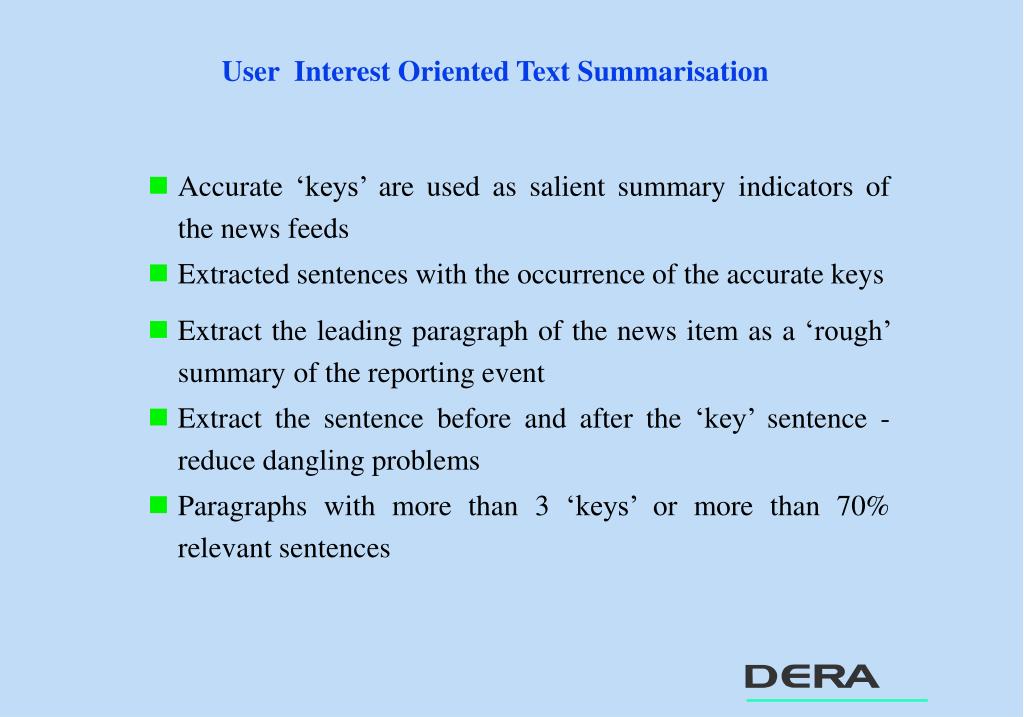

14. User Interest Oriented Text Summarisation • Accurate ‘keys’ are used as salient summary indicators of the news feeds • Extracted sentences with the occurrence of the accurate keys • Extract the leading paragraph of the news item as a ‘rough’ summary of the reporting event • Extract the sentence before and after the ‘key’ sentence - reduce dangling problems • Paragraphs with more than 3 ‘keys’ or more than 70% relevant sentences

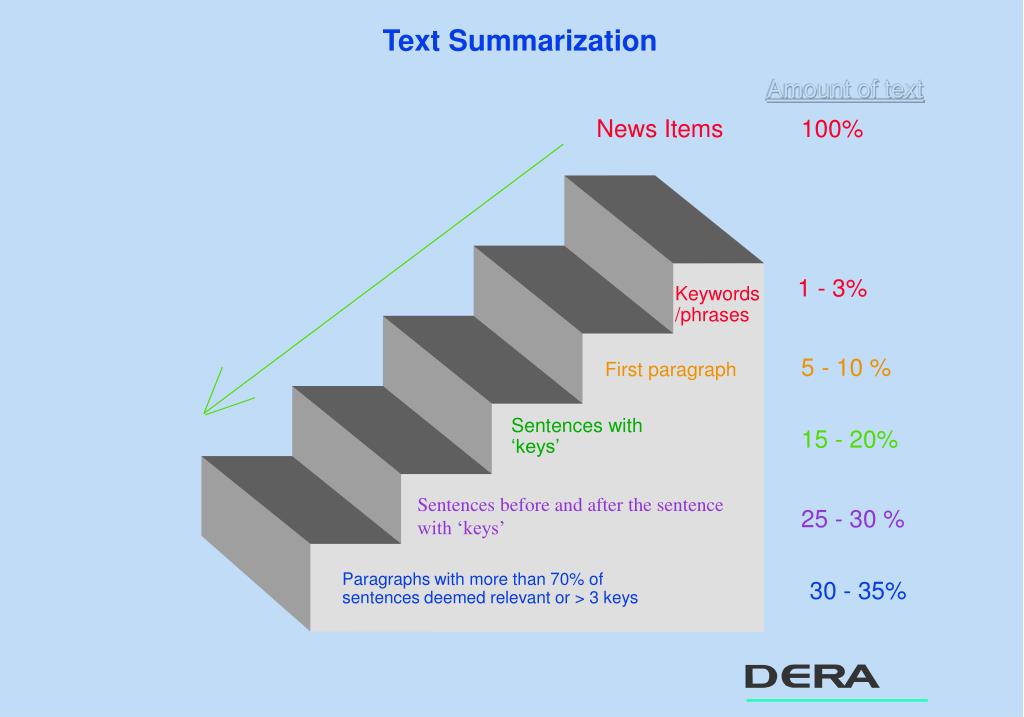

15. Text Summarization Amount of text News Items 100% 1 - 3% Keywords /phrases 5 - 10 % First paragraph Sentences with ‘keys’ 15 - 20% Sentences before and after the sentence with ‘keys’ 25 - 30 % Paragraphs with more than 70% of sentences deemed relevant or > 3 keys 30 - 35%

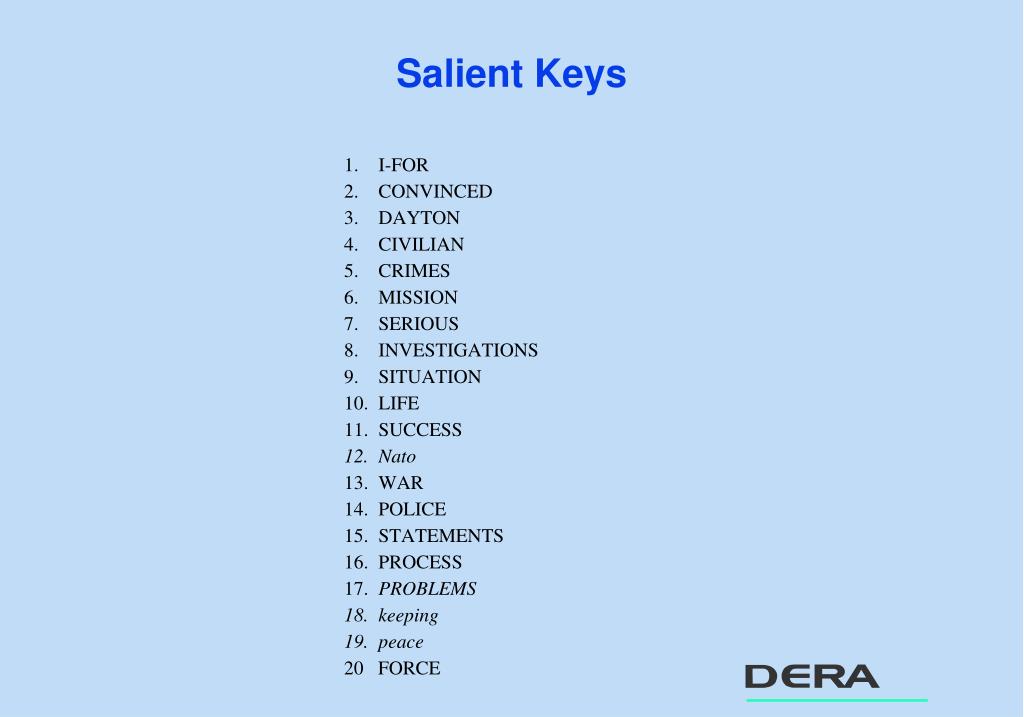

16. Salient Keys

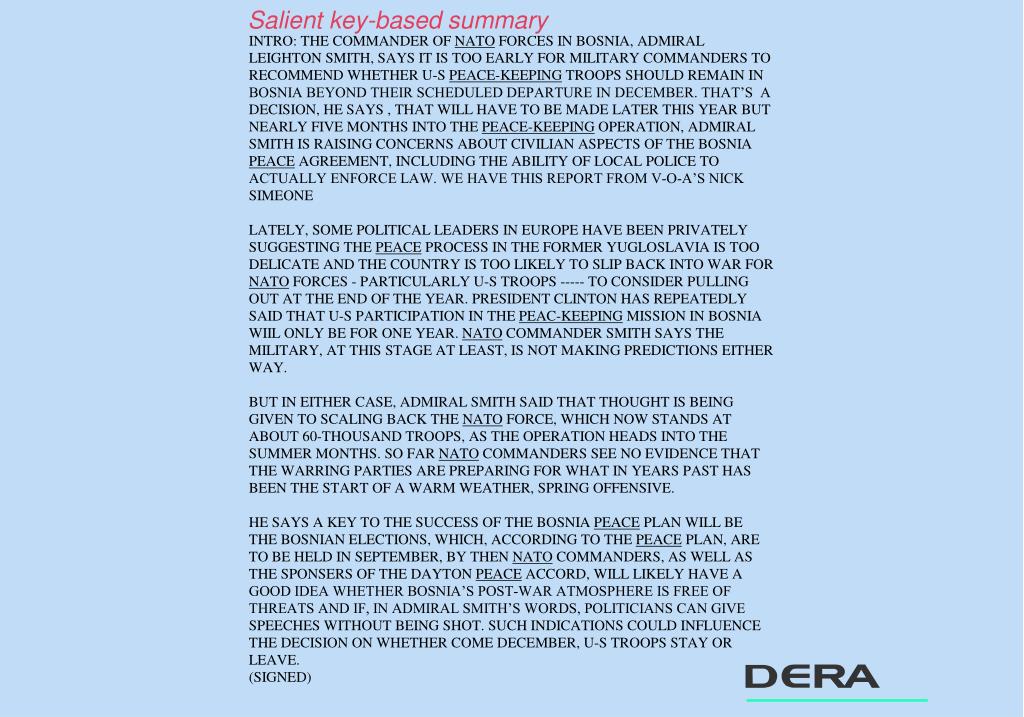

19. Salient key-based summary

21. Information Visualisation • Represent both the structure & content of the retrieved information • Readily comprehensive manners • Facilitate high level tasks • Identification of similar/duplicate information • Identification of topic trends • Identification of anomalies • Provides access to different levels of summary

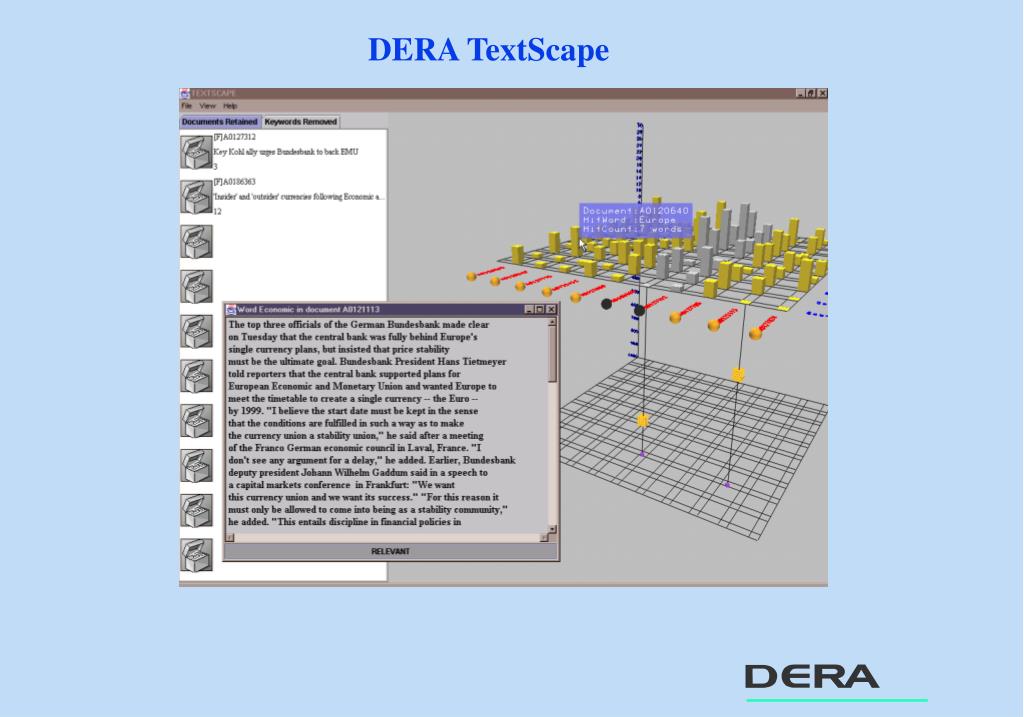

22. DERA TextScape

23. DERA TextScape

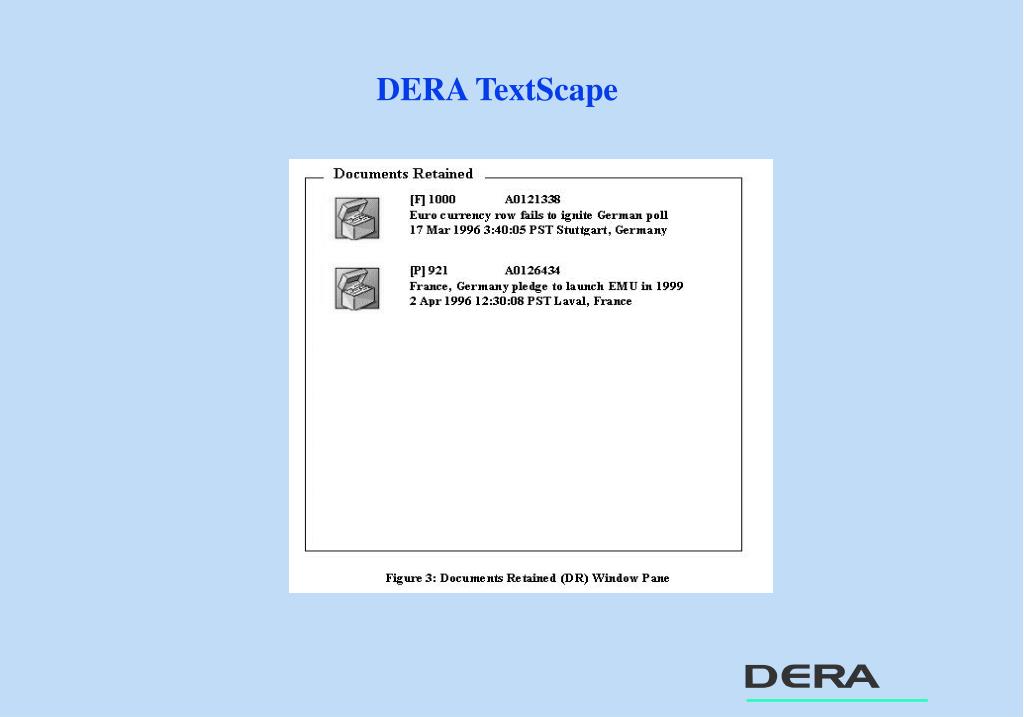

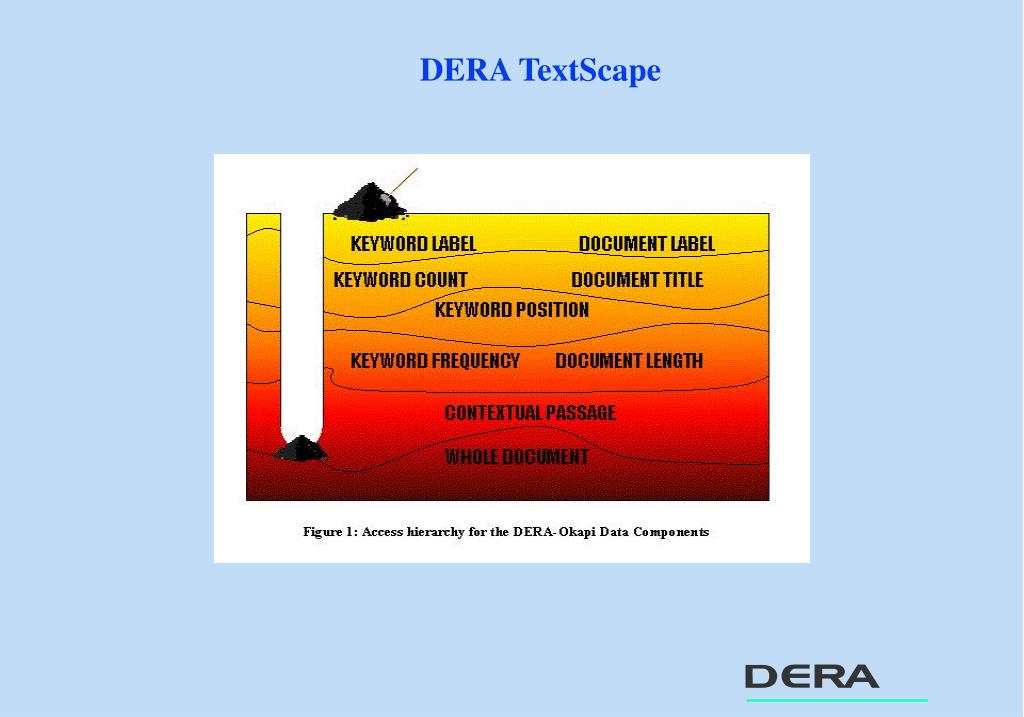

24. DERA TextScape

25. DERA TextScape

26. DERA TextScape

27. DERA TextScape

28. Evaluation Issues Retrieval effectiveness: • Dynamic data sources • User’s oriented/task oriented • Key word saliency Summarisation • Summaries first • Followed by full report Visualisation • Effective in showing the • Identification of similar/duplicate information • Identification of topic trends • Identification of anomalies • Inter-relationship? Temporal ?

29. Event Stream Analysis • Analysis of large datasets generated during intensive man/machine interaction • The analysis of the large log file generated by these interaction is assisted by DERA’s Plumber • Plumber - a visual programming tool which enables a new visual environment for data processing • Part of a commercial package of DP+MS

30. Plumber

31. Java version
