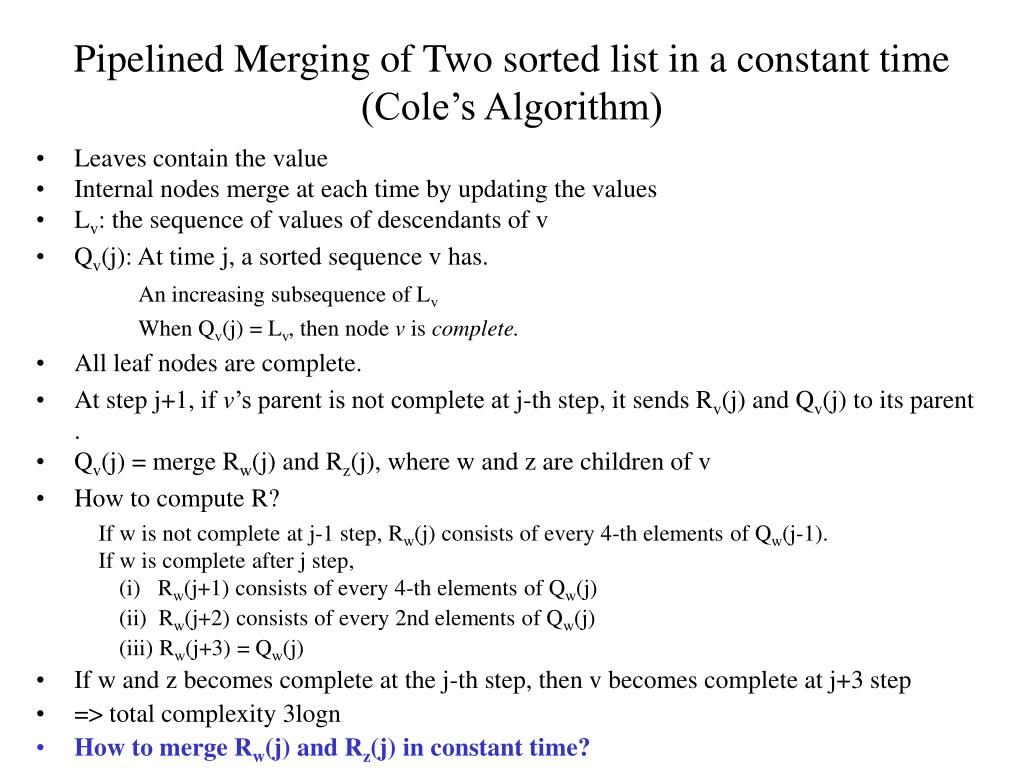

  1. Pipelined Merging of Two sorted list in a constant time(Cole’s Algorithm) • Leaves contain the value • Internal nodes merge at each time by updating the values • Lv: the sequence of values of descendants of v • Qv(j): At time j, a sorted sequence v has. An increasing subsequence of Lv When Qv(j) = Lv, then node v is complete. • All leaf nodes are complete. • At step j+1, if v’s parent is not complete at j-th step, it sends Rv(j) and Qv(j) to its parent. • Qv(j) = merge Rw(j) and Rz(j), where w and z are children of v • How to compute R? If w is not complete at j-1 step, Rw(j) consists of every 4-th elements of Qw(j-1). If w is complete after j step, (i) Rw(j+1) consists of every 4-th elements of Qw(j) (ii) Rw(j+2) consists of every 2nd elements of Qw(j) (iii) Rw(j+3) = Qw(j) • If w and z becomes complete at the j-th step, then v becomes complete at j+3 step • => total complexity 3logn • How to merge Rw(j) and Rz(j) in constant time?

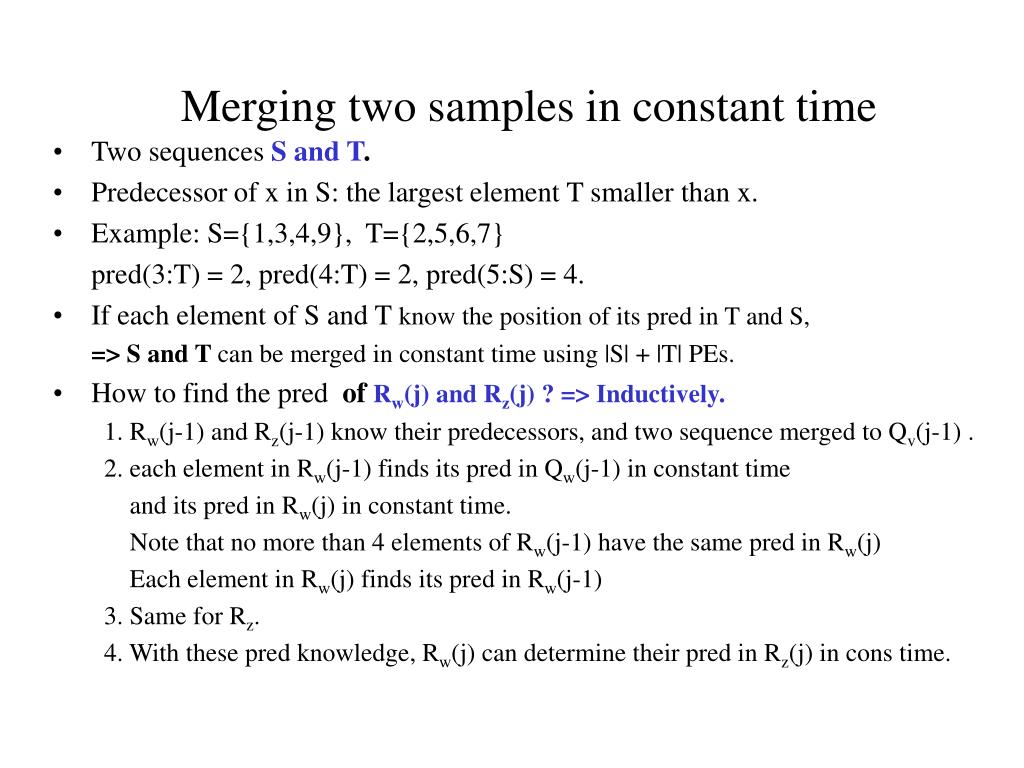

  2. Merging two samples in constant time • Two sequences S and T. • Predecessor of x in S: the largest element T smaller than x. • Example: S={1,3,4,9}, T={2,5,6,7} pred(3:T) = 2, pred(4:T) = 2, pred(5:S) = 4. • If each element of S and T know the position of its pred in T and S, => S and T can be merged in constant time using |S| + |T| PEs. • How to find the pred of Rw(j) and Rz(j) ? => Inductively. 1.Rw(j-1) and Rz(j-1) know their predecessors, and two sequence merged to Qv(j-1) . 2. each element in Rw(j-1) finds its pred in Qw(j-1) in constant time and its pred in Rw(j) in constant time. Note that no more than 4 elements of Rw(j-1) have the same pred in Rw(j) Each element in Rw(j) finds its pred in Rw(j-1) 3. Same for Rz. 4. With these pred knowledge, Rw(j) can determine their pred in Rz(j) in cons time.

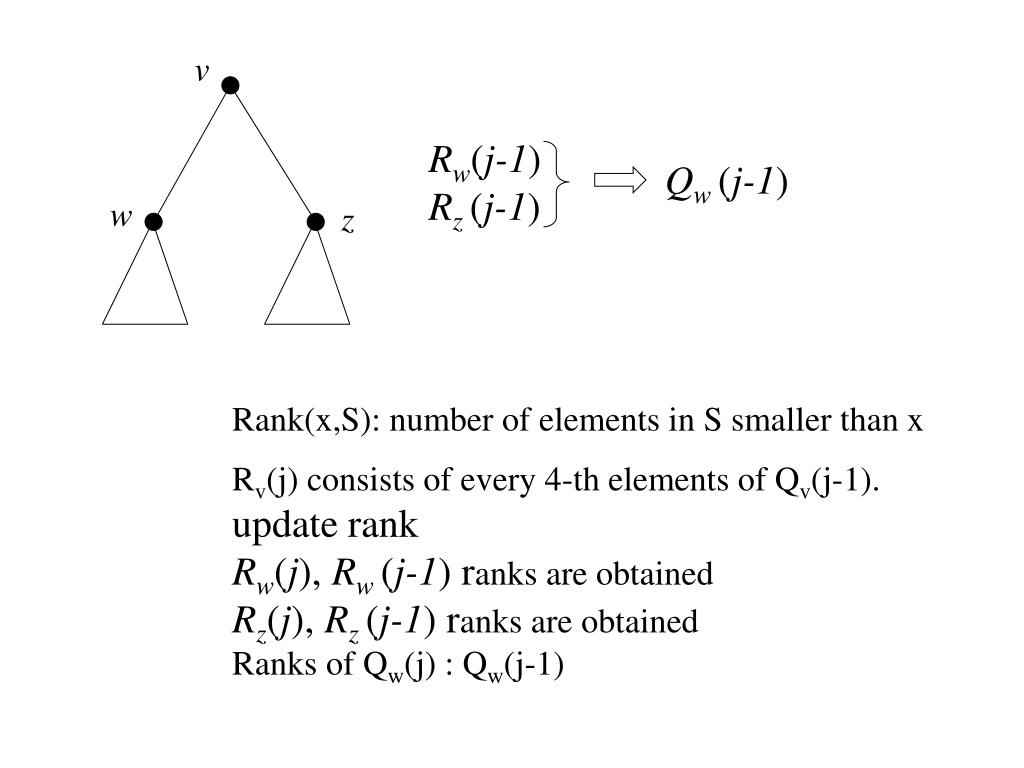

  3. v Rw(j-1) Rz (j-1) Qw (j-1) w z Rank(x,S): number of elements in S smaller than x Rv(j) consists of every 4-th elements of Qv(j-1). update rank Rw(j), Rw (j-1) ranks are obtained Rz(j), Rz (j-1) ranks are obtained Ranks of Qw(j) : Qw(j-1)

  4. A1 A2 Ai A ……. X X1 X2 Xi B ……. B1 B2 Bi X = (x1,...,xs) rank(X:A) = (r1,...,rs) rank(X,B) = (t1,...,ts) How to compute rank(a,B)? Suppose a is in Ai Note that at most 4 elements are in Ai rank(a:B) = ti + rank(a,Bi) But |Bi| <= 4 so rank(a,Bi), and rank(a,B) in constant time

  5. Example of merging using ranks and predecessors A1 A2 A3 A4 -10 -5 -2 0 4 5 10 12 20 22 26 -4 1 2 6 17 18 19 21 24 25 B2 B3 B4 B1 C: 0 6 12 21 C is a sample Suppose that pred(a,C) and pred(b,C) are known for all a in A and b in B How to compute rank(x:AB)? AB is the merged list of A and B pred (4:C) = 0 rank(0,A) = 3 rank (0:B) = 1 rank(4,B) = rank (0:B) + rank(4,B2) = 1+rank (4,B2) = 3 rank (4:AB) = rank(4,A) + rank(4,B) = 4 + 3 = 7

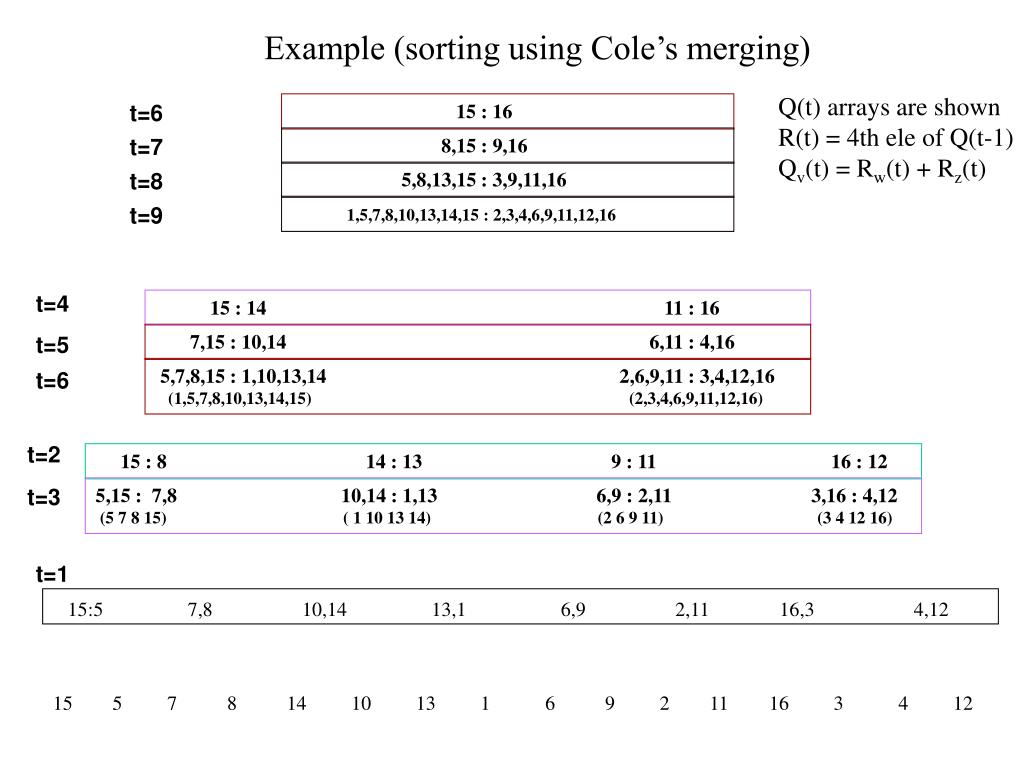

  6. Example (sorting using Cole’s merging) Q(t) arrays are shown R(t) = 4th ele of Q(t-1) Qv(t) = Rw(t) + Rz(t) t=6 15 : 16 t=7 8,15 : 9,16 t=8 5,8,13,15 : 3,9,11,16 t=9 1,5,7,8,10,13,14,15 : 2,3,4,6,9,11,12,16 t=4 15 : 14 11 : 16 7,15 : 10,14 6,11 : 4,16 t=5 5,7,8,15 : 1,10,13,14 2,6,9,11 : 3,4,12,16 (1,5,7,8,10,13,14,15) (2,3,4,6,9,11,12,16) t=6 t=2 15 : 8 14 : 13 9 : 11 16 : 12 t=3 5,15 : 7,8 10,14 : 1,13 6,9 : 2,11 3,16 : 4,12 (5 7 8 15) ( 1 10 13 14) (2 6 9 11) (3 4 12 16) t=1 15:5 7,8 10,14 13,1 6,9 2,11 16,3 4,12 15 5 7 8 14 10 13 1 6 9 2 11 16 3 4 12

  7. Complexity • Number of steps: O(logn) • At each step: • For each data not in the lowest level i, there are 4 data at level i+1 • n + n/4 + n/16 + ... = O(n) => Only O(n) data are involved • O(n) processors are involved

  8. Reconstructing Tree • Given Inorder and preorder, how to reconstruct • the tree (find the parent)?

  9. 6 F 4 D H 8 B E G J 10 7 5 2 A C I K 11 9 3 1 Inorder A B C D E F G H I J K 1 2 3 4 5 6 7 8 9 10 11 Inorder Preorder sequence (IP sequence) Preorder F D B A C E H G J I K IP 6 4 2 1 3 5 8 7 10 9 11 lm: index of the largest elem (if any) in IP such that lm < m and IP(lm) < IP(m) rm: index of the smallest elem (if any) in IP such that rm < m and IP(rm) > IP(m)

  10. Let IP(x): Inorder number of node x. IP(T) is the smallest node which is larger than IP(L) and the largest one among those smaller than IP(R) T R L lm, rm • If lm > rm then IP(lm) appears after IP(rm) => IP(m) is a right child of IP(lm) else IP(m) is a left child of IP(rm)

  11. Example Inorder A B C D E F G H I J K m 1 2 3 4 5 6 7 8 9 10 11 IP(m) 6 4 2 1 3 5 8 7 10 9 11 F D B A C E H G J I K IP(lm) -- -- -- -- 2 4 6 6 8 8 1 node B D F F H H J lm 3 2 1 1 7 7 9 IP(rm) -- 6 4 2 4 6 - 8 - 10 - node (F) D B D F - H - J - rm 1 2 3 2 1 - 7 - 9 - f(m) = m, y(m) = IP(m) * defined: i*j = i provided IP(i) > IP(j) = j otherwise D(m) gives lm Operation *: max f(m) = y(m) = IP(m) D(m) gives IP(lm) Operation *: min f(m) = IP(m), y(m) = -IP(m) D(m) gives IP(rm)
