  1. SESSION CODE: VIR321 Effectively Debugging Complex Application Sequencings Karan Dhillon Senior Test Lead Microsoft Corporation

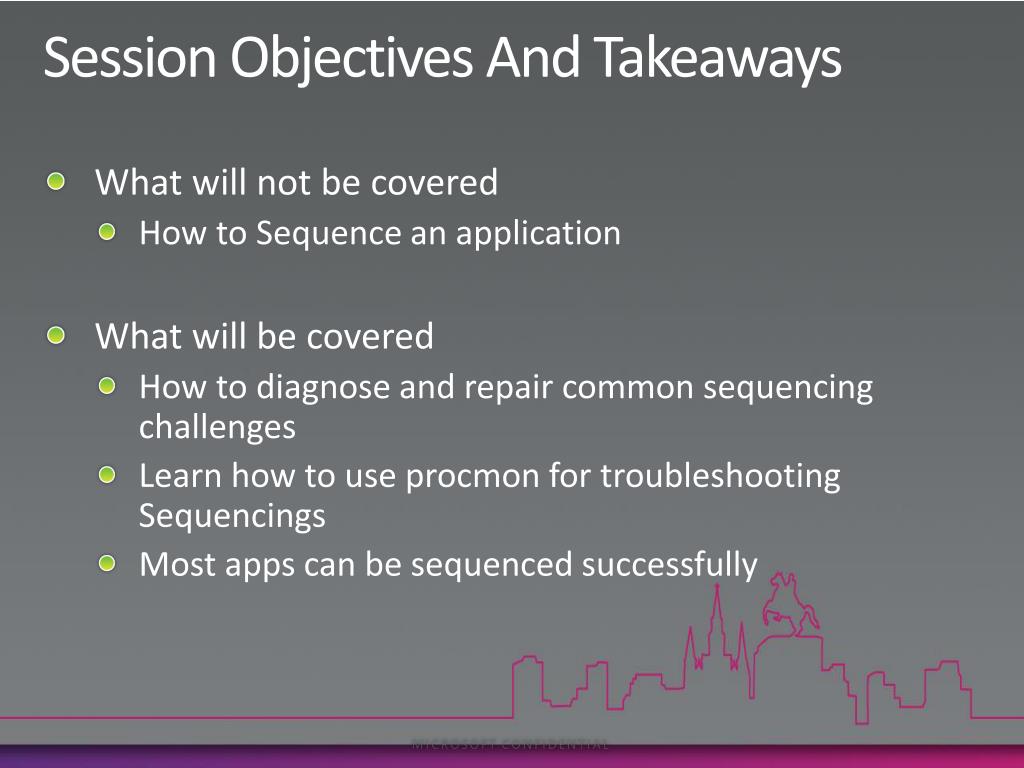

  2. Session Objectives And Takeaways • What will not be covered • How to Sequence an application • What will be covered • How to diagnose and repair common sequencing challenges • Learn how to use procmon for troubleshooting Sequencings • Most apps can be sequenced successfully

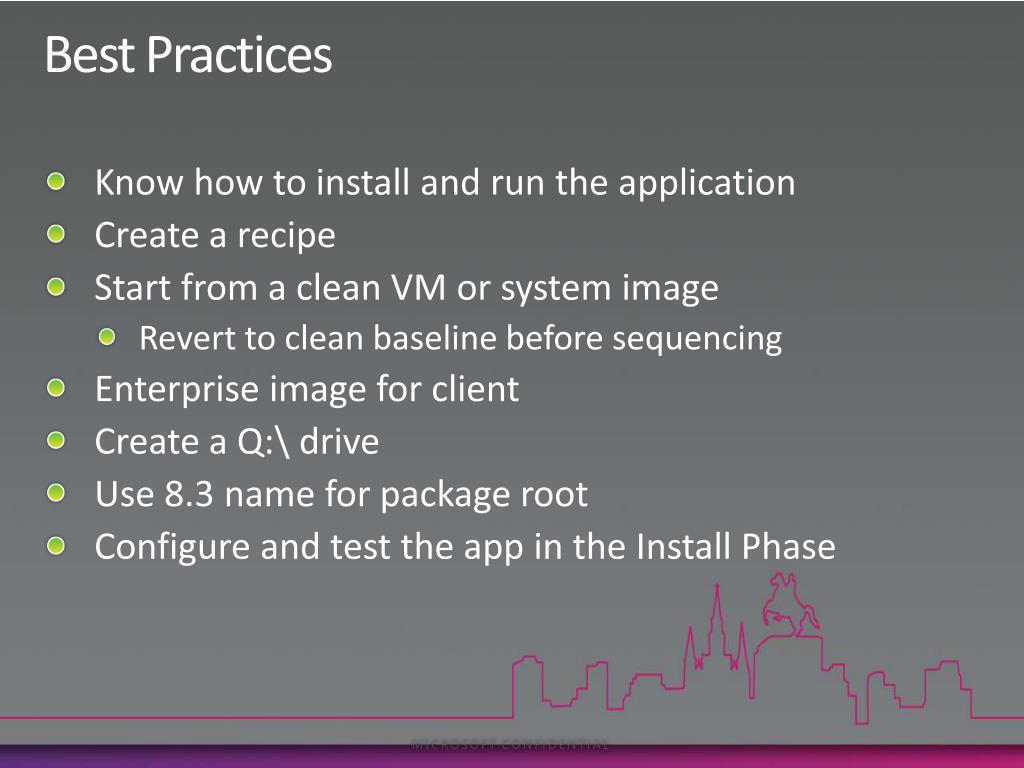

  3. Best Practices • Know how to install and run the application • Create a recipe • Start from a clean VM or system image • Revert to clean baseline before sequencing • Enterprise image for client • Create a Q:\ drive • Use 8.3 name for package root • Configure and test the app in the Install Phase

  4. Best Practices • Reserve free space (3x Application size) • Adding memory can also help improve sequencing times • Disable Virus Scanners, Defender, Indexing, Microsoft Update during sequencing • Create a dummy ODBC entry • Create a dummy printer entry

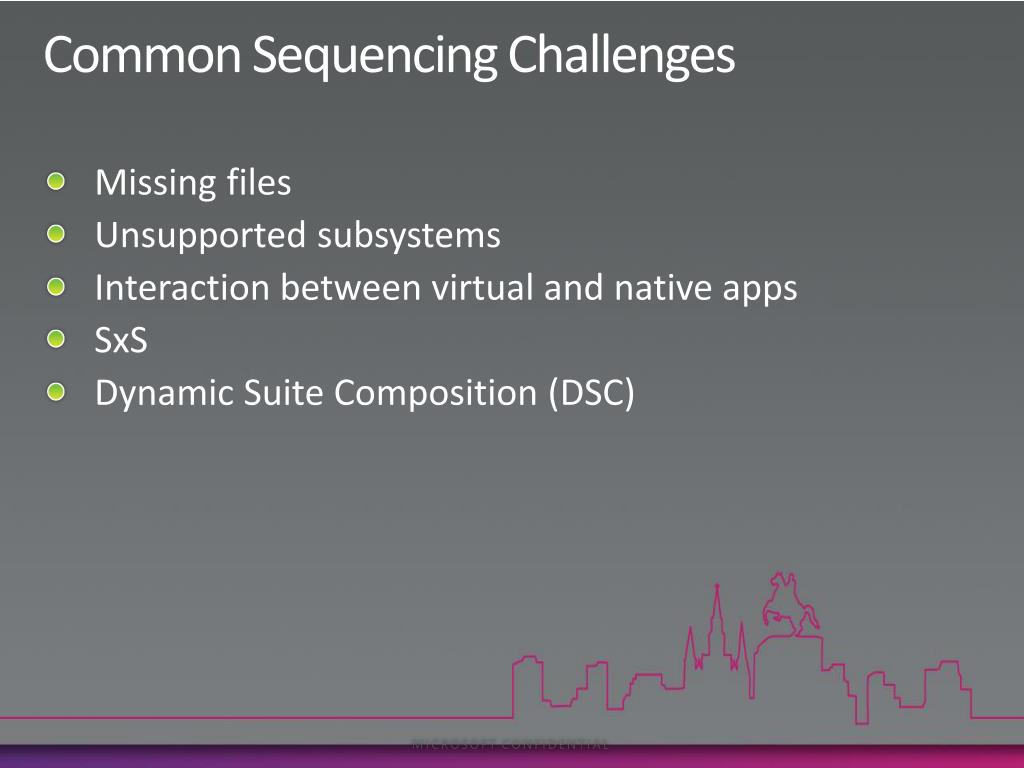

  5. Common Sequencing Challenges • Missing files • Unsupported subsystems • Interaction between virtual and native apps • SxS • Dynamic Suite Composition (DSC)

  6. Process Monitor Learning The Tool

  7. Process Monitor • What is it? • An advanced monitoring tool for Windows • File system • Registry • Network • Process and thread • Where do I get it? • Windows Sysinternals on Microsoft TechNet • Bing “procmon” • Learn more at Mark Russinovich’stechnet blog

  8. Operating System Virtual Environment Architecture

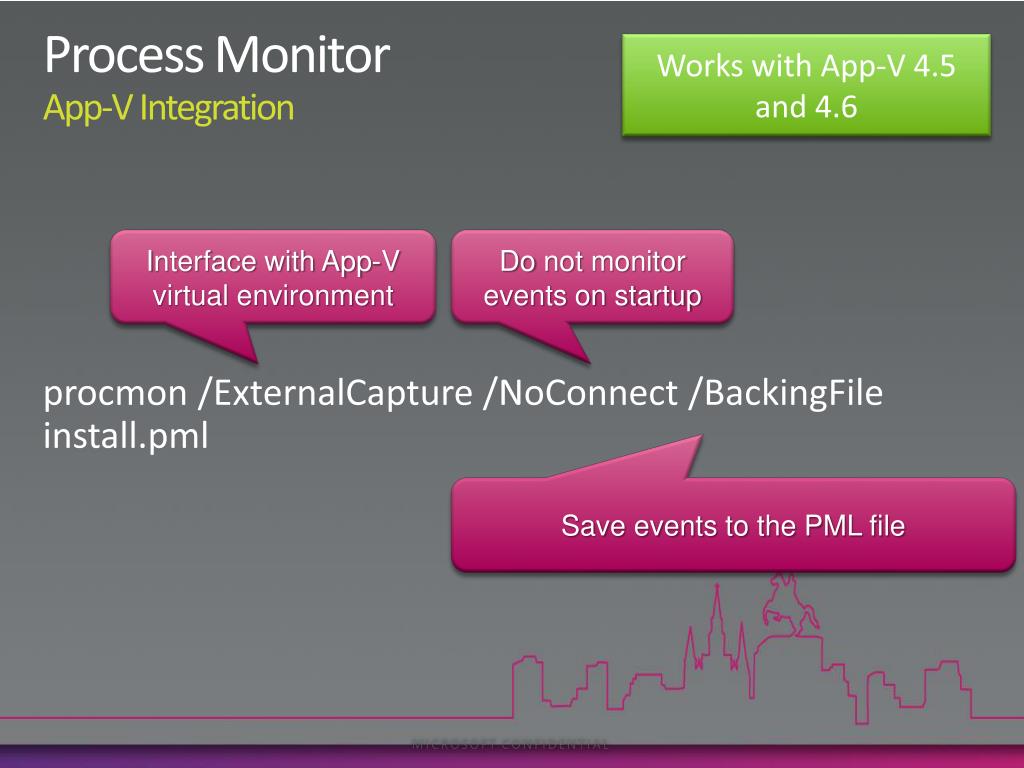

  9. Process MonitorApp-V Integration Works with App-V 4.5 and 4.6 procmon /ExternalCapture/NoConnect /BackingFileinstall.pml Interface with App-V virtual environment Do not monitor events on startup Save events to the PML file

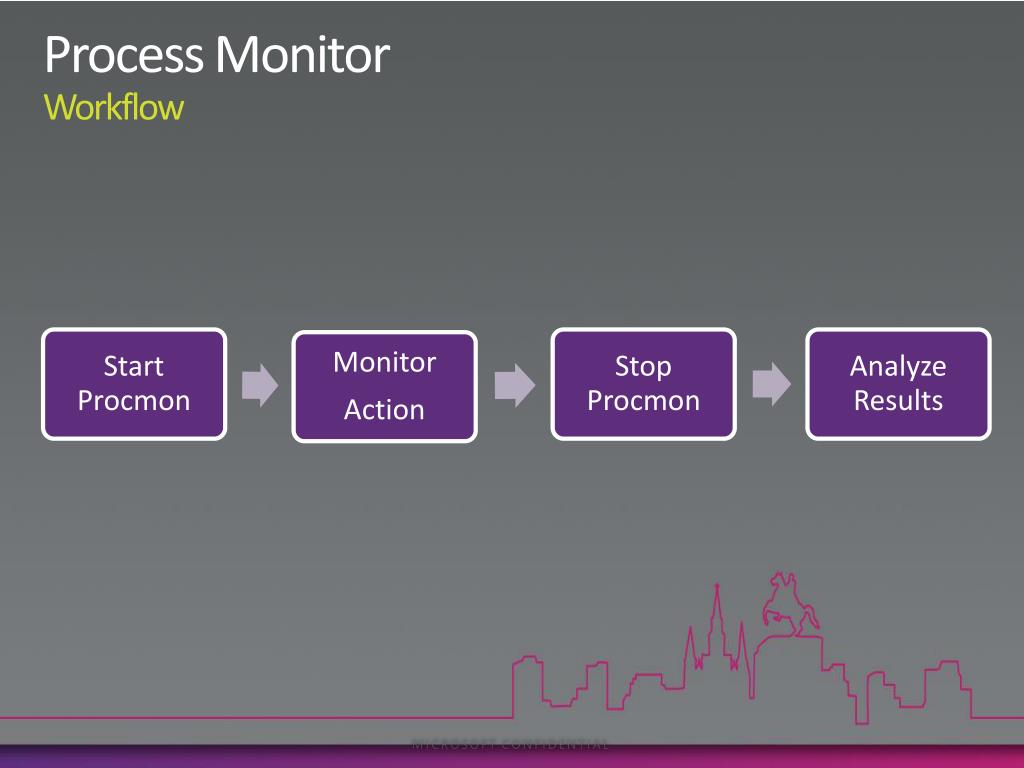

  10. Process MonitorWorkflow

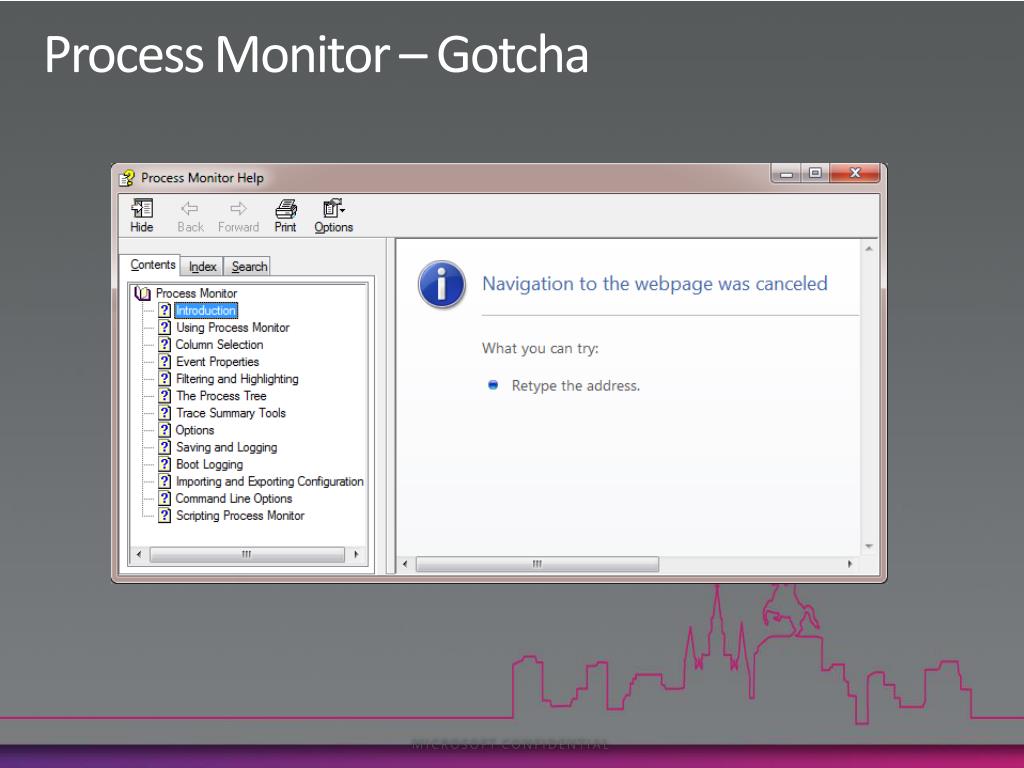

  11. Process Monitor – Gotcha

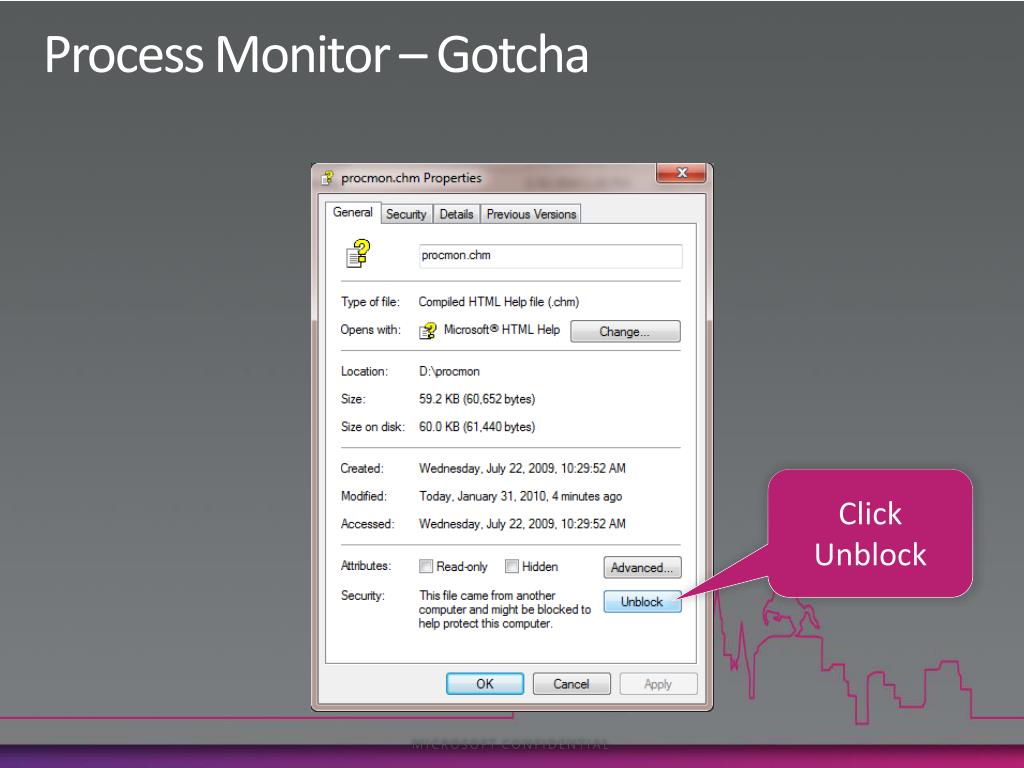

  12. Process Monitor – Gotcha Click Unblock

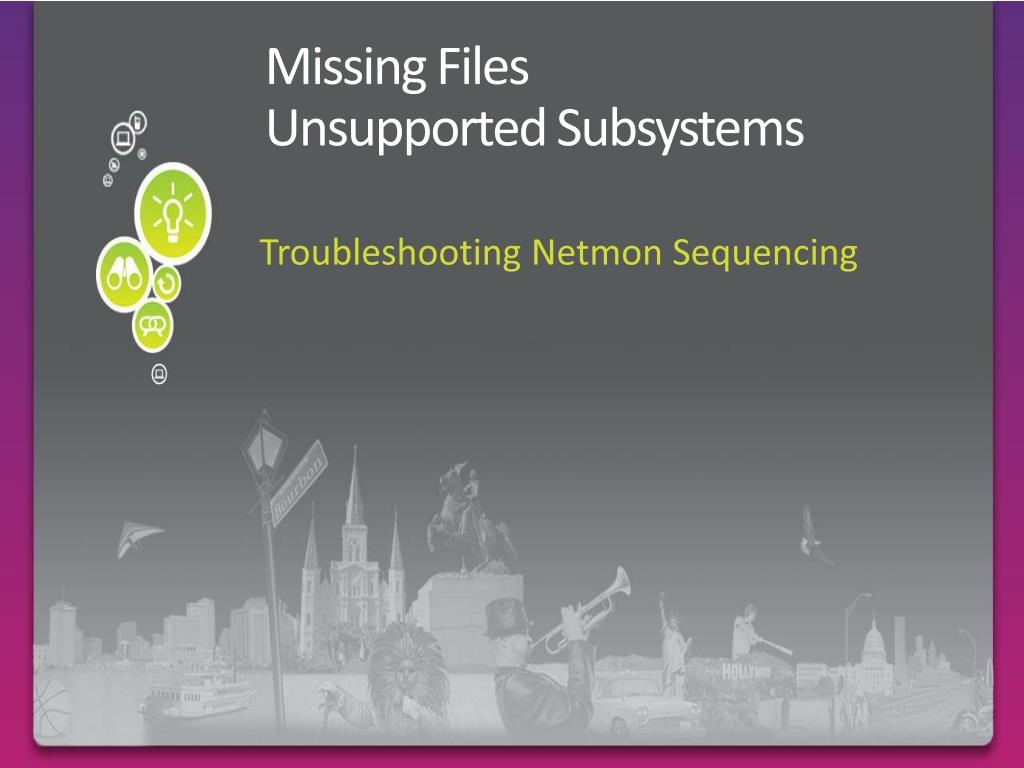

  13. Missing FilesUnsupported Subsystems Troubleshooting Netmon Sequencing

  14. Sequencing Netmon Karan DhillonTest LeadMicrosoft DEMO

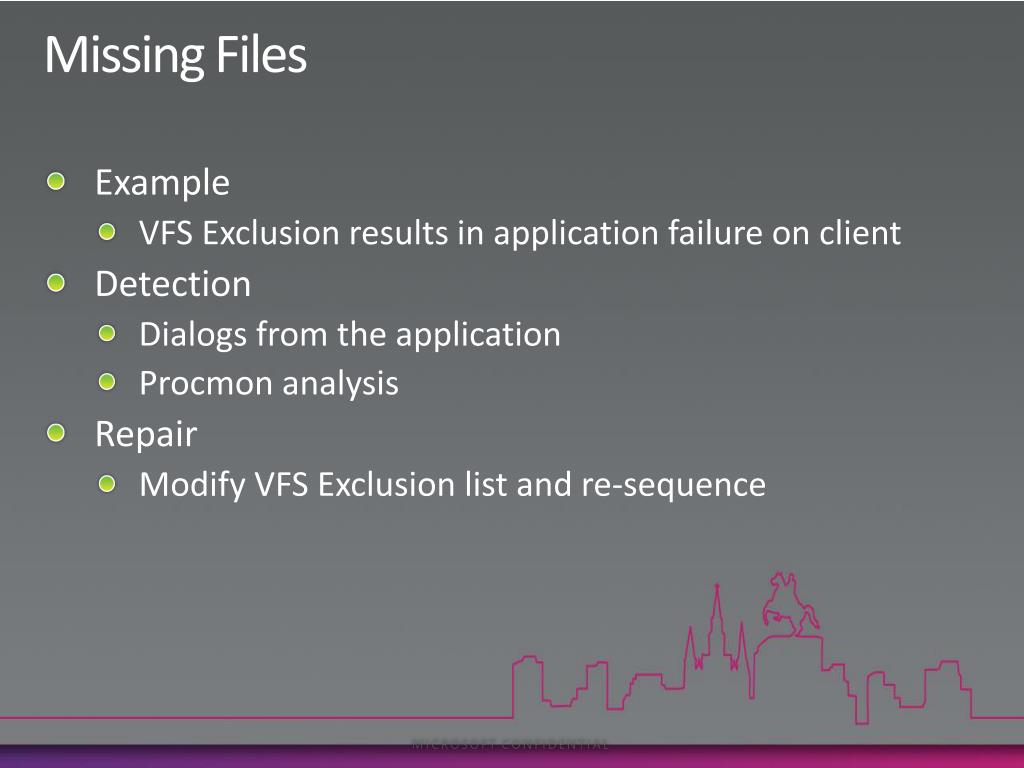

  15. Missing Files • Example • VFS Exclusion results in application failure on client • Detection • Dialogs from the application • Procmon analysis • Repair • Modify VFS Exclusion list and re-sequence

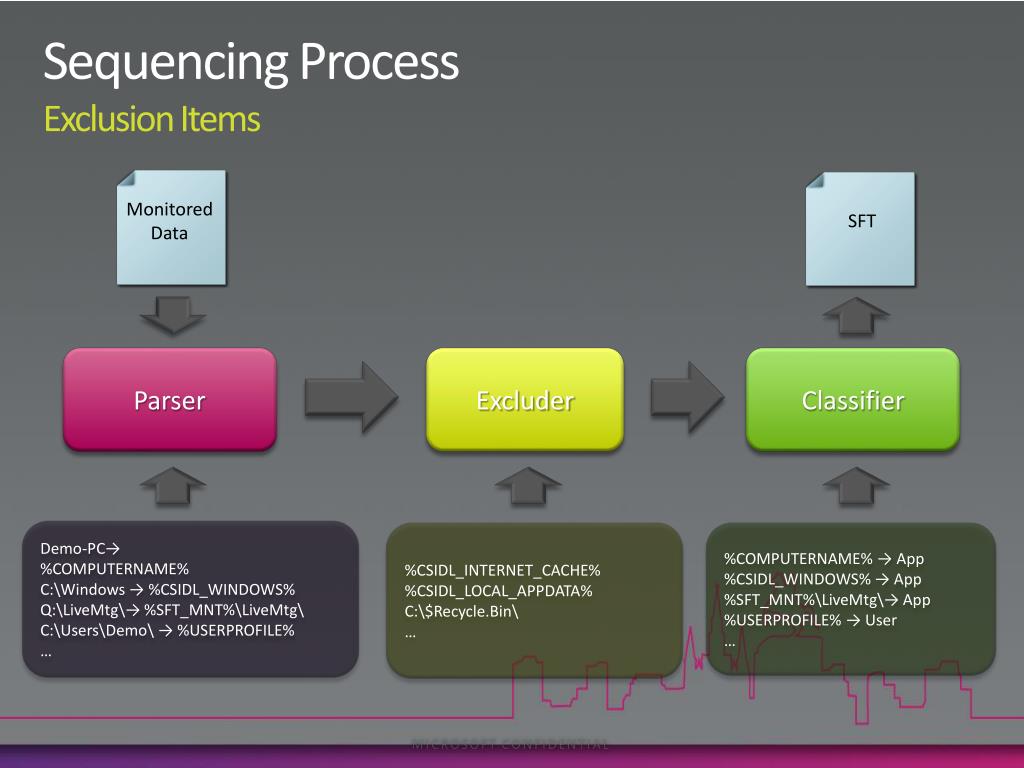

  16. Sequencing ProcessExclusion Items Monitored Data SFT Parser Excluder Classifier Demo-PC→ %COMPUTERNAME% C:\Windows → %CSIDL_WINDOWS% Q:\LiveMtg\→ %SFT_MNT%\LiveMtg\ C:\Users\Demo\ → %USERPROFILE% … %CSIDL_INTERNET_CACHE% %CSIDL_LOCAL_APPDATA% C:\$Recycle.Bin\ … %COMPUTERNAME% → App %CSIDL_WINDOWS% → App %SFT_MNT%\LiveMtg\→ App %USERPROFILE% → User …

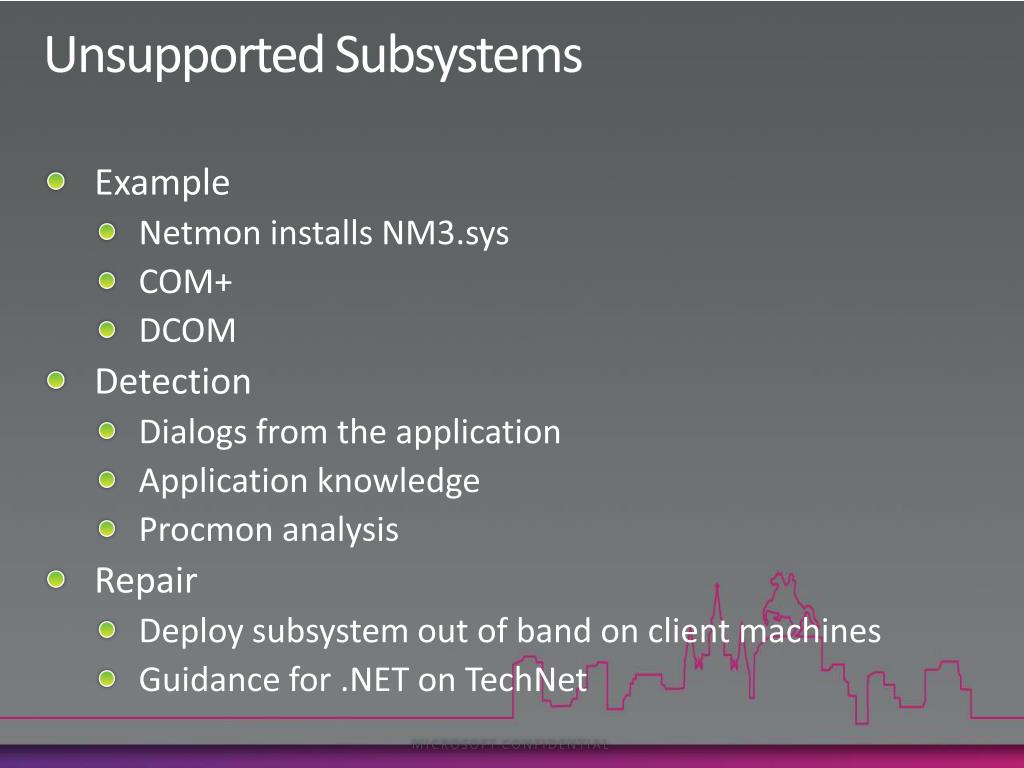

  17. Unsupported Subsystems • Example • Netmon installs NM3.sys • COM+ • DCOM • Detection • Dialogs from the application • Application knowledge • Procmon analysis • Repair • Deploy subsystem out of band on client machines • Guidance for .NET on TechNet

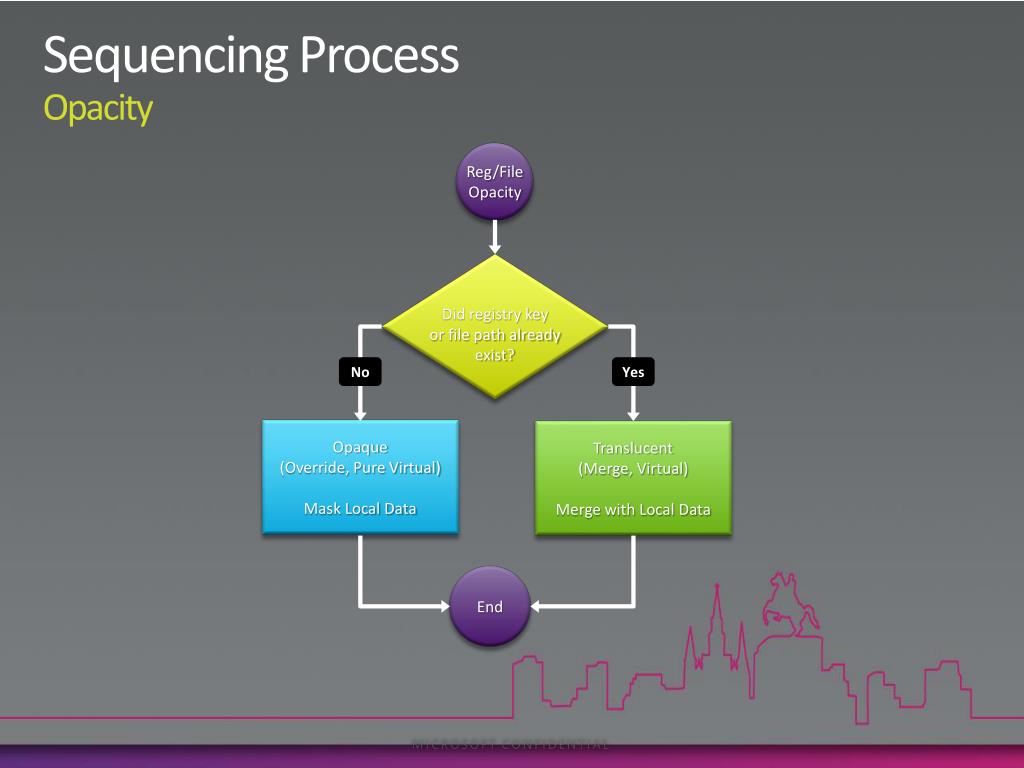

  18. Sequencing ProcessOpacity Reg/File Opacity Did registry key or file path already exist? No Yes Opaque (Override, Pure Virtual) Mask Local Data Translucent (Merge, Virtual) Merge with Local Data End

  19. Interaction Between Virtual and Native Apps Troubleshooting PuTTY Web Site Shortcut

  20. Troubleshooting PuTTY Karan DhillonTest LeadMicrosoft DEMO

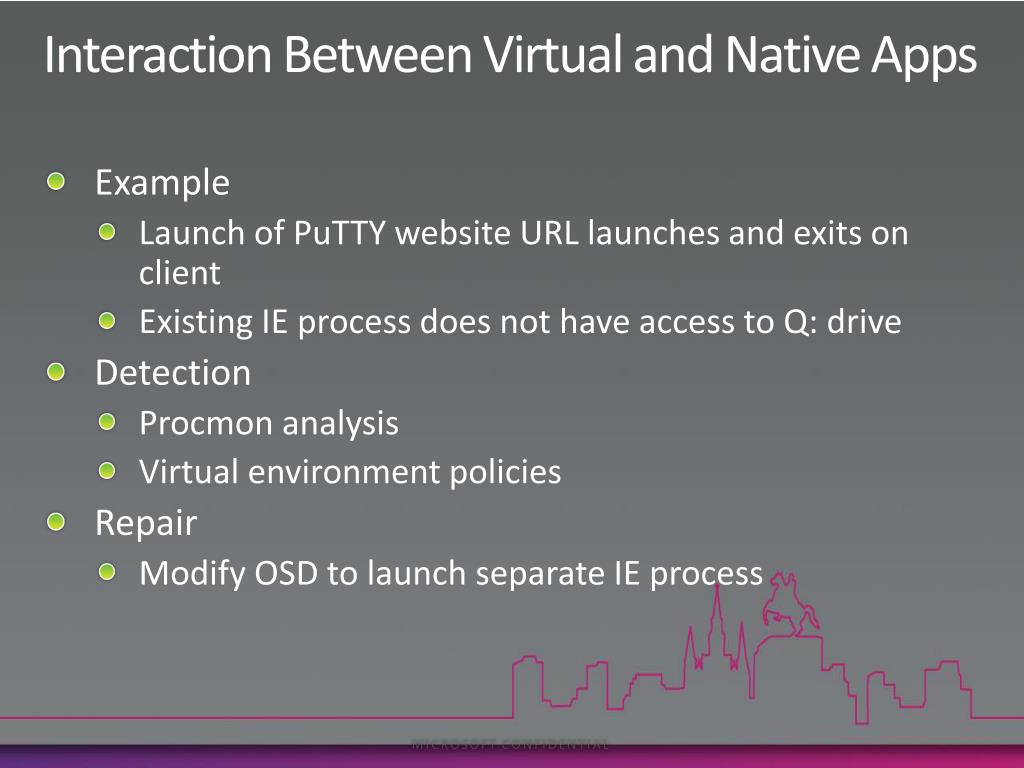

  21. Interaction Between Virtual and Native Apps • Example • Launch of PuTTY website URL launches and exits on client • Existing IE process does not have access to Q: drive • Detection • Procmon analysis • Virtual environment policies • Repair • Modify OSD to launch separate IE process

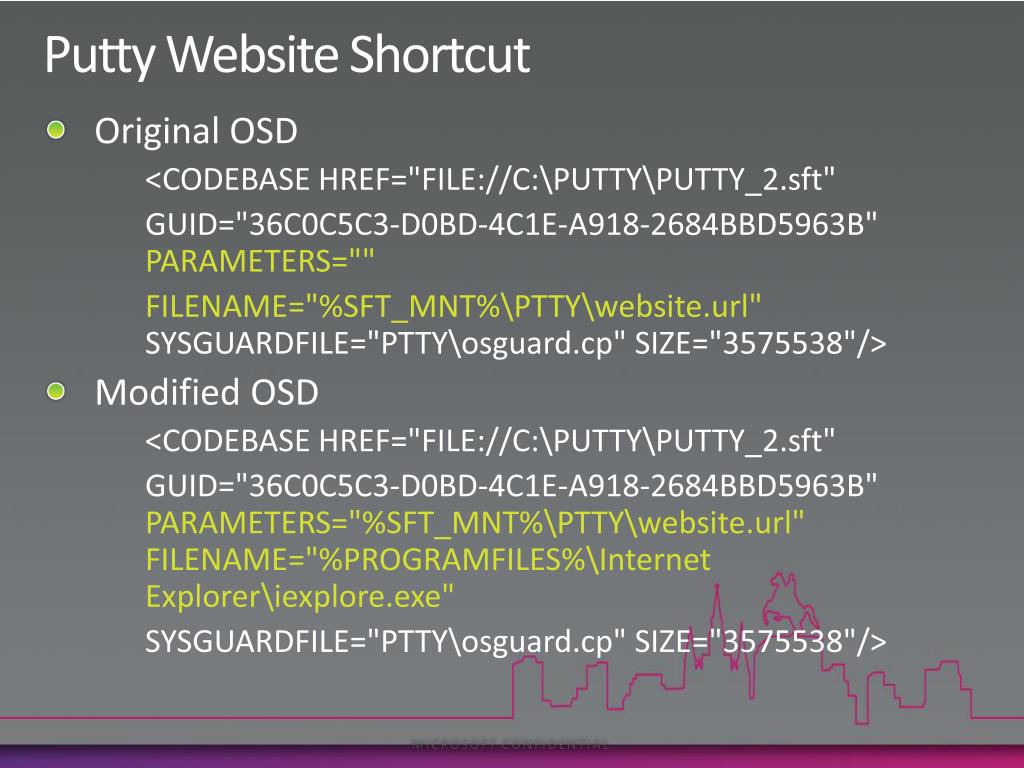

  22. Putty Website Shortcut • Original OSD <CODEBASE HREF="FILE://C:\PUTTY\PUTTY_2.sft" GUID="36C0C5C3-D0BD-4C1E-A918-2684BBD5963B" PARAMETERS="" FILENAME="%SFT_MNT%\PTTY\website.url" SYSGUARDFILE="PTTY\osguard.cp" SIZE="3575538"/> • Modified OSD <CODEBASE HREF="FILE://C:\PUTTY\PUTTY_2.sft" GUID="36C0C5C3-D0BD-4C1E-A918-2684BBD5963B" PARAMETERS="%SFT_MNT%\PTTY\website.url" FILENAME="%PROGRAMFILES%\Internet Explorer\iexplore.exe" SYSGUARDFILE="PTTY\osguard.cp" SIZE="3575538"/>

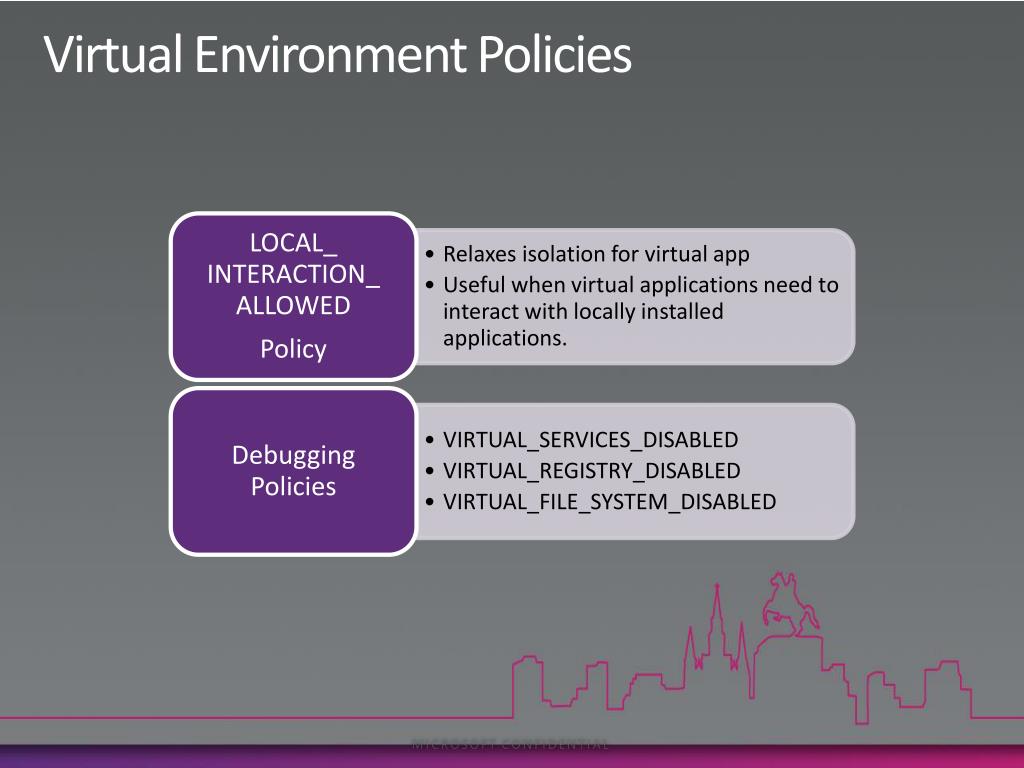

  23. Virtual Environment Policies

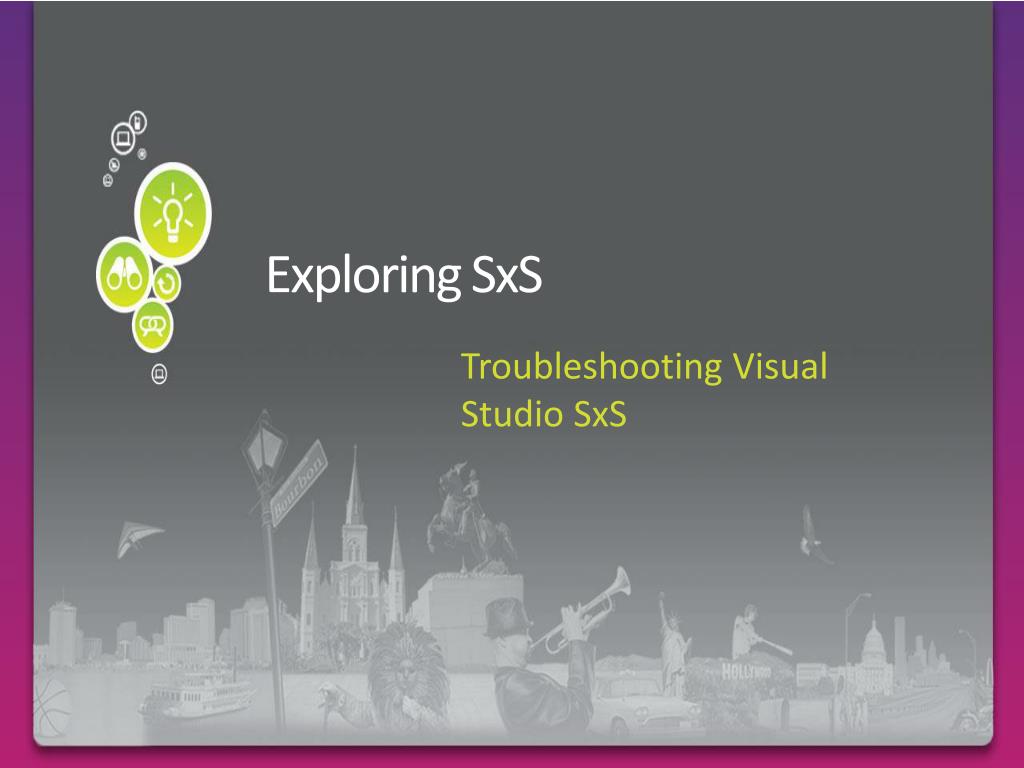

  24. Exploring SxS Troubleshooting Visual Studio SxS

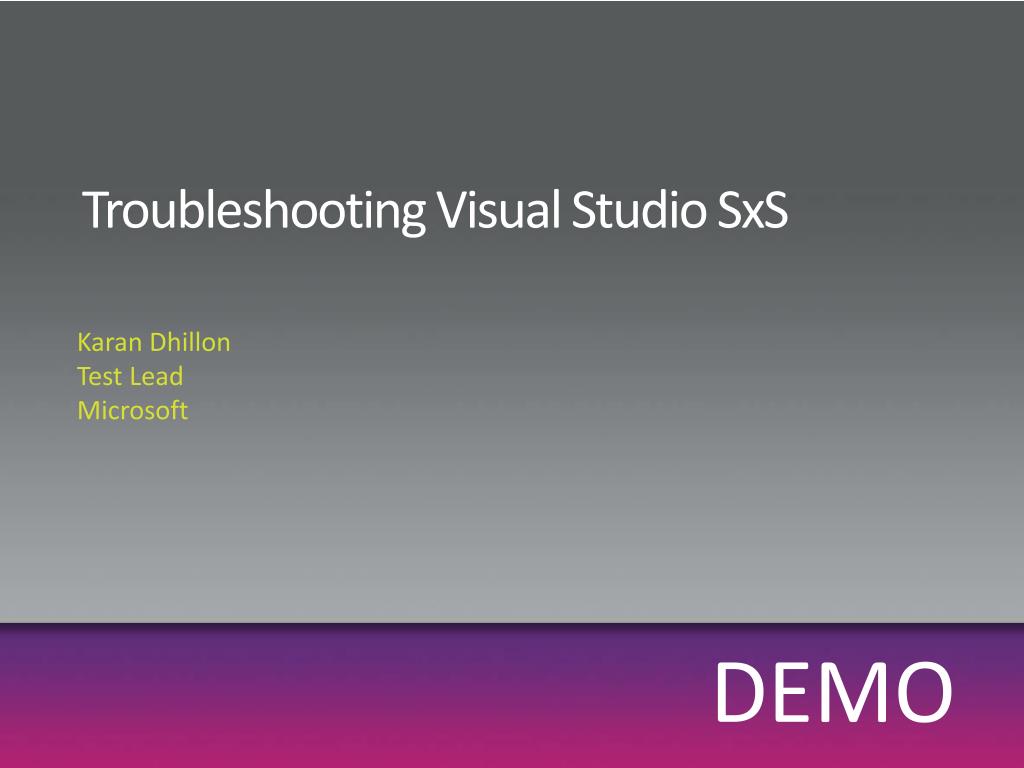

  25. Troubleshooting Visual Studio SxS Karan DhillonTest LeadMicrosoft DEMO

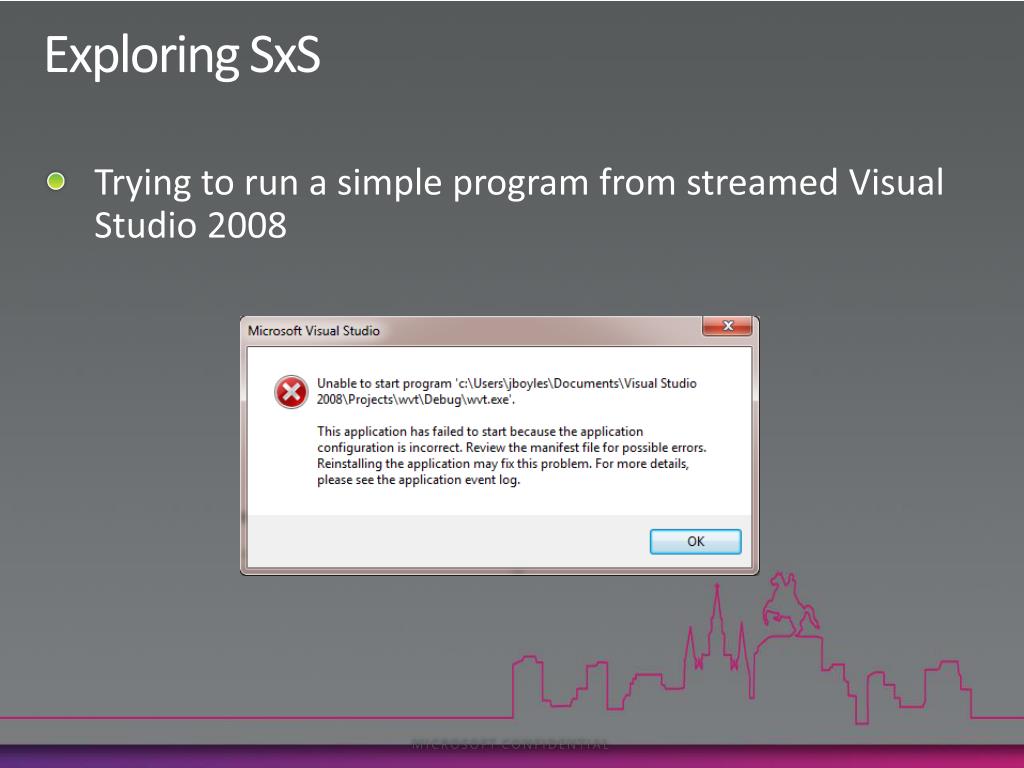

  26. Exploring SxS • Trying to run a simple program from streamed Visual Studio 2008

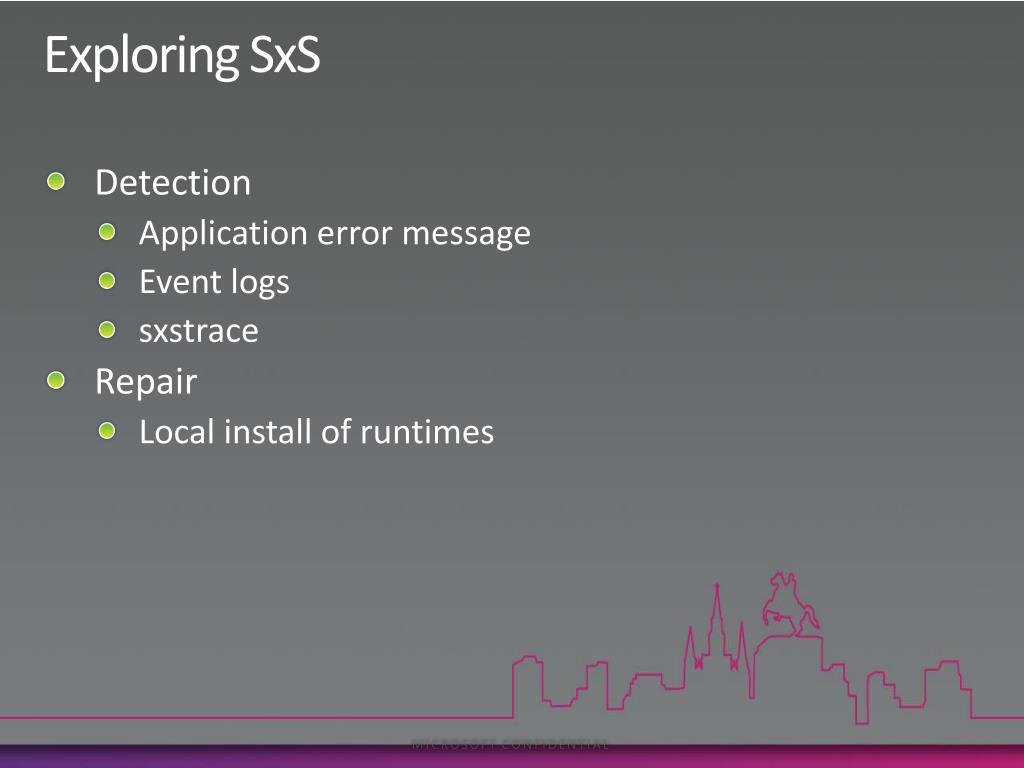

  27. Exploring SxS • Detection • Application error message • Event logs • sxstrace • Repair • Local install of runtimes

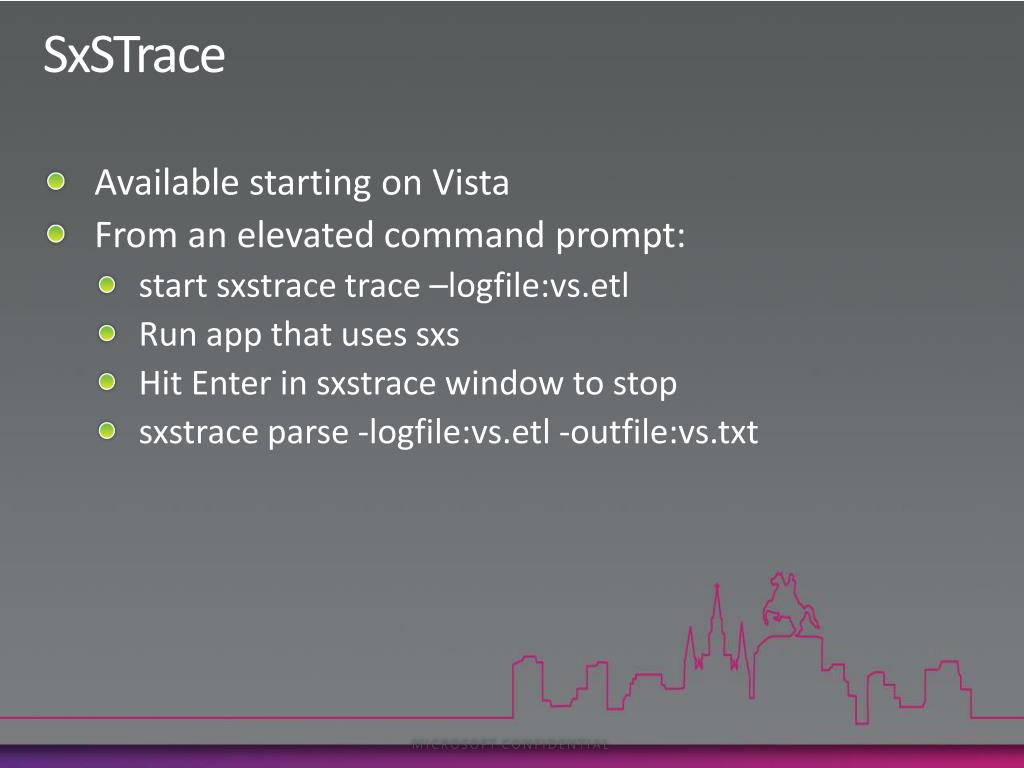

  28. SxSTrace • Available starting on Vista • From an elevated command prompt: • start sxstrace trace –logfile:vs.etl • Run app that uses sxs • Hit Enter in sxstrace window to stop • sxstraceparse -logfile:vs.etl-outfile:vs.txt

  29. SxSTrace Results • Need to install VC library locally INFO: Resolving reference Microsoft.VC90.DebugCRT,processorArchitecture="x86",publicKeyToken="1fc8b3b9a1e18e3b",type="win32",version="9.0.21022.8". … INFO: Resolving reference for ProcessorArchitecture WOW64. … ERROR: Cannot resolve reference Microsoft.VC90.DebugCRT,processorArchitecture="x86",publicKeyToken="1fc8b3b9a1e18e3b",type="win32",version="9.0.21022.8". ERROR: Activation Context generation failed.

  30. Dynamic Suite Composition (DSC) Word Fails to Launch

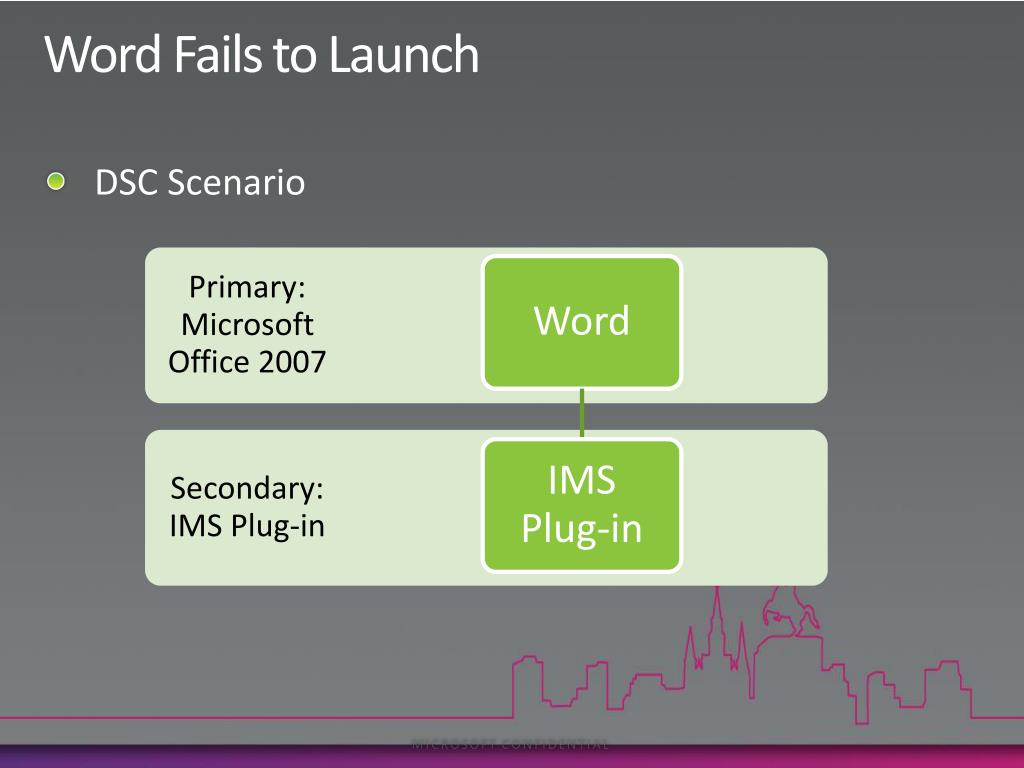

  31. Word Fails to Launch • DSC Scenario

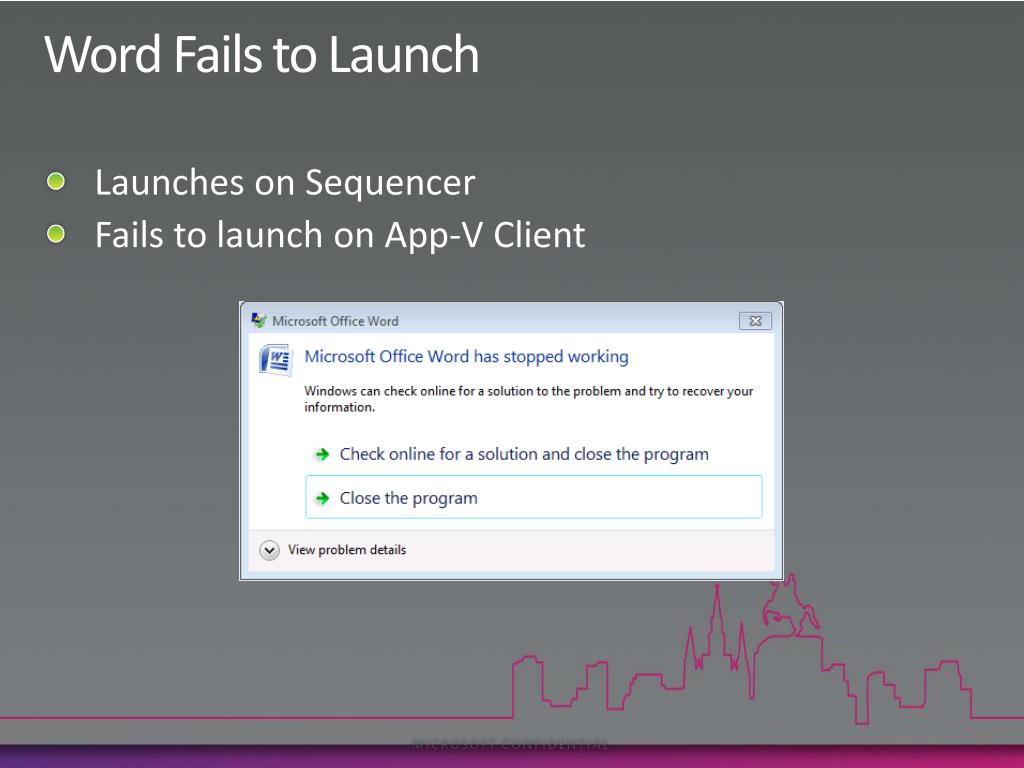

  32. Word Fails to Launch • Launches on Sequencer • Fails to launch on App-V Client

  33. Procmon Analysis

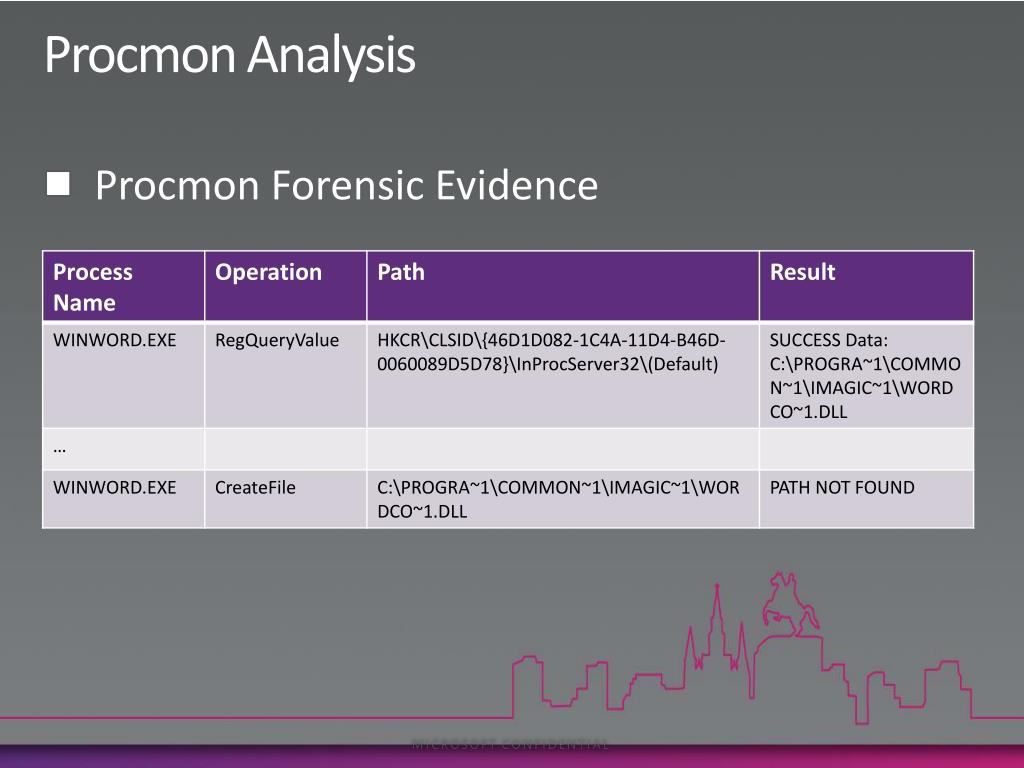

  34. Procmon Analysis • Procmon Forensic Evidence

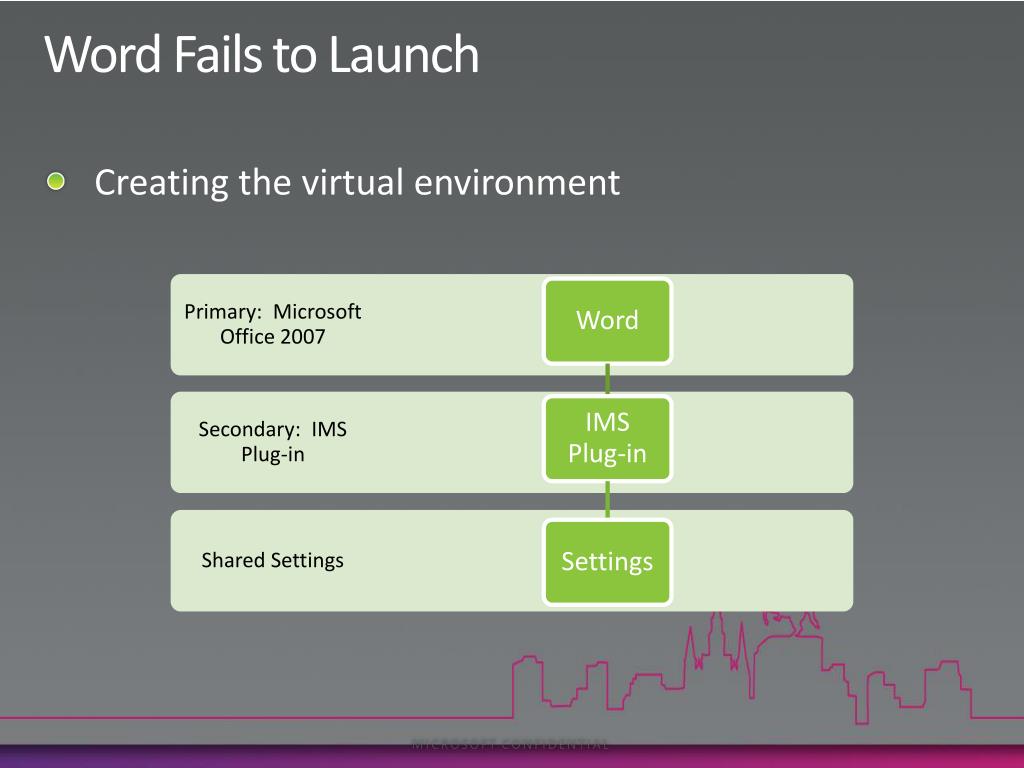

  35. Word Fails to Launch • Creating the virtual environment

  36. Word Fails to Launch • Workaround • Update • HKCR\CLSID\{46D1D082-1C4A-11D4-B46D-0060089D5D78}\InProcServer32\(Default) • With • %CSIDL_PROGRAM_FILES_COMMON%\Imagic Shared\WordControlDeu.dll

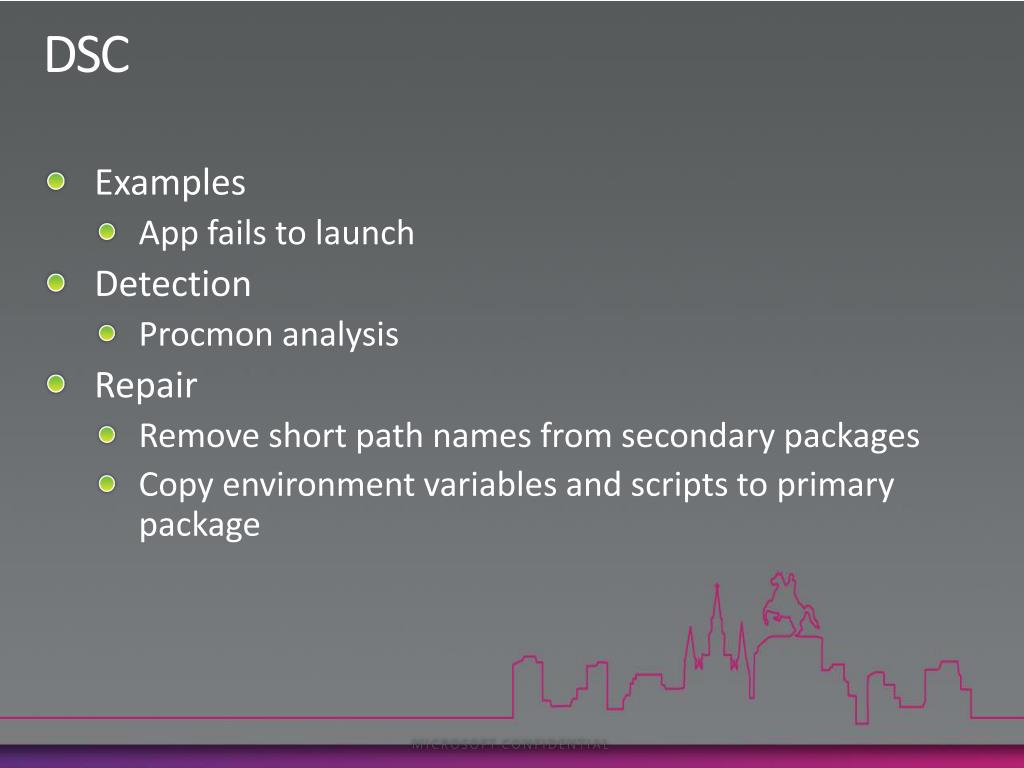

  37. DSC • Examples • App fails to launch • Detection • Procmon analysis • Repair • Remove short path names from secondary packages • Copy environment variables and scripts to primary package

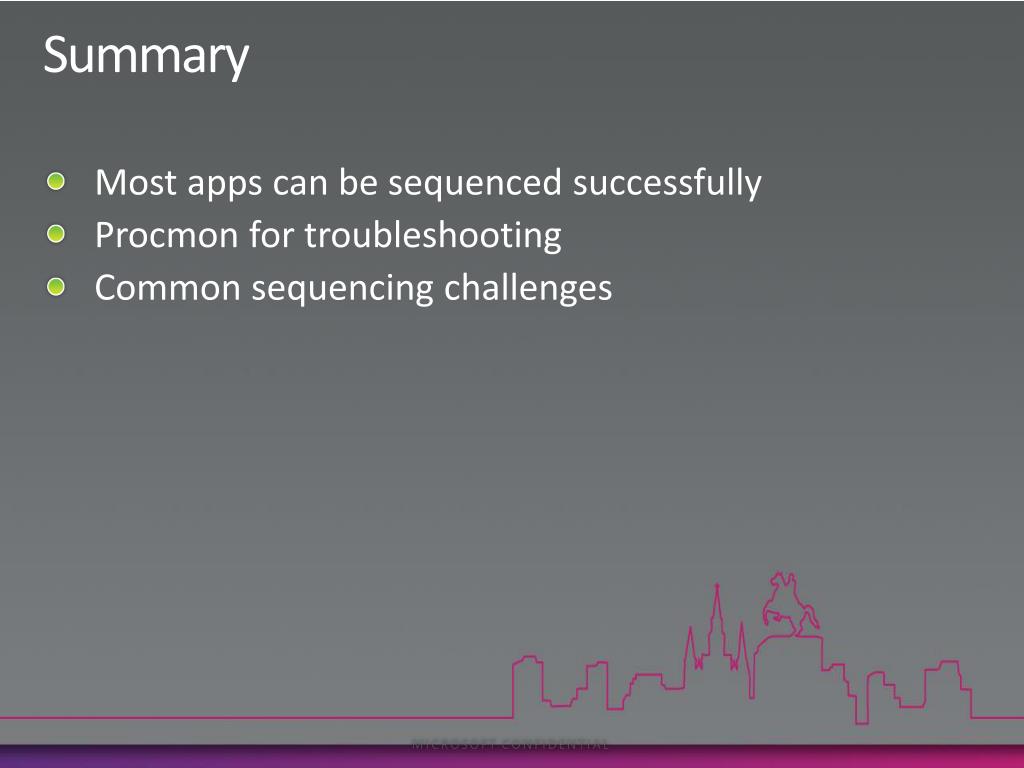

  38. Summary • Most apps can be sequenced successfully • Procmon for troubleshooting • Common sequencing challenges

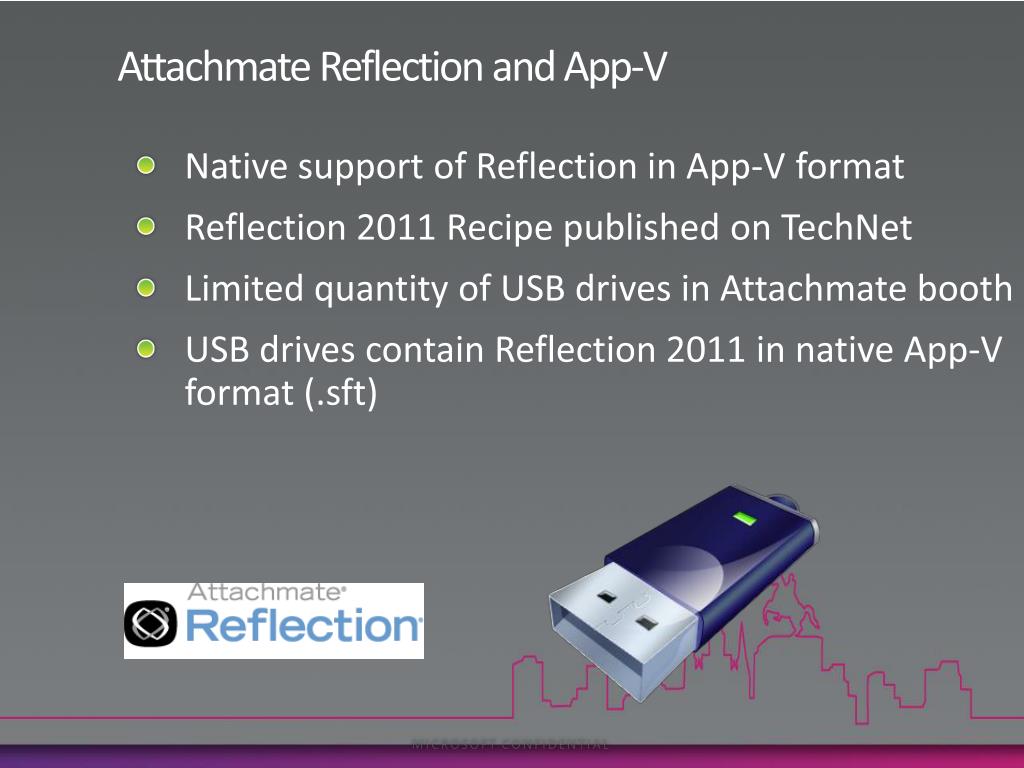

  39. Attachmate Reflection and App-V • Native support of Reflection in App-V format • Reflection 2011 Recipe published on TechNet • Limited quantity of USB drives in Attachmate booth • USB drives contain Reflection 2011 in native App-V format (.sft)

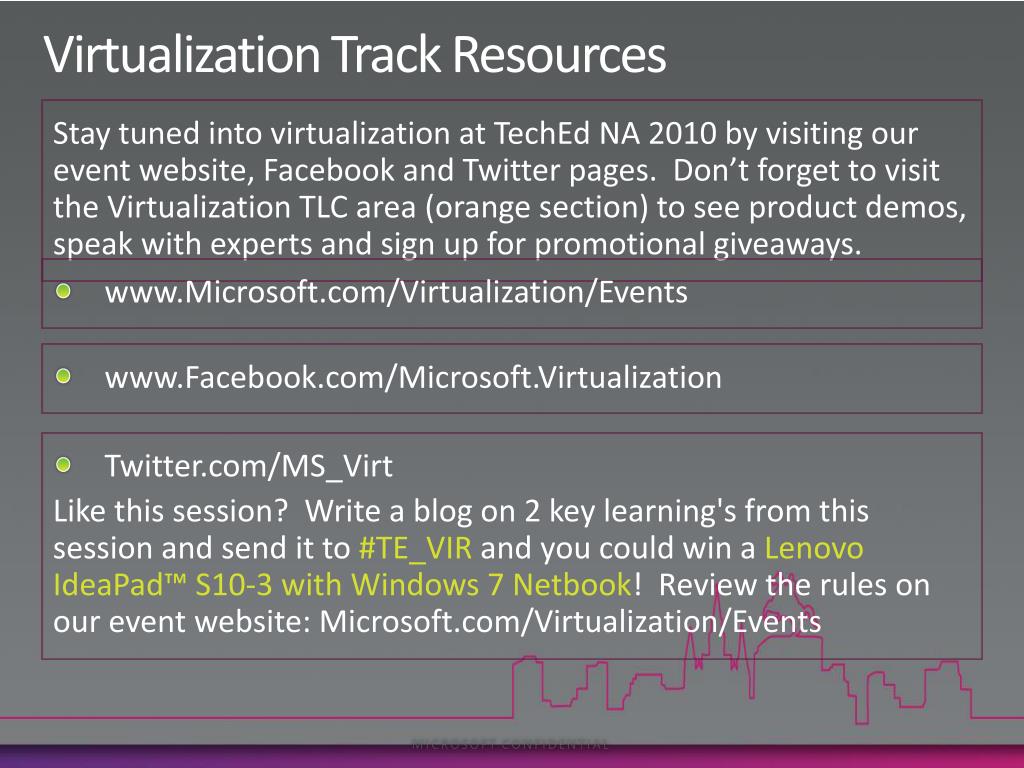

  40. Virtualization Track Resources • Stay tuned into virtualization at TechEd NA 2010 by visiting our event website, Facebook and Twitter pages. Don’t forget to visit the Virtualization TLC area (orange section) to see product demos, speak with experts and sign up for promotional giveaways. • www.Microsoft.com/Virtualization/Events • www.Facebook.com/Microsoft.Virtualization • Twitter.com/MS_Virt • Like this session? Write a blog on 2 key learning's from this session and send it to #TE_VIR and you could win a Lenovo IdeaPad™ S10-3 with Windows 7 Netbook! Review the rules on our event website: Microsoft.com/Virtualization/Events

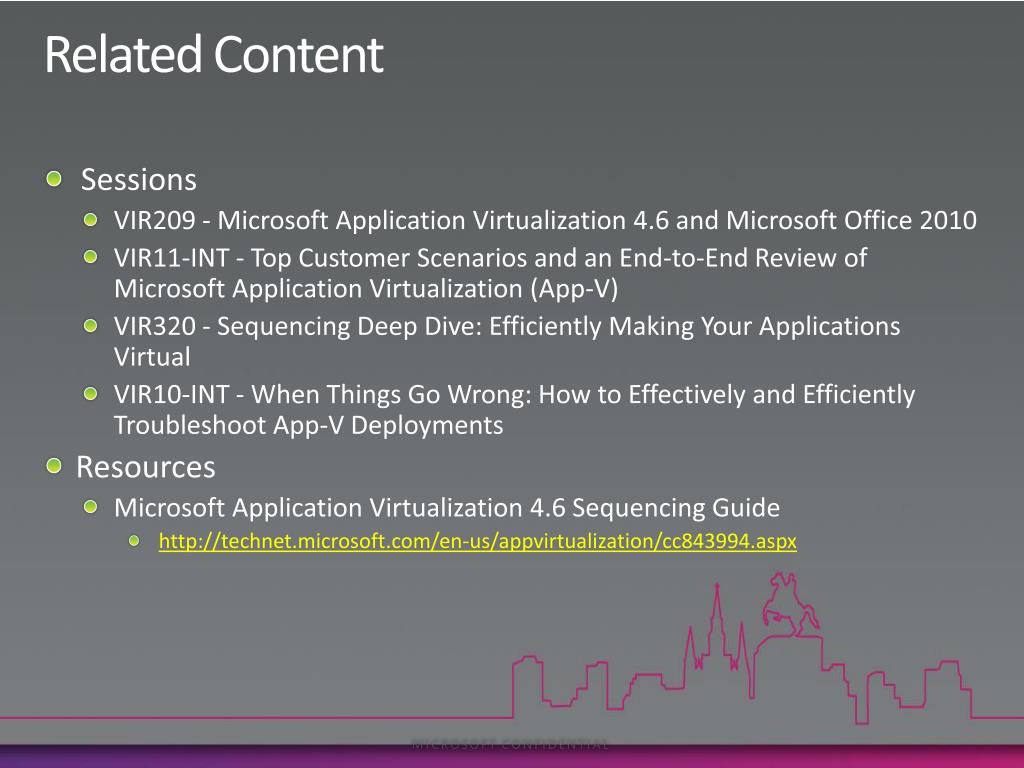

  41. Related Content • Sessions • VIR209 - Microsoft Application Virtualization 4.6 and Microsoft Office 2010 • VIR11-INT - Top Customer Scenarios and an End-to-End Review of Microsoft Application Virtualization (App-V) • VIR320 - Sequencing Deep Dive: Efficiently Making Your Applications Virtual • VIR10-INT - When Things Go Wrong: How to Effectively and Efficiently Troubleshoot App-V Deployments • Resources • Microsoft Application Virtualization 4.6 Sequencing Guide • http://technet.microsoft.com/en-us/appvirtualization/cc843994.aspx
