1. Implications of Model Specification and Temporal Revisit Designs on Trend Detection Leigh Ann Starcevich (OSU) Kathryn M. Irvine (USGS) Andrea M. Heard (UCR, NPS)

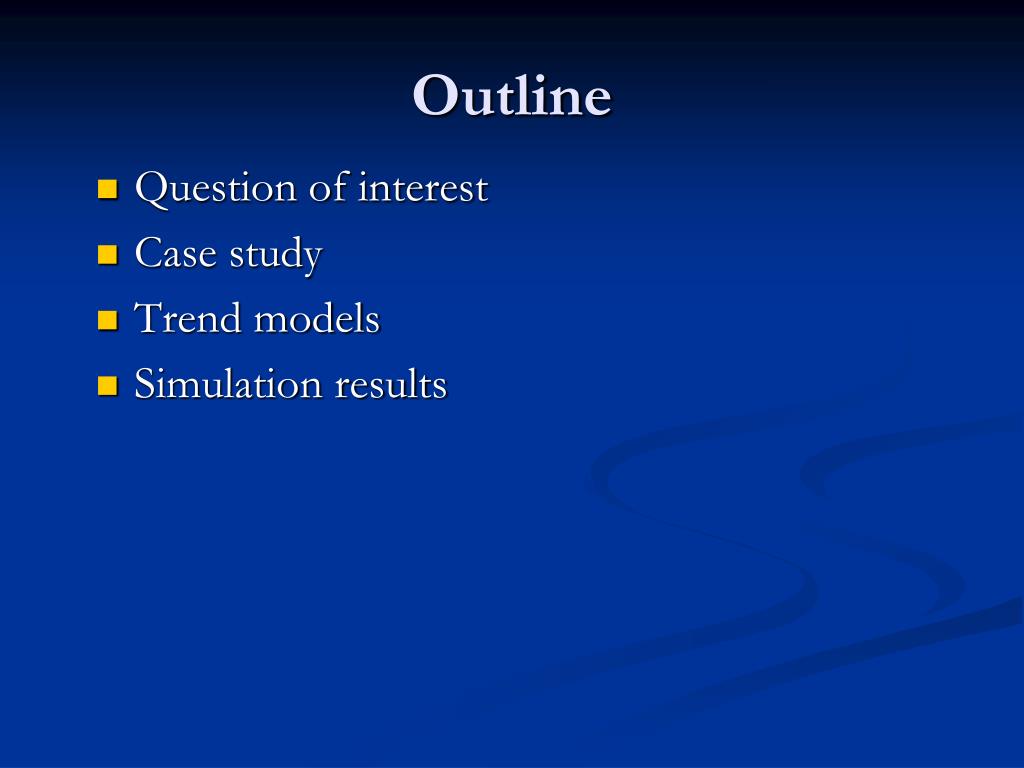

2. Outline • Question of interest • Case study • Trend models • Simulation results

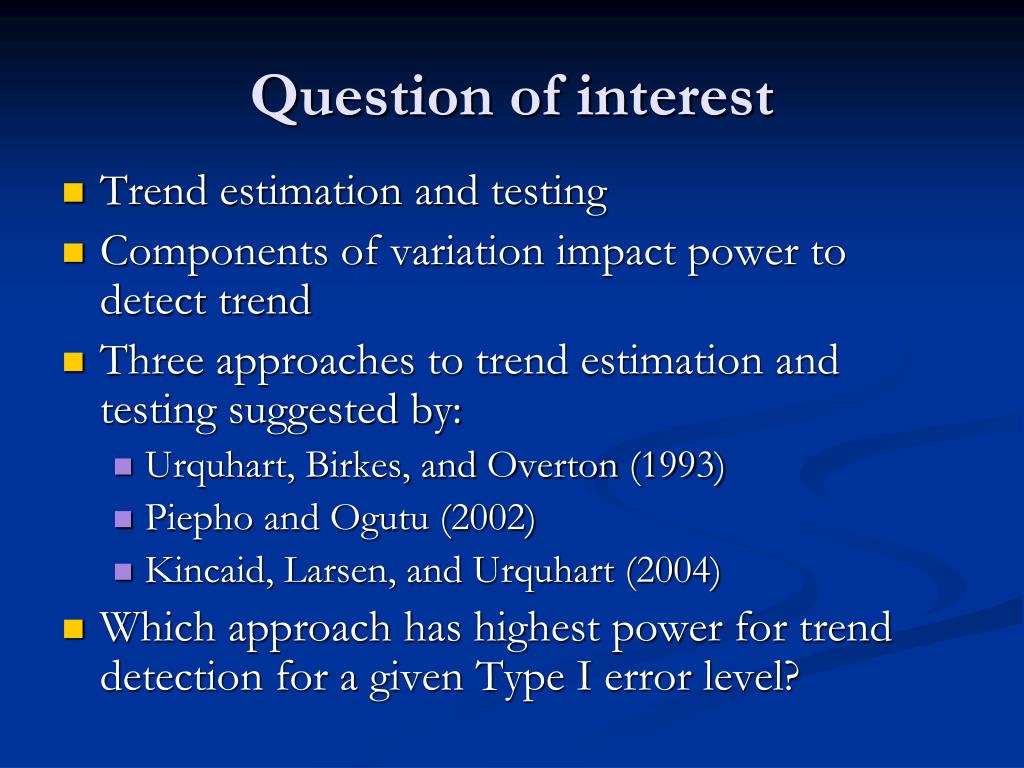

3. Question of interest • Trend estimation and testing • Components of variation impact power to detect trend • Three approaches to trend estimation and testing suggested by: • Urquhart, Birkes, and Overton (1993) • Piepho and Ogutu (2002) • Kincaid, Larsen, and Urquhart (2004) • Which approach has highest power for trend detection for a given Type I error level?

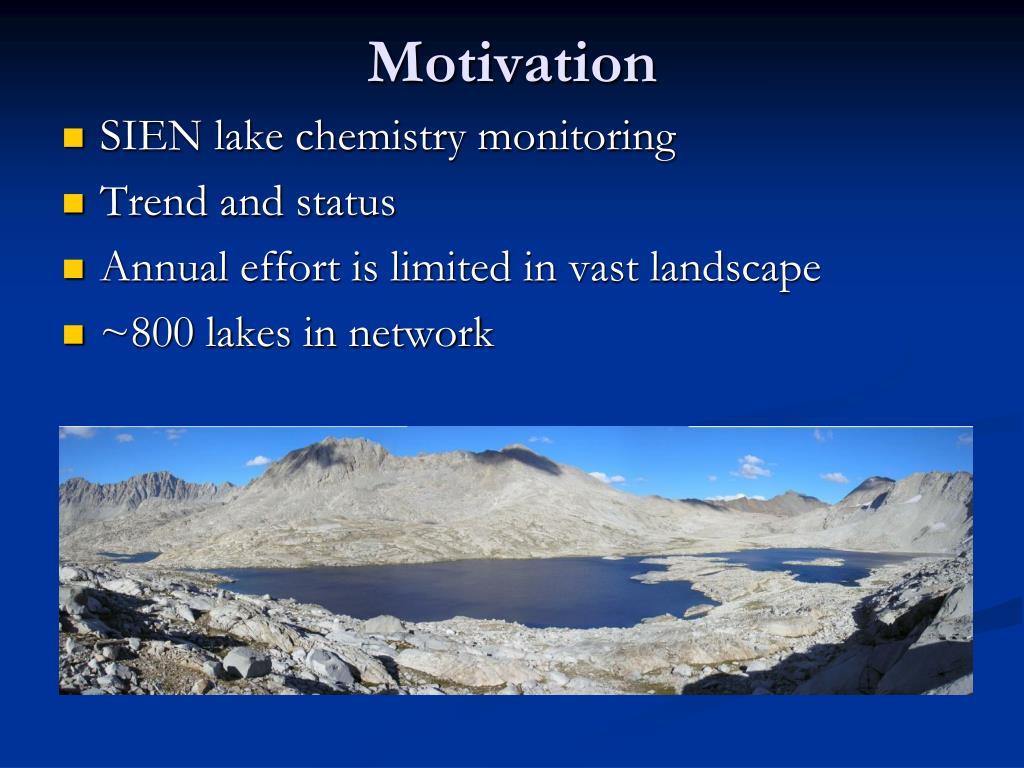

4. Motivation • SIEN lake chemistry monitoring • Trend and status • Annual effort is limited in vast landscape • ~800 lakes in network

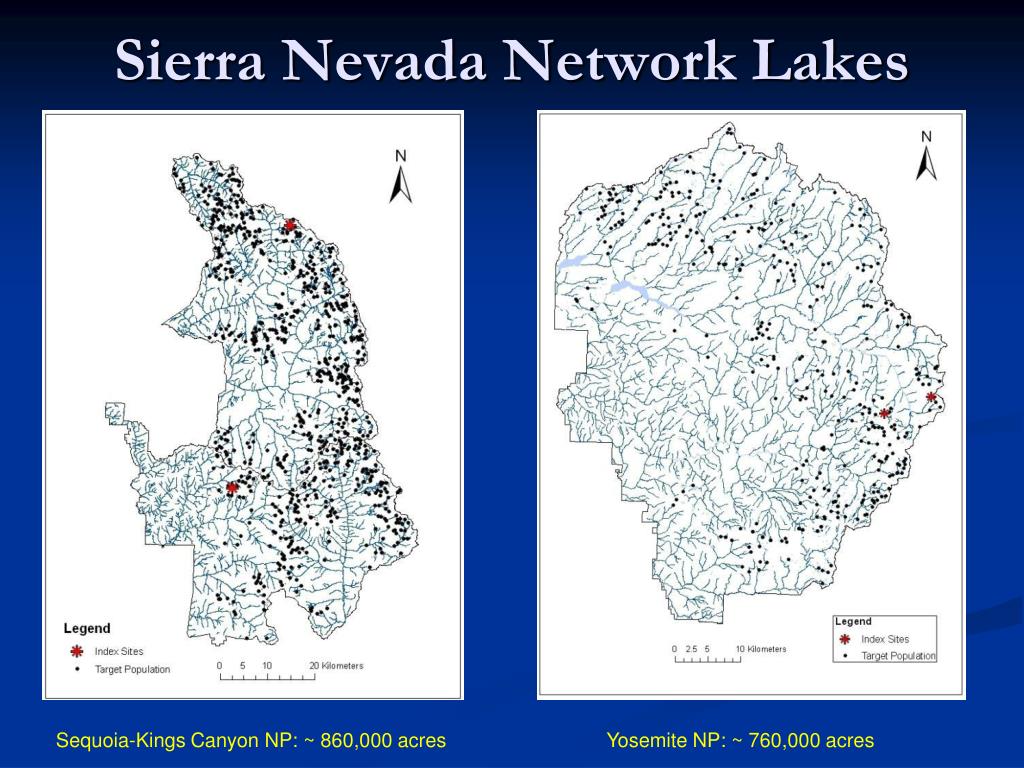

5. Sierra Nevada Network Lakes Sequoia-Kings Canyon NP: ~ 860,000 acres Yosemite NP: ~ 760,000 acres

6. Trend model • Linear mixed model used to estimate trend and components of variance • Trend models contain both fixed and random effects • Fixed effects describe the mean • Random effects describe the variance structure

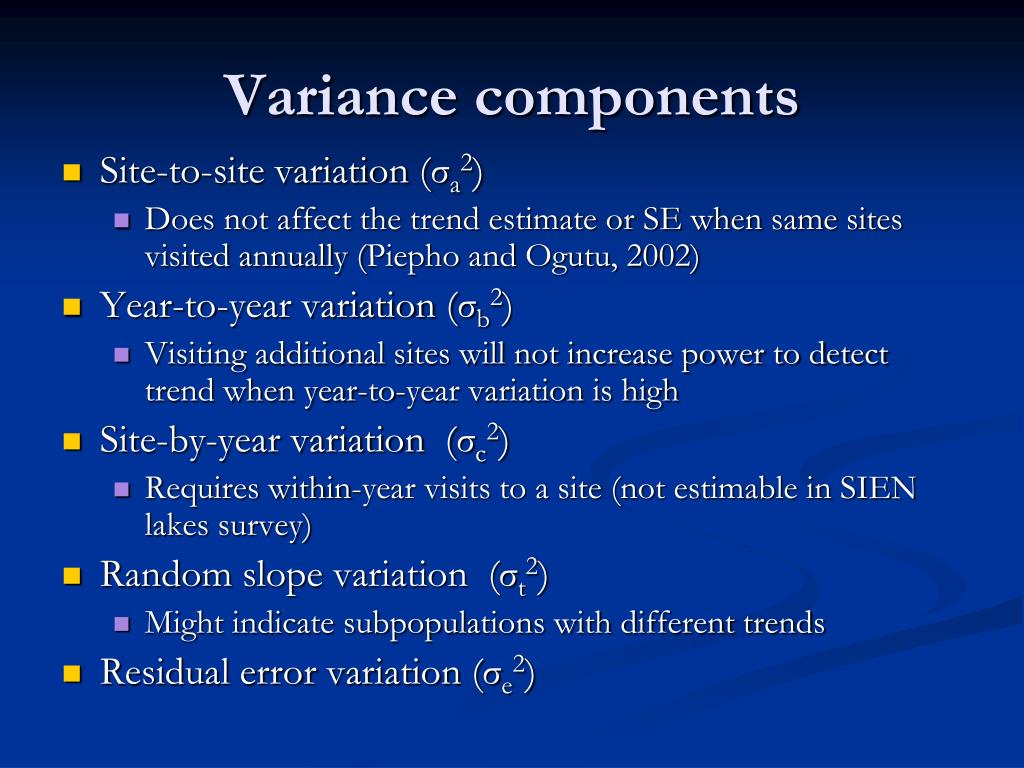

7. Variance components • Site-to-site variation (σa2) • Does not affect the trend estimate or SE when same sites visited annually (Piepho and Ogutu, 2002) • Year-to-year variation (σb2) • Visiting additional sites will not increase power to detect trend when year-to-year variation is high • Site-by-year variation (σc2) • Requires within-year visits to a site (not estimable in SIEN lakes survey) • Random slope variation (σt2) • Might indicate subpopulations with different trends • Residual error variation (σe2)

8. Power to detect trend • Affected by: • Type I error level (α) • Trend magnitude (β1) • Variance composition • Associated with a particular hypothesis test • One-sided vs. two-sided alternative hypothesis? • Reflects monitoring goals • We examine:

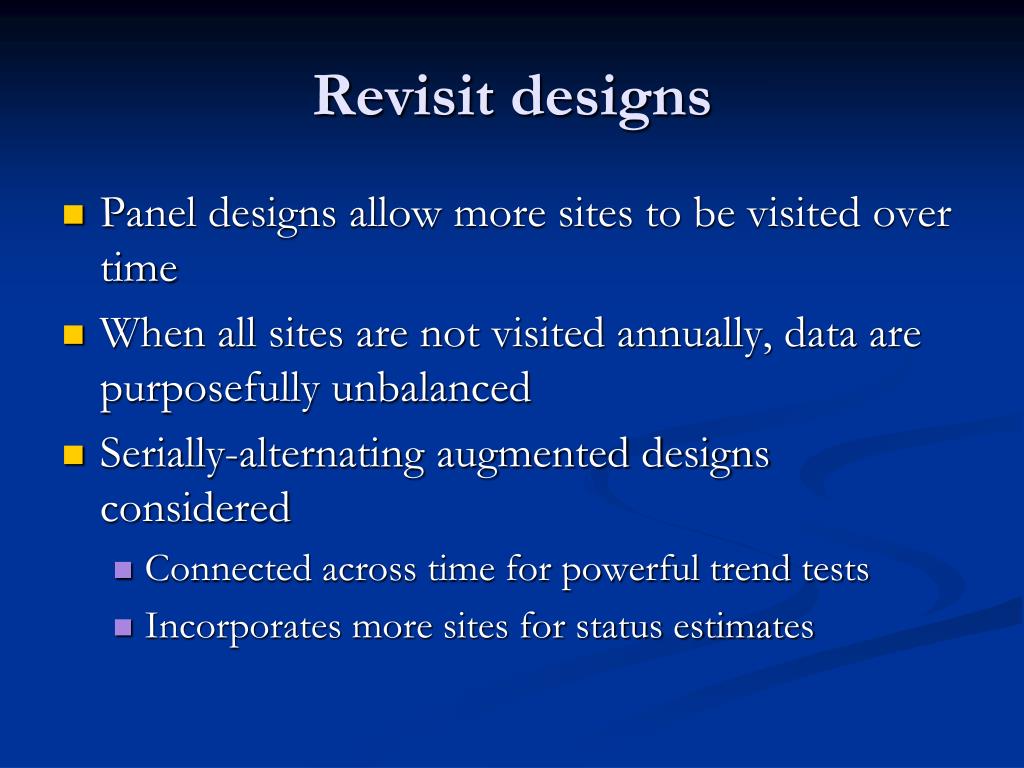

9. Revisit designs • Panel designs allow more sites to be visited over time • When all sites are not visited annually, data are purposefully unbalanced • Serially-alternating augmented designs considered • Connected across time for powerful trend tests • Incorporates more sites for status estimates

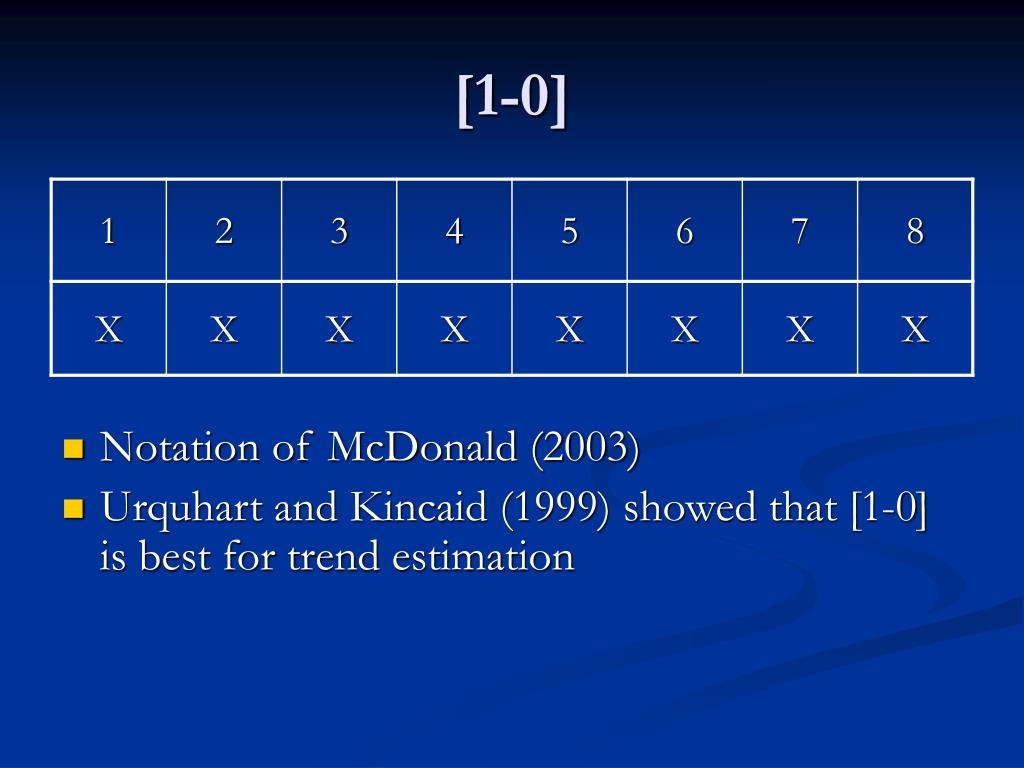

10. [1-0] • Notation of McDonald (2003) • Urquhart and Kincaid (1999) showed that [1-0] is best for trend estimation

11. [(1-0),(1-3)]

12. [(1-0),(1-8)]

13. Estimation of fixed effects • Generalized least squares (GLS) used to estimate fixed effects where

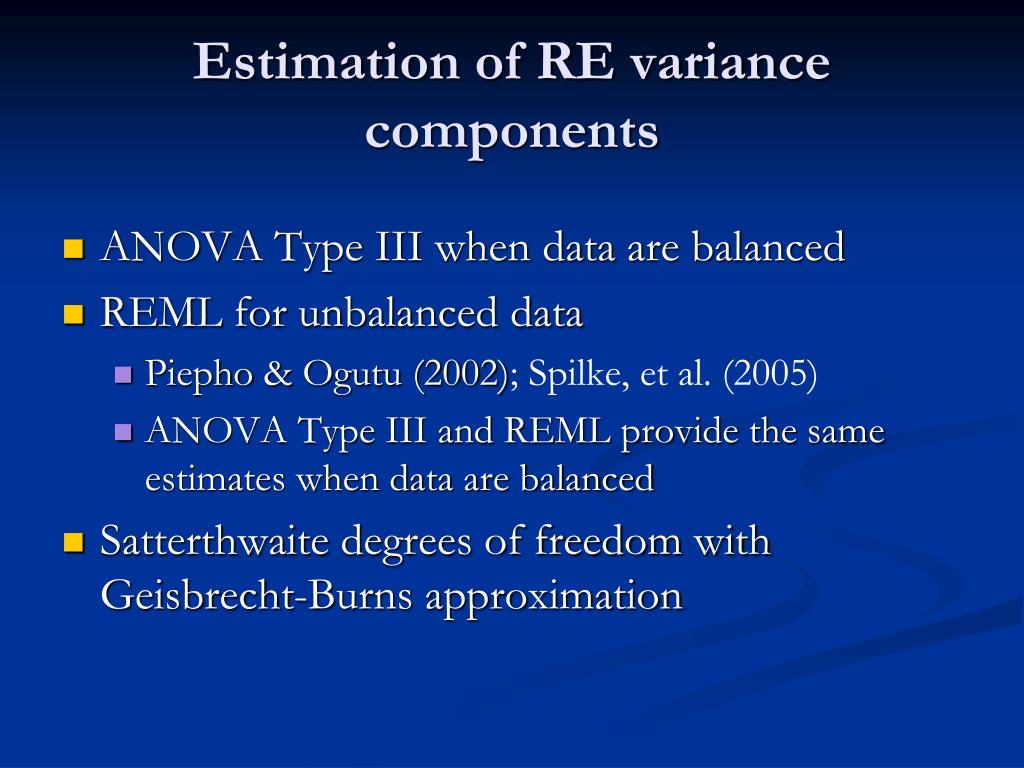

14. Estimation of RE variance components • ANOVA Type III when data are balanced • REML for unbalanced data • Piepho & Ogutu (2002); Spilke, et al. (2005) • ANOVA Type III and REML provide the same estimates when data are balanced • Satterthwaite degrees of freedom with Geisbrecht-Burns approximation

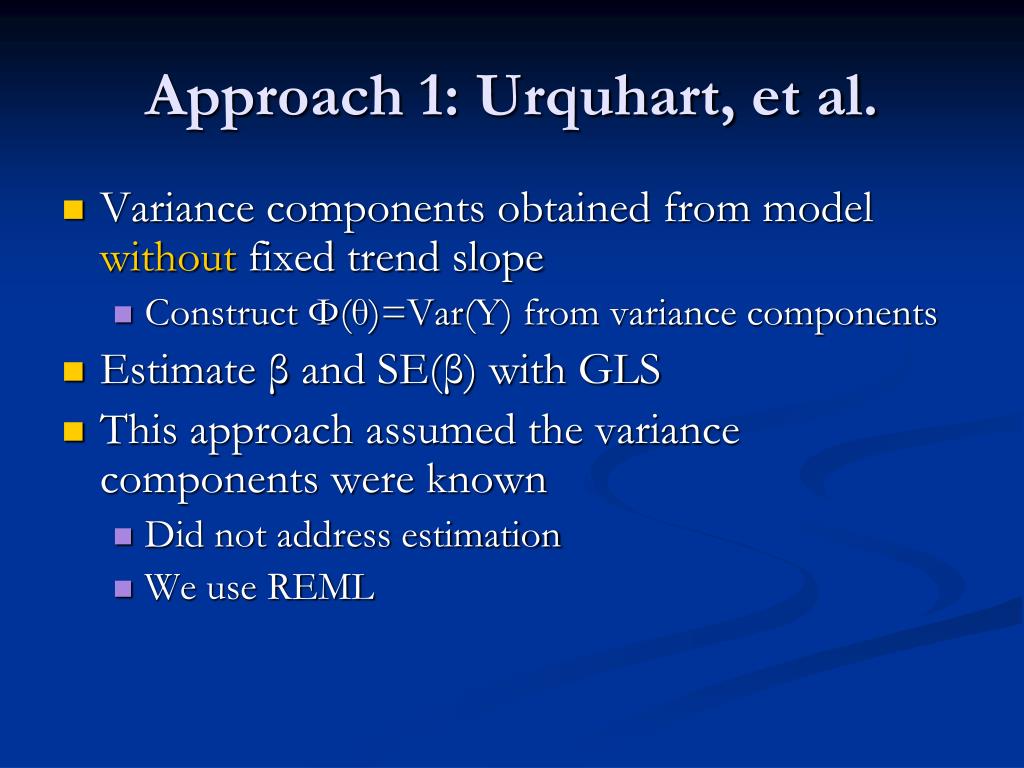

15. Approach 1: Urquhart, et al. • Variance components obtained from model without fixed trend slope • Construct Φ(θ)=Var(Y) from variance components • Estimate β and SE(β) with GLS • This approach assumed the variance components were known • Did not address estimation • We use REML

16. Approach 2: Piepho and Ogutu (2002) • Extension of VanLeeuwen, et al (1996) • Random slope effect incorporated • Trend and variance component estimation • Trend testing conducted using a synthetic F test • Wald F-test not invariant to location shifts • P&O relaxed assumption of independence between random site effect and random slope for invariant Wald F-test

17. Approach 3: Kincaid, et al. (2004) • Two models used • Trend model omits RE for year • Variance components model omits fixed linear trend • RE’s for site, year, interaction • This paper focused on status estimation • Trend approach mentioned incidentally

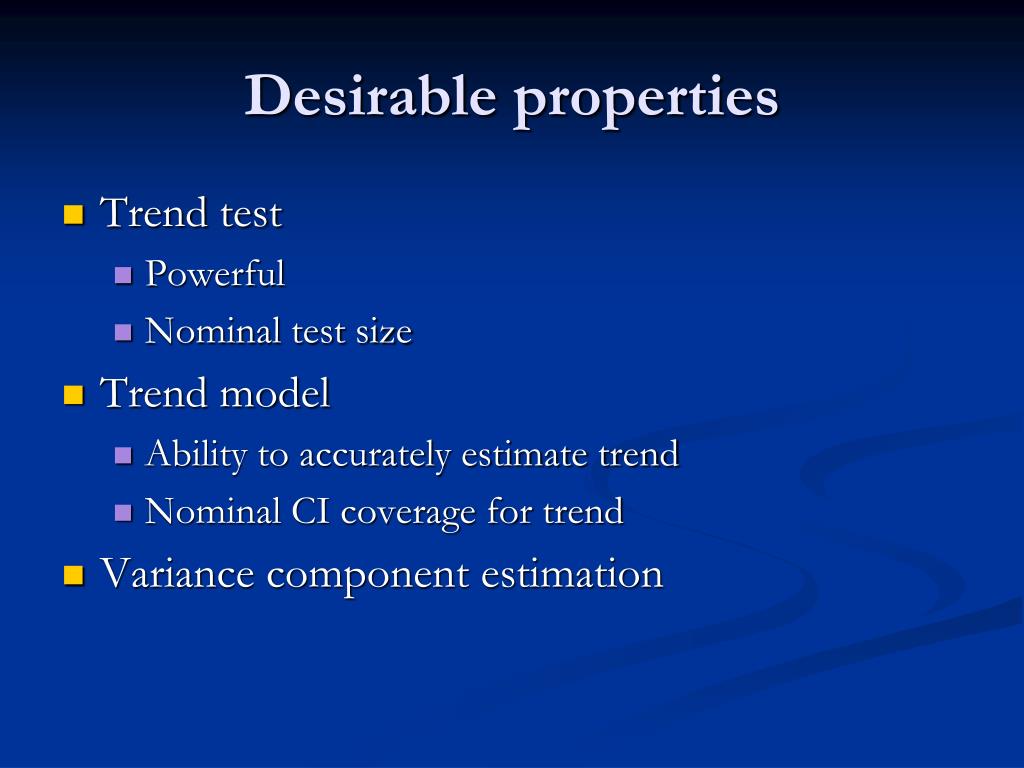

18. Desirable properties • Trend test • Powerful • Nominal test size • Trend model • Ability to accurately estimate trend • Nominal CI coverage for trend • Variance component estimation

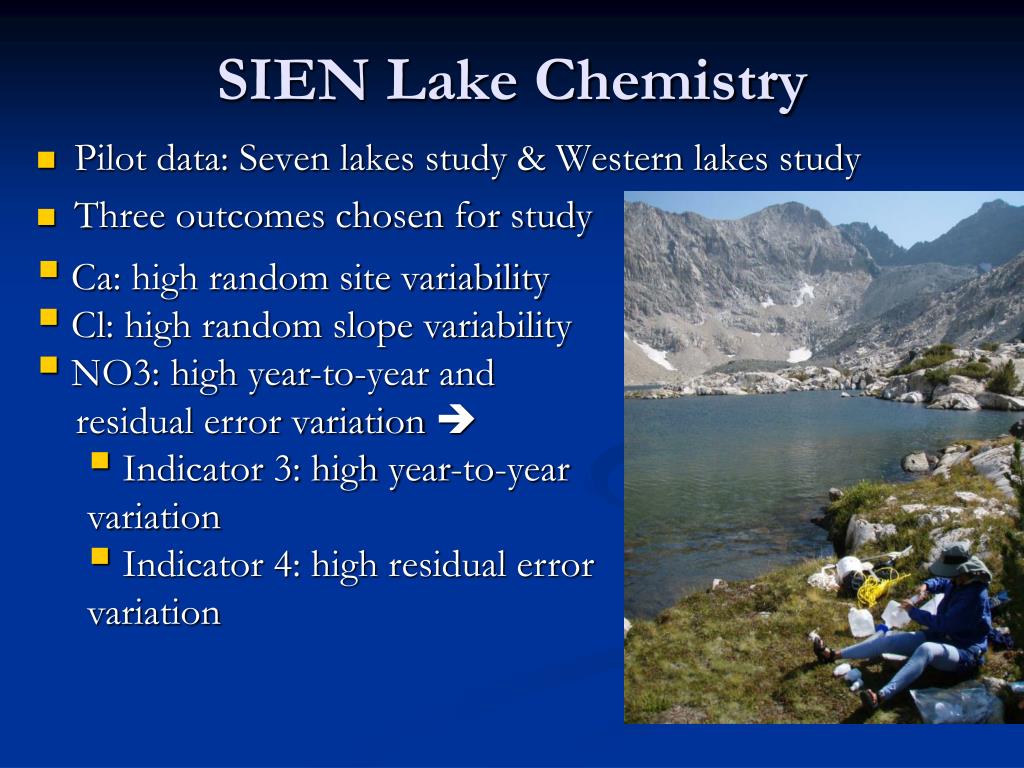

19. SIEN Lake Chemistry • Pilot data: Seven lakes study & Western lakes study • Three outcomes chosen for study • Ca: high random site variability • Cl: high random slope variability • NO3: high year-to-year and • residual error variation  • Indicator 3: high year-to-year variation • Indicator 4: high residual error variation

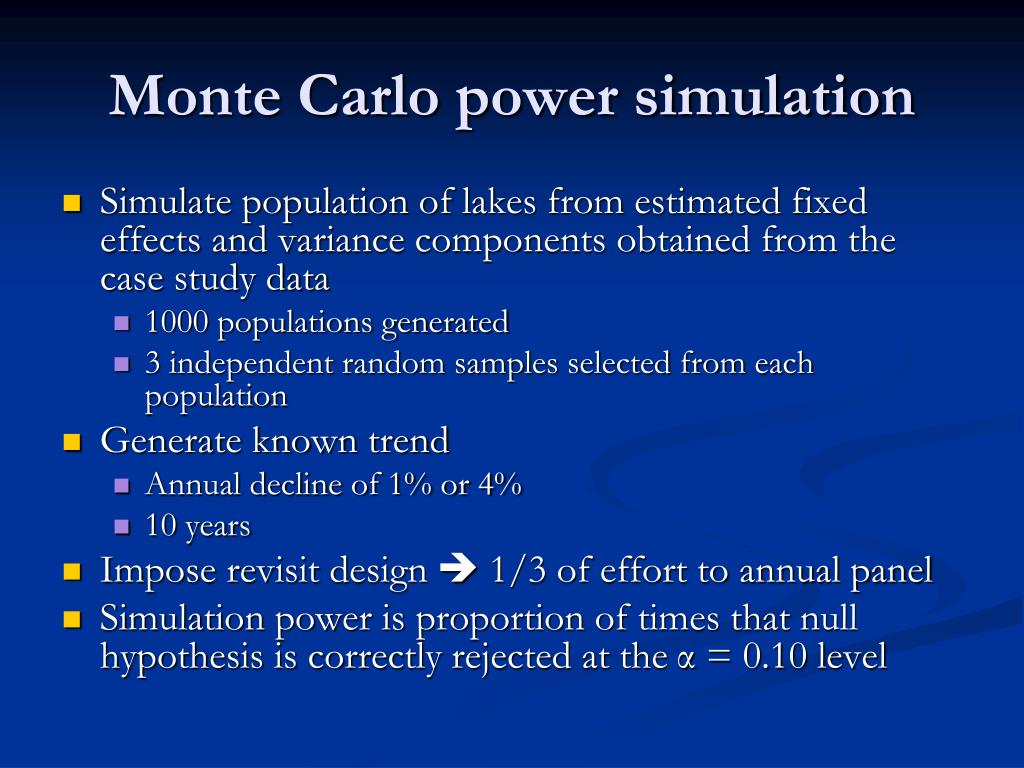

20. Monte Carlo power simulation • Simulate population of lakes from estimated fixed effects and variance components obtained from the case study data • 1000 populations generated • 3 independent random samples selected from each population • Generate known trend • Annual decline of 1% or 4% • 10 years • Impose revisit design  1/3 of effort to annual panel • Simulation power is proportion of times that null hypothesis is correctly rejected at the α = 0.10 level

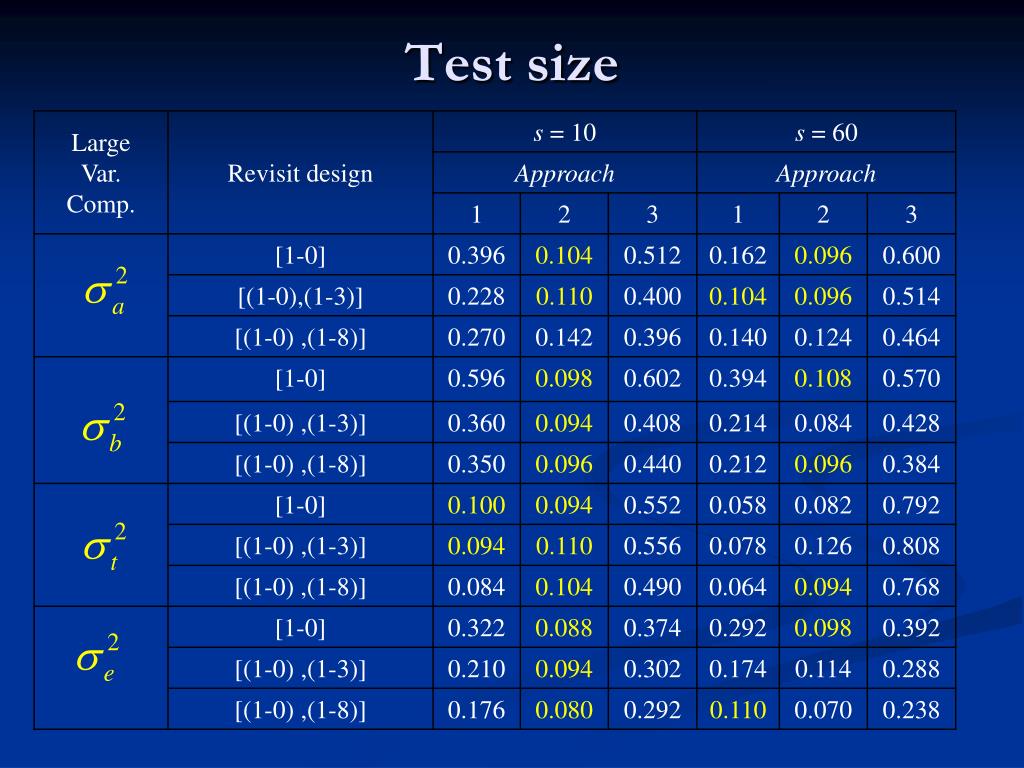

21. Test size

22. Simulation results • Power approximations are too high when test size exceeds nominal rate • Estimates of β1 are generally unbiased • Bias of β1 most sensitive torevisit design, not trend approach • Observed that bias of SE(β1) was less severe as revisit cycle length increased

23. Rel. Bias of SE(β1): σa2 large, p =-1%

24. Rel. Bias of SE(β1): σt2 large, p= -1%

25. Rel. Bias of SE(β1): σb2 large, p= -1%

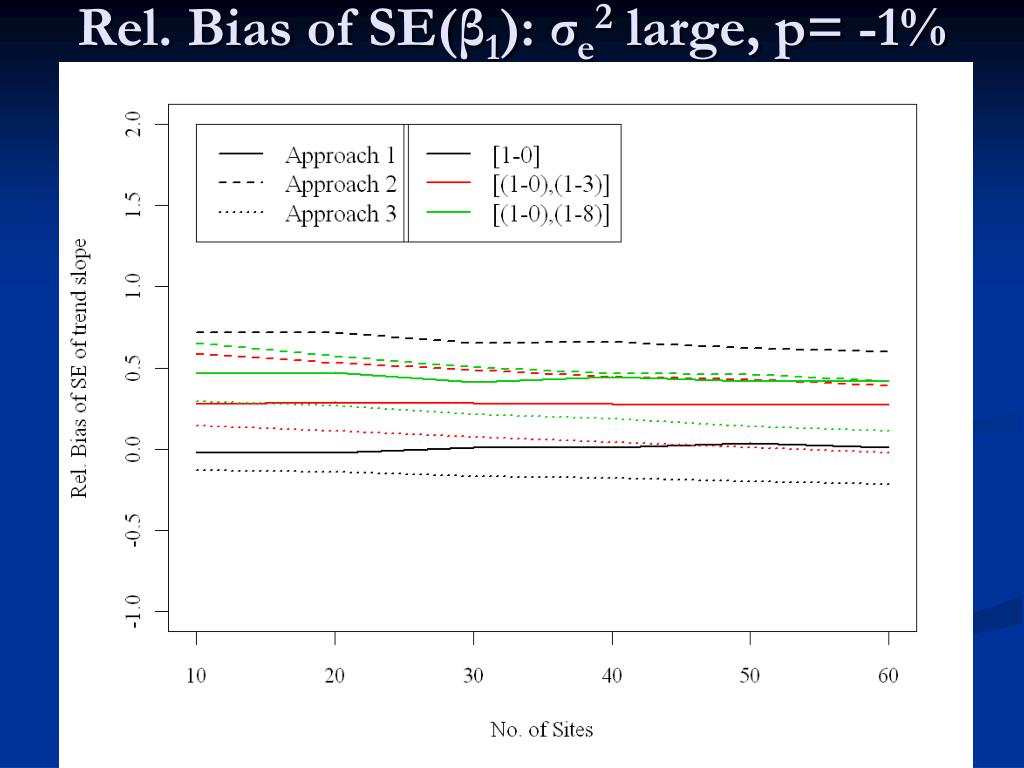

26. Rel. Bias of SE(β1): σe2 large, p= -1%

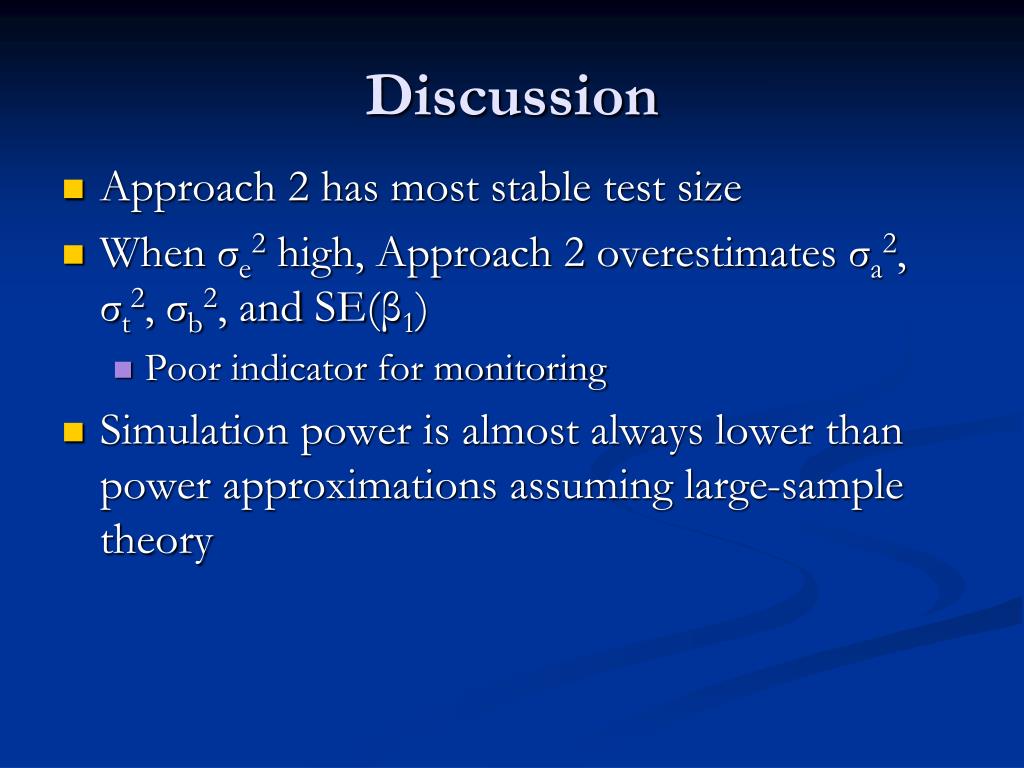

27. Discussion • Approach 2 has most stable test size • When σe2 high, Approach 2 overestimates σa2, σt2, σb2, and SE(β1) • Poor indicator for monitoring • Simulation power is almost always lower than power approximations assuming large-sample theory

28. Conclusions • Trend test size should be assessed when examining power to detect trend • Including a random slope effect that is correlated with the random site effect in the mixed model approach provides nearly-nominal trend tests • Examining variance components is useful for choosing monitoring indicators and revisit designs

29. Ongoing work • Determine if bias of variance components estimates may be reduced • Incorporate autocorrelation estimation • Examine relationship between revisit cycle length and SE(β1)

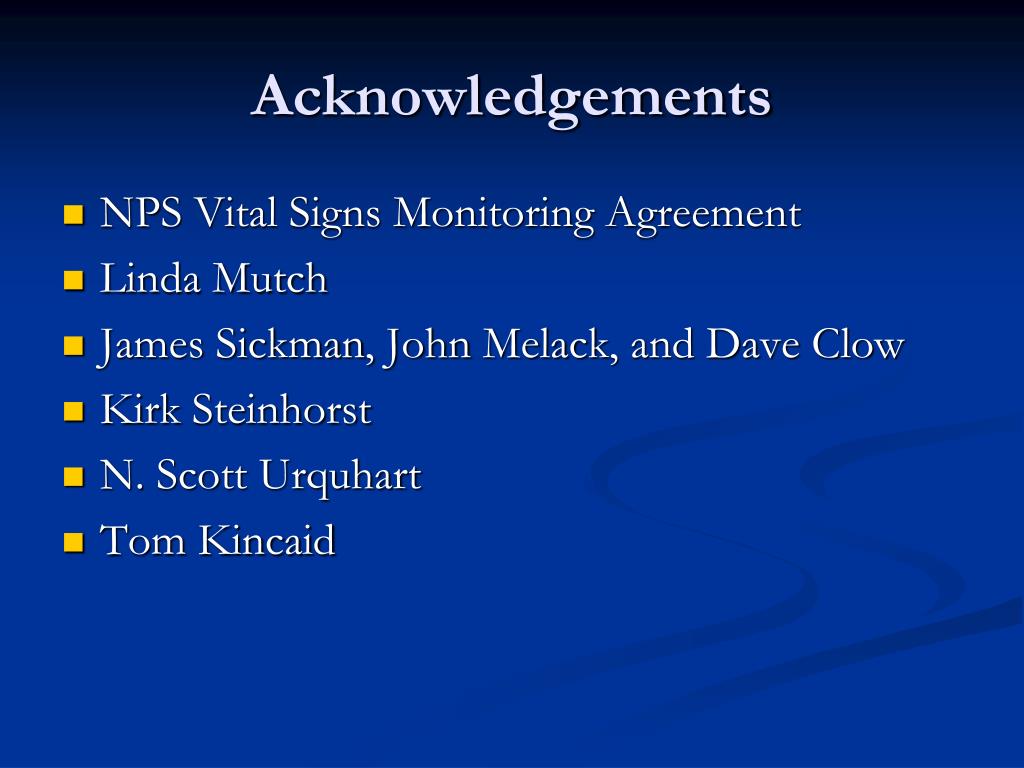

30. Acknowledgements • NPS Vital Signs Monitoring Agreement • Linda Mutch • James Sickman, John Melack, and Dave Clow • Kirk Steinhorst • N. Scott Urquhart • Tom Kincaid
