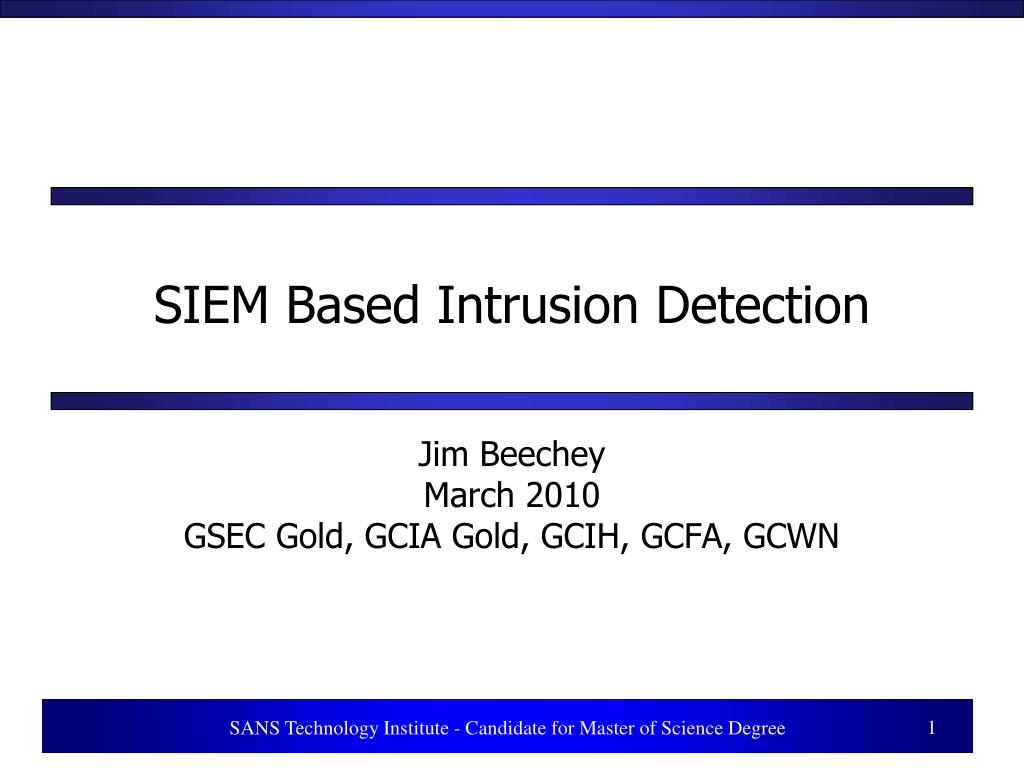

  1. SIEM Based Intrusion Detection Jim Beechey March 2010 GSEC Gold, GCIA Gold, GCIH, GCFA, GCWN SANS Technology Institute - Candidate for Master of Science Degree

  2. Objective • Attackers are more sophisticated and targeted in their attacks. • Defenders need systems which help provide visibility and altering across numerous security systems. • SIEM adoption driven by compliance • Gartner says “more than 80%” • Put “Security” back into SIEM using real world examples. SANS Technology Institute - Candidate for Master of Science Degree

  3. SIEM System Setup SANS Technology Institute - Candidate for Master of Science Degree

  4. Basics – Outbound Traffic • Outbound SMTP, DNS and IRC • Unexpected outbound connections SANS Technology Institute - Candidate for Master of Science Degree

  5. New Hosts and Services • Scanner integration for new host and service discovery SANS Technology Institute - Candidate for Master of Science Degree

  6. Darknets • Network segments without any live systems, but are monitored • Any traffic considered suspicious • Qradar defines Darknets at setup • Qradar Rule: Suspicious Activity: Communication with Known Watched Networks SANS Technology Institute - Candidate for Master of Science Degree

  7. Brute-force Attacks • Create reports to generate statistical data on failed logins by device, source IP and locked accounts per day. • Qradar provides several alerts for brute force attacks. Login Failures Followed by Success and Repeated Login Failures Single Host being the most helpful • Customize alerts for maximum impact SANS Technology Institute - Candidate for Master of Science Degree

  8. Brute-force Attacks SANS Technology Institute - Candidate for Master of Science Degree

  9. Windows Accounts • Report of accounts created by whom • Alerts for: • accounts not using std naming convention • outside of creation script timeframe • workstation account created • group membership adds to key groups • Understand the account management process and alert accordingly SANS Technology Institute - Candidate for Master of Science Degree

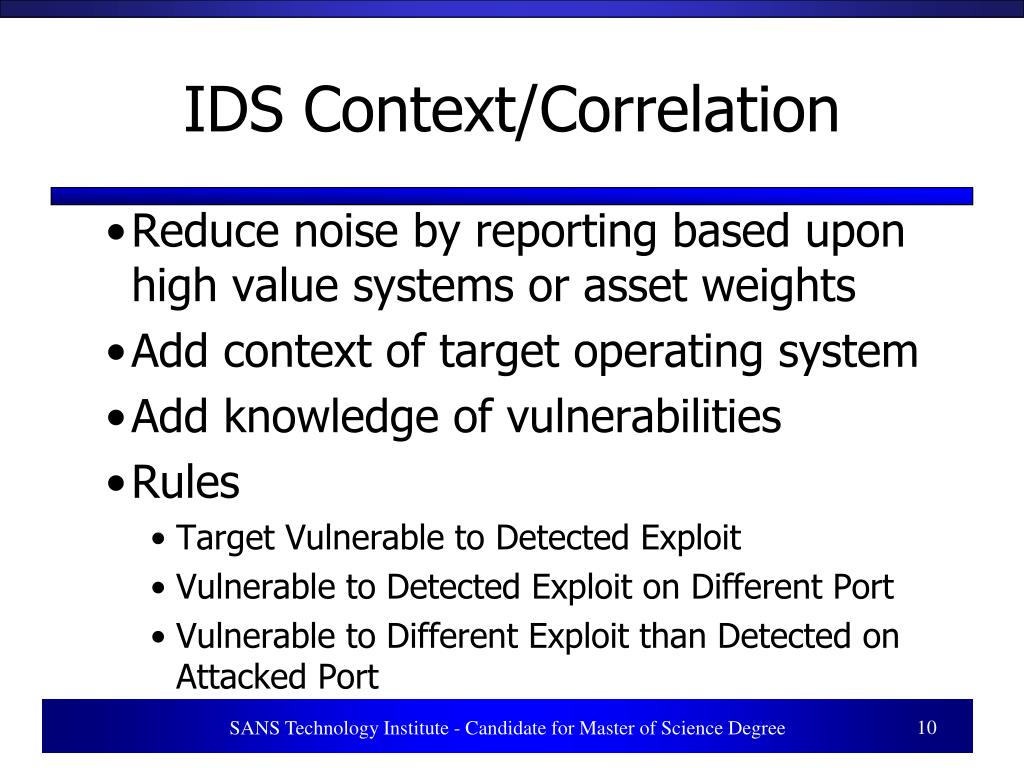

  10. IDS Context/Correlation • Reduce noise by reporting based upon high value systems or asset weights • Add context of target operating system • Add knowledge of vulnerabilities • Rules • Target Vulnerable to Detected Exploit • Vulnerable to Detected Exploit on Different Port • Vulnerable to Different Exploit than Detected on Attacked Port SANS Technology Institute - Candidate for Master of Science Degree

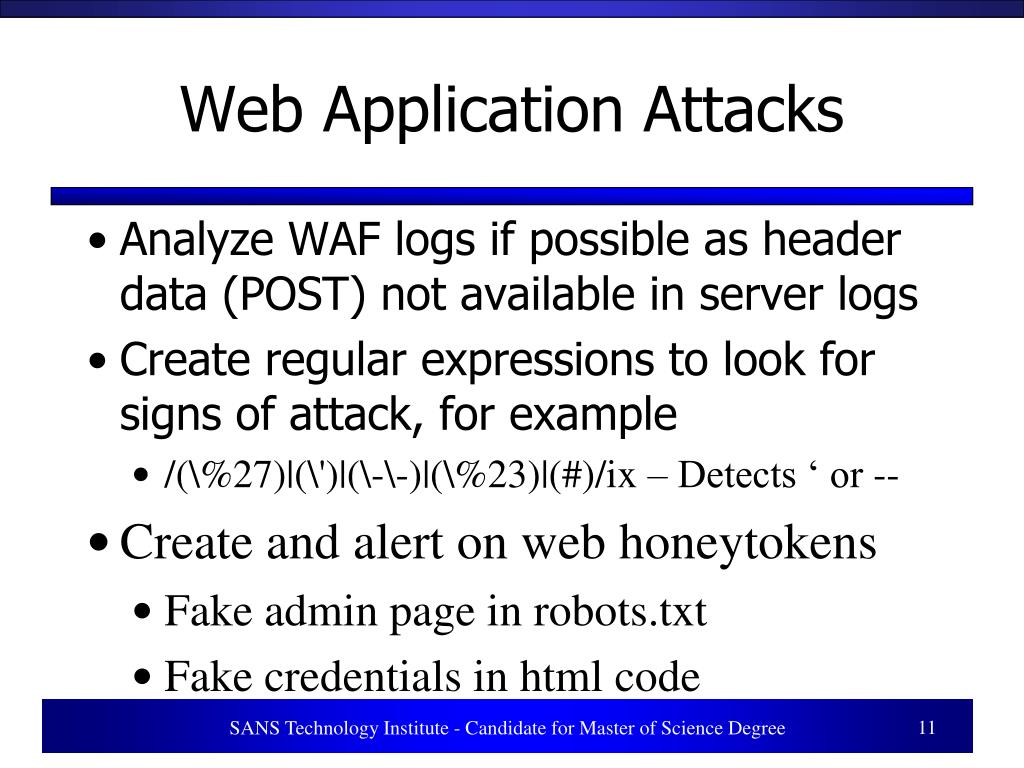

  11. Web Application Attacks • Analyze WAF logs if possible as header data (POST) not available in server logs • Create regular expressions to look for signs of attack, for example • /(\%27)|(\')|(\-\-)|(\%23)|(#)/ix – Detects ‘ or -- • Create and alert on web honeytokens • Fake admin page in robots.txt • Fake credentials in html code SANS Technology Institute - Candidate for Master of Science Degree

  12. Data Exfiltration • Collection of flows or session data is extremely helpful • Reports/Alerts based upon • Size/destination of outbound flows “Large Outbound Data Transfer” • Application data inside specific protocols • Frequency of requests/application usage • Session Duration “Long Duration Flow” SANS Technology Institute - Candidate for Master of Science Degree

  13. Client Side Attacks • Information in Windows event logs: • Process Information • Start (592/4688) Ends (593/4689) • New Service Installed (601/4697) • Scheduled Tasks Created (602/4689) • Audit Policy Changed and Cleared • (612/4719) and (517/1102) • Integration with third-party tools SANS Technology Institute - Candidate for Master of Science Degree

  14. Sample Attack SANS Technology Institute - Candidate for Master of Science Degree

  15. Summary • Defenders need to look for indicators of compromise across many sources • SIEM solution centralize data • Start small with basic methods, test, and move to more advanced techniques • Goal is to detect compromise and provide as much information as possible before starting incident response SANS Technology Institute - Candidate for Master of Science Degree
