  1. Multidisciplinary Senior Design I Problem Definition Review Preparation

  2. Agenda • Questions to be Answered by the Problem Review • Goals of the Problem Definition Review • Mechanics of the Review • An Example

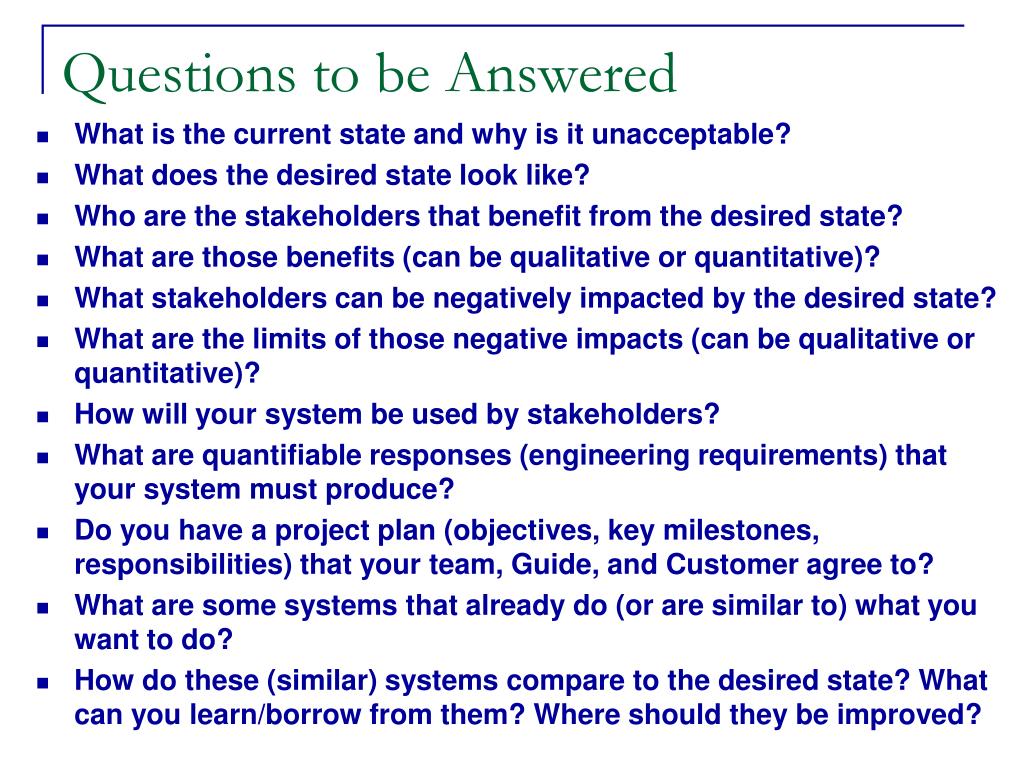

  3. Questions to be Answered • What is the current state and why is it unacceptable? • What does the desired state look like? • Who are the stakeholders that benefit from the desired state? • What are those benefits (can be qualitative or quantitative)? • What stakeholders can be negatively impacted by the desired state? • What are the limits of those negative impacts (can be qualitative or quantitative)? • How will your system be used by stakeholders? • What are quantifiable responses (engineering requirements) that your system must produce? • Do you have a project plan (objectives, key milestones, responsibilities) that your team, Guide, and Customer agree to? • What are some systems that already do (or are similar to) what you want to do? • How do these (similar) systems compare to the desired state? What can you learn/borrow from them? Where should they be improved?

  4. Goals of the Problem Definition Review • Demonstrate that your team can answer the questions posed by: • Clearly defined and agreed upon problem statement & project deliverables • Prioritized list of Customer requirements • Engineering requirements • Use scenarios • Draft of project plan • Identify any gaps that exist between your ability to meet the above goal and your actual state • Be honest (Don’t try to BS) • Show your action plan to close gap by next review

  5. Mechanics of the Review

  6. P13026: Portable Ventilator Daniel Fenton Kennedy Kong Marie Revekant David Engell Eric Welch Derek Zielinski Chris Freeman Melissa Harrison Ryan Muckel Roberto Castilla Zavala

  7. Agenda • Introduce Team • Project Background • Problem statement & project deliverables • Use scenarios • Prioritized list of needs (customer rqmts) • Engineering requirements • Draft of project plan

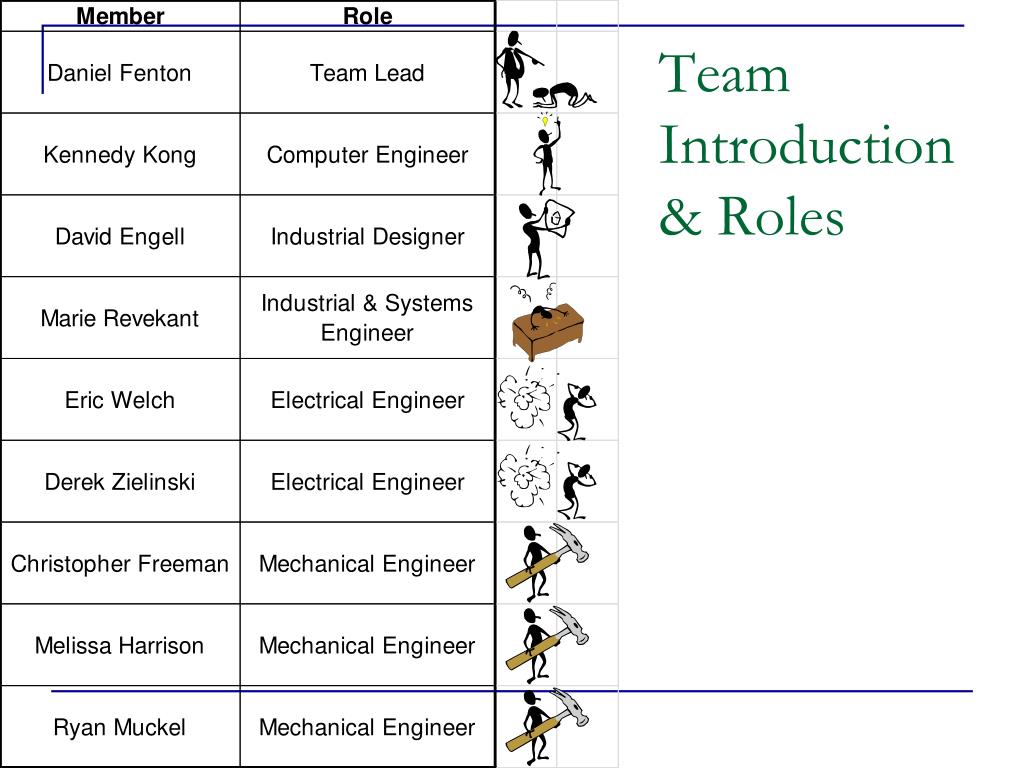

  8. Team Introduction & Roles

  9. Current Product- Mediresp III • Provide positive pressure ventilation • 3 modes: • CMV (constant mandatory ventilation) • Assist • CPR • Manual • Large and heavy • 2-4 hour battery life • FDA approval • Patented • Contains BVM backup

  10. What is a PEV? • A Portable Emergency Ventilator (PEV) is a device that can provide mechanical ventilation to a person who is incapable of breathing on their own • Volume controlled • Pressure controlled • Spontaneously controlled • Negative pressure controlled

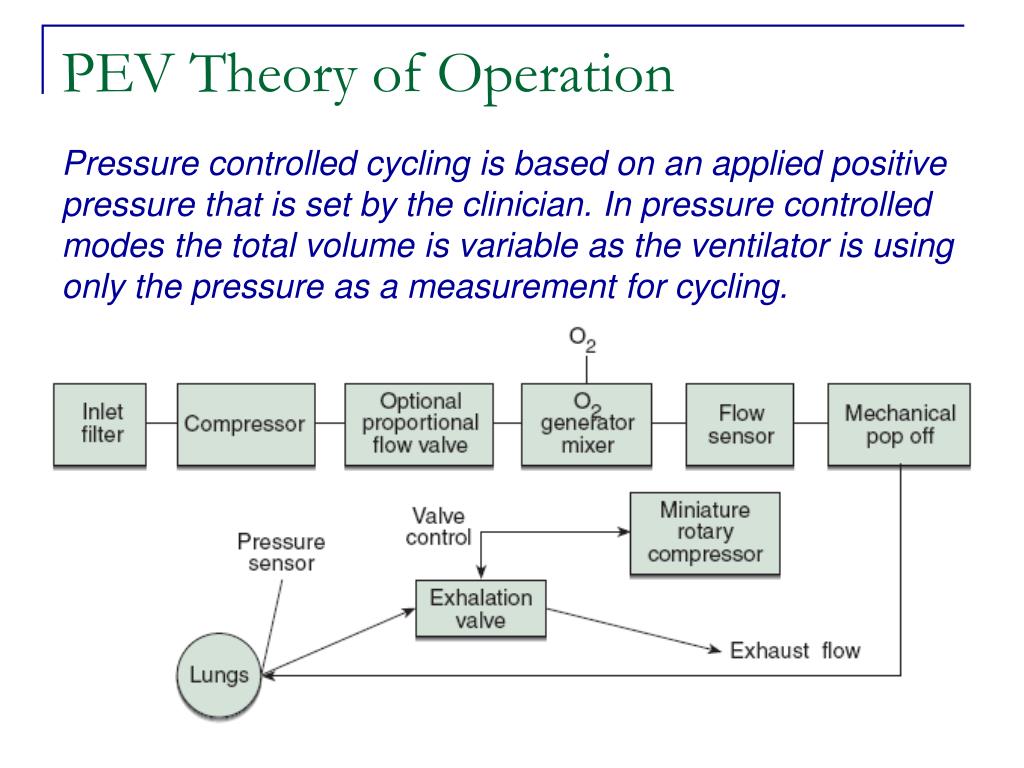

  11. PEV Theory of Operation Pressure controlled cycling is based on an applied positive pressure that is set by the clinician. In pressure controlled modes the total volume is variable as the ventilator is using only the pressure as a measurement for cycling.

  12. P13026 Problem Statement • Current State • A prototype was developed in 1990 that is too heavy, consumes to much energy and is not easy to use. • Desired State • The device should not interfere with first responders’ abilities to administer life-saving measures. • A functional prototype which can be marketed to companies and ultimately be manufactured • Project Goals • Analyze the current design and the patent database • Identify opportunities • lighter • more energy efficient • easier to use • more feedback and control to the user • Constraints • Consistent with the intellectual property and FDA approvals

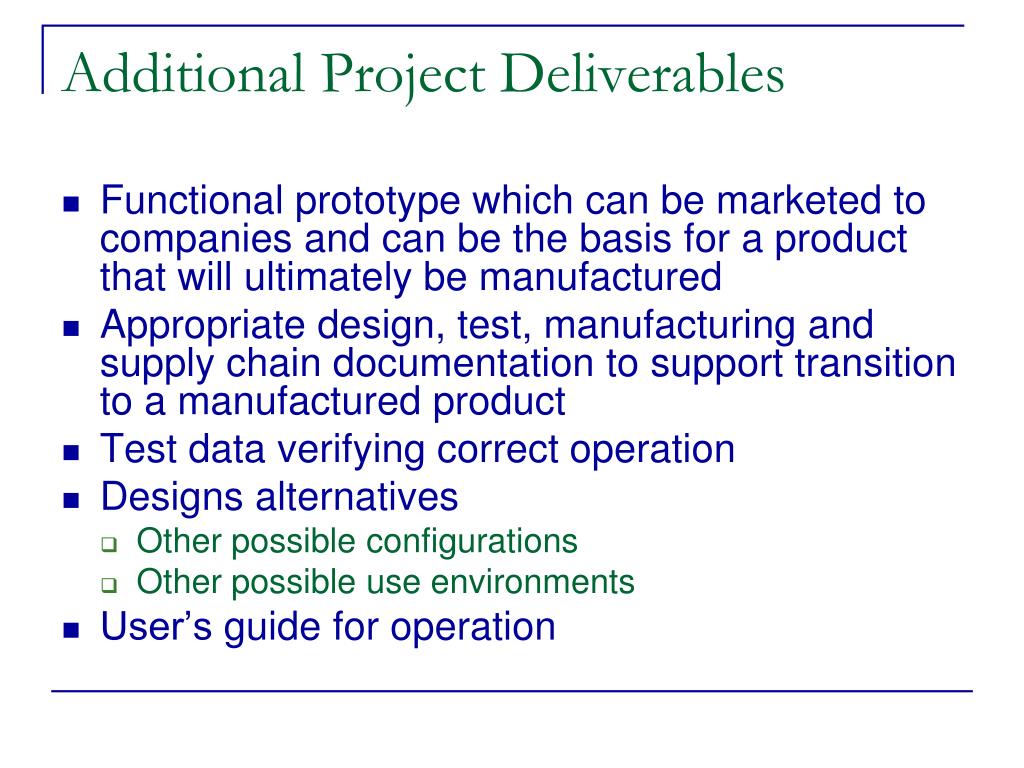

  13. Additional Project Deliverables • Functional prototype which can be marketed to companies and can be the basis for a product that will ultimately be manufactured • Appropriate design, test, manufacturing and supply chain documentation to support transition to a manufactured product • Test data verifying correct operation • Designs alternatives • Other possible configurations • Other possible use environments • User’s guide for operation

  14. P13026 Stakeholders

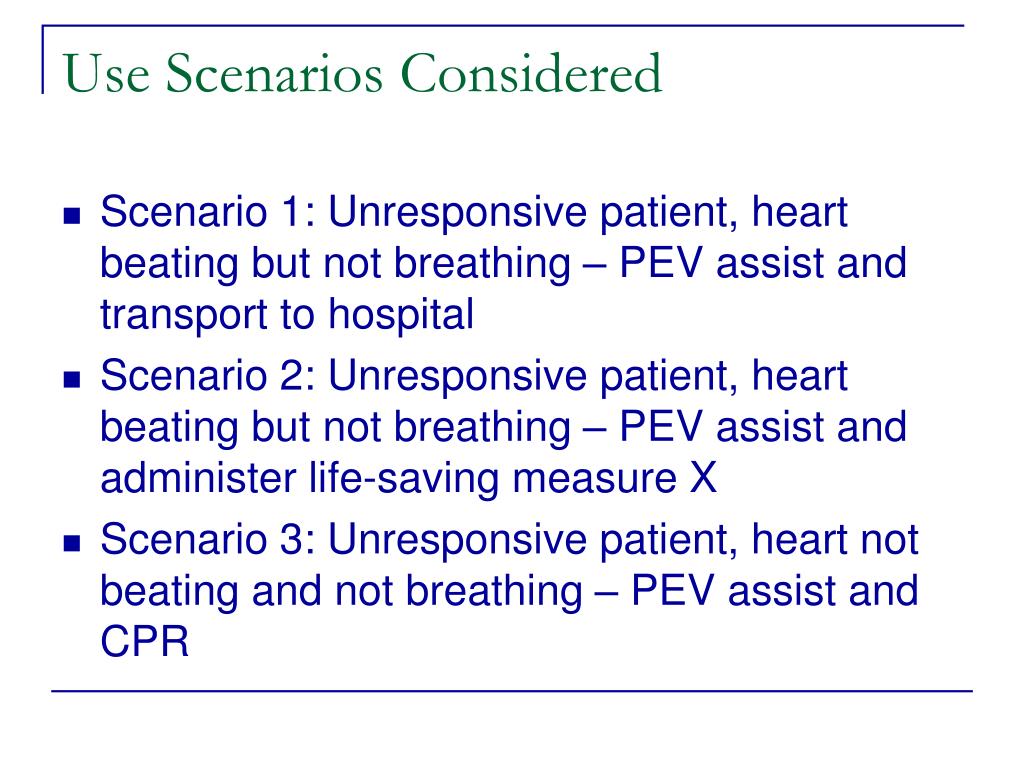

  15. Use Scenarios Considered • Scenario 1: Unresponsive patient, heart beating but not breathing – PEV assist and transport to hospital • Scenario 2: Unresponsive patient, heart beating but not breathing – PEV assist and administer life-saving measure X • Scenario 3: Unresponsive patient, heart not beating and not breathing – PEV assist and CPR

  16. Unresponsive patient, heart beating but not breathing

  17. P13026 Needs List

  18. Key Performance Metrics

  19. P13026 Engineering Requirements

  20. P13026 Preliminary Schedule

  21. P13026 Preliminary Schedule

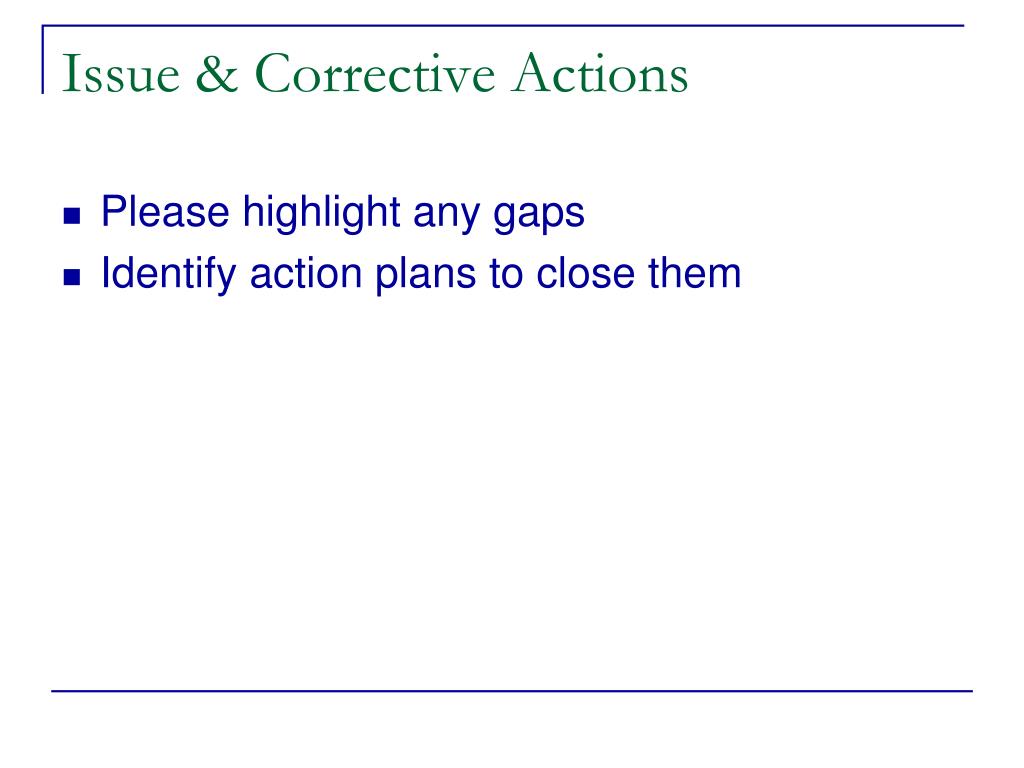

  22. Issue & Corrective Actions • Please highlight any gaps • Identify action plans to close them
