Dynamic Programming

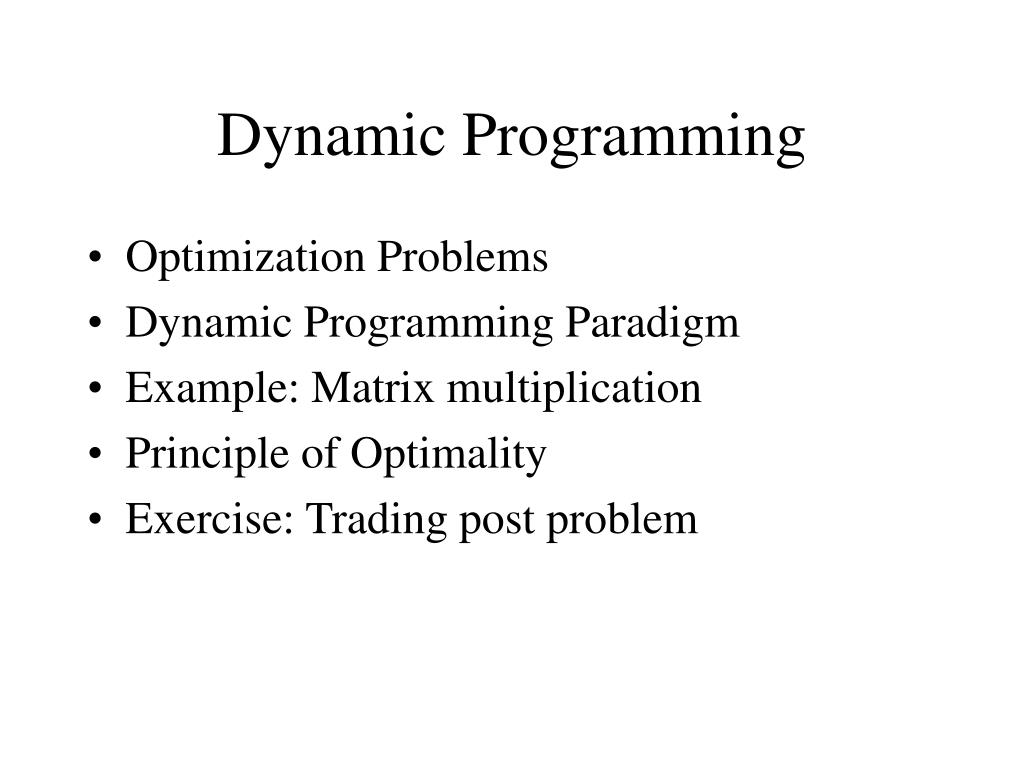

Dynamic Programming • Optimization Problems • Dynamic Programming Paradigm • Example: Matrix multiplication • Principle of Optimality • Exercise: Trading post problem

Optimization Problems • In an optimization problem, there are typically many feasible solutions for any input instance I • For each solution S, we have a cost or value function f(S) • Typically, we wish to find a feasible solution S such that f(S) is either minimized or maximized • Thus, when designing an algorithm to solve an optimization problem, we must prove the algorithm produces a best possible solution.

Example Problem You have six hours to complete as many tasks as possible, all of which are equally important. Task A - 2 hours Task D - 3.5 hours Task B - 4 hours Task E - 2 hours Task C - 1/2 hour Task F - 1 hour How many can you get done? • Is this a minimization or a maximization problem? • Give one example of a feasible but not optimal solution along with its associated value. • Give an optimal solution and its associated value.

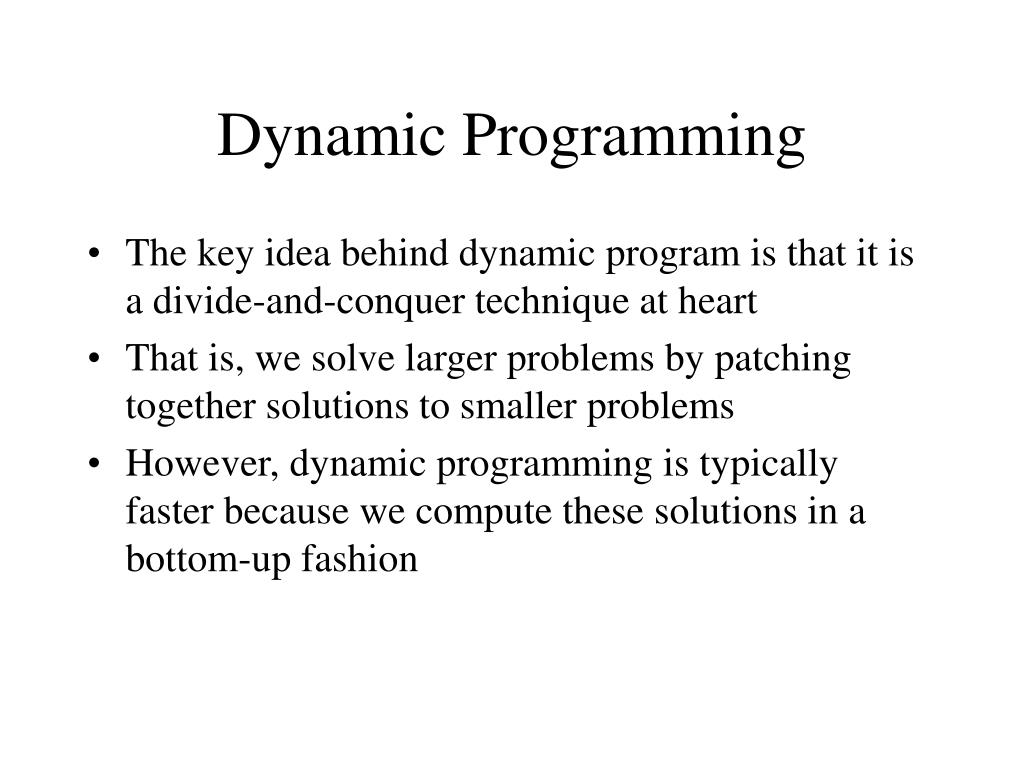

Dynamic Programming • The key idea behind dynamic program is that it is a divide-and-conquer technique at heart • That is, we solve larger problems by patching together solutions to smaller problems • However, dynamic programming is typically faster because we compute these solutions in a bottom-up fashion

Fibonacci numbers • F(n) = F(n-1) + F(n-2) • F(0) = 0 • F(1) = 1 • Top-down recursive computation is very inefficient • Many F(i) values are computed multiple times • Bottom-up computation is much more efficient • Compute F(2), then F(3), then F(4), etc. using stored values for smaller F(i) values to compute next value • Each F(i) value is computed just once

F(6) = 8 F(4) F(5) F(3) F(2) F(3) F(4) F(2) F(1) F(1) F(0) F(2) F(1) F(2) F(3) F(1) F(0) F(1) F(0) F(1) F(0) F(2) F(1) F(1) F(0) Recursive Computation F(n) = F(n-1) + F(n-2) ; F(0) = 0, F(1) = 1 Recursive Solution:

Bottom-up computation • We can calculate F(n) in linear time by storing small values. • F[0] = 0 • F[1] = 1 • for i = 2 to n • F[i] = F[i-1] + F[i-2] • return F[n] • Moral: We can sometimes trade space for time.

Key implementation steps • Identify subsolutions that may be useful in computing whole solution • Often need to introduce parameters • Develop a recurrence relation (recursive solution) • Set up the table of values/costs to be computed • The dimensionality is typically determined by the number of parameters • The number of values should be polynomial • Determine the order of computation of values • Backtrack through the table to obtain complete solution (not just solution value)

Example: Matrix Multiplication • Input • List of n matrices to be multiplied together using traditional matrix multiplication • The dimensions of the matrices are sufficient • Task • Compute the optimal ordering of multiplications to minimize total number of scalar multiplications performed • Observations: • Multiplying an X  Y matrix by a Y  Z matrix takes X  Y  Z multiplications • Matrix multiplication is associative but not commutative

Example Input • Input: • M1, M2, M3, M4 • M1: 13 x 5 • M2: 5 x 89 • M3: 89 x 3 • M4: 3 x 34 • Feasible solutions and their values • ((M1 M2) M3) M4:10,582 scalar multiplications • (M1 M2) (M3 M4): 54,201 scalar multiplications • (M1 (M2 M3)) M4: 2856 scalar multiplications • M1 ((M2 M3) M4): 4055 scalar multiplications • M1 (M2 (M3 M4)): 26,418 scalar multiplications

Identify subsolutions • Often need to introduce parameters • Define dimensions to be (d0, d1, …, dn) where matrix Mi has dimensions di-1 x di • Let M(i,j) be the matrix formed by multiplying matrices Mi through Mj • Define C(i,j) to be the minimum cost for computing M(i,j)

Develop a recurrence relation • Definitions • M(i,j): matrices Mi through Mj • C(i,j): the minimum cost for computing M(i,j) • Recurrence relation for C(i,j) • C(i,i) = ??? • C(i,j) = ??? • Want to express C(i,j) in terms of “smaller” C terms

Set up table of values • Table • The dimensionality is typically determined by the number of parameters • The number of values should be polynomial

Order of Computation of Values • Many orders are typically ok. • Just need to obey some constraints • What are valid orders for this table?

Representing optimal solution P(i,j) records the intermediate multiplication k used to compute M(i,j). That is, P(i,j) = k if last multiplication was M(i,k) M(k+1,j)

Pseudocode • int MatrixOrder() • forall i, j C[i, j] = 0; • for j = 2 to n • for i = j-1 to 1 • C(i,j) = mini<=k<=j-1 (C(i,k)+ C(k+1,j) + di-1dkdj) • P[i, j]=k; • return C[1, n];

Backtracking • Procedure ShowOrder(i, j) • if (i=j) write ( “Ai”) ; • else • k = P [ i, j ] ; • write “ ( ” ; • ShowOrder(i, k) ; • write “  ” ; • ShowOrder (k+1, j) ; • write “)” ;

Principle of Optimality • In book, this is termed “Optimal substructure” • An optimal solution contains within it optimal solutions to subproblems. • More detailed explanation • Suppose solution S is optimal for problem P. • Suppose we decompose P into P1 through Pk and that S can be decomposed into pieces S1 through Sk corresponding to the subproblems. • Then solution Si is an optimal solution for subproblem Pi

Example 1 • Matrix Multiplication • In our solution for computing matrix M(1,n), we have a final step of multiplying matrices M(1,k) and M(k+1,n). • Our subproblems then would be to compute M(1,k) and M(k+1,n) • Our solution uses optimal solutions for computing M(1,k) and M(k+1,n) as part of the overall solution.

Example 2 • Shortest Path Problem • Suppose a shortest path from s to t visits u • We can decompose the path into s-u and u-t. • The s-u path must be a shortest path from s to u, and the u-t path must be a shortest path from u to t • Conclusion: dynamic programming can be used for computing shortest paths

Example 3 • Longest Path Problem • Suppose a longest path from s to t visits u • We can decompose the path into s-u and u-t. • Is it true that the s-u path must be a longest path from s to u? • Conclusion?

Example 4: The Traveling Salesman Problem What recurrence relation will return the optimal solution to the Traveling Salesman Problem? If T(i) is the optimal tour on the first i points, will this help us in solving larger instances of the problem? Can we set T(i+1) to be T(i) with the additional point inserted in the position that will result in the shortest path?

T(4) T(5) Shortest Tour No!

Summary of bad examples • There almost always is a way to have the optimal substructure if you expand your subproblems enough • For longest path and TSP, the number of subproblems grows to exponential size • This is not useful as we do not want to compute an exponential number of solutions

When is dynamic programming effective? • Dynamic programming works best on objects that are linearly ordered and cannot be rearranged • characters in a string • files in a filing cabinet • points around the boundary of a polygon • the left-to-right order of leaves in a search tree. • Whenever your objects are ordered in a left-to-right way, dynamic programming must be considered.

Efficient Top-Down Implementation • We can implement any dynamic programming solution top-down by storing computed values in the table • If all values need to be computed anyway, bottom up is more efficient • If some do not need to be computed, top-down may be faster

Trading Post Problem • Input • n trading posts on a river • R(i,j) is the cost for renting at post i and returning at post j for i < j • Note, cannot paddle upstream so i < j • Task • Output minimum cost route to get from trading post 1 to trading post n

Longest Common Subsequence Problem • Given 2 strings S and T, a common subsequence is a subsequence that appears in both S and T. • The longest common subsequence problem is to find a longest common subsequence (lcs) of S and T • subsequence: characters need not be contiguous • different than substring • Can you use dynamic programming to solve the longest common subsequence problem?

Longest Increasing Subsequence Problem • Input: a sequence of n numbers x1, x2, …, xn. • Task: Find the longest increasing subsequence of numbers • subsequence: numbers need not be contiguous • Can you use dynamic programming to solve the longest common subsequence problem?

Book Stacking Problem • Input • n books with heights hi and thicknesses ti • length of shelf L • Task • Assignment of books to shelves minimizing sum of heights of tallest book on each shelf • books must be stored in order to conform to catalog system (i.e. books on first shelf must be 1 through i, books on second shelf i+1 through k, etc.)
