Doubly linked list

Doubly linked list. The linear linked list is accessed from the first node each time we want to insert or delete an item. To minimize the amount of time needed to access the list items we use doubly linked list. So that the list can be accessed in both directions.

jaimie
Télécharger la présentation

Doubly linked list

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Doubly linked list • The linear linked list is accessed from the first node each time we want to insert or delete an item. To minimize the amount of time needed to access the list items we use doubly linked list. So that the list can be accessed in both directions. • An item of the doubly linked list is defined as: struct item{ int val; // could be any type struct item *next, *previous; } NODEPTR *item; Data Structures: Doubly Linked List

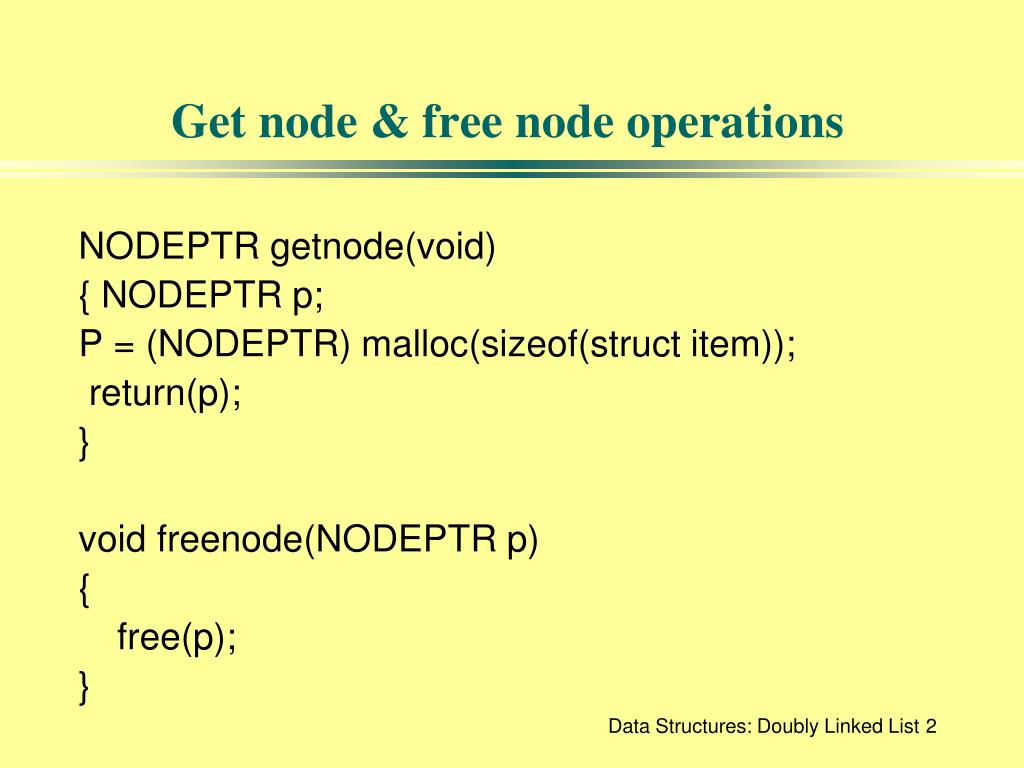

  2. Get node & free node operations NODEPTR getnode(void) { NODEPTR p; P = (NODEPTR) malloc(sizeof(struct item)); return(p); } void freenode(NODEPTR p) { free(p); } Data Structures: Doubly Linked List

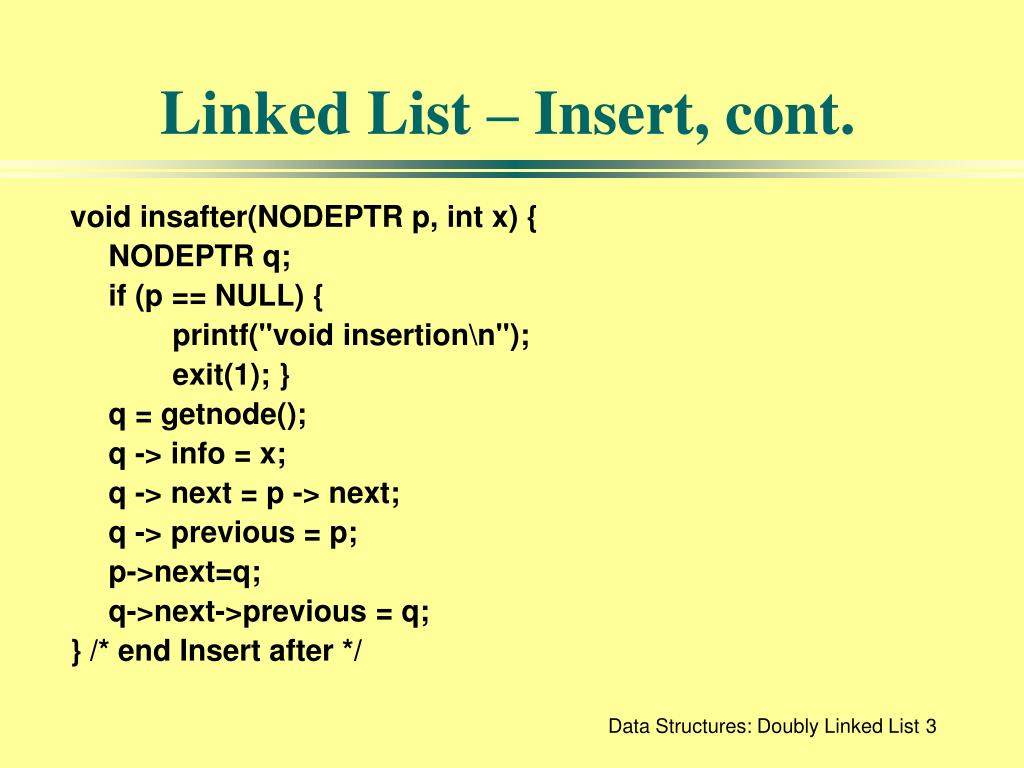

  3. Linked List – Insert, cont. void insafter(NODEPTR p, int x) { NODEPTR q; if (p == NULL) { printf("void insertion\n"); exit(1); } q = getnode(); q -> info = x; q -> next = p -> next; q -> previous = p; p->next=q; q->next->previous = q; } /* end Insert after */ Data Structures: Doubly Linked List

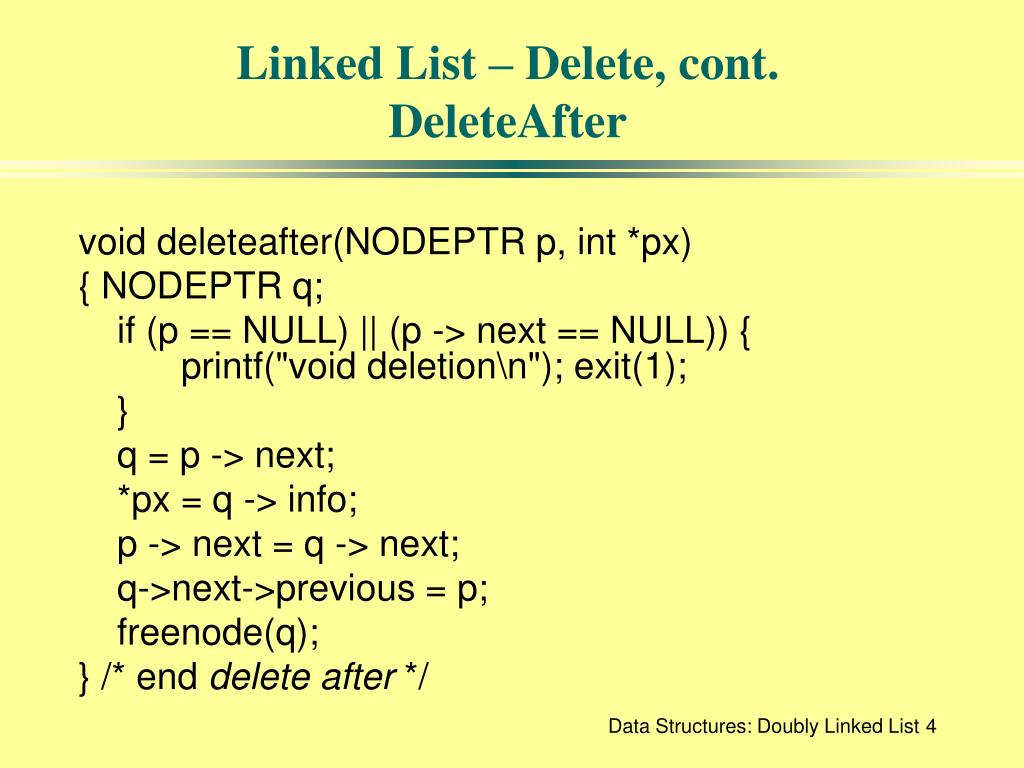

  4. Linked List – Delete, cont.DeleteAfter void deleteafter(NODEPTR p, int *px) { NODEPTR q; if (p == NULL) || (p -> next == NULL)) { printf("void deletion\n"); exit(1); } q = p -> next; *px = q -> info; p -> next = q -> next; q->next->previous = p; freenode(q); } /* end delete after */ Data Structures: Doubly Linked List

  5. Application: Sparse matrix • What is a sparse matrix? A matrix of most of its entries are zeros. • What is the size of memory for a matrix of size 100x100? • If there are many matrices? • Is there a way of representing the Sparse matrix? Data Structures: Doubly Linked List

  6. Sparse Matrix Representation • Each node must contain 5 fields: • Value • Row • Column • Next row • Next column • struct item { int val; int col, row; struct item *nextcol, *nextrow; }; • typedef item *NODEPTR; Data Structures: Doubly Linked List

  7. Create a new matrix Its size is: nxn NODEPTR create(int n) { int c, r; NODEPTR mp, cp, rp, p, q; mp = getnode(); mp->col = -1; mp->row = -1; mp->val = 0; mp->nextcol = mp; mp->nextrow = mp; p = mp; for(c=0; c<n ;c++) { q = getnode(); q->col= c; q->row =-1; q->val = 0; q->nextrow = q; p->nextcol= q; p = q; } p->nextcol = mp; p = mp; for(r=0; r < n; r++) { q = getnode(); q->row= r; q->col =-1; q->val = 0; q->nextcol = q; p->nextrow= q; p = q; } p->nextrow = mp; return mp; } Data Structures: Doubly Linked List

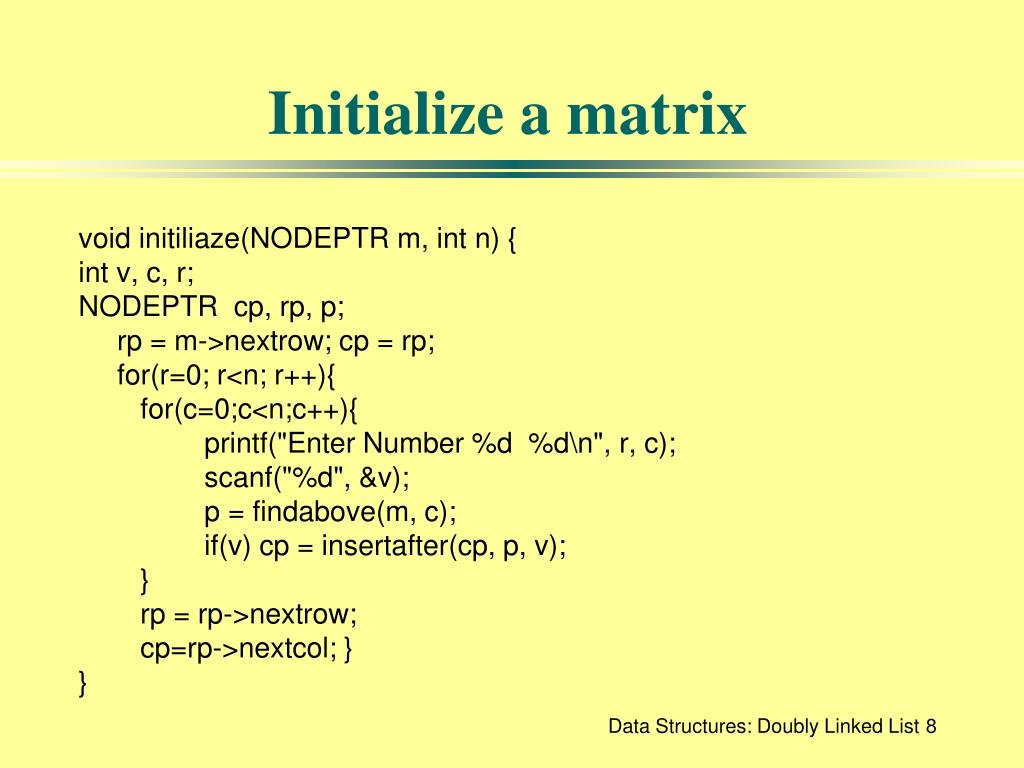

  8. Initialize a matrix void initiliaze(NODEPTR m, int n) { int v, c, r; NODEPTR cp, rp, p; rp = m->nextrow; cp = rp; for(r=0; r<n; r++){ for(c=0;c<n;c++){ printf("Enter Number %d %d\n", r, c); scanf("%d", &v); p = findabove(m, c); if(v) cp = insertafter(cp, p, v); } rp = rp->nextrow; cp=rp->nextcol; } } Data Structures: Doubly Linked List

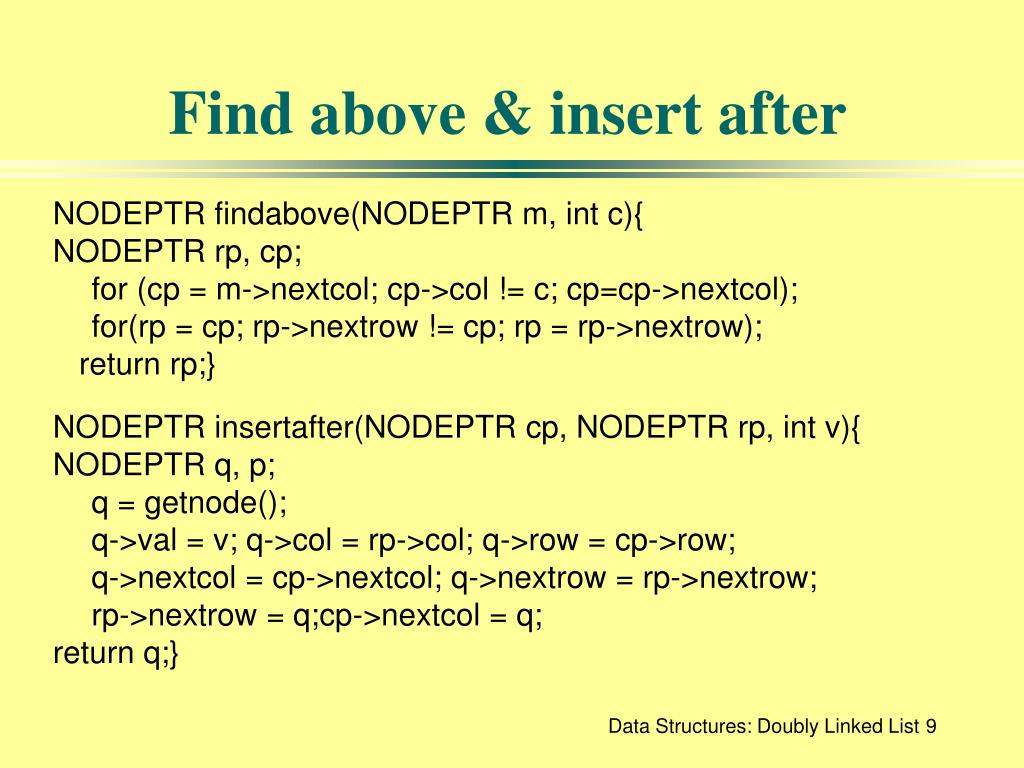

  9. Find above & insert after NODEPTR findabove(NODEPTR m, int c){ NODEPTR rp, cp; for (cp = m->nextcol; cp->col != c; cp=cp->nextcol); for(rp = cp; rp->nextrow != cp; rp = rp->nextrow); return rp;} NODEPTR insertafter(NODEPTR cp, NODEPTR rp, int v){ NODEPTR q, p; q = getnode(); q->val = v; q->col = rp->col; q->row = cp->row; q->nextcol = cp->nextcol; q->nextrow = rp->nextrow; rp->nextrow = q;cp->nextcol = q; return q;} Data Structures: Doubly Linked List

  10. Add function void add(NODEPTR m1, NODEPTR m2, NODEPTR m) { NODEPTR q1, p1, q2, p2, q, p; int v; for(p1=m1->nextrow,p2=m2->nextrow,p=m->nextrow; p1!= m1 && p2 != m2; p1=p1->nextrow,p2=p2->nextrow, p=p->nextrow) {for (q1=p1->nextcol,q2=p2->nextcol, q=p->nextcol; p1!=q1 && p2!=q2; ) if (q1->col == q2->col){q=insertafter(q, findabove(m, q1->col),q1->val+q2->val); q1=q1->nextcol; q2=q2->nextcol;} else if (q1->col < q2->col) {q=insertafter(q, findabove(m, q1->col),q1->val); q1=q1->nextcol;} else if (q1->col > q2->col) {q=insertafter(q, findabove(m, q2->col),q2->val); q2=q2->nextcol;} while (p1!=q1) { q=insertafter(q, findabove(m, q1->col),q1->val); q1=q1->nextcol;} while(p2!=q2) { q=insertafter(q, findabove(m, q2->col),q2->val); q2=q2->nextcol; } } } Data Structures: Doubly Linked List

  11. The print function void print(NODEPTR m, int n) { int v, c, r; NODEPTR cp, rp, p; p = m->nextrow; cp = p->nextcol; for(r=0; r<n; r++){ for(c=0;c<n;c++){ if (cp->col == c) {printf("%d ", cp->val); cp=cp->nextcol;} else printf("%d ",0); } p = p->nextrow; cp = p->nextcol; printf("\n"); } } Data Structures: Doubly Linked List
