  1. HOLOGRAPHIC INFORMATIONSTORAGE Ecma/GA/2004/51 The Challenge of Breaking the 1 Terabyte Small Form Factor, Removable Media Barrier Yoshio Aoki President and CEO and CEO Yoshio Aoki, President and CEO The Technology Advantage March 11th, 2004 Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 1

  2. HOLOGRAPHIC INFORMATIONSTORAGE • DO WE NEED MORE CAPACITY ? • In 2002, around 500 million optical drives and 13 billion disks were sold. • In 2002, approx. 5 Exa­bytes (1EB = 1018 bytes) of unique information per year were produced, equivalent to 800 megabytes for every man, woman, and child on earth. • Digital storage requirements growing at roughly 100% per annum; Development towards an all digital era. Presented by THOMSON at the Photonics Europe 2004 conference in Strassbourg, 2004 April YES ! Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 2

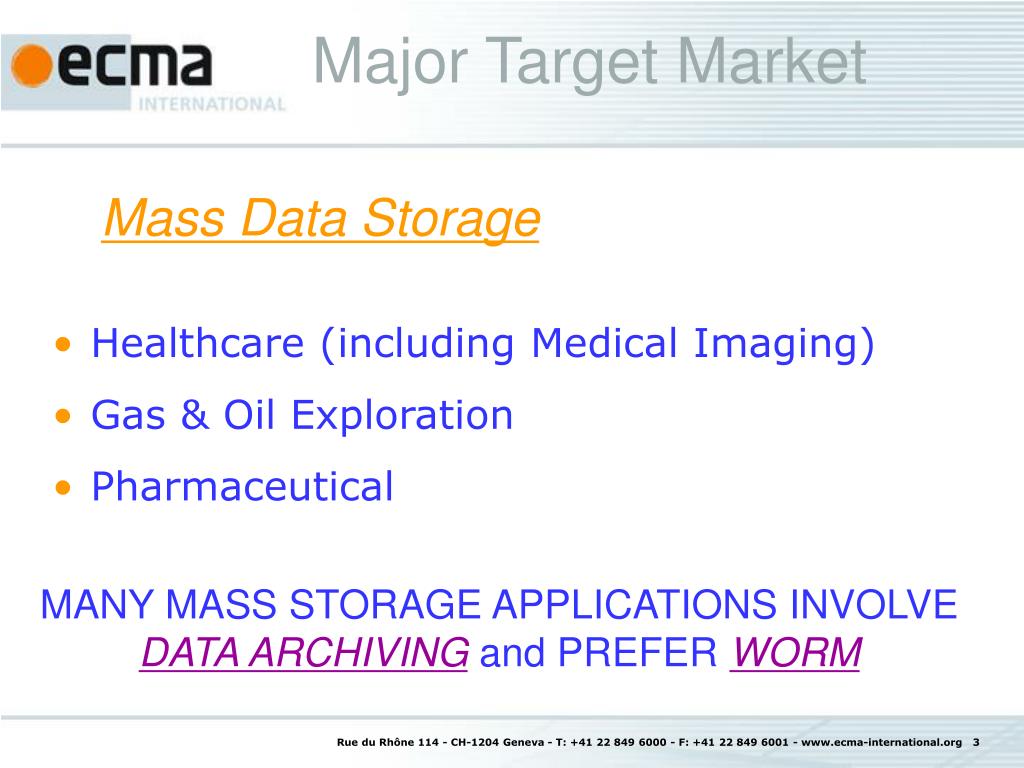

  3. Major Target Market • Healthcare (including Medical Imaging) • Gas & Oil Exploration • Pharmaceutical Mass Data Storage MANY MASS STORAGE APPLICATIONS INVOLVE DATA ARCHIVING and PREFER WORM Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 3

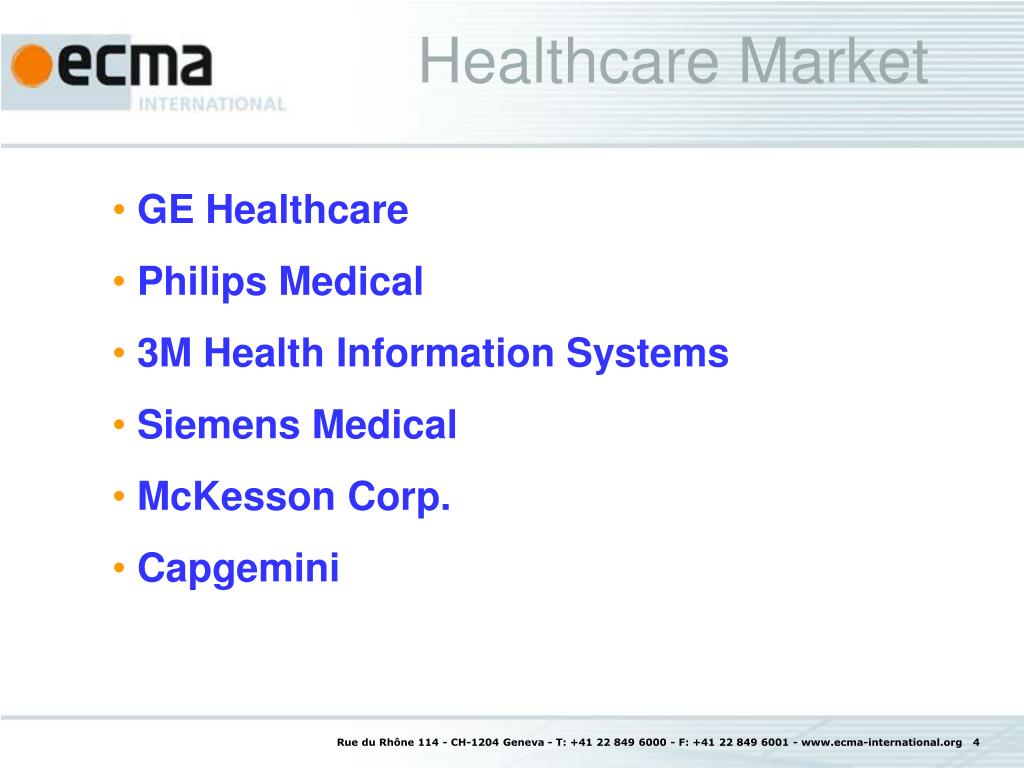

  4. Healthcare Market • GE Healthcare • Philips Medical • 3M Health Information Systems • Siemens Medical • McKesson Corp. • Capgemini Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 4

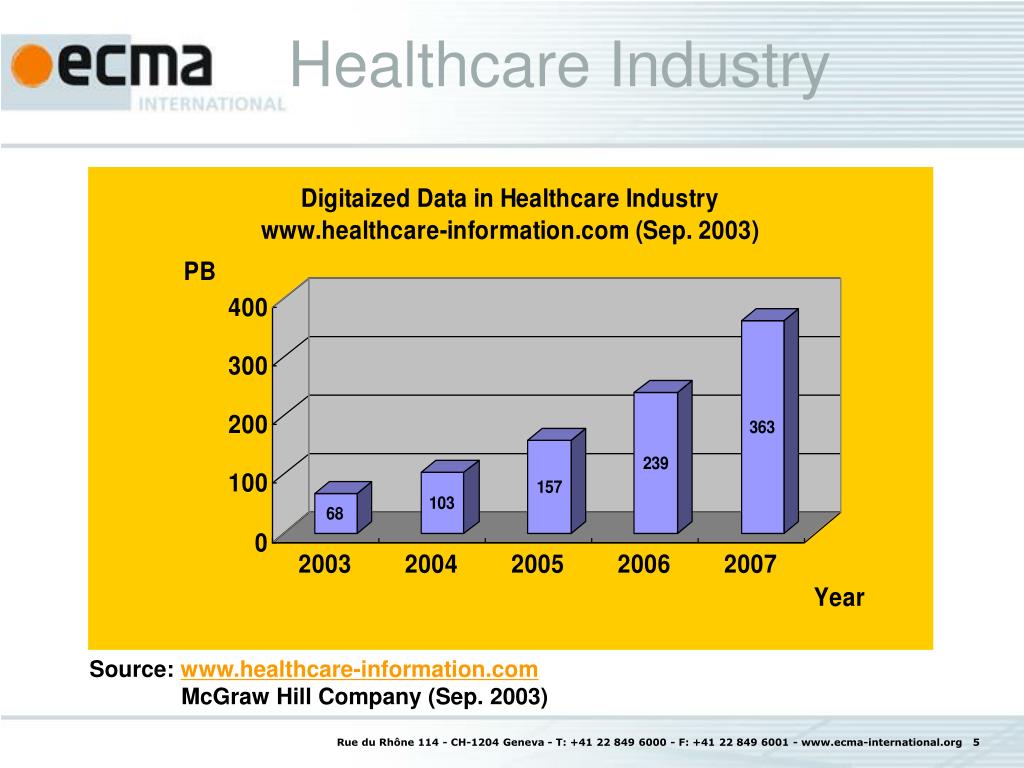

  5. Healthcare Industry Source: www.healthcare-information.comMcGraw Hill Company (Sep. 2003) Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 5

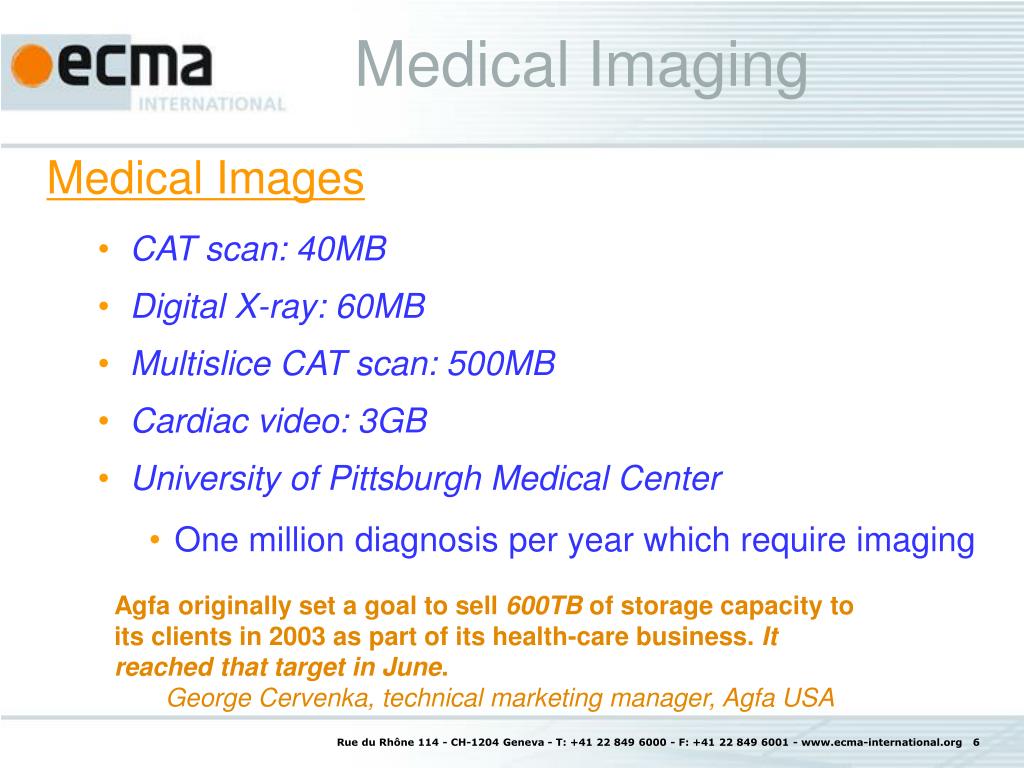

  6. Medical Imaging • Medical Images • CAT scan: 40MB • Digital X-ray: 60MB • Multislice CAT scan: 500MB • Cardiac video: 3GB • University of Pittsburgh Medical Center • One million diagnosis per year which require imaging • Agfa originally set a goal to sell 600TB of storage capacity to its clients in 2003 as part of its health-care business. It reached that target in June. • George Cervenka, technical marketing manager, Agfa USA Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 6

  7. Oil/Gas Exploration • Schlumberger • Shell Oil • Texaco • Belco Oil & Gas • Gulf Oil • British Petroleum Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 7

  8. Pharmaceuticals • Pfizer (US) • Glaxo Smith Kline (UK) • Sanofi-Synthélabo (France) • Roche (Switzerland ) • Bayer (Germany) • Bristol-Meyer (US) : 300TB~500TB/year Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 8

  9. Other Markets • Bioinformatics/Proteomics • Homeland Security • Arial Imaging (Geospatial) • Simulation & Modeling • Animation • Video Gaming • Broadcasting Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 9

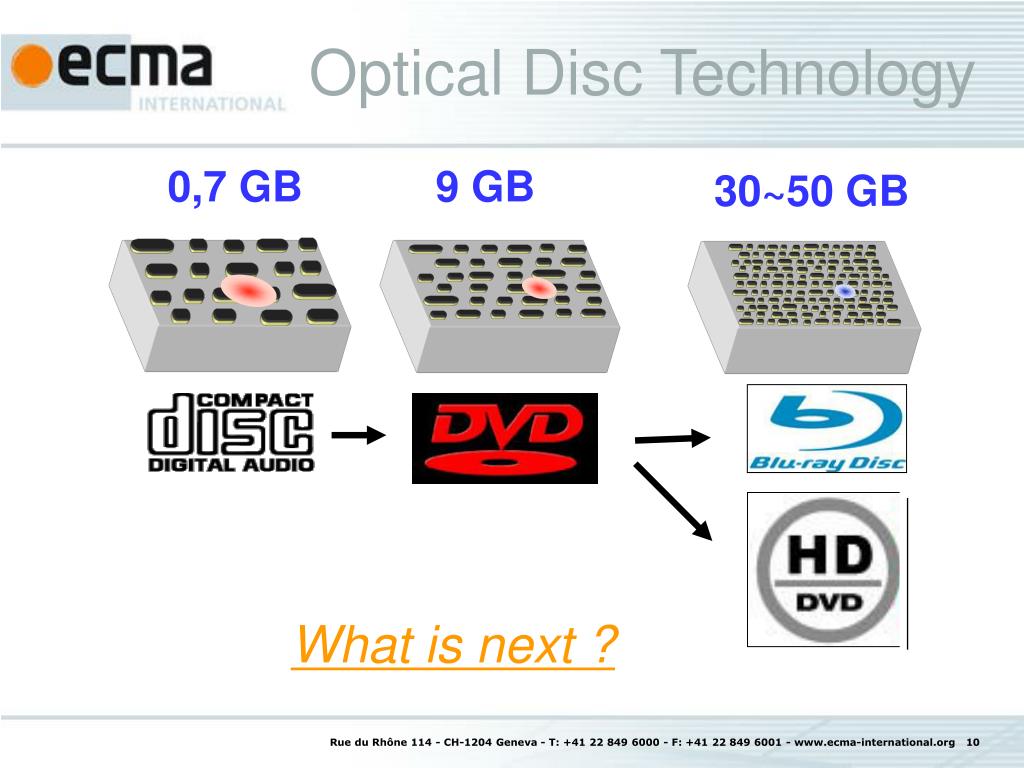

  10. Optical Disc Technology 0,7 GB 9 GB 30~50 GB What is next ? Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 10

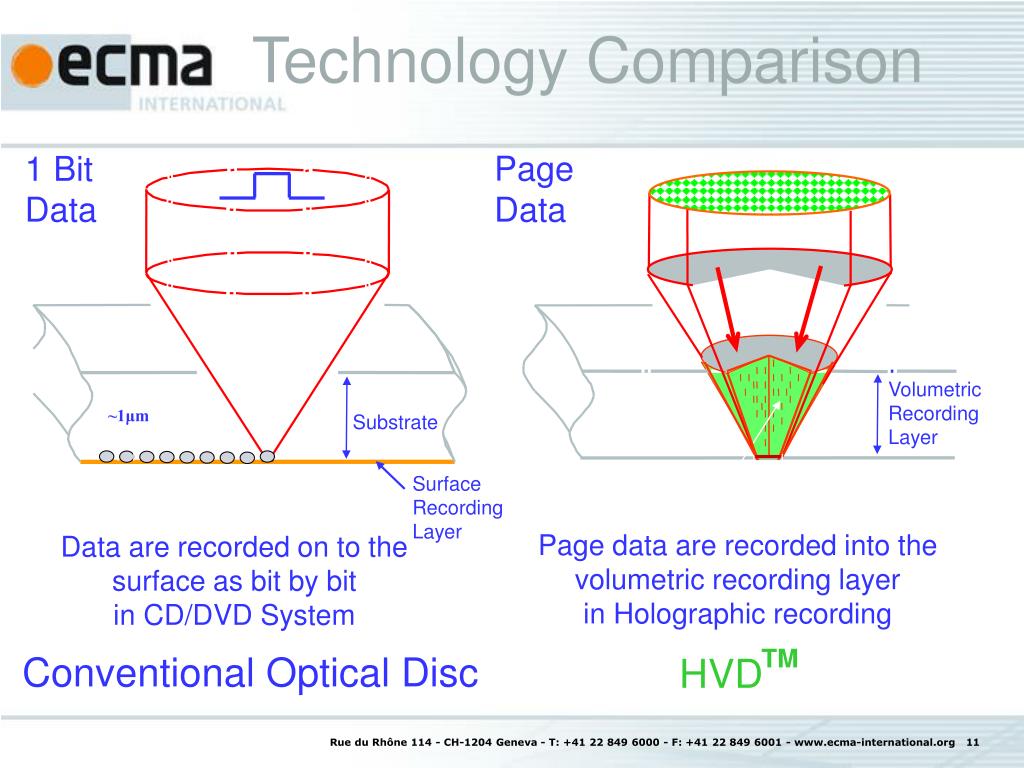

  11. Technology Comparison Page Data 1 Bit Data Volumetric RecordingLayer ~1μm Substrate Surface Recording Layer Page data are recorded into the volumetric recording layer in Holographic recording Data are recorded on to the surface as bit by bit in CD/DVD System TM Conventional Optical Disc HVD Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 11

  12. Data Transfer Rate 100G 10G HIS 1G HDD 100M Data Transfer Rate, bits/sec Blu-ray HD DVD Tape 10M DVD 1M 0.1M 2015 1985 1990 1995 2000 2005 2010 AvailabilityYear Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 12

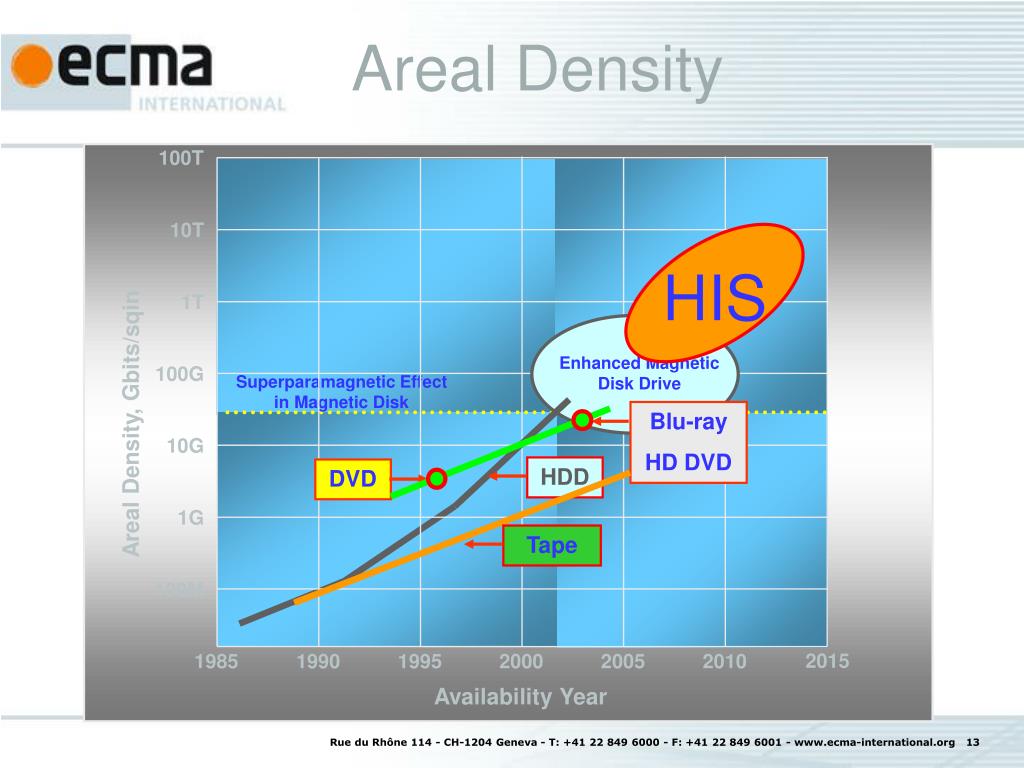

  13. Areal Density 100T 10T HIS 1T Enhanced Magnetic Disk Drive 100G Superparamagnetic Effectin Magnetic Disk Blu-ray HD DVD Areal Density, Gbits/sqin 10G HDD DVD 1G Tape 100M 2015 1985 1990 1995 2000 2005 2010 Availability Year Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 13

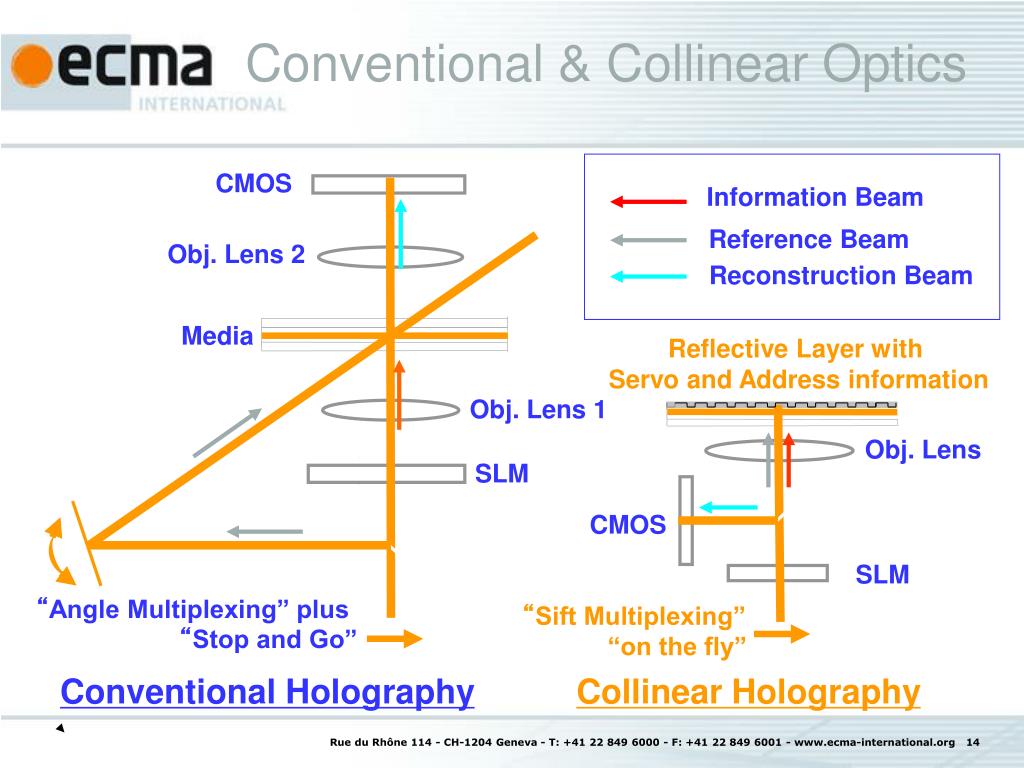

  14. Conventional & Collinear Optics CMOS Information Beam Reference Beam Obj. Lens 2 Reconstruction Beam Media Reflective Layer with Servo and Address information Obj. Lens 1 Disc Obj. Lens SLM CMOS ( SLM “Angle Multiplexing” plus “Sift Multiplexing” “on the fly” “Stop and Go” Conventional Holography Collinear Holography Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 14

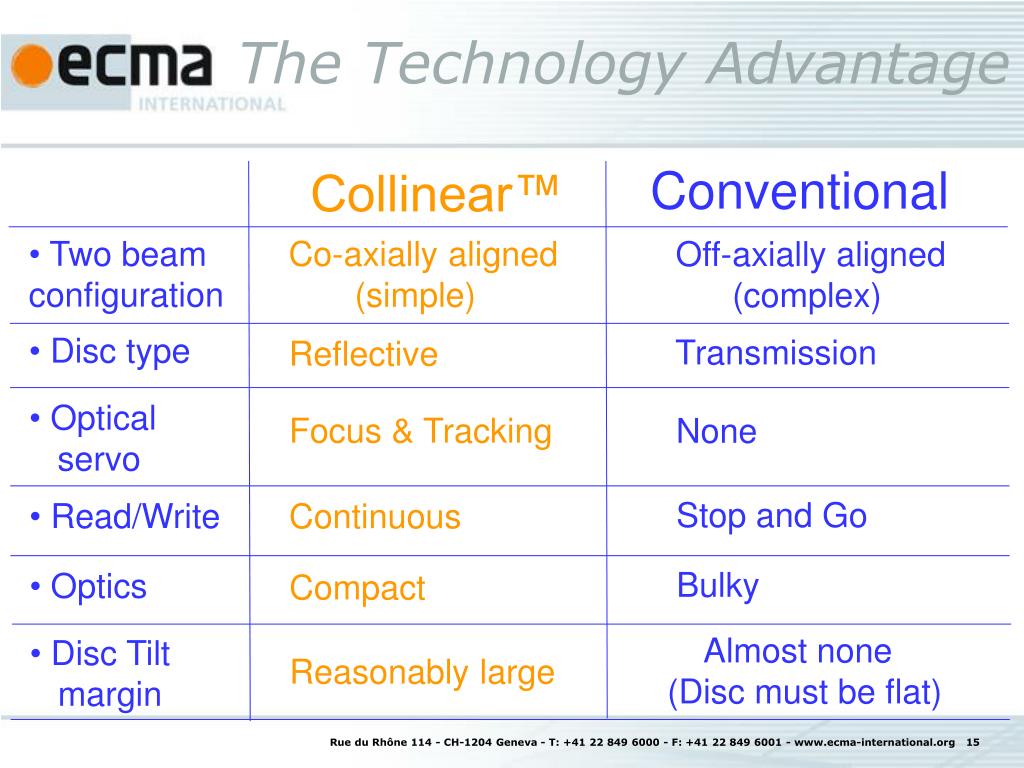

  15. The Technology Advantage Conventional Collinear™ • Two beam • configuration Co-axially aligned (simple) Off-axially aligned (complex) • Disc type Transmission Reflective • Optical • servo Focus & Tracking None Stop and Go • Read/Write Continuous Bulky • Optics Compact Almost none (Disc must be flat) • Disc Tilt • margin Reasonably large Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 15

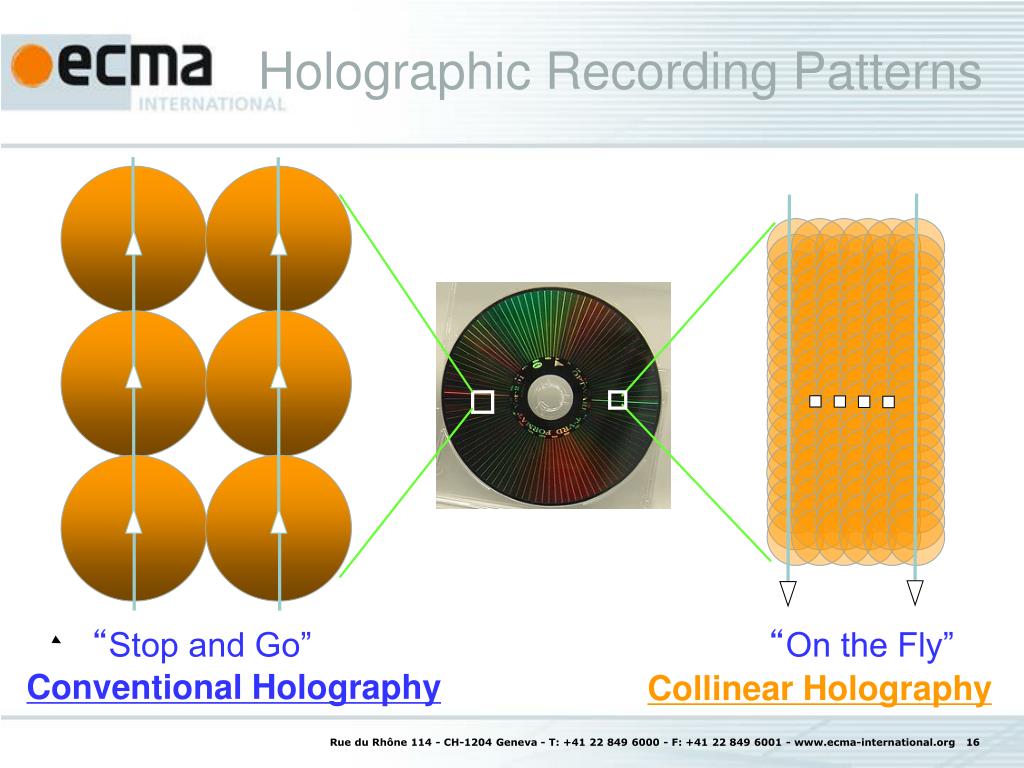

  16. Holographic Recording Patterns “Stop and Go” “On the Fly” Conventional Holography Collinear Holography Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 16

  17. Y X Shift:1μm pitch Shift multiplexing read/write can be done at 3μpitch Shift Characteristics Read-out Page Data 1μm 2μm 3μm Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 17

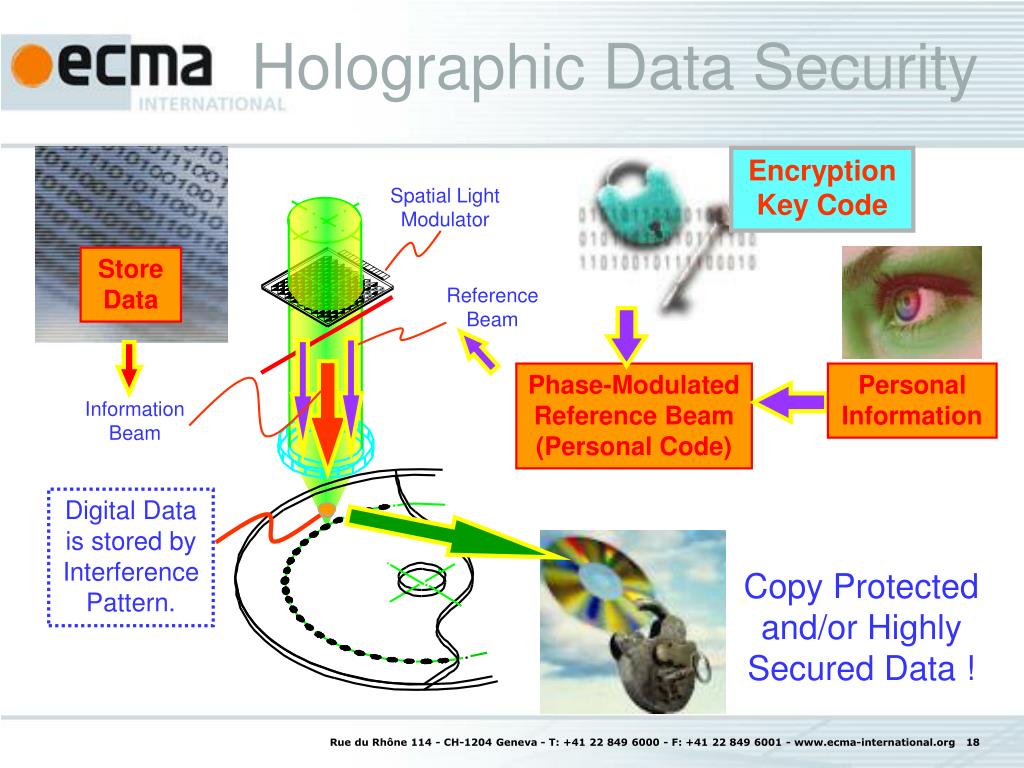

  18. Holographic Data Security Encryption Key Code Spatial Light Modulator Store Data Reference Beam Phase-Modulated Reference Beam (Personal Code) Personal Information Information Beam Digital Data is stored by Interference Pattern. Copy Protected and/or Highly Secured Data ! Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 18

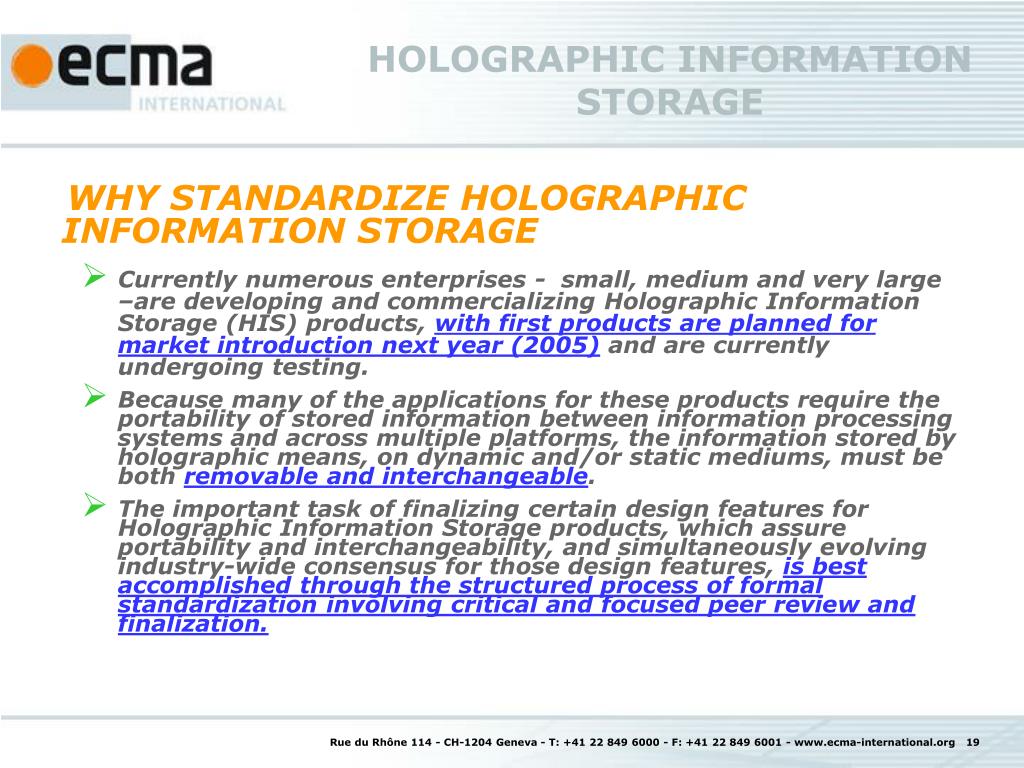

  19. HOLOGRAPHIC INFORMATIONSTORAGE • WHY STANDARDIZE HOLOGRAPHIC INFORMATION STORAGE • Currently numerous enterprises - small, medium and very large –are developing and commercializing Holographic Information Storage (HIS)products, with first products are planned for market introduction next year (2005) and are currently undergoing testing. • Because many of the applications for these products require the portability of stored information between information processing systems and across multiple platforms, the information stored by holographic means, on dynamic and/or static mediums, must be both removable and interchangeable. • The important task of finalizing certain design features for Holographic Information Storage products, which assure portability and interchangeability, and simultaneously evolving industry-wide consensus for those design features, is best accomplished through the structured process of formal standardization involving critical and focused peer review and finalization. Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 19

  20. WHO ARE SOME OF THE CURRENT PLAYERS (1) Fuji Photo Film Imation Toshiba Konica-Minolta Matsushita/Panasonic Memory-Tech Micron Mitsubishi Chemical Nippon Paint OPTWARE PulseTec Sony Toagosei Mitsui Chemical TDK THOMSON NHK Multi-Media Nippon Television Network Tokyo Broadcasting System Fuji Television Network TV Asahi Corporation TV Tokyo Corporation Warner Bros. Disney Universal Pioneer Sanyo JVC NEC InPhase Technologies Maxell Aprilis HOLOGRAPHIC INFORMATIONSTORAGE Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 20

  21. HOLOGRAPHIC INFORMATIONSTORAGE • WHO ARE SOME OF THE CURRENT PLAYERS (2) • Deutsche Thomson-Brandt GmbH • CEA-LETI • Moulage Plastique de l’Ouest • Optimal Optik • Toptica Photonics AG • RWTH Aachen • Darmstadt University of Technology • Budapest University of Technology and Economics • Technical University Berlin • Jenoptik LOS GmbH • Université d´ Angers • Universita Politecnica delle Marche • University of Technology and Economy Budapest Rue du Rhône 114 - CH-1204 Geneva - T: +41 22 849 6000 - F: +41 22 849 6001 - www.ecma-international.org 21
